  1. A Tcl/Tk script for displaying and maintaining an SQLite database, stored in an SQLite database GEB—SQLite in Tcl in SQLite

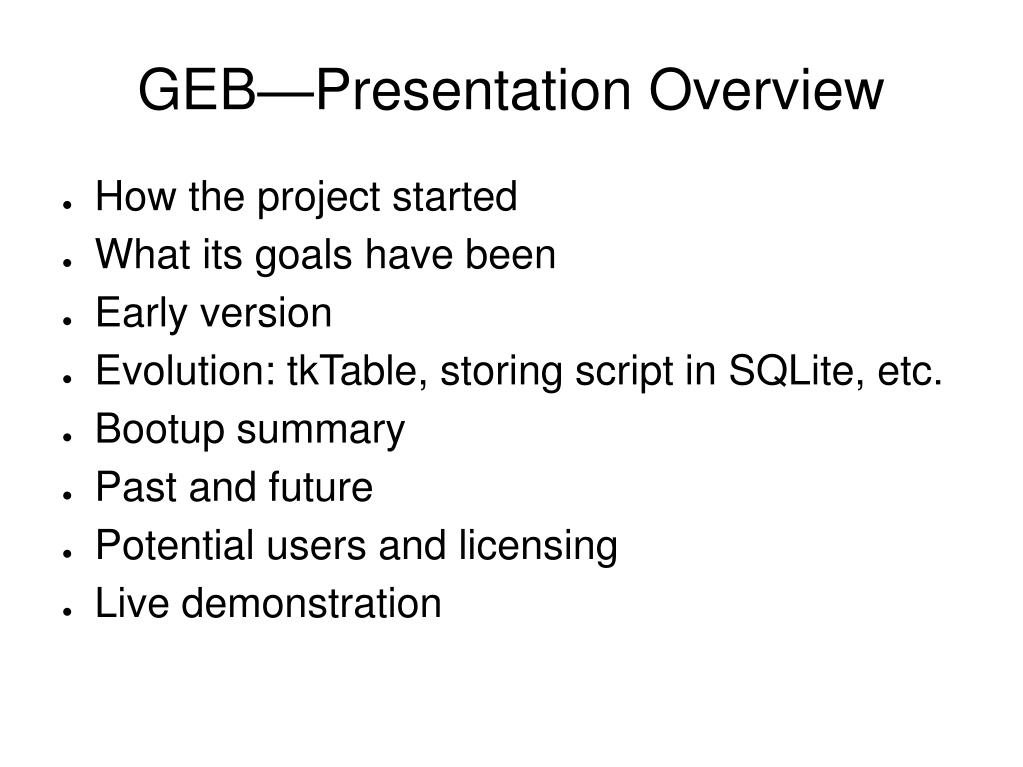

  2. GEB—Presentation Overview • How the project started • What its goals have been • Early version • Evolution: tkTable, storing script in SQLite, etc. • Bootup summary • Past and future • Potential users and licensing • Live demonstration

  3. GEB: (evolving) Design Goals • Reduce dependence on proprietary s/w and data formats (MS Access, dBase n) • Convenient scripting language, run on Linux and Windows • Develop single package for all my needs • View table/column names • View and edit table contents • Store/edit/execute Tcl/SQL code in the database • Store the program itself in the database • Add functions as the need arises (ongoing)

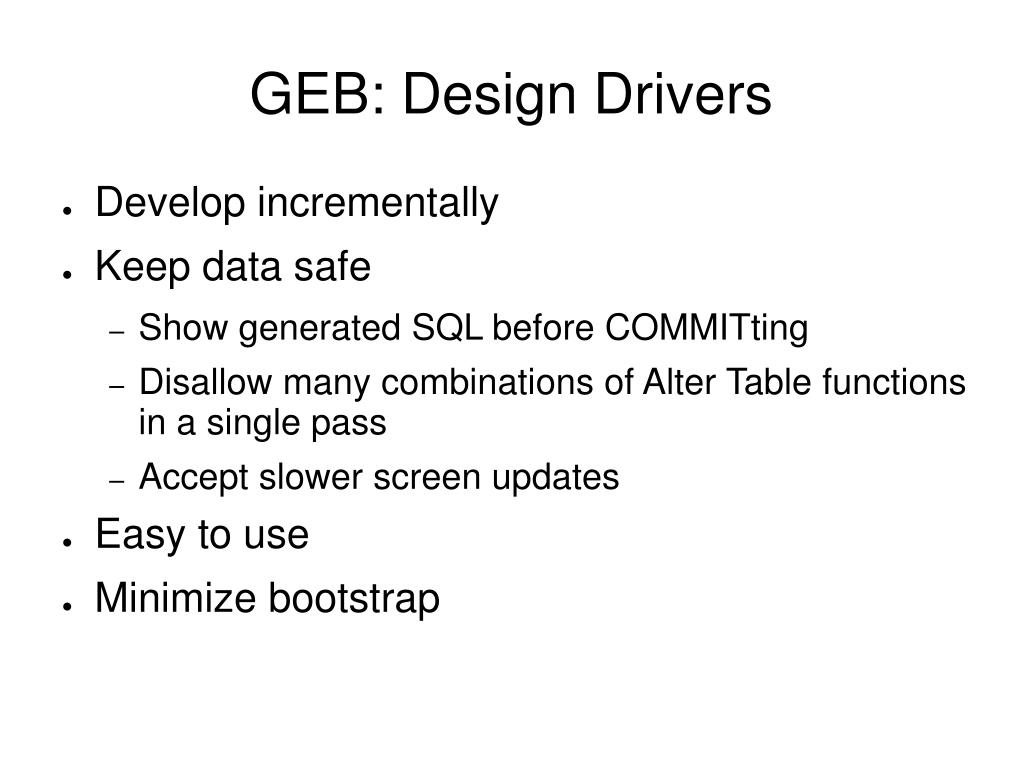

  4. GEB: Design Drivers • Develop incrementally • Keep data safe • Show generated SQL before COMMITting • Disallow many combinations of Alter Table functions in a single pass • Accept slower screen updates • Easy to use • Minimize bootstrap

  5. GEB: Pre-Tktable (top)

  6. GEB: Pre-Tktable (bottom)

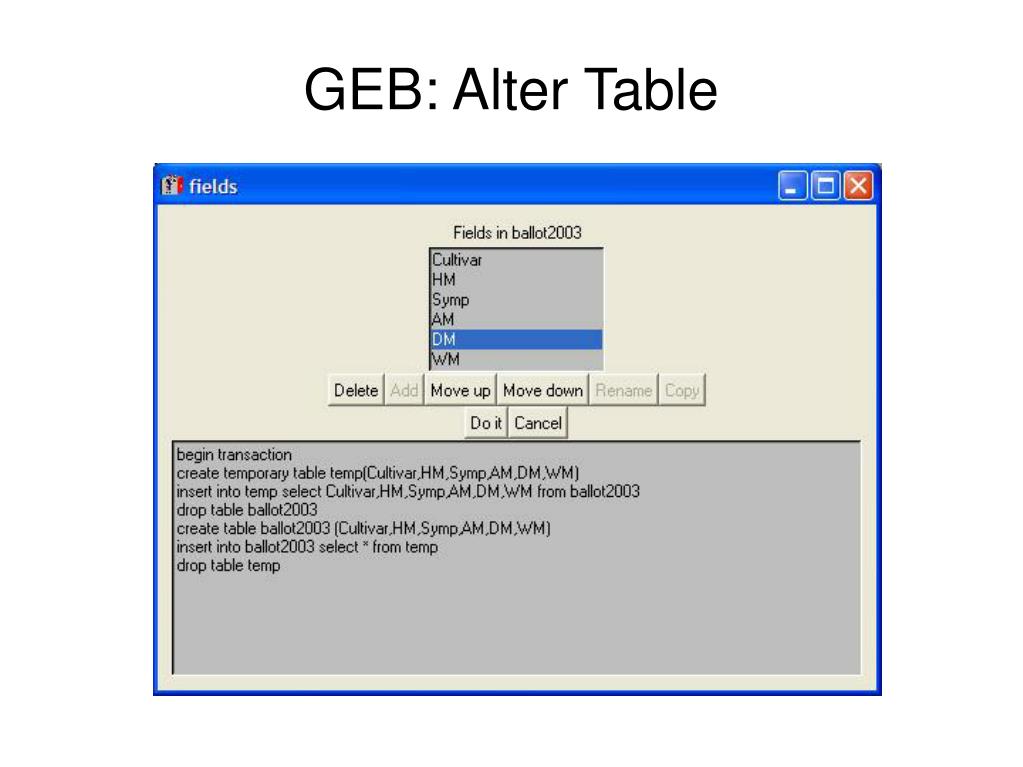

  7. GEB: Alter Table

  8. GEB: Pre-Tktable (edittable)

  9. GEB: Change to Tktable • Driven by desire to improve looks • Each table is editable, in its own window • Solved potential problem of displaying large databases • Each cell entry value from an individual SELECT • Safe but slower • Neither specific potential problem nor iron-clad bulletproofing has been found

  10. GEB: Main window

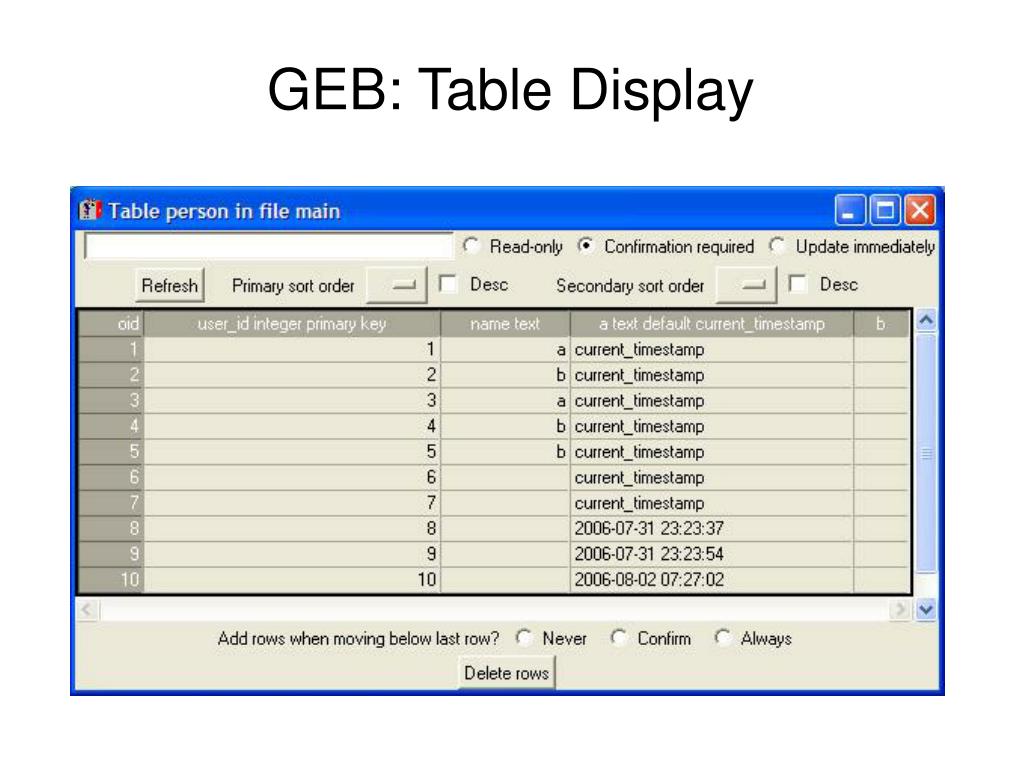

  11. GEB: Table Display

  12. GEB: Stand-alone Functions • Convert between v2 and v3 file formats • Import table from or export table to delimited file • First row can be column names or data • Imported data can have variable number of columns • Import db element from or export db element to text file (like ONECOLUMN method) • Execute a single line of SQL or Tcl

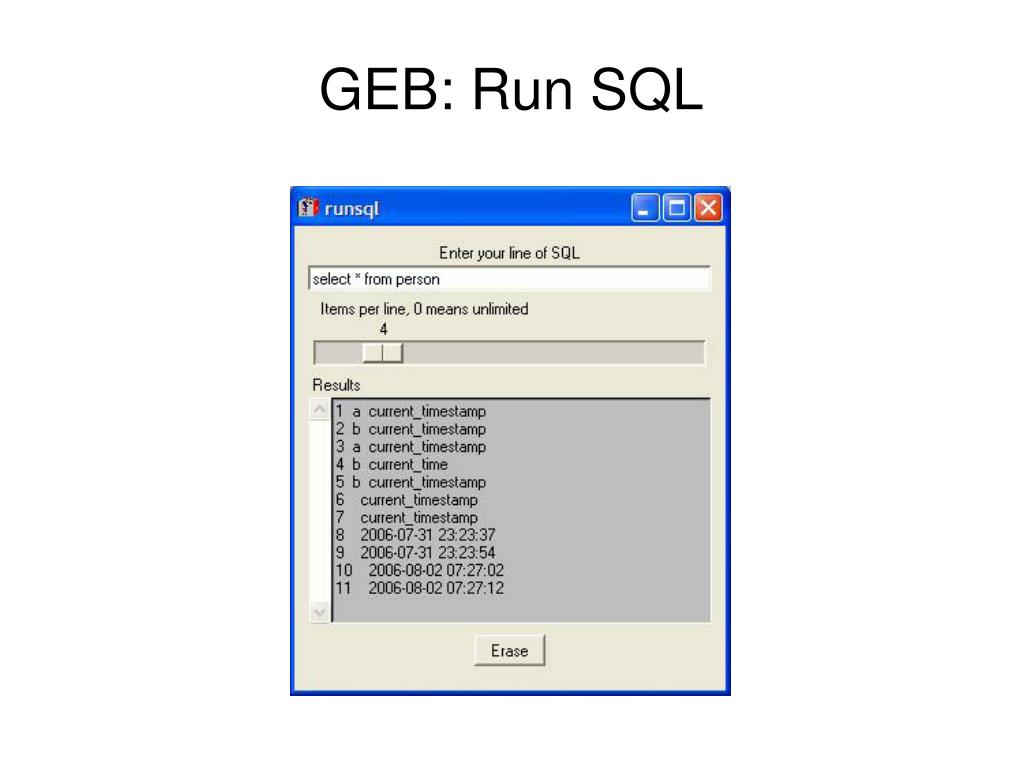

  13. GEB: Run SQL

  14. GEB: Decision to Put showtable in Database File • Inspired by the “Database as Program” section of DRH's “SQLite and Tcl” paper, but not an implementation of it • I wanted to put a functional block (the chief proc for a function and its supporting proc's) in one table • Can't put header and body in separate columns • Outside function can't call support proc unless its functional block is known to have been loaded

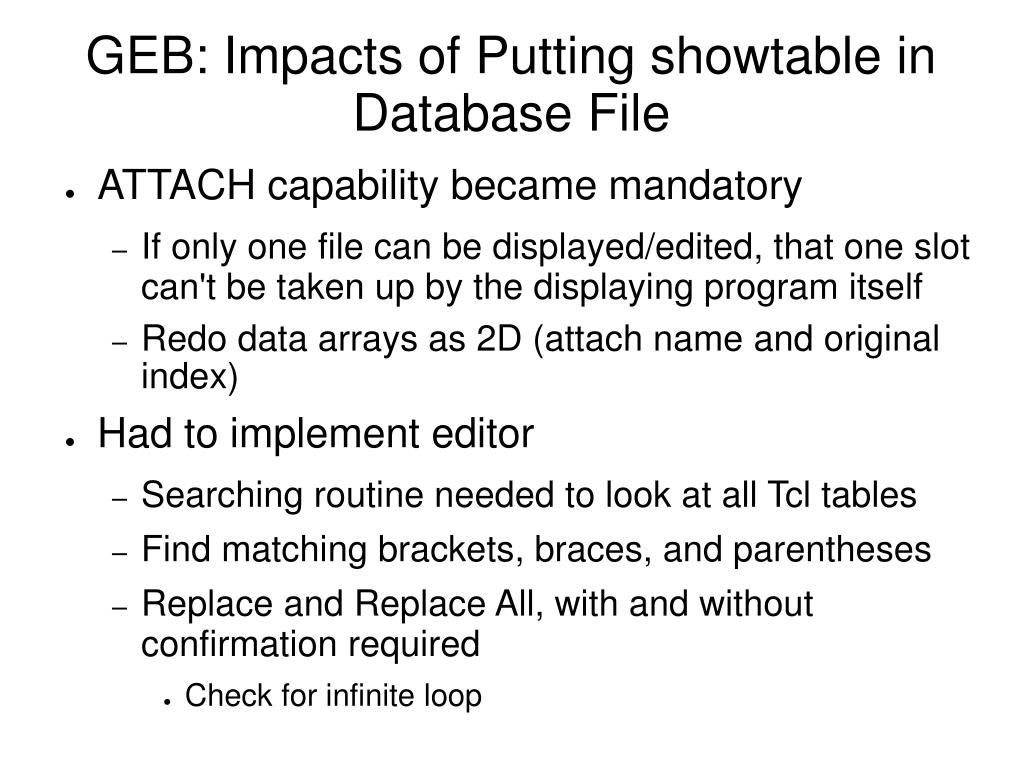

  15. GEB: Impacts of Putting showtable in Database File • ATTACH capability became mandatory • If only one file can be displayed/edited, that one slot can't be taken up by the displaying program itself • Redo data arrays as 2D (attach name and original index) • Had to implement editor • Searching routine needed to look at all Tcl tables • Find matching brackets, braces, and parentheses • Replace and Replace All, with and without confirmation required • Check for infinite loop

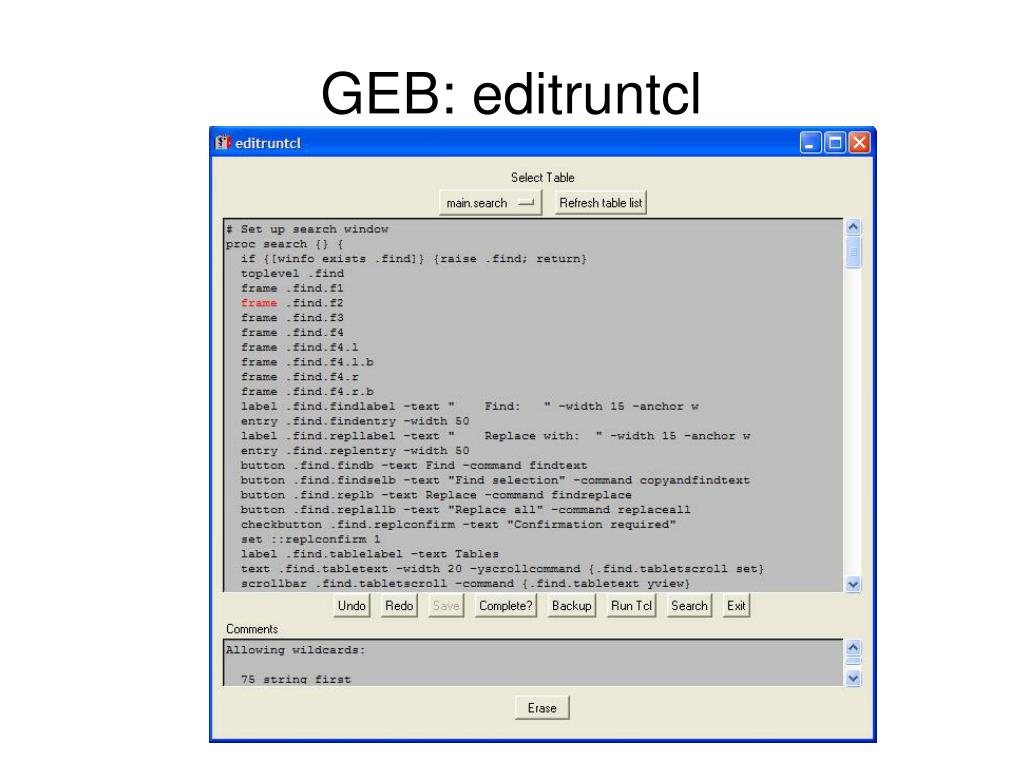

  16. GEB: editruntcl

  17. GEB: search

  18. GEB: Bootstrap • package require Tk; package require Tktable; console show • # Create namespace for all "globals" and procs • namespace eval ::GEB {} • load /sqlite/tclsqlite3.dll • load /sqlite/tclsqlite.dll • set dbfile showtable.sq3 • sqlite3 sq $dbfile • set ::GEB::attachfilename(main) $dbfile • proc evalsqlitetcl table { • uplevel #0 [join [sq eval "select tcl from $table limit 1"]] • } • evalsqlitetcl main_attach • editruntcl • # attachit s2008 /irisdata/2008symp/2008symp.sq3

  19. GEB: main_attach Overview • Read in core routines • Those needed before “unknown” is set up • Set up window and arrays for main file • Table names, columns in each table, etc. • Extend “unknown” proc handler to look in database file • If a table with the name of the needed proc exists, load it • If the loading defines the proc, execute it • Otherwise, exec original “unknown” handler

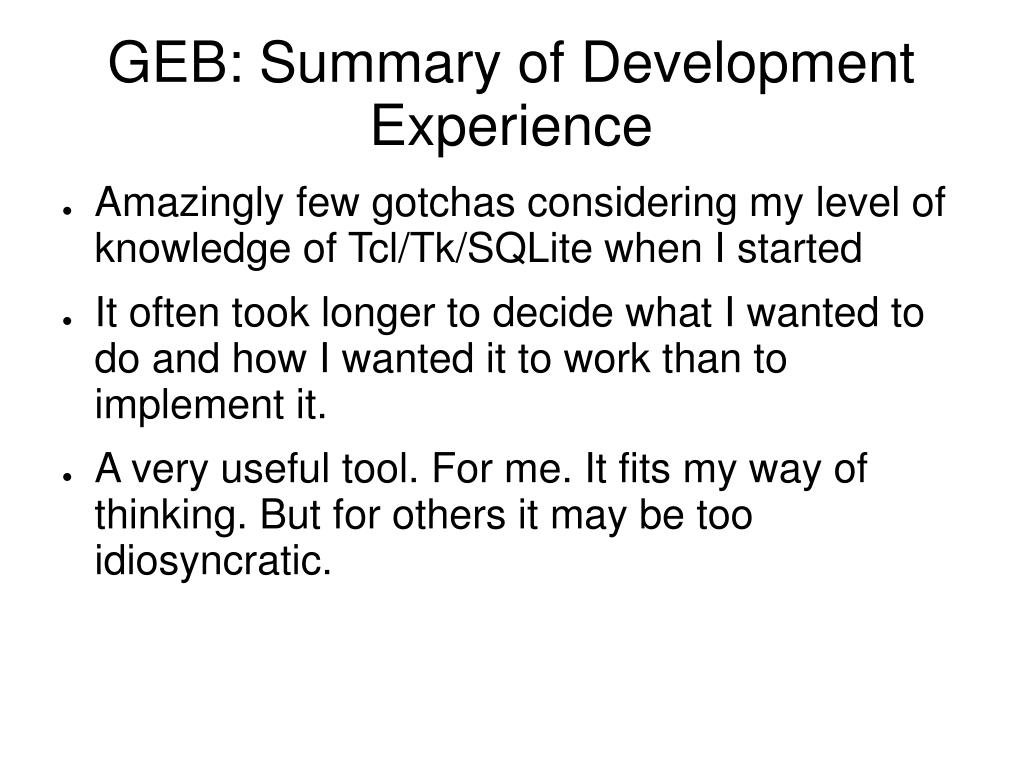

  20. GEB: Summary of Development Experience • Amazingly few gotchas considering my level of knowledge of Tcl/Tk/SQLite when I started • It often took longer to decide what I wanted to do and how I wanted it to work than to implement it. • A very useful tool. For me. It fits my way of thinking. But for others it may be too idiosyncratic.

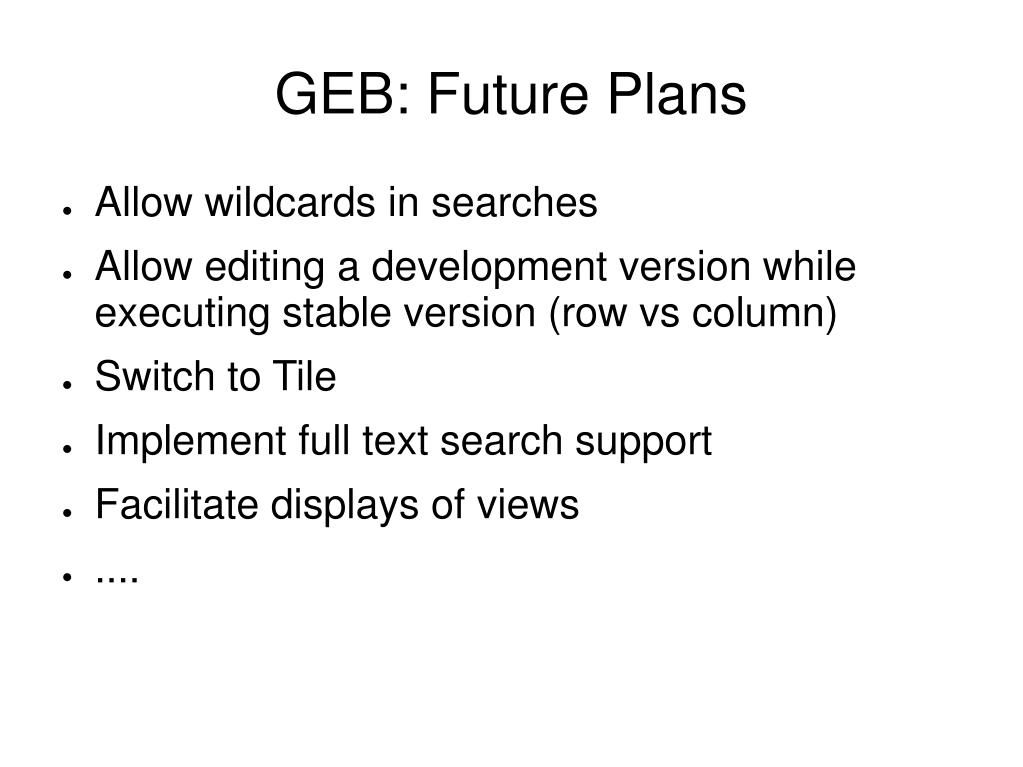

  21. GEB: Future Plans • Allow wildcards in searches • Allow editing a development version while executing stable version (row vs column) • Switch to Tile • Implement full text search support • Facilitate displays of views • ....

  22. GEB: Potential Users • One extreme: Tcl developer who does not care about SQLite • Conceivable, but many more facilities available elsewhere • Other extreme: SQLite user who does not care about Tcl • Slightly more reasonable, but again, other tools available • Happy medium: User with some data and some scripts, who wants to keep and use them together

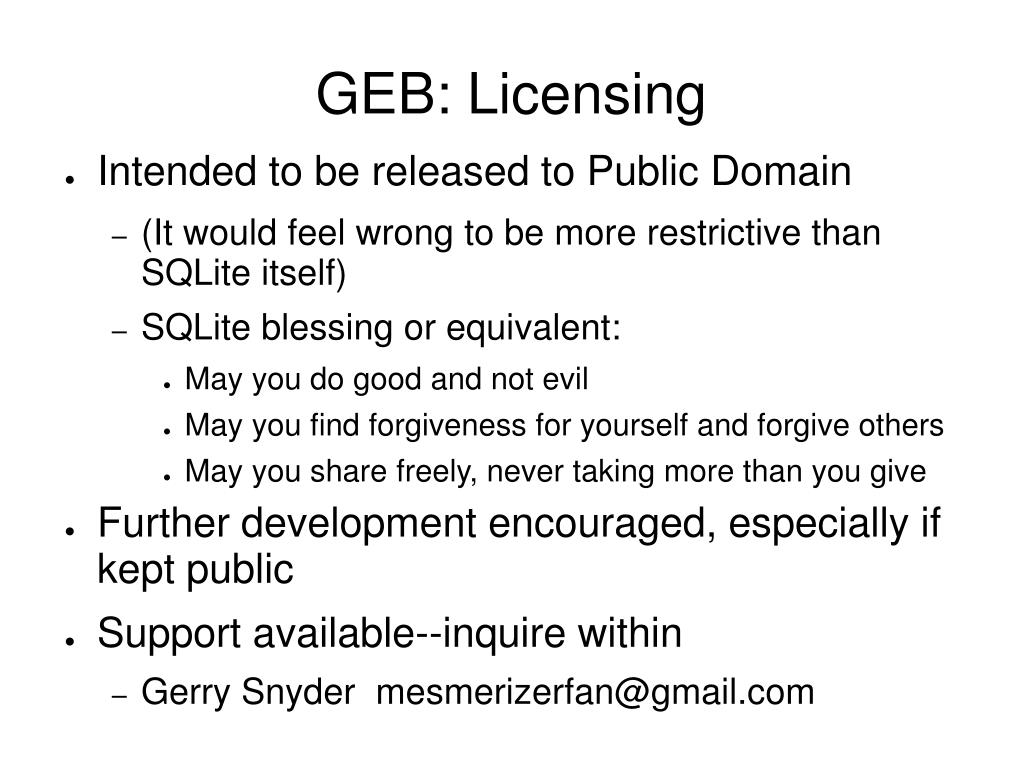

  23. GEB: Licensing • Intended to be released to Public Domain • (It would feel wrong to be more restrictive than SQLite itself) • SQLite blessing or equivalent: • May you do good and not evil • May you find forgiveness for yourself and forgive others • May you share freely, never taking more than you give • Further development encouraged, especially if kept public • Support available--inquire within • Gerry Snyder mesmerizerfan@gmail.com
