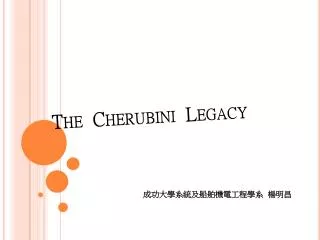

  1. The Cherubini Legacy 成功大學系統及船舶機電工程學系 楊明昌

  2. 內容大綱 • 起源 • 發展 • 現況

  3. 起源 故事的開始總在一個很美很美的地方….

  4. 在德拉瓦河的河畔住著Cherubini一家人,John、Frit、Joe、Richard和Tom五兄弟。在德拉瓦河的河畔住著Cherubini一家人,John、Frit、Joe、Richard和Tom五兄弟。

  5. 每個故事都有一個主角…..

  6. John就是故事中的主角,從小John和四個兄弟就跟著父親在家裡的小艇碼頭從事修船的工作,因為二次大戰的爆發,就讀遊艇設計學校(Westlawn School of Yacht Design)的John只有高二的學歷。

  7. 發展 二次大戰後,1953年John設計的第一艘小艇Sea Scamp在五兄弟的努力下,在美國東部上市了,而且發展出四種船型(16’,18’,24’,32’)可供選擇。(31歲)

  8. Sea Scamp 船長: 16’,18’,24’,32’(4.9m,5.5m,7.3m,9.8m) 特色:trailerable(可拖運的) clinker built(魚鱗疊接) plywood(膠合板) outboard runabout(船外小型馬達艇)

  9. 可是好景不常….

  10. 由於材料的改變,玻璃纖維漸漸取代了傳統木材的使用,而Cherubinishop當時堅持繼續使用木材,在1964年時不得不結束它的營業。(42歲)

  11. 經過8年間的飄盪,John也為航空公司工作,包括參與了C-5運輸機和CH-47直升機的設計,1972年John終於又開始了遊艇的設計,他幫Thomas and Mueller &Co. 設計了Essex26。(50歲)

  12. Essex 26 船長:26’(7.9m) 特色:trailerable(可拖運的) flush desk(平甲板) center cockpit(中央駕駛室) six berths(六個床位) sloop or ketch(單桅或雙桅式的帆船)

  13. 從1972年開始,John和Frit兩兄弟又開始為Cherubini做努力,John做設計而Frit負責建造和行銷,終於在1975年Cherubini 44上市了。(53歲)

  14. Cherubini 44 船長:50’(LOA)、40’(LWL) 船寬(Beam):11’6” 吃水(Draft):4’10” 排水量(Displacement):29800(lbs.) 特色:船身是以乙烯基酯樹脂(vinyl ester resin)積層而來、天窗(skylight) 、品質極優良的木頭、超越船身速度(beyond hull speed)。

  15. 在這之後John又設計了許許多多的船包括Cherubini 48、Hunter系列和Mainship,在1981年John被診斷出患有癌症,於1983年病逝。 (61歲) Hunter 25 Hunter 54 Hunter 37

  16. Cherubini60 JohnCherubini就像每位偉人一樣,在病逝前仍努力的追尋一個未完成的夢……

  17. 主角的離去不代表故事的結束!!

  18. 現況 1990年時CherubiniBoat Company遭遇當時的金融遭難(luxury tax),最後轉手別人經營,在2004年經營權又回到Dave(Richard的兒子)手中,除了改進Cherubini 44和48的製造也增加了Cherubini 20的船型,到目前為止仍持續的為大家服務。

  19. David Cherubini 的改革 • 真空袋法+乙烯基酯樹脂+芯材(Vacuum-bagged vinyl ester resin and Corecell)減少重量(102kg) • 精確的板殼設計(elaborate stringer system) 甚至不用拆卸任一個傢俱就可以把箱櫃(tank) 放入船內 • 塑膠(plastics)和複合材量(composites)的使用,減少使用金屬材質避免腐蝕

  20. Cherubini 20

  21. End… .….Thanks
