  1. Wireless Communications High-Speed WLANs and WLAN Security

  2. Objectives • Describe how IEEE 802.11a networks function and how they differ from 802.11 networks • Outline how 802.11g enhances 802.11b networks • Discuss new and future standards and how they improve 802.11 networks

  3. IEEE 802.11a • 802.11a standard maintains the same medium access control (MAC) layer functions as 802.11b WLANs • Differences are confined to the physical layer • 802.11a achieves its increase in speed and flexibility over 802.11b through: • A higher frequency band • More transmission channels • Its multiplexing technique • A more efficient error-correction scheme

  4. U-NII Frequency Band • IEEE 802.11a uses the Unlicensed National Information Infrastructure (U-NII) band • Intended for devices that provide short-range, high-speed wireless digital communications • U-NII spectrum is segmented into four bands • Each band has a maximum power limit • Outside the United States • 5 GHz band is allocated to users and technologies other than WLANs

  5. U-NII Frequency Band (continued)

  6. U-NII Frequency Band (continued)

  7. U-NII Frequency Band (continued) • Channel allocation • With 802.11b, the available frequency spectrum is divided into 11 channels in the United States • Only three non-overlapping channels are available for simultaneous operation • In 802.11a, eight frequency channels operate simultaneously • In the Low Band (5.15 to 5.25 GHz) and Middle Band (5.25 to 5.35 GHz) • Within each frequency channel there is a 20 MHz-wide channel that supports 52 carrier signals

  8. U-NII Frequency Band (continued)

  9. Orthogonal Frequency Division Multiplexing • Multipath distortion • Receiving device gets the signal from several different directions at different times • Must wait until all reflections are received • 802.11a solves this problems using OFDM • Orthogonal Frequency Division Multiplexing (OFDM) • Splits a high-speed digital signal into several slower signals running in parallel • Sends the transmission in parallel across several lower-speed channels

  10. Orthogonal Frequency Division Multiplexing (continued) • OFDM uses 48 of the 52 subchannels for data • Modulation techniques • At 6 Mbps, phase shift keying (PSK) • At 12 Mbps, quadrature phase shift keying (QPSK) • At 24 Mbps, 16-level quadrature amplitude modulation (16-QAM) • At 54 Mbps, 64-level quadrature amplitude modulation (64-QAM) • Turbo mode or 2X mode • Few vendors have implemented higher speeds

  11. Orthogonal Frequency Division Multiplexing (continued)

  12. Orthogonal Frequency Division Multiplexing (continued)

  13. Orthogonal Frequency Division Multiplexing (continued)

  14. IEEE 802.11g • Specifies that it operates in the same frequency band as 802.11b

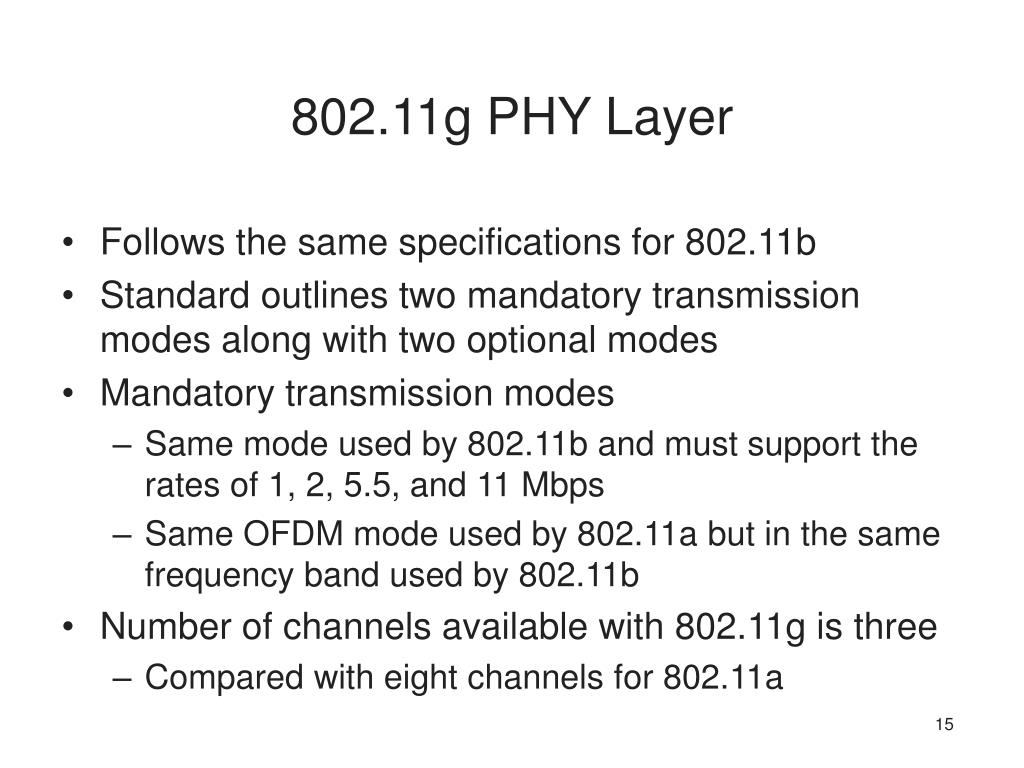

  15. 802.11g PHY Layer • Follows the same specifications for 802.11b • Standard outlines two mandatory transmission modes along with two optional modes • Mandatory transmission modes • Same mode used by 802.11b and must support the rates of 1, 2, 5.5, and 11 Mbps • Same OFDM mode used by 802.11a but in the same frequency band used by 802.11b • Number of channels available with 802.11g is three • Compared with eight channels for 802.11a

  16. 802.11g PHY Layer (continued) • When both 802.11b and 802.11g devices share the same network • Standard defines how the frame header is transmitted at 1 or 2 Mbps using DSSS • The optional 22 Mbps rate is achieved by using the PBCC encoding method • Modulation is binary phase shift keying (BPSK)

  17. Other WLAN Standards • Future of WLANs will include: • Additional standards that are currently under development by the IEEE • New standards that are just beginning to appear in new equipment

  18. IEEE 802.11e • Approved for publication in November 2005 • Defines enhancements to the MAC layer of 802.11 • To expand support for LAN applications that require Quality of Service (QoS) • 802.11e allows the receiving device to acknowledge after receiving a burst of frames • Enables prioritization of frames in distributed coordinated function (DCF) mode

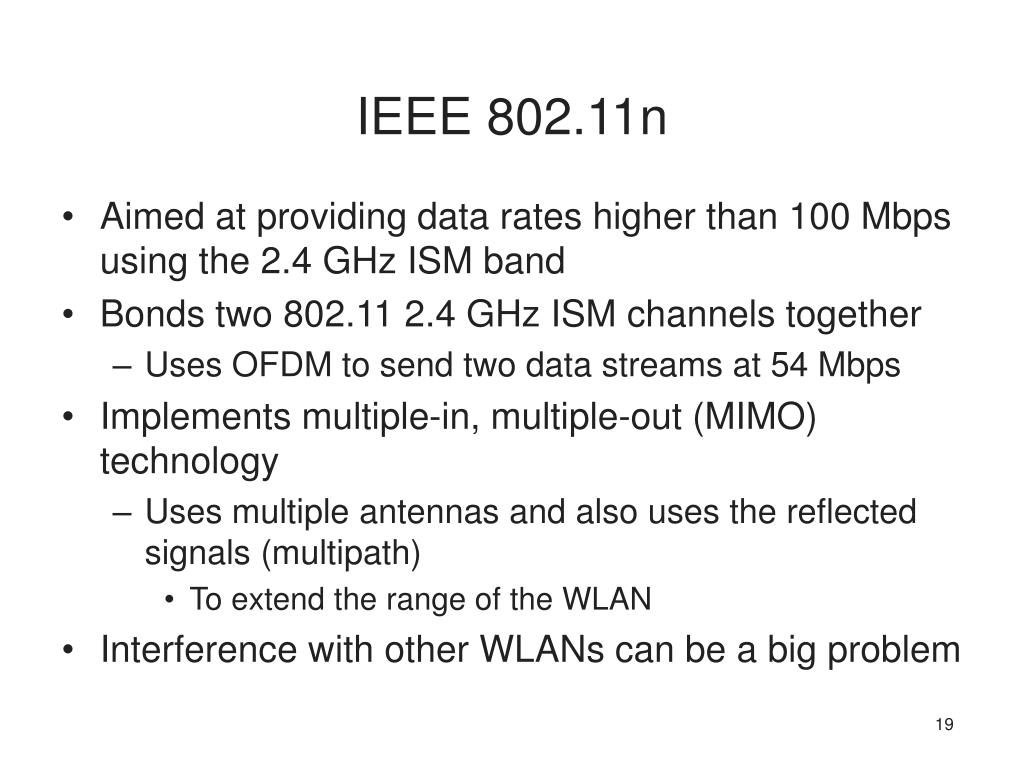

  19. IEEE 802.11n • Aimed at providing data rates higher than 100 Mbps using the 2.4 GHz ISM band • Bonds two 802.11 2.4 GHz ISM channels together • Uses OFDM to send two data streams at 54 Mbps • Implements multiple-in, multiple-out (MIMO)technology • Uses multiple antennas and also uses the reflected signals (multipath) • To extend the range of the WLAN • Interference with other WLANs can be a big problem

  20. IEEE 802.11r • Amount of time required by 802.11 devices to associate and disassociate • It is in the order of hundreds of milliseconds • Support voice over wireless LAN (VoWLAN) in a business environment with multiple access points • 802.11 standard needs a way to provide quicker handoffs • 802.11 MAC protocol • Does not allow a device to find out if the necessary QoS resources are available at a new AP • 802.11r is designed to resolve these issues • In addition to security concerns regarding the handoff • 802.11r is expected to enhance the convergence of wireless voice, data, and video

  21. IEEE 802.11s • Hard-to-do task • Deploy a wireless network over the entire downtown area of a medium-sized city • Provide seamless connectivity to all city employees • Ideal solution • Connect the wireless APs to each other over the wireless communications channels • 802.11s will provide the solution when it is ratified by the IEEE • Which is expected to happen in 2008

  22. Summary • Operating in the 2.4 GHz ISM frequency range, 802.11b has a maximum data rate of 11 Mbps • The 802.11a has a maximum rated speed of 54 Mbps • IEEE 802.11a networks use the Unlicensed National Information Infrastructure (U-NII) band • In 802.11a, eight frequency channels can operate simultaneously • IEEE 802.11b WLAN reception is slowed down by multipath distortion • 802.11a solves this problem using OFDM

  23. Summary (continued) • OFDM uses 48 of the 52 subchannels for data, while the remaining four are used for error correction • Number of errors in an 802.11a transmission is significantly reduced • The 802.11a standard made changes only to the physical layer (PHY layer) • Of the original 802.11 and 802.11b standard • 802.11g preserves the features of 802.11b but increases the data transfer rates to those of 802.11a • 802.11e standard adds QoS to 802.11 standards

  24. Summary (continued) • 802.11n is a proposed standard that will increase the speed of WLANs to 108 Mbps • 802.11r is a proposed standard for fast roaming • HiperLAN/2 is a high-speed WLAN specification that is similar to the IEEE 802.11a
