  1. UMTS Justin Champion

  2. 3G UMTS • Contents • Why 3G • UMTS • Smart Antenna • Use of UMTS at the moment

  3. 3G UMTS • The Dream (intention) • 2G and 2.5G systems are incompatible around the world. • Worldwide devices need to have multiple technologies inside of them, i.e. tri-band phones, dual-mode phones • To develop a single standard that would be accepted around the world • One device should be able to work anywhere ! “Access to Information from Anyplace, Anytime”

  4. 3G UMTS • The Dream (continued) • Worldwide positioning available • Able to pinpoint a device and direct services to it. • Mostly to be used for “Push” services • Increased data rate • Maximum 2048Kbps • Operational • in Europe by 2002 • Japan 2001 (this was achieved) • Worldwide usage by 2005 (not going to happen)

  5. 3G UMTS • The reality • Different standards with some operators in America and the rest of the world • In the future market forces may move towards a single standard • i.e. VHS and Betamax video tapes • Difficulties • World wide identical available spectrum • Agreement on the encoding/decoding technique used • Local influence groups • Manufacturers who have invested in one technology

  6. 3G UMTS • Universal Mobile Telecommunications System (UMTS) • Generic name for 3G developments • Being developed by the European Telecommunications Standards Institute (ETSI) • Based on the specifications of IMT-2000 developed by the International Telecommunications Union (ITU) • Frequency Spectrum • Technical Specification • Radio and Network components • Tariffs and Billing • Technical Assistance

  7. 3G UMTS • Standard • The 3G stand was written by the International Telecommunication Union (ITU) • The standard was referred to as IMT-2000 • The key to the standards was the available data over the air interface • 2Mbps in fixed or in-building environments • 384 kbps in pedestrian or urban environments • 144 kbps in wide area mobile environments • Variable data rates in large geographic area systems (satellite)

  8. 3G UMTS • Other parts of the standard • Frequency Spectrum • Technical Specification • Radio and Network components • Tariffs and Billing • Technical Assistance • 3 Main technical implementations were agreed • UMTS - Europe • CDMA2000 - America • TD-SCDMA –China

  9. 3G UMTS • Universal Mobile Telecommunication system (UMTS) • UMTS • Builds upon the successful European GSM network • Incorporates the developments made for the GPRS and EDGE networks • Five areas of standardisation • Radio • Core Network • Terminals • Services

  10. 3G UMTS • The core network • Asynchronous Transfer Method (ATM) • Has been defined as the core networking technology • ATM allows circuit switched transfer of data using packets. • High speed data transfer – currently maximum 10 Gbps • Guarantee of quality of service for the duration of packet transfer • Small packets used called cells for the transfer of data to minimise the impact on the routers, network and switches. • IPv6 • Arguments are being pushed for the core network to allow IPv6 • RFC3314, September 2002 • This would allow packets to be transferred directly from the internet to the device with no translation • IPv6 does contain QOS headers, which can be used with the correctly configured hardware • All 3G devices could have a single IP address that would not need to change

  11. 3G UMTS • UMTS • Full packet driven architecture • For voice and for data transmissions. • Packet based networks allow for an increased amount of traffic on a medium. • The only time part of that medium is blocked is when a device is transmitting or receiving. • Consider how often in your phone calls you actually say nothing • Natural pause between words • Taking a breath • Waiting for a response • Thinking of something to say

  12. 3G UMTS • UMTS • Offers voice and data services the same as EDGE • Services offered will be classed into one of the following • From these classes certain defined Quality of Service (QOS) specifications are guaranteed like packet delay time

  13. 3G UMTS • Intended Data Rates • Actual data rates will be effected by • Interference (other devices, background, buildings) • Over use of the frequency • Amount of other traffic • Base station / cell actually attached to • Speed you are moving at !

  14. 3G UMTS • Types of Cells and Base station to use them • Macro Cell • These cover a large area and will give slow access • 144 Kbps – max speed of 500 Km/h • Micro Cell • These should cover a medium area • 384 Kbps max speed 120 Km/h • Pico Cell • Less than 100 metres • 2 Mbps – max speed of 10 Km/h • Difficult to predict • Actual distances and bandwidth depend on local conditions

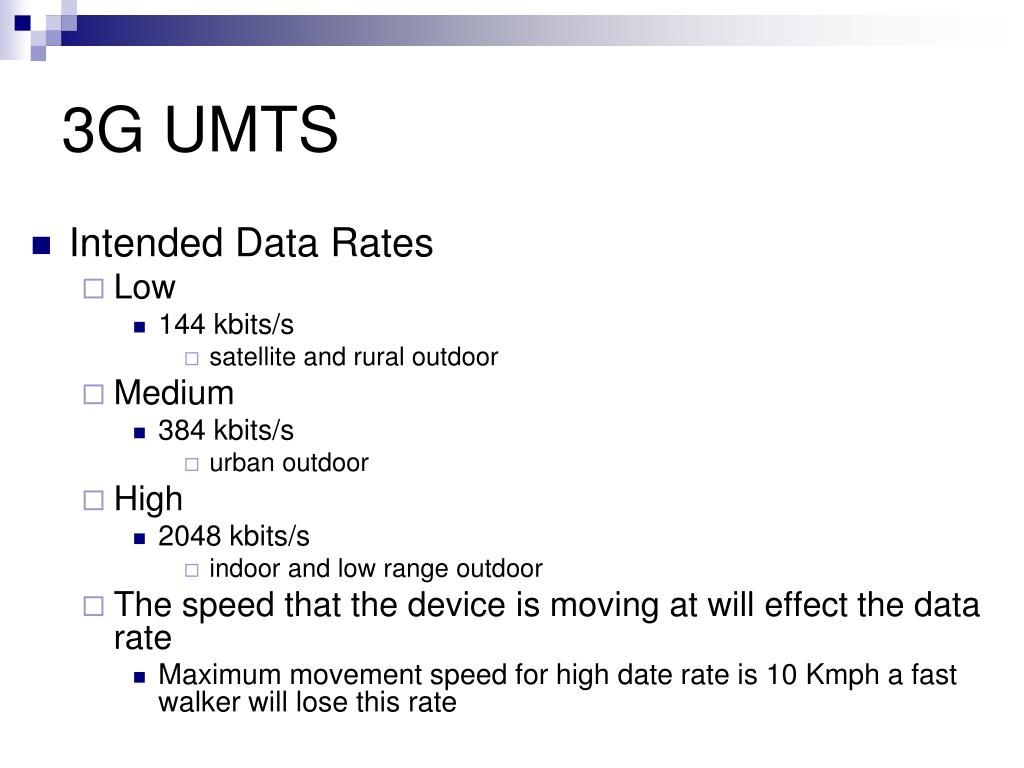

  15. 3G UMTS • Intended Data Rates • Low • 144 kbits/s • satellite and rural outdoor • Medium • 384 kbits/s • urban outdoor • High • 2048 kbits/s • indoor and low range outdoor • The speed that the device is moving at will effect the data rate • Maximum movement speed for high date rate is 10 Kmph a fast walker will lose this rate

  16. Global Satellite Suburban Urban In-Building Pico-Cell Micro-Cell Macro-Cell 3G UMTS • Types of Cells and Base station to use them • Cells will operate in a hierarchy overlaying each other

  17. 3G UMTS • Types of Cells and Base station to use them • Cells will operate in a hierarchy overlaying each other • Pico Cells will operate in a Time division Duplex (TDD) mode • TDD mode will use the same frequency to send and receive with a time frame being allocated. • All other cells will operate in Frequency Division Duplex (FDD) Mode • FDD will operate in the same manner as GSM, with a different frequencies for the Uplink and Downlink

  18. 3G UMTS • Consider • These data rates are in Mega Bits per Second and Kilo Bits • In terms of data rate the measure of a kilo bit is 1000 bits • Not the 1024 which is used for data storage • So • 2 Mega Bits per Second = 244 Kilo Bytes per second (roughly)

  19. 3G UMTS • What transmitters/base stations look like • Pictures taken from (www.undetectables.co.uk, 2004)

  20. 3G UMTS • Radio Interface • Allocated Frequencies

  21. 3G UMTS • Radio Interface • These frequencies were auctioned at great expense • The UK phone companies in June, 2003 said that they would claim the VAT back on the license purchases! About £4 Billion pounds • Court case started on the 9th of Feb 2004

  22. 3G • 3G spectrum auction • License shows the size of the spectrum with A being the largest • Part of the auction rules was a new company in the UK won the License type ‘A’ • Auction closed on the 27th April 2000 • The UK phone companies in June, 2003 said that they would claim the VAT back on the license purchases! About £4 Billion pounds • Court case started on the 9th of Feb 2004

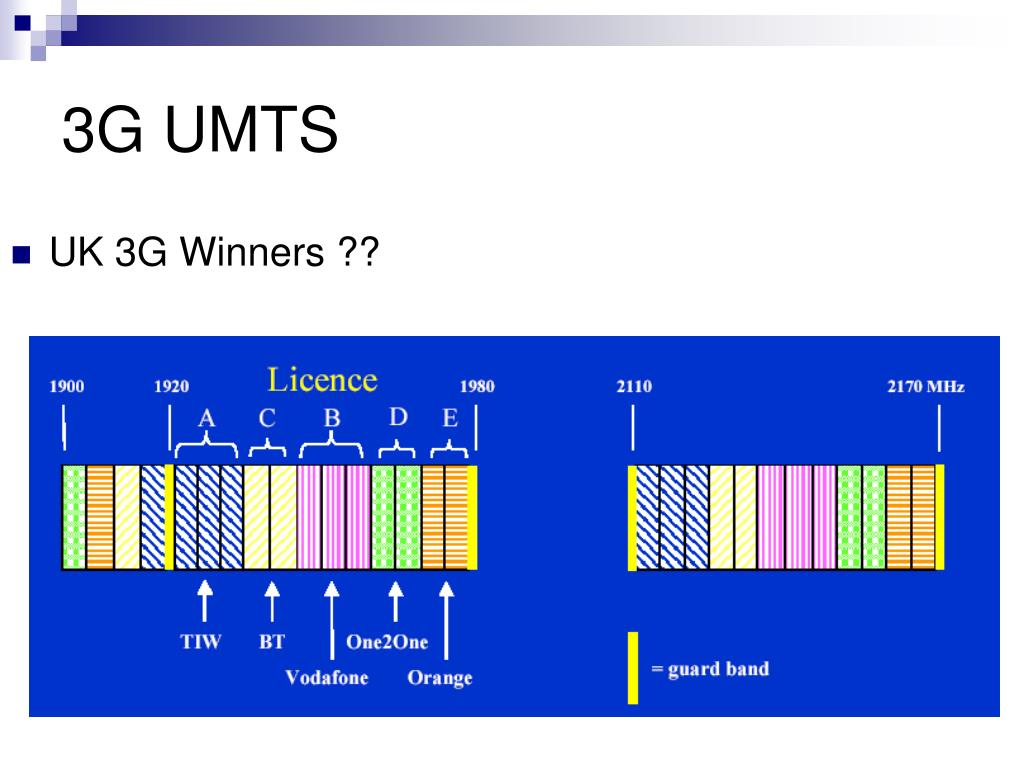

  23. 3G UMTS • UK 3G Winners ??

  24. 3G UMTS • Radio Interface • UMTS uses Wideband-Code Division Multiple Access (W-CDMA) • Also known as “IMT-2000 Direct Spread” • Extremely complex algorithms • Uses 10x the current 2G processing power! • Modulation is done with Quadrature phase shift keying (QPSK) • This encodes 2 bits with each change • Supports two modes of operation • Frequency Division Duplex (FDD) • Time Division Duplex (TDD)

  25. 3G UMTS • Trivia • Spread spectrum technology was patented by Actress Hedy Lamarr in 1942 • She was the person who also gave us Cat woman out of the Batman comics!

  26. 3G UMTS • W-CDMA • Operates in the same manner as the CDMA used in the US • CDMA allows multiple users to communicate at the same time over the same frequency • Each of the devices is given a “Chipping code” this is known by the device and the base station. • This chipping code is then used to identify the signal and allows the BS to receive the signal • The chipping code is used to adjust the frequency of data transferred during the transfer • The essential point of CDMA is the use of power control

  27. 3G UMTS • W-CDMA • Wideband CDMA operates the same but this takes place over a wider area of frequency • UMTS uses 5MHz for the signal • CDMA (narrowband) uses 200 KHz • These communications are secure by the nature that unless the chipping code is known, the sequence of the data can not be known • Communications can take place as soon as the device is ready and frequency reuse factor is now one

  28. 3G UMTS • W-CDMA • Frequency Reuse Factor • This is the distance which needs to be left between cells • As the same frequency is reused and the chipping code which is used is change and unique to a BS • The frequency can be reused in adjoining cells • Temporary Base stations can be added to the infrastructure if required, as long as the chipping code was unique

  29. 3G UMTS • Power Control • If you consider a group of people speaking, Chinese, English and Italian • If these all speak at the same volume you can then listen for the parts which you understand. • If the English person starts talking louder than the rest, the all you will hear is English • The other languages will be drowned out • CDMA Works on the same basis • One point of CDMA is the power control, so that the power sent out is just enough to allow data transfer to take place. • As a side effect of this technology this controlling of the power that the radio interface uses, also saves the battery on the device

  30. 3G UMTS • Radio Interface • Smart Antenna technology • These will allow the maximum radio efficiency • Traditional Antenna’s are omni-directional • They transfer the radio signal in 3600 from the transmission point Top View Side View

  31. 3G UMTS • Radio Interface • Smart Antenna • Increase the quality of the signals • Only installed at the BS, not the handset • Increase the usage of the BS • Increased frequency reuse

  32. 3G UMTS • Radio Interface • Smart Antenna • Two types at the moment • Switched Beam • A finite number of patterns or technologies are built into these • Adaptive Array • Infinite Number of patterns available, these patterns will adjust in real-time to conditions

  33. 3G UMTS Adaptive Array Antenna Switched Beam (http://www.iec.org/online/tutorials/smart_ant/topic03.html, 2003)

  34. 3G UMTS • Smart Antenna Benefits • (www.iec.org/online/tutorials/smart_ant/topic04.html, 2003)

  35. 3G UMTS • Radio Interface • Smart Antenna • Switched Beam • Multiple direction orientated fixed beams • Multiple beams can be combined to improve the quality of the signal • Each of the beams is referred to as a Macro sector • The macro sector with the strongest signal in the centre of the antenna will be the one which communications will be directed through • As the user moves the Macro sector to the new highest power • Done by monitoring the strength of the signal Darker colour shows more sensitive part of antenna

  36. 3G UMTS • Radio Interface • Adaptive Array Antennas • These devices track a communicating device • The power can be adjusted to exactly what is required for successful communications • They can minimise interference by controlling the power in a particular direction • The transmission of the signal can be directed to the user and follow them. • This removes any interference from other users • Reduces the effect of signal propagation • As the signal is directed

  37. 3G UMTS • Advantages • Integration • Switched beam can be added to current infrastructure • Adaptive antenna, require consideration to the network and there use • Range • Switched beam can increase range between 20 – 200% over a normal cell • Depending on local conditions • Switched beam power can not be adapted as the user moves, as the power and shape are pre-defined • Adaptive Array can cover larger area due to the directing of the signals to a device • Interference Suppression • Switched beam Interference from beams which are away from where they are expected are ignored • As the beams are pre-determined at the development stage, interference is still possible • Switched Beam has problems with interference from device which are close to the BS • Adaptive array is more resistant to interference as the signal is narrowed towards the actual device • Capacity • See next slide

  38. 3G UMTS • Smart Antenna Capacity • Spatial Division Multiple Access (SDMA) • More efficient use of the allocated frequency • By controlling • Amount of interference • Multi-path Propagation • Multi-path interference • Allowing 2 users in the same cell to use the same transmission slot • Potentially having a single user per allocation slot • This is more of a consideration with WCDMA rather than GSM tech

  39. 3G UMTS • Smart Antenna • Where can this technology be used? • Although it is now being discussed for 3G • It can be use anywhere • GSM, GPRS, EDGE, PDC • UMTS, CDMA2000 • WI-FI, HIPERLAN • The technology is now coming available and this respect it is considered more for 3G

  40. 3G UMTS • W-CDMA • Infrastructure

  41. 3G UMTS • W-CDMA – UTRAN • The core network for 3G will remain the same as GSM • This is a purely cost issue, in the future the infrastructure will be upgraded

  42. 3G UMTS • W-CDMA • UMTS Terrestrial Radio Access Network (UTRAN) • A device which wishes to communicate need’s to request access to the network • This is to prevent too many devices communicating at once • Although CDMA will theoretically allow a very large number of user to communicate at once • What actually happens is the quality of the calls is reduced considerably • This is a issue for voice but is a disaster for data calls

  43. Node-B Node-B Node-B Node-B Node-B Node-B 3G UMTS • W-CDMA • Handover • UMTS will use a soft handover technique • GSM used a hard handover technique • In a handover the device is always attached to at least one BS

  44. – 3G UMTS • Virtual Home • As a part of the ITU standard the Virtual Home Environment (VHE) will be supported. • In 2G a VLR was used to allow the transfer of personal information • A VHE will take this one stage further • This will provide a common look and feel interface • This is independent of the location, connecting network and device • It is envisaged that this will be used on both circuit switched and packet switched networks • How this will be achieved is undecided at the moment

  45. – 3G UMTS • 3G UMTS is working in one part of the UK • Isle of man has the equipment to use 3G • This equipment is run and operated by O2 • The license spectrum used on this island was given free by the government • The actual devices used were given to some of the islanders • The idea was to trial the equipment in a limited manner • Also they wanted to see if there was a pattern of usage for the technology i.e. the killer app • As it is known now they have not found the single killer app, like SMS was for GSM • Japan • When we consider Japan for the killer app it was email! • 3G bandwidth is not needed for email!

  46. 3G UMTS • UMTS Worldwide usage

  47. UMTS • Links • Details of the 3G license auction (UK) • www.umts-forum.org/servlet/dycon/ztumts/umts/Live/en/umts/Resources_Licensing_UK • UMTS standards documents • www.3gpp2.org/Public_html/specs/index.cfm
