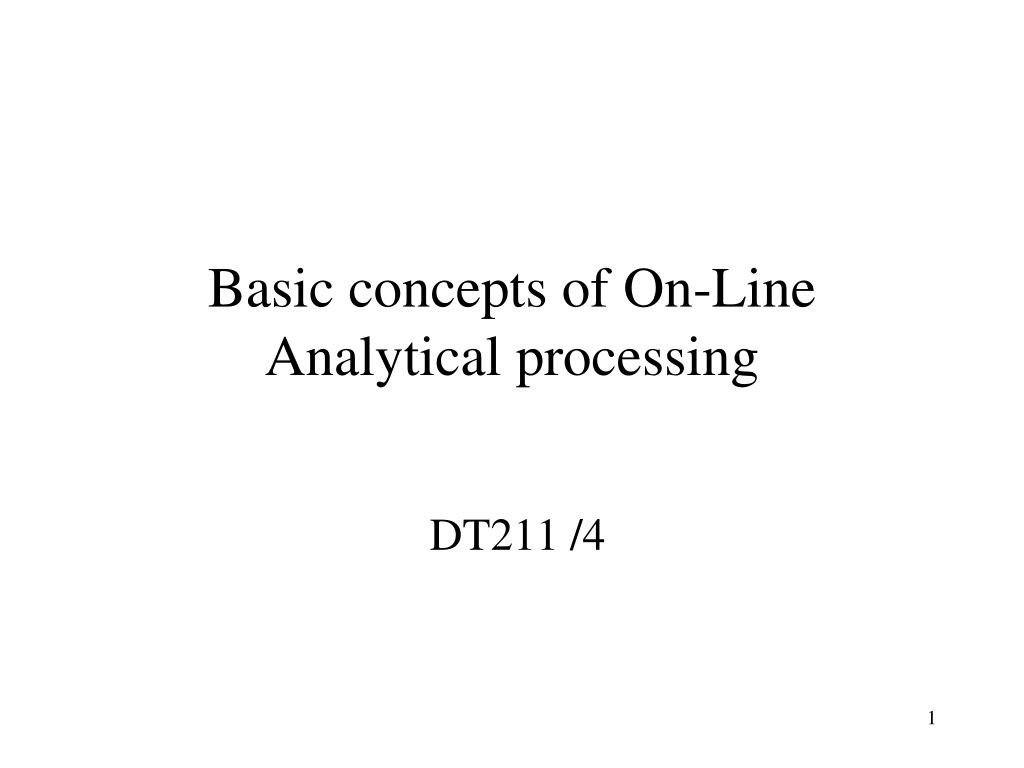

Basic concepts of On-Line Analytical processing

1. Basic concepts of On-Line Analytical processing DT211 /4

2. What is OLAP • OLAP stands for "On-Line Analytical Processing.“ • OLTP ("On-Line Transaction Processing") • OLAP describes a class of technologies that are designed for live ad hoc data access and analysis. • OLTP generally relies solely on relational databases, • OLAP has become synonymous with multidimensional views of business data supported by multidimensional databases • Relational databases were never intended to provide data synthesis, analysis and consolidation functionality.

3. What is OLAP • OLTP databases are optimised for transaction updating however, OLAP applications are used by managers and analysts for a higher level aggregate view of the data, thus they are designed for analysis. • Many problems that people try to solve using relational databases e.g. summaries are handled much more efficiently by an OLAP server than by RDBMS

4. Key OLAP Features Although OLAP applications are found in widely divergent functional areas, as illustrate in the table opposite. Moreover they all have the following key features: multi-dimensional views of data (MD databases via Star Schema) Support complex calculations Time intelligence

5. Star Schema: basis of MD view A star schema for credit card purchases

6. Multi-dimensional view as a cube: also represented a 4 column table • Example of three-dimensional query. • What is the total amount and number of purchases for vehicles in region 2 for December. Multidimensional cube for credit card purchases

7. Why Multidimensional Data • Queries requiring only a single number to be retrieved need not use multidimensional databases. • If queries involved retrieving multiple numbers and aggregating them for large databases can become intolerable as relational databases can scan only a few hundred records per second. • However multidimensional databases can add up 10,000 or more numbers in rows and columns per second. • Thus for such queries multidimensional databases have an enormous performance advantage

8. Multi-dimensional Operations Slice – A single dimension operation Dice – A multidimensional operation Roll-up – A higher level of generalization Drill-down – A greater level of detail Rotation – View data from a new perspective

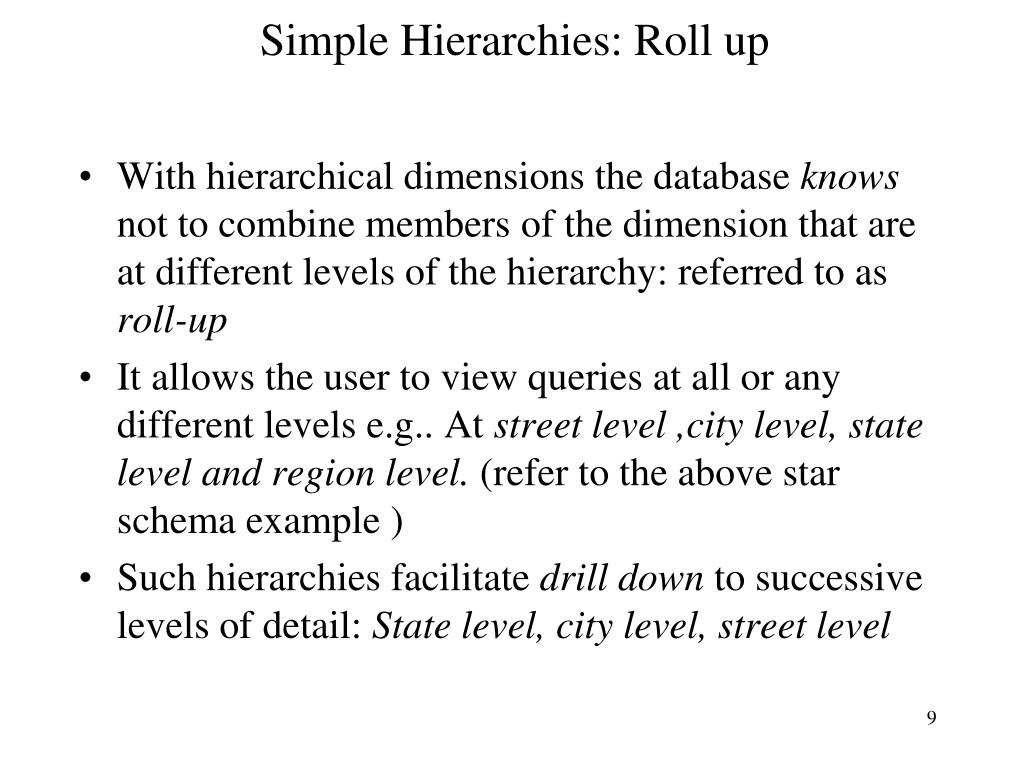

9. Simple Hierarchies: Roll up • With hierarchical dimensions the database knows not to combine members of the dimension that are at different levels of the hierarchy: referred to as roll-up • It allows the user to view queries at all or any different levels e.g.. At street level ,city level, state level and region level. (refer to the above star schema example ) • Such hierarchies facilitate drill down to successive levels of detail: State level, city level, street level

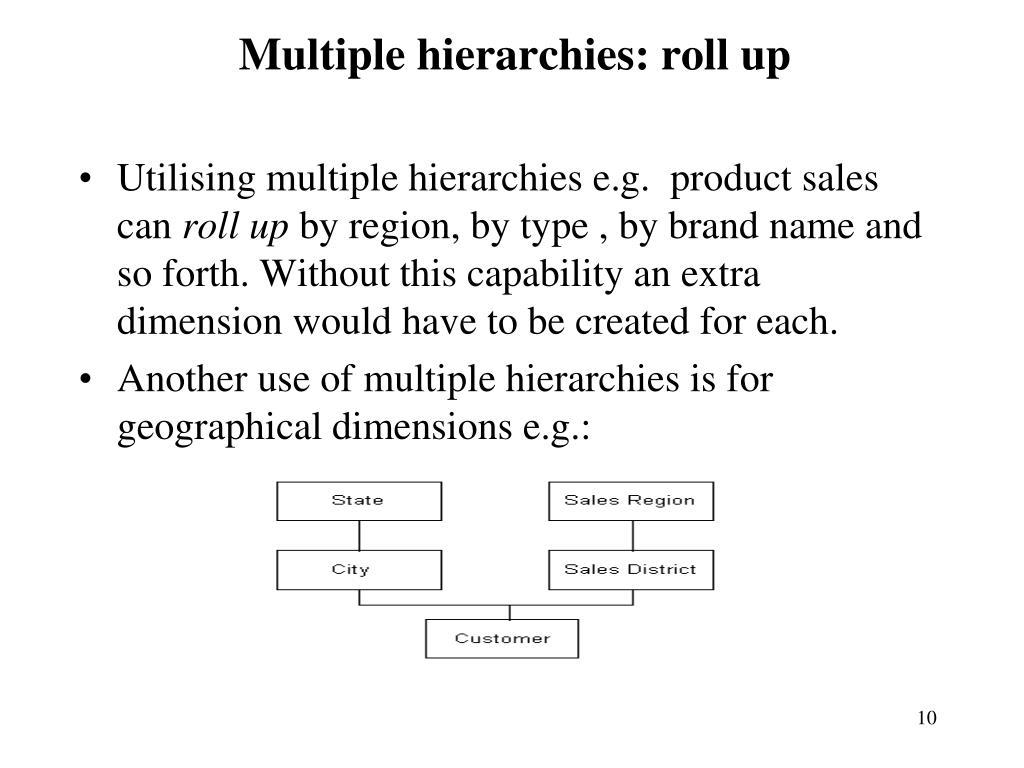

10. Multiple hierarchies: roll up • Utilising multiple hierarchies e.g. product sales can roll up by region, by type , by brand name and so forth. Without this capability an extra dimension would have to be created for each. • Another use of multiple hierarchies is for geographical dimensions e.g.:

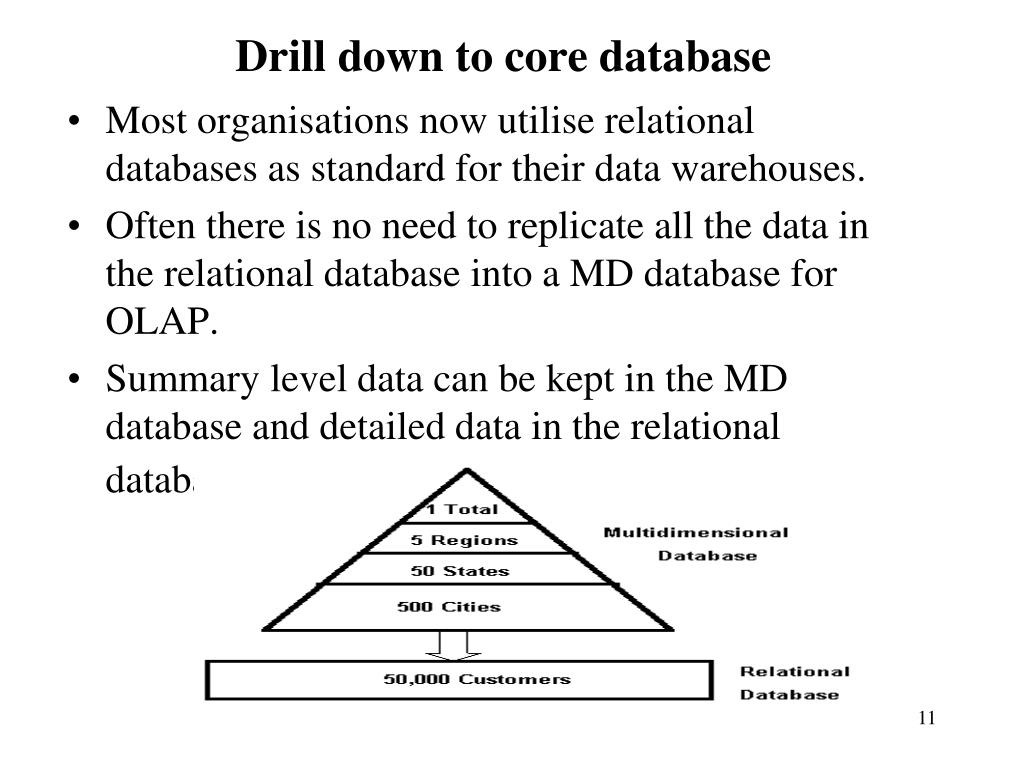

11. Drill down to core database • Most organisations now utilise relational databases as standard for their data warehouses. • Often there is no need to replicate all the data in the relational database into a MD database for OLAP. • Summary level data can be kept in the MD database and detailed data in the relational database.

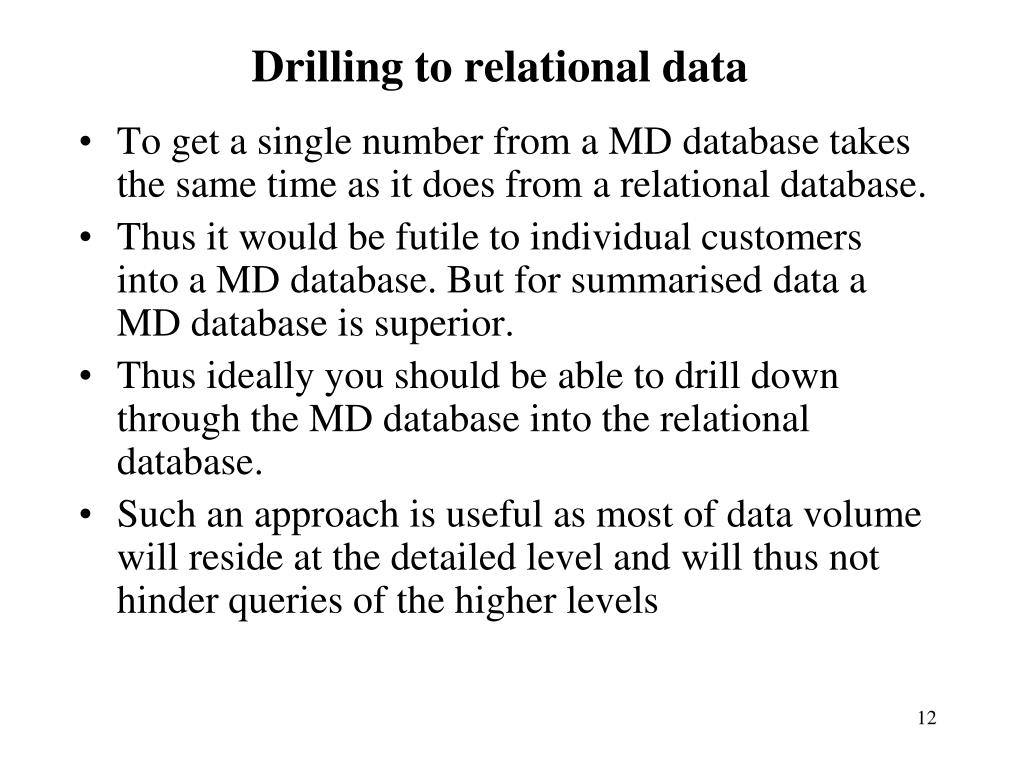

12. Drilling to relational data • To get a single number from a MD database takes the same time as it does from a relational database. • Thus it would be futile to individual customers into a MD database. But for summarised data a MD database is superior. • Thus ideally you should be able to drill down through the MD database into the relational database. • Such an approach is useful as most of data volume will reside at the detailed level and will thus not hinder queries of the higher levels

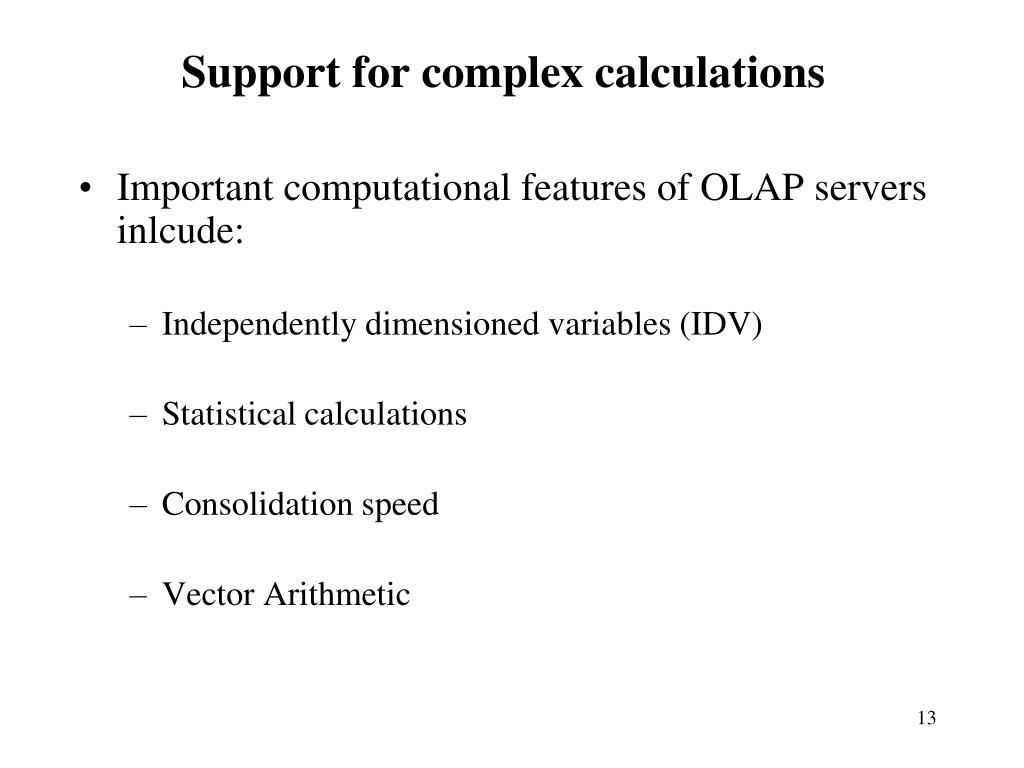

13. Support for complex calculations • Important computational features of OLAP servers inlcude: • Independently dimensioned variables (IDV) • Statistical calculations • Consolidation speed • Vector Arithmetic

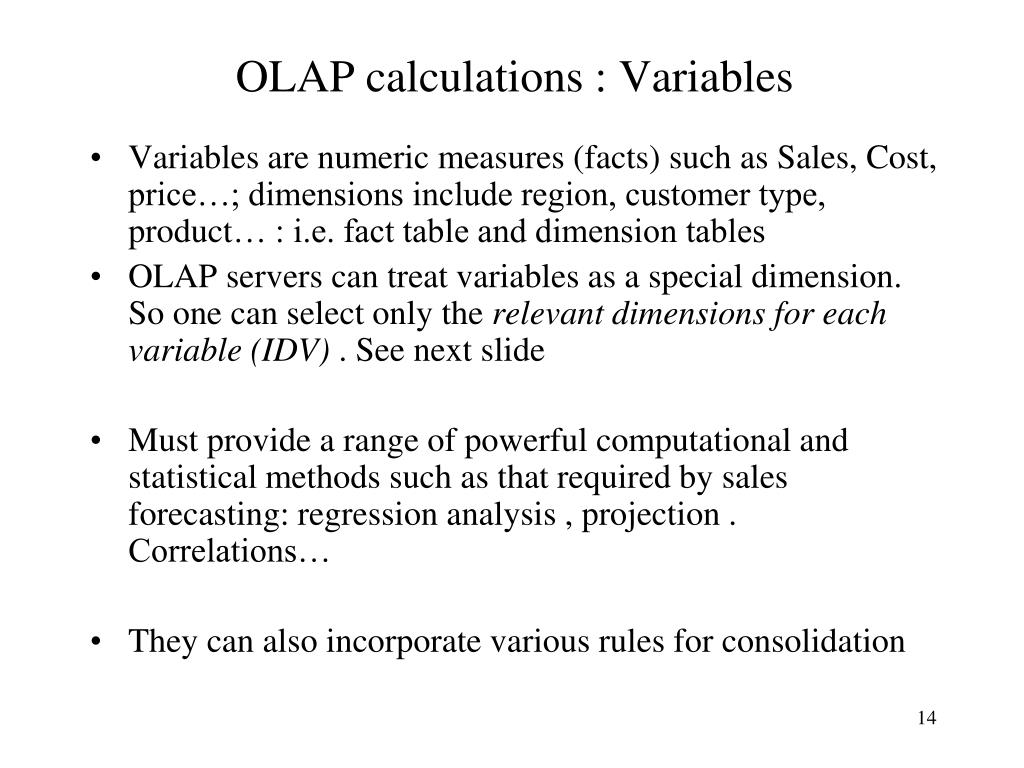

14. OLAP calculations : Variables • Variables are numeric measures (facts) such as Sales, Cost, price…; dimensions include region, customer type, product… : i.e. fact table and dimension tables • OLAP servers can treat variables as a special dimension. So one can select only the relevant dimensions for each variable (IDV) . See next slide • Must provide a range of powerful computational and statistical methods such as that required by sales forecasting: regression analysis , projection . Correlations… • They can also incorporate various rules for consolidation

15. Star schema for property sales of DreamHome

16. Vector Arithmetic • Data held in 2-D arrays [Matrix] can be more easily manipulated than data stored in a relational table. • Thus a 2-D plane for actual can be easily subtracted from a plane from budget to give a plane for variance. • Such arithmetic allows entire planes of the database to be combined quickly.

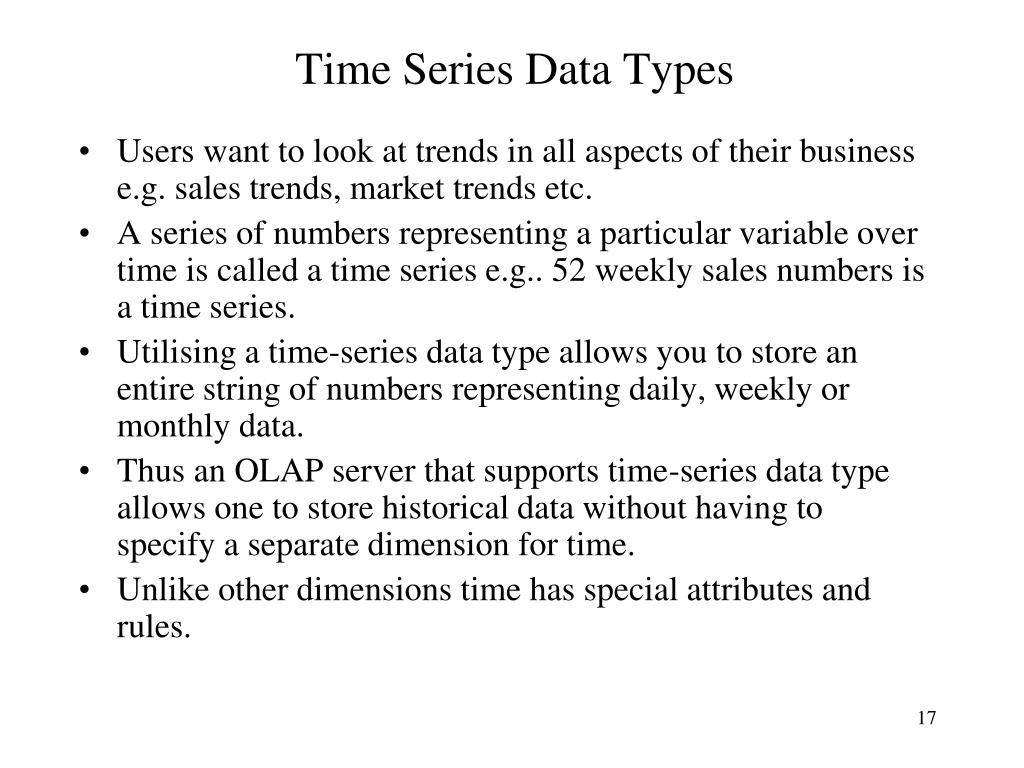

17. Time Series Data Types • Users want to look at trends in all aspects of their business e.g. sales trends, market trends etc. • A series of numbers representing a particular variable over time is called a time series e.g.. 52 weekly sales numbers is a time series. • Utilising a time-series data type allows you to store an entire string of numbers representing daily, weekly or monthly data. • Thus an OLAP server that supports time-series data type allows one to store historical data without having to specify a separate dimension for time. • Unlike other dimensions time has special attributes and rules.

18. Time-series data type • Time series always have a particular periodicity. • Time series data must include rules to convert one periodicity to another • In the absence of a time-series data type a new dimension must be declared and labelled explicitly. • A time-series data cell contains a great deal of information compared with a single cell or even a full record.

19. Time-Series Data types • Consider the following example for a time-series data type of sales. • Start date = 1\1\2000 • Periodicity = Daily, business days only • Conversion = Summation • Long description = Variable=Sales, Product=Nuts, Region=East • Data type = Numeric, single precision • Sacristy = Non-sparse • Calendar = 445 Fiscal year • Data points = 708,800,821,743,779,856,878,902,799, ...

20. Time-series data types • Start date is the first data point • Periodicity can be daily, weekly etc with calendar years, fiscal periods and business weeks etc being understood. • Data type can be single precision, double precision, text strings or dates • Sparse data is used where the same number is used over and over again e.g. price. Defining it as sparse would cause the database to store dates on which the price changed and the corresponding new values. • Data points can store very long time series e.g. 10 years of daily data.

21. Sparse Data • When less than 10% of the cells contain data the database is said to be sparsely populated or sparse. • Scarcity can also occur if there are many cells that contain the same number e.g.. Price of a product every day. • This situation can also be represented by storing the number once along with the number of days that the number is repeated • While a relational database would fill up the database with duplicate data an OLAP server that understands sparse data can skip over zeros, missing data and duplicate data.

22. Conclusion • In essence OLAP technology is a fast, flexible data summarisation and analysis tool. • The data analysis requires the ability to summarise data in many ways and view trends. • It should have 3 main characteristics: MD views, ability to perform complex calculations, time intelligence

23. Question • Business decisions require the delivery of critical information in a timely, suitable format. Explain, using appropriate examples, how OLAP can facilitate the business decision making process.
