Introduction to Exchange Server 2010

1. Introduction toExchange Server 2010 Omar El-Sherif Solutions Specialist – Unified Communications Microsoft Egypt

2. Protection and Compliance Flexible and Reliable Anywhere Access • Continuous Availability • Simplify Administration • Deployment Flexibility • Manage Inbox Overload • Enhance Voice Mail • Collaborate Effectively • E-mail Archiving • Protect Communications • Advanced Security Optimize for Software + Services

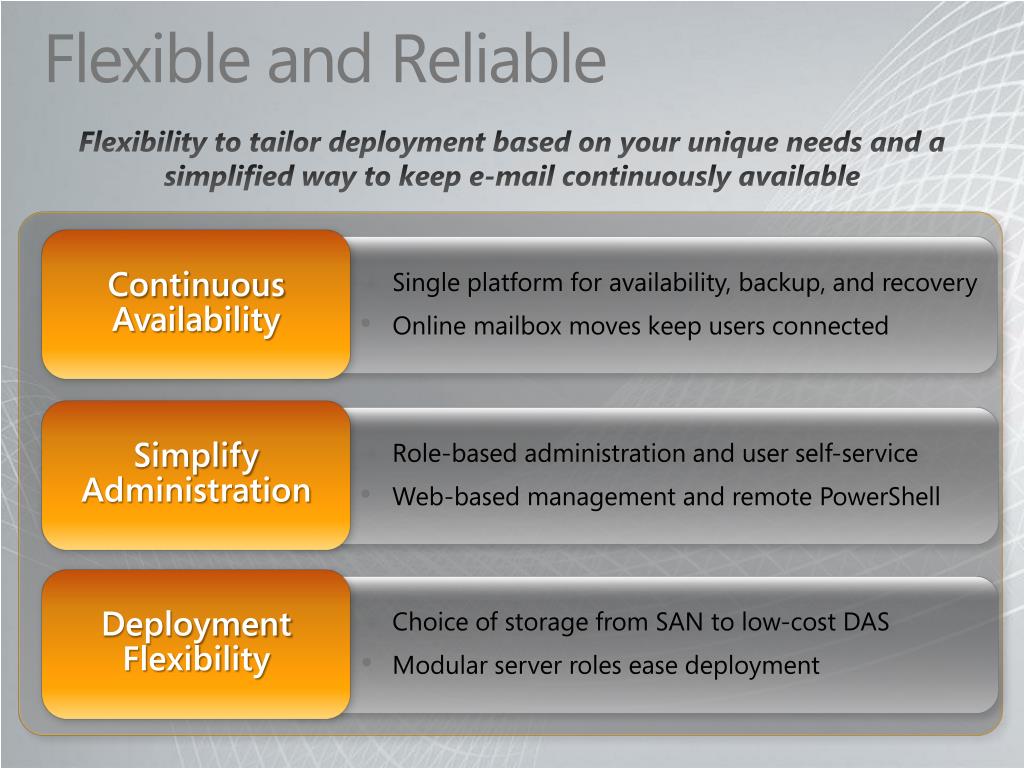

3. Flexible and Reliable Flexibility to tailor deployment based on your unique needs and a simplified way to keep e-mail continuously available Continuous Availability • Single platform for availability, backup, and recovery • Online mailbox moves keep users connected Simplify Administration • Role-based administration and user self-service • Web-based management and remote PowerShell Deployment Flexibility • Choice of storage from SAN to low-cost DAS • Modular server roles ease deployment

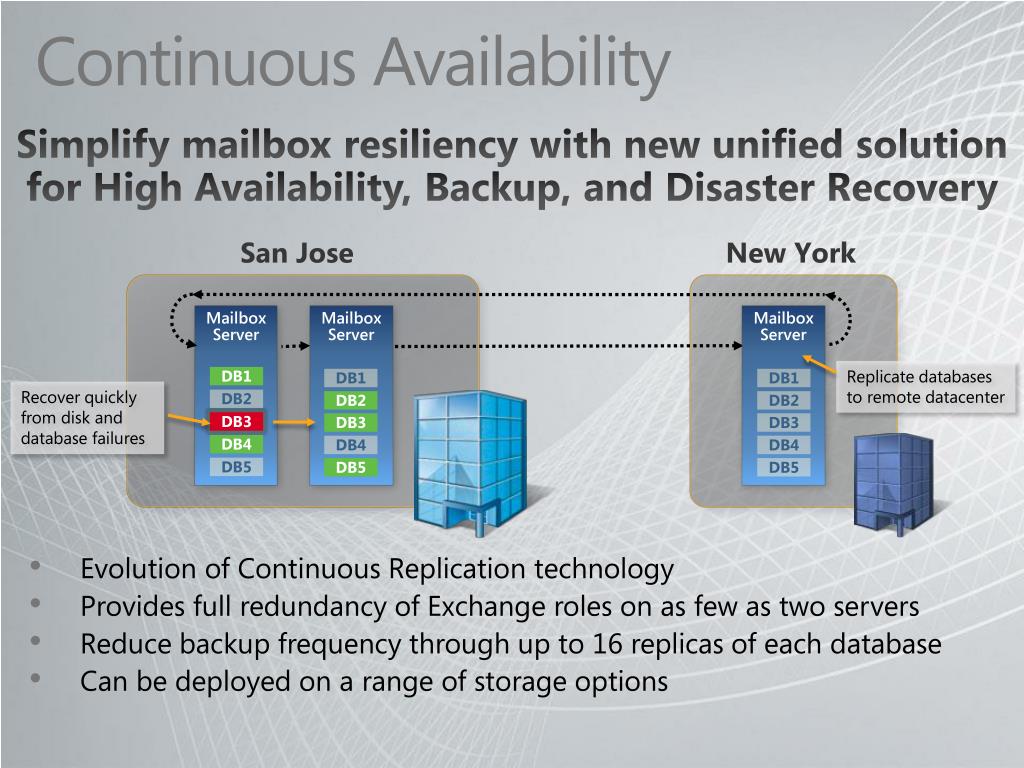

4. Evolution of Continuous Replication technology Provides full redundancy of Exchange roles on as few as two servers Reduce backup frequency through up to 16 replicas of each database Can be deployed on a range of storage options Continuous Availability Simplify mailbox resiliency with new unified solution for High Availability, Backup, and Disaster Recovery San Jose New York Mailbox Server Mailbox Server Mailbox Server Replicate databases to remote datacenter DB1 DB1 DB1 Recover quickly from disk and database failures DB2 DB2 DB2 DB3 DB3 DB3 DB4 DB4 DB4 DB5 DB5 DB5

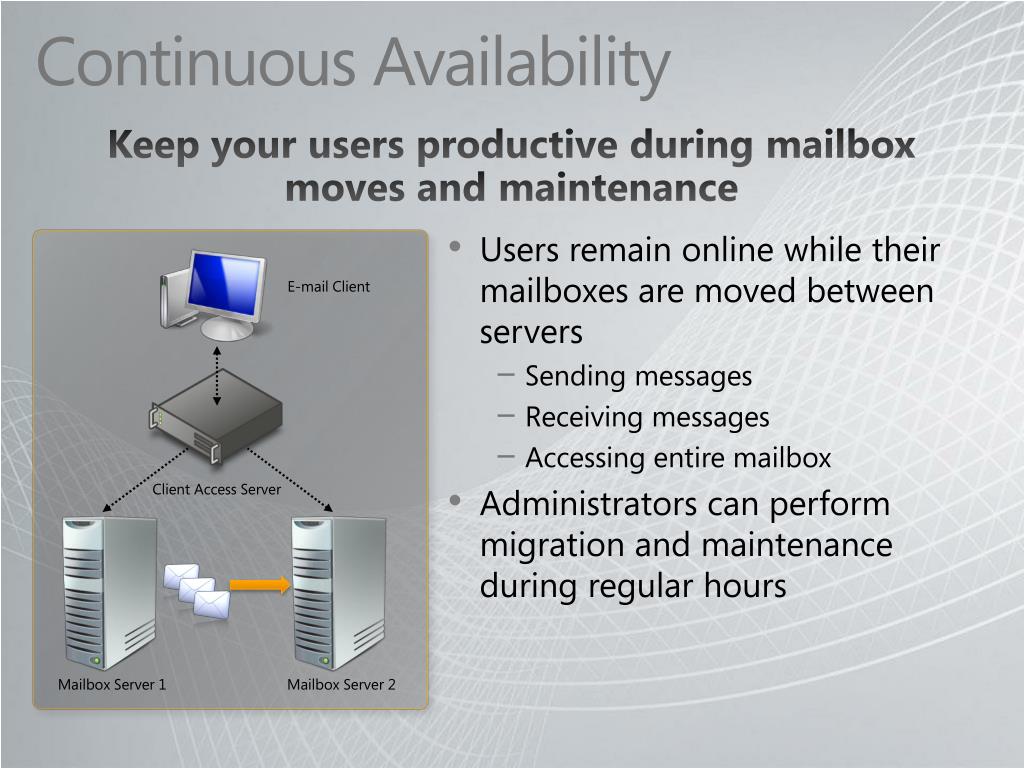

5. Continuous Availability Keep your users productive during mailbox moves and maintenance • Users remain online while their mailboxes are moved between servers • Sending messages • Receiving messages • Accessing entire mailbox • Administrators can perform migration and maintenance during regular hours E-mail Client Client Access Server Mailbox Server 1 Mailbox Server 2

6. Simplify Administration Delegate specific tasks to specialist users with role-based administration • Human Resources Compliance Officer • Help Desk Staff Conduct multi-mailbox searches for e-Discovery Update employee information in company directory Manage mailbox quotas

7. Simplify Administration Lower support costs through new user self-service options Track the Status of Sent Messages Create and Manage Distribution Groups

8. Deployment Flexibility Select from a range of storage enabled by scalability and performance enhancements Direct Attached w/ SATA Disks Storage Area Network (SAN) Direct Attached w/ SAS Disks JBOD SATA(RAID-less) • Continual platform innovation yields over 70% reduction in disk I/O • Disk I/O patterns optimized for better hardware utilization • Resilience against corruption through automated page-level repairs

9. Deployment Flexibility Ease deployment and reduce installation time with flexible server roles Enterprise Network Phone system (PBX or VOIP) Hub Transport Routing and policy Edge Transport Routing and AV/AS External SMTPservers Unified Messaging Voice mail and voice access Mailbox Storage of mailbox items Mobile phone Client Access Client connectivity Web services Web browser Outlook (remote user) Line of business application Outlook (local user)

10. Anywhere Access Help users get more done with the freedom to securely access their communications from virtually any platform, browser, or device Manage Inbox Overload • Enhanced conversation view eases Inbox navigation • MailTips help avoid undelivered/misdirected e-mail Enhance Voice Mail • Text preview of voice mail messages for faster triage • Customizable call handling rules and menu options Collaborate Effectively • Full featured experience across all “three screens” • Federation of Free/Busy details with partners

11. Manage Inbox Overload Easily organize and communicate with enhanced conversation view and integrated IM Conversation View Instant Messaging Ignore Conversation

12. Manage Inbox Overload Help reduce unnecessary and undeliverable e-mail through new sender MailTips MailTips in Outlook 2010 MailTips in Outlook Web App

13. Enhance Voice Mail Quickly triage and take action on messages with Voice Mail Preview Audio playback Contextual Contact Actions Text Preview of Voice Mail

14. Enhance Voice Mail Create custom voice mail menus and call answer rules to give callers the right priority Defining a Custom Voice Mail Menu Managing Call Answer Rules

15. Collaborate Effectively A familiar and rich Outlook experience across clients, devices, and platforms Desktop Web Mobile

16. Collaborate Effectively Ease collaboration by federating calendar details with external business partners External Contact Free/Busy Information

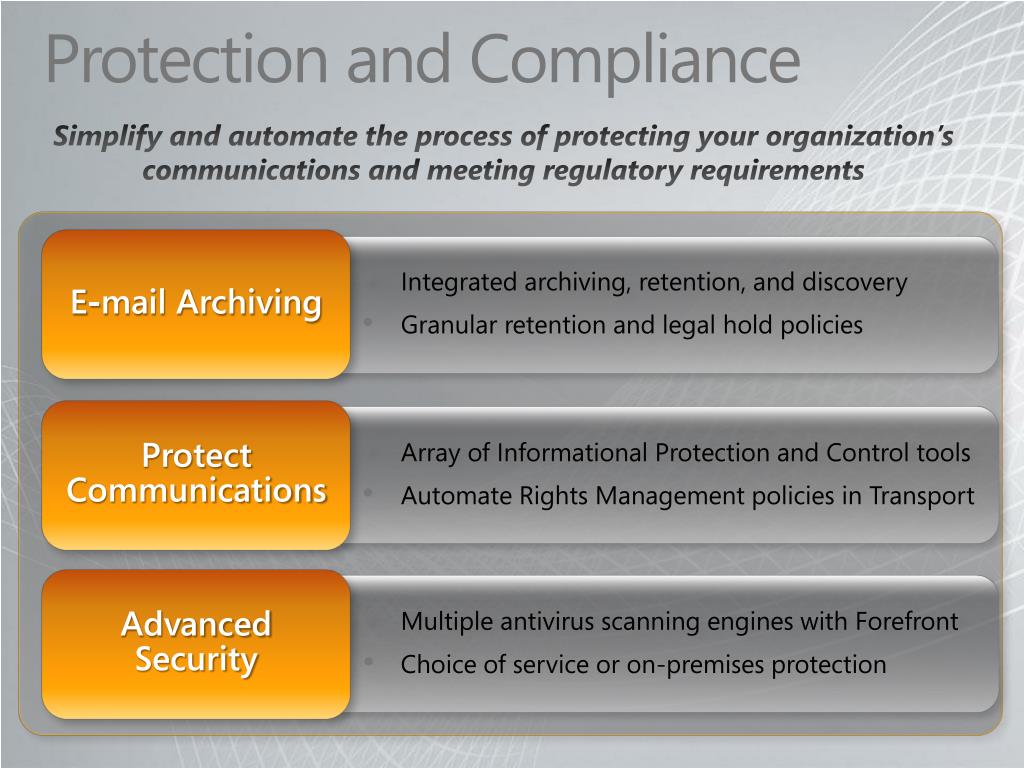

17. Protection and Compliance Simplify and automate the process of protecting your organization’s communications and meeting regulatory requirements E-mail Archiving • Integrated archiving, retention, and discovery • Granular retention and legal hold policies Protect Communications • Array of Informational Protection and Control tools • Automate Rights Management policies in Transport Advanced Security • Multiple antivirus scanning engines with Forefront • Choice of service or on-premises protection

18. E-mail Archiving Preserve and discover e-mail data without changing the user or IT pro experience Preserve Discover Personal Archive Move and Delete Policies Hold Policy Multi-Mailbox Search • Secondary mailbox with separate quota • Appears in Outlook and OWA • Managed through EMC or PowerShell • Automated and time-based criteria • Set policies at item or folder level • Expiry date shown in e-mail message • Capture deleted and edited e-mail messages • Offers single item restore • Notify user on hold • Web-based UI • Search primary, archive, and recoverable items • Delegate through roles-based admin

19. E-mail Archiving Set granular per item retention policies and capture all edits and deletions with legal hold Apply Move and Delete Policies to Individual Messages Policies Applied to All E-mail Within a Folder Retention Policy and Expiry Details

20. E-mail Archiving Empower compliance officers to conductmulti-mailbox searches with ease Delegate Access to Specialists Rich Search Criteria and Targeting Options Results Stored in Specialized Mailbox

21. Protect Communications Automatically protect e-mail after being sent with Rights Management policies in Transport • Transport Rule action to apply Rights Management template to e-mail or voice mail messages • Support for scanning of attachments and searching of protected e-mail • “Do Not Forward” policies available by default • Information protection across PC, Web, and mobile device Transport Protection Rule

22. Advanced Security Prevent malicious software and spam from entering into the messaging environment On-Premises Software Hosted Service Internet SMTP Hub Transport Server Mailbox Server Client Access Server Antivirus and anti-spam protection for Exchange Server 2010 Server Roles • Multiple scan engines throughout the corporate infrastructure • Tight integration with Exchange maximizes availability and performance • Easy-to-use admin console for central configuration and operation

23. Optimized for Software + Services Deliver powerful productivity tools to your users, in a way that best fits your business or technology needs COEXISTENCE On-Premises Cloud Service PC PHONE WEB Consistent User Experience

24. Demo
