  1. ArrayExpress and MAGE Jamboree II Ugis Sarkans, EBI

  2. Outline • what is ArrayExpress • overall architecture • status and future • MAGE Jamboree II

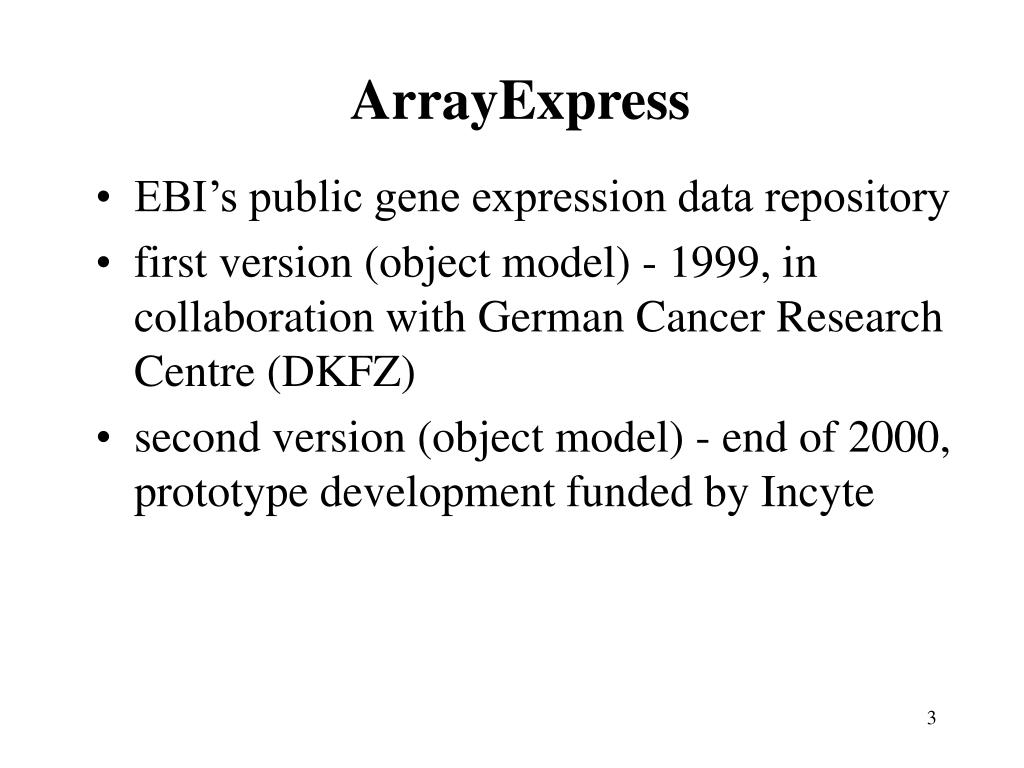

  3. ArrayExpress • EBI’s public gene expression data repository • first version (object model) - 1999, in collaboration with German Cancer Research Centre (DKFZ) • second version (object model) - end of 2000, prototype development funded by Incyte

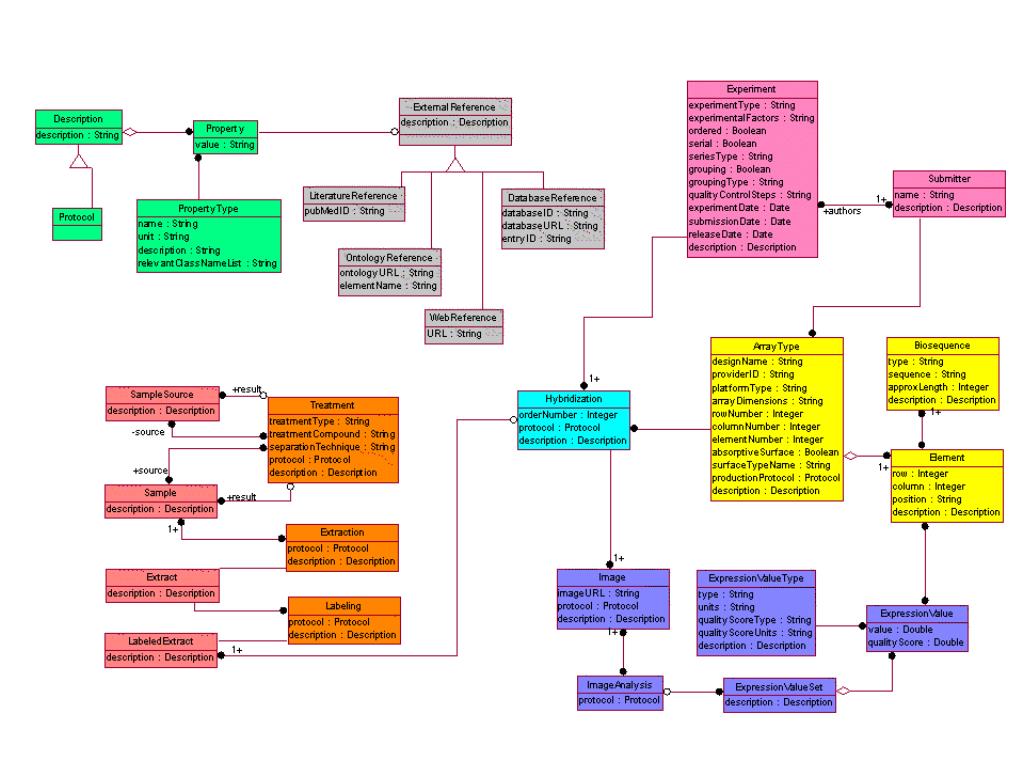

  4. Classdiagram

  5. ArrayExpress (2) • implementation - first half of 2001 - Oracle schema, data loader (from MAML), prototype Web interface, a few datasets loaded • decision to use MAGE-OM as basis for further development • EU funding - 2002-2004, 8 new positions • www.ebi.ac.uk/arrayexpress

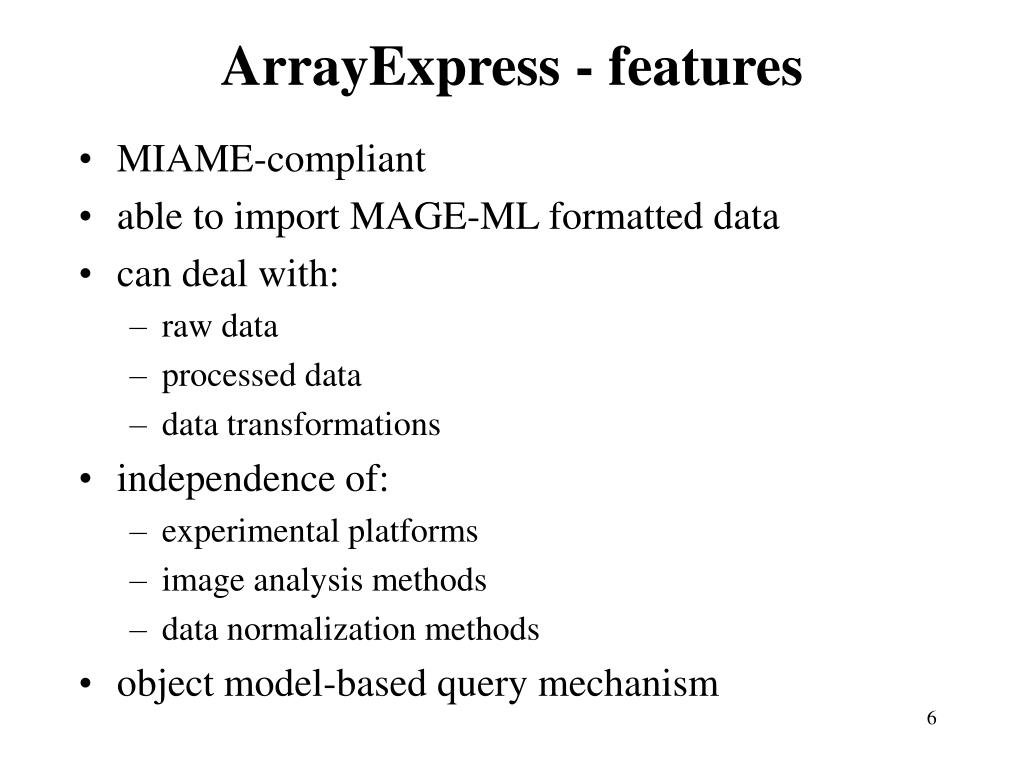

  6. ArrayExpress - features • MIAME-compliant • able to import MAGE-ML formatted data • can deal with: • raw data • processed data • data transformations • independence of: • experimental platforms • image analysis methods • data normalization methods • object model-based query mechanism

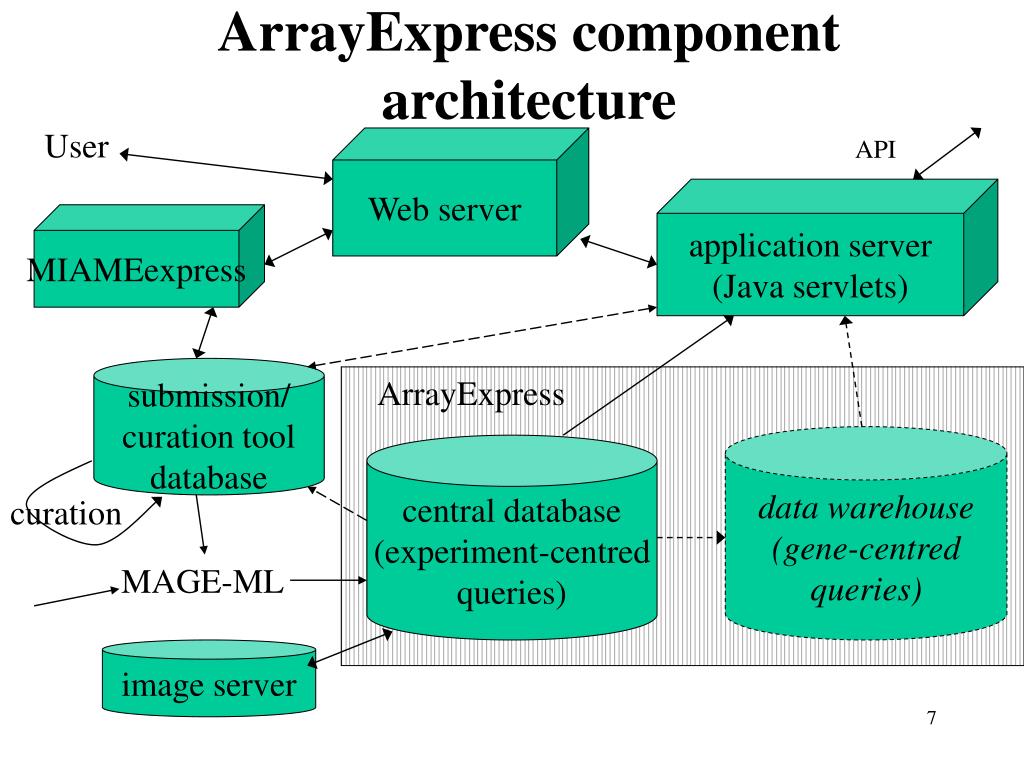

  7. ArrayExpress component architecture User Web server API application server (Java servlets) MIAMEexpress submission/ curation tool database ArrayExpress data warehouse (gene-centred queries) central database (experiment-centred queries) curation MAGE-ML image server

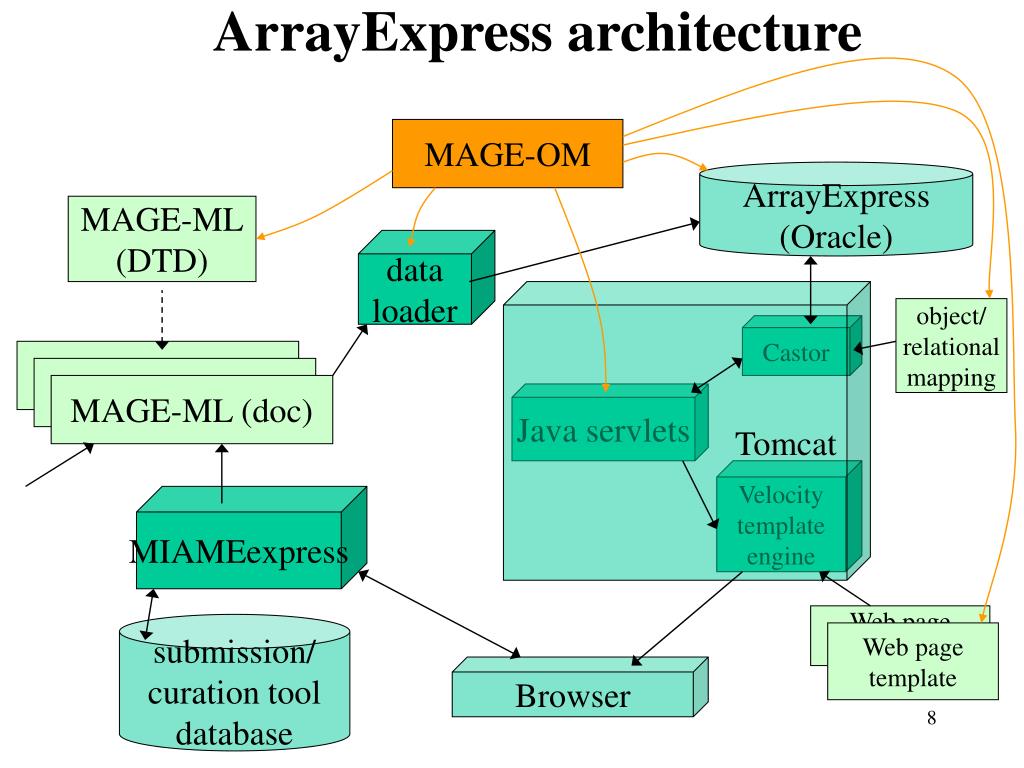

  8. ArrayExpress architecture MAGE-OM ArrayExpress (Oracle) MAGE-ML (DTD) data loader Tomcat object/ relational mapping Castor MAGE-ML (doc) MAGE-ML (doc) MAGE-ML (doc) Java servlets Velocity template engine MIAMEexpress Web page template submission/ curation tool database Web page template Browser

  9. ArrayExpress: current status • Object model (MAGE-OM) - stable • Database schema - generated (standard SQL, we run under Oracle) • Data loader from MAGE-ML - generated • Web interface - under development: • queries: • by experiment • by array • by sample • browsing

  10. Queries

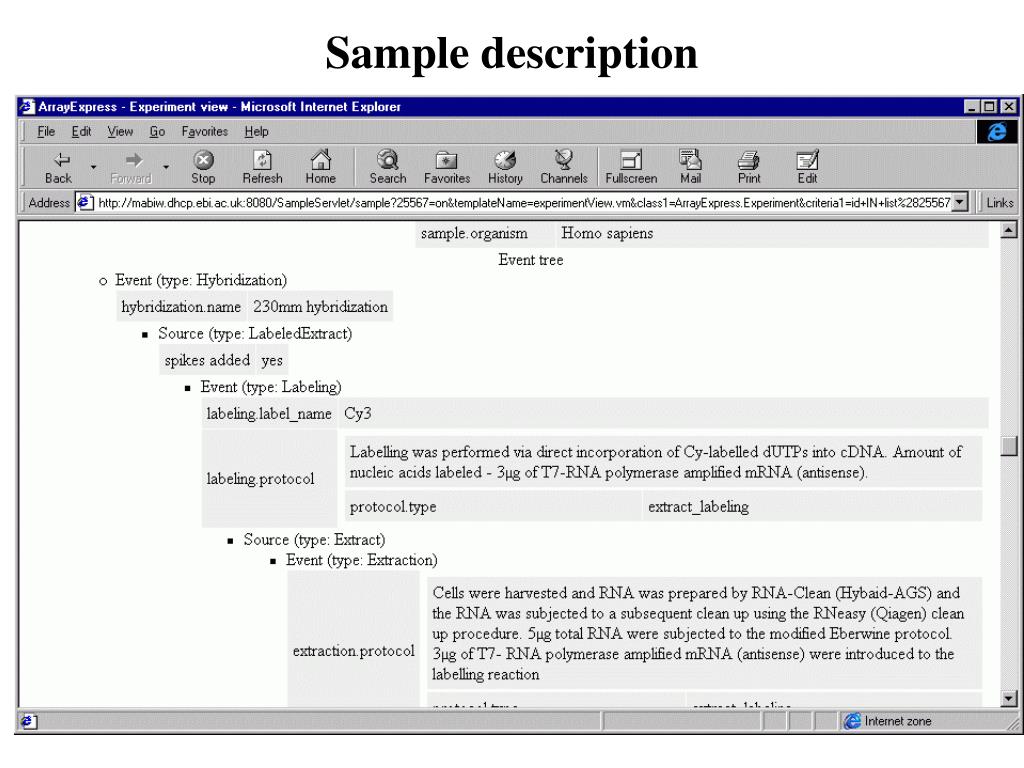

  11. Sample description

  12. Near future developments • Dedicated hardware for ArrayExpress • Good quality data coming from collaborators: • annotation tools essential (MIAMEexpress) • Data uploading and Web interface made public • interface with analysis tools (Expression Profiler)

  13. Future developments • Integration with other analysis tools • New visualization methods and tools • New analytical tools • Links with other databases • Data curation, liaison with data providers • development of standard ontologies • Data warehouse (gene-oriented queries)

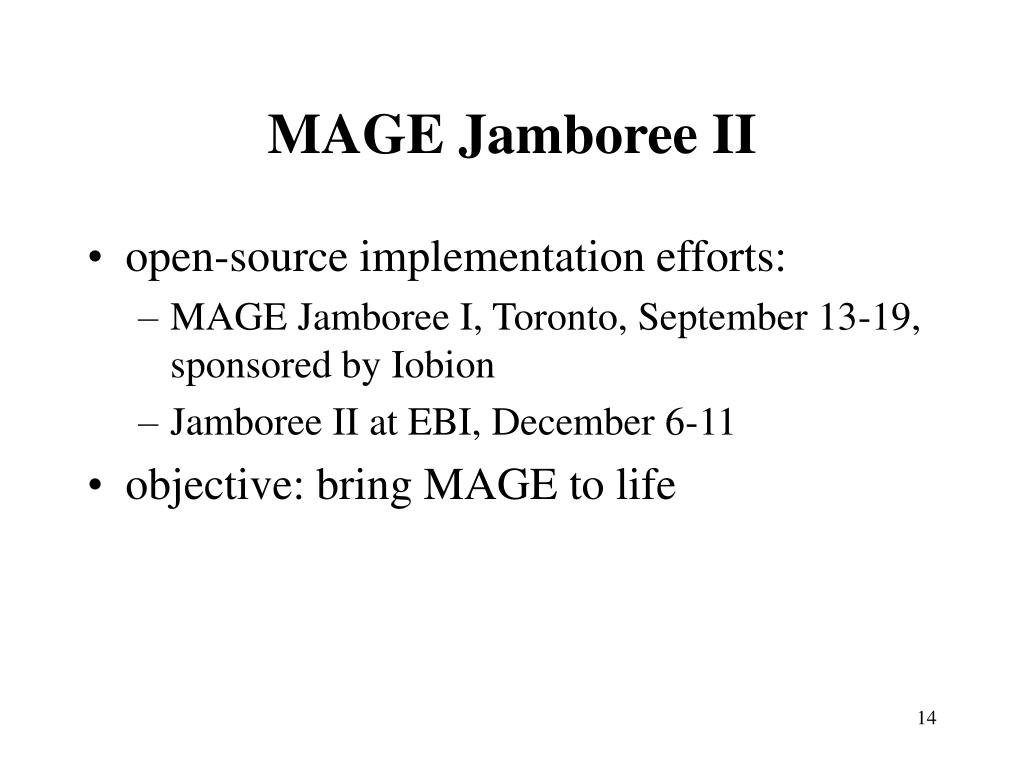

  14. MAGE Jamboree II • open-source implementation efforts: • MAGE Jamboree I, Toronto, September 13-19, sponsored by Iobion • Jamboree II at EBI, December 6-11 • objective: bring MAGE to life

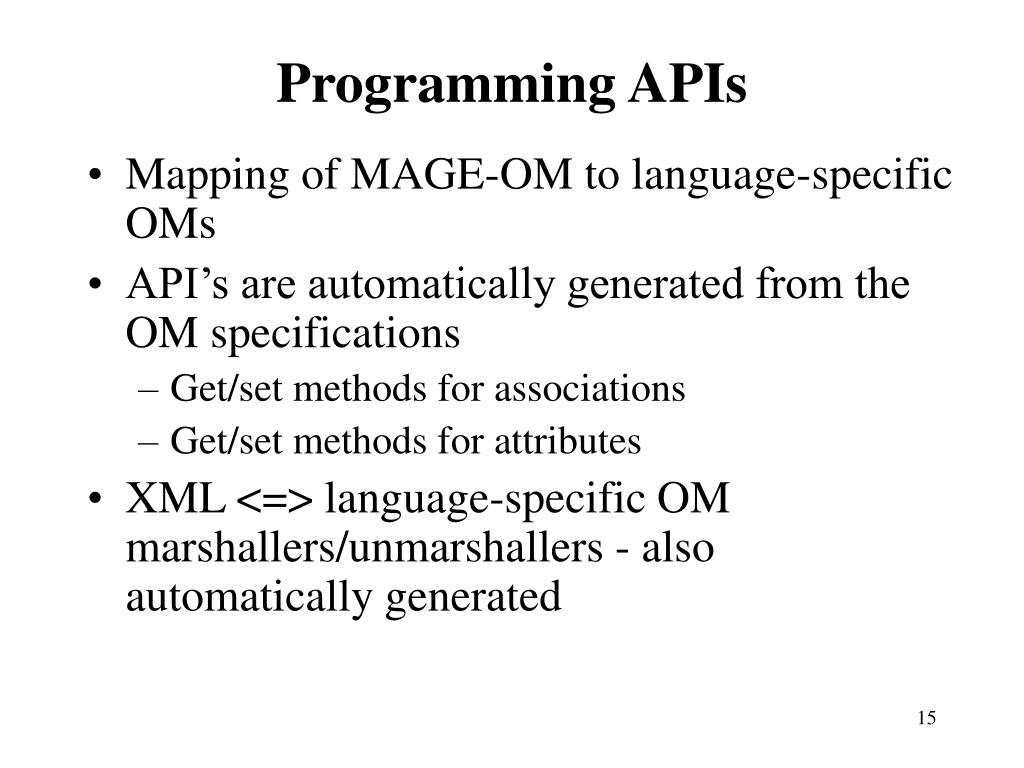

  15. Programming APIs • Mapping of MAGE-OM to language-specific OMs • API’s are automatically generated from the OM specifications • Get/set methods for associations • Get/set methods for attributes • XML <=> language-specific OM marshallers/unmarshallers - also automatically generated

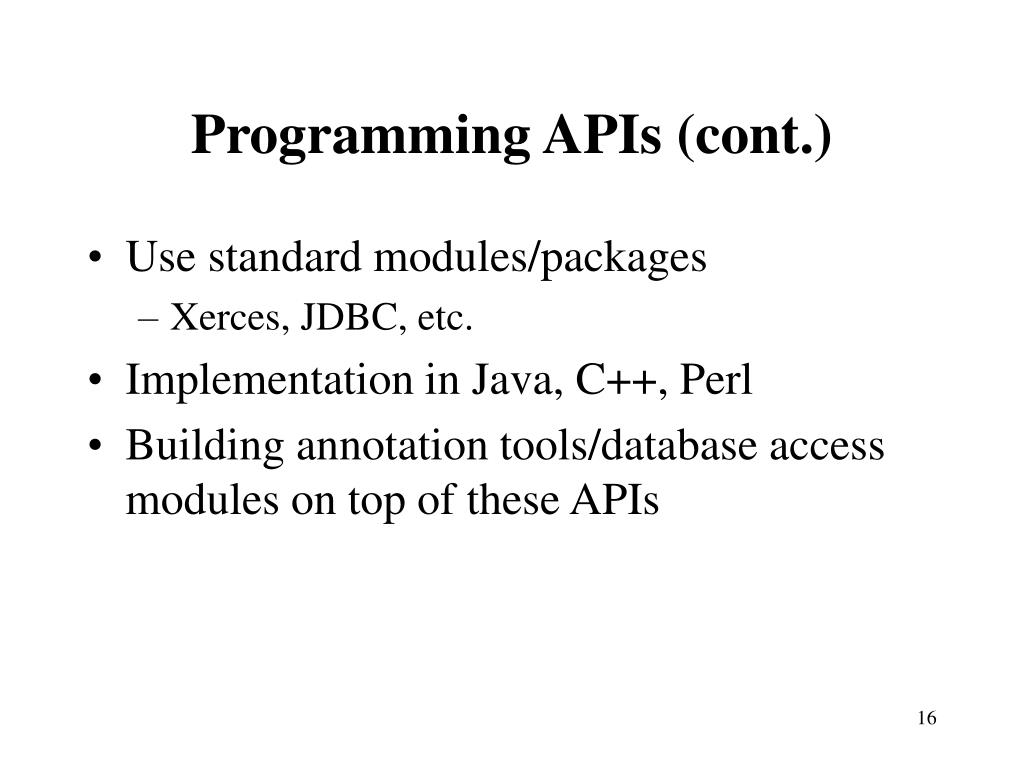

  16. Programming APIs (cont.) • Use standard modules/packages • Xerces, JDBC, etc. • Implementation in Java, C++, Perl • Building annotation tools/database access modules on top of these APIs

  17. MAGEstk components MAGE-RS (database) MAGE-ML MAGE API (Perl, Java, C++) MAGE browsing/ annotation tools

  18. Acknowledgements • EBI microarray team/database department: • Alvis Brazma (team leader) • Helen Parkinson (curation, MIAMExpress) • Mohammad Shojatalab (MIAMExpress) • Jaak Vilo (Expression Profiler) • Ahmet Oezcimen (Oracle DBA) • Susanna Sansone (curation, MIAMExpress) • MAGE developers: • MGED • Rosetta Biosoftware
