Node-Voltage with Dependent Source

In this circuit analysis problem, we aim to determine the voltage across the dependent source (vo) and the power absorbed by this dependent source. Additionally, we will calculate the total power developed by the independent sources and assess the power dissipated by the resistors in the circuit. Understanding the relationship between total power delivered and total power dissipated is crucial in circuit theory, encapsulated in ECE 201 coursework.

carlotta
Télécharger la présentation

Node-Voltage with Dependent Source

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Node-Voltage with Dependent Source Find the voltage vo in the circuit shown above. Find the power absorbed by the dependent source. Find the total power developed by the independent sources. ECE 201 Circuit Theory 1

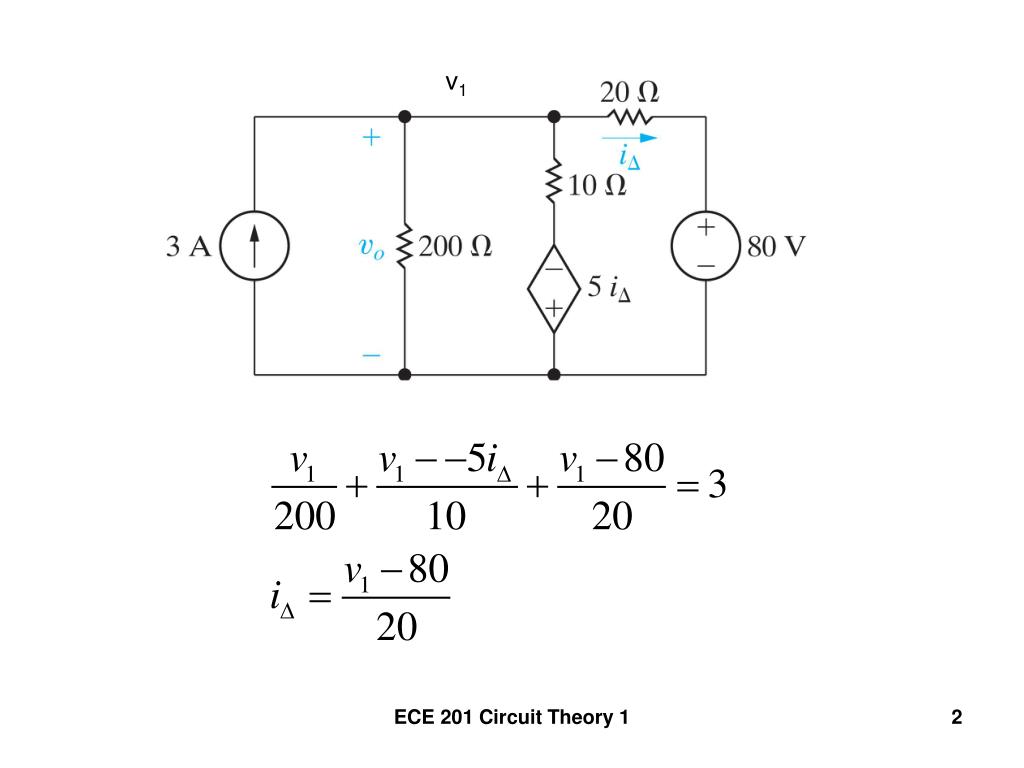

  2. v1 ECE 201 Circuit Theory 1

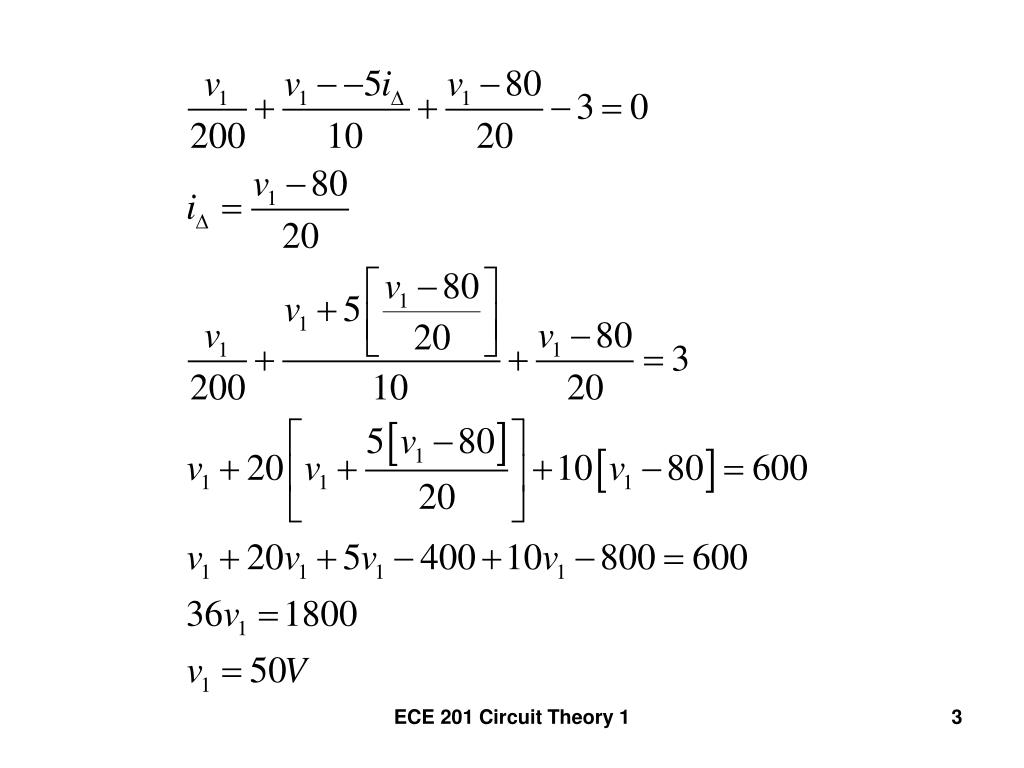

  3. ECE 201 Circuit Theory 1

  4. v1 ECE 201 Circuit Theory 1

  5. v1 ECE 201 Circuit Theory 1

  6. Check the power dissipated by the resistors. Total Power Dissipated ECE 201 Circuit Theory 1

  7. Total Power Delivered Total Power Delivered = Total Power Dissipated ECE 201 Circuit Theory 1
