Linked Stacks and Queues

1. Linked Stacks and Queues Pointers and Linked StructuresLinked StacksLinked Stacks with SafeguardsLinked Queues Application: Polynomials Arithmatic Abstract Data Types and Implementations Kruse/Ryba ch04

2. Pointers Kruse/Ryba ch04

3. Pointers • Links or Address or Pointer • Sometimes called a reference (handle) • Machine address Kruse/Ryba ch04

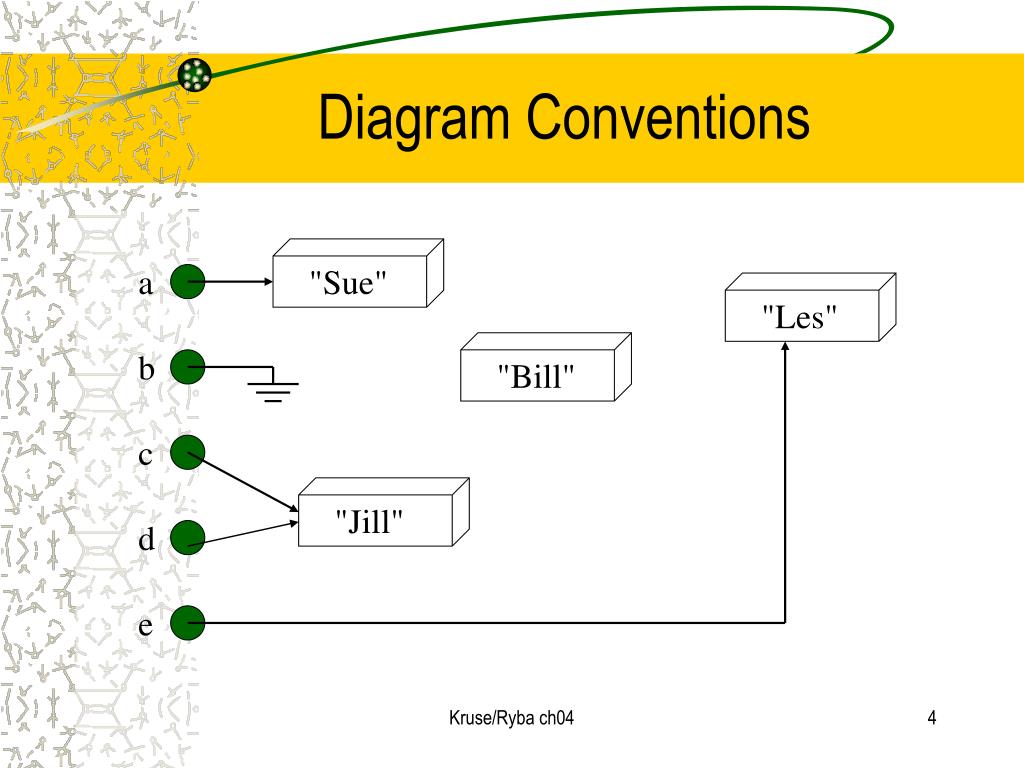

4. Diagram Conventions a "Sue" "Les" b "Bill" c "Jill" d e Kruse/Ryba ch04

5. Singly Linked Structures Fred Harry 225-3465 225-8122 $1,254.65 $2,436.98 Sally Joe Larry 335-2145 225-2311 336-8865 $2,332.45 $1,496.00 $2,221.66 Kruse/Ryba ch04

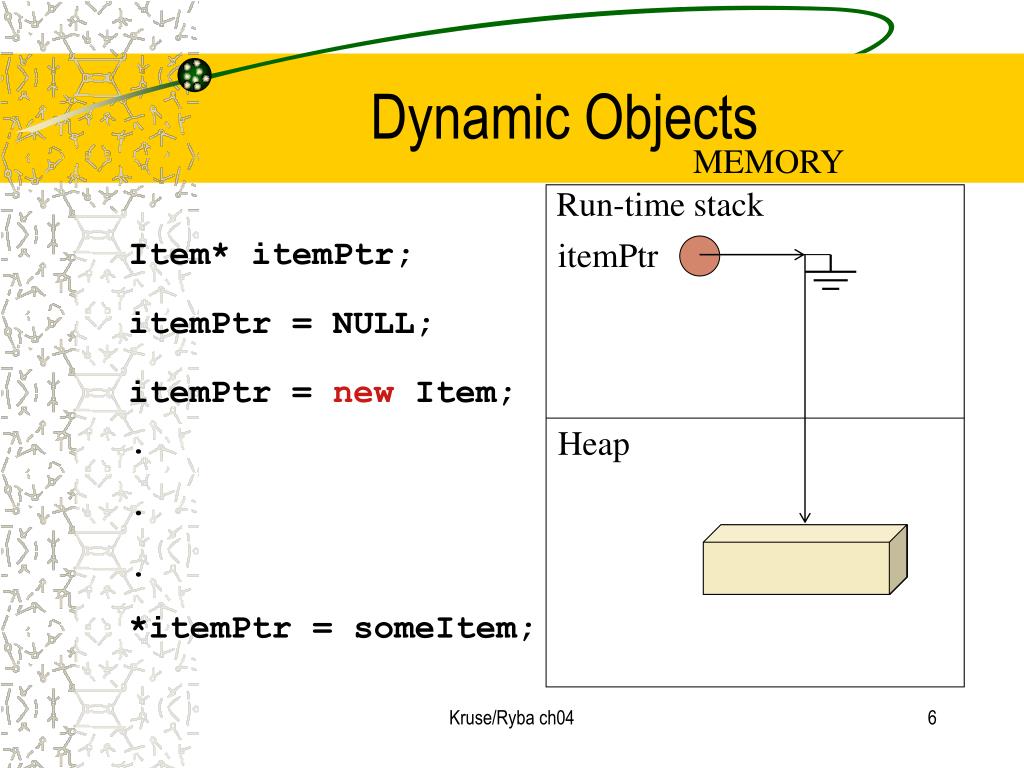

6. Item* itemPtr; itemPtr itemPtr = NULL; itemPtr = new Item; . . . *itemPtr = someItem; Dynamic Objects MEMORY Run-time stack Heap Kruse/Ryba ch04

7. Item* itemPtr; itemPtr Dynamic Objects MEMORY Run-time stack itemPtr = NULL; itemPtr = new Item; Heap . . . *itemPtr = someItem; delete itemPtr; Kruse/Ryba ch04

8. Dynamic Objects itemPtr = new Item; In C, returns 0 when fails In ANSI C++ throws exception itemPtr = new(nothrow) Item; Same effect as in C Must have #include <new> using namespace std; Kruse/Ryba ch04

9. Dynamically Allocated Arrays int size, i; int* dynamicArray; cout << "Enter an array size: " << flush;cin >> size;dynamicArray = newint[size];for (i = 0; i<size; i++)dynamicArray[i] = i; Kruse/Ryba ch04

10. a a "Sue" "Bill" b b "Bill" "Bill" a "Sue" b "Bill" a = b; *a = *b; Pointer Assignment Kruse/Ryba ch04

11. Addresses of Automatic Objects x Item x; Item* y; y = &x; y y Kruse/Ryba ch04

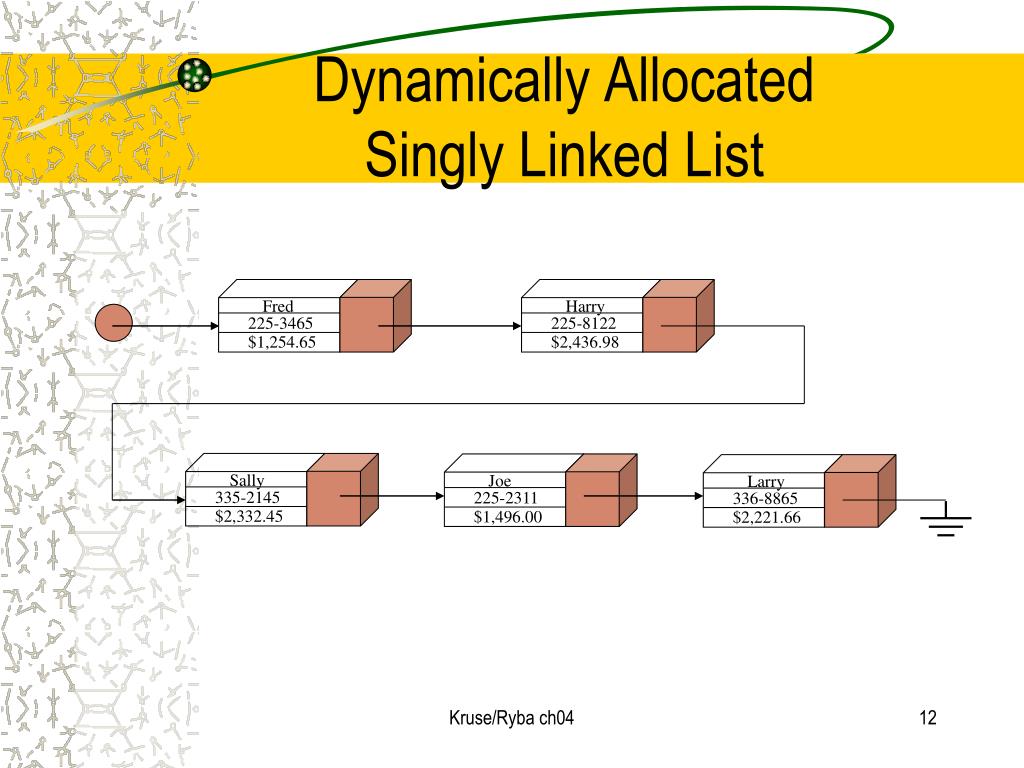

12. Dynamically Allocated Singly Linked List Fred Harry 225-3465 225-8122 $1,254.65 $2,436.98 Sally Joe Larry 335-2145 225-2311 336-8865 $2,332.45 $1,496.00 $2,221.66 Kruse/Ryba ch04

13. Node structNode //class Node { public: // data members NodeEntryentry; Node *next; // constructors Node(); Node(NodeEntryitem, Node* addOn = NULL);}; Kruse/Ryba ch04

14. Constructors Node::Node(){ next = NULL;} Node::Node(NodeEntry item, Node* addOn){ entry = item; next = addOn;} Kruse/Ryba ch04

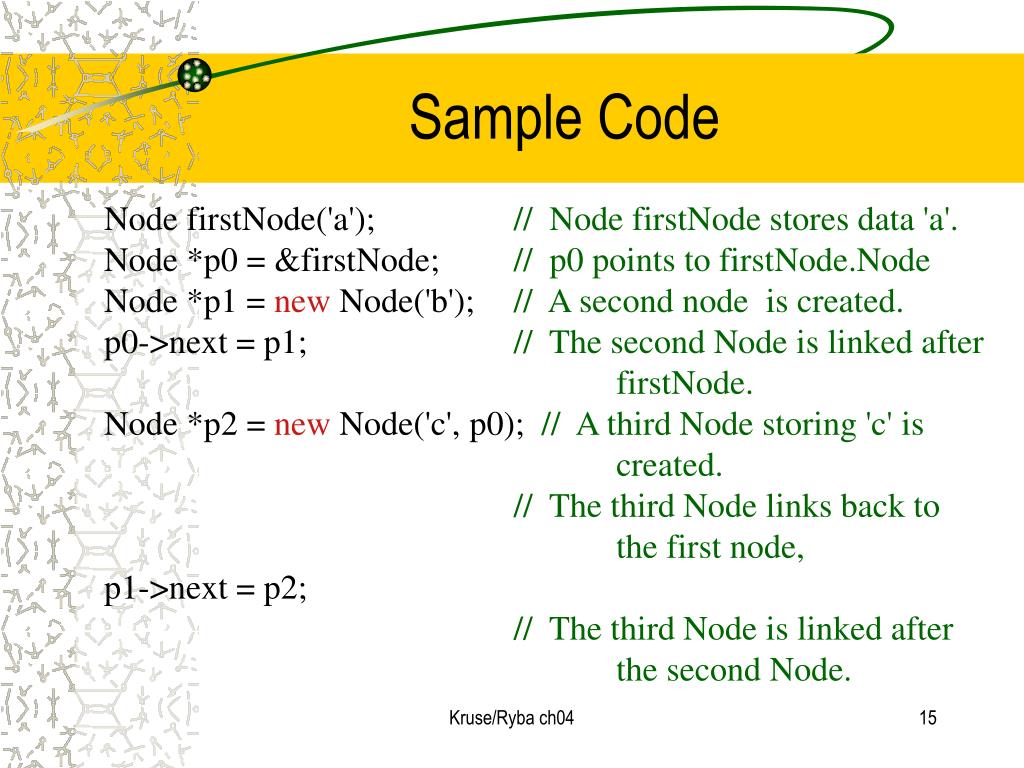

15. Sample Code Node firstNode('a'); // Node firstNode stores data 'a'.Node *p0 = &firstNode; // p0 points to firstNode.NodeNode*p1 = new Node('b'); // A second node is created.p0->next = p1; // The second Node is linked after firstNode.Node *p2 = new Node('c', p0); // A third Node storing 'c' is created. // The third Node links back to the first node, p1->next = p2; // The third Node is linked after the second Node. Kruse/Ryba ch04

16. Linked Stack • class Stack {public: Stack();void empty() const;voidpush(constStack_entry &item); • void top(Stack_entry&item) const;protected: Node *top_node;}; Kruse/Ryba ch04

17. Why a data type with only one element? • Maintain encapsulation • Maintain logical distinction between stack and top of stack • Maintain consistency with other data structures • Helps with debugging. Kruse/Ryba ch04

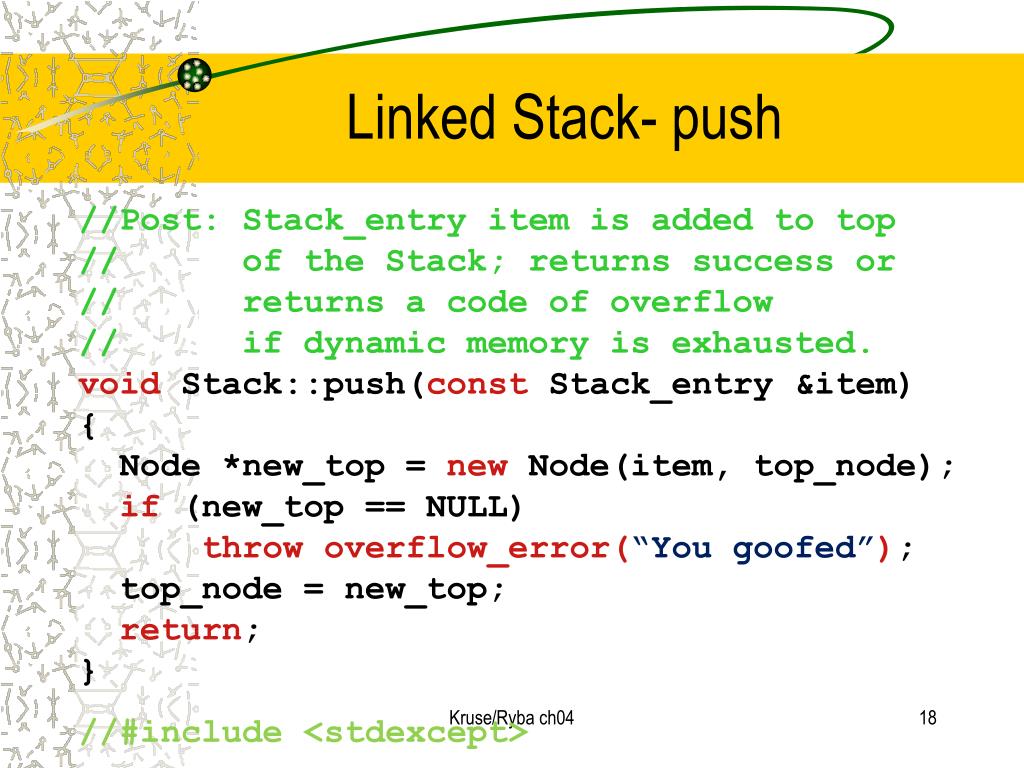

18. Linked Stack- push • //Post: Stack_entry item is added to top// of the Stack; returns success or// returns a code of overflow // if dynamic memory is exhausted.void Stack::push(constStack_entry &item){ Node *new_top = new Node(item, top_node);if (new_top == NULL) throw overflow_error(“You goofed”);top_node = new_top;return;} • //#include <stdexcept> Kruse/Ryba ch04

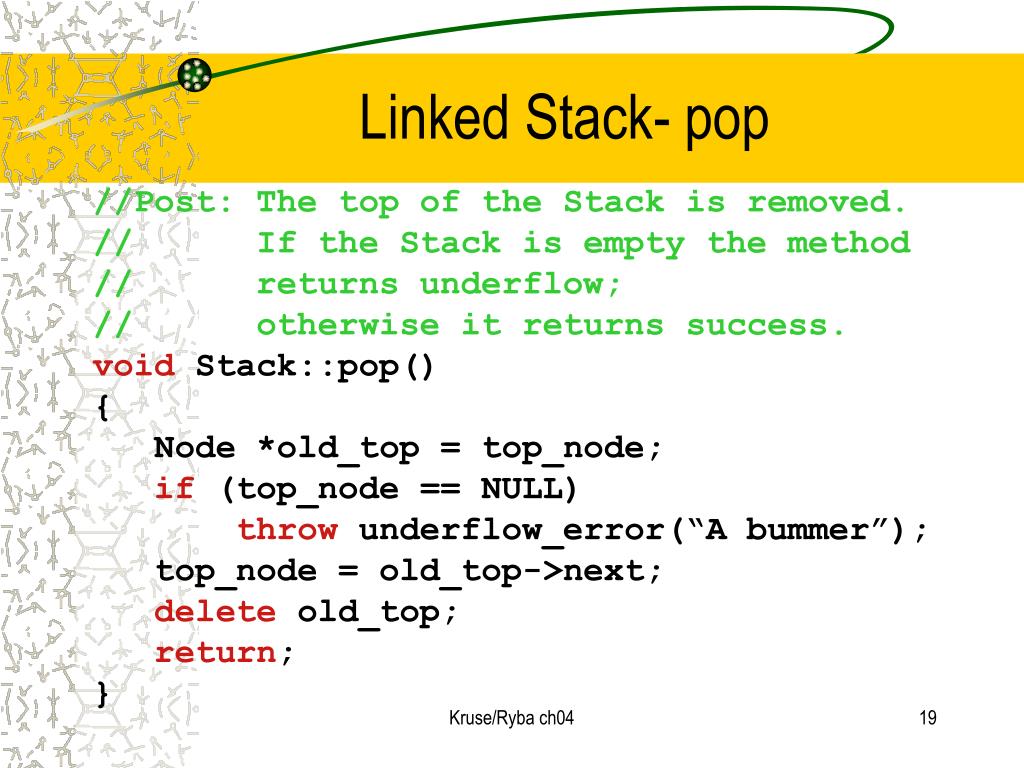

19. Linked Stack- pop • //Post: The top of the Stack is removed.// If the Stack is empty the method// returns underflow; // otherwise it returns success.voidStack::pop(){ Node *old_top = top_node;if (top_node == NULL) throw underflow_error(“A bummer”);top_node = old_top->next;deleteold_top;return;} Kruse/Ryba ch04

20. Linked Stack- destructor • /*Post: The Stack is cleared.*/ • Stack::~Stack() // Destructor{while (!empty()) pop();} Kruse/Ryba ch04

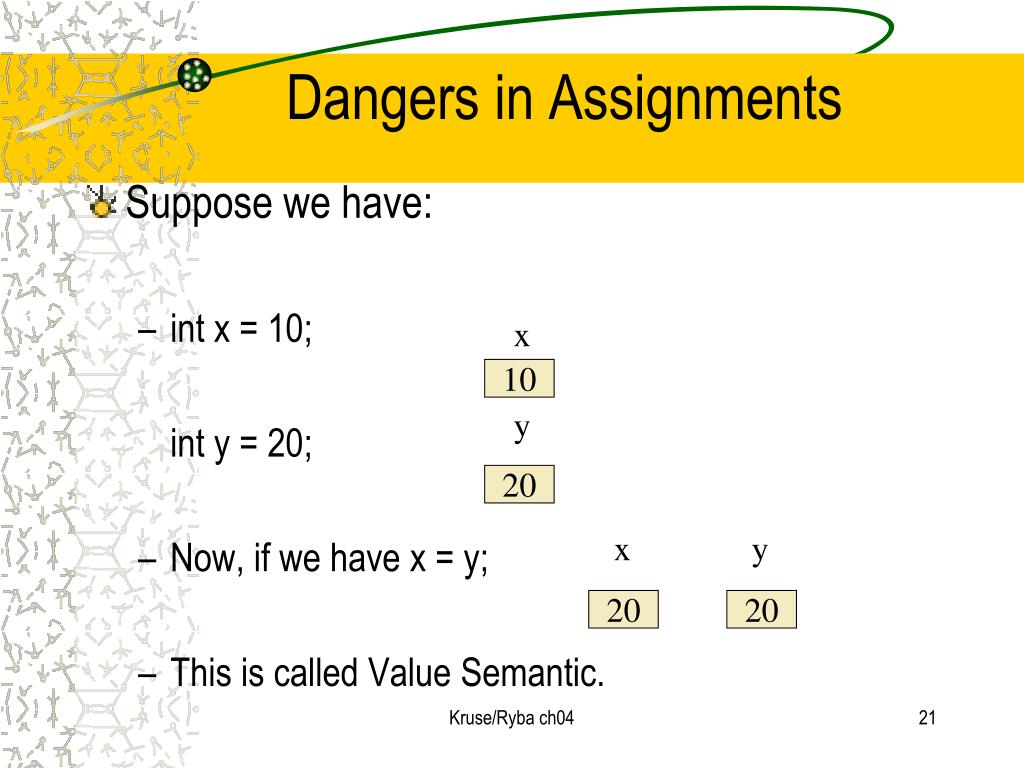

21. Dangers in Assignments • Suppose we have: • int x = 10; int y = 20; • Now, if we have x = y; • This is called Value Semantic. x 10 y 20 x y 20 20 Kruse/Ryba ch04

22. continued • Now, assume x and y are pointers. 10 20 x y If we have x = y; 10 x This is called Reference Semantic 20 y y Kruse/Ryba ch04

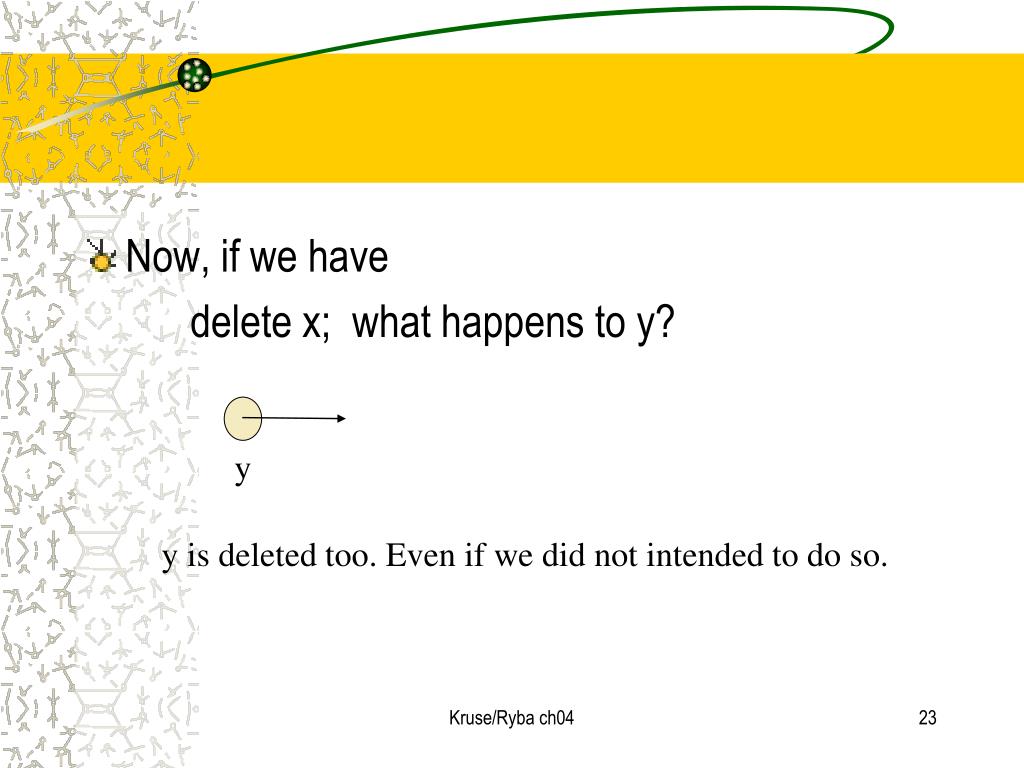

23. Now, if we have delete x; what happens to y? y y is deleted too. Even if we did not intended to do so. Kruse/Ryba ch04

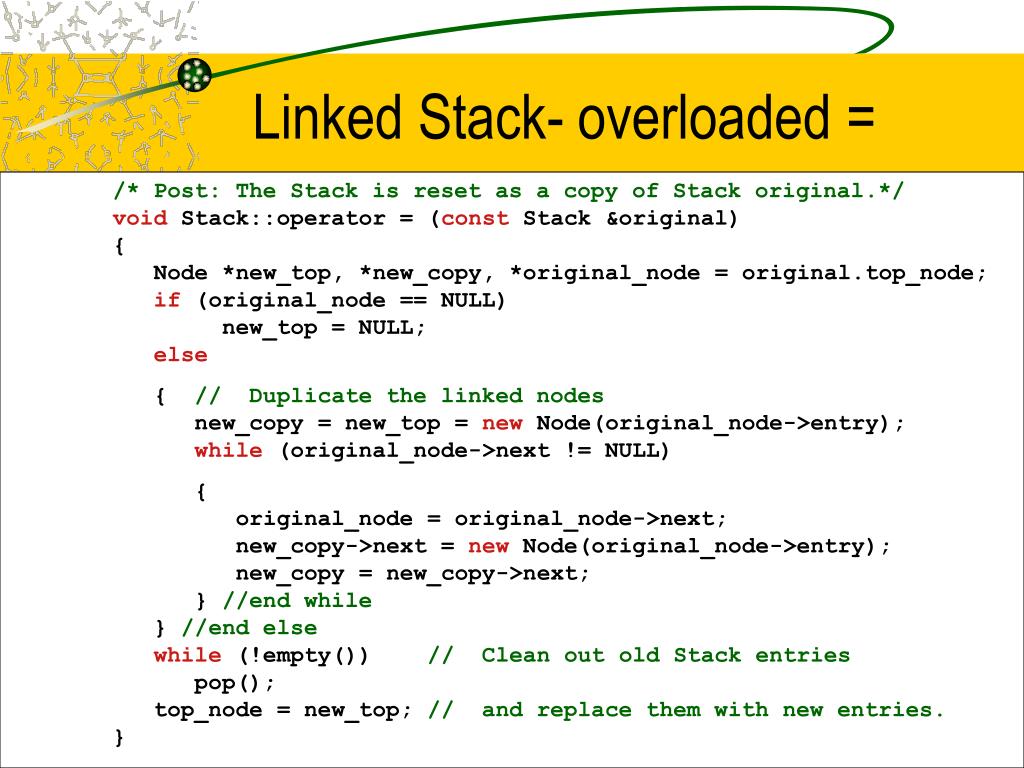

24. Linked Stack- overloaded = • /* Post: The Stack is reset as a copy of Stack original.*/void Stack::operator = (const Stack &original) { Node *new_top, *new_copy, *original_node = original.top_node;if (original_node == NULL) new_top = NULL;else • { // Duplicate the linked nodesnew_copy = new_top = new Node(original_node->entry);while (original_node->next != NULL) • {original_node = original_node->next;new_copy->next = new Node(original_node->entry);new_copy = new_copy->next; } //end while } //end elsewhile (!empty()) // Clean out old Stack entries pop();top_node = new_top; // and replace them with new entries.} Kruse/Ryba ch04

25. Assume x and y are objects. • To execute this function We can have: x = y; Or x.operator = (y); x ill execute the function and y will be its parameter. and we get the following: 5 15 x x 5 15 20 10 y y 20 10 20 10 Kruse/Ryba ch04

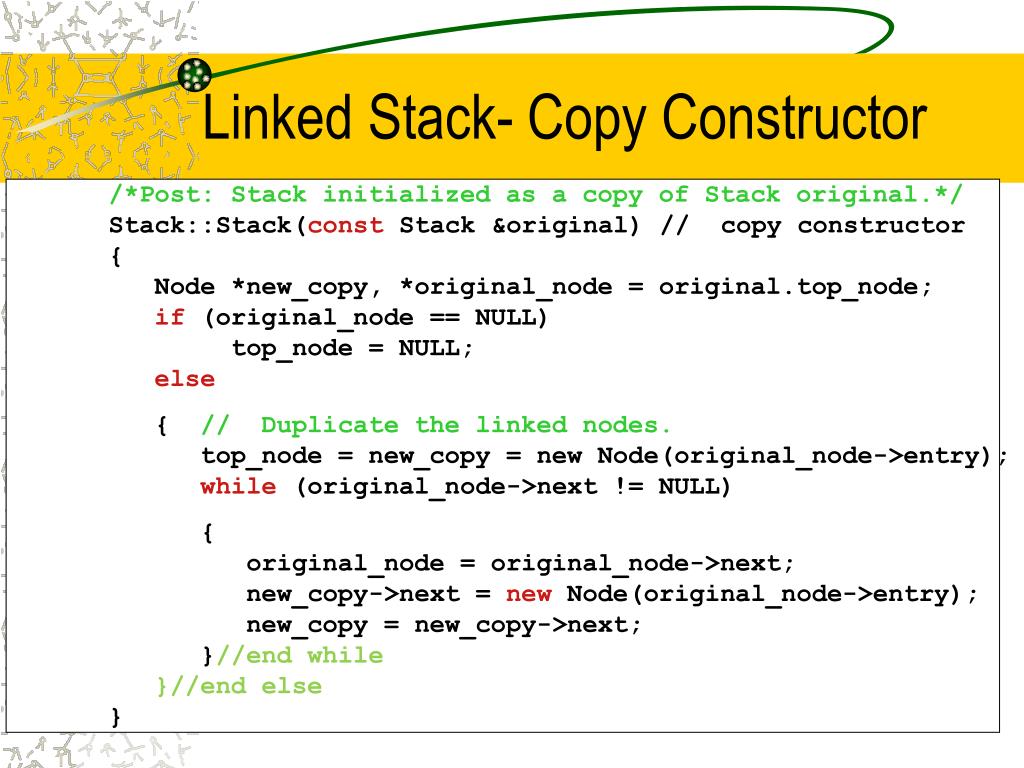

26. Linked Stack- Copy Constructor • /*Post: Stack initialized as a copy of Stack original.*/Stack::Stack(const Stack &original) // copy constructor{ Node *new_copy, *original_node = original.top_node;if (original_node == NULL) top_node = NULL;else • { // Duplicate the linked nodes.top_node = new_copy = new Node(original_node->entry);while (original_node->next != NULL) • {original_node = original_node->next;new_copy->next = new Node(original_node->entry);new_copy = new_copy->next; }//end while}//end else} Kruse/Ryba ch04

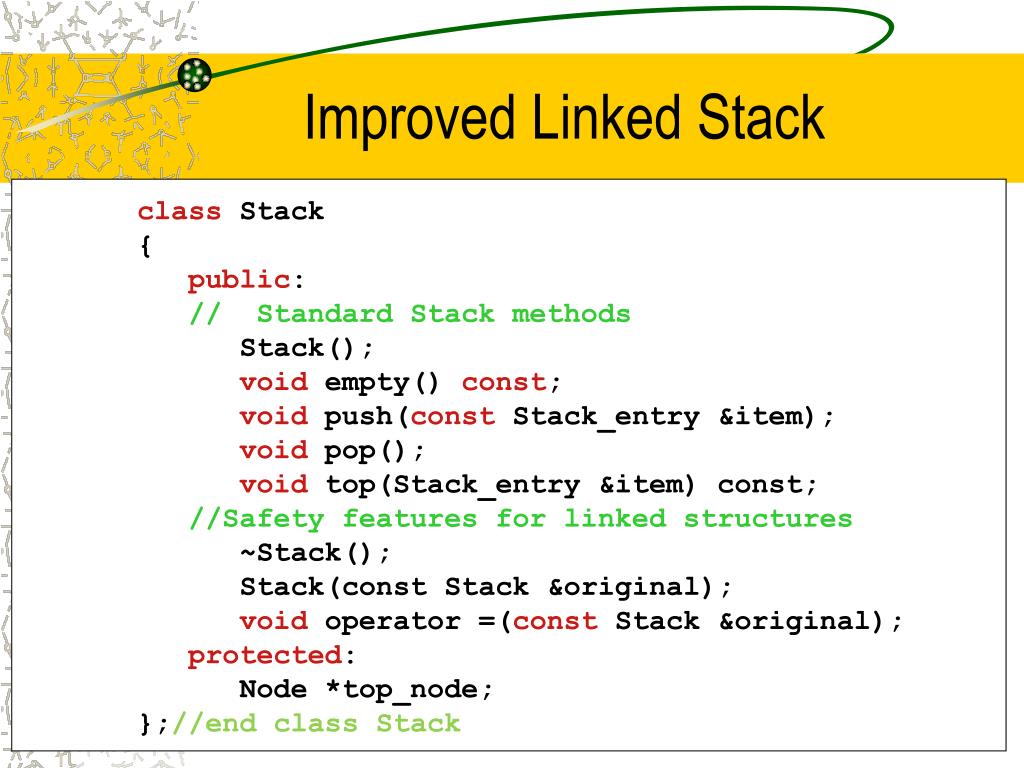

27. Improved Linked Stack • class Stack • {public:// Standard Stack methods Stack();void empty() const;voidpush(constStack_entry &item);voidpop();voidtop(Stack_entry&item) const;//Safety features for linked structures ~Stack(); Stack(const Stack &original);voidoperator =(const Stack &original);protected: Node *top_node;};//end class Stack Kruse/Ryba ch04

28. ADT stack • Create the stack, leaving it empty • Test whether the stack is empty • Push a new entry onto the top of the stack, provided it is not full • Pop the entry off the top of the stack, provided the stack is not empty • Retrieve the top entry off the stack, provided the stack is not empty Kruse/Ryba ch04

29. Linked Queues • class Queue • {public:// standard Queue methods Queue();void empty() const;voidappend(constQueue_entry &item);voidserve();voidretrieve(Queue_entry&item) const;// safety features for linked structures ~Queue(); Queue(constQueue &original);void operator =(const Queue &original);protected: Node *front, *rear;};//end class Queue Kruse/Ryba ch04

30. Extended Queue(A little inheritance) • classExtended_queue: public Queue • { • public: • boolfull() const; • intsize() const; • voidclear(); • voidserve_and_retrieve(Queue_entry item); • }; Kruse/Ryba ch04

31. size() • intExtended_queue::size() const/*Post: Return the number of entries in the Extended_queue.*/{ Node *window = front;int count = 0;while (window != NULL) • { window = window->next; count++; }return count;} Kruse/Ryba ch04

32. ADT queue • Create the queue, leaving it empty • Test whether the queue is empty • Append a new entry onto the rear of the queue, provided it is not full • Serve (and remove) the entry off the front of the queue, provided the queue is not empty • Retrieve the front entry off the queue, provided the queue is not empty Kruse/Ryba ch04

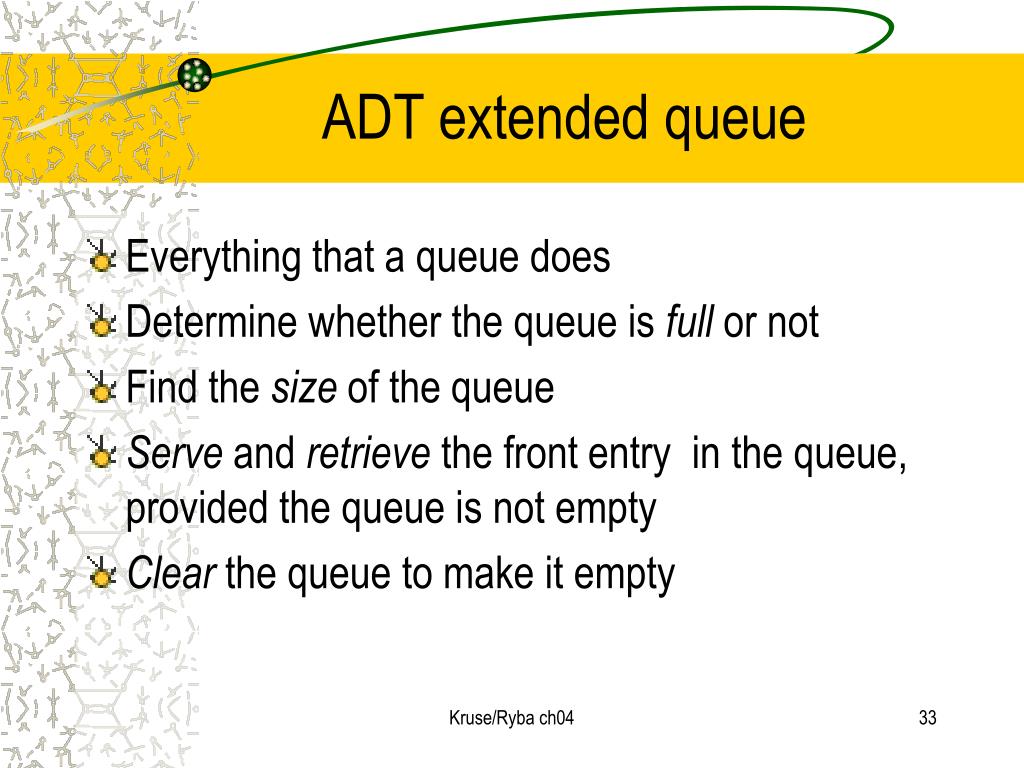

33. ADT extended queue • Everything that a queue does • Determine whether the queue is full or not • Find the size of the queue • Serve and retrieve the front entry in the queue, provided the queue is not empty • Clear the queue to make it empty Kruse/Ryba ch04

34. Catch Everything From Chapter 4 Kruse/Ryba ch04
