Quick Report (QRP) Files

1. Quick Report (QRP) Files

2. 1. QRP: QRP is reports file which is being called from application when ever clients choose to view reports. 2. What Is QRPBANK? QRPBANK is a data file where you can store client’s customized qrp and standard qrp reports according toclients’ account id. 3. QRP Maintenance: Keep all QRP files in QRPBANK for maintenance purpose. We preserve the file in local folder for amendment For Example: S:\UPLOAD FILE\2011\FEB\17feb11\victory\FODAYBK8.QRP. And keep the same file on Shilpi Server for future prospective. 4. QRP Modification: QRP (Report file) can customize or modified using repwin30.exe application.

3. 5. Introduction to REPWIN30.EXE 1. How to Open REPWIN.EXE30 • Go to Package Folder >> Find REPWIN30.EXE>>Double click on It • Following Window will open:

4. 2. How to Open Qrp in REPWIN30.EXE • Step1: Go to File >>click on Open • Step2: Following window will open

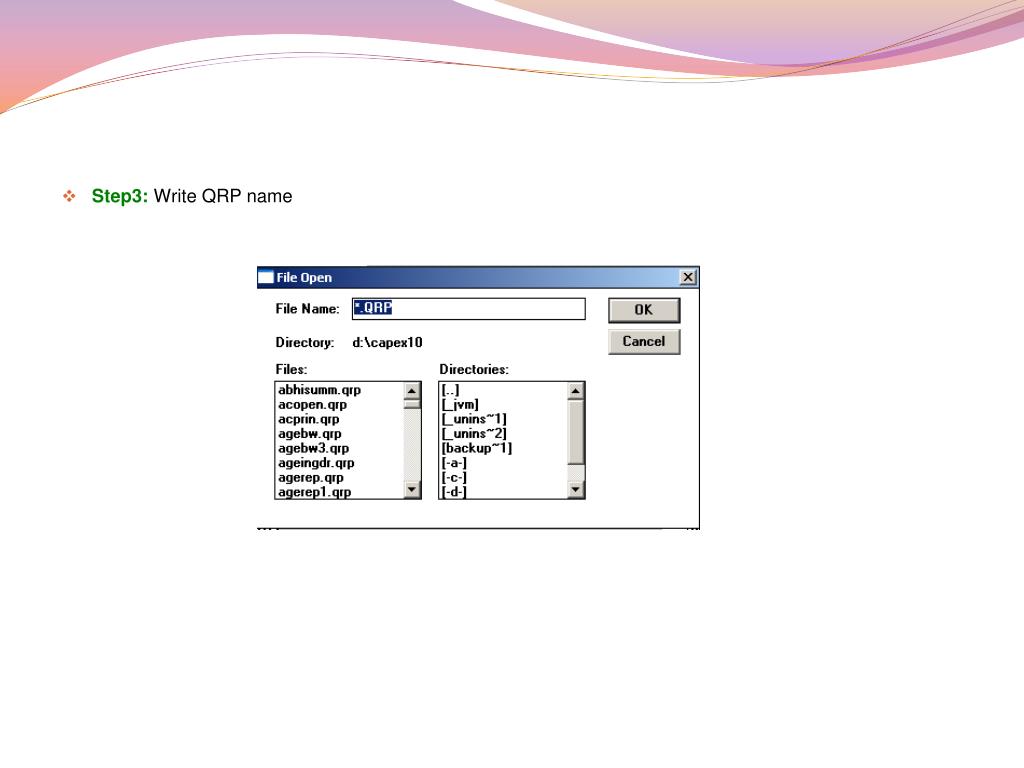

5. Step3: Write QRP name

6. 2.Click on OK to open QRP 1.Enter QRP name Or 1.1 Select QRP from here

7. 3. How to add variable • Go to format menu and select Input>>Variable

8. Following window will open

9. 4. How to add header • Go to format menu and select Break Groups: Break Group Click here to add input Name in Break Groups Click on OK to make a separate header for a variable Select Input Items Click here to add Break Group into Input name

10. QRP(File Send to customers) 6. Uploading and Downloading Customized QRP On/from Server. Uploading Customized QRP • Step 1:Go to client info • Step 2:Select FTP (File send to customer)

11. Step 3:Following window will open • Step 4:Click on Upload file on customer account .It first check connectivity with FTP server then upload the file. Click here it send file in customer's account Enter account id Write or select file name with full path Select segment

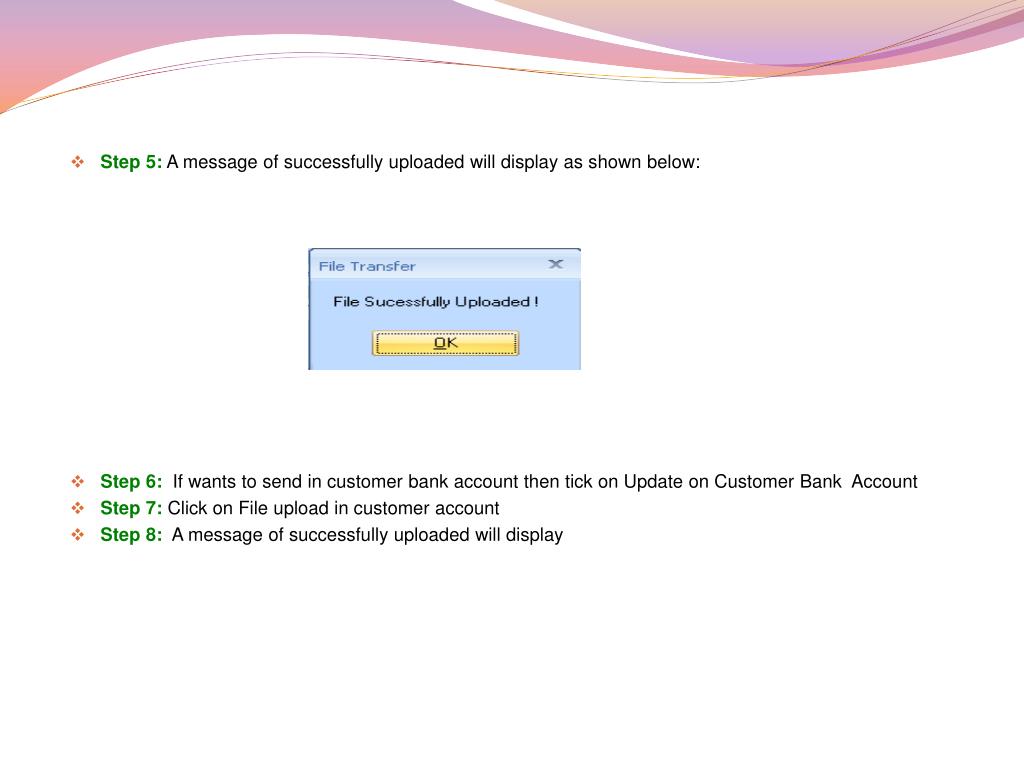

12. Step 5:A message of successfully uploaded will display as shown below: • Step 6:If wants to send in customer bank account then tick on Update on Customer Bank Account • Step 7:Click on File upload in customer account • Step 8:A message of successfully uploaded will display

13. Find Customized QRP on net Downloading Customized QRP • Step 1:Go to client info • Step 2:Select find customized qrp on net

14. Step 3:Following window will open 1.Enter account ID 3. Click on find 2.Select Product Name 4. All QRP will Display in the talble

15. FTP (File received from customers) • Step 4:To modify a qrp report, click on that particular report and modify that. • Step 5:Save it in deploy 60 folder OR • Follow the following steps to downloads the qrp • Step 6:Go to client info • Step 7:Select FTP (File received from customers)

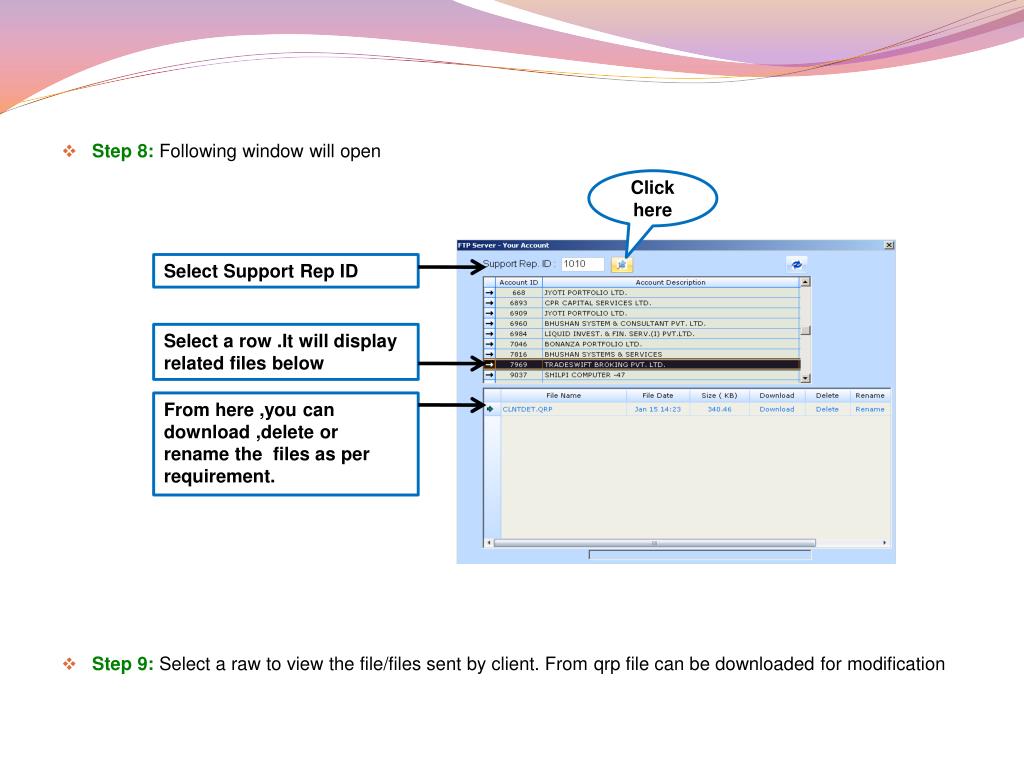

16. Click here • Step 8:Following window will open • Step 9:Select a raw to view the file/files sent by client. From qrp file can be downloaded for modification Select Support Rep ID Select a row .It will display related files below From here ,you can download ,delete or rename the files as per requirement.

17. 7. How Clients Download Customized QRP. • Step 1:Login package(ex: cApex10) • Step 2: Select utilities>>System utilities>>Download customized report files(Qrp) • Step 3:Click on Yes to Download QRP

18. 8. Downloading all standard QRP from server. • All standard QRP can be downloaded from related option in package. • For example: • Step 1:Login capex10 • Step 2:Select Reports>>Client-Scrip wise Portfolio

19. Step 3:Following window will open • Step 4:Click on download Qrp. It will download related qrp.

20. Troubleshooting (Most common problem faced) • Problem1: Mismatch error: • Reason: Such errors occur when reports does not find related variable. • For Example:In Contract Note(in capex10.exe) when client click on view to view report, an error occurs

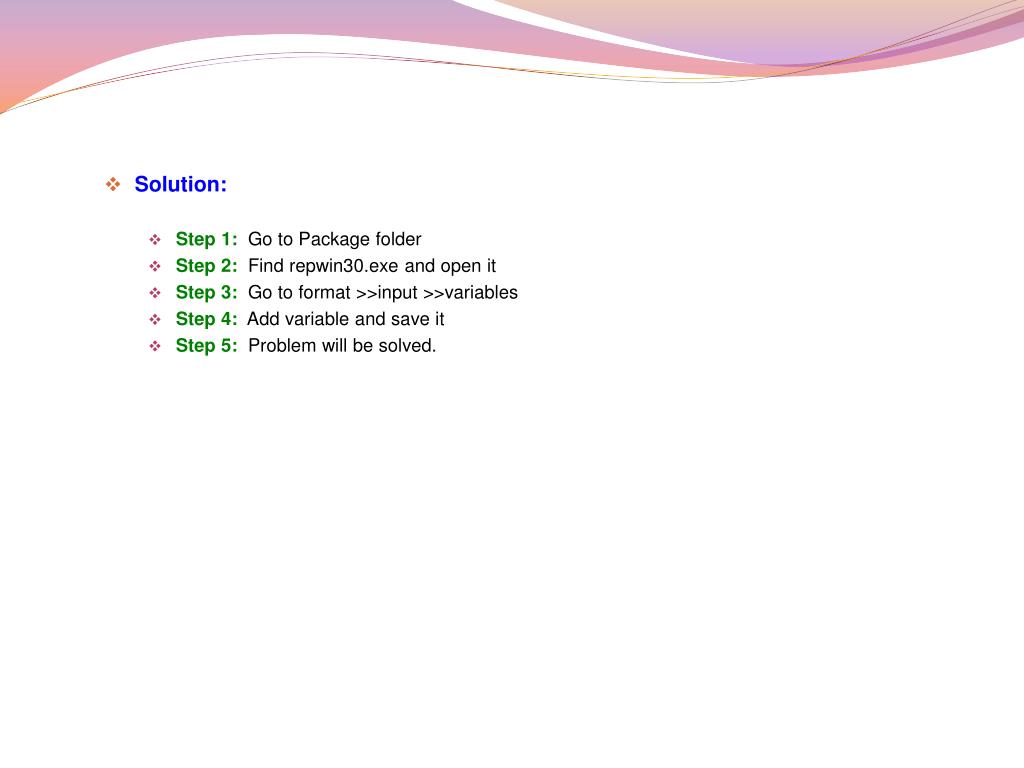

21. Solution: • Step 1:Go to Package folder • Step 2:Find repwin30.exe and open it • Step 3:Go to format >>input >>variables • Step 4:Add variable and save it • Step 5:Problem will be solved.

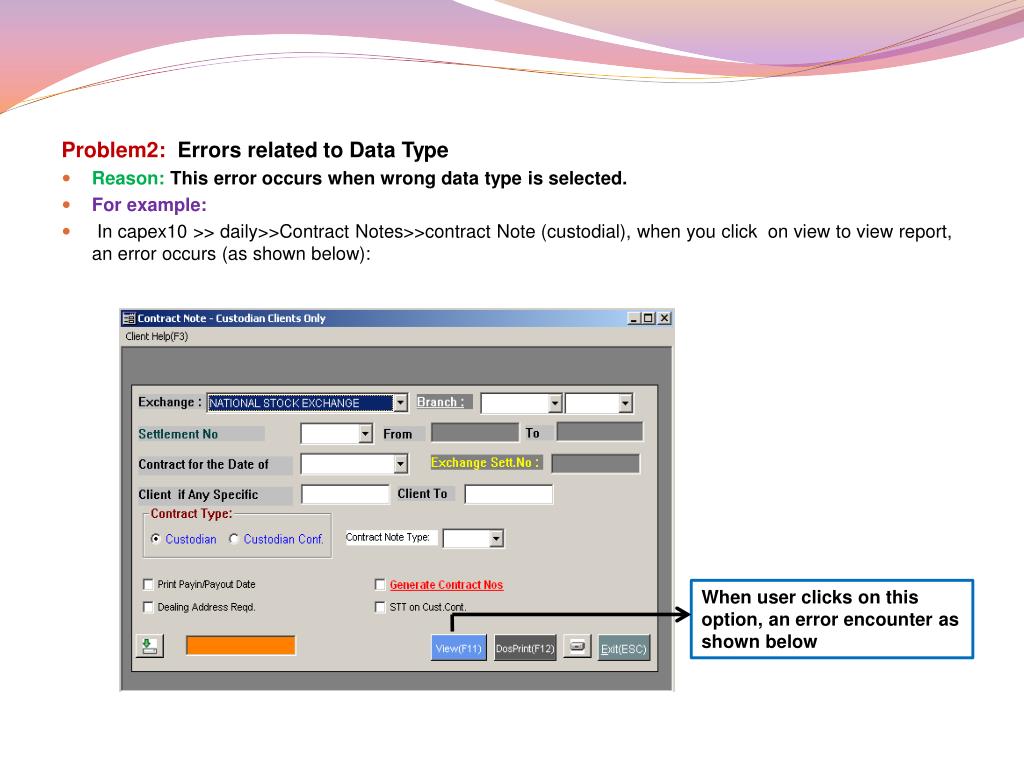

22. Problem2: Errors related to Data Type • Reason: This error occurs when wrong data type is selected. • For example: • In capex10 >> daily>>Contract Notes>>contract Note (custodial), when you click on view to view report, an error occurs (as shown below): When user clicks on this option, an error encounter as shown below

23. Following error will occur It is a numeric variable • Reason: Such type of error occurs when wrong data type is selected. For example: In the following window, input variable is ppageno which must have numeric data type, but string data type is selected for this variable as shown on next slide. String data type is selected for numeric variable which is wrong

24. Solution: Follow the following steps to sort out this problem: • Go to Package folder • Find REPWIN30.exe • Open contract.qrp with REPWIN30.exe • Go to format, select Input>>Input items • Select correct data type • Click on apply and save • Problem will be solved It is a numeric variable Select numeric data type for numeric variable

25. Problem3: Errors related with Printing (No action after clicking on dos print) • Reason: Thiserror comes • 1. When printer is not set for Dos mode. • 2. When print files are missing in package folder. When user Click on dos print ,no action will perform

26. Solution: For Reason 1 • Check Dos Mode setting of Printer. If it is not ok then set printer on dos mode • Set paper in printer • Open Command prompt and write command C:\Documents and settings\Administrator>dir >prn • Press enter. It will print the report. Get hardcopy of printed report file. Solution:For Reason 2. • Check all Print files are in package folder. If any print file is missing then put that file in package folder. Name of required print files are: print22.exe, print36.exe, print48.exe, print60.exe, print72.qrp, printDos.qrp, printcon.qrp

27. Problem4: Errors related with graphic • Reason: This error occurs in DPORA and CDSL10 due to version mismatch • Sol: Enter two file named: GSW.EXE and GSWDLL.DLL in package folder (CDSL10 and DPORA11)
