1. Structured-Document Processing Languages Spring 2007 Course Review Repetitio mater studiorum est!

2. Goals of the Course • Learn about central models and languages for • manipulating • representing • transforming and • querying structured documents (or XML) • "Generic XML processing technology" Course Review

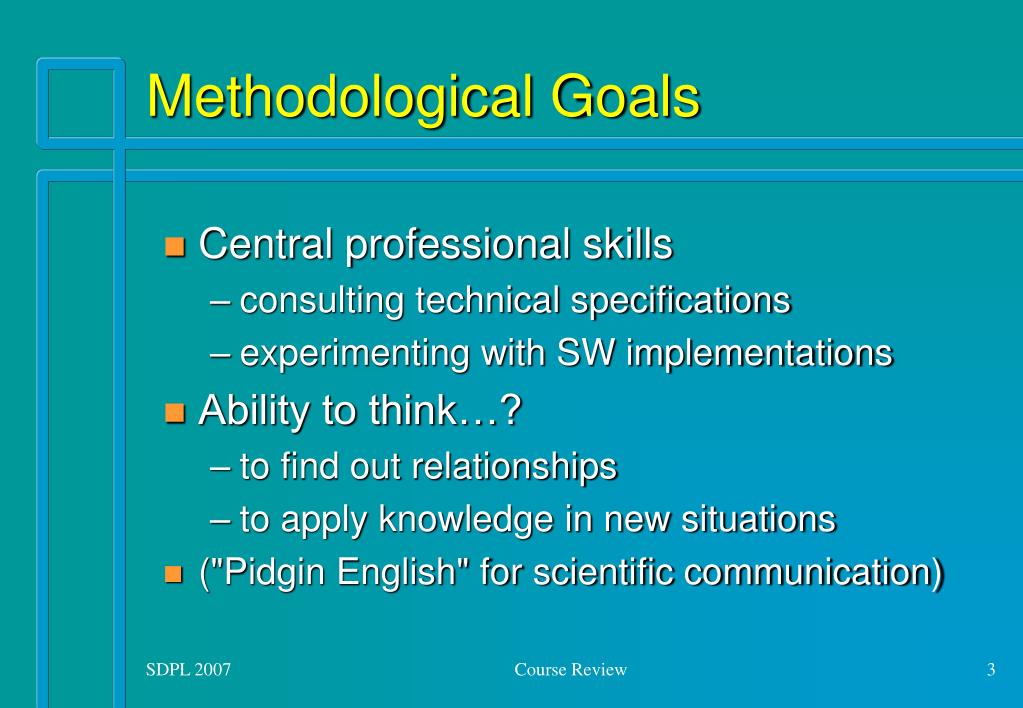

3. Methodological Goals • Central professional skills • consulting technical specifications • experimenting with SW implementations • Ability to think…? • to find out relationships • to apply knowledge in new situations • ("Pidgin English" for scientific communication) Course Review

4. XML? • Extensible Markup Language is not a markup language! • does not fix a tag set nor its semantics (like markup languages like HTML do) • XML is • A way to use markup to represent information • A metalanguage • supports definition of specific markup languages through XML DTDs or Schemas • E.g. XHTML a reformulation of HTML using XML Course Review

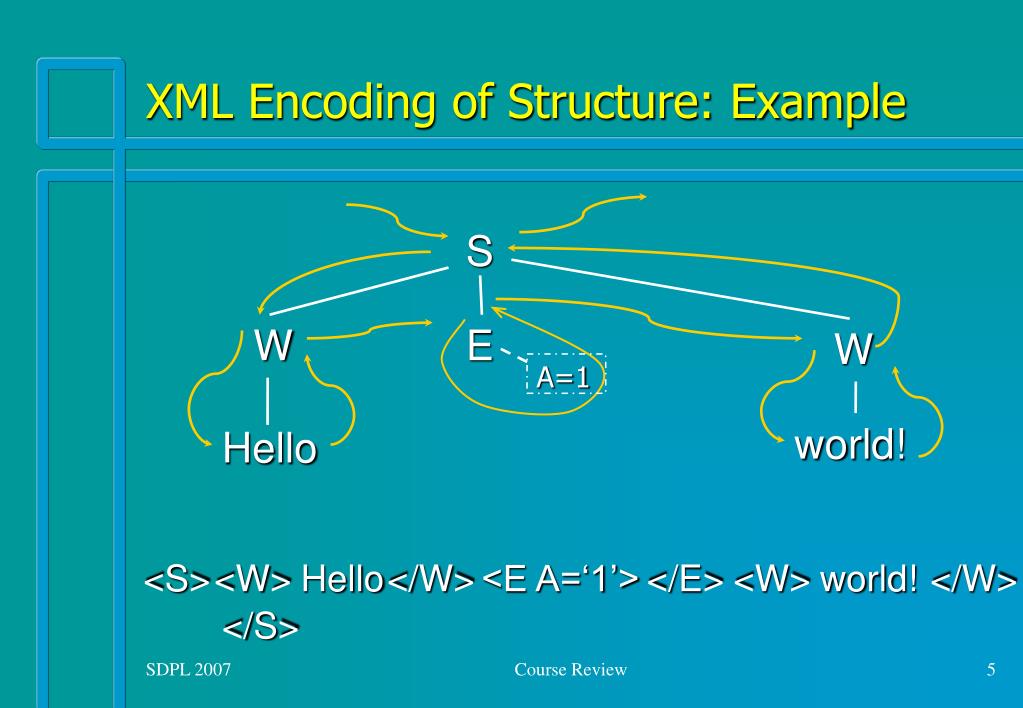

5. <E A=‘1’> </E> </W> </S> XML Encoding of Structure: Example <S> S W E W A=1 world! Hello <W> Hello </W> <W> world! Course Review

6. Basics of XML DTDs • A Document Type Declaration provides a grammar (document type definition, DTD) for a class of documents • Syntax (in the prolog of document instance):<!DOCTYPE rootElemType SYSTEM "ex.dtd" <!-- "external subset" in file ex.dtd --> [ <!-- "internal subset" may come here --> ]> • DTD = union of the external and internal subset Course Review

7. How do Declarations Look Like? <!ELEMENT invoice (client, item+)> <!ATTLIST invoice num NMTOKEN #REQUIRED> <!ELEMENT client (name, email?)> <!ATTLIST client num NMTOKEN #REQUIRED> <!ELEMENT name (#PCDATA)> <!ELEMENT email (#PCDATA)> <!ELEMENT item (#PCDATA)> <!ATTLIST item price NMTOKEN #REQUIRED unit (FIM | EUR) ”EUR” > Course Review

8. Element type declarations • The general form is<!ELEMENT elementTypeName (E)>where E is a content model • regular expression of element names • Content model operators: E | F : alternation E, F: concatenation E? : optional E* : zero or more E+ : one or more (E) : grouping Course Review

9. XML Schema Definition Language • XML syntax • schema documents easier to manipulate by programs (than the DTD syntax) • Compatibility with namespaces • can validate documents using declarations from multiple sources • Content datatypes • 44 built-in datatypes (including primitive Java datatypes, datatypes of SQL, and XML attribute types) • + user-defined datatypes Course Review

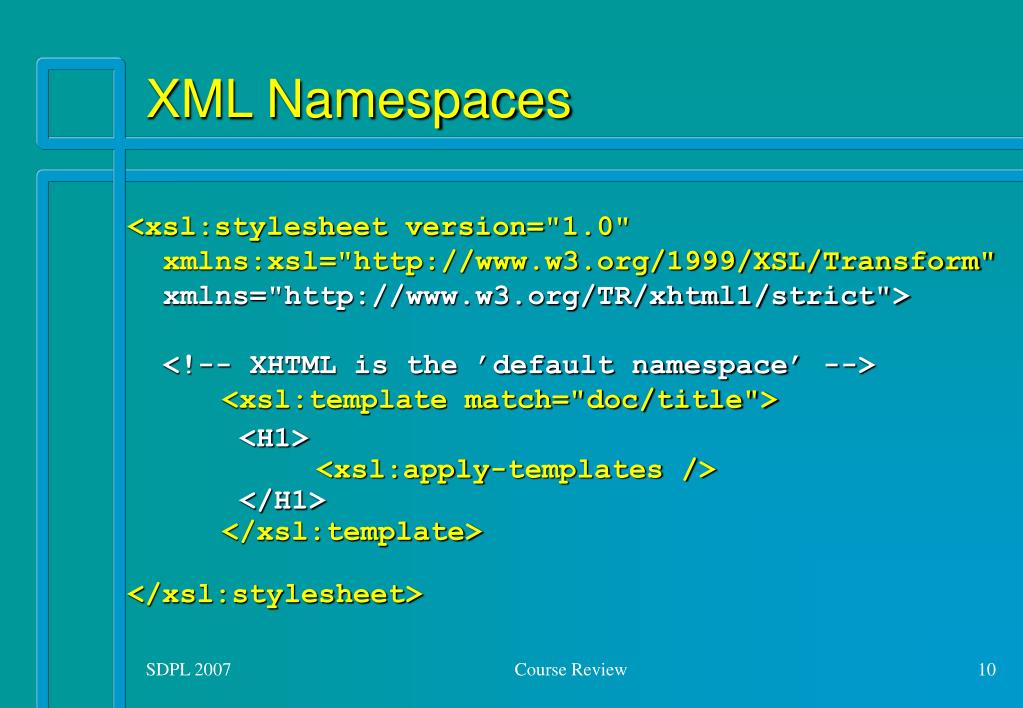

10. XML Namespaces <xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform"xmlns="http://www.w3.org/TR/xhtml1/strict"><!-- XHTML is the ’default namespace’ --><xsl:template match="doc/title"> <H1> <xsl:apply-templates /> </H1> </xsl:template> </xsl:stylesheet> Course Review

11. 3. XML Processor APIs • How can applications manipulate structured documents? • Overview of document parser interfaces 3.1 SAX: an event-based interface 3.2 DOM: an object-based interface 3.3 JAXP: Java API for XML Processing Course Review

12. "A",[i="1"] "Hi!" <?xml version='1.0'?> "A" A SAX-based application Application Main Routine Parse() startDocument() Callback Routines startElement() characters() endElement() <A i="1"> Hi! </A> Course Review

13. DOM: What is it? • Object-based, language-neutral API for XML and HTML documents • Allows programs/scripts to • build • navigate and • modify documents • “Directly Obtainable in Memory” vs “Serial Access XML” Course Review

14. <invoice form="00" type="estimated"> <addressdata> <name>John Doe</name> <address> <streetaddress>Pyynpolku 1 </streetaddress> <postoffice>70460 KUOPIO </postoffice> </address> </addressdata> ... DOM structure model form="00" type="estimated" invoice ... addressdata address name Document streetaddress postoffice John Doe Element Pyynpolku 1 70460 KUOPIO Text Course Review NamedNodeMap

15. Overview of XSLT Transformation Course Review

16. JAXP (Java API for XML Processing) • An interface for “plugging-in” and using XML processors in Java applications • includes packages • org.xml.sax: SAX 2.0 interface • org.w3c.dom: DOM Level 2 interface • javax.xml.parsers: initialization and use of parsers • javax.xml.transform: initialization and use of transformers (XSLT processors) • Included in standard Java Course Review

17. .getXMLReader() .parse( ”f.xml”) JAXP: Using a SAX parser (1) .newSAXParser() XML f.xml Course Review

18. .newDocument() .parse(”f.xml”) JAXP: Using a DOM parser (1) .newDocumentBuilder() f.xml Course Review

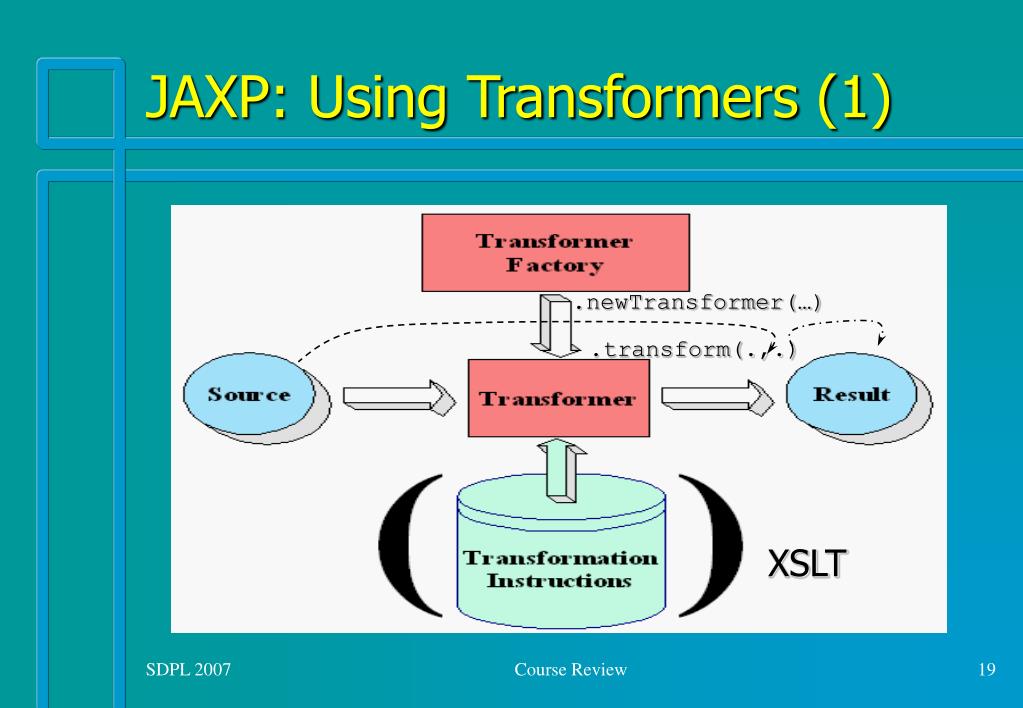

19. .transform(.,.) JAXP: Using Transformers (1) .newTransformer(…) XSLT Course Review

20. 4. Introduction to Style Sheets • Specify and produce visual representation for structured documents • by defining a mapping from document structure+content to formatting tasks, and • inserting/generating new text • numbering • rearranging • by rules based on contextual conditions Course Review

21. Formatter input TeX Transformation FOT (XSL formatting object tree) Style sheet - Latex style file, CSS, XSLT Process of Transformation (muunnos) Course Review

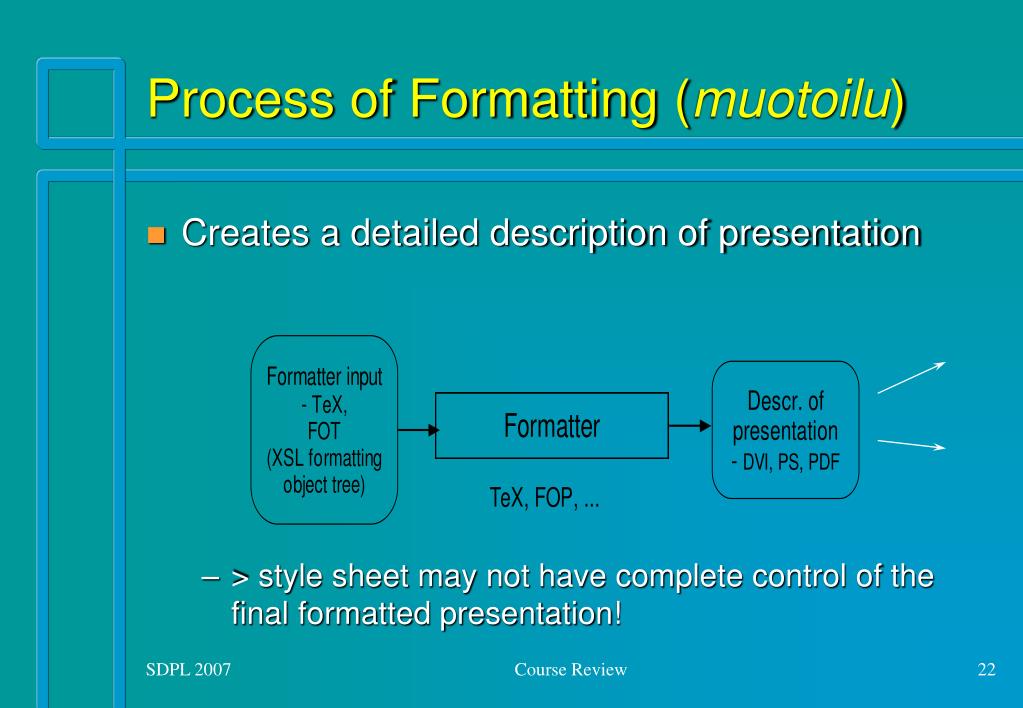

22. Process of Formatting (muotoilu) • Creates a detailed description of presentation • > style sheet may not have complete control of the final formatted presentation! Course Review

23. Process of Rendering (hahmonnus) • Display/play the document on output medium Course Review

24. CSS - Cascading Style Sheets • A stylesheet language • mainly to specify the representation of web pages by attaching style (fonts, colours, margins, …) to HTML/XML documents • Example style rule:H1 {color: blue; font-weight: bold;} Course Review

25. CSS Processing Model (simplified) 0. Parse the document 1. Match style rules to elements of the doc tree • annotate each element with values assigned for properties • inheritance and elaborate "cascade" rules applied to select which value is assigned 2. Generate a formatting structure • of nested rectangular boxes 3. Render the formatting structure • display, print, audio-synthesize, ... Course Review

26. XSL: Transformation & Formatting XSLT script I II Course Review

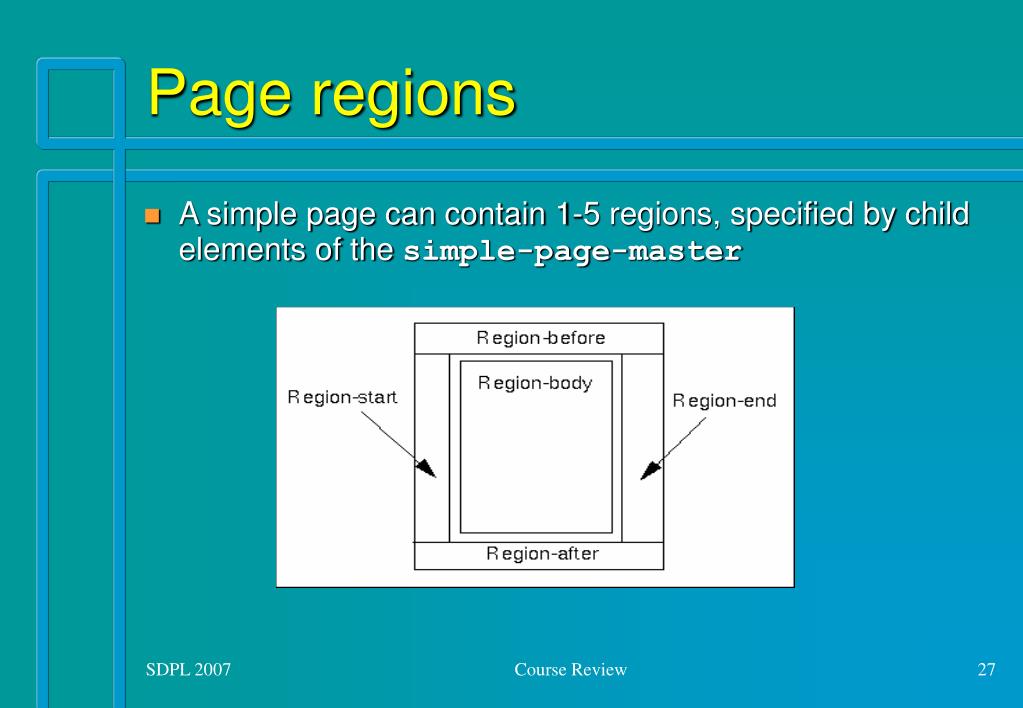

27. Page regions • A simple page can contain 1-5 regions, specified by child elements of the simple-page-master Course Review

28. contents of pages specify masters for page sequences, by referring to simple-page-masters Top-level formatting objects • Slightly simplified: fo:root fo:layout-master-set fo:page-sequence+ fo:flow (fo:simple-page-master | fo:page-sequence-master)+ fo:region-body fo:region-start? fo:region- end? fo:region-before? fo:region- after? Course Review

29. XQuery in a Nutshell • Functional expression language • A query is a side-effect-free expression • Operates on sequences of items • atomic values or XML nodes • Strongly-typed: (XML Schema) types may be assigned to expressions statically, and results can be validated • Extends XPath 2.0(but not all axes required) • common for XQuery 1.0 and XPath 2.0: • Functions and Operators, W3C Rec. 01/2007 • Roughly: XQuery  XPath 2.0 + XSLT' + SQL' Course Review

30. FLWOR ("flower") Expressions • for, let, where, order by and return clauses (~SQL select-from-where) • Form: (ForClause | LetClause)+ WhereClause? OrderByClause? "return" Expr • binds variables to values, and uses these bindings to construct a result (an ordered sequence of nodes) Course Review

31. XQuery Example for $pn in distinct-values( doc(”sp.xml”)//pno) let $sp:=doc(”sp.xml”)//sp_tuple[pno=$pn] where count($sp) >= 3 order by $pn return <well_supplied_item> <pno>{$pn}</pno> <avgprice> {avg($sp/price)} </avgprice> <well_supplied_item> Course Review

32. Course Main Message • XML is a universal way to represent information as tree-like data structures • Specialized and powerful technologies for processing it • Worst hype has settled • R&D still active Course Review
