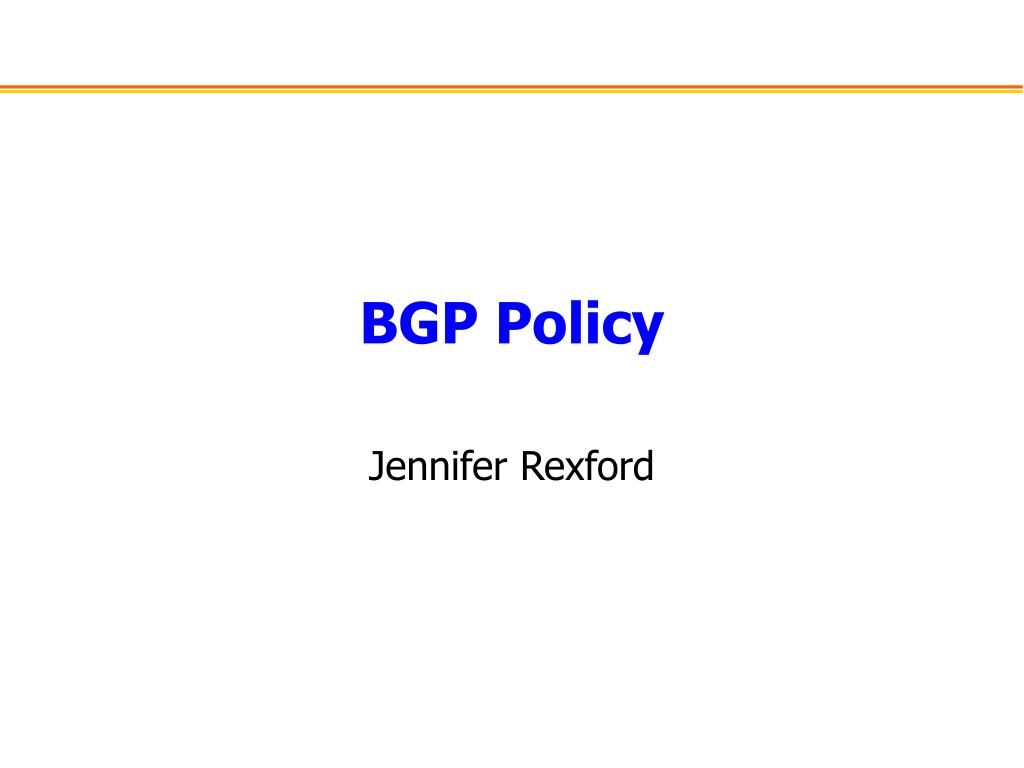

  1. BGP Policy Jennifer Rexford

  2. Challenges of BGP • Large distributed system • More than 20,000 nodes • Autonomous nodes • Diverse policy goals • Trade-off of goals • Flexible policy • Convergence speed • Large scale • Policies in practice • Business relationships, traffic engineering, scalability, security, …

  3. Outline • BGP policy mechanics • Import and export policies • Route attributes • Decision process • BGP policies in practice • Business relationships • Distributing routes inside the AS • Traffic engineering • BGP security

  4. Components of BGP • BGP protocol • Definition of how two BGP neighbors communicate • Message formats, state machine, route attributes, etc. • Standardized by the IETF • Policy specification • Flexible language for filtering and manipulating routes • Indirectly affects the selection of the best route • Varies across vendors, though constructs are similar • BGP decision process • Complex sequence of rules for selecting the best route • De facto standard applied by router vendors • Being codified in a new RFC for BGP coming soon

  5. Border Gateway Protocol • ASes exchange reachability information • IP prefix: block of destination addresses • AS path: sequence of ASes along the path • Policies configured by the network operator • Path selection: which of the paths to use? • Path export: which neighbors to tell? “I can reach 12.34.158.0/24 via AS 1” “I can reach 12.34.158.0/24” 2 3 1 data traffic data traffic 12.34.158.5

  6. BGP Protocol: Update Messages • Update messages • Advertisement • New route for the prefix (e.g., 12.34.158.0/24) • Attributes such as the AS path (e.g., “2 1”) • Withdrawal • Announcing that the route is no longer available • Numerous BGP attributes • AS path • Next-hop IP address • Local preference • Multiple-Exit Discriminator • …

  7. BGP Policy: Influencing Decisions Open ended programming. Constrained only by vendor configuration language Apply Policy = filter routes & tweak attributes Apply Policy = filter routes & tweak attributes Receive BGP Updates Based on Attribute Values Best Routes Transmit BGP Updates Apply Import Policies Best Route Selection Best Route Table Apply Export Policies Install forwarding Entries for best Routes. IP Forwarding Table

  8. BGP Decision Process: Path Selection on a Router • Routing Information Base • Store all BGP routes for each destination prefix • Withdrawal message: remove the route entry • Announcement message: update the route entry • Selecting the best route • Consider all BGP routes for the prefix • Apply rules for comparing the routes • Select the one best route • Use this route in the forwarding table • Send this route to neighbors

  9. BGP Decision Process: Multiple Steps • Highest local preference • Set by import policies upon receiving advertisement • Shortest AS path • Included in the route advertisement • Lowest origin type • Included in advertisement or reset by import policy • Smallest multiple exit discriminator • Included in the advertisement or reset by import policy • Smallest internal path cost to the next hop • Based on intradomain routing protocol (e.g., OSPF) • Smallest next-hop router id • Final tie-break

  10. Import Policy: Local Preference • Favor one path over another • Override the influence of AS path length • Apply local policies to prefer a path • Example: prefer customer over peer Local-pref = 90 Sprint AT&T Local-pref = 100 Tier-2 Tier-3 Yale

  11. Import Policy: Filtering • Discard some route announcements • Detect configuration mistakes and attacks • Examples on session to a customer • Discard route if prefix not owned by the customer • Discard route with other large ISP in the AS path AT&T USLEC Princeton 128.112.0.0/16

  12. Export Policy: Filtering • Discard some route announcements • Limit propagation of routing information • Examples • Don’t announce routes from one peer to another • Don’t announce routes for management hosts Sprint UUNET AT&T network operator Princeton 128.112.0.0/16

  13. Export Policy: Attribute Manipulation • Modify attributes of the active route • To influence the way other ASes behave • Example: AS prepending • Artificially inflate AS path length seen by others • Convince some ASes to send traffic another way AT&T USLEC Sprint 88 Princeton 88 88 128.112.0.0/16

  14. BGP Policy Configuration • Routing policy languages are vendor-specific • Not part of the BGP protocol specification • Different languages for Cisco, Juniper, etc. • Still, all languages have some key features • Policy as a list of clauses • Each clause matches on route attributes • … and discards or modifies the matching routes • Configuration done by human operators • Implementing the policies of their AS • Business relationships, traffic engineering, security

  15. BGP Policies in Practice

  16. Business Relationships • Common relationships • Customer-provider • Peer-peer • Backup, sibling, … • Implementing in BGP • Import policy • Ranking customer routes over peer routes • Export policy • Export only customer routes to peers and providers

  17. advertisements traffic Customer-Provider Relationship • Customer pays provider for access to Internet • Provider exports customer’s routes to everybody • Customer exports provider’s routes to customers Traffic to the customer Traffic from the customer d AT&T AT&T Princeton d Princeton

  18. advertisements traffic Peer-Peer Relationship • Peers exchange traffic between customers • AS exports only customer routes to a peer • AS exports a peer’s routes only to its customers Traffic to/from the peer and its customers Sprint AT&T d Princeton UBC

  19. Reduces upstream transit costs Can increase end-to-end performance May be the only way to connect your customers to some part of the Internet (“Tier 1”) You would rather have customers Peers are usually your competition Peering relationships may require periodic renegotiation How Peering Decisions are Made? Peer Don’t Peer

  20. Backup Relationship • Backup provider • Only used if the primary link fails • Routes through other paths USLEC AT&T Princeton 128.112.0.0/16

  21. Sibling Relationship • Two ASes owned by the same institution • E.g., two ASes that have merged • E.g., two ASes simply for scaling reasons • Essentially act as a single AS CerfNet AT&T

  22. Internal BGP

  23. An AS is Not a Single Node • Multiple routers in an AS • Need to distribute BGP information within the AS • Internal BGP (iBGP) sessions between routers eBGP AS1 iBGP AS2

  24. Internal BGP and Local Preference • Example • Both routers prefer the path through AS 100 on the left • … even though the right router learns an external path AS 200 AS 100 AS 300 Local Pref = 100 Local Pref = 90 I-BGP AS 256

  25. UPMC FT B select A’s route send to other eBGP neighbors 132.239.17.0/24 DT FT Example: Customer to Provider router import policies route selection export policies A local pref = 100 select UPMC route send to other iBGP neighbors B Wanadoo A

  26. UPMC A local pref = 90 select DT route send to other iBGP routers FT B C select A’s route select A’s route send to customers don’t send DT 132.239.0.0/16 BT Example: Peers router import policies route selection export policies C A B Wanadoo Suppose DT, FT, and BT are peers

  27. UPMC local pref (D)= 100 local pref (B)= 80 FT DT 132.239.0.0/16 BT Example: Customers vs. Peers router import policies route selection export policies A select DT route send to other iBGP and eBGP neighbors B A • Suppose: • DT is a customer • of FT and BT • FT and BT are peers Wanadoo

  28. UPMC A local pref = 80 select FT route send to other iBGP B local pref = 80 select FT route send to other iBGP C FT local pref = 80 select BT route send to other iBGP route to UPMC DT BT Example: Multiple Egress Points router import policies route selection export policies A What will router D choose? Wanadoo B D C

  29. IGP distances FT D-A : 10 D-B: 8 D-C: 7 BT Hot-potato routing = route to closest egress point when there is more than one route to destination traffic to UPMC Hot-Potato (Early-Exit) Routing route to UPMC A 7 B 2 1 2 2 D 1 5 1 C

  30. Traffic Engineering

  31. Traffic Engineering Goals • Load balancing • Making good use of network resources • Alleviating network congestion • End-to-end performance • Avoiding paths with downstream congestion • By moving traffic to alternate paths • Mechanisms • Preferring some paths over other paths • E.g., by setting local-preference attribute • Among routes within the same business class

  32. “(2, 1)” “(3, 4, 1)” “(2, 1)” BGP Decision Process in Action But, what if the path “(3,4,1)” would be better?

  33. Manipulating Policy to Move the Traffic • Assign local preference to… • Prefer one neighbor over another for a prefix • Prefer certain AS paths over others • Router configuration languages • Specifying rules for setting local-pref attribute • “if path(3, *, 1), then local-pref=110” • “else, local-pref=100” • Allow policy to over-ride shortest AS path • Indirect way of making one path look better or worse than another • Main way to do BGP traffic engineering today

  34. BGP Security

  35. Security Goals for BGP • Secure message exchange between neighbors • Confidential BGP message exchange • Can ASes exchange messages w/o someone watching? • No denial of service • Prevent overload, session reset, tampered messages? • Validity of the routing information • Origin authentication • Is the prefix owned by the AS announcing it? • AS path authentication • Is AS path the sequence of ASes the update traversed? • AS path policy • Does AS path adhere to the routing policies of each AS?

  36. IP Address Ownership • IP address block assignment • Regional Internet Registries (ARIN, RIPE, APNIC) • Internet Service Providers • Proper origination of a prefix into BGP • By the AS who owns the prefix • … or, by its upstream provider(s) in its behalf • However, what’s to stop someone else? • Prefix hijacking: another AS originates the prefix • BGP does not verify that the AS is authorized • Registries of prefix ownership are inaccurate

  37. 4 3 5 2 6 7 1 Address Ownership: Prefix Hijacking • Consequences for the affected ASes • Blackhole: data traffic is discarded • Snooping: data traffic is inspected, and then redirected • Impersonation: data traffic is sent to bogus destinations 12.34.0.0/16 12.34.0.0/16

  38. 4 3 5 2 6 7 1 Address Ownership: Subprefix Hijacking • Originating a more-specific prefix • Every AS picks the bogus route for that prefix • Traffic follows the longest matching prefix 12.34.0.0/16 12.34.158.0/24

  39. Preventing (Sub)Prefix Hijacking • Best common practice for route filtering • Each AS filters routes announced by customers • E.g., based on the prefixes the customer owns • However, not everyone applies these practices • Hard to filter routes initiated from far away • So, BGP remains very vulnerable to hijacks • Other techniques • Secure extensions to BGP (e.g., S-BGP, soBGP) • Anomaly detection of suspected hijacks

  40. BGP Attributes: Bogus Paths • AS tampers with AS path • Deletes ASes from the AS path • Prepends with a bogus AS number • Goal: influence the path-selection process • Attract data traffic to the route • E.g., by making AS path look shorter • E.g., delete AS that might trigger route filtering • Create blackholes for parts of the Internet • E.g., prepend bogus AS to trigger loop detection • Very hard to defend against these attacks • How can you tell that the route is bogus?

  41. BGP Attributes: Invalid Paths • AS exports a route it shouldn’t • AS path is a valid sequence, but violated policy • Example: customer misconfiguration • Exports routes from one provider to another • … interacts with provider policy • Provider prefers routes learned from customers • … so provider picks these as the best route • … leading the dire consequences • E.g., directing all Internet traffic through customer • Main defense • Filtering routes based on prefixes and AS path

  42. BGP Attributes: Missing/Inconsistent Routes • Peering agreements require consistent export • Prefix advertised at all peering points • Prefix advertised with same AS path length • Reasons for violating the policy • Trick neighbor into “cold potato” • Configuration mistake • Main defense • Analyzing BGP updates • … or data traffic • … for signs of inconsistency dest Bad AS BGP data src

  43. BGP Security Today • Applying best common practices (BCPs) • Securing the session (authentication, encryption) • Filtering routes by prefix and AS path • Resetting attributes to default values • Packet filters to block unexpected control traffic • This is not good enough • Depends on vigilant application of BCPs • … and not making configuration mistakes! • Doesn’t address fundamental problems • Can’t tell who owns the IP address block • Can’t tell if the AS path is bogus or invalid • Can’t be sure the data packets follow the chosen route

  44. Conclusion • BGP protocol vs. policy • Protocol is simple • Policy is complicated • BGP policy is a black art • Indirect way of specifying policy • Manipulating attributes to influence decisions • Filtering routes to scope the routing information • Common examples of policy today • Business relationships • Traffic engineering • Security

  45. Discussion • Is BGP trying to do too many things? • Policy • Scalability • Convergence • Is BGP too indirect for its own good? • AS only learns some routes from its neighbors • And applies policies to indirectly pick the routes • Too many protocols involved? • External BGP • Internal BGP • Intradomain protocol

  46. Gao Paper • Inferring AS relationships • Customer-provider • Peer-peer • Every path tells a story • E.g., a path “701 7018 46” • Implies edges (701, 7018) and (7018, 46) • Implies that 7018 (AT&T) allows AS 701 (UUNet) to transit to AS 46 (Rutgers) • Can limit certain possibilities • E.g., 701-7018 and 7018-46 can’t both be peers • E.g., 7018 cannot be the customer of both ASes

  47. Valid and Invalid Paths • AS relationships limit the kinds of valid paths • Uphill portion: customer-provider relationships • Plateau: zero or one peer-peer edge • Downhill portion: provider-customer relationships Valid Invalid Invalid

  48. Characterizations of AS Topology • Tier-1: small number of tier-1 ASes • A near-clique of ~15 ASes with no providers • AT&T, Sprint, UUNET, … • Transit core: peer with tier-1s and each other • Around 100-200 large ASes • UUNET Europe, KDDI, and Singapore Telecom • Regional ISPs: non-stubs near the edge • Around 2000 medium-sized ASes • Minnesota Regional Network, US West • Stub ASes: no peer or customer neighbors • Princeton, Rutgers, MIT, AT&T Research, …
