  1. MOISTURE IN THE AIR Moisture in the Air

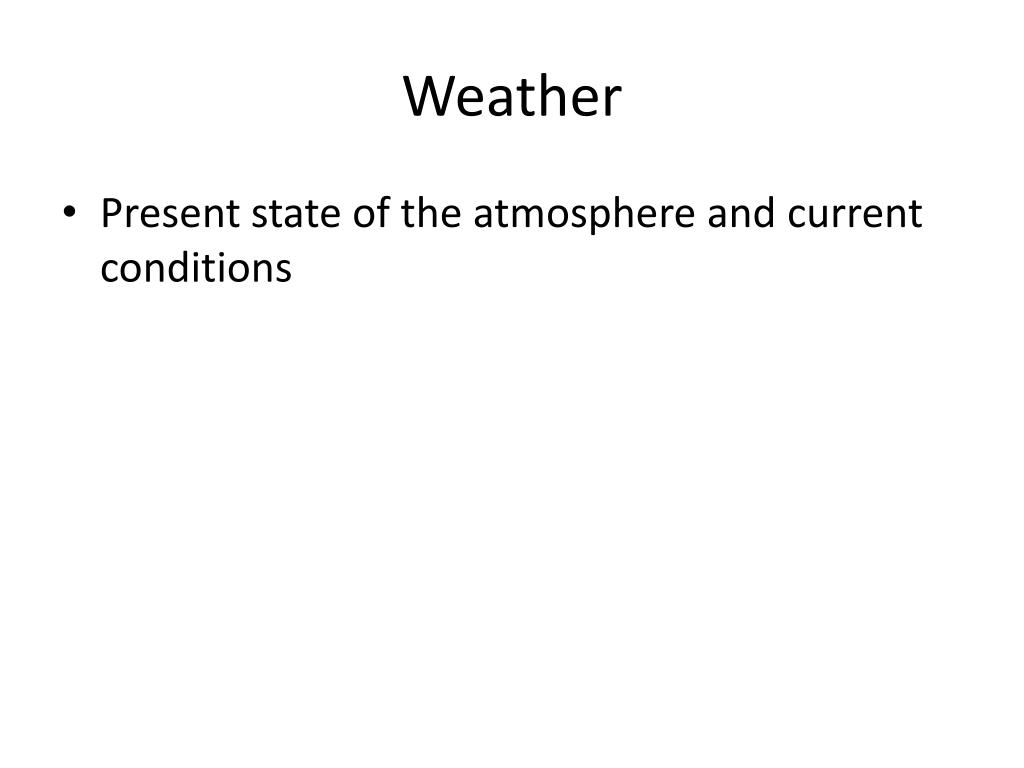

  2. Weather • Present state of the atmosphere and current conditions

  3. Climate • Weather over a long period of time • Example: Subtropical, desert, etc….

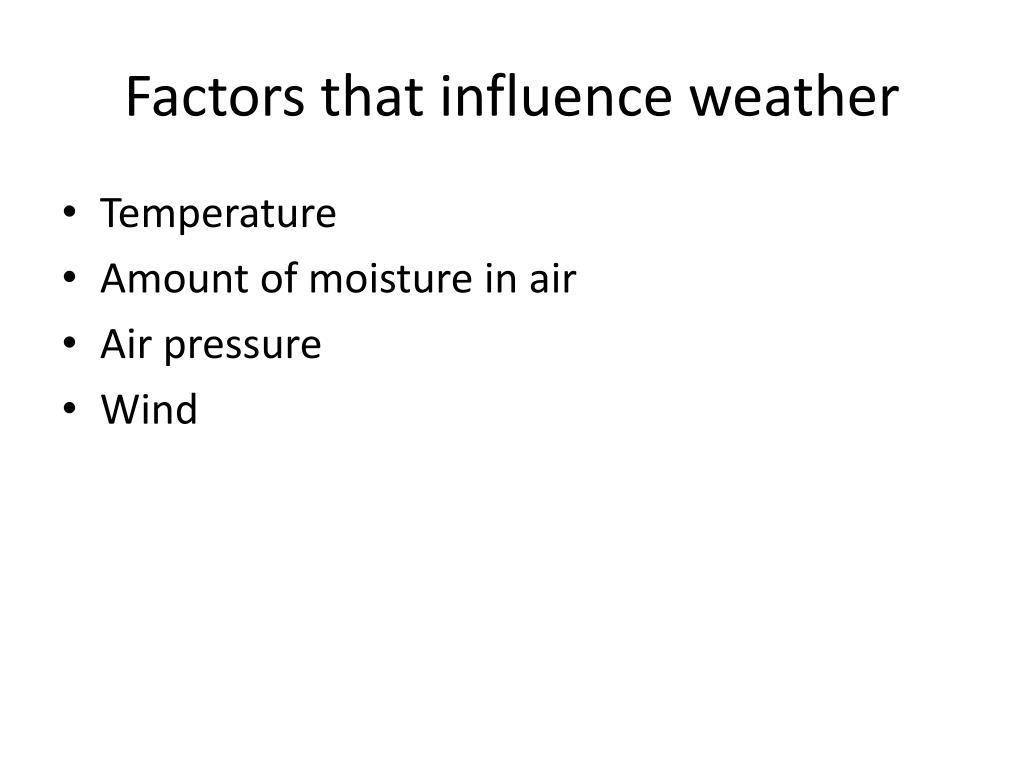

  4. Factors that influence weather • Temperature • Amount of moisture in air • Air pressure • Wind

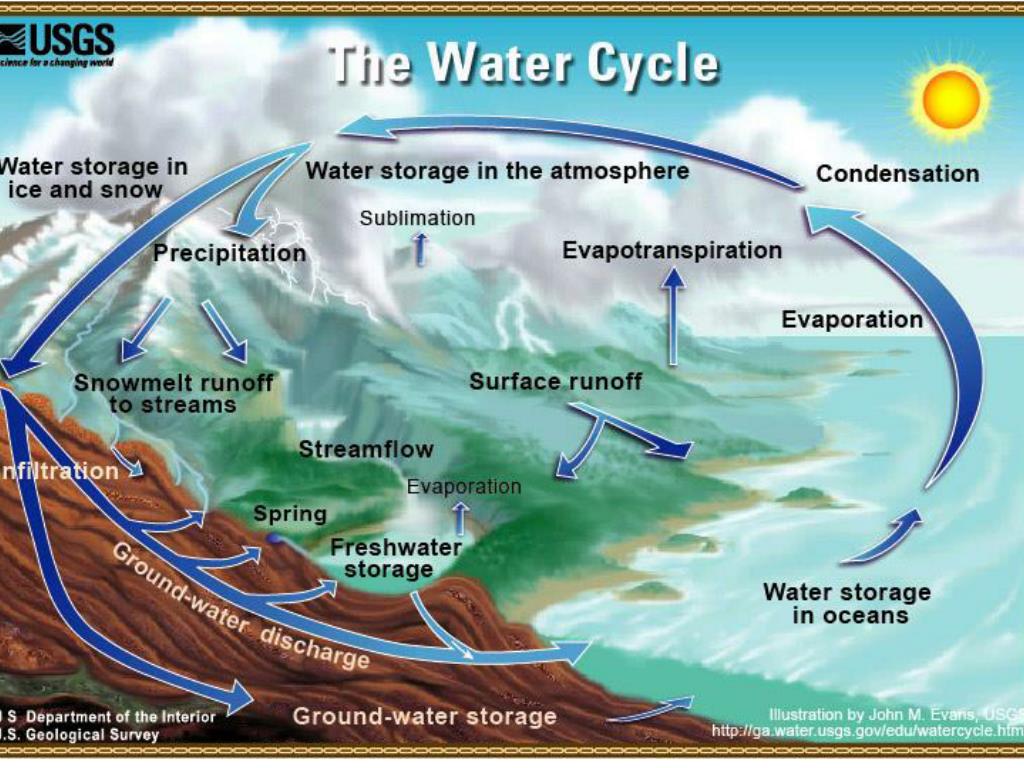

  5. Water Cycle

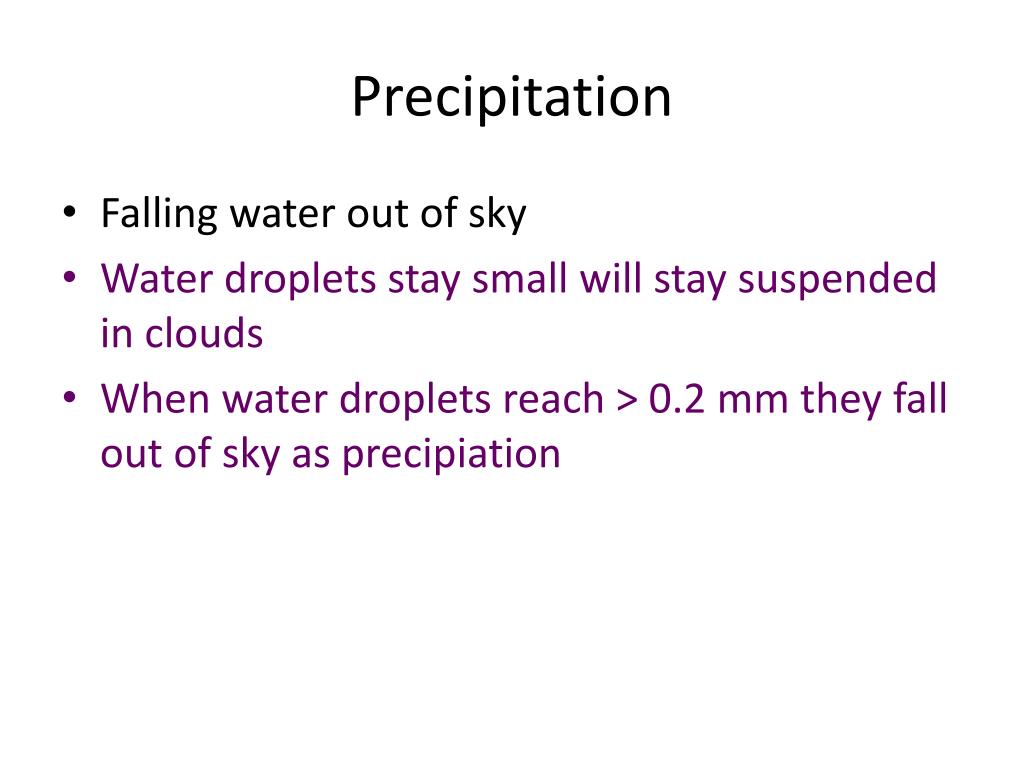

  6. Precipitation • Falling water out of sky • Water droplets stay small will stay suspended in clouds • When water droplets reach > 0.2 mm they fall out of sky as precipiation

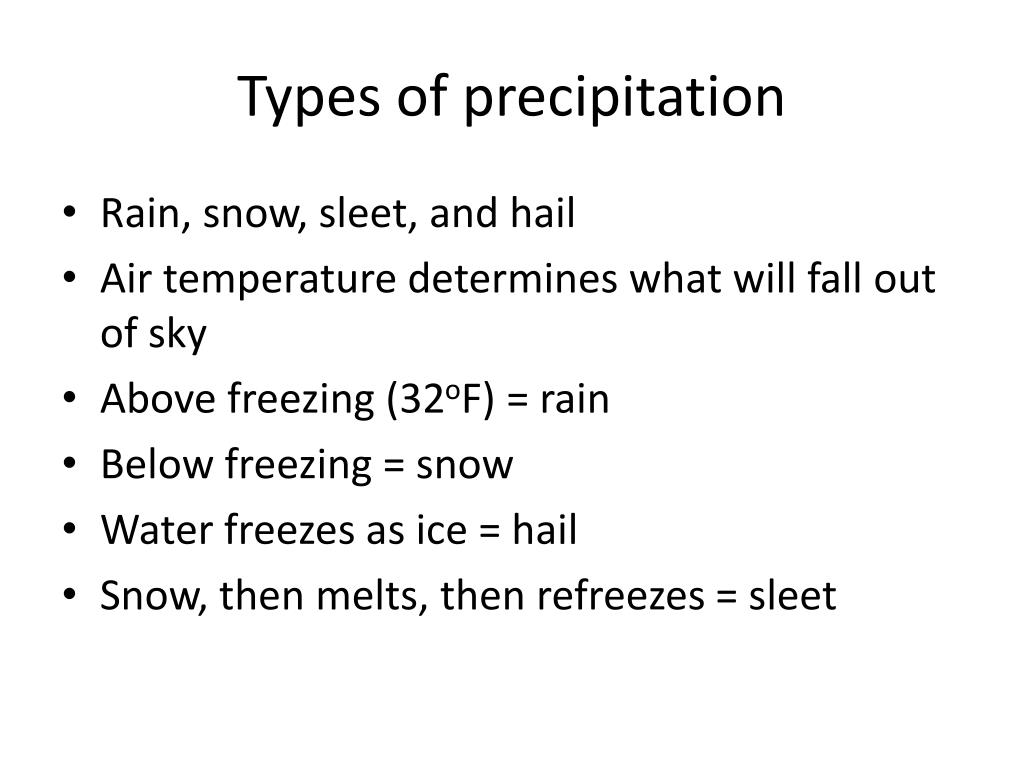

  7. Types of precipitation • Rain, snow, sleet, and hail • Air temperature determines what will fall out of sky • Above freezing (32oF) = rain • Below freezing = snow • Water freezes as ice = hail • Snow, then melts, then refreezes = sleet

  8. Snow

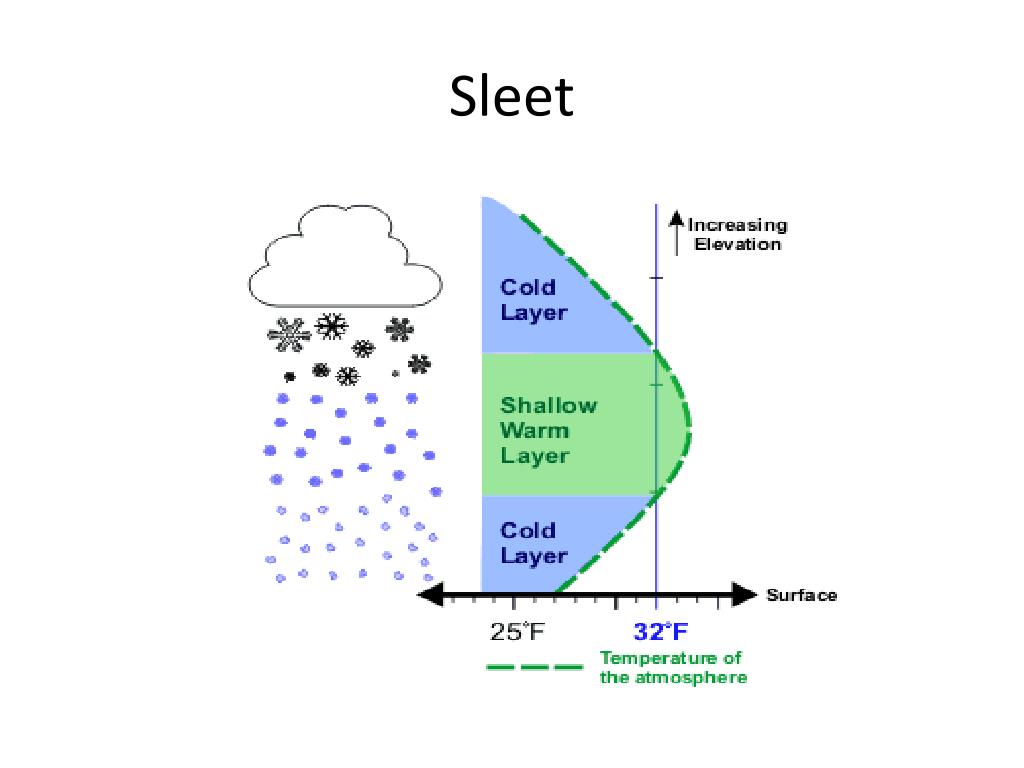

  9. Sleet

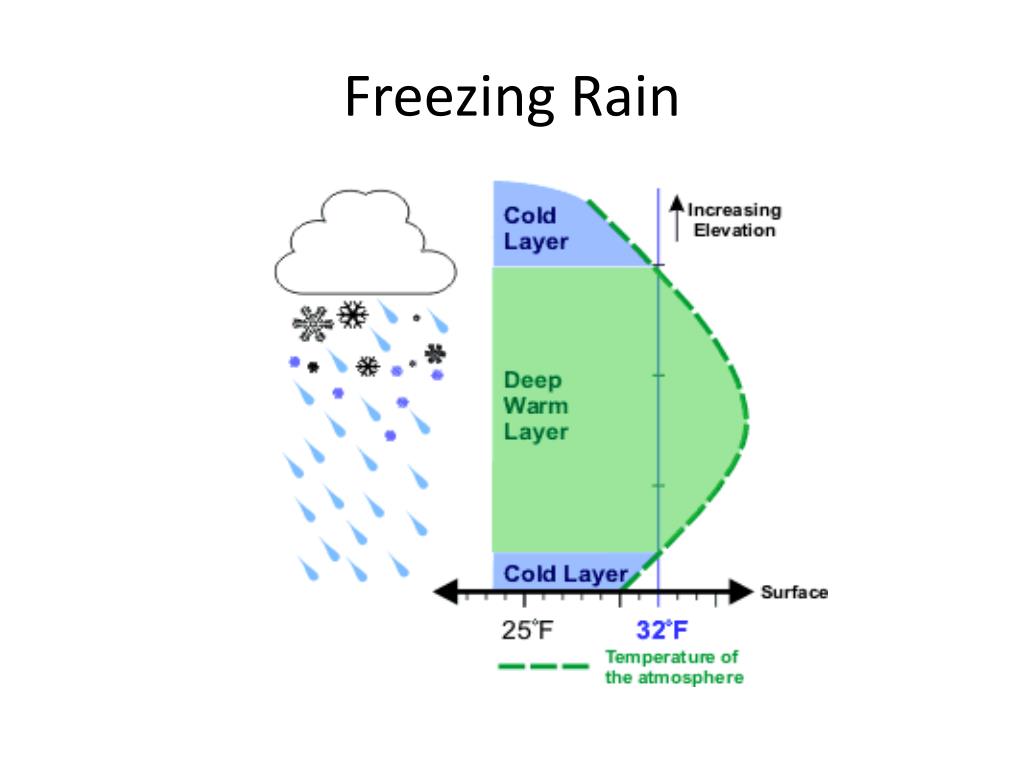

  10. Freezing Rain

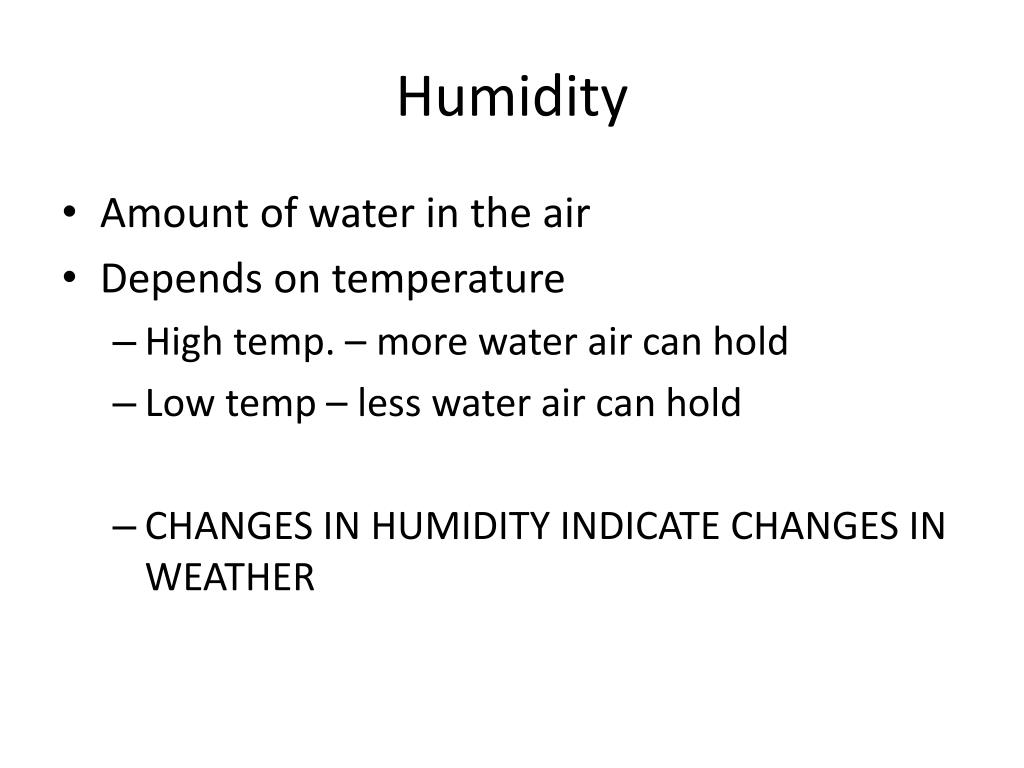

  11. Humidity • Amount of water in the air • Depends on temperature • High temp. – more water air can hold • Low temp – less water air can hold • CHANGES IN HUMIDITY INDICATE CHANGES IN WEATHER

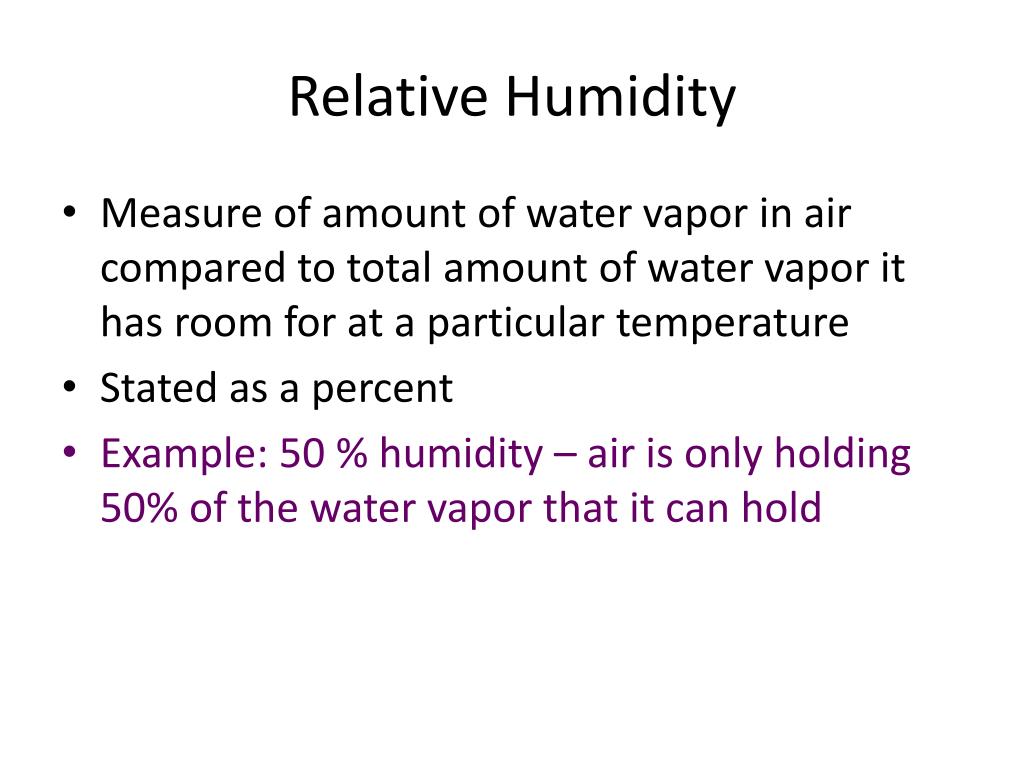

  12. Relative Humidity • Measure of amount of water vapor in air compared to total amount of water vapor it has room for at a particular temperature • Stated as a percent • Example: 50 % humidity – air is only holding 50% of the water vapor that it can hold

  13. Saturation • When air is holding all the moisture it can at a particular temperature • Saturated air = 100% humidity

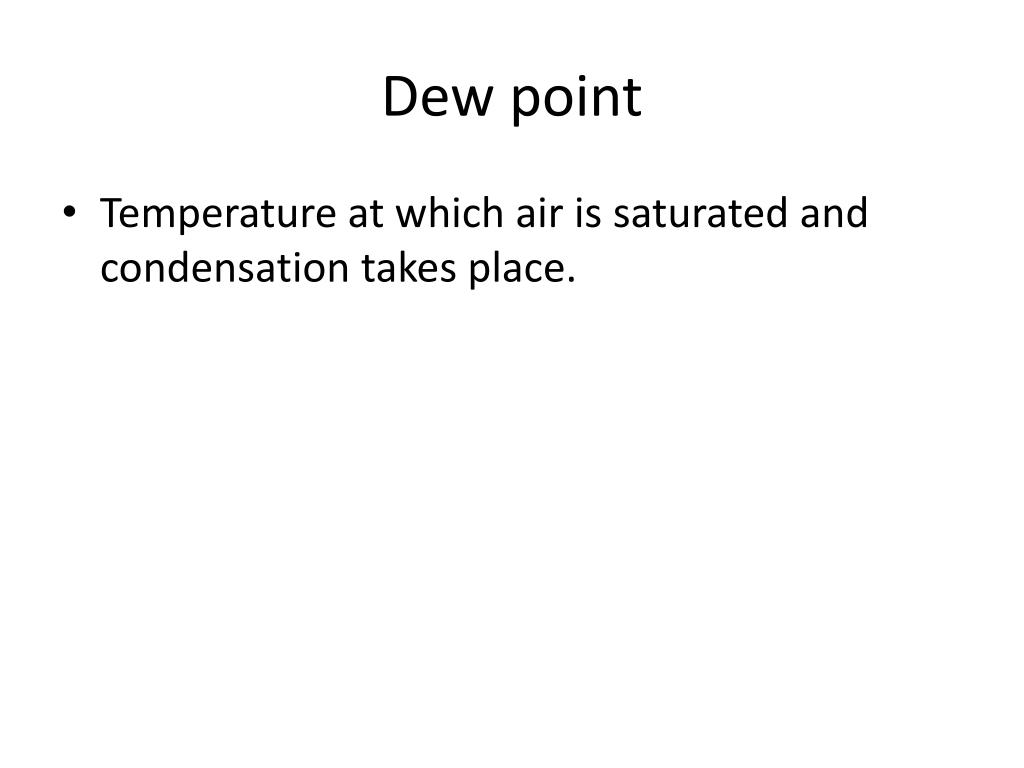

  14. Dew point • Temperature at which air is saturated and condensation takes place.

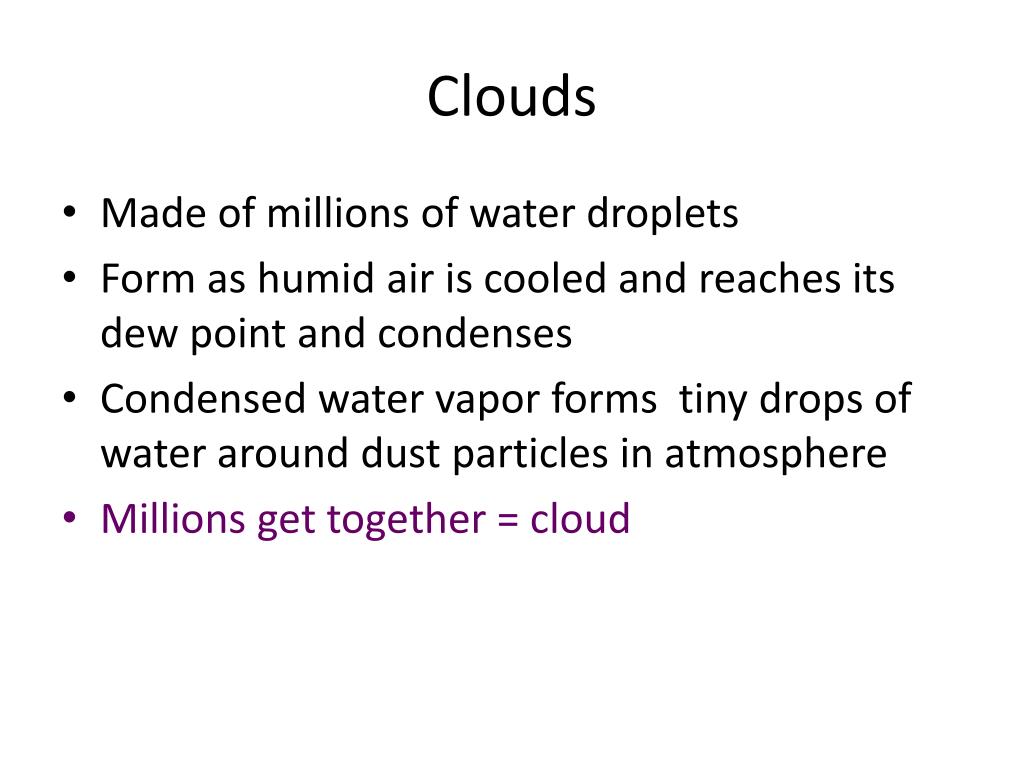

  15. Clouds • Made of millions of water droplets • Form as humid air is cooled and reaches its dew point and condenses • Condensed water vapor forms tiny drops of water around dust particles in atmosphere • Millions get together = cloud

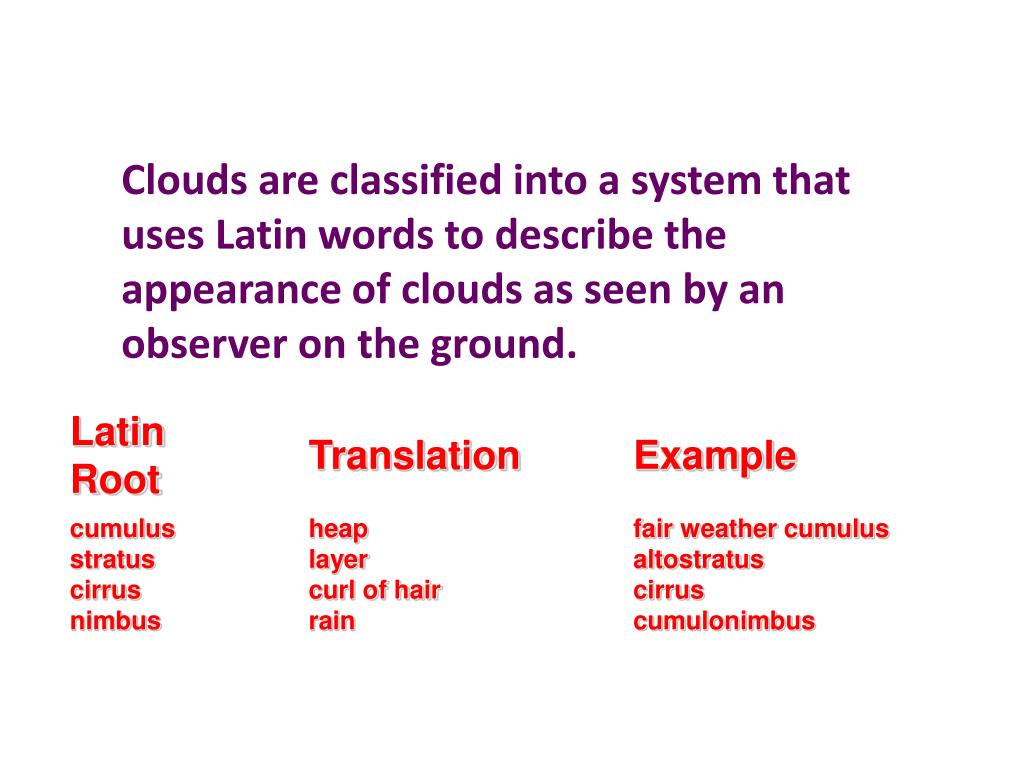

  16. Clouds are classified into a system that uses Latin words to describe the appearance of clouds as seen by an observer on the ground.

  17. Clouds: Five Types of Clouds 1. High-Level Clouds: Usually found at greater than 20,000 ft. • Usually made of ice crystals • Examples include Cirrus, Cirrostratus

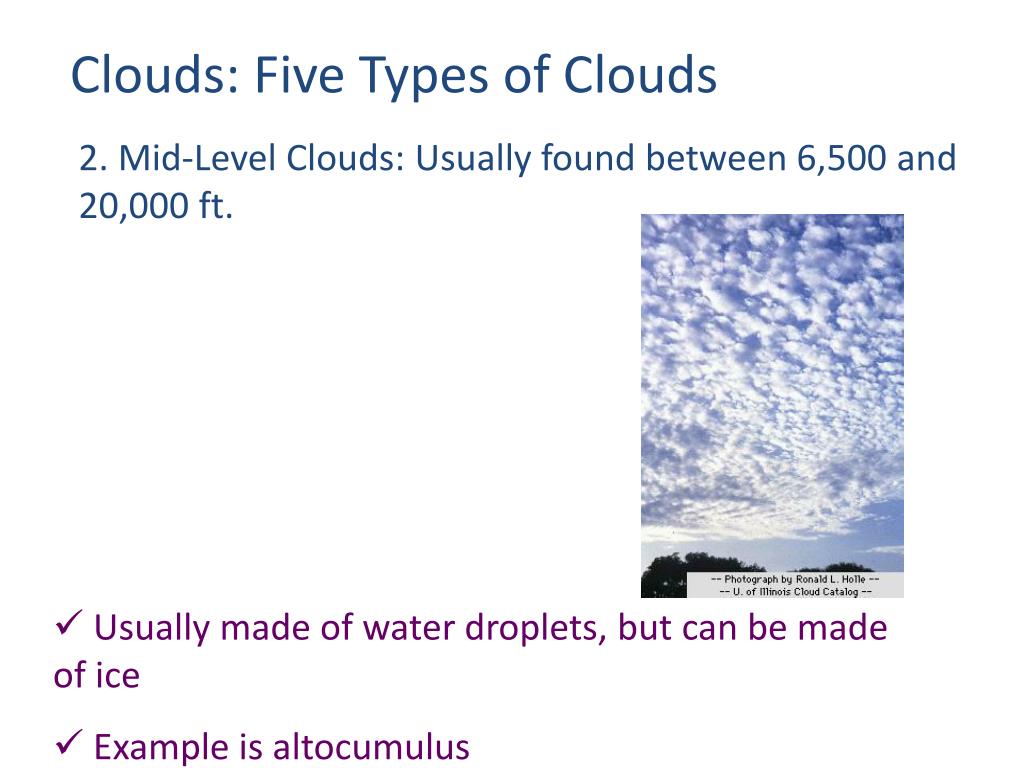

  18. Clouds: Five Types of Clouds 2. Mid-Level Clouds: Usually found between 6,500 and 20,000 ft. • Usually made of water droplets, but can be made of ice • Example is altocumulus

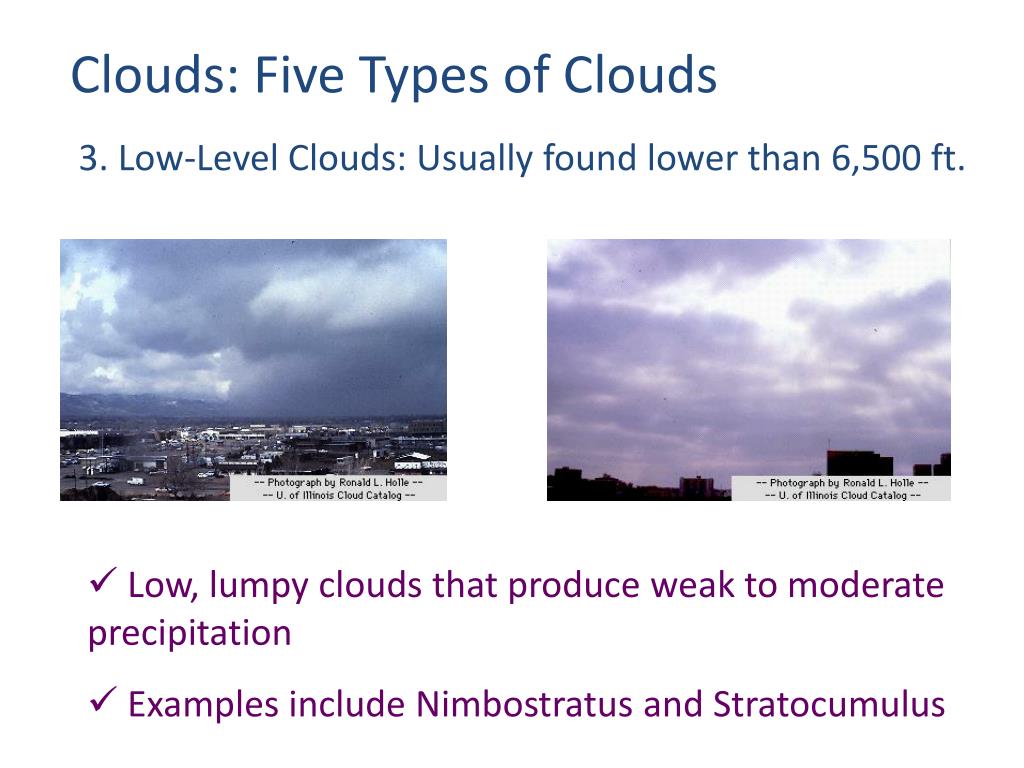

  19. Clouds: Five Types of Clouds 3. Low-Level Clouds: Usually found lower than 6,500 ft. • Low, lumpy clouds that produce weak to moderate precipitation • Examples include Nimbostratus and Stratocumulus

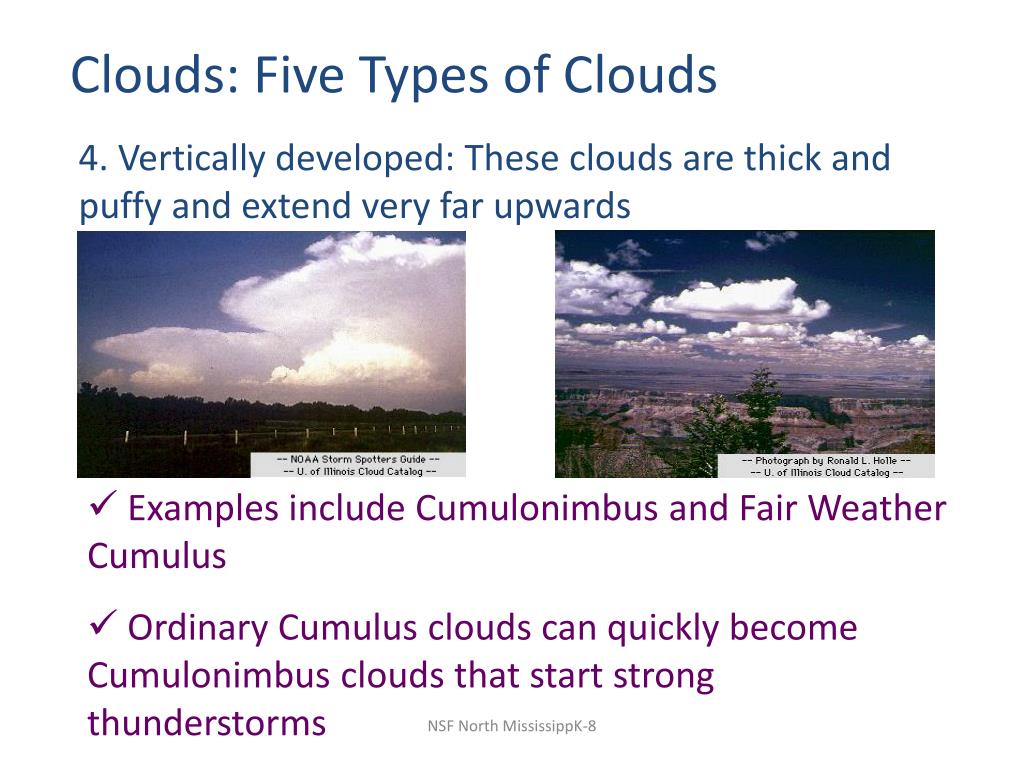

  20. Clouds: Five Types of Clouds 4. Vertically developed: These clouds are thick and puffy and extend very far upwards • Examples include Cumulonimbus and Fair Weather Cumulus • Ordinary Cumulus clouds can quickly become Cumulonimbus clouds that start strong thunderstorms NSF North MississippK-8

  21. Clouds: Five Types of Clouds 5. Other: These are miscellaneous clouds • These clouds do not really fit into any category, and all have different characteristics • Examples include billow clouds, contrails, mammatus, orographic, and pileus
