  1. Lecture 3: HTML5 Table, List, Blocks, Inline Style

  2. HTLM Table Element • A table consists of rows <tr>. Each row is divided into data cells <td> (td stands for table data) • A <td> tag can contain text, links, images, lists, forms, and other tables.

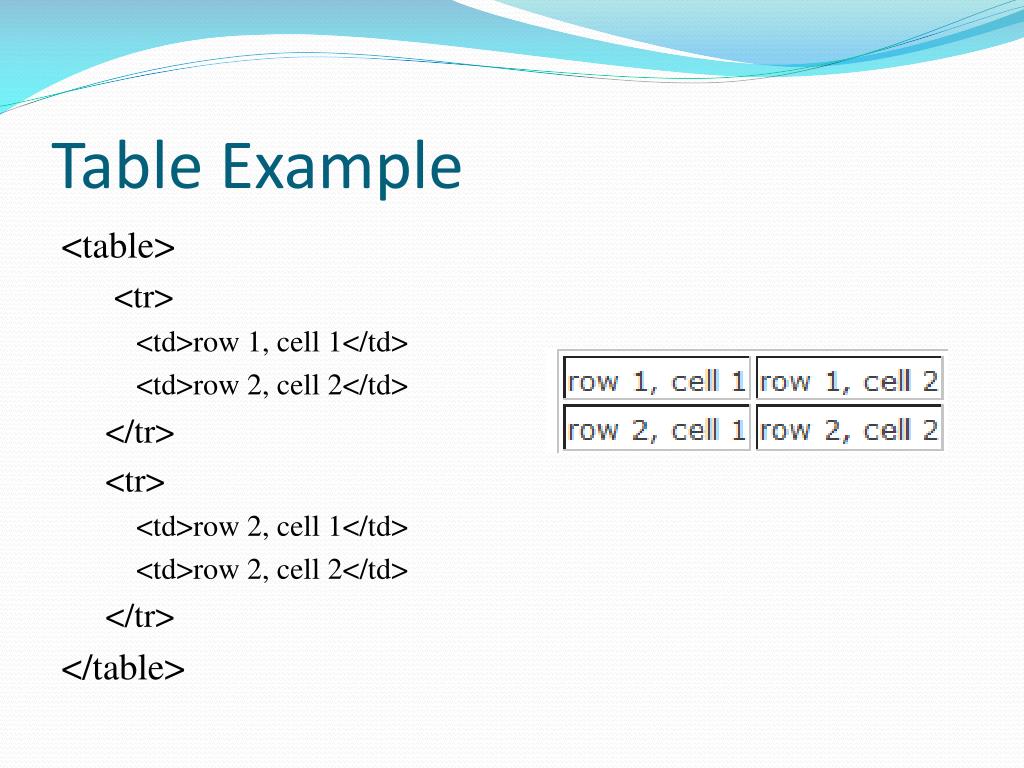

  3. Table Example <table> <tr> <td>row 1, cell 1</td> <td>row 2, cell 2</td> </tr> <tr> <td>row 2, cell 1</td> <td>row 2, cell 2</td> </tr> </table>

  4. Table Border Attribute • By default, the table will be displayed without borders. • If you want borders, specify the border attribute: • <table border=“1”> … </table>

  5. Table Headers <tr> <th>header 1</th> <th>header 2</th> </tr>

  6. Table Tags • <caption>: defines a table caption • <colgroup>: specifies a group of one or more columns • <col>: specifies column properties for each column within a <colgroup> element • <thead>: groups the header content in a table • <tbody>: groups the body content in a table • <tfoot>: groups the footer content in a table

  7. HTML List • Ordered and unordered lists: • An ordered list starts with the <ul> tag. Each item starts with the <li> tag. • Example: <ul> <li>Red</li> <li>Yellow</li> </ul>

  8. Description List • A description list is a list of items with a description of each term/name • The <dl> tag defines a description list. <dl> is used together with <dt> (defines items) and <dd> (describes each item) • Example: <dl> <dt>Coffee</dt> <dd>- black hot drink</dd> </dl>

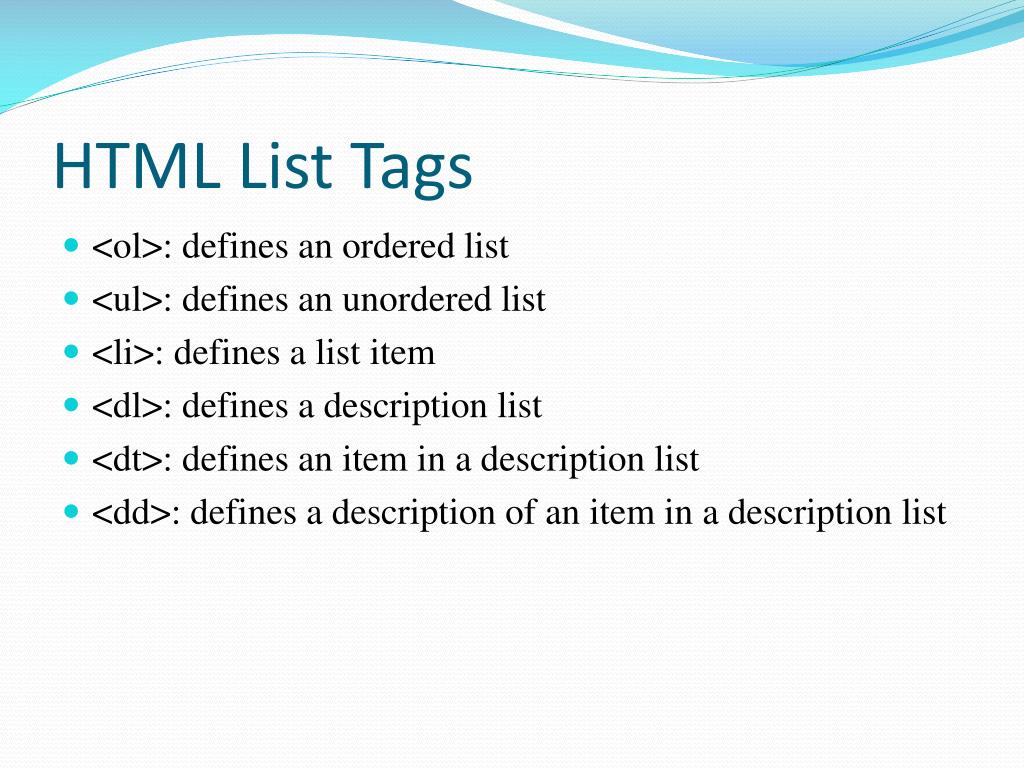

  9. HTML List Tags • <ol>: defines an ordered list • <ul>: defines an unordered list • <li>: defines a list item • <dl>: defines a description list • <dt>: defines an item in a description list • <dd>: defines a description of an item in a description list

  10. HTML Block Element • HTML elements are defined as block level element or as inline element. • Block level Elements start with a new line. • E.g., <p>, <table>, <div> • Inline elements are displayed without a new line. • E.g., <b>, <td>, <a>, <img>

  11. <div> Element • <div> element is a block level element used as a container for grouping other elements. • Since <div> is a block level element, the browser will display a line break before and after it.

  12. <span> element • <span> element is an inline element that can be used as a container for text. • <span> element usually is used to set style to parts of the text.

  13. Next Class • CSS (Cascading Style Sheets) • Inline styles • Internal CSS • External CSS

  14. CSS History • HTML stated to add formatting to its tags list (such as <font>, <b>, <i> <strong>, etc) . This caused some problems? • The W3C created CSS and added it to HTML 4.0 with the intent of deprecating all HTML format tags.

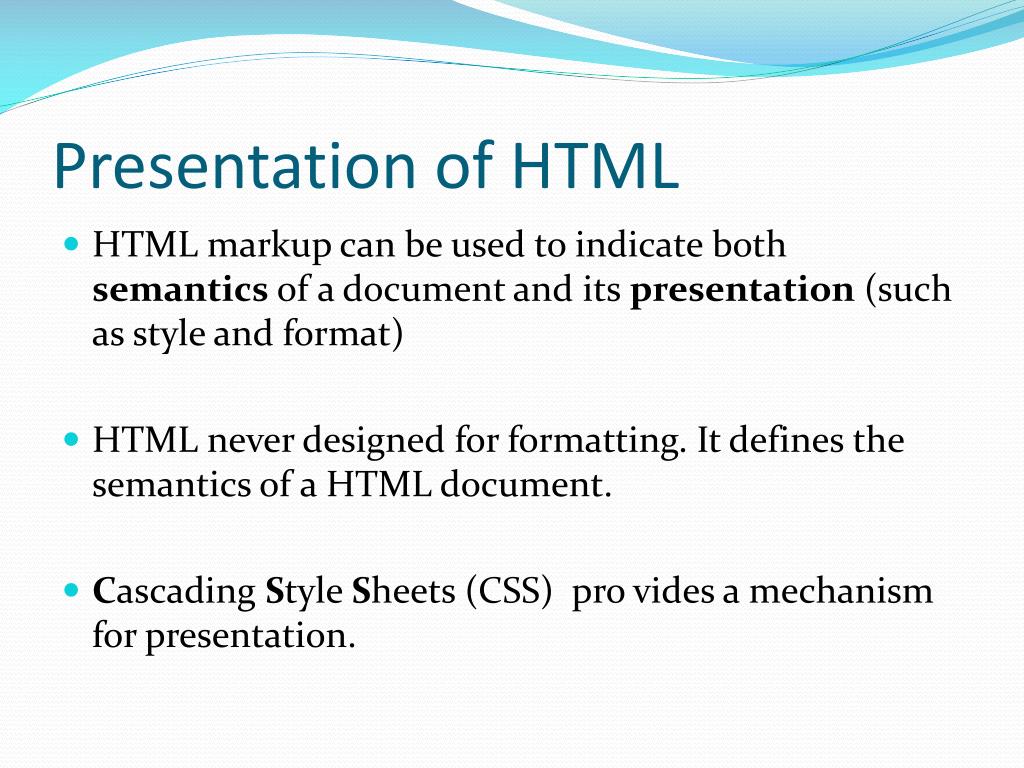

  15. Presentation of HTML • HTML markup can be used to indicate both semantics of a document and its presentation (such as style and format) • HTML never designed for formatting. It defines the semantics of a HTML document. • Cascading Style Sheets (CSS) pro vides a mechanism for presentation.

  16. CSS Core Syntax • Selector: rule defining which element to style • Property: a specific CSS keyword which applies formatting to the selector • Value: a specific value for the property • Multiple property|value pairs declared inside {}, separated by ‘;’ • A rule set consists of two parts: selector string followed by declaration block.

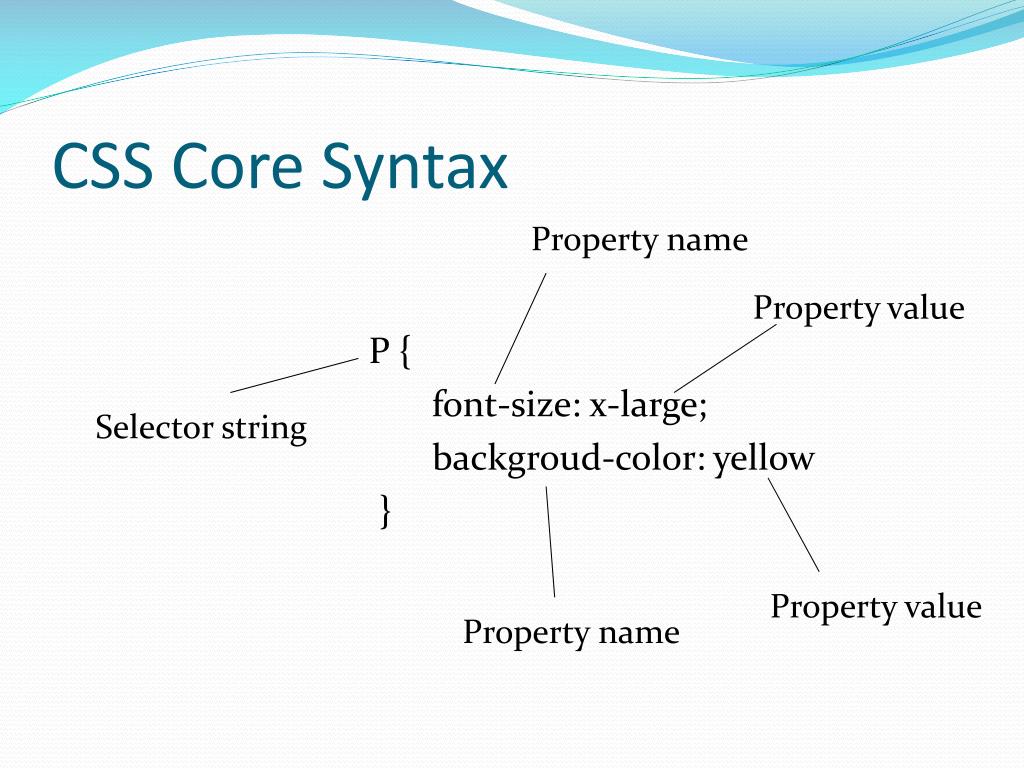

  17. CSS Core Syntax Property name P { font-size: x-large; backgroud-color: yellow } Property value Selector string Property value Property name

  18. Selectors • Type Selector: the selector string is simply the name of an element type. • <a>, <p>, <ul>, etc. • * selector: it is the universal selector which represents every possible element type. • * { font-weight: bold}. This specifies a value of bold for the font-weight property of every element in a document.

  19. ID Selectors • ID Selector: every element in a HTML has an ID attribute. An element must have an unique ID. If a selector is precede by a (#), then it represents an ID value. The ID value is case sensitive. • #p1, #p3 { background-color: red } • In HTML, <p id=“p1”> I like FSU! </p>

  20. CLASS Selectors • CLASS Selector: almost every element has a class attribute. It preceded by a period (.) The class value is case sensitive. • #p4, .takeNote{ font-style:italic } • In HTML, <p class=“takeNote”> I like FSU! </p>

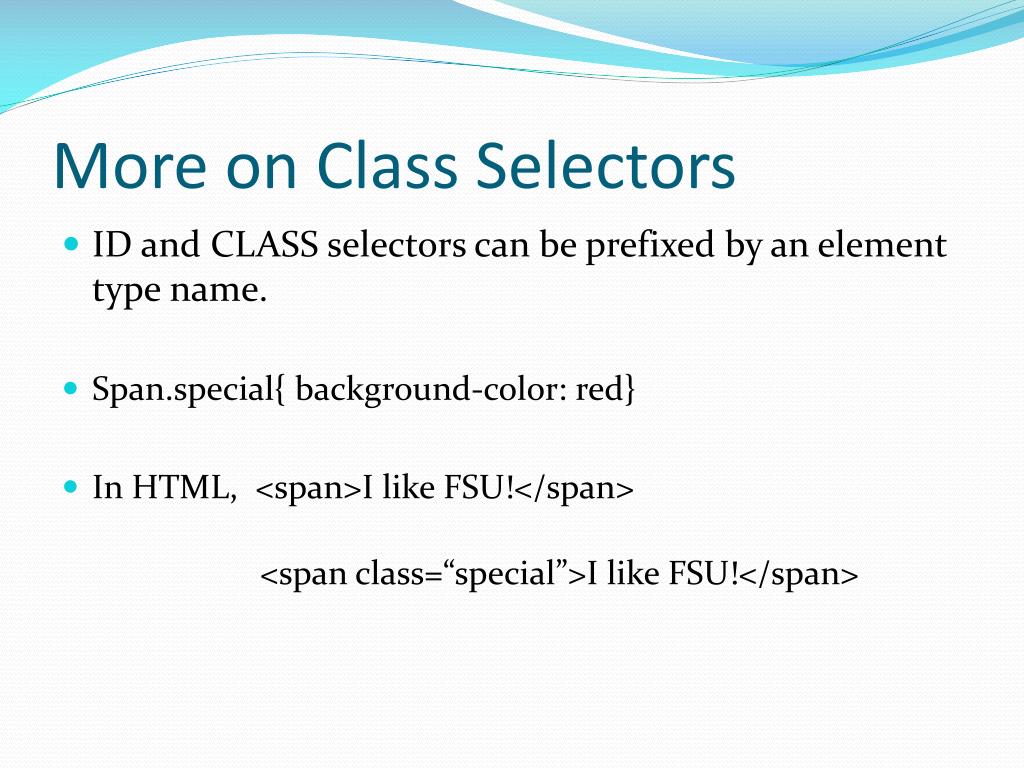

  21. More on Class Selectors • ID and CLASS selectors can be prefixed by an element type name. • Span.special{ background-color: red} • In HTML, <span>I like FSU!</span> <span class=“special”>I like FSU!</span>

  22. Descendant Selectors • ul span { color : yellow }. This indicates that the text within a <span> element that is part of the content of an unordered list <ul> should be yellow. • Class selector can be included in the ancestor list. • .special span • Question: what does this mean? ulolli { color : yellow }

  23. Internal CSS • <head> <style type=“text/css”> body { background-color : red; } p { color: yellow } . . . </style>

  24. Next Class • More about CSS • Style Rule Cascading and Inheritance • Text properties • Font families • Line Boxes • CSS Box Model
