Analysis of the Enhanced Mode in Layer One Virtual Private Networks (L1VPNs)

Analysis of the Enhanced Mode in Layer One Virtual Private Networks (L1VPNs). CCAMP WG, IETF 67th San Diego draft-li-l1vpn-enhanced-mode-analysis-00.txt Dan Li ( danli@huawei.com ) Qiliang Yi ( yiqiliang@huawei.com ) Julien Meuric ( julien.meuric@orange-ftgroup.com )

cedric
Télécharger la présentation

Analysis of the Enhanced Mode in Layer One Virtual Private Networks (L1VPNs)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

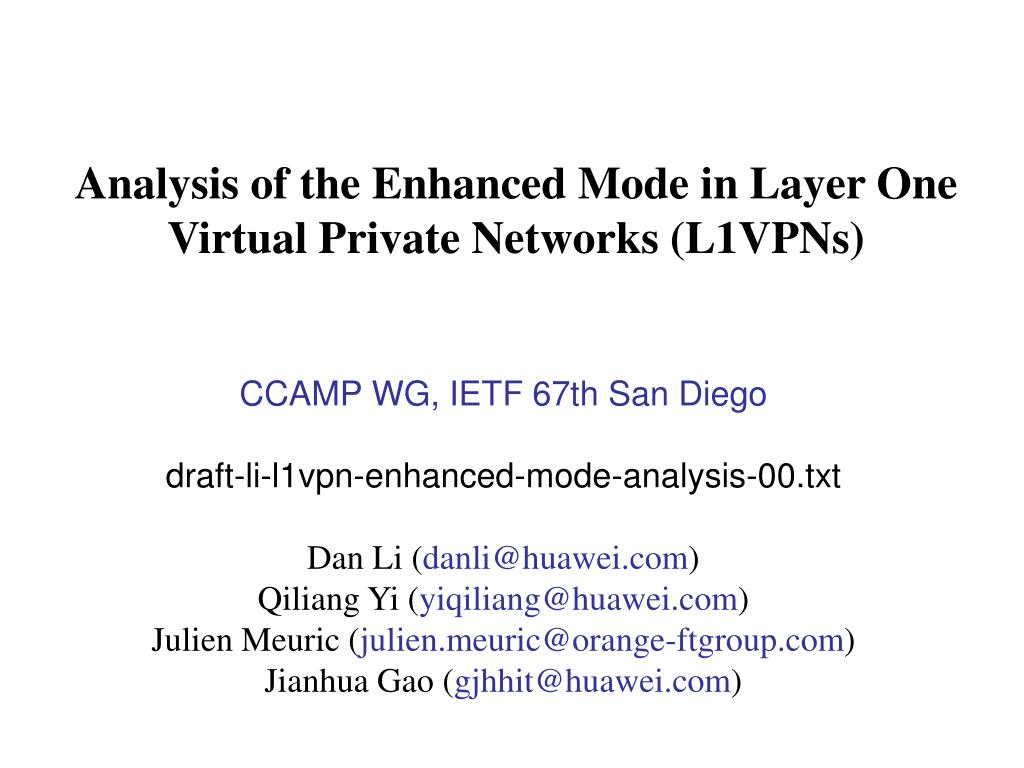

  1. Analysis of the Enhanced Mode in Layer One Virtual Private Networks (L1VPNs) CCAMP WG, IETF 67th San Diego draft-li-l1vpn-enhanced-mode-analysis-00.txt Dan Li (danli@huawei.com) Qiliang Yi (yiqiliang@huawei.com) Julien Meuric (julien.meuric@orange-ftgroup.com) Jianhua Gao (gjhhit@huawei.com)

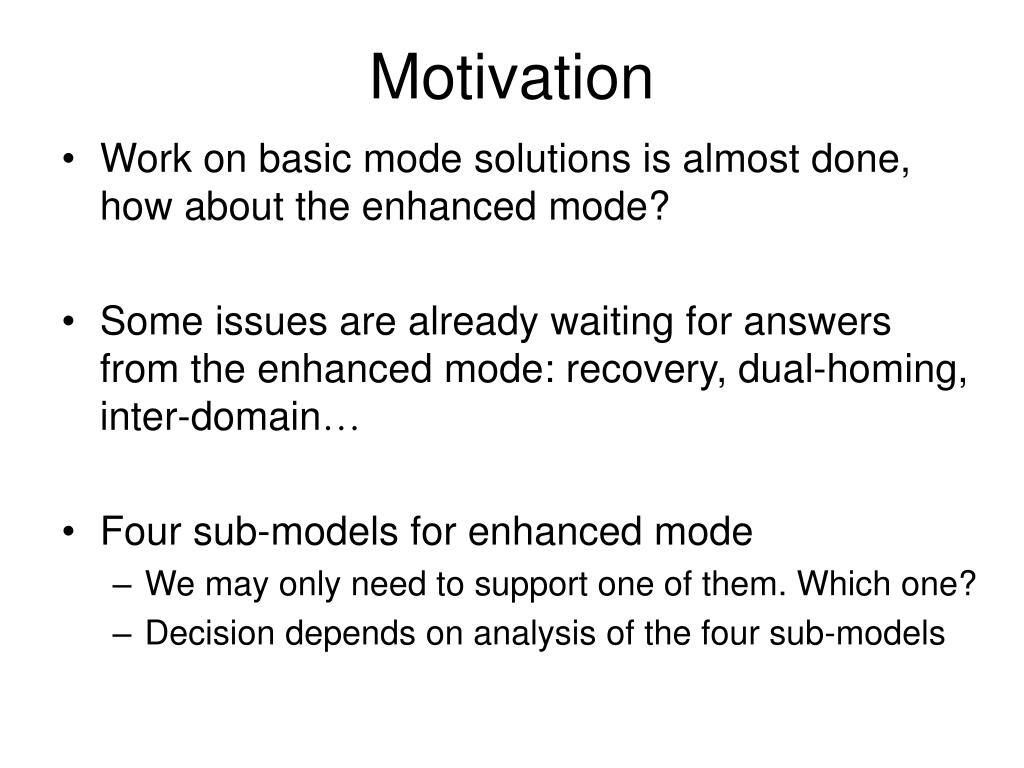

  2. Motivation • Work on basic mode solutions is almost done, how about the enhanced mode? • Some issues are already waiting for answers from the enhanced mode: recovery, dual-homing, inter-domain… • Four sub-models for enhanced mode • We may only need to support one of them. Which one? • Decision depends on analysis of the four sub-models

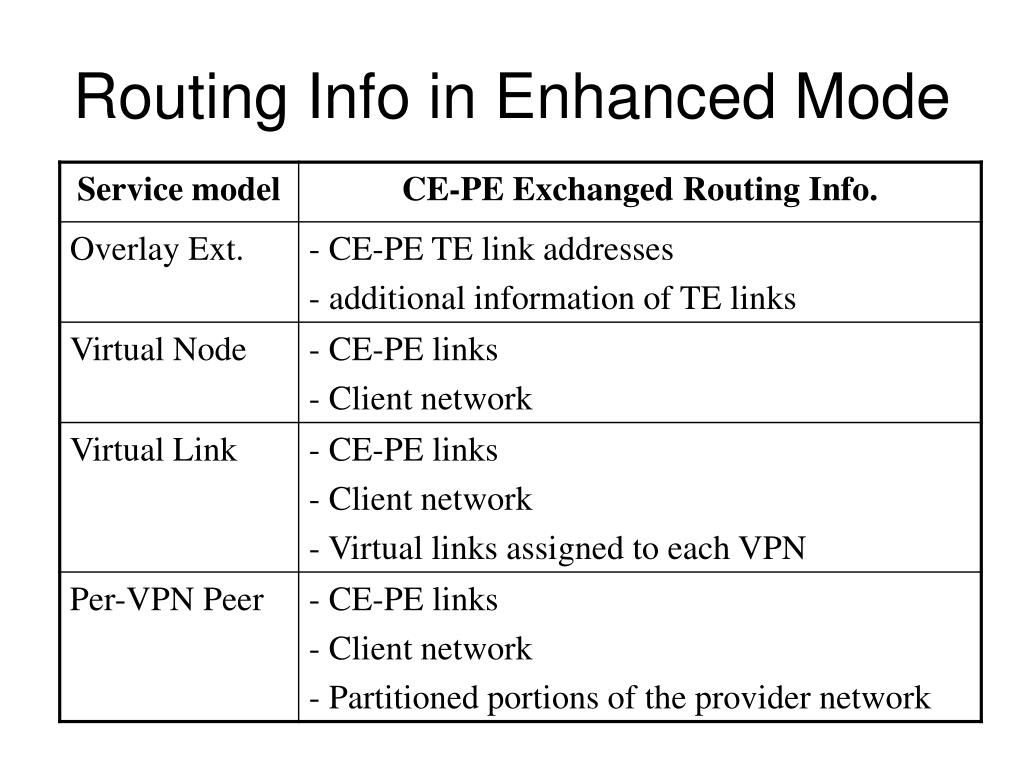

  3. Routing Info in Enhanced Mode

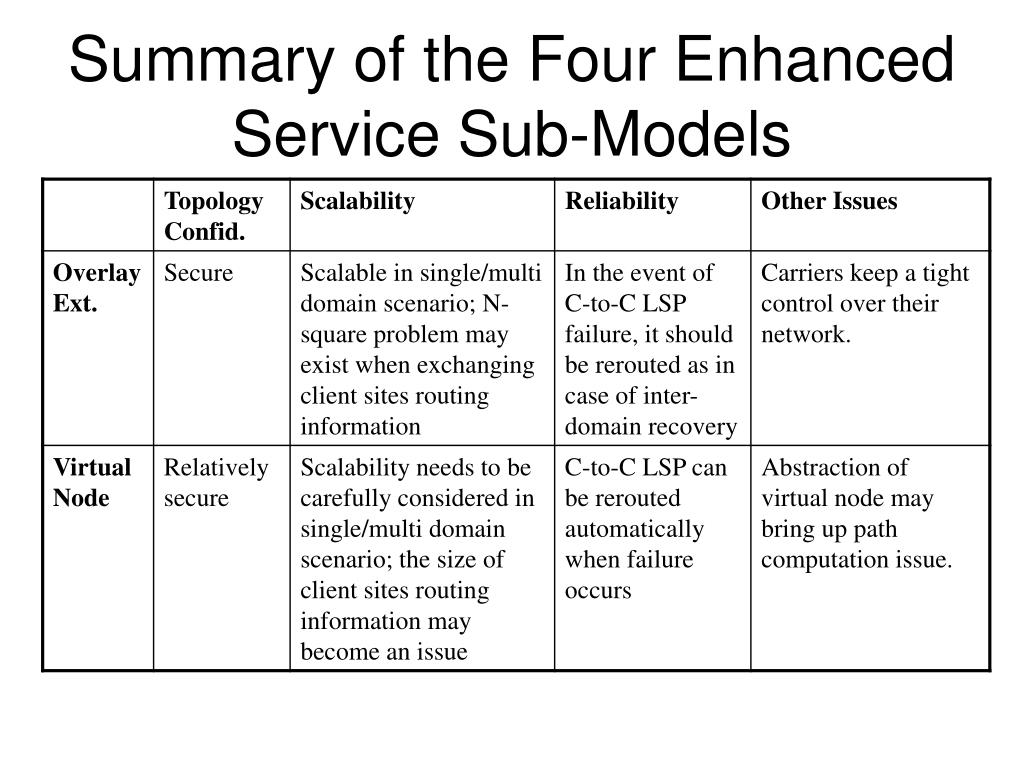

  4. Summary of the Four Enhanced Service Sub-Models

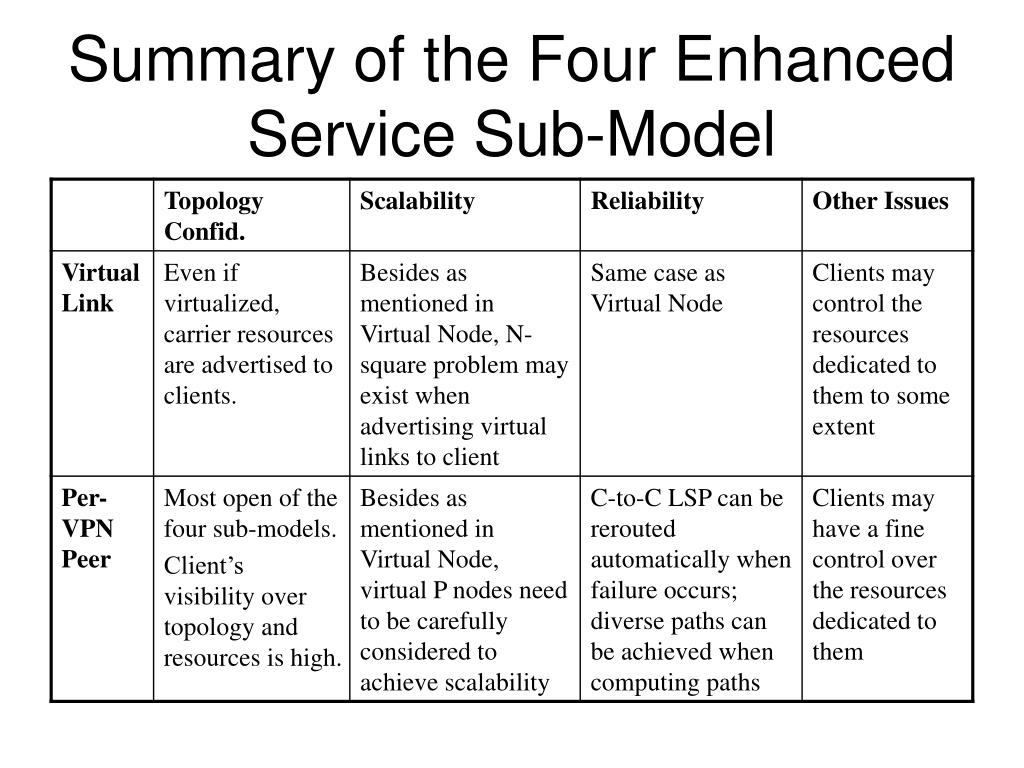

  5. Summary of the Four Enhanced Service Sub-Model

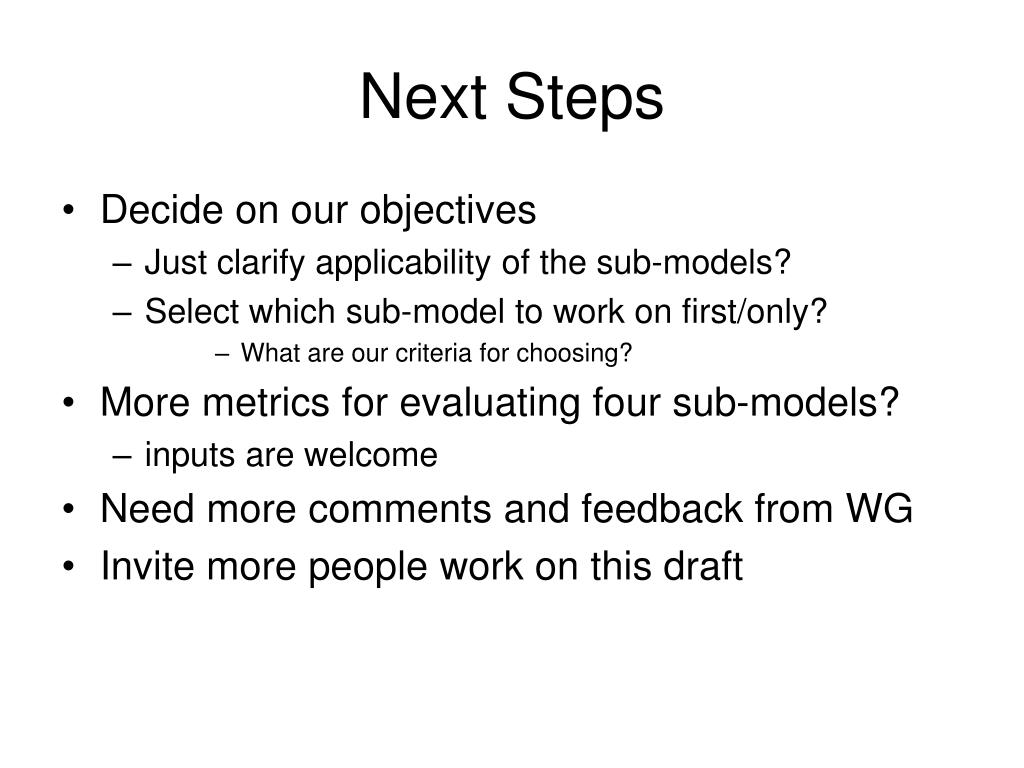

  6. Next Steps • Decide on our objectives • Just clarify applicability of the sub-models? • Select which sub-model to work on first/only? • What are our criteria for choosing? • More metrics for evaluating four sub-models? • inputs are welcome • Need more comments and feedback from WG • Invite more people work on this draft
