Characteristics. Operates in the 2.4 GHz range, using Short rangeUp to 10 mAsynchronous (data) and synchronous (voice) service availableBluetooth 1.2Up to 721 kbit/s (with signaling 1 Mbit/s)Bluetooth 2.0 EDR (Enhanced Data Rate), 2004Up to 2.1 Mbit/s (with signaling 3 Mbit/s)Bluetooth 2.1

cedric
Télécharger la présentation

Bluetooth

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

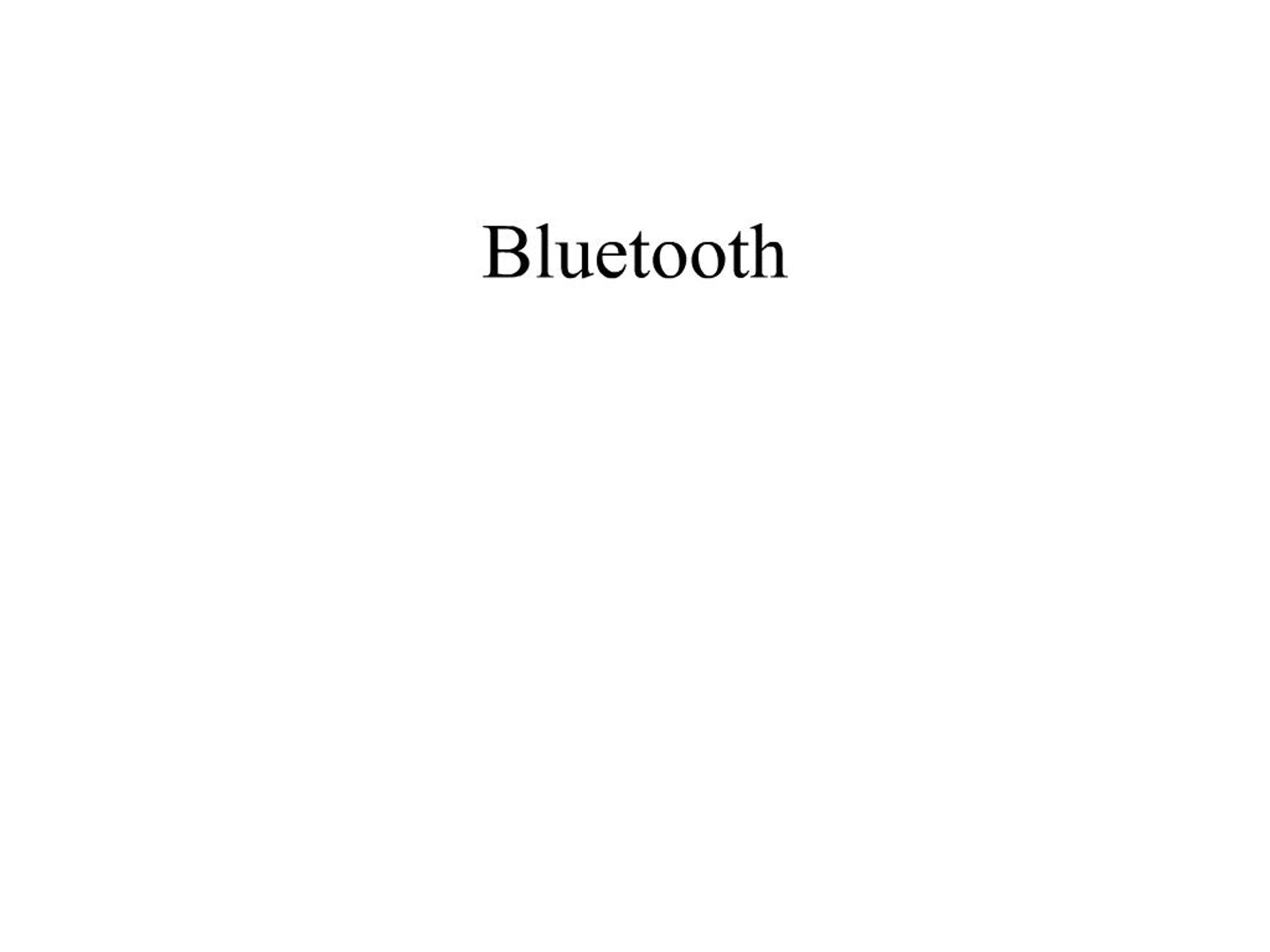

    1. Bluetooth

    2. Characteristics Operates in the 2.4 GHz range, using Short range Up to 10 m Asynchronous (data) and synchronous (voice) service available Bluetooth 1.2 Up to 721 kbit/s (with signaling 1 Mbit/s) Bluetooth 2.0 + EDR (Enhanced Data Rate), 2004 Up to 2.1 Mbit/s (with signaling 3 Mbit/s) Bluetooth 2.1 + EDR (Enhanced Data Rate), 2007

    3. Bluetooth Radio FHSS (2.402 GHz - 2.480 GHz; 79 channels) Fast FHSS (1600 hops/s) GFSK modulation, 1M Symbol/s 2 FSK modulation yields 432 kbit/s bidirectional / 721 kbit/s asymmetrical EDR, QPSK or 8PSK modulations

    4. Piconets Nodes can assume the role of master or slave One or more slaves can connect to a master, forming a piconet The master sets the hopping pattern for the piconet, and all slaves must synchronize to that pattern Maximum of 7 slaves controlled by a master (3-bit addresses used) Other operational states Parked: device does not participate in the piconet, but is known to the master and can be quickly reactivated Standby: device does not participate in the piconet

    5. Piconet
