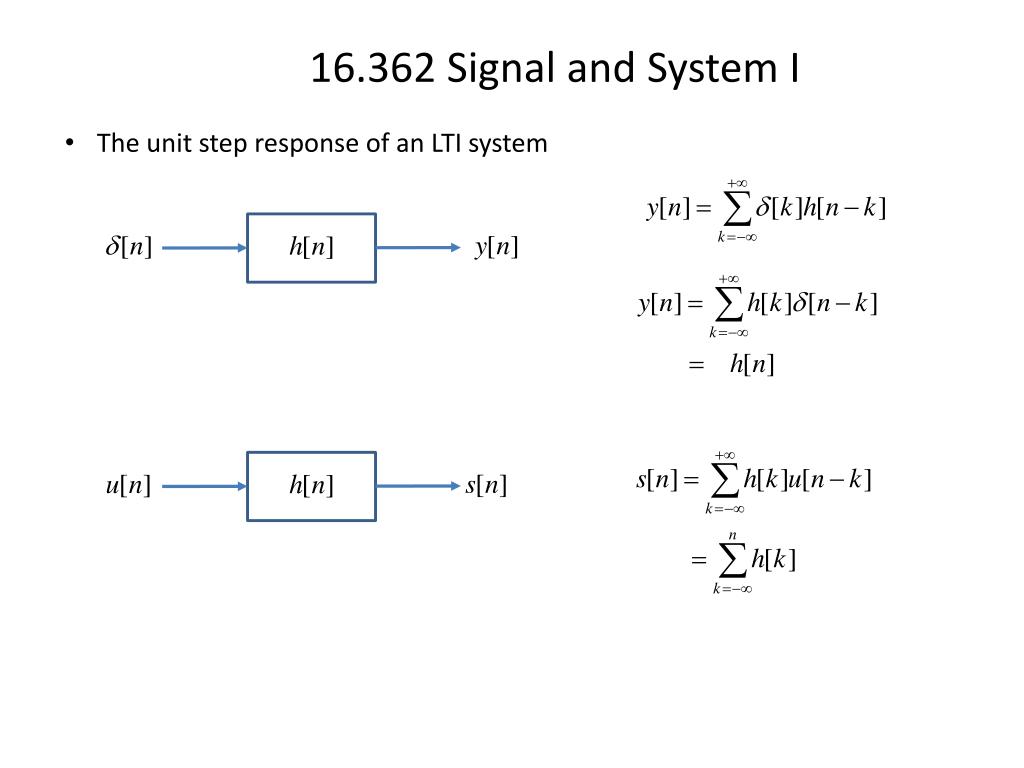

  1. The unit step response of an LTI system

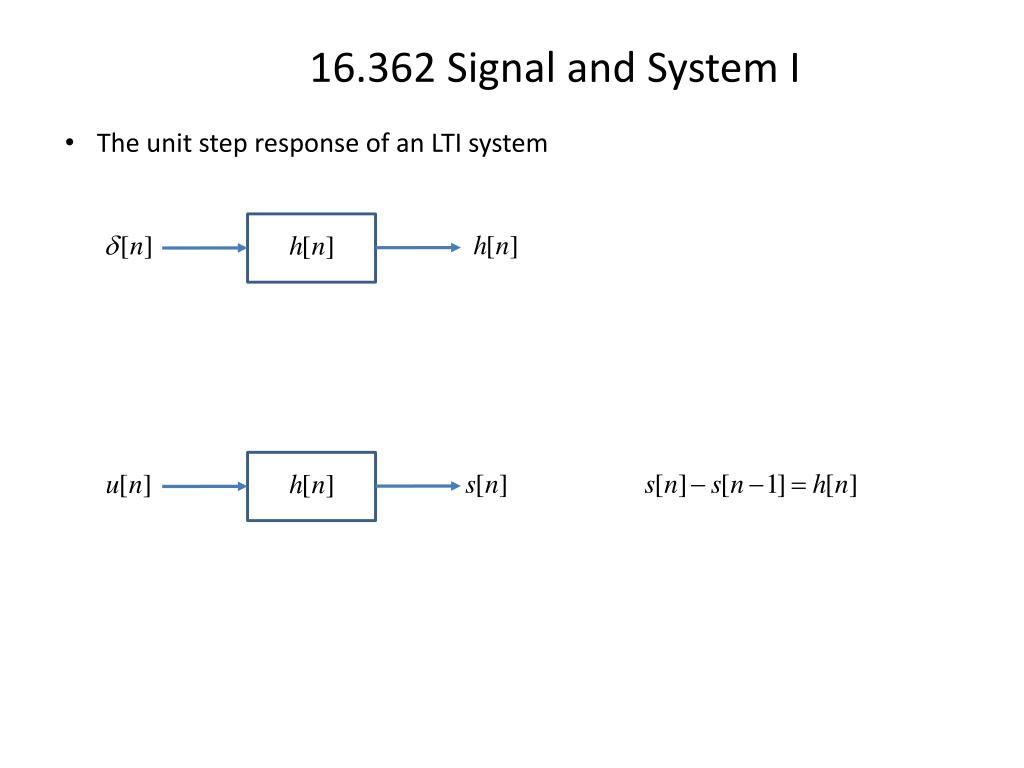

  2. The unit step response of an LTI system

  3. The unit step response of an LTI system

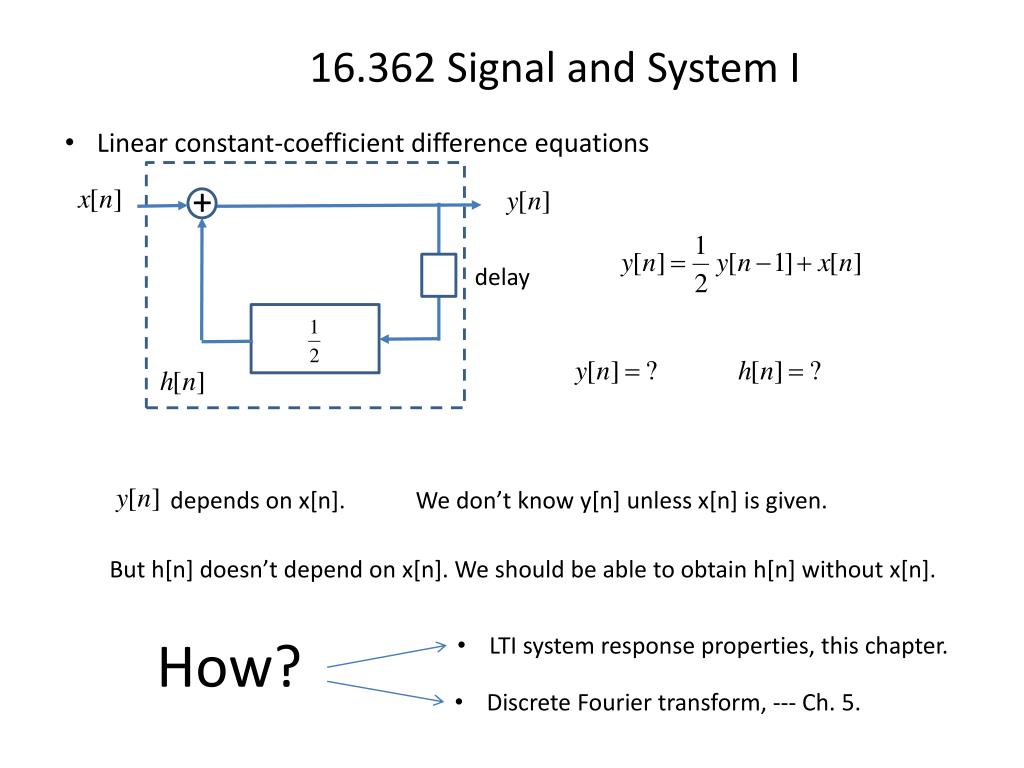

  4. Linear constant-coefficient difference equations + delay depends on x[n]. We don’t know y[n] unless x[n] is given. But h[n] doesn’t depend on x[n]. We should be able to obtain h[n] without x[n]. How? • LTI system response properties, this chapter. • Discrete Fourier transform, --- Ch. 5.

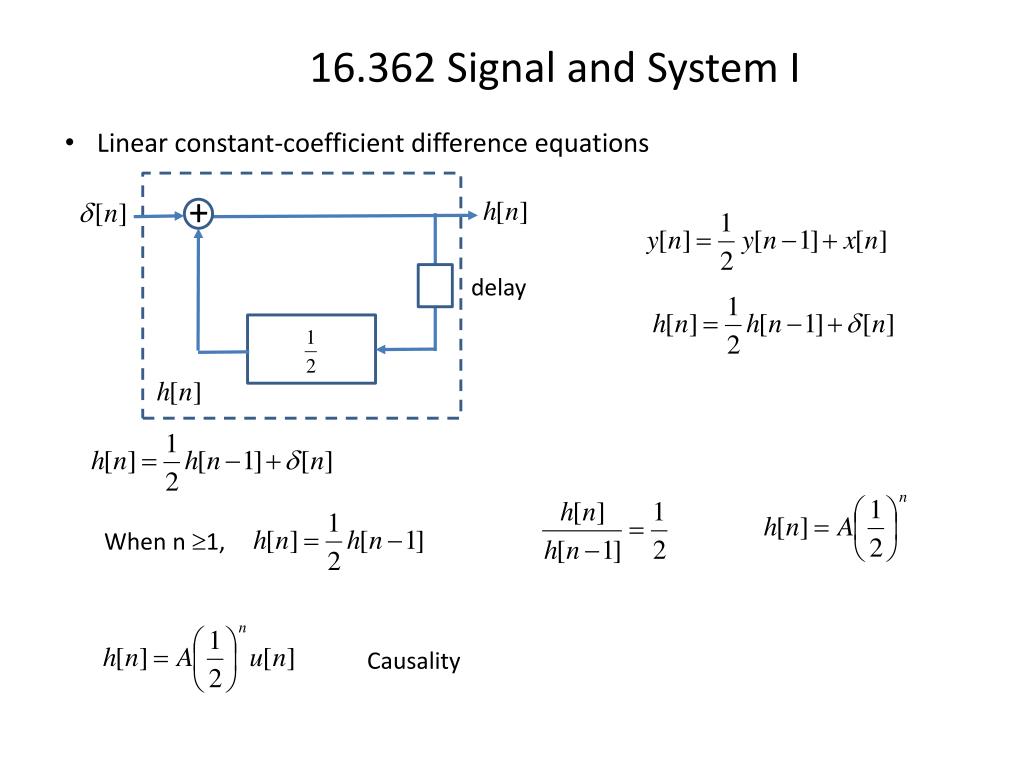

  5. Linear constant-coefficient difference equations + delay When n 1, Causality

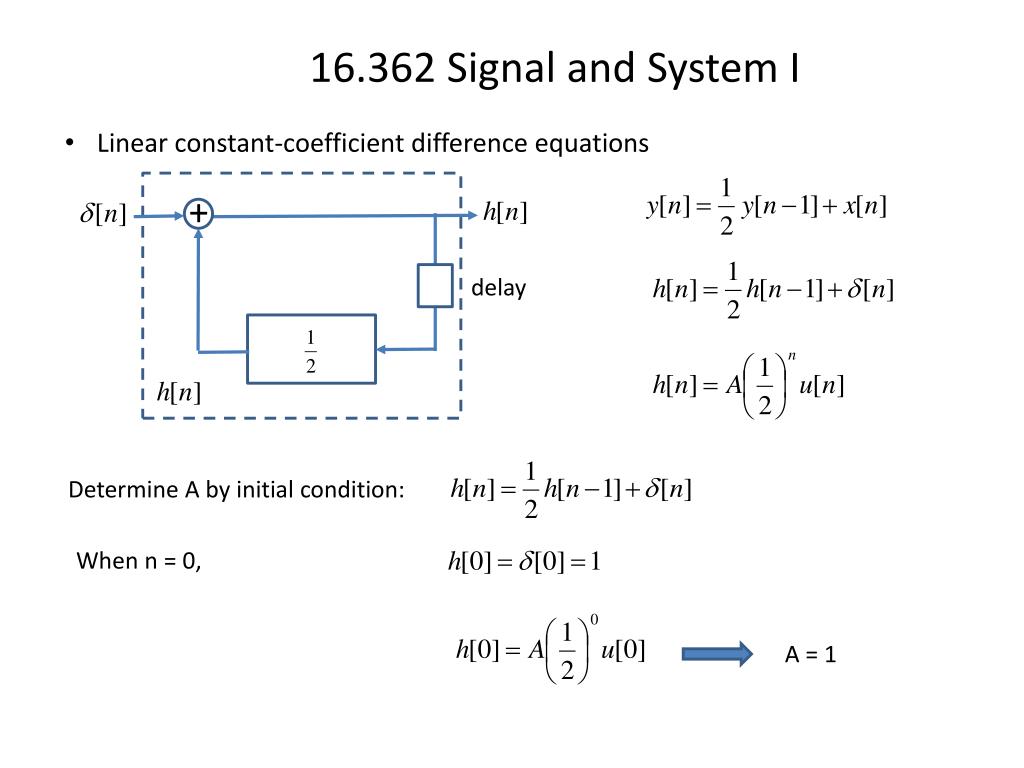

  6. Linear constant-coefficient difference equations + delay Determine A by initial condition: When n = 0, A = 1

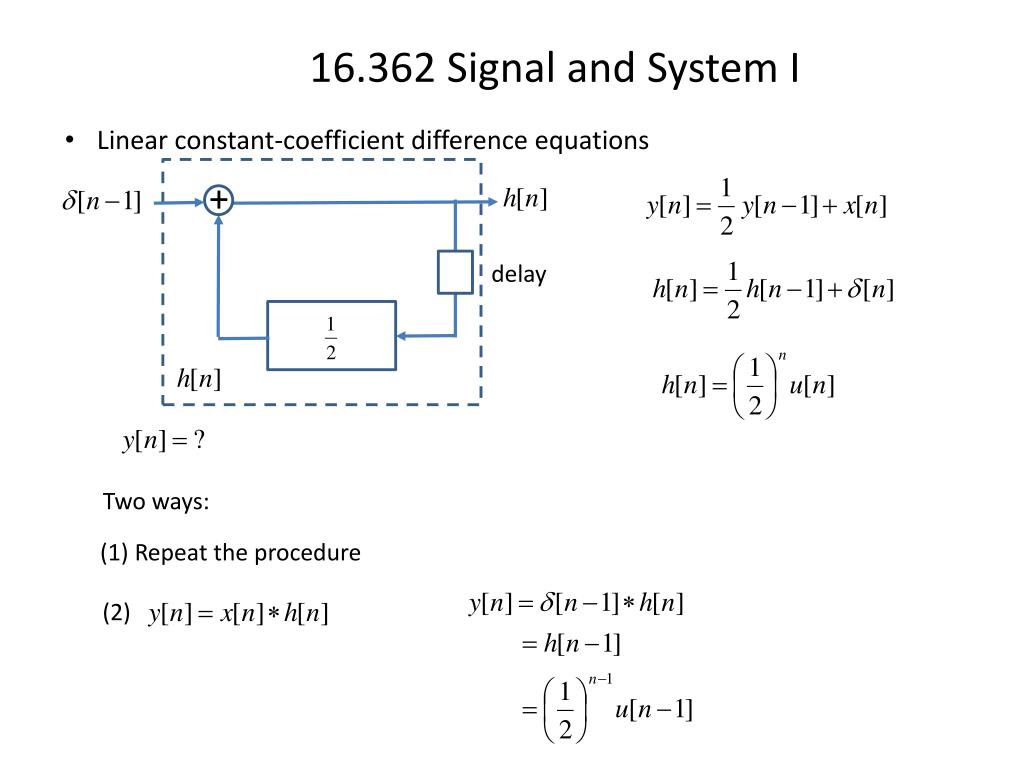

  7. Linear constant-coefficient difference equations + delay Two ways: (1) Repeat the procedure (2)

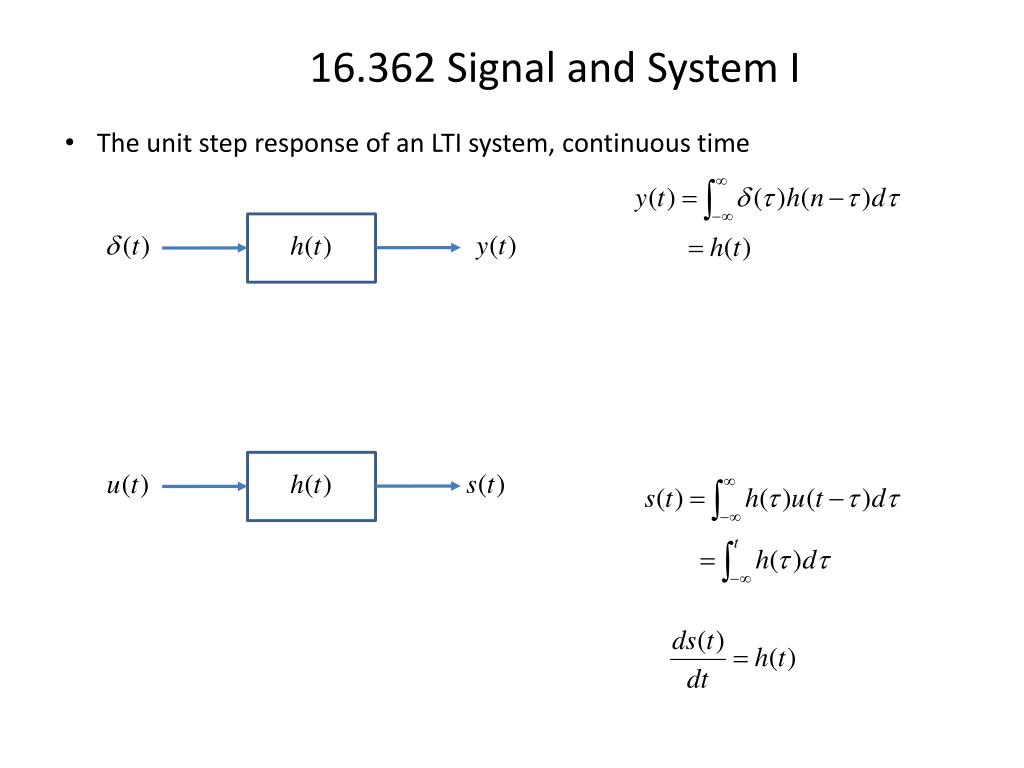

  8. The unit step response of an LTI system, continuous time

  9. Linear constant-coefficient difference equations + depends on x(t). We don’t know y(t) unless x(t) is given. But h(t) doesn’t depend on x(t). We should be able to obtain h(t) without x(t). How? • LTI system response properties, this chapter. • Continuous time Fourier transform.

  10. Linear constant-coefficient difference equations + When t>0, Causality Determine A by initial condition:

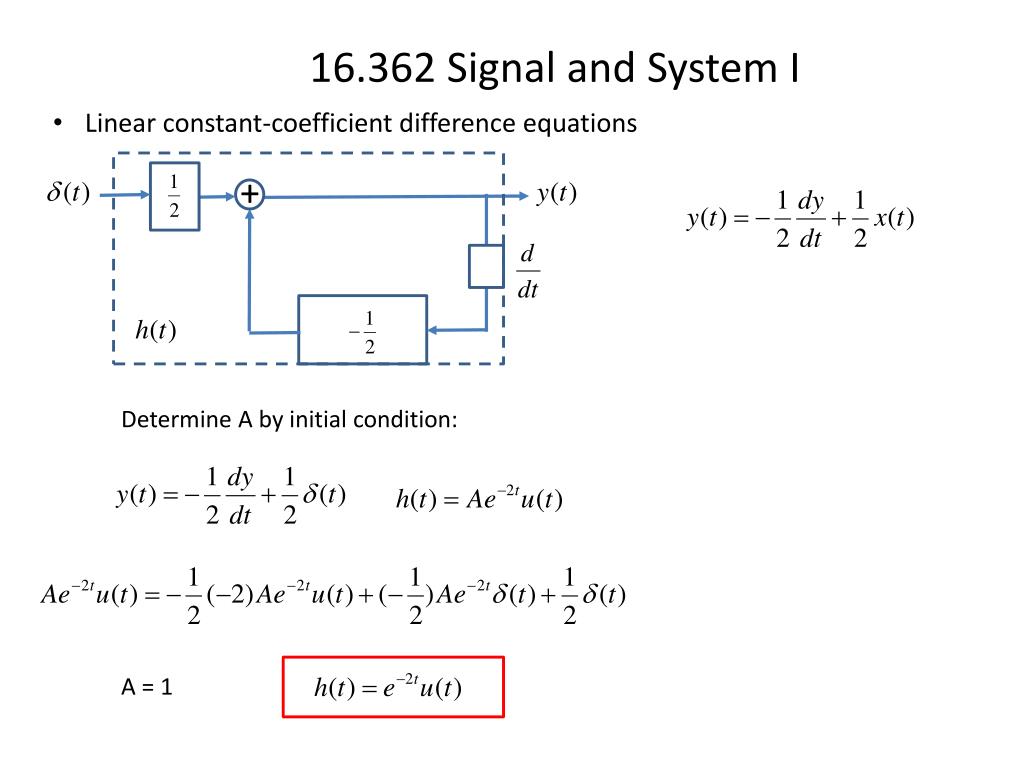

  11. Linear constant-coefficient difference equations + Determine A by initial condition: A = 1

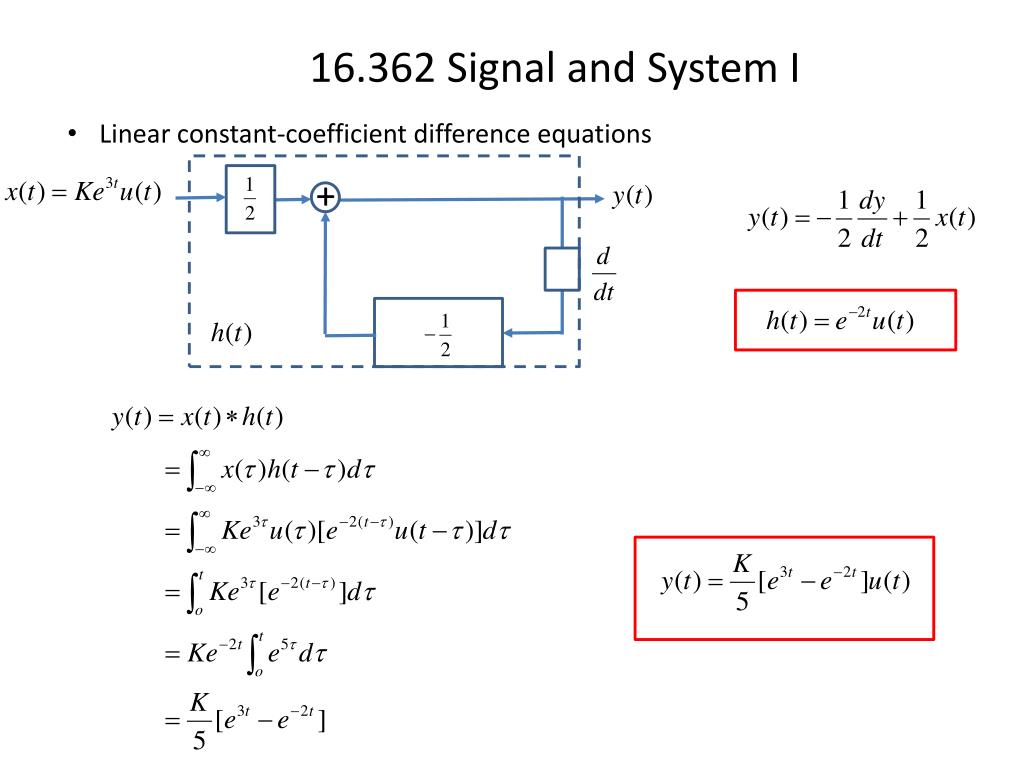

  12. Linear constant-coefficient difference equations +

  13. Singularity functions Define:

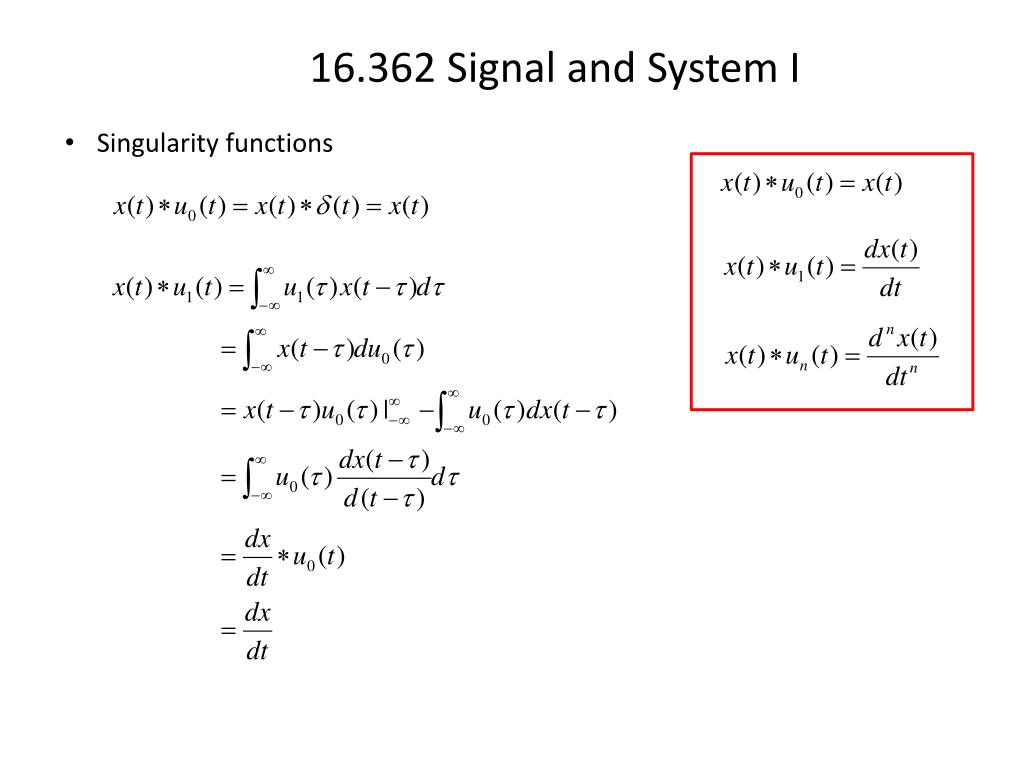

  14. Singularity functions

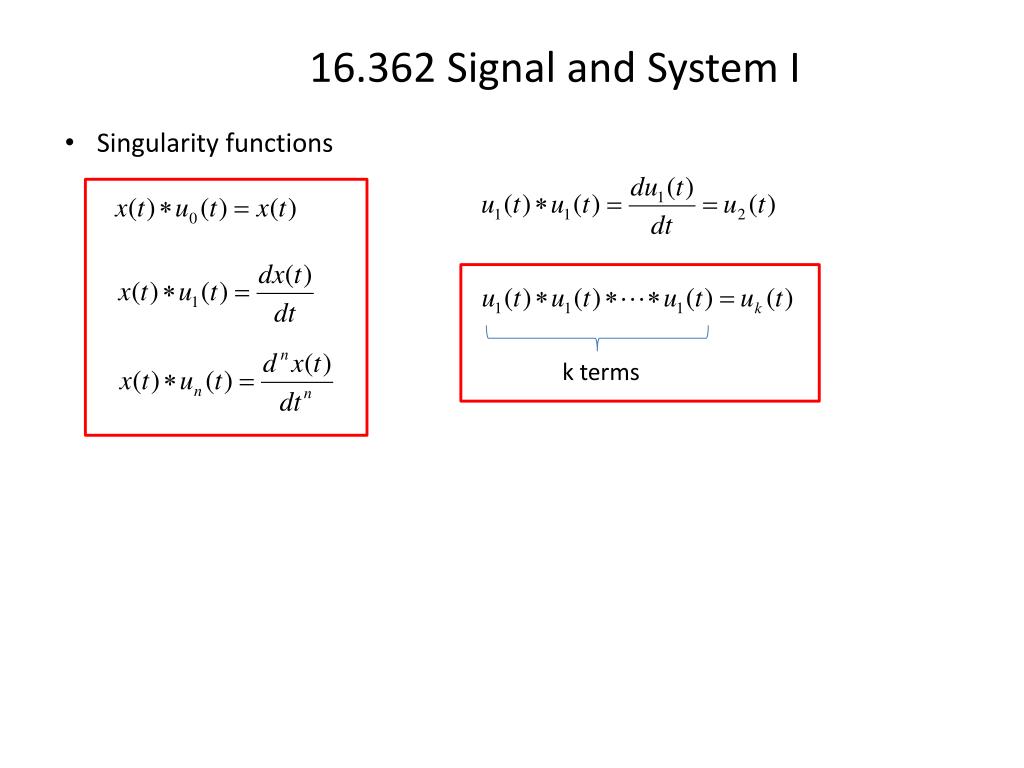

  15. Singularity functions k terms

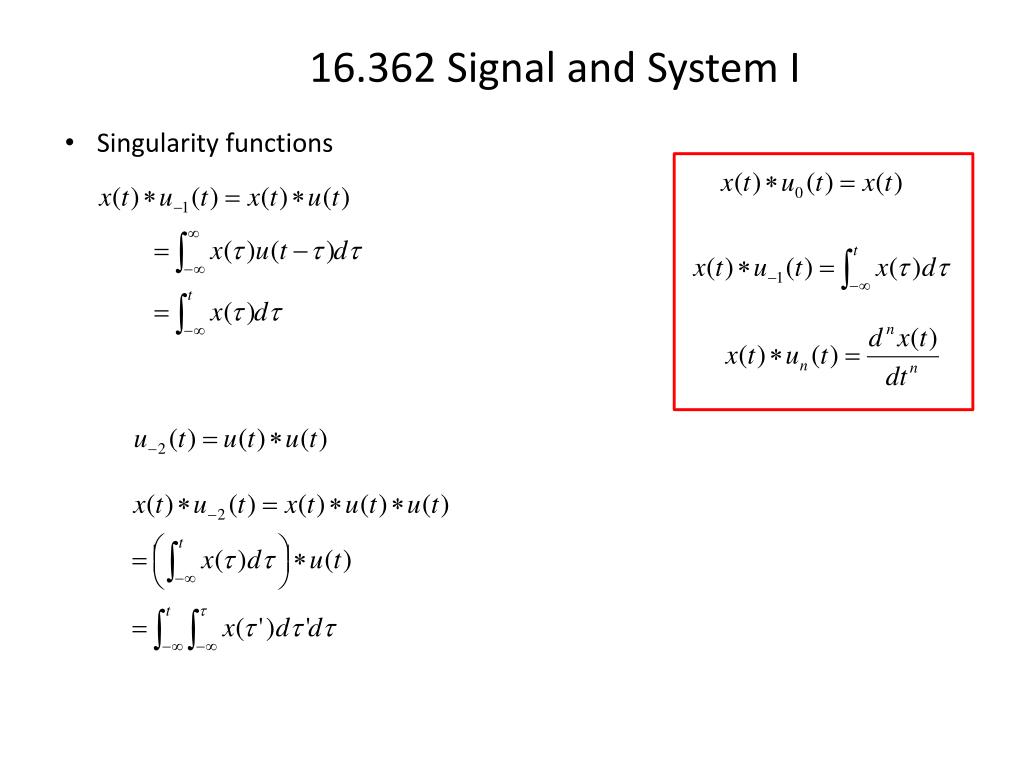

  16. Singularity functions

  17. Singularity functions --- discrete time Define:

  18. Singularity functions --- discrete time Define:
