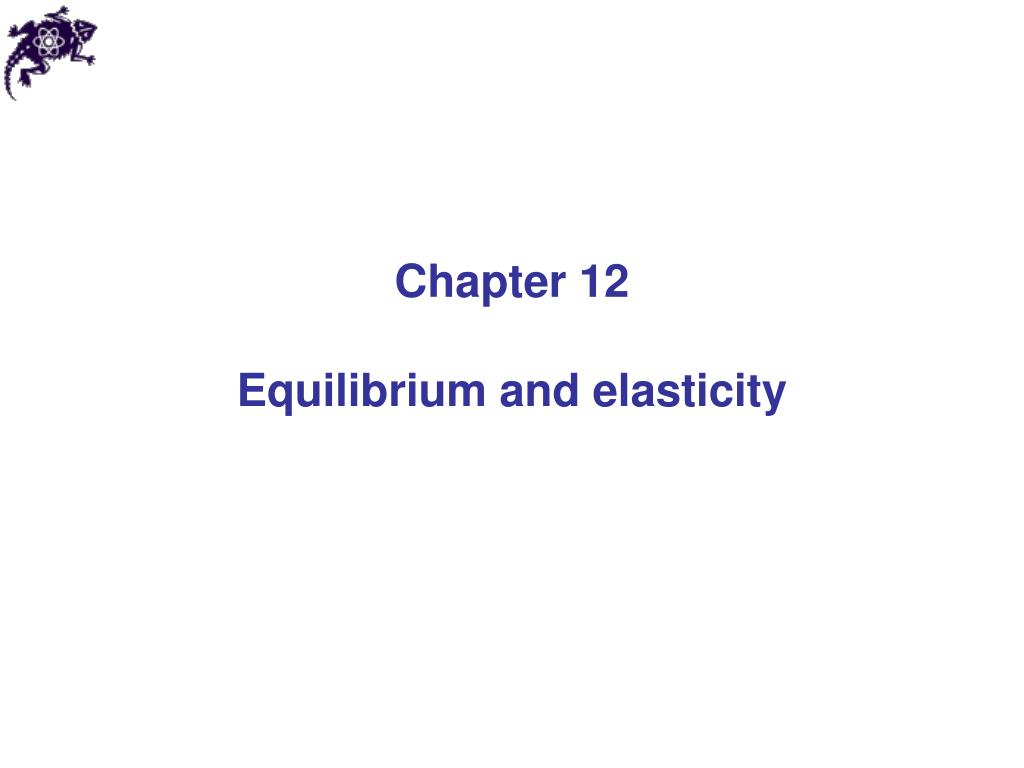

  1. Chapter 12 Equilibrium and elasticity

  2. Equilibrium • We already introduced the concept of equilibrium in Chapter 8: dU(x)/dx = 0 • More general definition of equilibrium: • Static equilibrium: • Stable equilibrium: the body returns to the state of static equilibrium after having been displaced from that state. Unstable equilibrium: the state of equilibrium is lost after a small force displaces the body

  3. Center of mass: stable equilibrium • We consider the torque created by the gravity force (applied to the com) and its direction relative to the possible point(s) of rotation

  4. Center of mass: stable equilibrium • We consider the torque created by the gravity force (applied to the com) and its direction relative to the possible point(s) of rotation

  5. Center of mass: stable equilibrium • We consider the torque created by the gravity force (applied to the com) and its direction relative to the possible point(s) of rotation

  6. Center of mass: stable equilibrium • We consider the torque created by the gravity force (applied to the com) and its direction relative to the possible point(s) of rotation

  7. Center of gravity • Gravitational force on a body effectively acts on a single point, called the center of gravity • If g is the same for all elements of a body (which is not always so: see for example Chapter 13) then the center of gravity of the body coincides with its center of mass

  8. The requirements of equilibrium • For an object to be in equilibrium, we should have two requirements met • Balance of forces: the vector sum of all the external forces that act on the body is zero • Balance of torques: the vector sum of all the external torques that act on the body, measured about any possible point, is zero

  9. Equilibrium: 2D case • If an object can move only in 2D (xy plane) then the equilibrium requirements are simplified: • Balance of forces: only the x- and y-components are considered • Balance of torques: only the z-component is considered (the only one perpendicular to the xy plane)

  10. Examples of static equilibrium

  11. Examples of static equilibrium

  12. Examples of static equilibrium

  13. Chapter 12 Problem 67

  14. Chapter 12 Problem 27

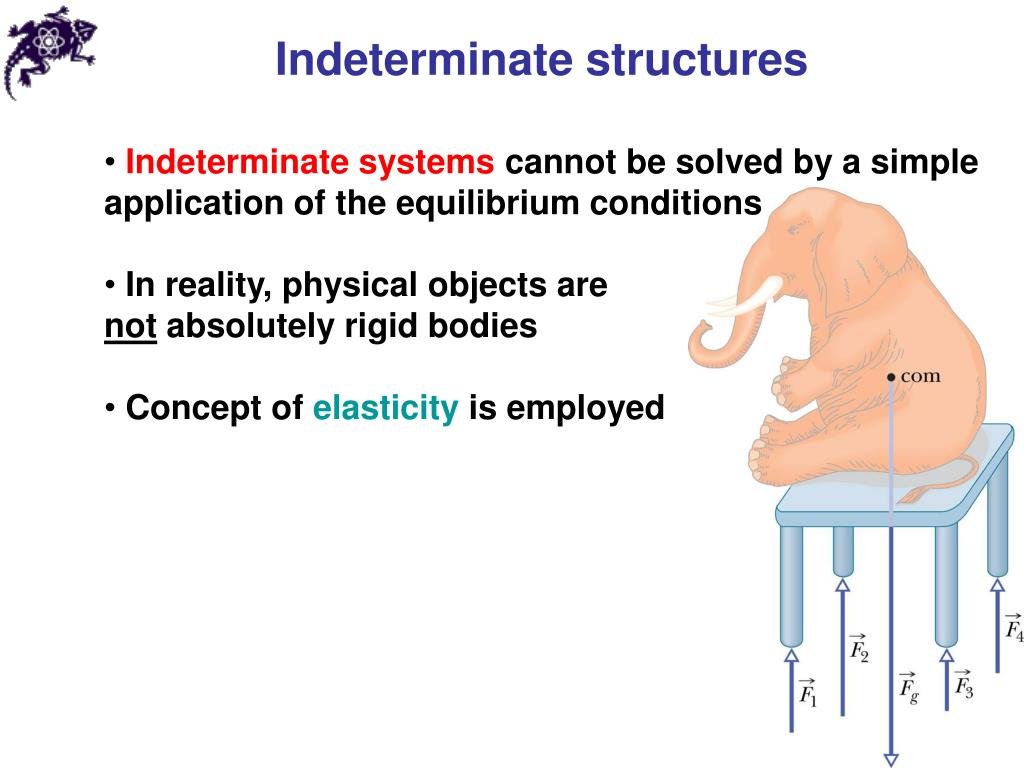

  15. Indeterminate structures • Indeterminate systems cannot be solved by a simple application of the equilibrium conditions • In reality, physical objects are • not absolutely rigid bodies • Concept of elasticity is employed

  16. Elasticity • All real “rigid” bodies can change their dimensions as a result of pulling, pushing, twisting, or compression • This is due to the behavior of a microscopic structure of the materials they are made of • Atomic lattices can be approximated as sphere/spring repetitive arrangements

  17. Stress and strain • All deformations result from a stress – deforming force per unit area • Deformations are described by a strain – unit deformation • Coefficient of proportionality between stress and strain is called a modulus of elasticity • stress = modulus * strain

  18. Thomas Young (1773 – 1829) • Tension and compression • Strain is a dimensionless ratio – fractional change in length of the specimen ΔL/L • The modulus for tensile and compressive strength is called the Young’s modulus

  19. Tension and compression • Strain is a dimensionless ratio – fractional change in length of the specimen ΔL/L • The modulus for tensile and compressive strength is called the Young’s modulus

  20. Shearing • For the stress, force vector lies in the plane of the area • Strain is a dimensionless ratio Δx/L • The modulus for this case is called the shear modulus

  21. Hydraulic stress • The stress is fluid pressure p (Ch.14) • Strain is a dimensionless ratio ΔV/V • The modulus is called the bulk modulus

  22. Answers to the even-numbered problems Chapter 12: Problem 8 (a) 2.77 kN; (b) 3.89 kN

  23. Answers to the even-numbered problems Chapter 12: Problem 10 8.3 kN

  24. Answers to the even-numbered problems • Chapter 12: • Problem 14 • 49 N; • (b) 28 N; • (c) 57 N; • (d) 29º

  25. Answers to the even-numbered problems Chapter 12: Problem 38 56.0 mJ

  26. Answers to the even-numbered problems • Chapter 12: • Problem 48 • 50º; • (b) 0.77 mg
