HW #4 /Tutorial # 4 WWWR Chapter 19 ID Chapter 6

Tutorial # 4 WWWR #19.1,19.4, 19.21. ID # 6.33. 6.37. To be discussed during the week 10-14 Feb., 2014. By either volunteer or class list. Homework # 4 (Self practice) WWWR#19.2, 19.8 ID # 6.35, 6.36, 6.39. HW #4 /Tutorial # 4 WWWR Chapter 19 ID Chapter 6. # Correction Question 19.19.

chace
Télécharger la présentation

HW #4 /Tutorial # 4 WWWR Chapter 19 ID Chapter 6

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Tutorial # 4 WWWR #19.1,19.4, 19.21. ID # 6.33. 6.37. To be discussed during the week 10-14 Feb., 2014. By either volunteer or class list. Homework # 4 (Self practice) WWWR#19.2, 19.8 ID # 6.35, 6.36, 6.39 HW #4 /Tutorial # 4WWWR Chapter 19ID Chapter 6 # Correction • Question 19.19

  2. Convective Heat Transfer

  3. Fundamental Considerations In Convective Heat Transfer • Two main classifications of convective heat transfer • These have to do with the driving force causing fluid to flow Natural or free convection Fluid motion results from heat transfer Fluid heated/ cooled -> density change/ buoyancy effect -> natural circulation in which affected fluid moves of its own accord past the solid surface - fluid it replaces is similarly affected by the energy transfer - process is repeated

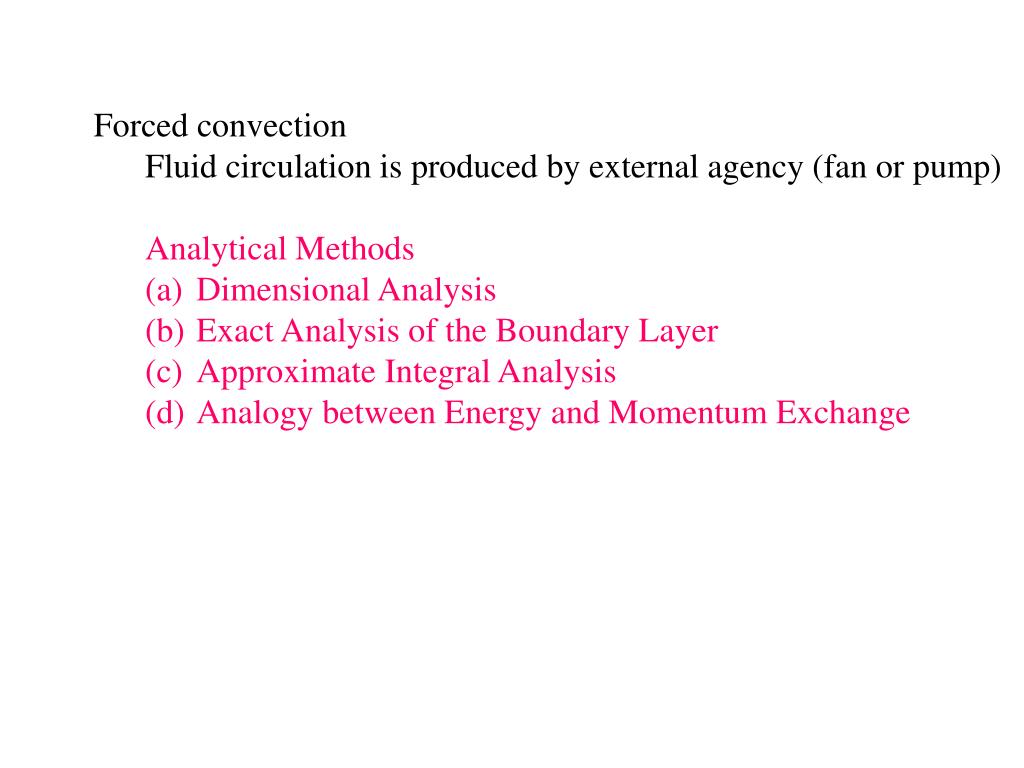

  4. Forced convection Fluid circulation is produced by external agency (fan or pump) Analytical Methods • Dimensional Analysis • Exact Analysis of the Boundary Layer • Approximate Integral Analysis • Analogy between Energy and Momentum Exchange

  5. n a mcp k Pr º = Significant Parameters In Convective Heat Transfer • Both have same dimensions L2/t; thus their ratio must be dimensionless • This ratio, that of molecular diffusivity of momentum to the molecular diffusivity of heat, is designed the Prandtl number

  6. Prandtl number • observed to be a combination of fluid properties; • thus Pr itself may be thought of as a property. • Primarily a function of temperature s

  7. hL k Nu º A ratio of conductive thermal resistance to the convective thermal resistance of the fluid Nusselt number Where the thermal conductivity of the fluid as opposed to that of the solid, which was the case in the evaluation of the Biot modulus.

  8. Dimensional Analysis of Convective Energy TransferForced Convection

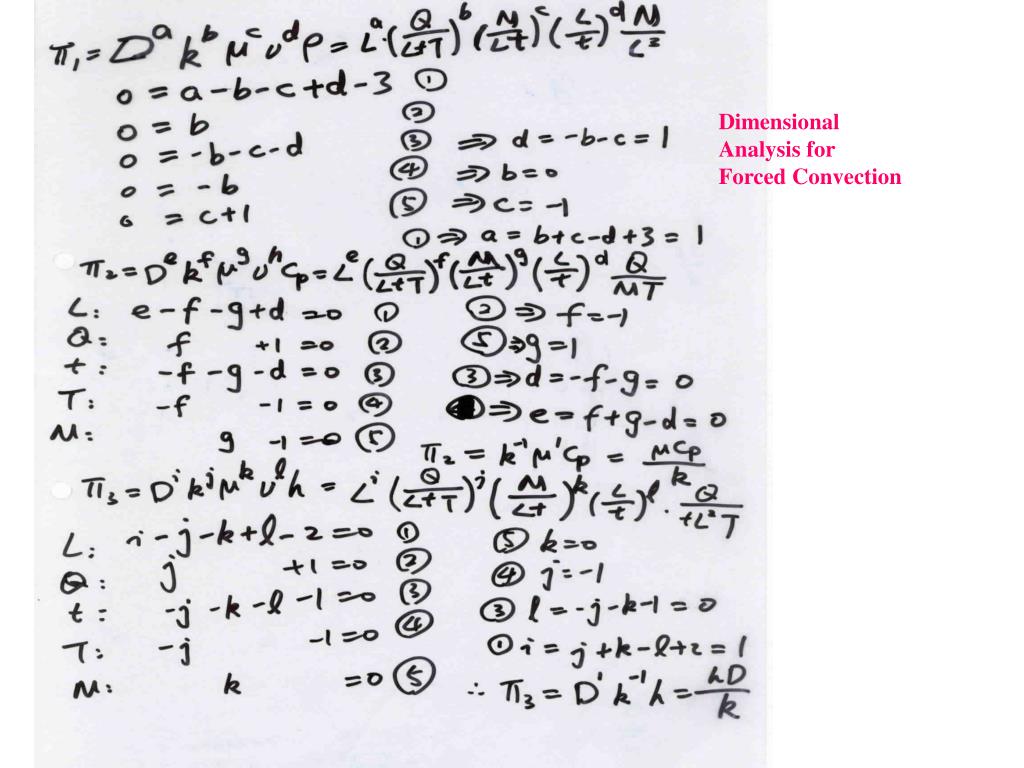

  9. Dimensional Analysis for Forced Convection

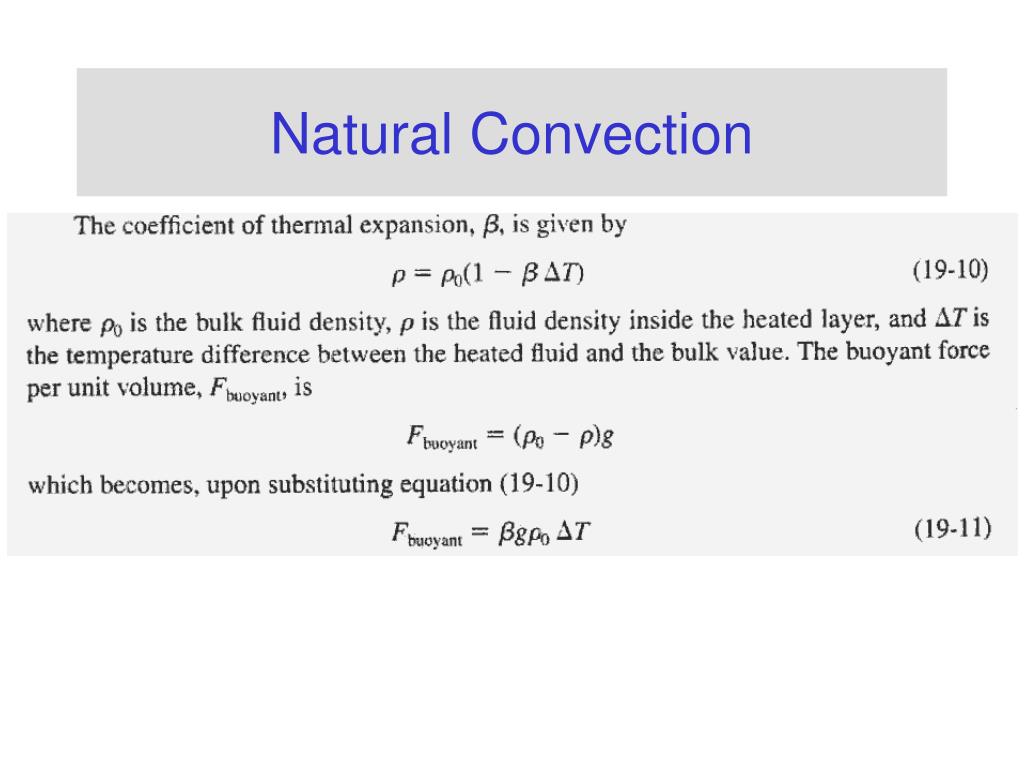

  10. Natural Convection

  11. Courtesy Contribution by ChBE Year Representative, 2004. Dimensional Analysis for Natural Convection

  12. Exact Analysis of the Laminar Boundary Layer

  13. A logical consequence of this situation is that the hydrodynamic and thermal boundary layers are of equal thickness. It is significant that the Prandtl numbers for most gases are sufficiently closed to unity that the hydrodynamic and thermal boundaries are of similar extent. See detailed derivation below

  14. Detailed Derivation

  15. Approximate Integral Analysis of the Thermal Boundary Layer An approximate method for analysis of the thermal boundary layer employs the integral analysis used by von Kármán for the hydrodynamic boundary layer.

  16. Consider the control volume designated by the dashed lines, applying to flow parallel to a flat surface with no pressure gradient, having width Dx, a height equal to the thickness of the thermal boundary layer

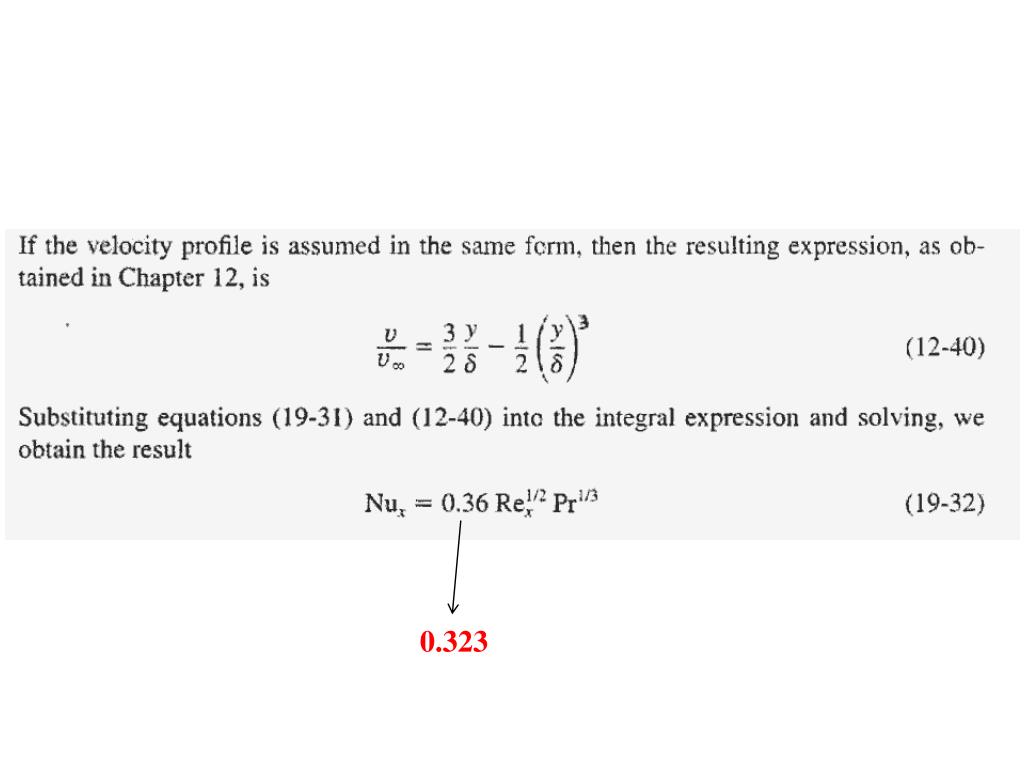

  17. 0.323

  18. Energy and Momentum Transfer Analogies

  19. Cf 2 St Pr 2/3 = The Colburn analogy expression is (19-37) 8) 9) s on er

  20. Example 1 Water at 50oF enters a heat-exchanger tube having an inside diameter of 1 in and a length of 10 ft. The water flows at 20 gal/min. For a constant wall temperature of 210oF estimate the

  21. = (50+130)/2 =(90+210)/2 = 150 Film temperature = (water mean bulk temperature + pipe wall temperature)/2 Mean bulk temperature of water = (inlet + outlet)/2

  22. Second iteration is required since if |TL – 130| > 3oF?
