  1. Chilmark Menemsha Harbor Phase 3

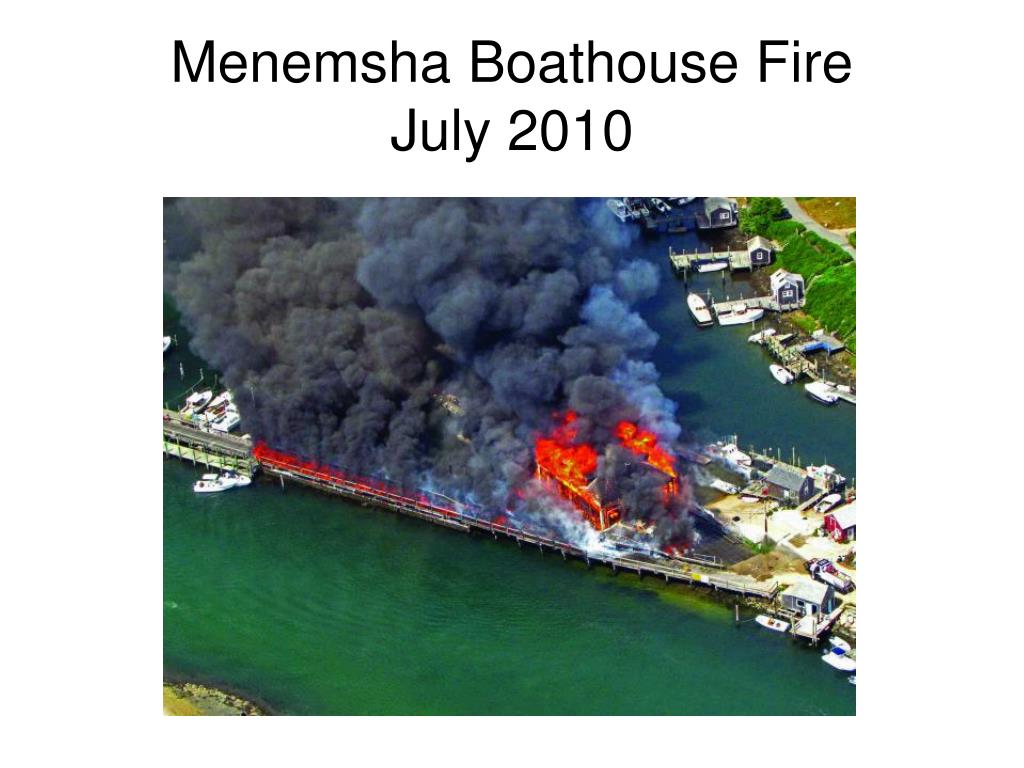

  2. Menemsha Boathouse FireJuly 2010

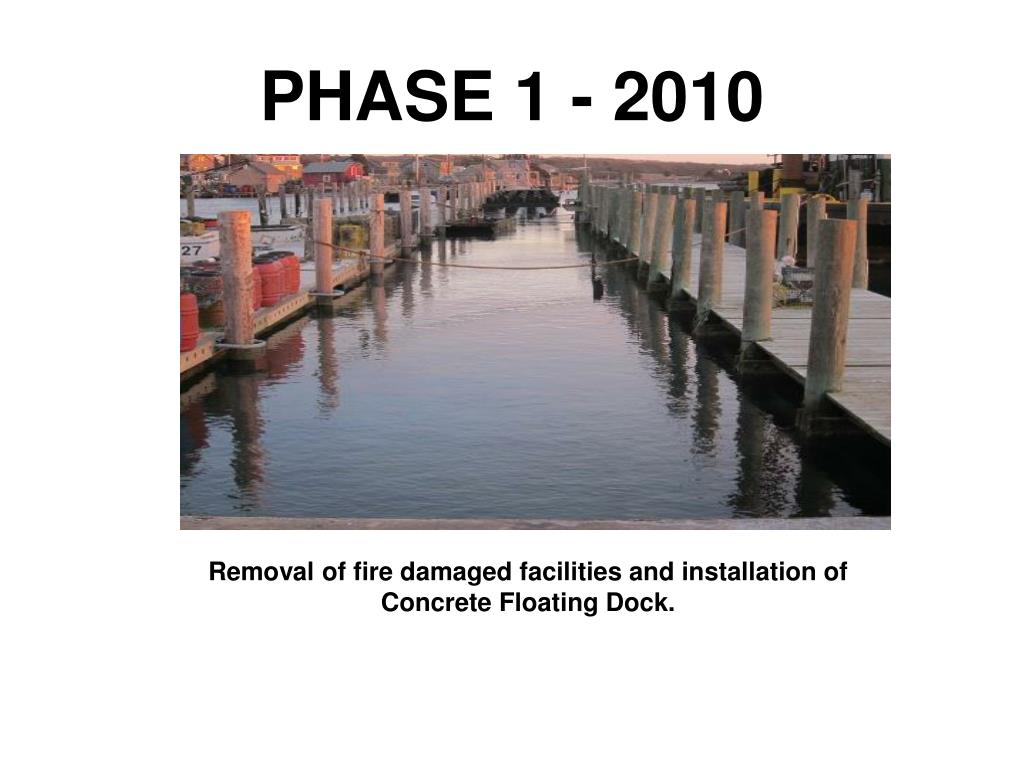

  3. PHASE 1 - 2010 Removal of fire damaged facilities and installation of Concrete Floating Dock.

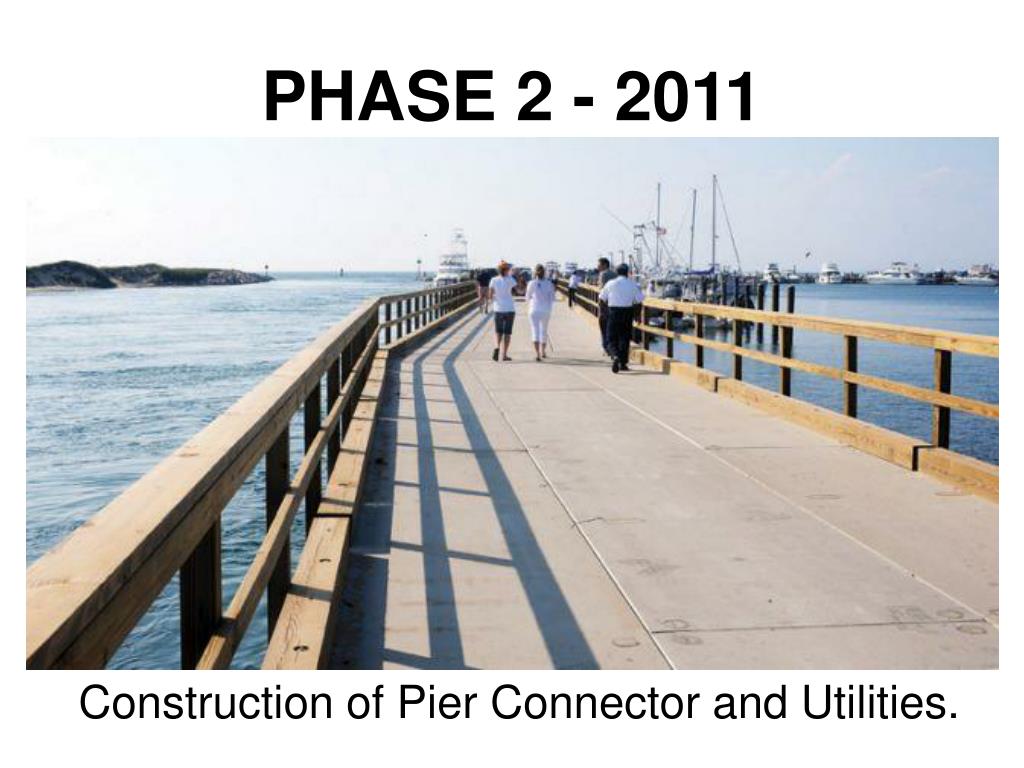

  4. PHASE 2 - 2011 Construction of Pier Connector and Utilities.

  5. PHASE 3 – FALL 2012 • Replacement of 230 foot Transient Yacht Dock • Replacement of 50 foot Fuel Dock • Various repairs to town docks

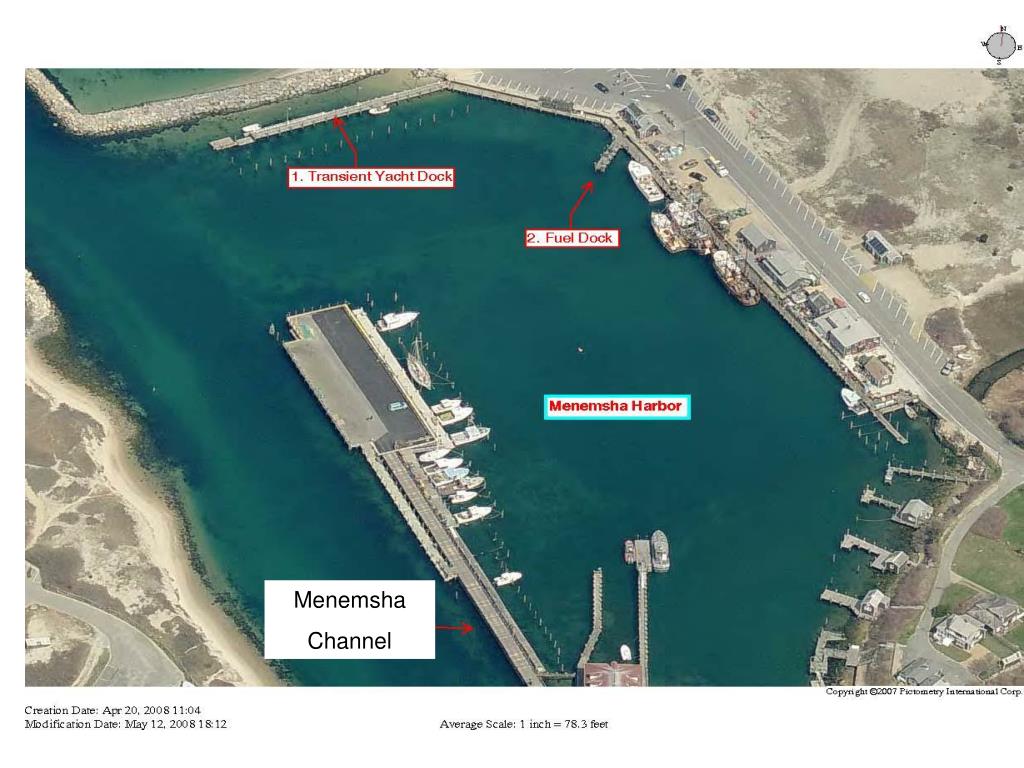

  6. 1 Menemsha Harbor Phase 3 LOCATIONS • Transient Dock • Fuel Dock 2

  7. Menemsha Channel

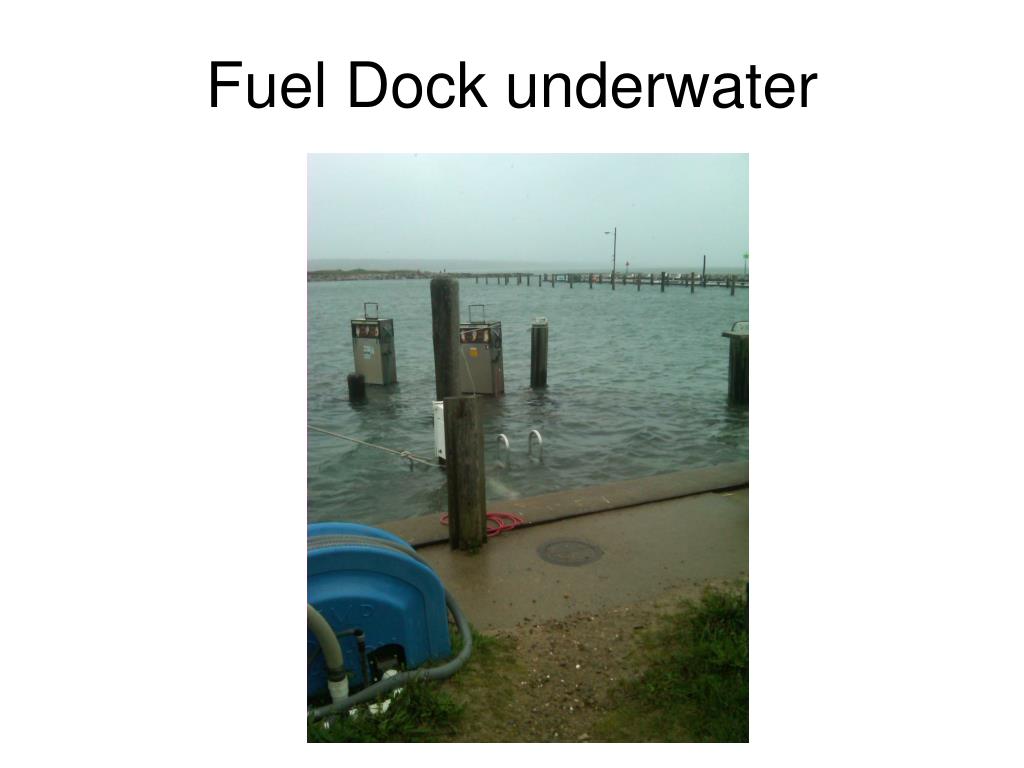

  8. Fuel Dock underwater

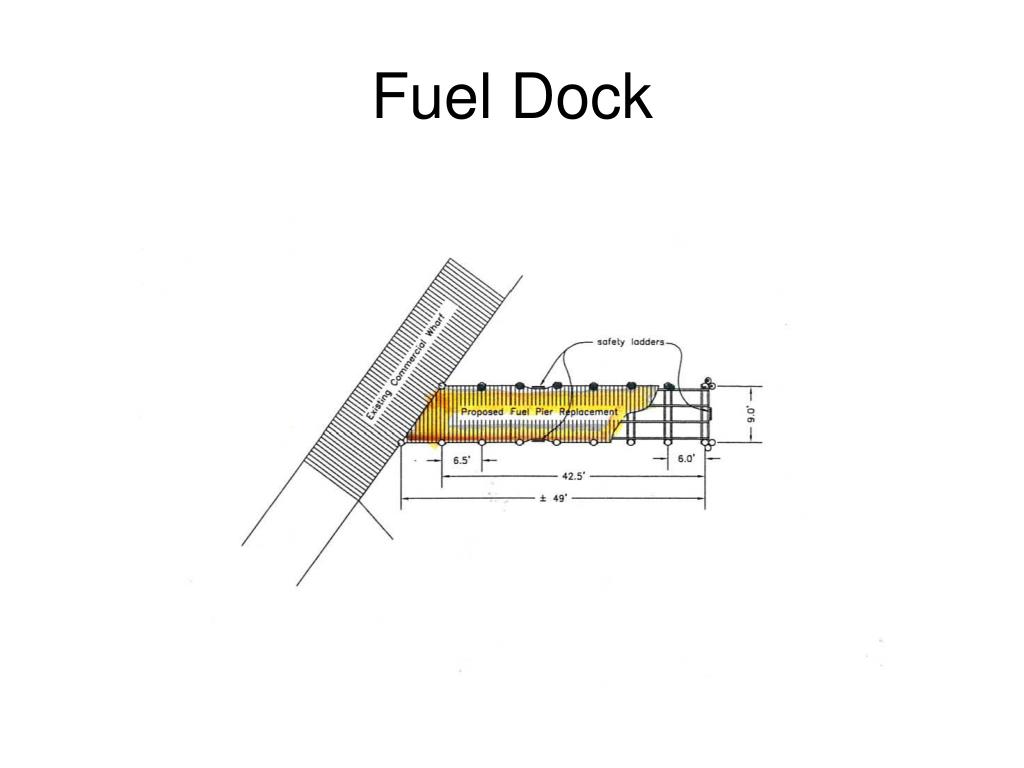

  9. Fuel Dock

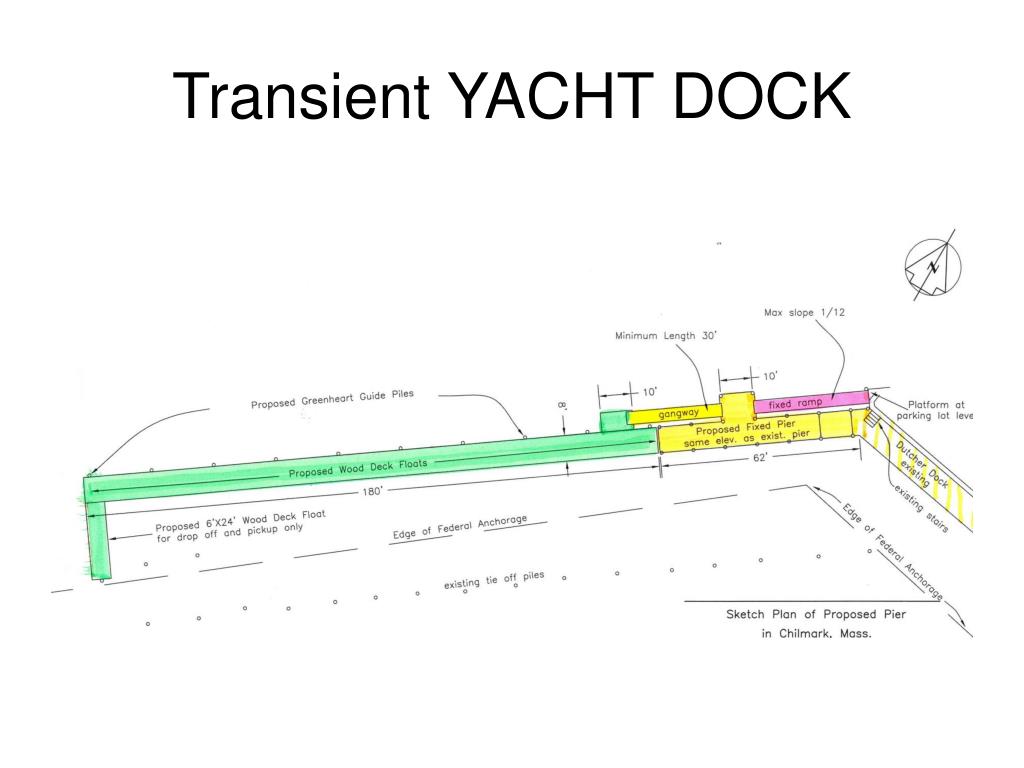

  10. Transient YACHT DOCK

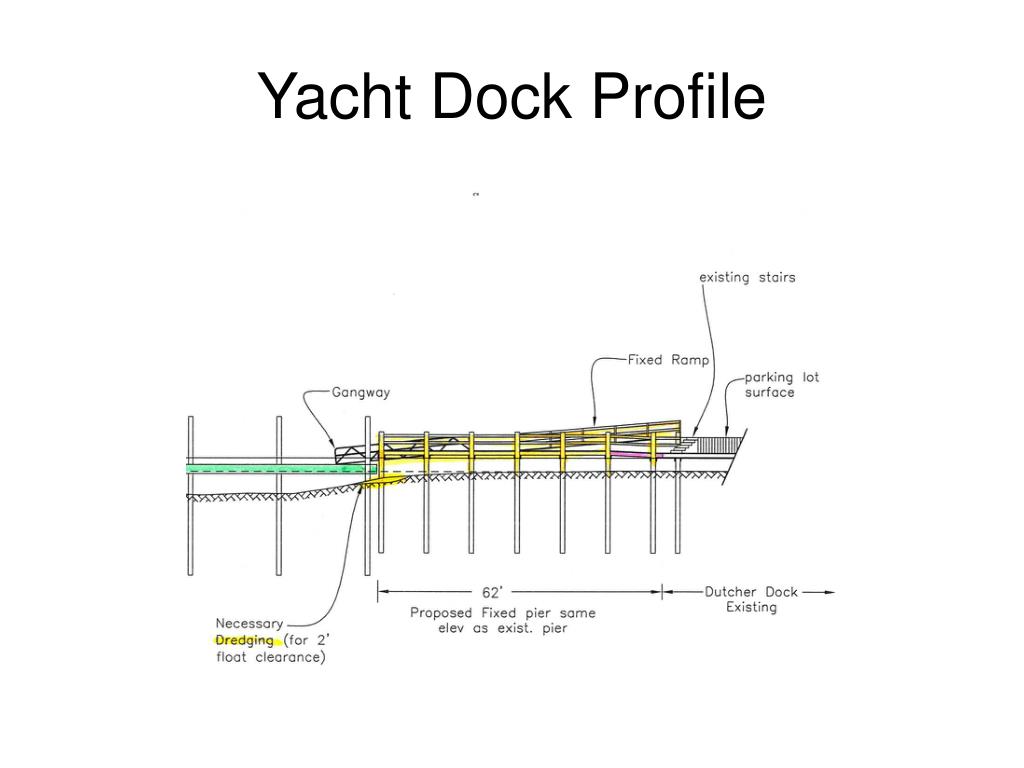

  11. Yacht Dock Profile

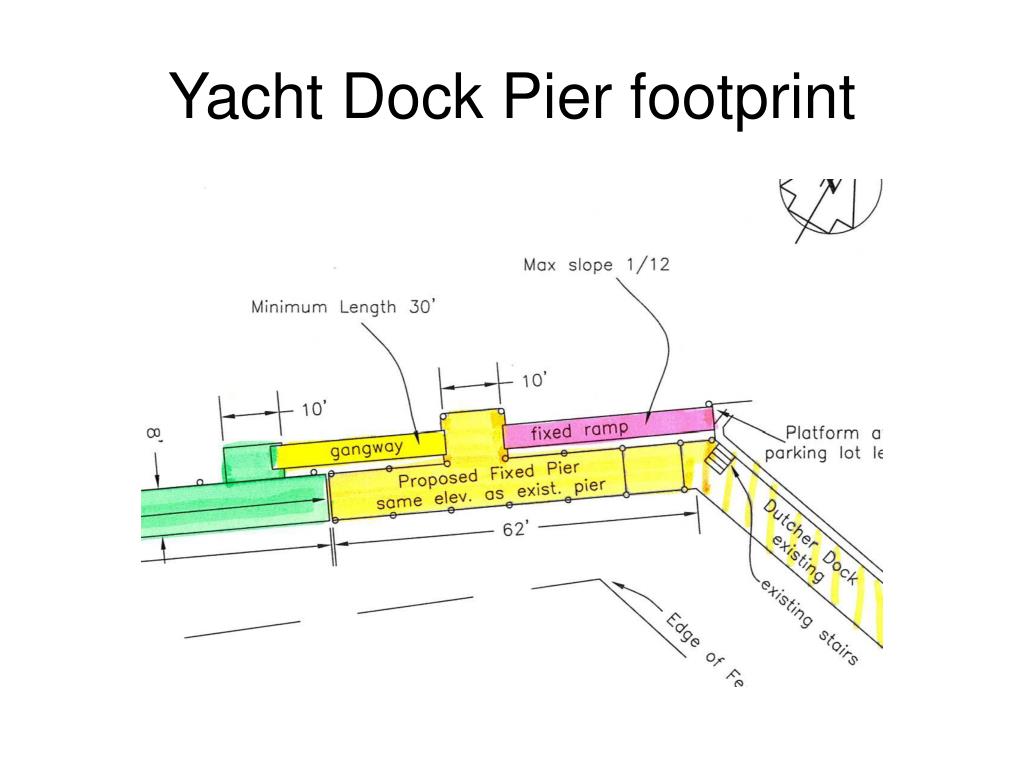

  12. Yacht Dock Pier footprint

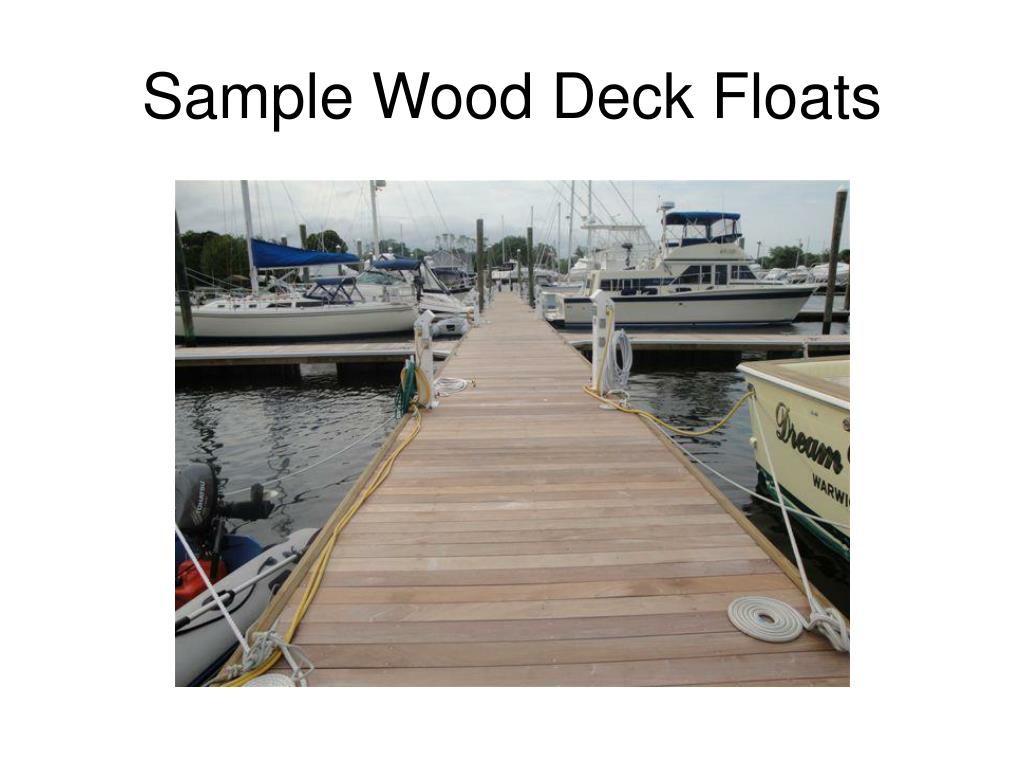

  13. Sample Wood Deck Floats

  14. Another Wood Deck Float

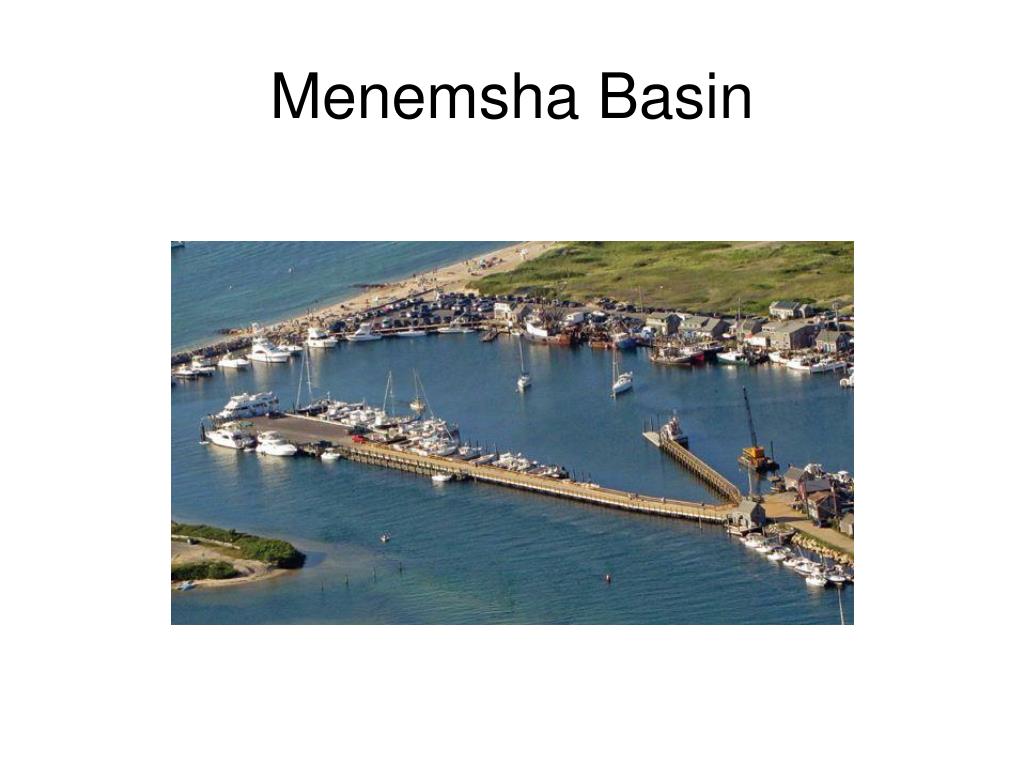

  15. Menemsha Basin

  16. Thank You.Special Town Meeting presentation August 6, 2012
