  1. User Support Material from Authors of Human Computer Interaction Alan Dix, et al

  2. Overview • Users require different types of support at different times. • Basic requirements • available but unobtrusive • accurate and robust • consistent and flexible • Design of user support must take account of: • presentation issues • implementation issues

  3. Types of Support • Quick reference • Task specific help • Full explanation • Tutorial

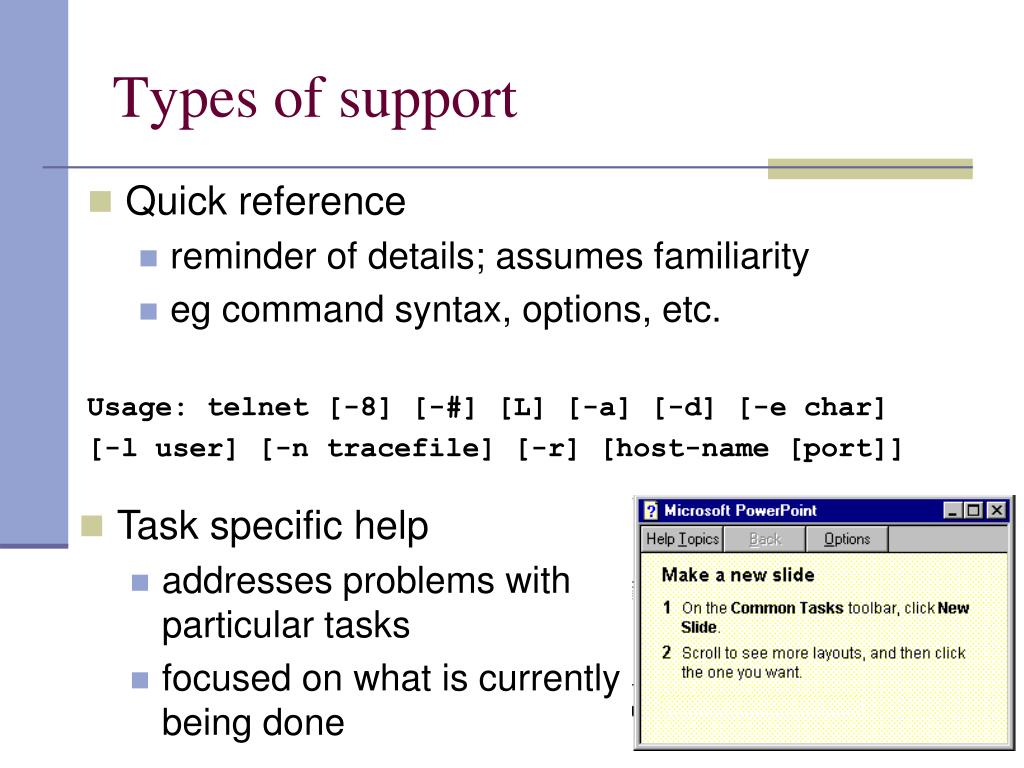

  4. Types of support • Quick reference • reminder of details; assumes familiarity • eg command syntax, options, etc. Usage: telnet [-8] [-#] [L] [-a] [-d] [-e char] [-l user] [-n tracefile] [-r] [host-name [port]] • Task specific help • addresses problems with particular tasks • focused on what is currently being done

  5. Types of Support • Full explanation • for more experienced and inquisitive users • likely to include information not needed now • Unix man command • Tutorial • aimed at new users

  6. Types of support • Four types are complementary • Together they support range of points in user’s experience with system • Each type may be on-line and off-line (documentation) • should be consistent in content • presentation medium may have impact on design • general principles for both

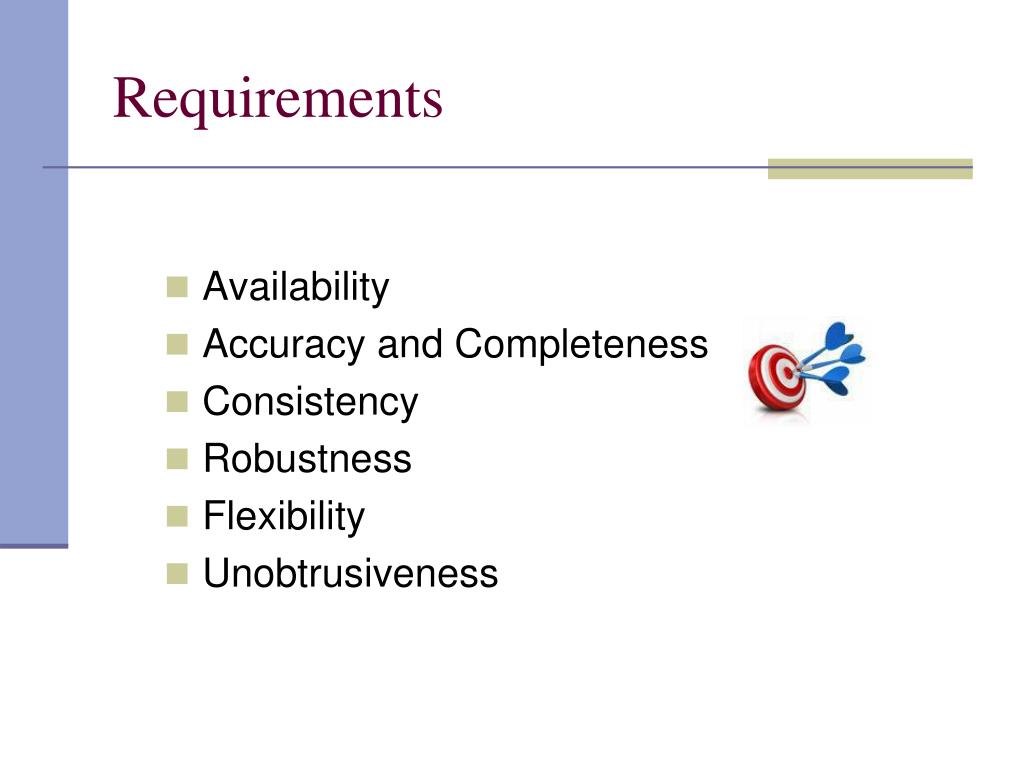

  7. Requirements • Availability • Accuracy and Completeness • Consistency • Robustness • Flexibility • Unobtrusiveness

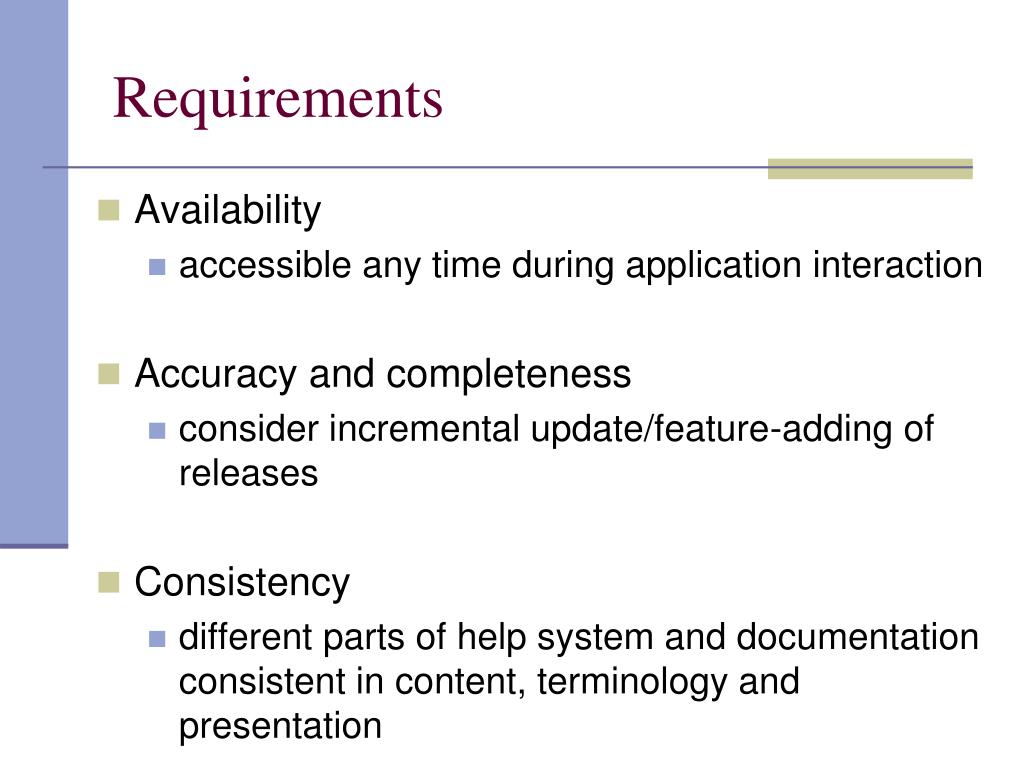

  8. Requirements • Availability • accessible any time during application interaction • Accuracy and completeness • consider incremental update/feature-adding of releases • Consistency • different parts of help system and documentation consistent in content, terminology and presentation

  9. Requirements • Robustness • system itself should be robust • even more important with support, because users are in trouble when using it • Flexibility • meets needs of user allows user to get information in an appropriate form • context sensitive or adaptive help systems • Unobtrusiveness • shouldn’t block work in application

  10. Approaches to User Support • Command Assistance • Command Prompts • Context-Sensitive help • On-line tutorials • On-line documentation • Wizards • Assistants

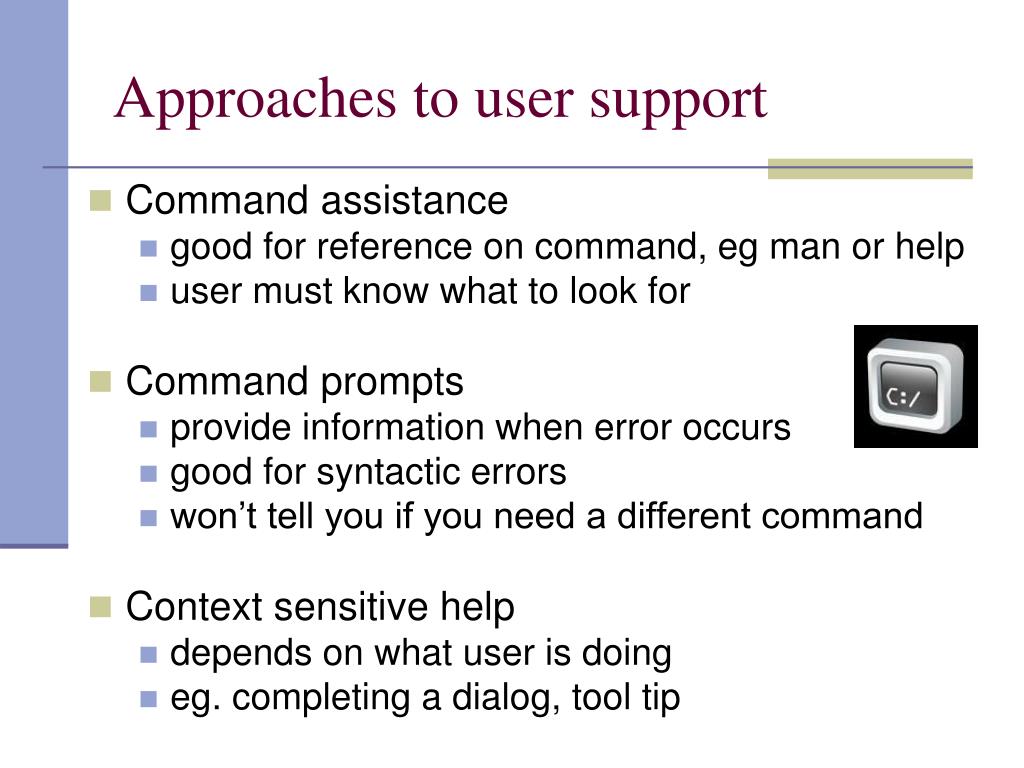

  11. Approaches to user support • Command assistance • good for reference on command, eg man or help • user must know what to look for • Command prompts • provide information when error occurs • good for syntactic errors • won’t tell you if you need a different command • Context sensitive help • depends on what user is doing • eg. completing a dialog, tool tip

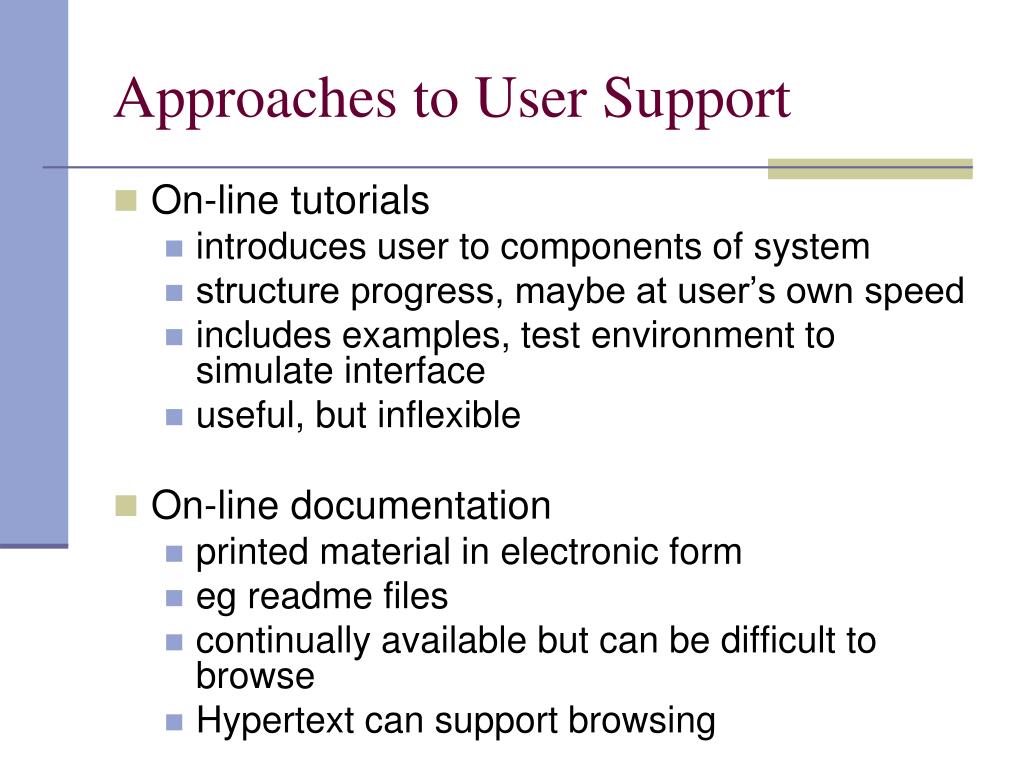

  12. Approaches to User Support • On-line tutorials • introduces user to components of system • structure progress, maybe at user’s own speed • includes examples, test environment to simulate interface • useful, but inflexible • On-line documentation • printed material in electronic form • eg readme files • continually available but can be difficult to browse • Hypertext can support browsing

  13. Approaches to User Support • Wizards • task specific tool that leads user through task step-by-step • user answers ‘questions’ along the way • constraining - may not offer options • should have progress indicator and allow back up

  14. Approaches to User Support • Assistants • monitor user behavior and offer suggestions • unobtrusive and under user control • ‘Clippy’ not unobtrusive, suggestions inappropriate • MS XP smart tags appear near object of interest

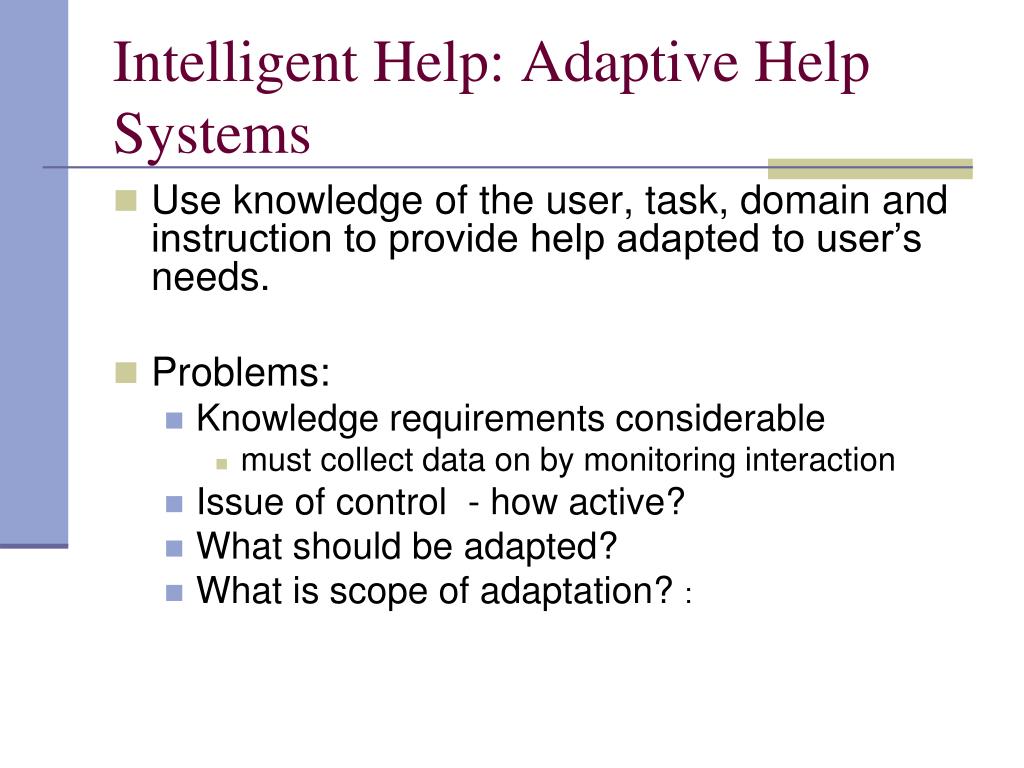

  15. Intelligent Help: Adaptive Help Systems • Use knowledge of the user, task, domain and instruction to provide help adapted to user’s needs. • Problems: • Knowledge requirements considerable • must collect data on by monitoring interaction • Issue of control - how active? • What should be adapted? • What is scope of adaptation? :

  16. Knowledge representation: User modeling • User modeling • single, generic user (non-intelligent) • user-configured model (adaptable) • system-configured model (adaptive) • Static help systems can’t address all user differences. • Adaptive help systems model users, refining the model by monitoring a user’s activities, and present help tailored to the particular user.

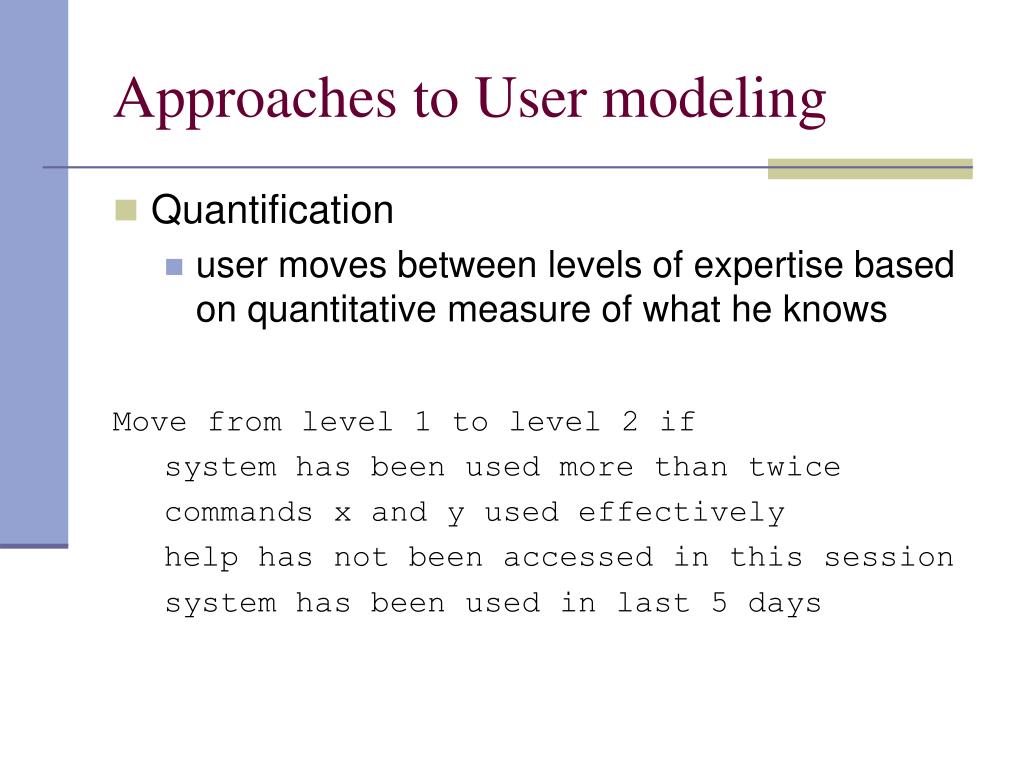

  17. Approaches to User modeling • Quantification • user moves between levels of expertise based on quantitative measure of what he knows Move from level 1 to level 2 if system has been used more than twice commands x and y used effectively help has not been accessed in this session system has been used in last 5 days

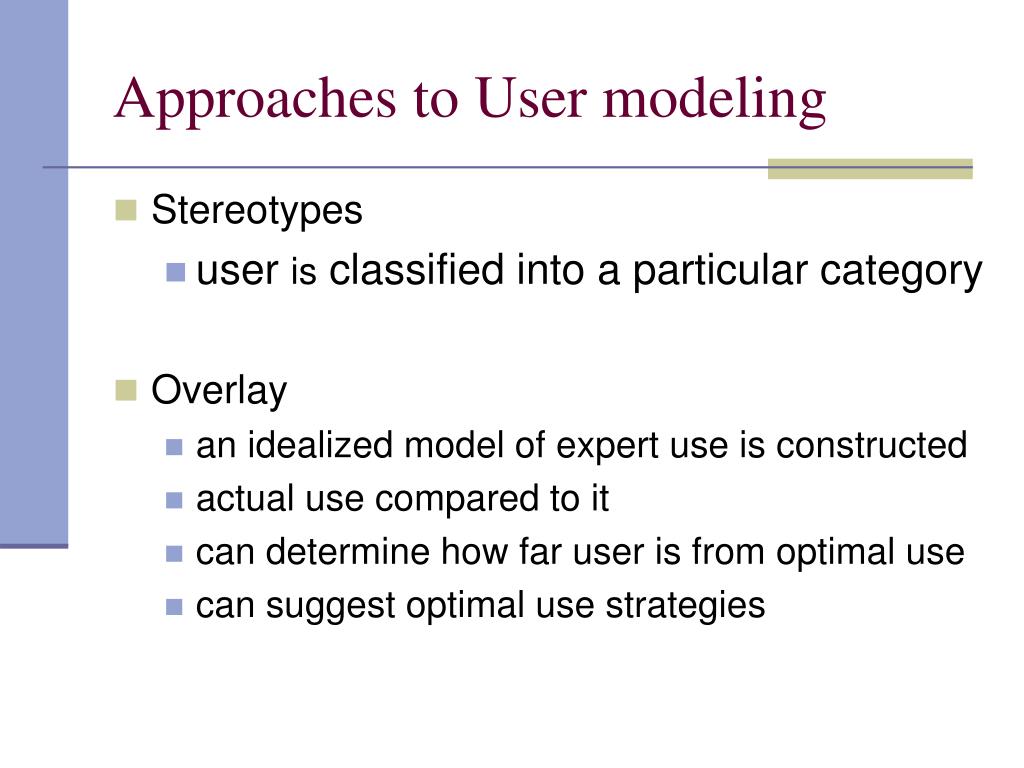

  18. Approaches to User modeling • Stereotypes • user is classified into a particular category • Overlay • an idealized model of expert use is constructed • actual use compared to it • can determine how far user is from optimal use • can suggest optimal use strategies

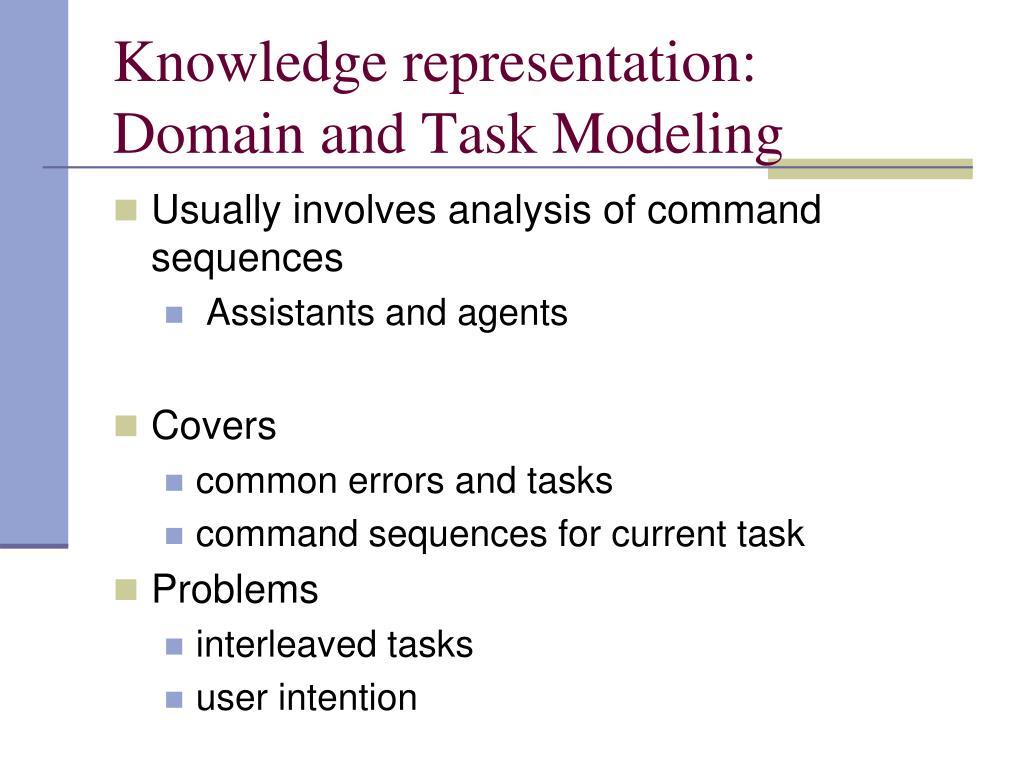

  19. Knowledge representation: Domain and Task Modeling • Usually involves analysis of command sequences • Assistants and agents • Covers • common errors and tasks • command sequences for current task • Problems • interleaved tasks • user intention

  20. Techniques for Knowledge representation • Rule-based • Frame-based • Network-based • Example-based

  21. Techniques for Knowledge Representation • Rule-based • knowledge represented as rules • facts interpreted using inference (logic) • used in large domains IF command is EDIT file 1 AND last command is COMPILE file 1 THEN task is DEBUG action is describe automatic debugger

  22. Techniques for Knowledge Representation • Frame-based • knowledge stored in structure that contains labeled slots • slot has default value • useful in small domains User Expertise level: novice Command: EDIT file 1 Last command: COMPILE file 1 Errors this session: 6 Action: describe automatic debugger

  23. Techniques for Knowledge Representation • Network-based • knowledge represented as relationships between facts • can link frame-based representations CC is and instance of COMPILE COMPILE is a command COMPILE is related to DEBUG COMPILE is related to EDIT Automatic debugger facilitates DEBUG

  24. Techniques for Knowledge Representation • Example-based • knowledge represented within decision structure of classification system • trained to classify rather than programmed with rules (AI techniques • detects recurrent features EDIT file 1 COMPILE file 1 • trains for task debug

  25. Problems with knowledge representation and modeling • Knowledge difficult to elicit • especially if domain expert not available • variability of users • difficult to ensure completeness and correctness • Interpretation of information • during interaction all we have are logs • do not have user’s intent or goal

  26. Other issues • Initiative • Does user retain control or can system direct the interaction? • Can system interrupt user to offer help? • Effect • Model only what is needed to satisfy requirements of help system • Scope • Is modeling at application level only or at system level?

  27. Designing User Support • User support is not an ‘add on’ - it should be designed integrally with system. • Should concentrate on content and context of help rather than technological issues • There are presentation issues and implementation issues

  28. Designing User Support : Presentation issues • How is help requested? • Command • button • function (on/off) • separate application • How is help displayed? • New window • whole screen or split screen • pop-up box • hint icons

  29. Designing User Support : Presentation issues • Effective presentation requires • clear, familiar, consistent language • instructional rather than descriptive language • avoid of blocks of text • summary and example

  30. Designing User Support Systems : Implementation Issues • Is help • OS command • meta command • application • What resources are available • screen space • memory capacity • speed

  31. Designing User Support Systems: Implementation Issues • Structure of help data • single file • file hierarchy • database • Consider • flexibility and extensibility • hard copy • browsing

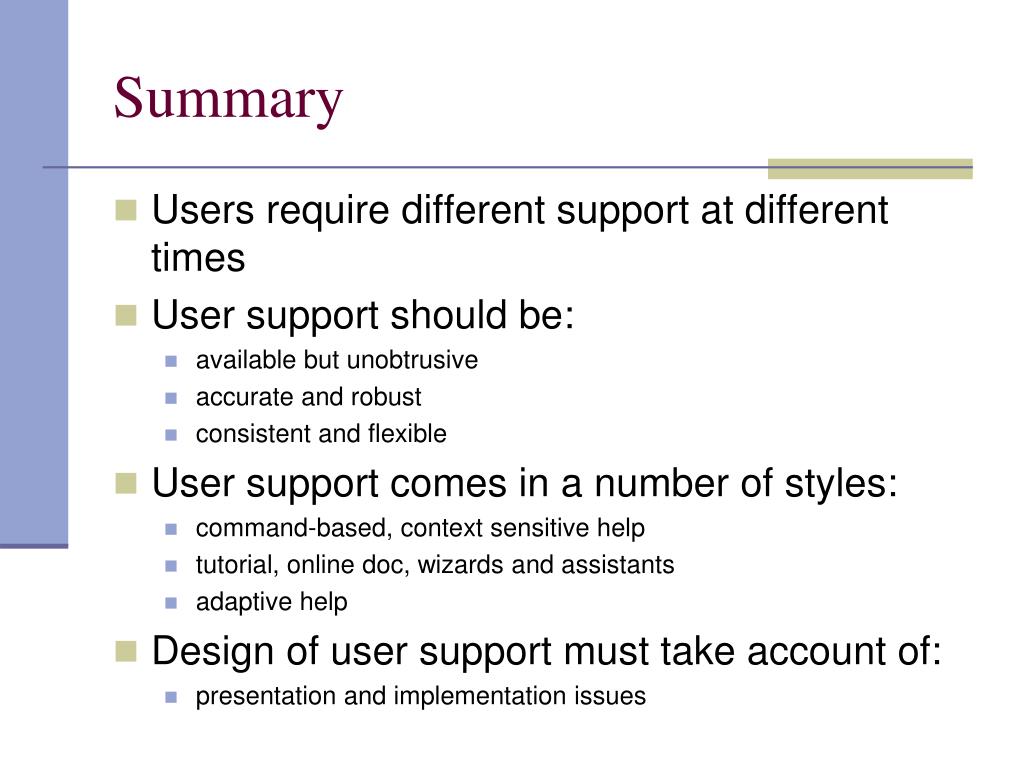

  32. Summary • Users require different support at different times • User support should be: • available but unobtrusive • accurate and robust • consistent and flexible • User support comes in a number of styles: • command-based, context sensitive help • tutorial, online doc, wizards and assistants • adaptive help • Design of user support must take account of: • presentation and implementation issues
