  1. Theoretical studies on properties of some superheavy nuclei • Zhongzhou REN • Department of Physics, Nanjing University, Nanjing, China • Center of Theoretical Nuclear Physics, National Laboratory of Heavy-Ion Accelerator, Lanzhou, China

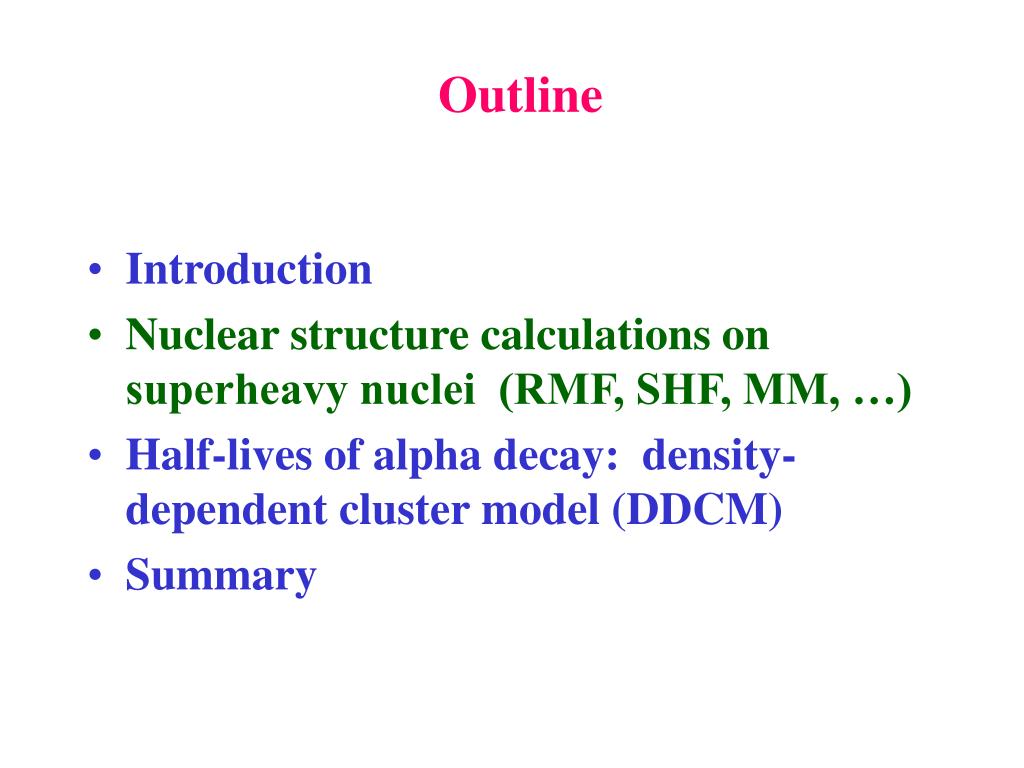

  2. Outline • Introduction • Nuclear structure calculations on superheavy nuclei (RMF, SHF, MM, …) • Half-lives of alpha decay: density-dependent cluster model (DDCM) • Summary

  3. 1. introduction: experiments • Z=110 (Ds), 111(Rg), 112 were produced at GSI, Hofmann, Muenzenberg, Ackermann…. Z. Phys. A, 1995-1996, …. • Z=114-116, 118, at Dubna, by Oganessian et al…. Nature, 1999; PRL, 1999;PRC, 2000-2007. • Z=110-111, new results, at Berkeley, PRL 2004…. • Z=113, RIKEN, Morita,…, J. P. S. J., 2004. • 270Hs, Duellman, Turler, …, Nature 2003, PRL 2007. • 265Bh, Lanzhou, Gan, Qin, …, EPJA 2004.

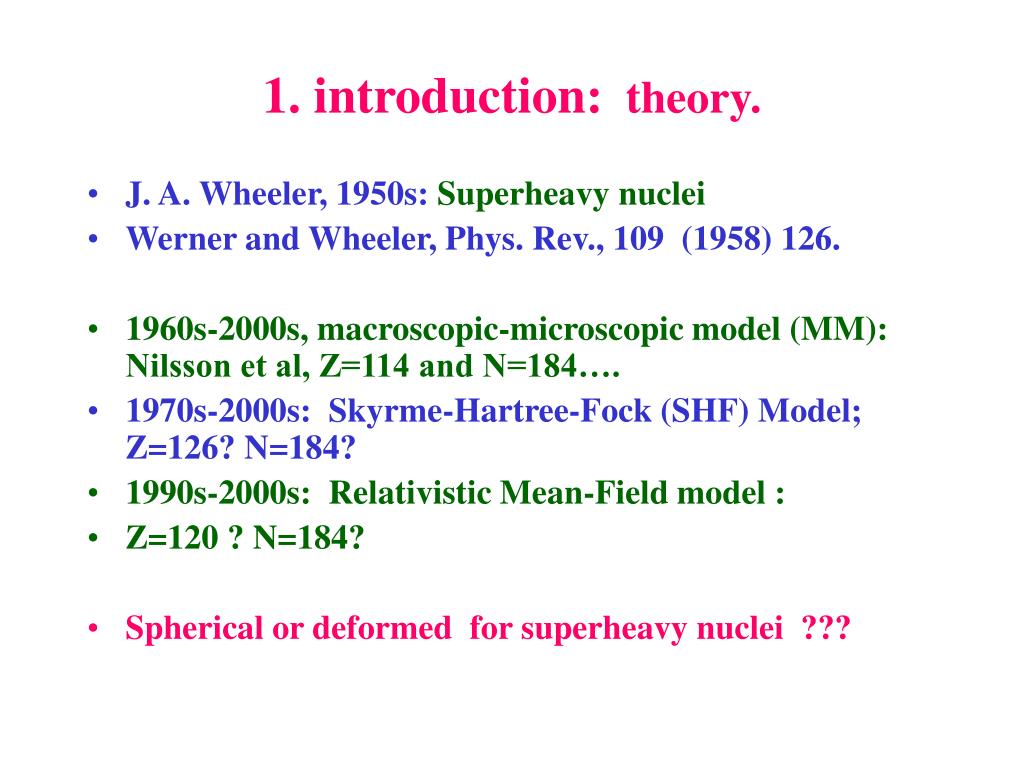

  4. 1. introduction: theory. • J. A. Wheeler, 1950s: Superheavy nuclei • Werner and Wheeler, Phys. Rev., 109 (1958) 126. • 1960s-2000s, macroscopic-microscopic model (MM): Nilsson et al, Z=114 and N=184…. • 1970s-2000s: Skyrme-Hartree-Fock (SHF) Model; Z=126? N=184? • 1990s-2000s: Relativistic Mean-Field model : • Z=120 ? N=184? • Spherical or deformed for superheavy nuclei ???

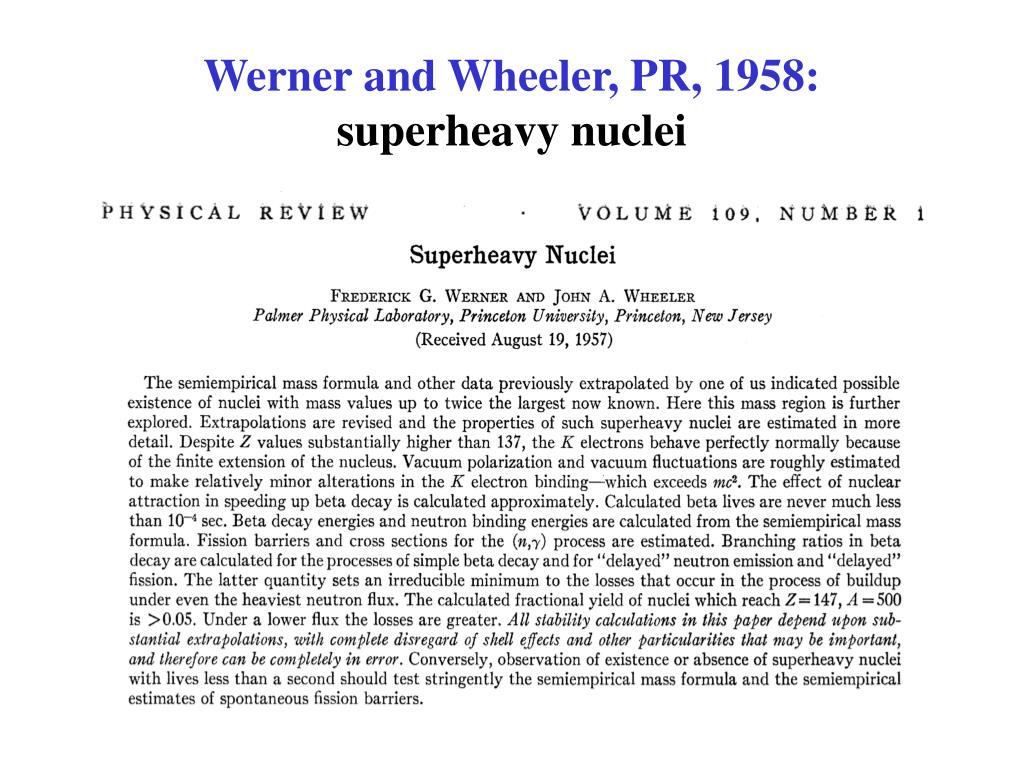

  5. Werner and Wheeler, PR, 1958: superheavy nuclei

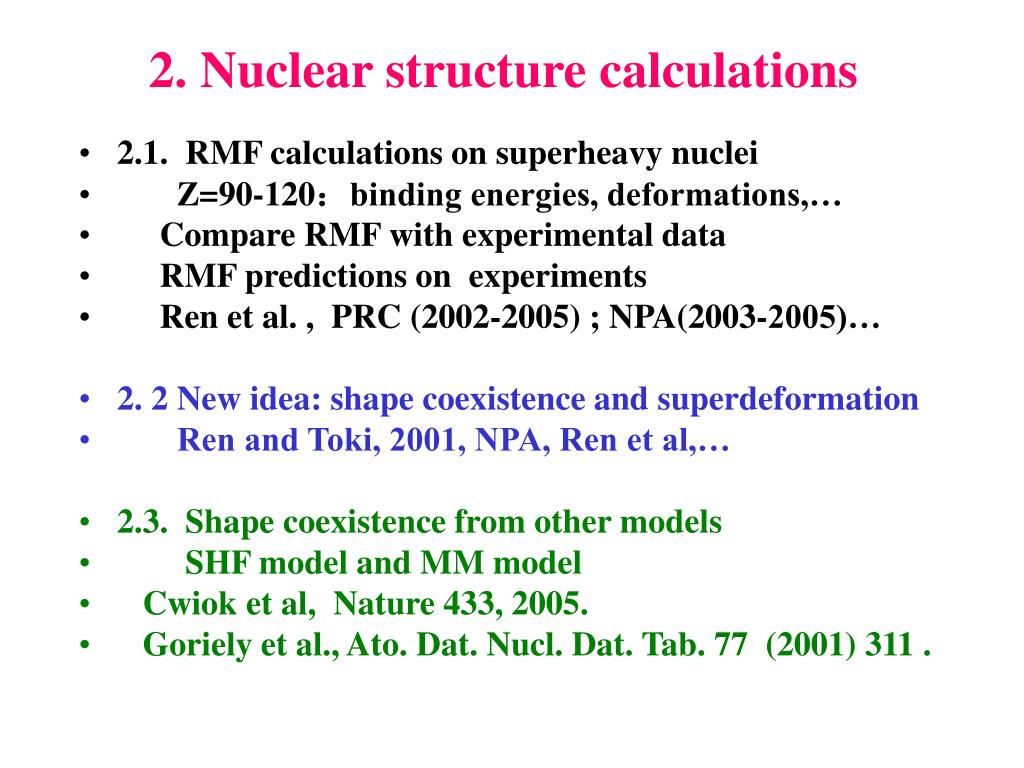

  6. 2. Nuclear structure calculations • 2.1. RMF calculations on superheavy nuclei • Z=90-120：binding energies, deformations,… • Compare RMF with experimental data • RMF predictions on experiments • Ren et al. , PRC (2002-2005) ; NPA(2003-2005)… • 2. 2 New idea: shape coexistence and superdeformation • Ren and Toki, 2001, NPA, Ren et al,… • 2.3. Shape coexistence from other models • SHF model and MM model • Cwiok et al, Nature 433, 2005. • Goriely et al., Ato. Dat. Nucl. Dat. Tab. 77 (2001) 311 .

  7. 2.1 RMF results and discussion • Nuclei: Z =94—120; N=130—190. • Comparison of theoretical binding energy with exprimental data. • Comparison of theoretical alpha decay energy with exprimental data. • Comparison of theoretical quadrupole deformation with exprimental data.

  8. Table 1, RMF results for Pu. (TMA and NLZ2). Experimental Beta2=0.29 for 238-244Pu.

  9. Table 2, RMF results for Cm. (TMA and NLZ2) Experimental deformation Beta2=0.30 for 244-248Cm

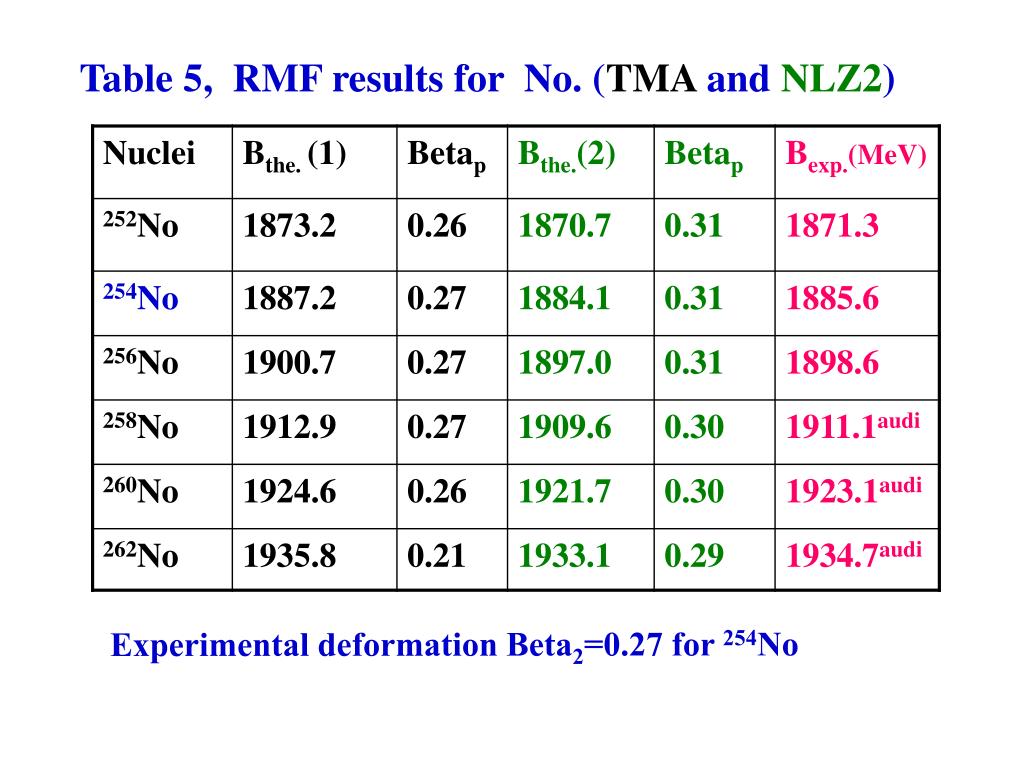

  10. Table 5, RMF results for No. (TMA and NLZ2) Experimental deformation Beta2=0.27 for 254No

  11. Experimental B/A (MeV) is between two sets of RMF results (Z=98-108).

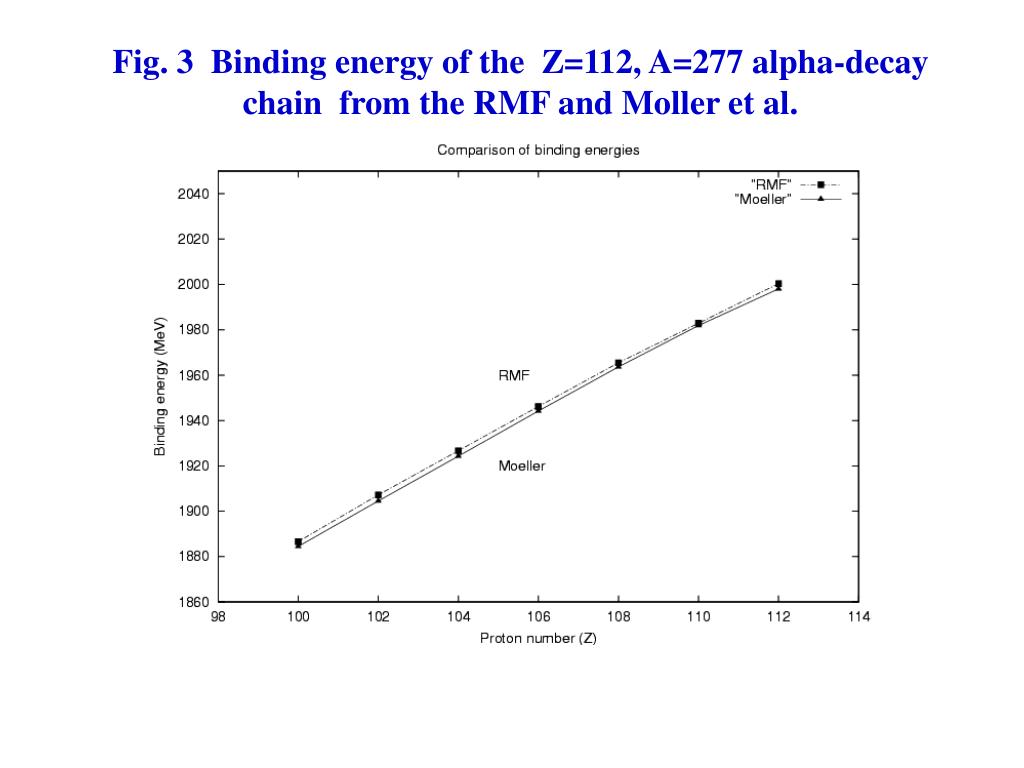

  12. Fig. 3 Binding energy of the Z=112, A=277 alpha-decay chain from the RMF and Moller et al.

  13. Fig. 4 Theoretical and experimental alpha decay energies for GSI Data: Z=110, 111, 112 ( +2, +1, 0 shift).

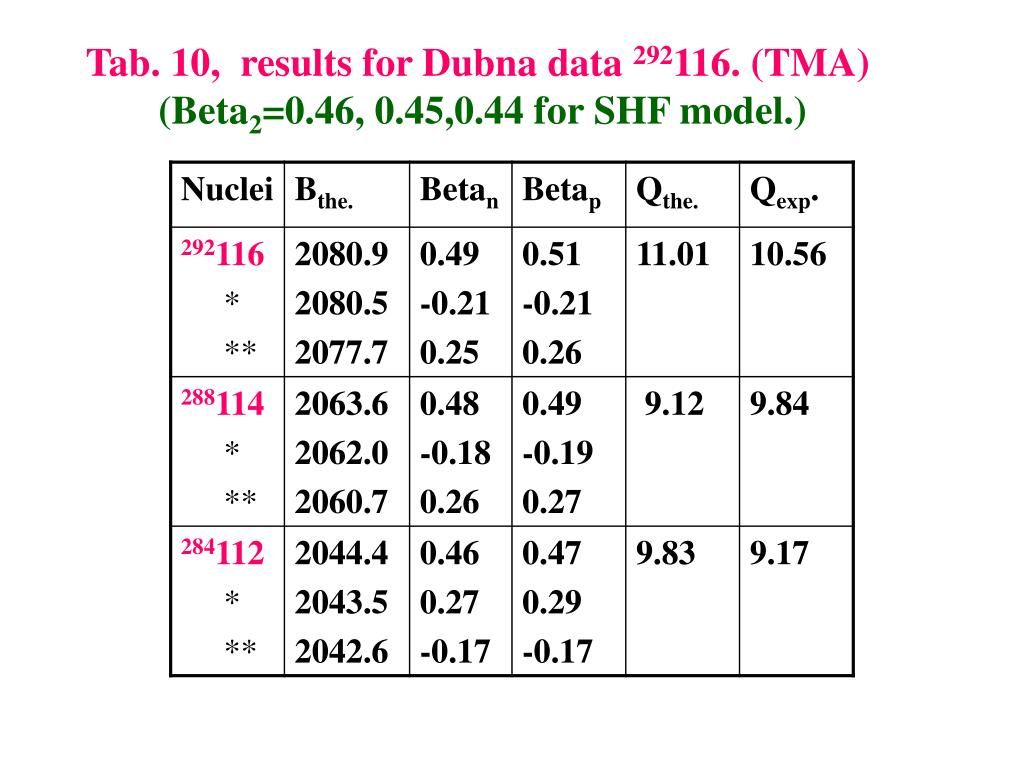

  14. Tab. 10,results for Dubna data 292116. (TMA)(Beta2=0.46, 0.45,0.44 for SHF model.)

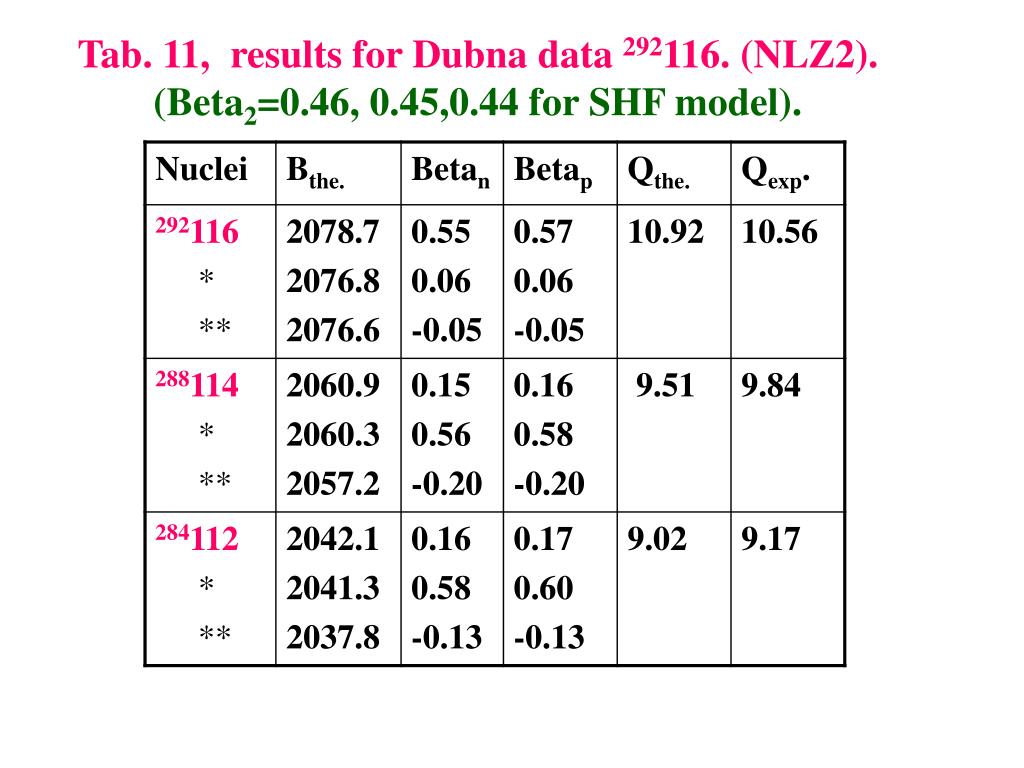

  15. Tab. 11, results for Dubna data 292116. (NLZ2).(Beta2=0.46, 0.45,0.44 for SHF model).

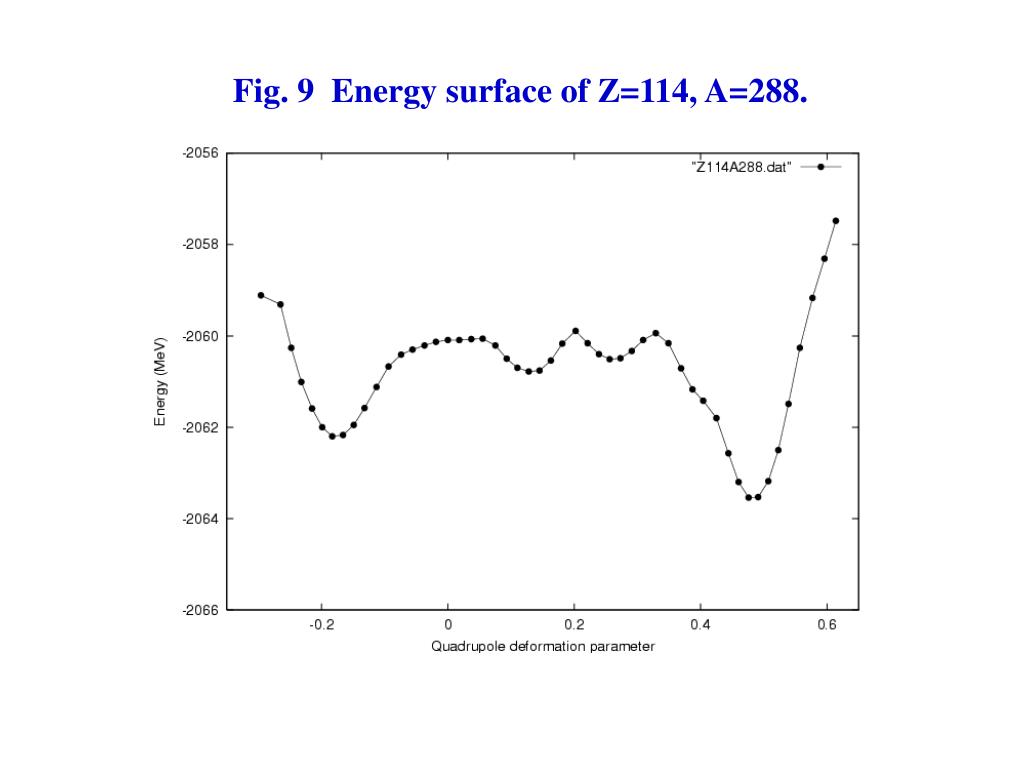

  16. Fig. 9 Energy surface of Z=114, A=288.

  17. 2.2 Shape coexistence, superdeformation • Z. Ren, Shape coexistence in even-even superheavy nuclei, Phys. Rev. C65, 051304 (2002) • Z. Ren et al., Phys. Rev. C66, 064306 (2002) • Z. Ren et al., Phys. Rev. C67, 064302 (2003) • Sharma, …,Munzenberg, PRC, 2005; • ..,Stevenson, Gupta, Greiner, JPG, 2006. • Goriely, Tondeur, Pearson, SHF Model • Ato. Dat. Nucl. Dat. Tab. 77 (2001) 311. • Superdeformation for some superheavy nuclei

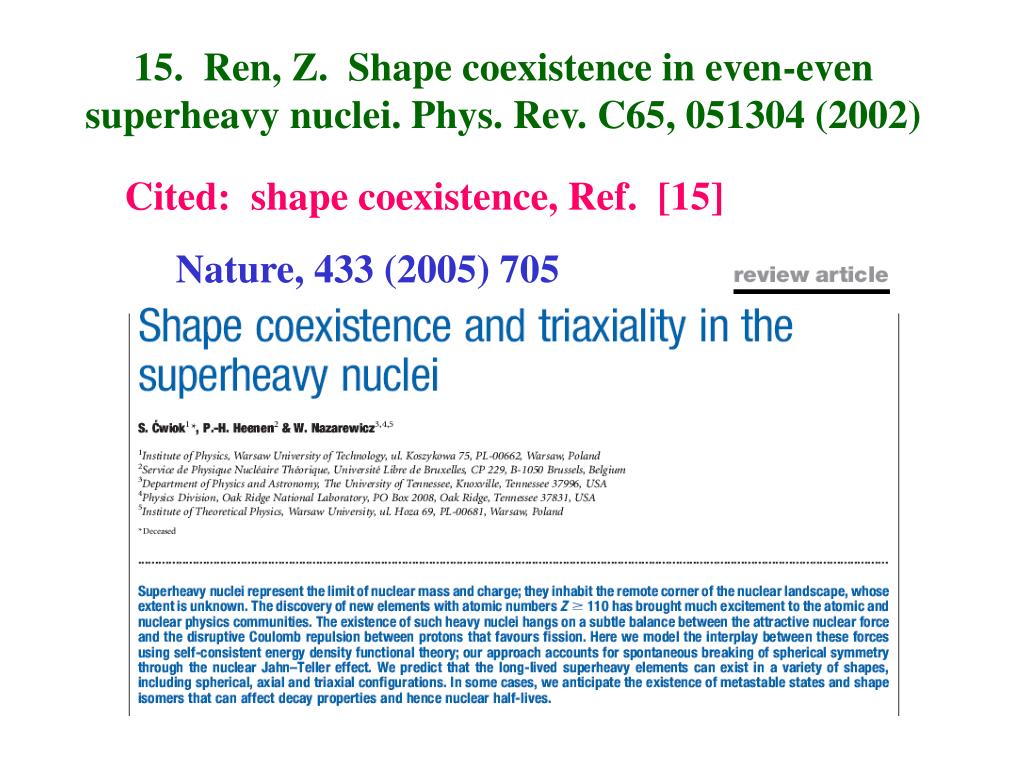

  18. 15. Ren, Z. Shape coexistence in even-even superheavy nuclei. Phys. Rev. C65, 051304 (2002) Cited: shape coexistence, Ref. [15] Nature, 433 (2005) 705

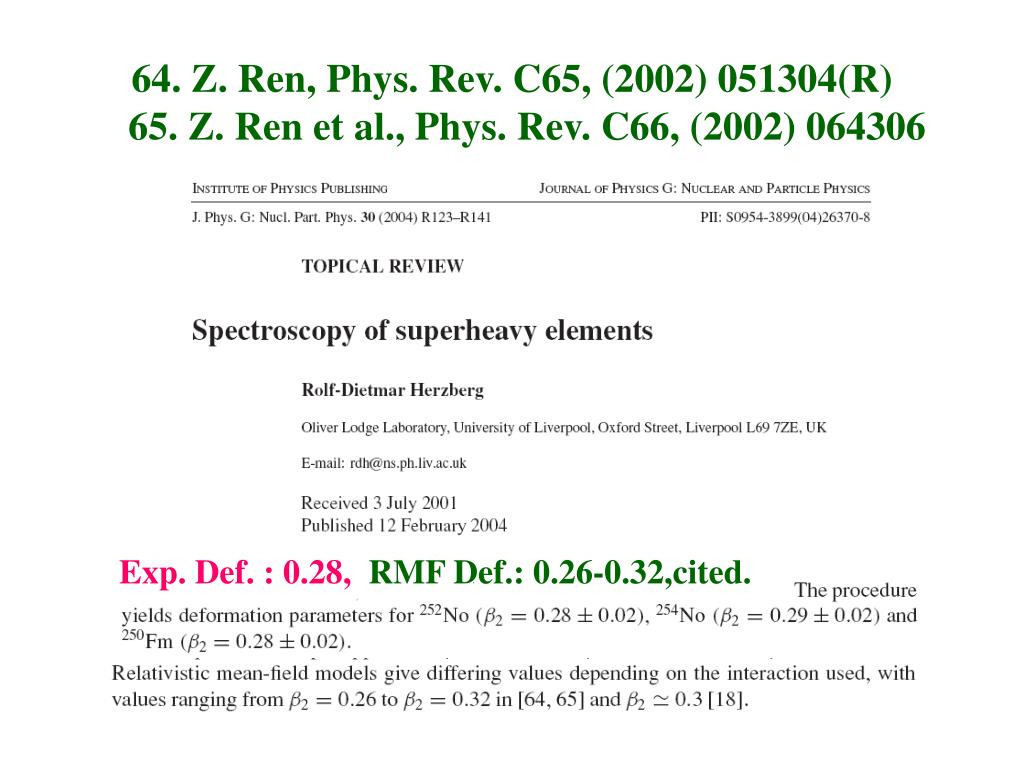

  19. 64. Z. Ren, Phys. Rev. C65, (2002) 051304(R) 65. Z. Ren et al., Phys. Rev. C66, (2002) 064306 Exp. Def. : 0.28, RMF Def.: 0.26-0.32,cited.

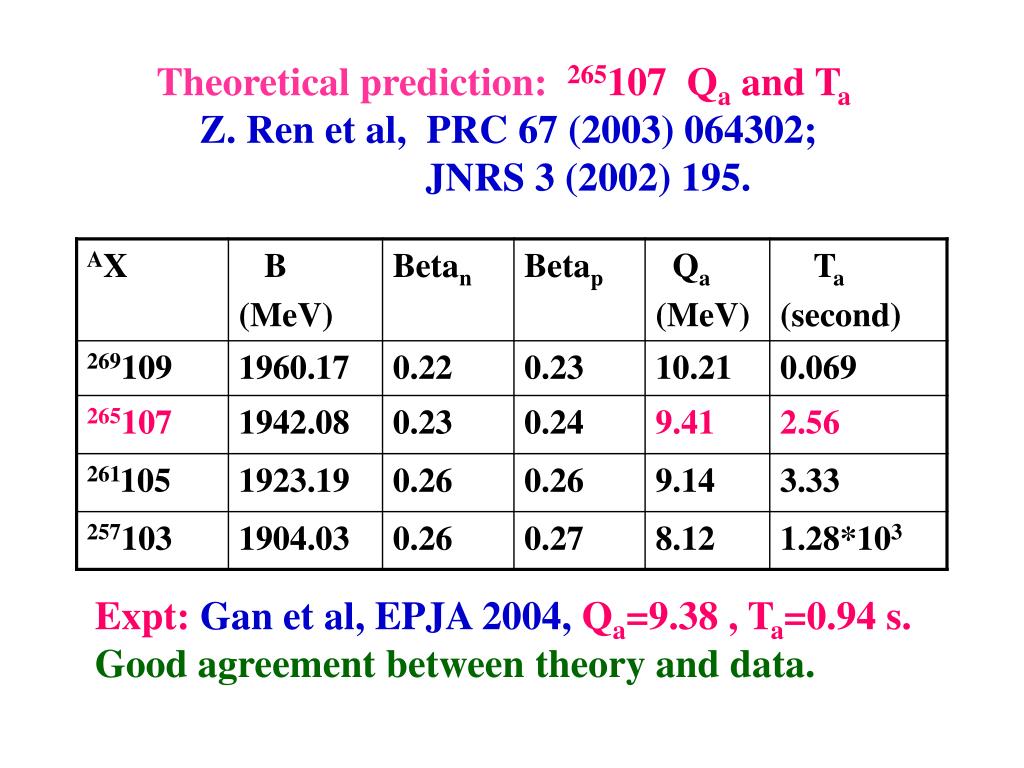

  20. Theoretical prediction: 265107 Qa and Ta Z. Ren et al, PRC 67 (2003) 064302; JNRS 3 (2002) 195. Expt: Gan et al, EPJA 2004, Qa=9.38 , Ta=0.94 s. Good agreement between theory and data.

  21. RMF prediction for 278113: Qa and Ta Z. Ren, Prog. Theor. Phys. Supplement, No. 146 (2002) 498 (YKIS01, Japan). Morita et al, JPSJ 2004, Qa=11.68, Ta=0.34 ms. Good agreement between theory and data.

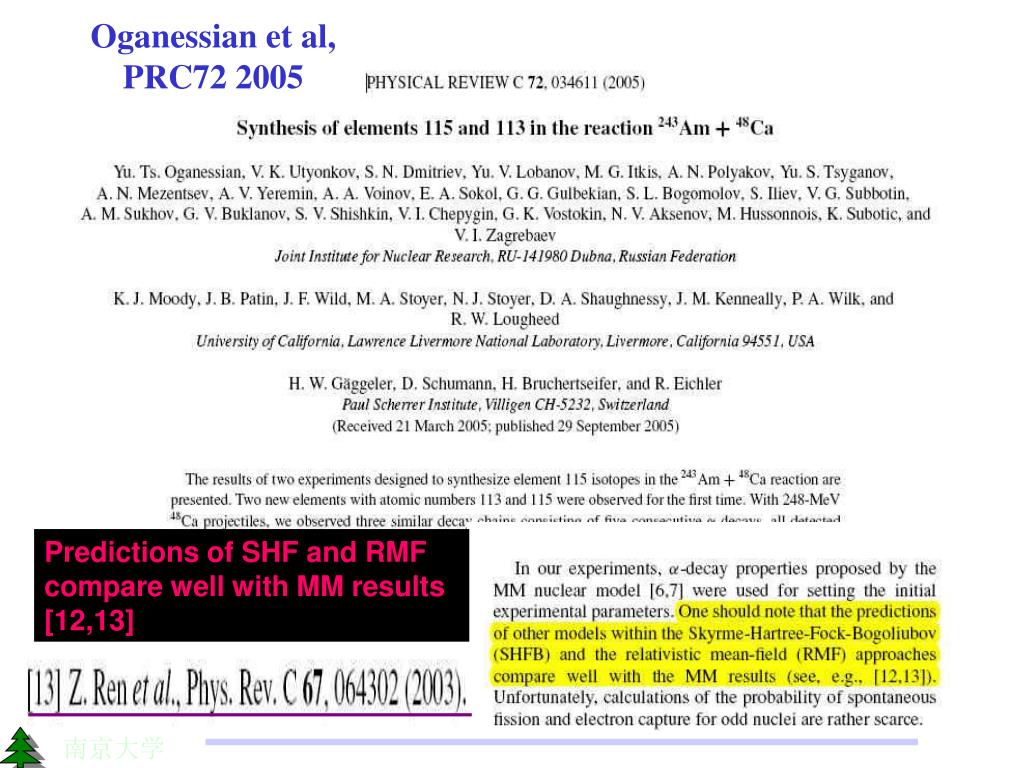

  22. Oganessian et al, PRC72 2005 Predictions of SHF and RMF compare well with MM results [12,13] 南京大学

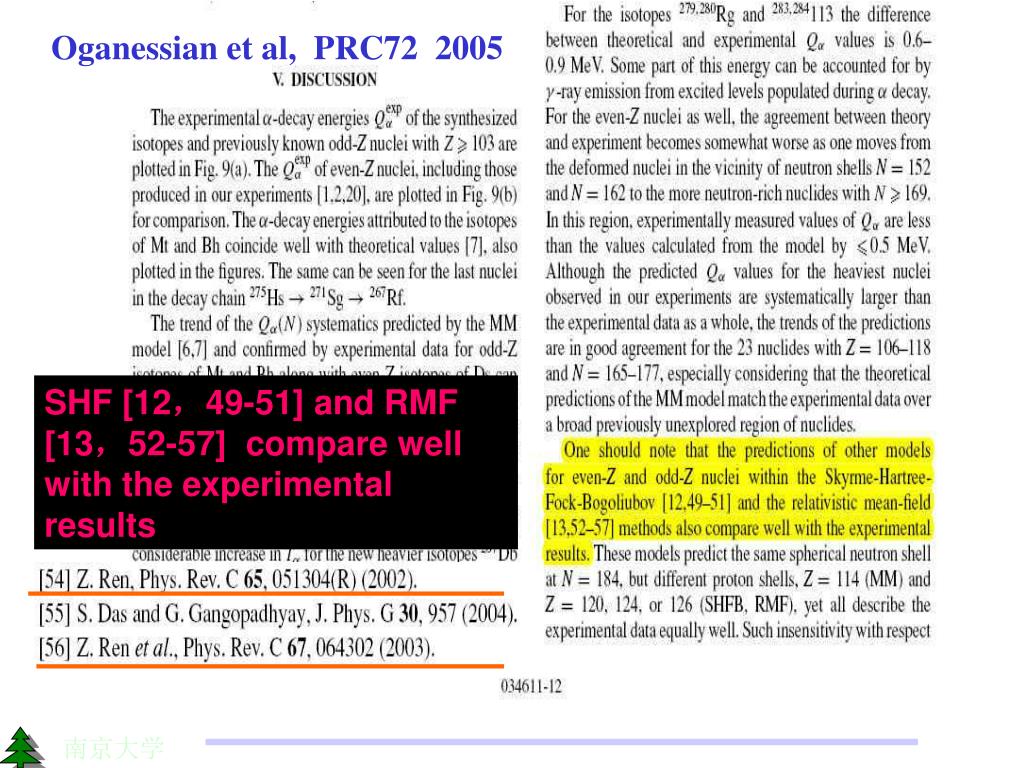

  23. Oganessian et al, PRC72 2005 SHF [12，49-51] and RMF [13，52-57] compare well with the experimental results 南京大学

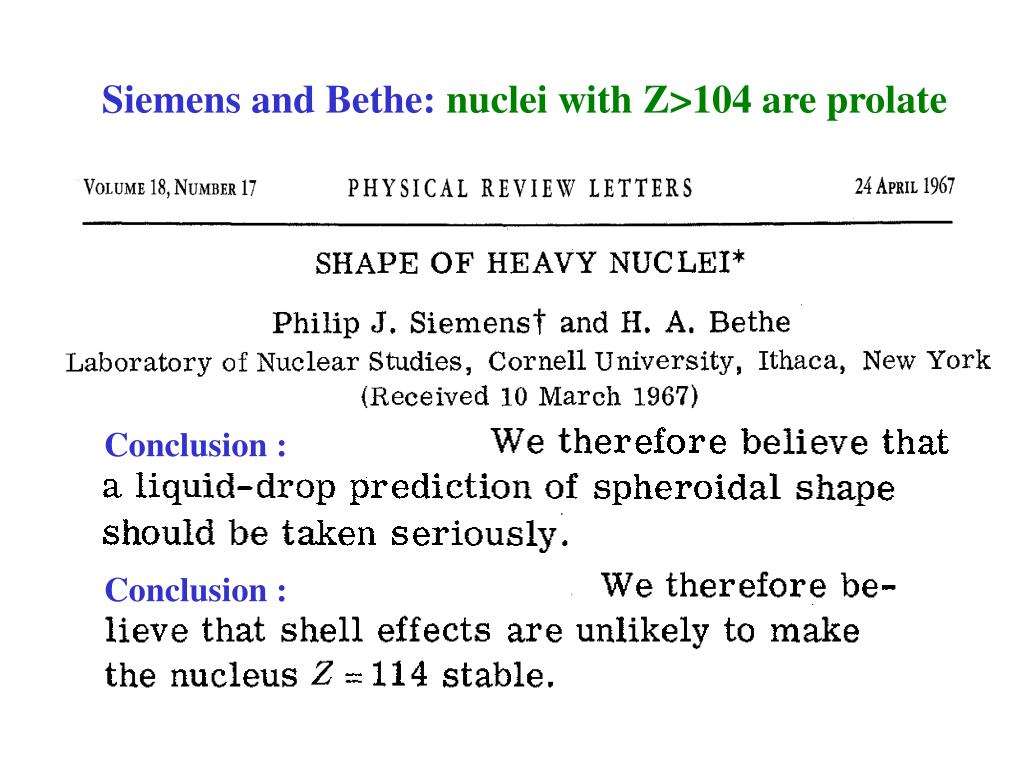

  24. Siemens and Bethe: nuclei with Z>104 are prolate

  25. Siemens and Bethe: nuclei with Z>104 are prolate Conclusion : Conclusion :

  26. Sharma,… Stevenson, Gupta, Greiner agree with us:shape coexistence and superdeformation

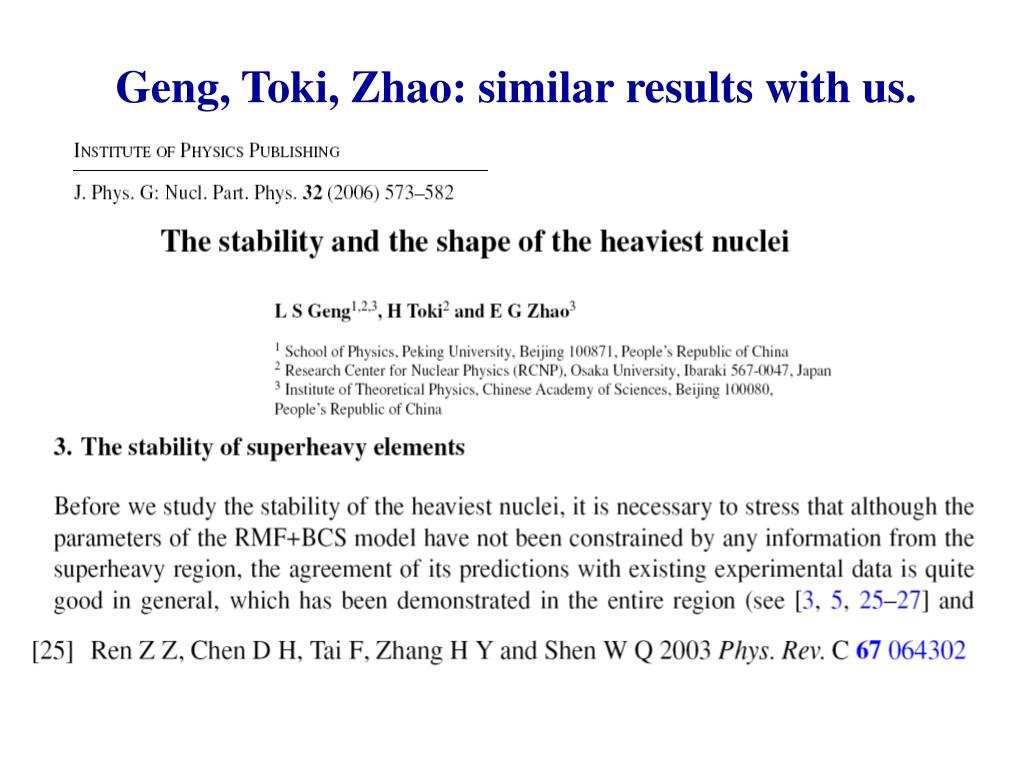

  27. Geng, Toki, Zhao: similar results with us.

  28. Geng, Toki, Zhao JPG 32 (2006) 573:shape coexistence and superdeformation.

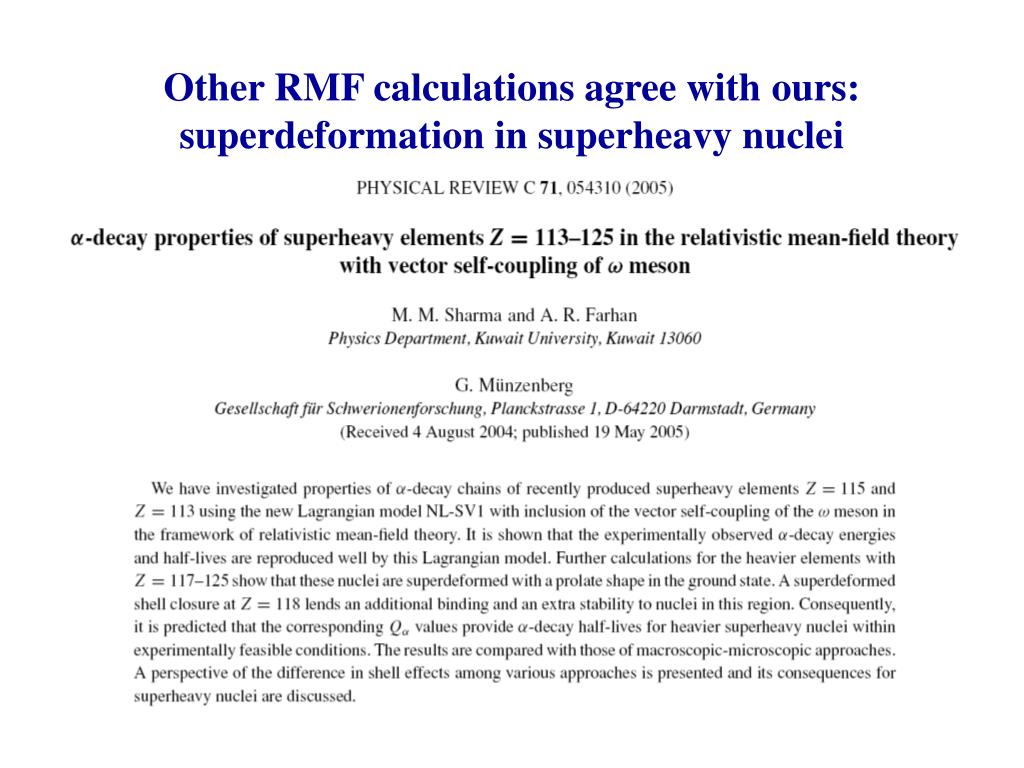

  29. Other RMF calculations agree with ours: superdeformation in superheavy nuclei

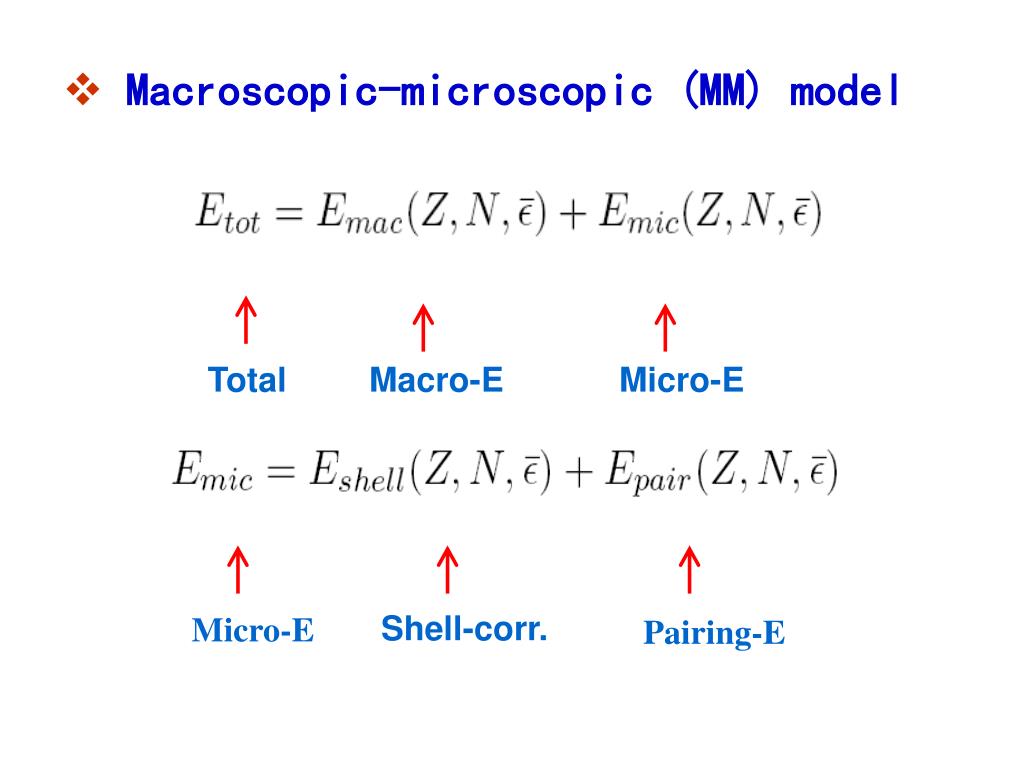

  30. Macroscopic-microscopic (MM) model Total Macro-E Micro-E Shell-corr. Micro-E Pairing-E

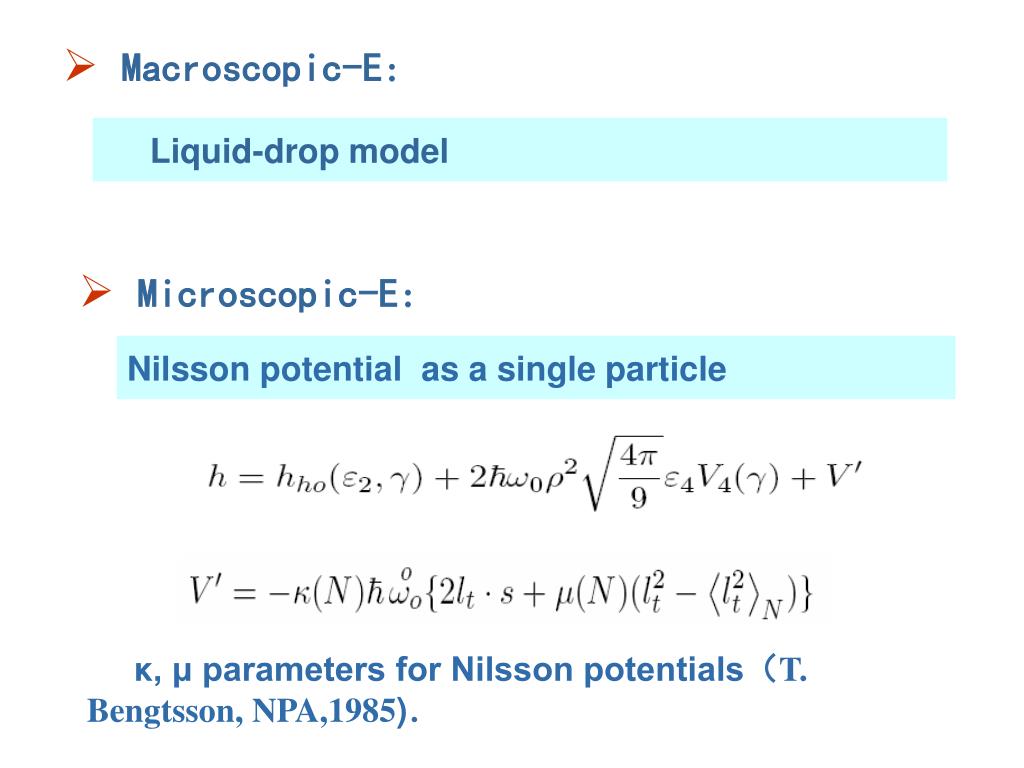

  31. Macroscopic-E: Liquid-drop model • Microscopic-E: Nilsson potential as a single particle κ, μ parameters for Nilsson potentials（T. Bengtsson, NPA,1985)．

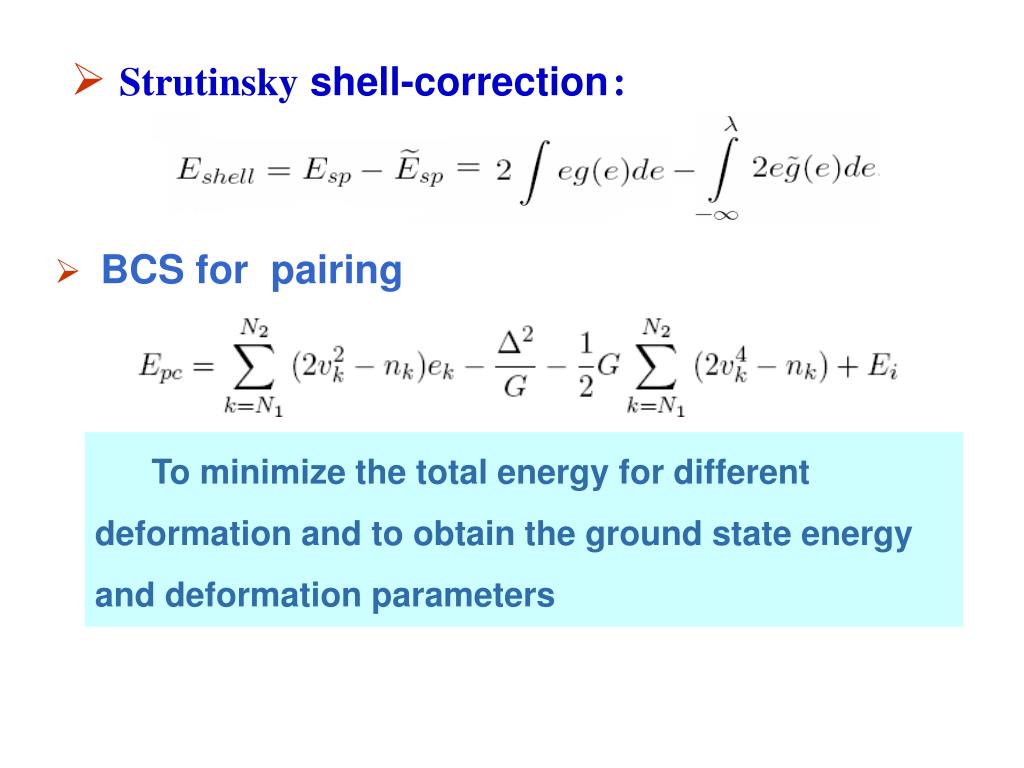

  32. Strutinsky shell-correction: • BCS for pairing To minimize the total energy for different deformation and to obtain the ground state energy and deformation parameters

  33. Calculations based on Macroscopic-microscopic model (MM model) Even-even and odd-even nuclei： 1、Standard parameters in Nilsson model 2、BCS scheme for pairing . pairing strength:＋，– for neutrons and protons , respectively 3、no traxiality

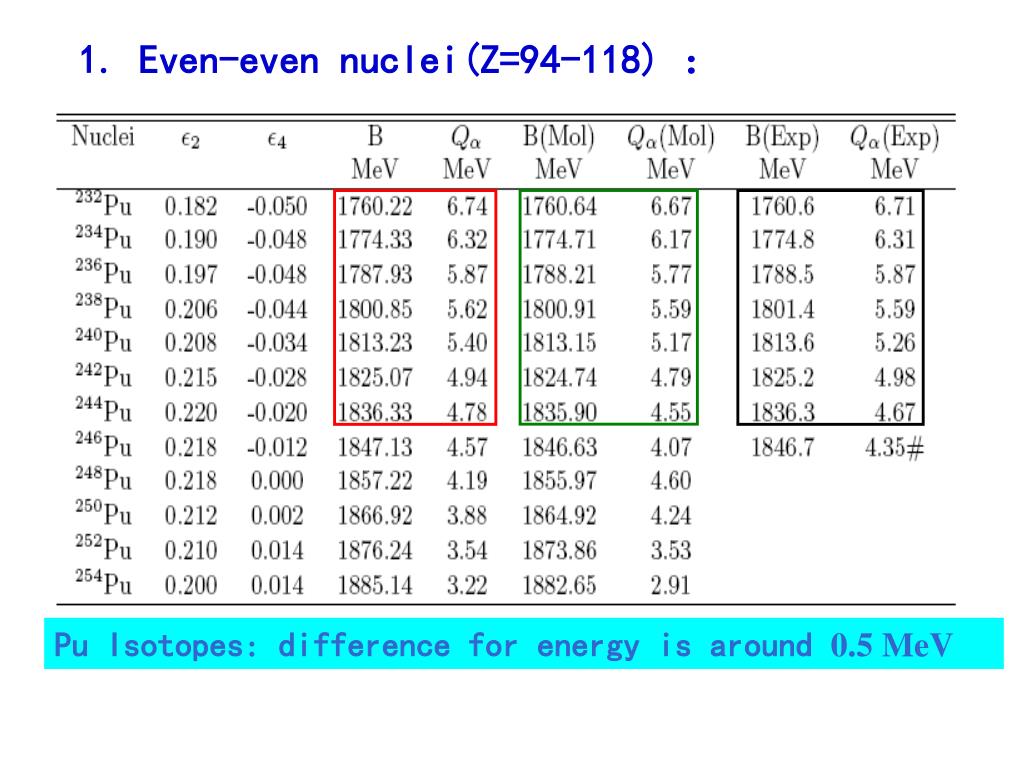

  34. 1. Even-even nuclei(Z=94-118) ： Pu Isotopes: difference for energy is around 0.5 MeV

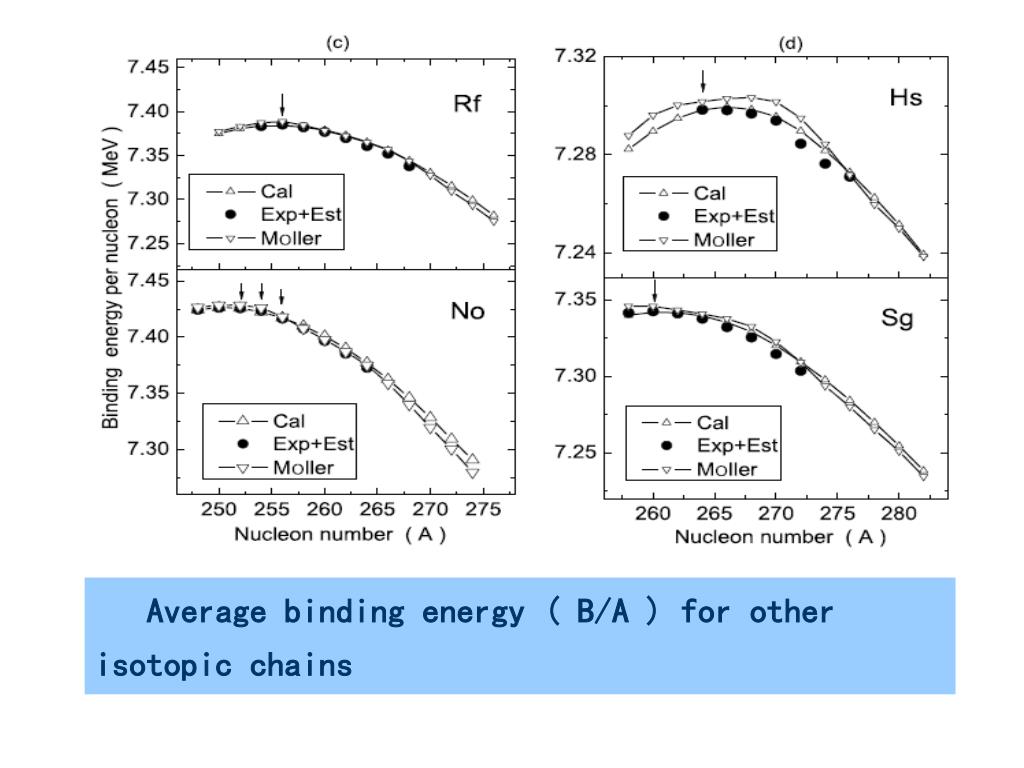

  35. Average binding energy ( B/A ) for other isotopic chains

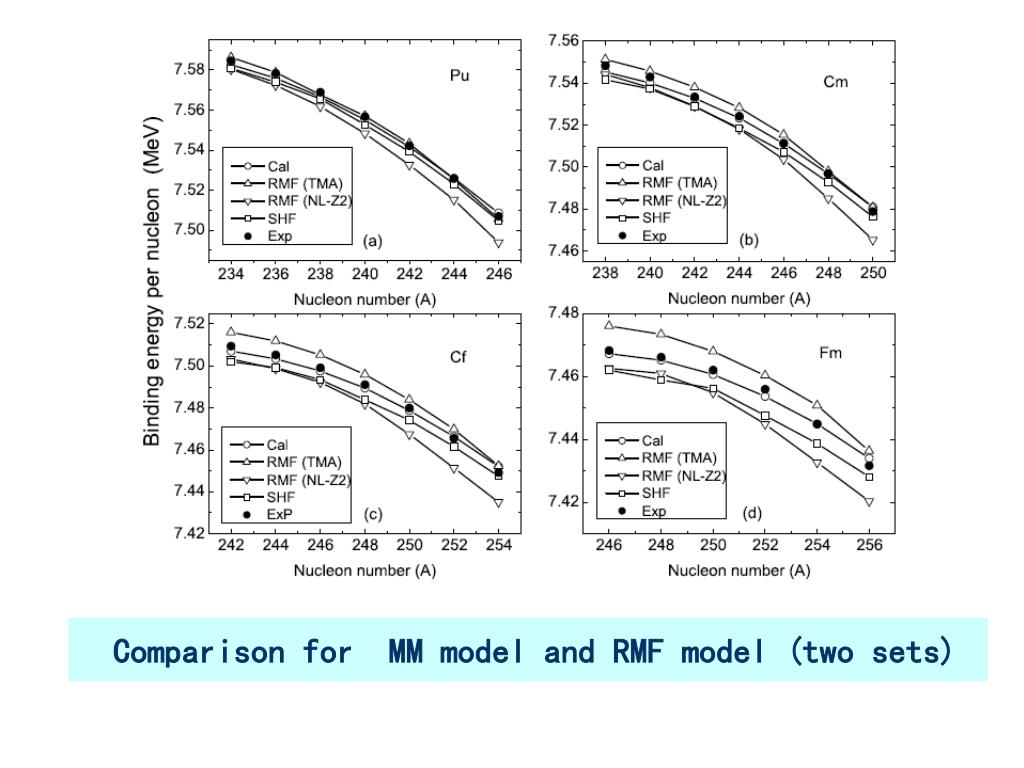

  36. Comparison for MM model and RMF model (two sets)

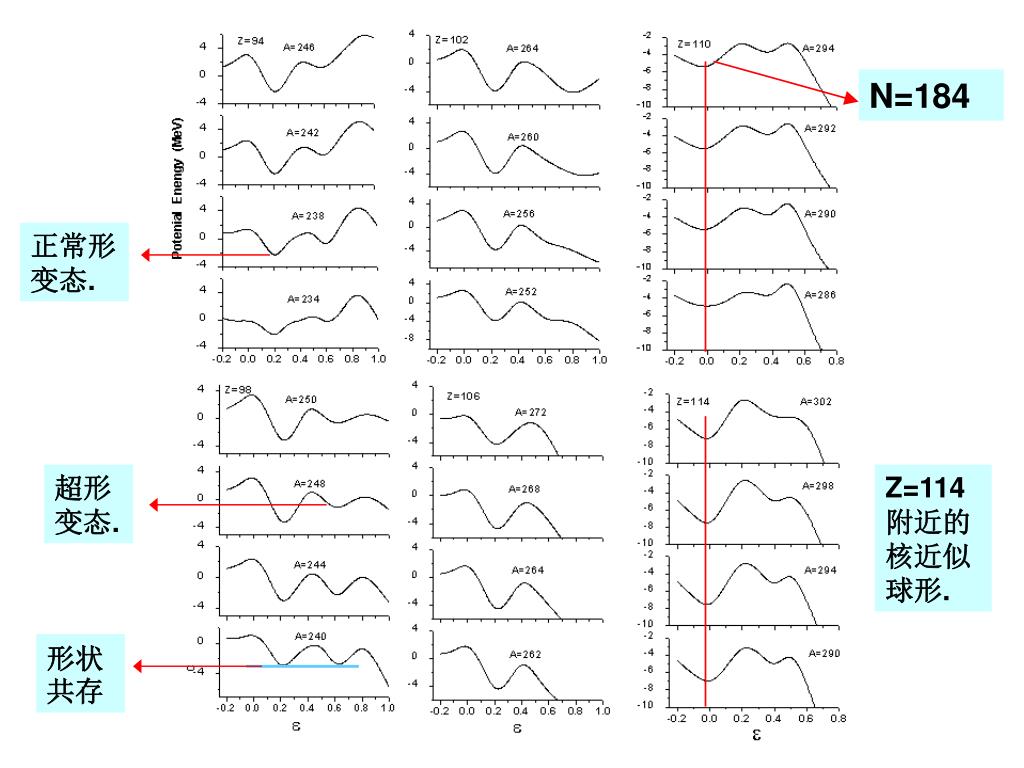

  37. N=184 正常形 变态. 超形 变态. Z=114 附近的 核近似 球形. 形状共存

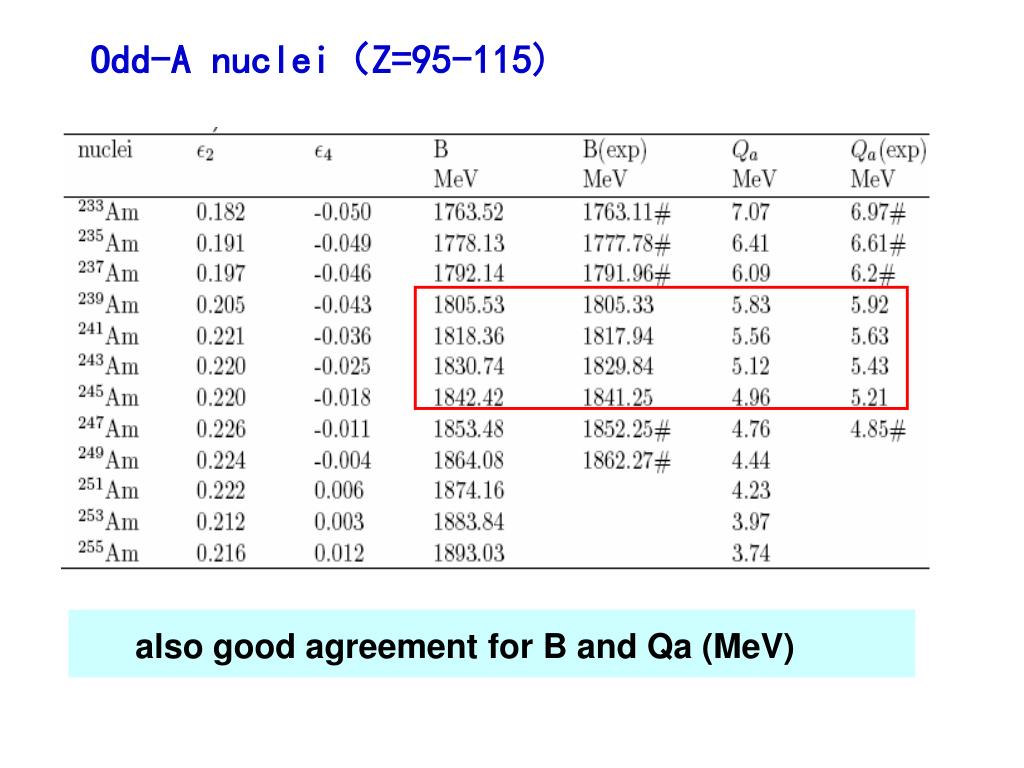

  38. Odd-A nuclei（Z=95-115) also good agreement for B and Qa (MeV)

  39. For decay chain of Z=115 and A=287 Half-life: Viola-Seaborgformula。 Together with those from RMF and Moller’s model Exp. Yu. Ts. Oganessian, et al., Phys. Rev. C72, 034611 (2005).

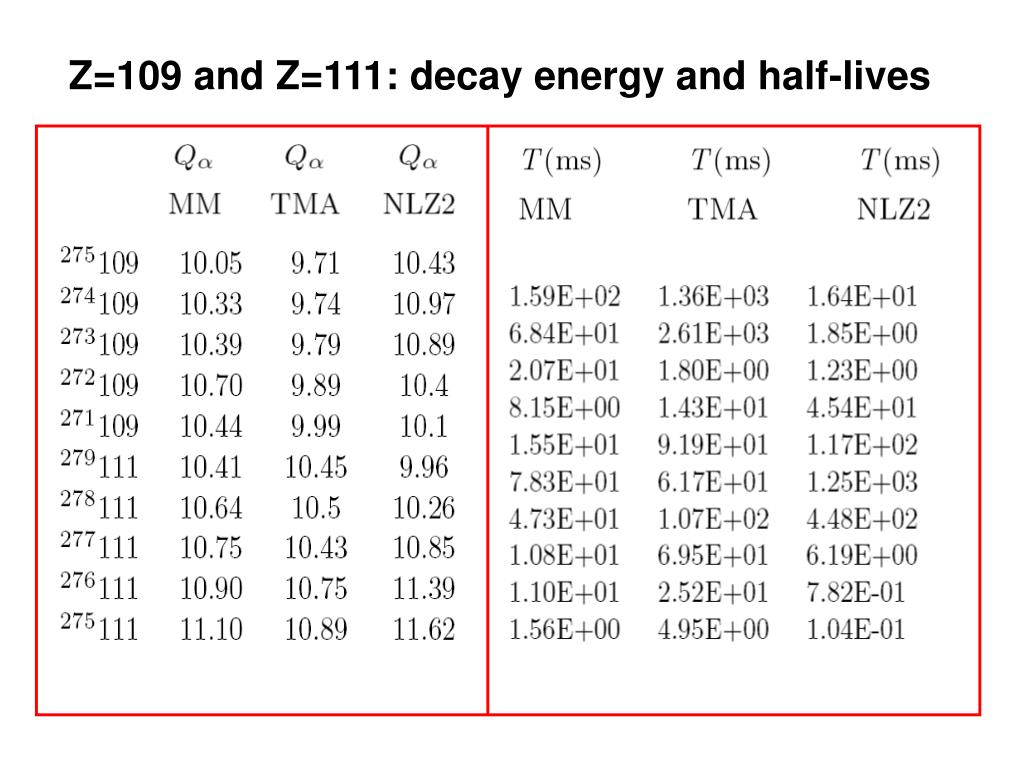

  40. Z=109 and Z=111: decay energy and half-lives

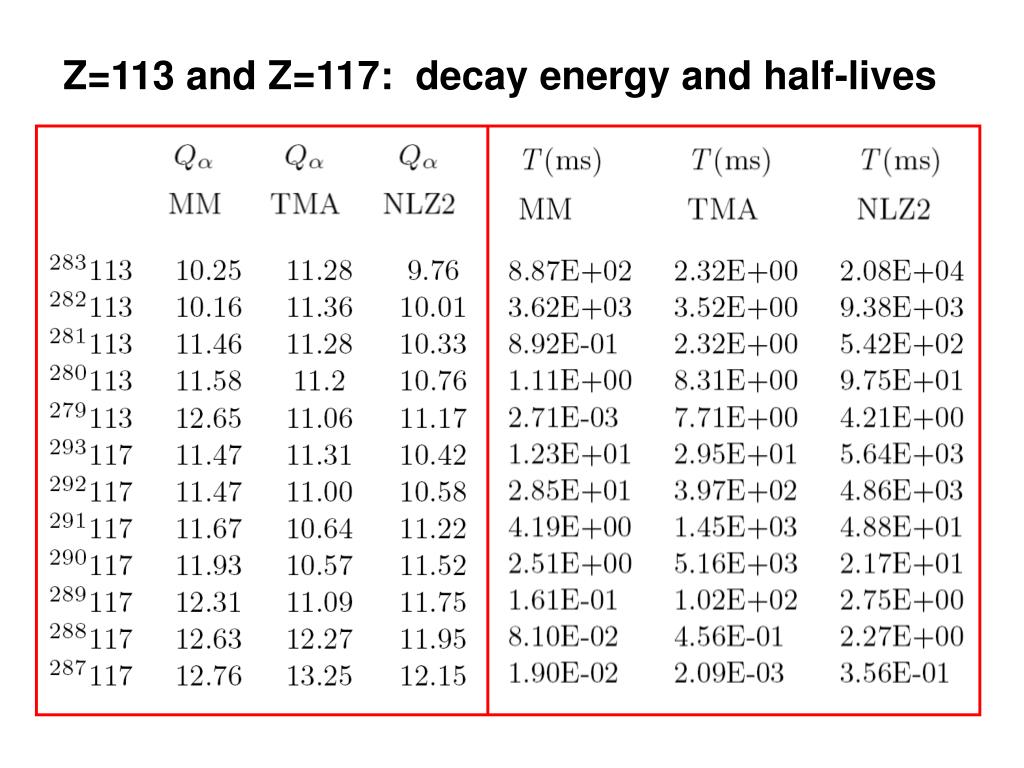

  41. Z=113 and Z=117: decay energy and half-lives

  42. Local formula of binding energies for heavy and superheavy nuclei PRC 72 , 2005 T. Dong and Z. Ren

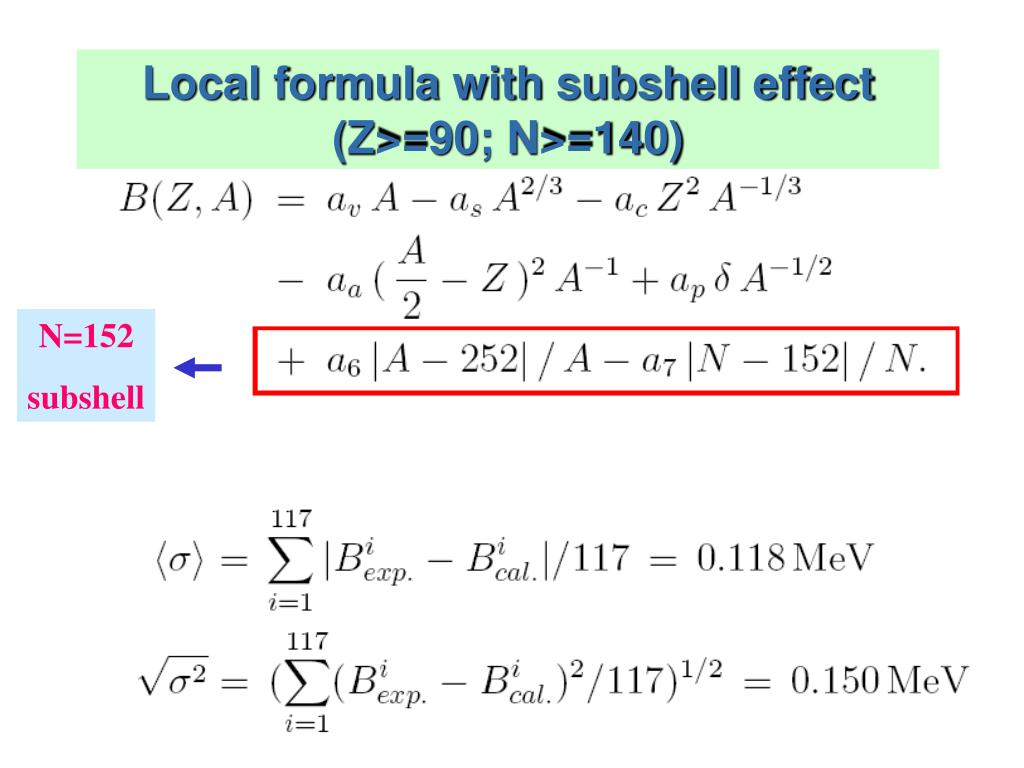

  43. Local formula with subshell effect (Z>=90; N>=140) N=152 subshell

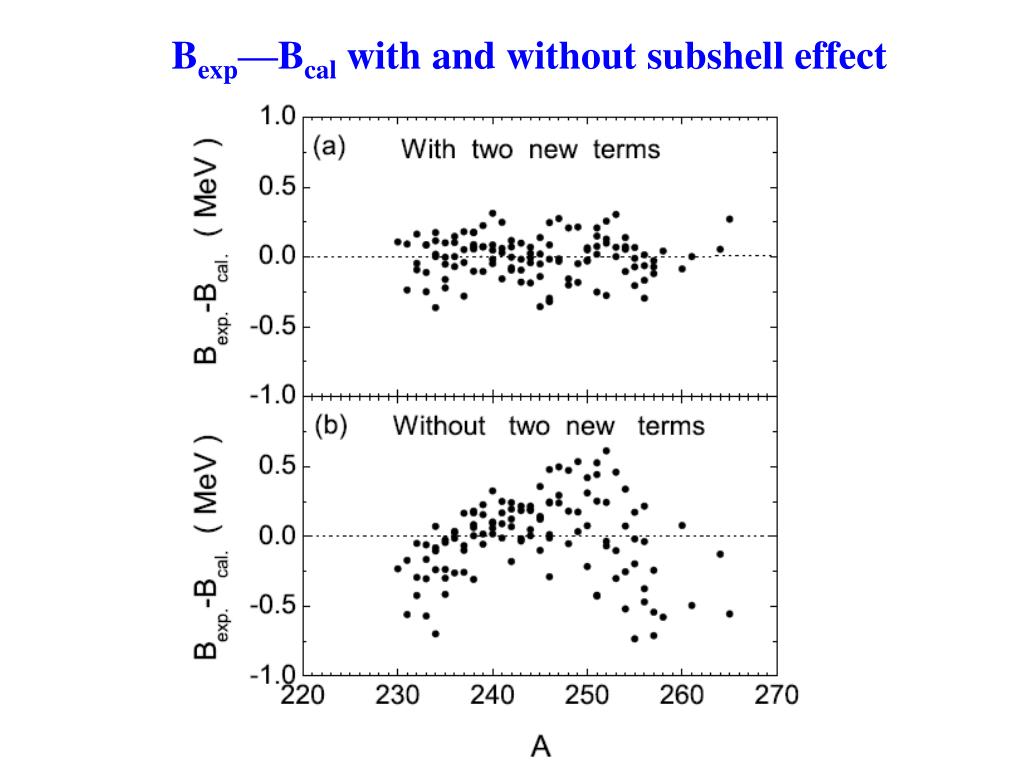

  44. Bexp—Bcal with and without subshell effect

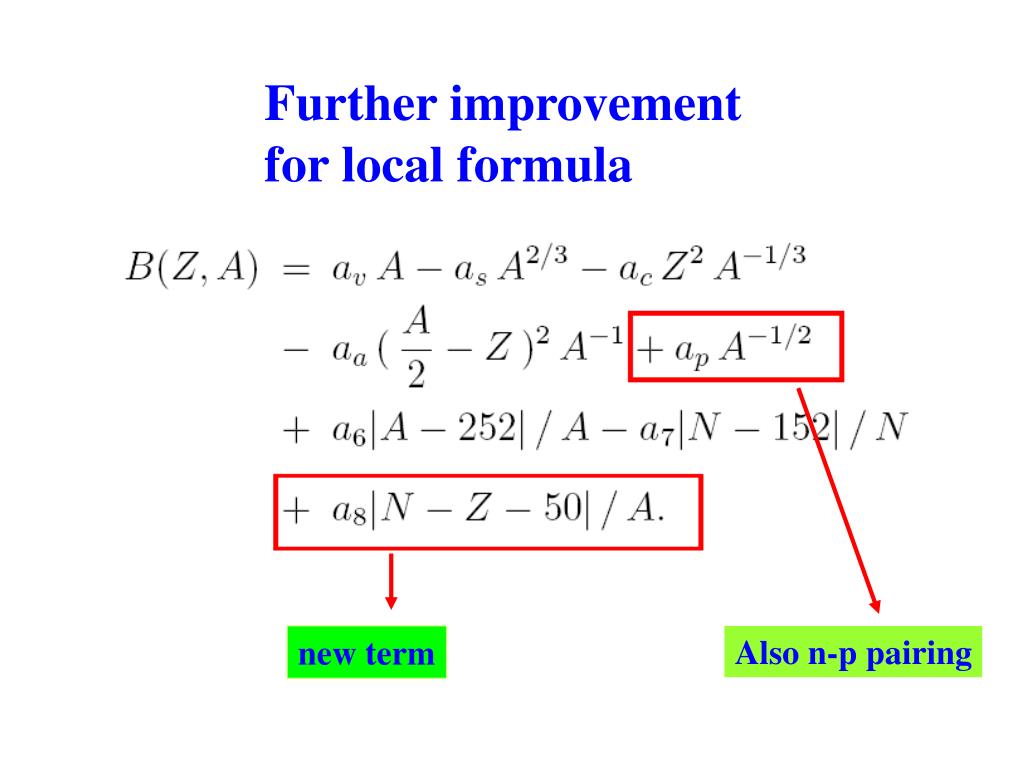

  45. Further improvement for local formula new term Also n-p pairing

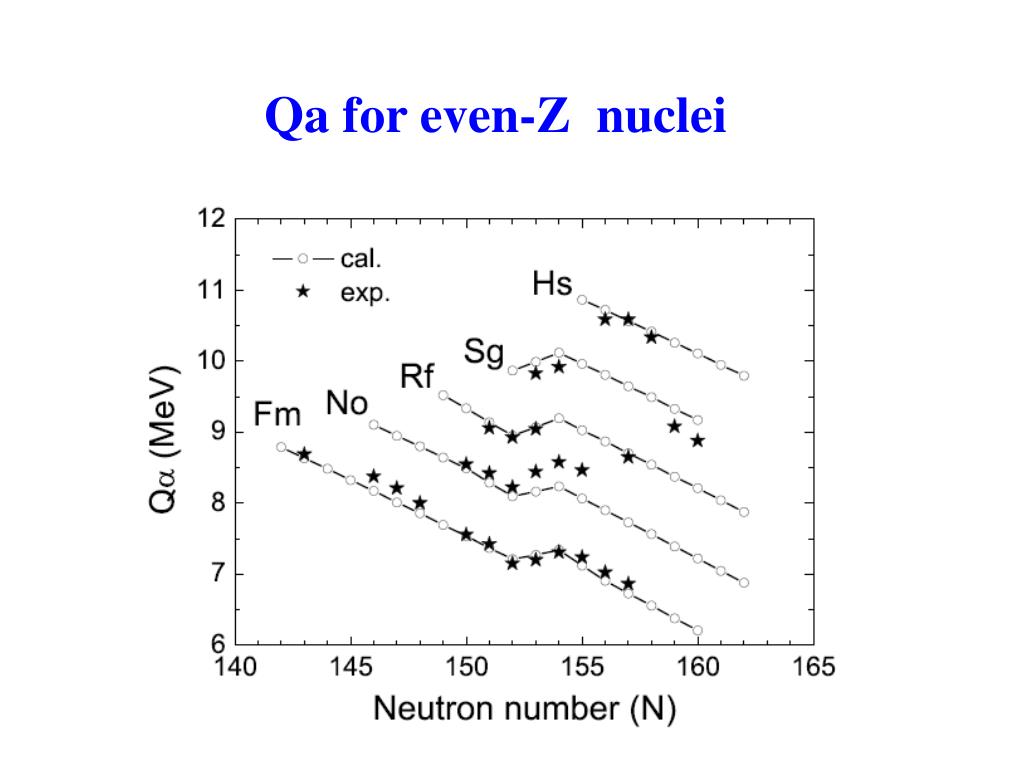

  46. Qa for even-Z nuclei
