  1. The Wealth of Nations Jamie Brabston Matt Caulfield Mark Testa

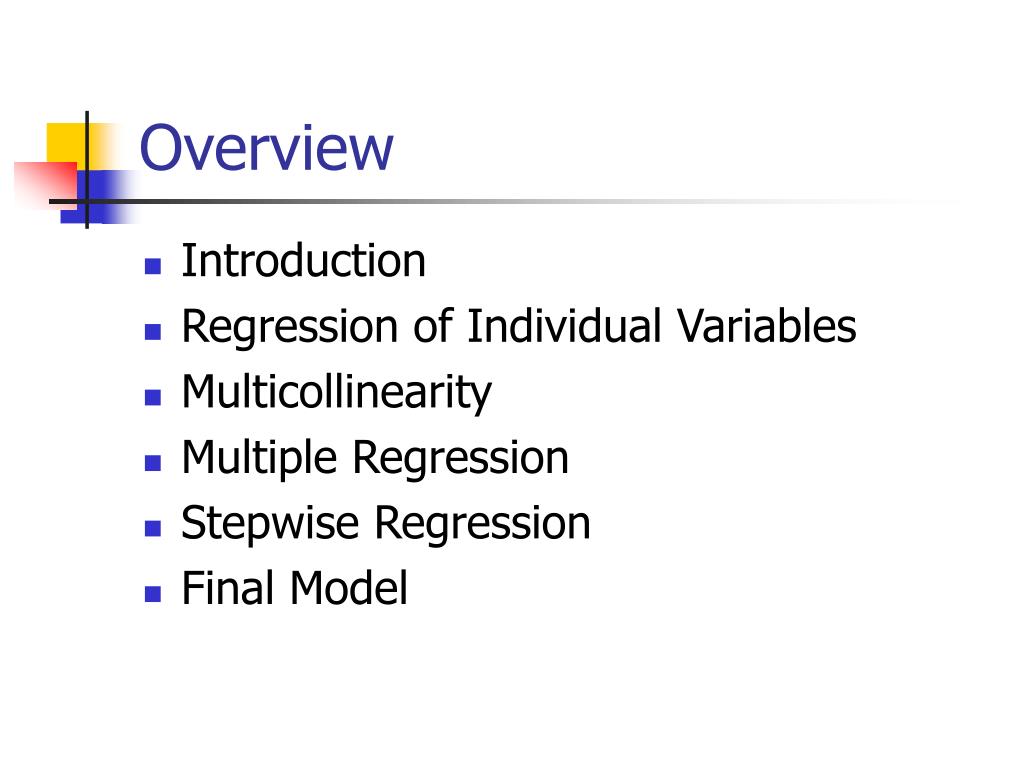

  2. Overview • Introduction • Regression of Individual Variables • Multicollinearity • Multiple Regression • Stepwise Regression • Final Model

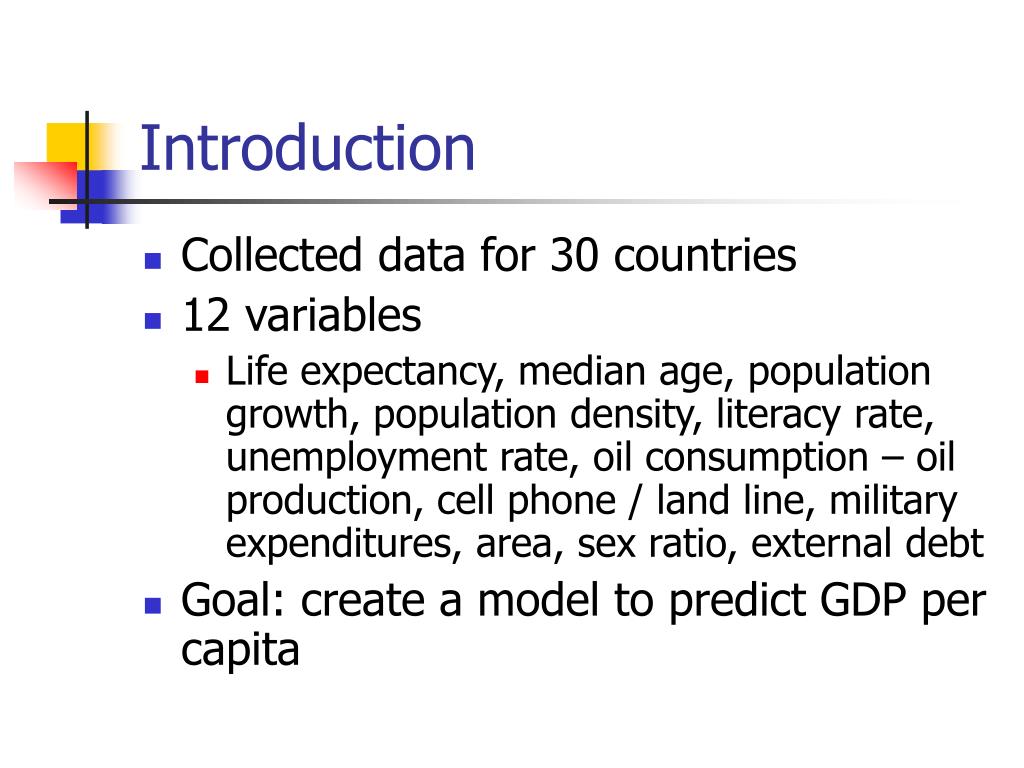

  3. Introduction • Collected data for 30 countries • 12 variables • Life expectancy, median age, population growth, population density, literacy rate, unemployment rate, oil consumption – oil production, cell phone / land line, military expenditures, area, sex ratio, external debt • Goal: create a model to predict GDP per capita

  4. Life Expectancy

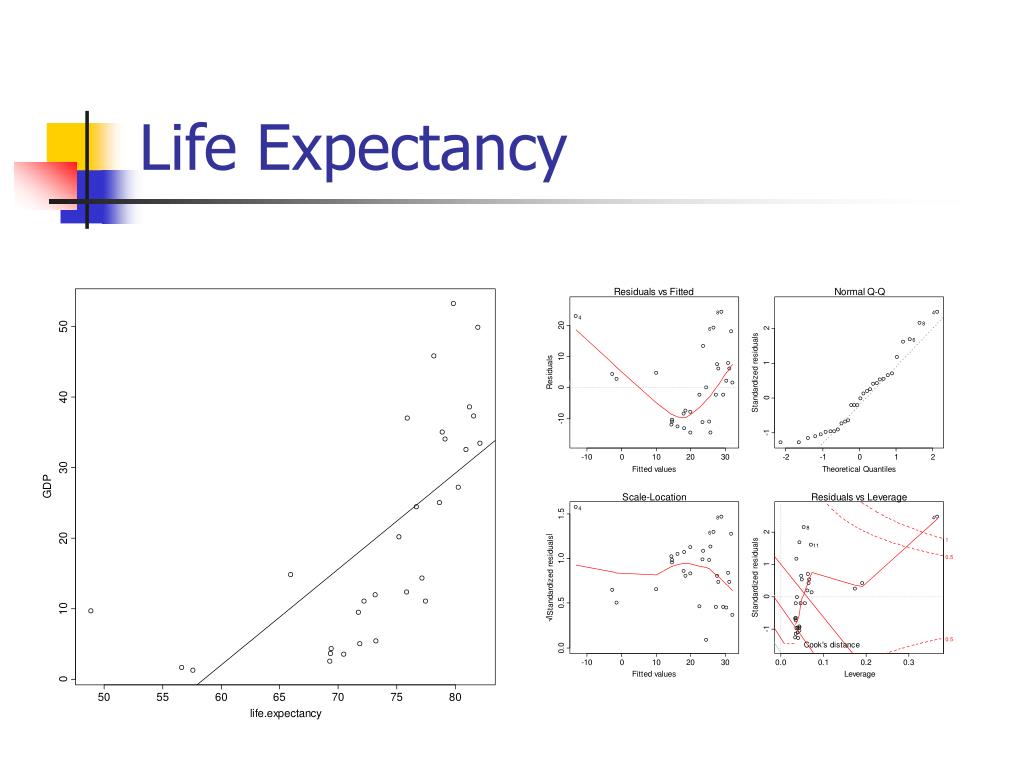

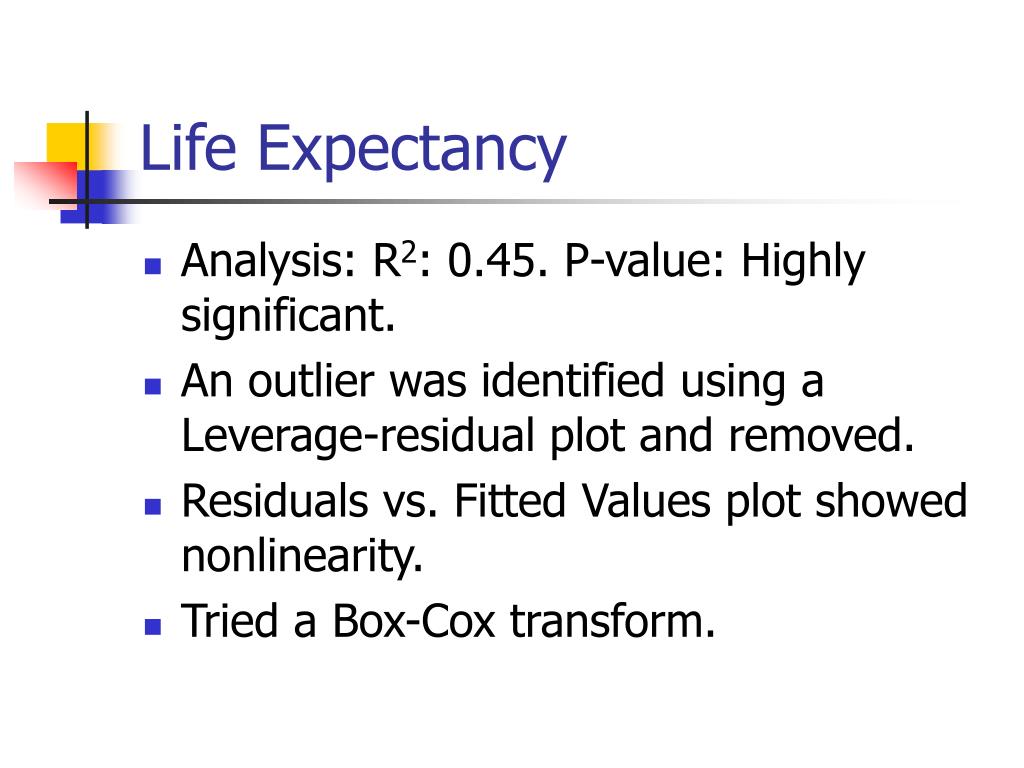

  5. Life Expectancy • Analysis: R2: 0.45. P-value: Highly significant. • An outlier was identified using a Leverage-residual plot and removed. • Residuals vs. Fitted Values plot showed nonlinearity. • Tried a Box-Cox transform.

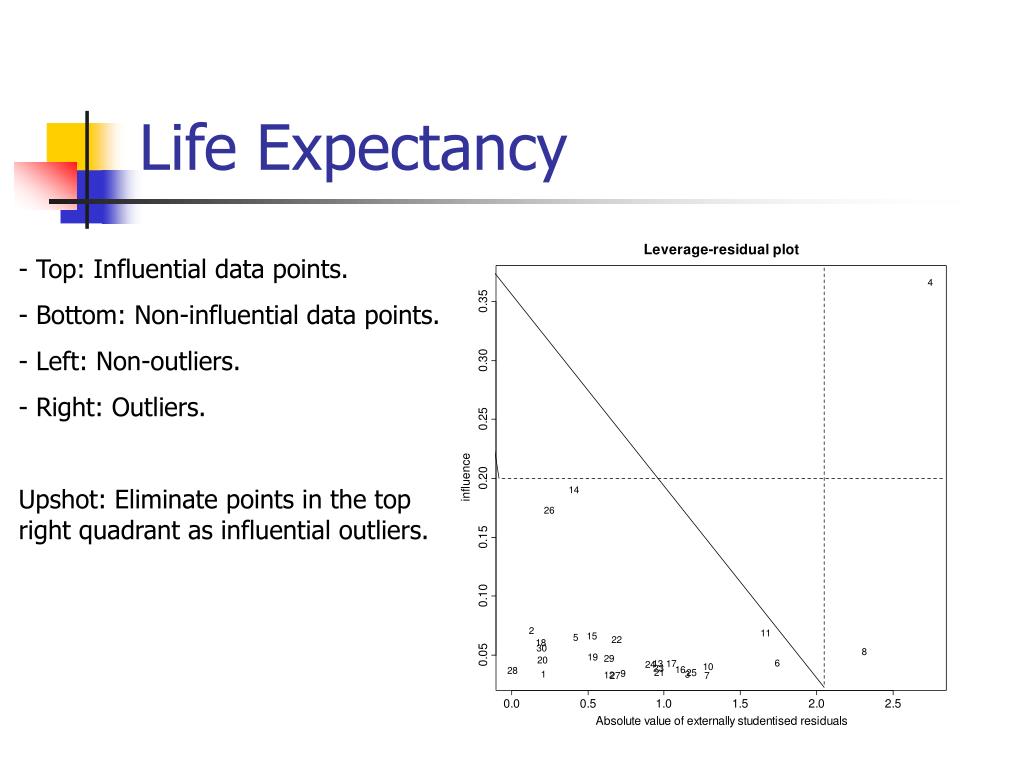

  6. Life Expectancy - Top: Influential data points. - Bottom: Non-influential data points. - Left: Non-outliers. - Right: Outliers. Upshot: Eliminate points in the top right quadrant as influential outliers.

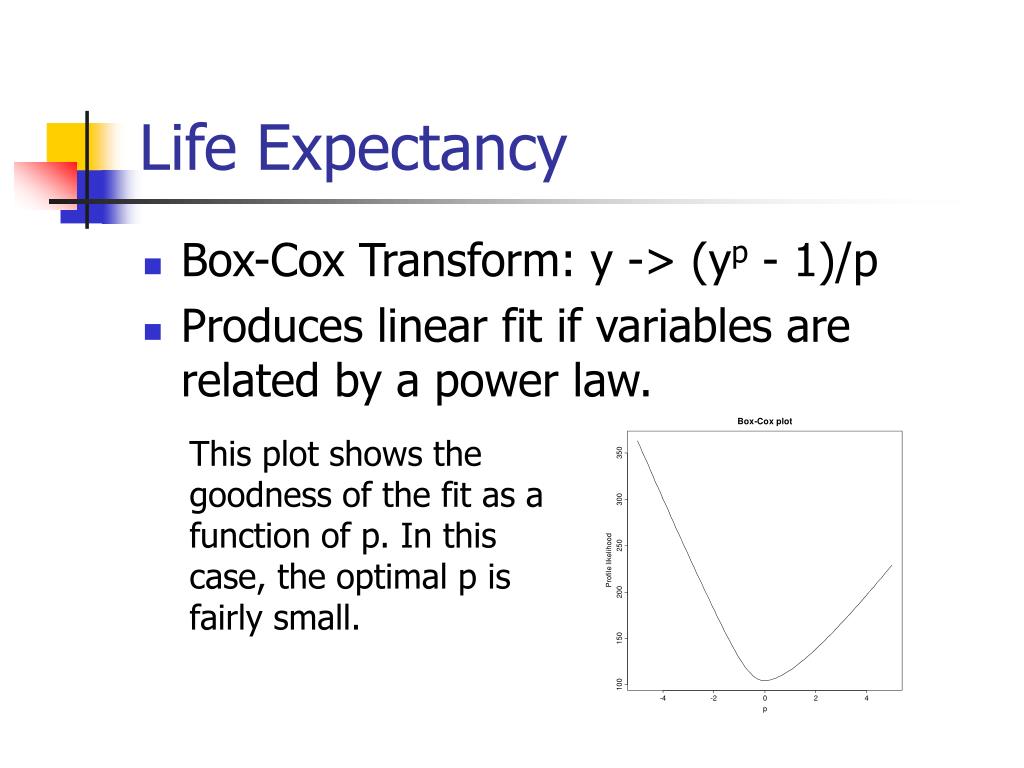

  7. Life Expectancy • Box-Cox Transform: y -> (yp - 1)/p • Produces linear fit if variables are related by a power law. This plot shows the goodness of the fit as a function of p. In this case, the optimal p is fairly small.

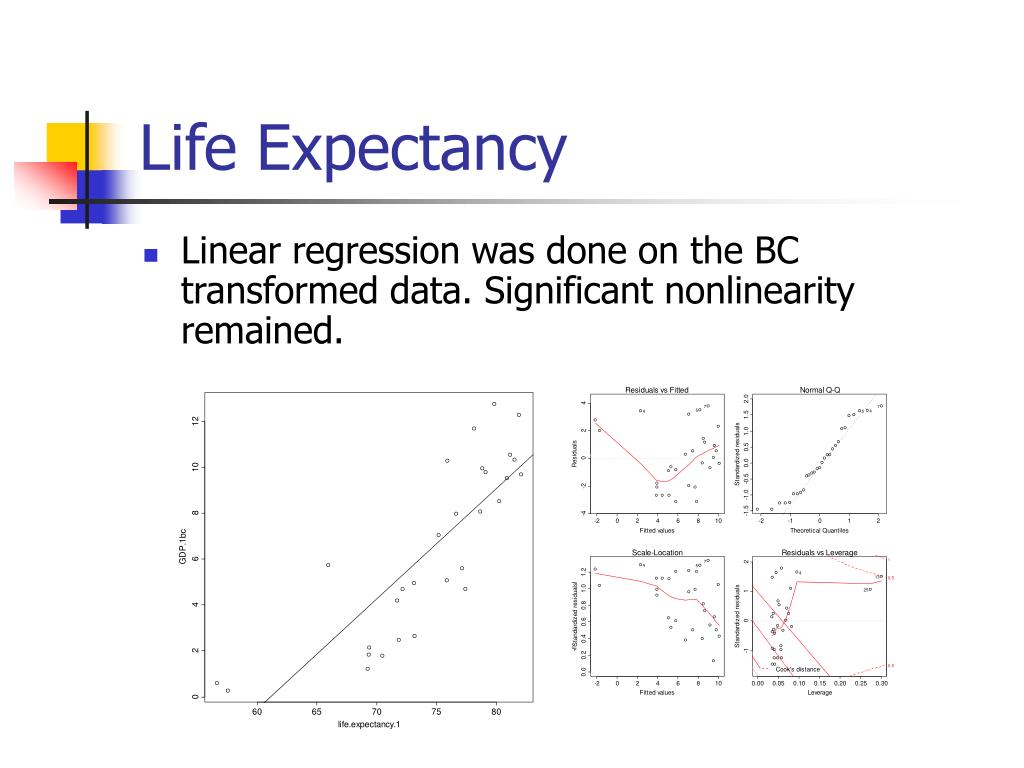

  8. Life Expectancy • Linear regression was done on the BC transformed data. Significant nonlinearity remained.

  9. Life Expectancy • Conclusions: Clearly, there is a significant positive relationship between per capita GDP and life expectancy. • We could not identify the precise nature of the relationship. • This prevents extrapolation and prediction.

  10. Median Age

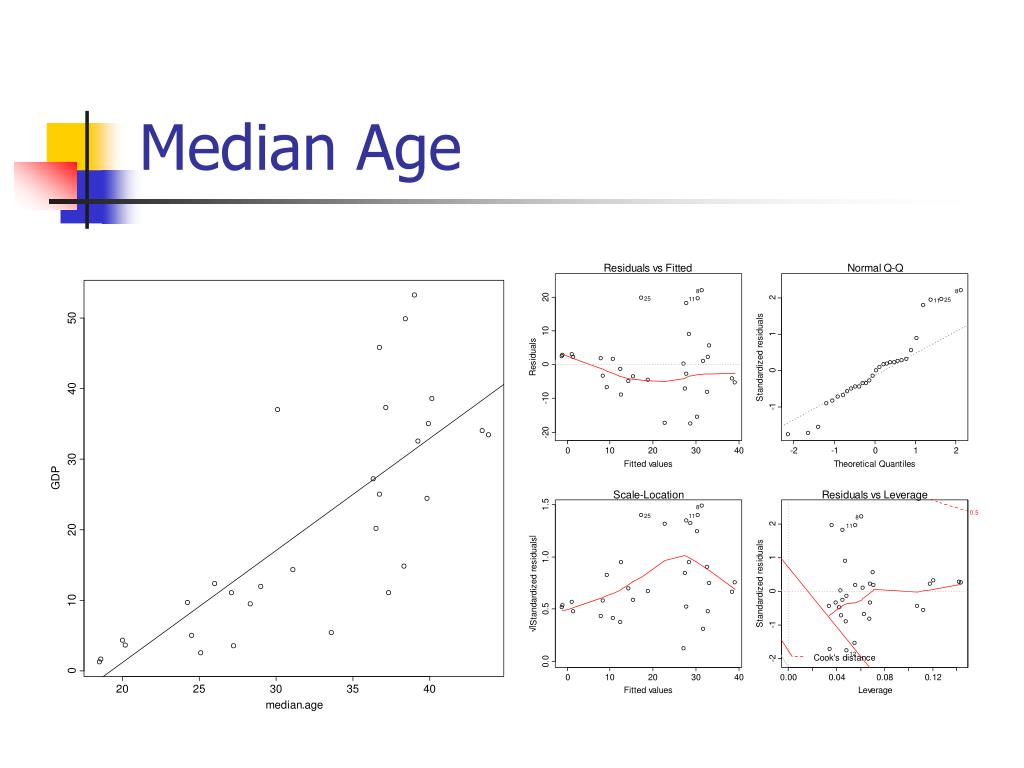

  11. Median Age • Analysis: R2: 0.58. P-value: Highly significant. • No suspected outliers. • The plot of Residuals vs. Fitted values is approximately linear, but significantly deviated from normal.

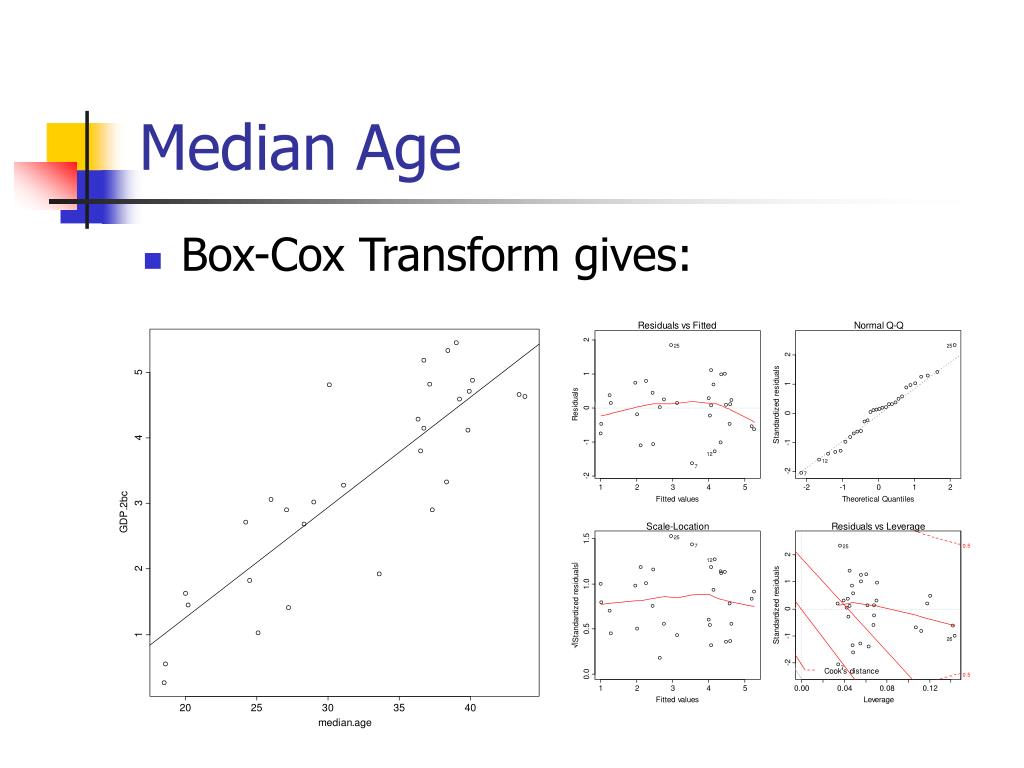

  12. Median Age • Box-Cox Transform gives:

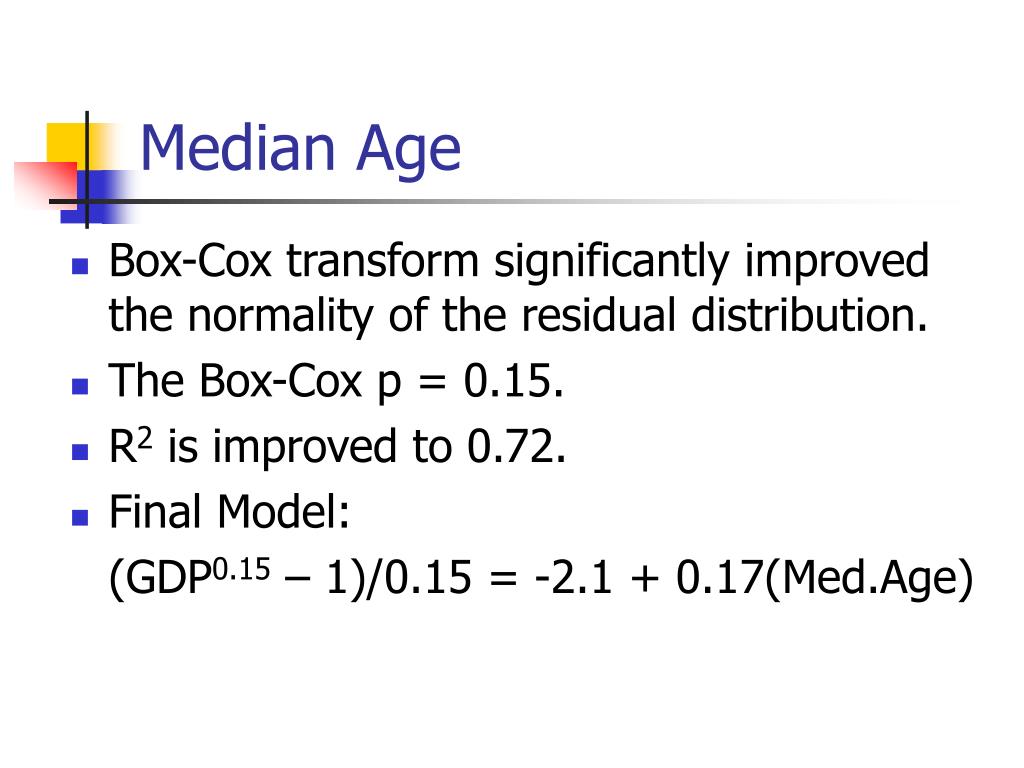

  13. Median Age • Box-Cox transform significantly improved the normality of the residual distribution. • The Box-Cox p = 0.15. • R2 is improved to 0.72. • Final Model: (GDP0.15 – 1)/0.15 = -2.1 + 0.17(Med.Age)

  14. Population Growth

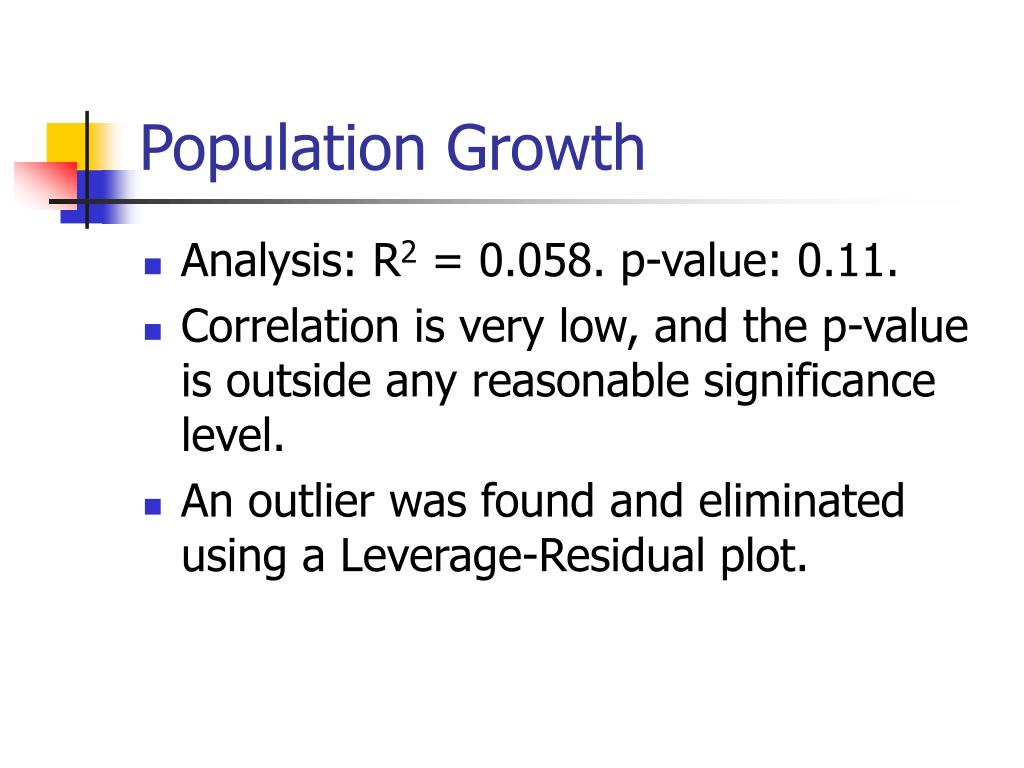

  15. Population Growth • Analysis: R2 = 0.058. p-value: 0.11. • Correlation is very low, and the p-value is outside any reasonable significance level. • An outlier was found and eliminated using a Leverage-Residual plot.

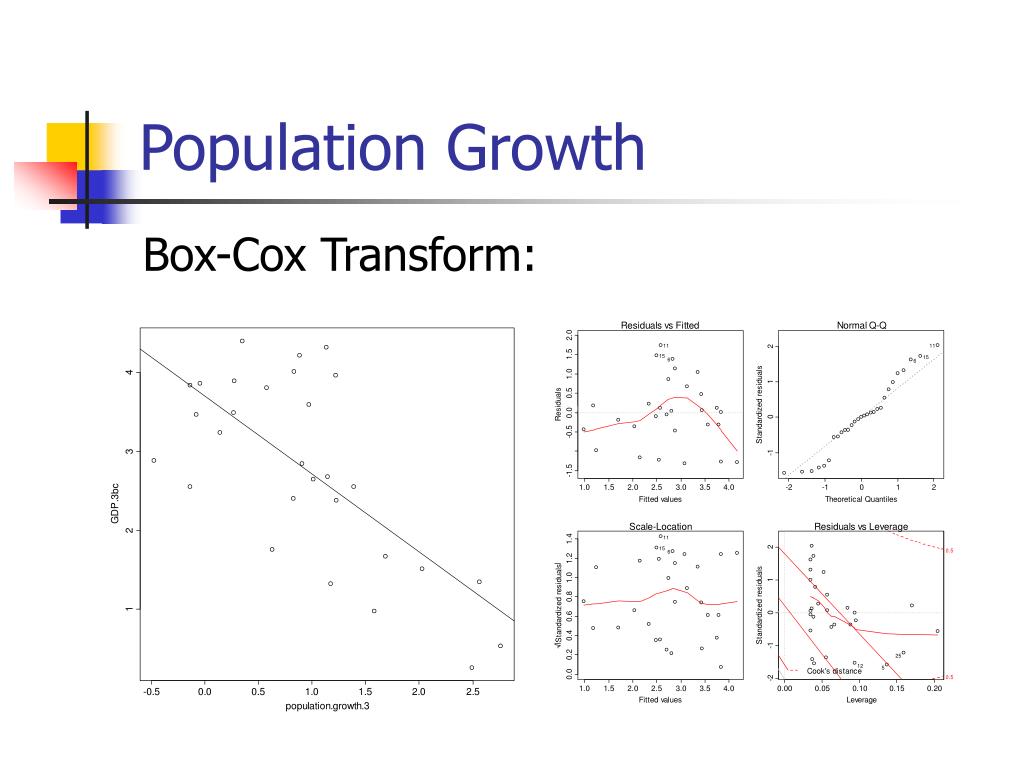

  16. Population Growth Box-Cox Transform:

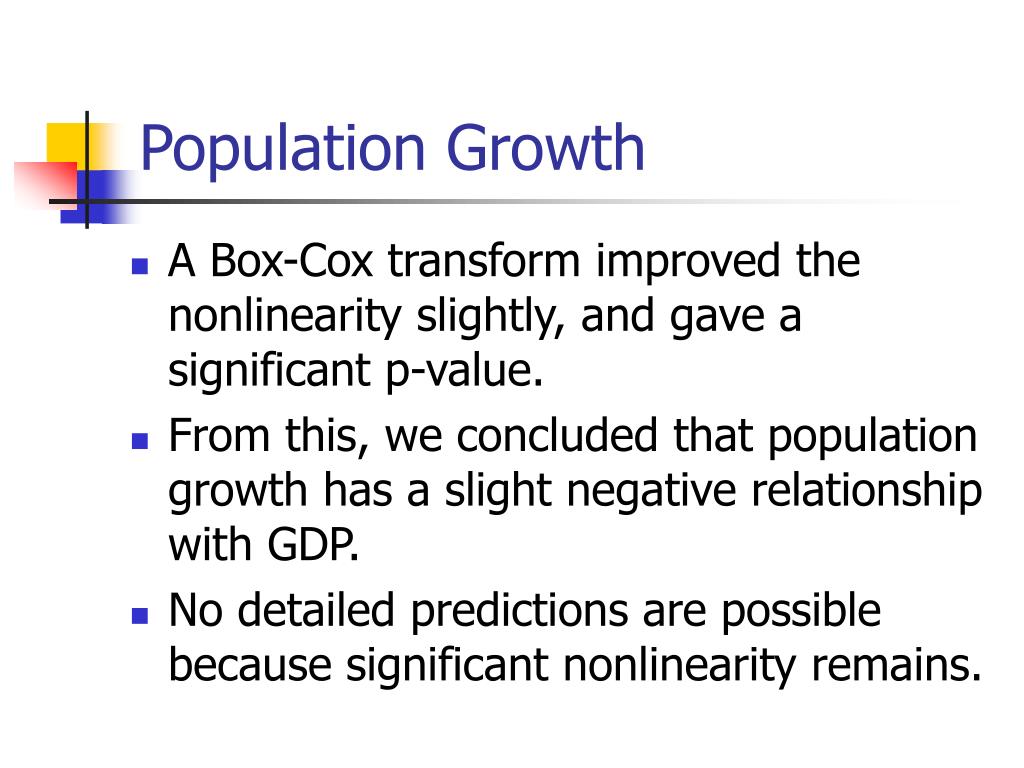

  17. Population Growth • A Box-Cox transform improved the nonlinearity slightly, and gave a significant p-value. • From this, we concluded that population growth has a slight negative relationship with GDP. • No detailed predictions are possible because significant nonlinearity remains.

  18. Population Density

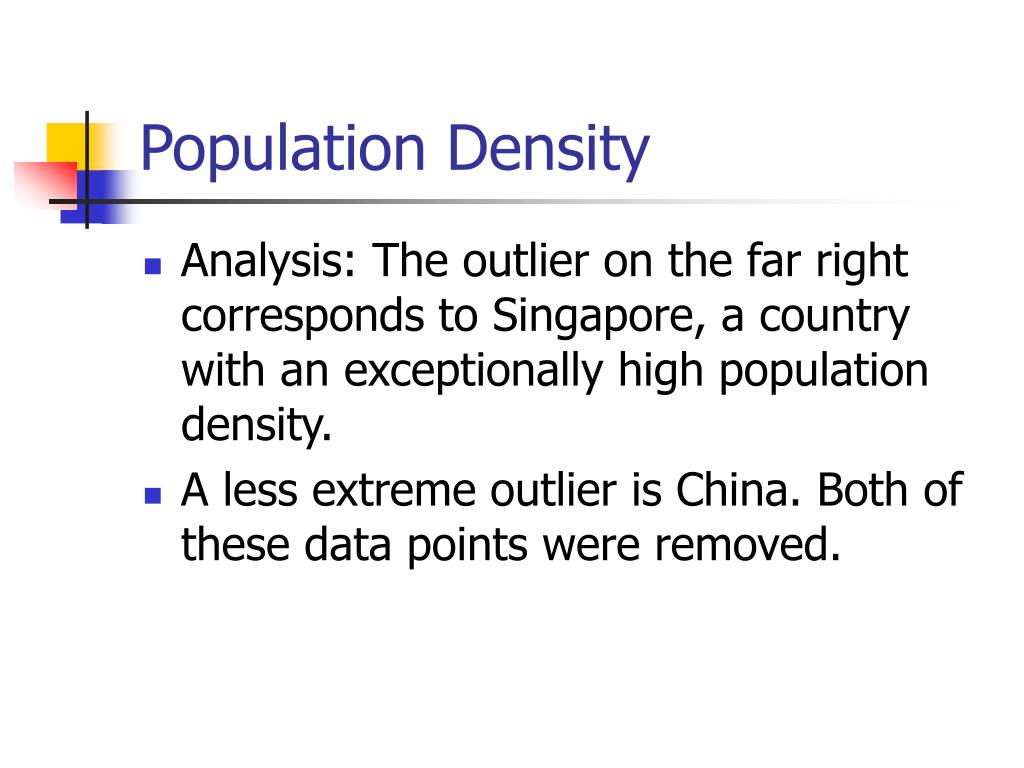

  19. Population Density • Analysis: The outlier on the far right corresponds to Singapore, a country with an exceptionally high population density. • A less extreme outlier is China. Both of these data points were removed.

  20. Population Density

  21. Population Density • The p-value for the data without outliers is a very insignificant 0.68. • A Box-Cox transform was attempted, but the p-value did not get close to significance. • Conclusion: Population density and GDP are essentially unrelated.

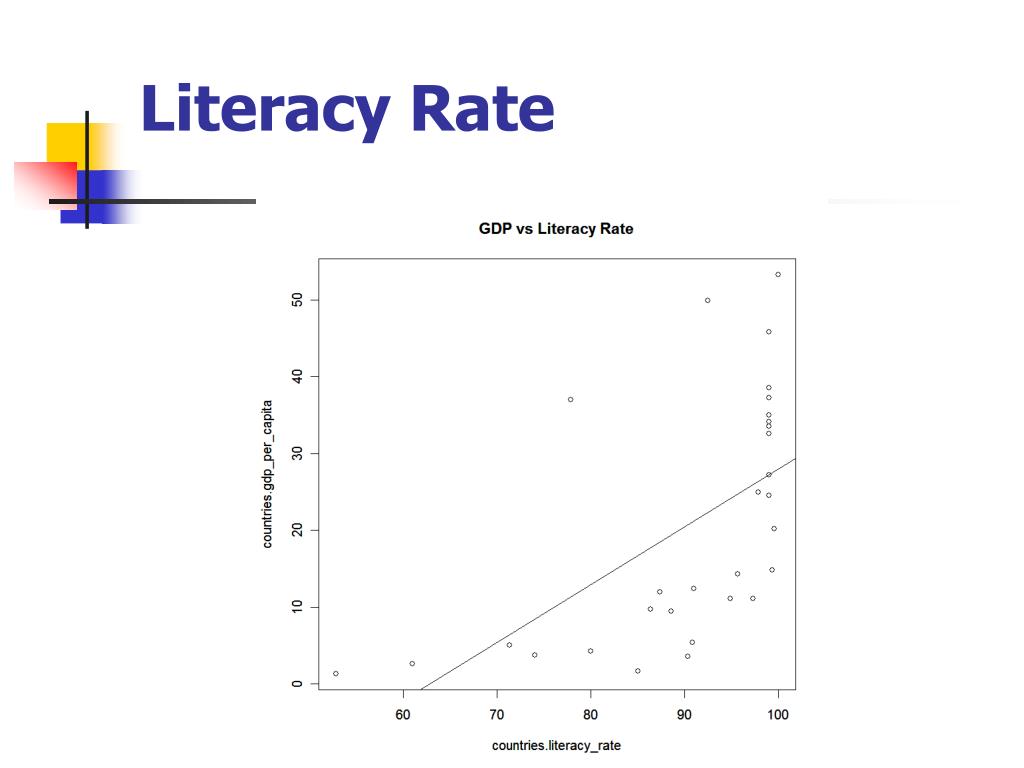

  22. Literacy Rate

  23. Final model: GDP= -3.320 + .0657(literacy rate)

  24. Unemployment Rate

  25. Final model: GDP= 1.388 -.0236(unemployment rate)

  26. Oil Consumption – Production

  27. Final model: GDP= -3.320 + .0657(literacy rate)

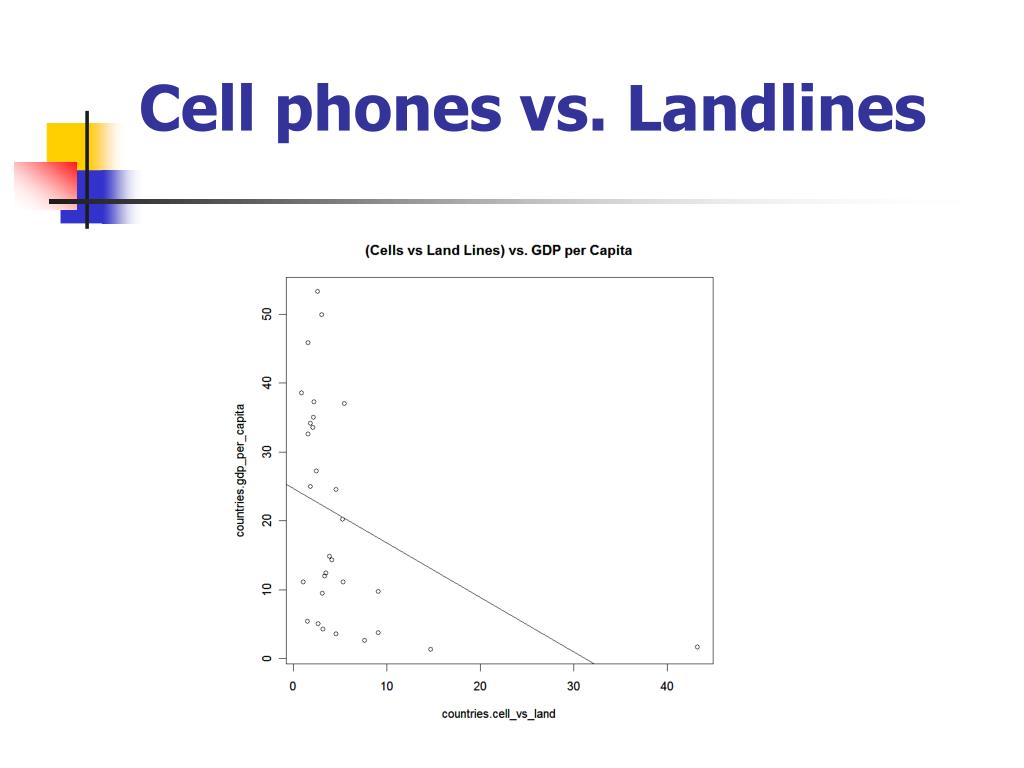

  28. Cell phones vs. Landlines

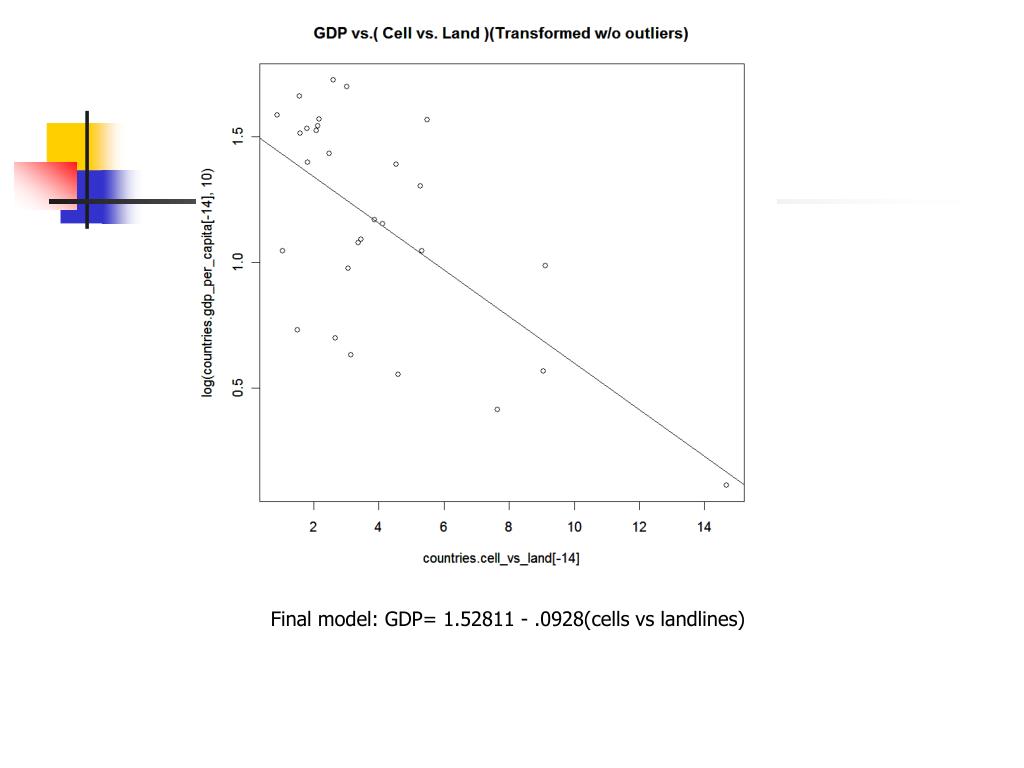

  29. Final model: GDP= 1.52811 - .0928(cells vs landlines)

  30. Military Expenditures
