Presentation Transcript

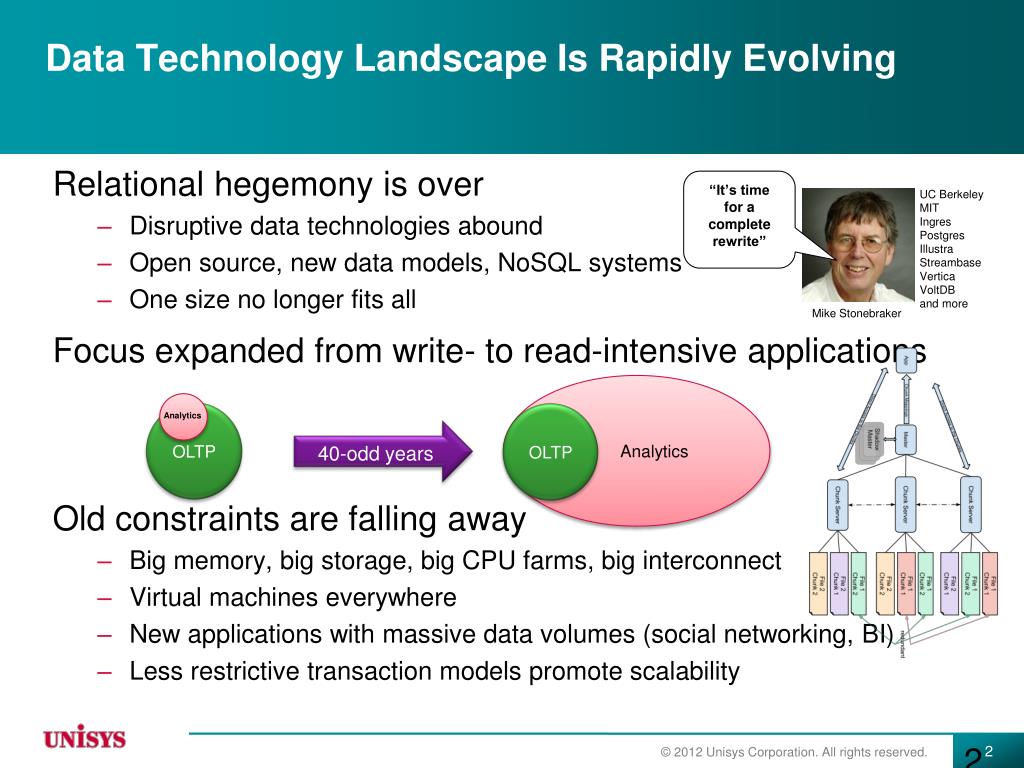

  1. Data Technology Landscape Is Rapidly Evolving Relational hegemony is over • Disruptive data technologies abound • Open source, new data models, NoSQL systems • One size no longer fits all Focus expanded from write- to read-intensive applications Old constraints are falling away • Big memory, big storage, big CPU farms, big interconnect • Virtual machines everywhere • New applications with massive data volumes (social networking, BI) • Less restrictive transaction models promote scalability “It’s time for a complete rewrite” UC Berkeley MIT Ingres Postgres Illustra Streambase Vertica VoltDB and more Mike Stonebraker OLTP OLTP Analytics 40-odd years Analytics

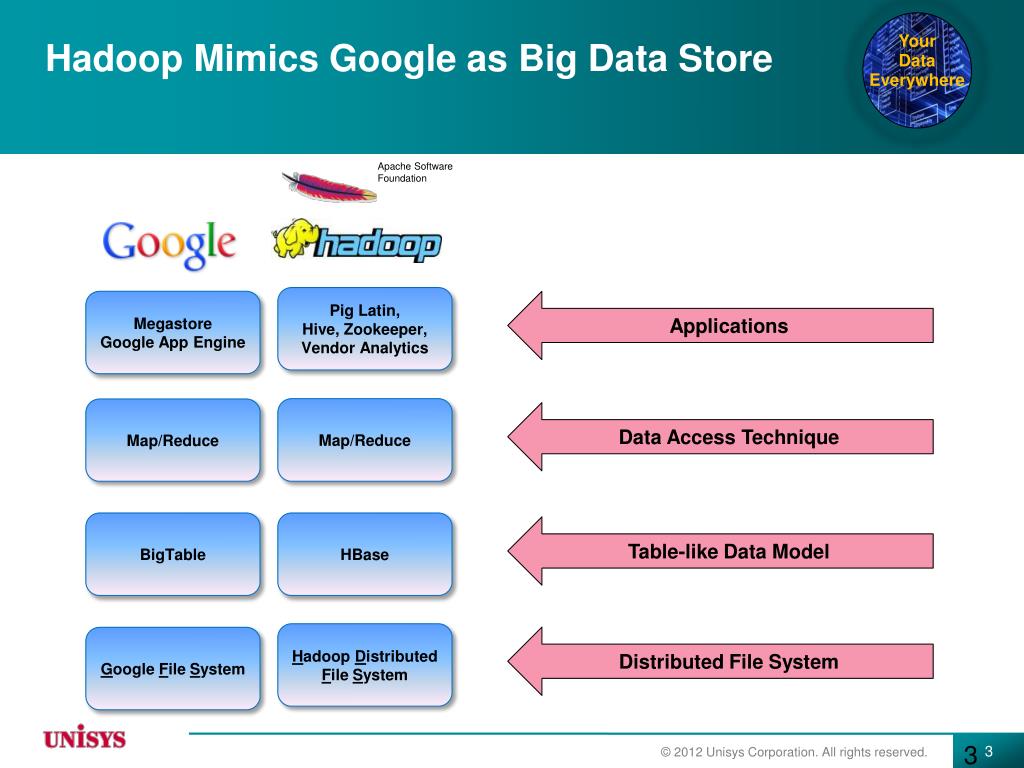

  2. Hadoop Mimics Google as Big Data Store Apache Software Foundation YourDataEverywhere Applications Pig Latin, Hive, Zookeeper, Vendor Analytics Megastore Google App Engine Map/Reduce Map/Reduce Data Access Technique BigTable HBase Hadoop Distributed File System Google File System Table-like Data Model Distributed File System

  3. How HDFS and GFS Work “Shared Nothing” Data Nodes Data ‘sharded’ across nodes YourDataEverywhere

  4. Map/Reduce Algorithm Standard example is word counting void map(String name, String document): // name: document name // document: document contents for each word w in document: EmitIntermediate(w, "1"); void reduce(String word, IteratorwordCounts): // word: a word // wordCounts: list of aggregated counts int sum = 0; for each pc in wordCounts: sum += ParseInt(pc); Emit(word, AsString(sum)); A programming pattern • Inspired by functional programming languages • For large scale parallel applications Parallel Algorithm • Map preps input data into <key, value> pairs, here <word, count> • Merge (or Combine) phase relevant <word, count> pairs, arranging them by word • Reduce sums counts for each word, constructs final result Optimized for unstructured data • Minimum metadata stored in dist. file system • Data knowledge resides in map and reduce programs Parts of the algorithm are patented by Google • US Patent #7,650,331 • Filed June 18, 2004, granted January 19, 2010 • Licensed to Hadoop in April, 2010 YourDataEverywhere Return
