  1. Systems Analysis and Design System Analysis Requirements Modeling

  2. Agenda • Interesting News and Articles • Systems Analysis Phase Overview • Team Oriented Methods and Techniques • System Requirements Checklist • Fact Finding Methods • Class Exercise

  3. Systems Analysis • Understand the proposed project • Ensure that the project will support business requirements • Build a solid foundation for system development

  4. Systems Analysis Skills • Analytical skills • Identify problem, evaluate the key elements, and develop a useful solution • Interpersonal skills • Work with, balance conflicting needs of users, and communicate effectively

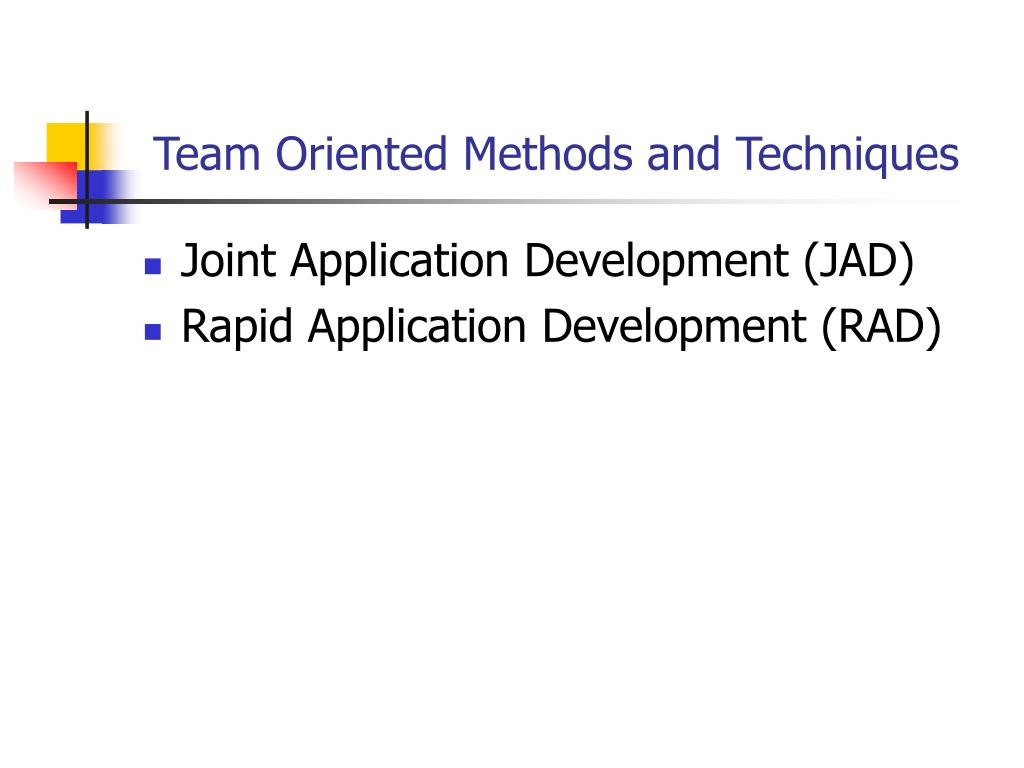

  5. Team Oriented Methods and Techniques • Joint Application Development (JAD) • Rapid Application Development (RAD)

  6. Joint Application Development • JAD is a team-oriented technique for fact-finding and requirements modeling • In other words, JAD is a popular fact-finding technique that brings users into the development process as active participants

  7. Joint Application Development • A JAD team may include users, managers, IT professionals who works together to identify and document requirements for a new system • The objective is to analyze the existing system, work on potential solutions, and agree on requirements for the new system.

  8. Joint Application Development • Advantages • More accurate statement of system requirements • Better understanding of common goals • Stronger commitment to the success of the new system • Disadvantages • More expensive • Can be cumbersome if the group is too large

  9. Rapid Application Development • RAD is a team-based technique that speeds up information systems developments. • Like JAD, RAD uses a group approach, but goes much further. • RAD resembles a condensed version of the entire SDLC, with users involved every step of the way.

  10. RAD Phases and Activities • Requirement planning • Users, managers, and IT staffs agree upon business needs, project scope and system requirements • User Design • Interact with users, build models and prototypes, and conduct intensive JAD-type sessions • Construction • Program and application development, coding, integration and system testing • Cutover • Data conversion, full scale testing, system changeover, user training

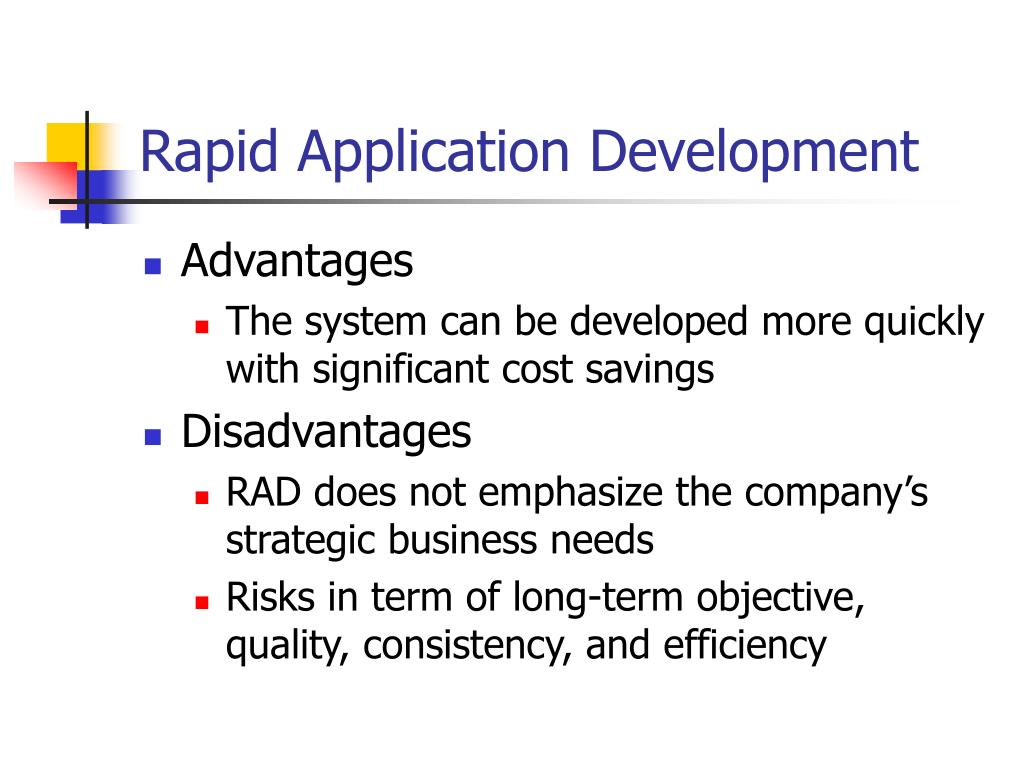

  11. Rapid Application Development • Advantages • The system can be developed more quickly with significant cost savings • Disadvantages • RAD does not emphasize the company’s strategic business needs • Risks in term of long-term objective, quality, consistency, and efficiency

  12. System Requirements • A system requirement is a characteristic or feature that must be included in an information system to satisfy business requirements and be acceptable to users. • Outputs • Inputs • Processes • Performance • Controls

  13. Outputs Requirements Samples • The inventory must produce a daily report • The purchasing system must provide supplier with up-to-date specifications • The Web site must report online volume statistics

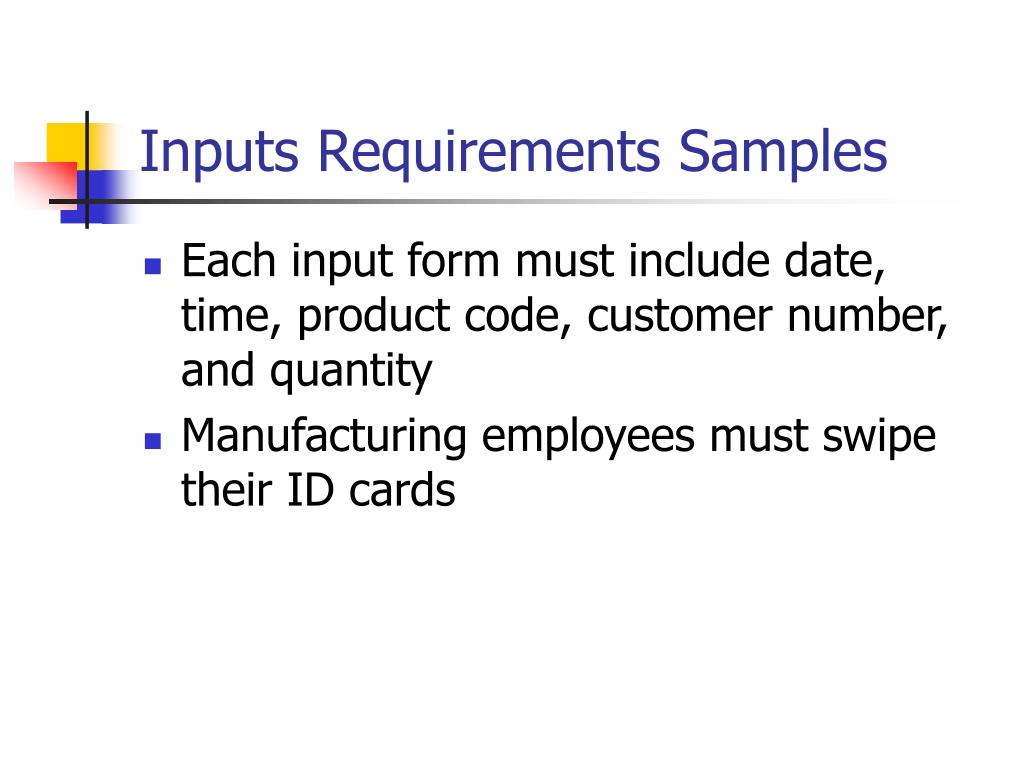

  14. Inputs Requirements Samples • Each input form must include date, time, product code, customer number, and quantity • Manufacturing employees must swipe their ID cards

  15. Processes Requirements Samples • The students records system must allow record access by either students name or number • The video rental system must not execute new rental transaction for customers who have overdue tapes

  16. Performance Requirements Samples • The system must support 25 users online simultaneously • Response must not exceed four seconds • The system must be operational seven days a week, 365 days a years

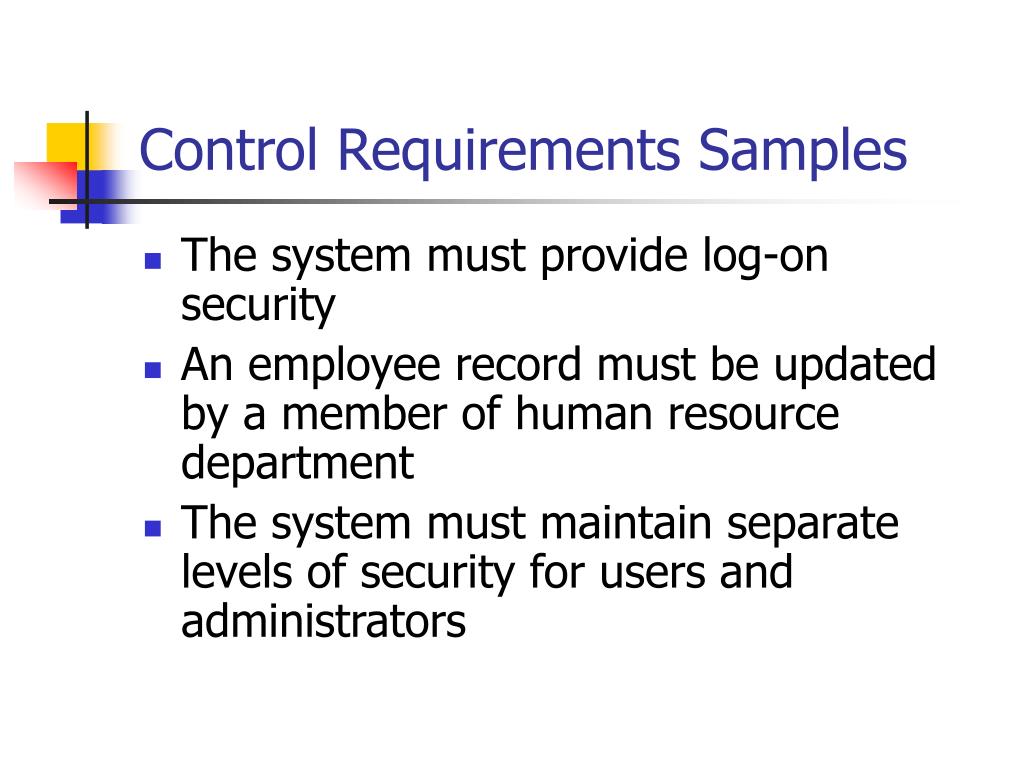

  17. Control Requirements Samples • The system must provide log-on security • An employee record must be updated by a member of human resource department • The system must maintain separate levels of security for users and administrators

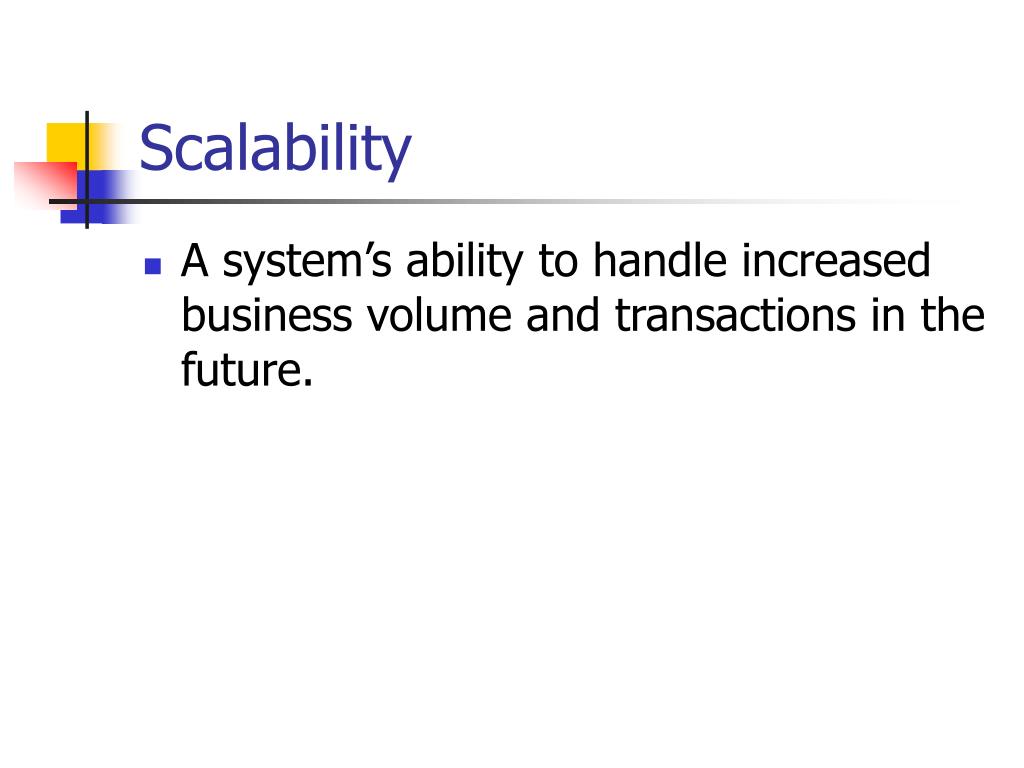

  18. Scalability • A system’s ability to handle increased business volume and transactions in the future.

  19. Fact-Finding • Answer Who, What, When, How and Why? • Interviews • Document Review • Observation • Questionnaires and Surveys • Research

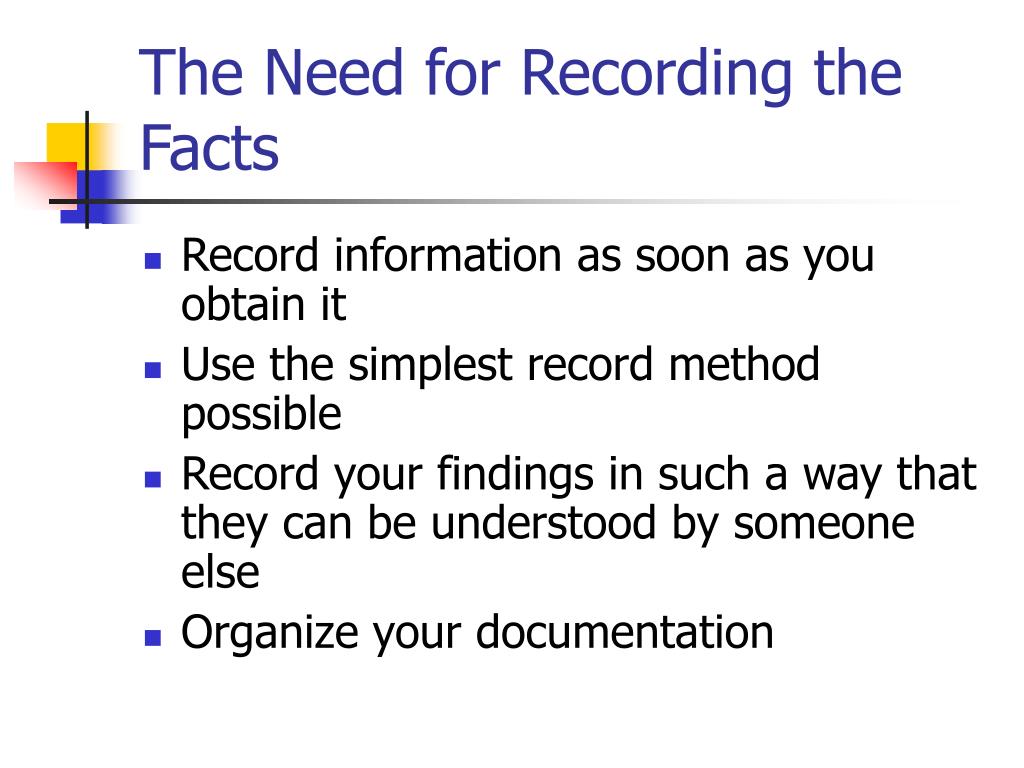

  20. The Need for Recording the Facts • Record information as soon as you obtain it • Use the simplest record method possible • Record your findings in such a way that they can be understood by someone else • Organize your documentation

  21. Question?
