Motivation. Expand upon knowledge base developed from Panther 1 solid rocket launch (6/28/06) Enhance relationship and training opportunities between Florida Tech, Space Florida, Air Force, and other Universities Launch first hybrid rocket from Cape Canaveral Air Force Station (CCAFS). Goals.

chandra
Télécharger la présentation

Motivation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

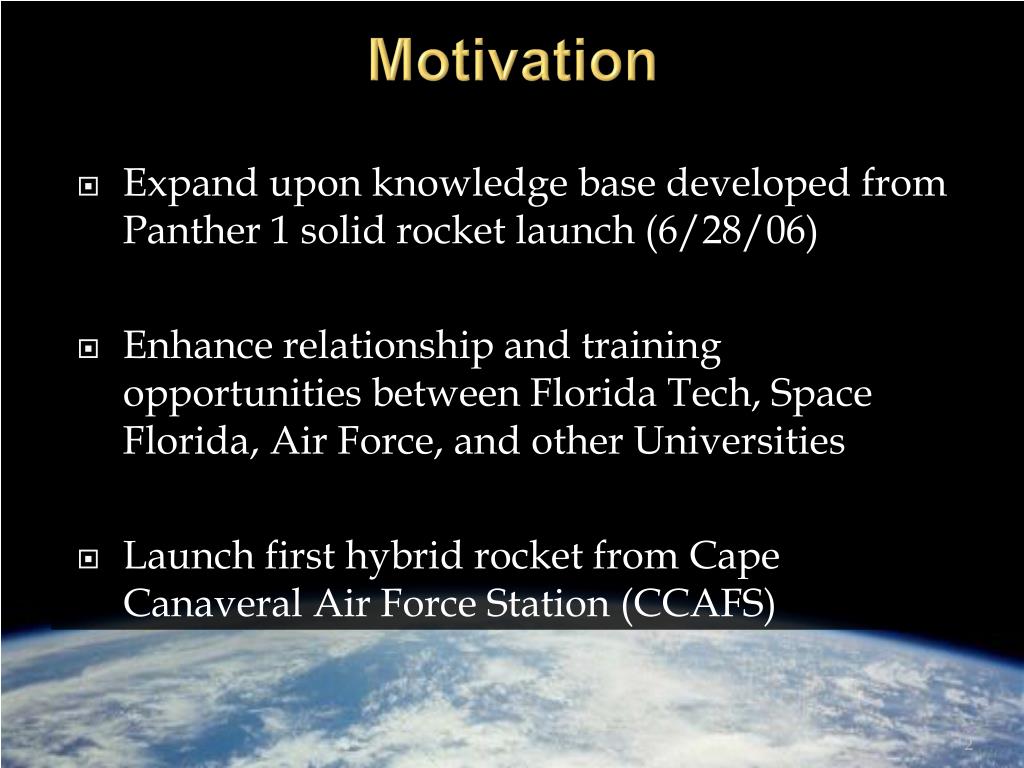

  1. Motivation • Expand upon knowledge base developed from Panther 1 solid rocket launch (6/28/06) • Enhance relationship and training opportunities between Florida Tech, Space Florida, Air Force, and other Universities • Launch first hybrid rocket from Cape Canaveral Air Force Station (CCAFS)

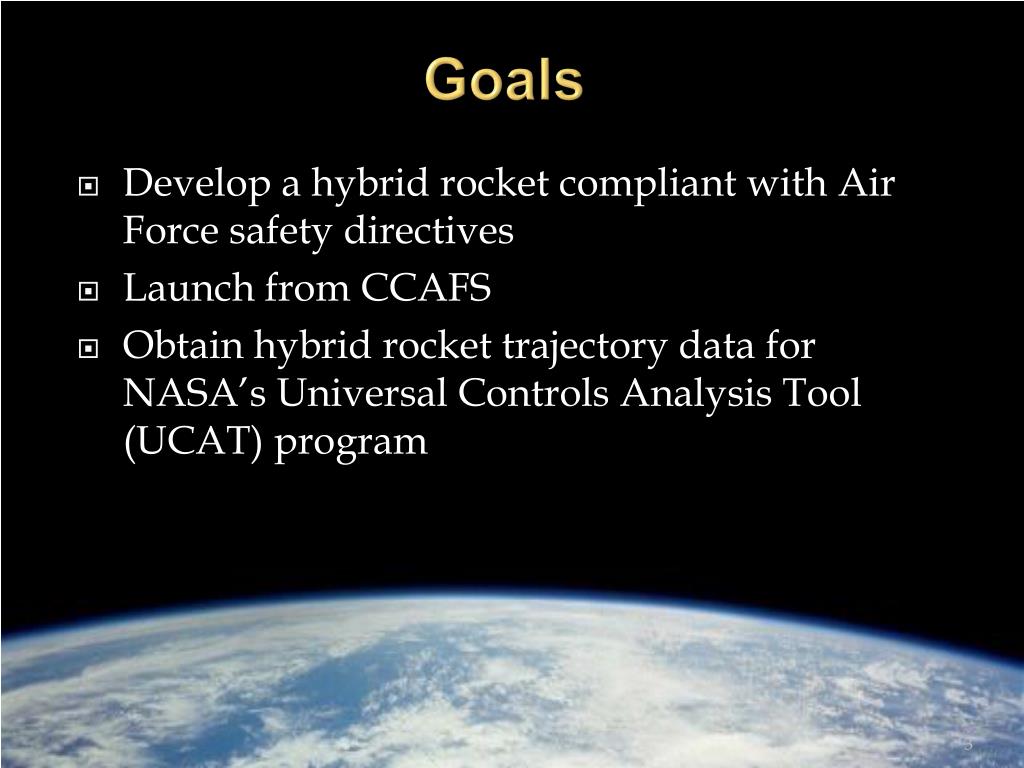

  2. Goals • Develop a hybrid rocket compliant with Air Force safety directives • Launch from CCAFS • Obtain hybrid rocket trajectory data for NASA’s Universal Controls Analysis Tool (UCAT) program

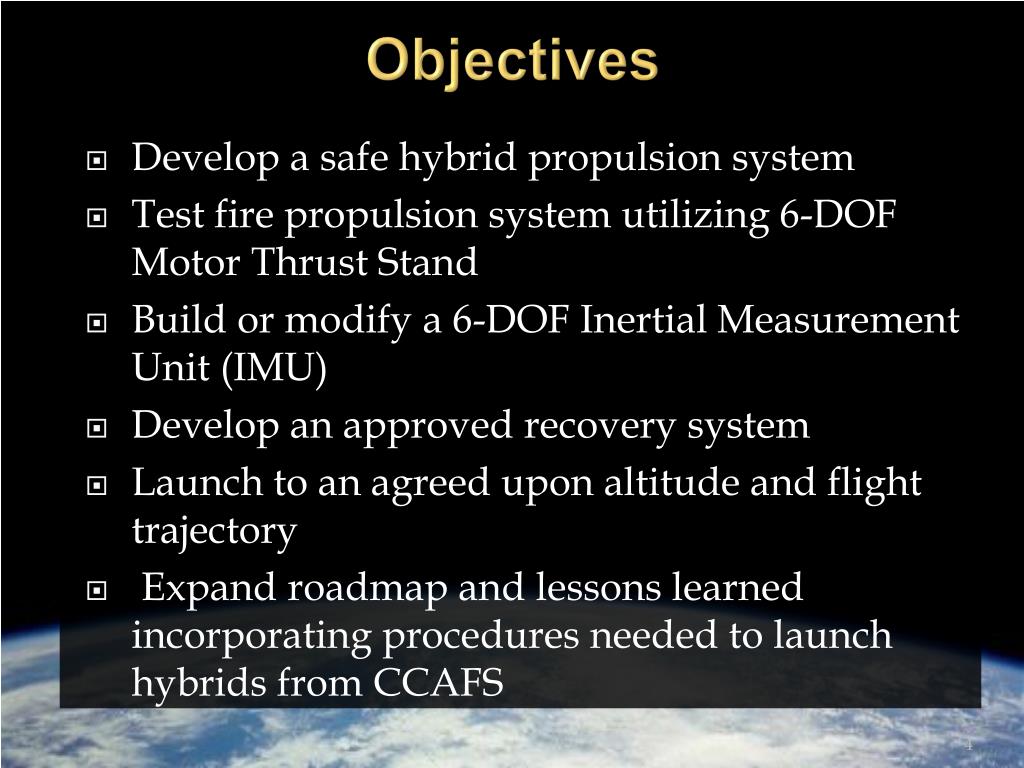

  3. Objectives • Develop a safe hybrid propulsion system • Test fire propulsion system utilizing 6-DOF Motor Thrust Stand • Build or modify a 6-DOF Inertial Measurement Unit (IMU) • Develop an approved recovery system • Launch to an agreed upon altitude and flight trajectory • Expand roadmap and lessons learned incorporating procedures needed to launch hybrids from CCAFS

  4. Requirements • Demonstrate complete compliance with 45th Space Wing safety requirements to launch at CCAFS • Develop and submit Safety Plan to University Safety Office (USO) • Test fire the propellant using the test stand to gain an accurate model for launch

  5. Hybrid Rocket Layout • Rocket design is tentative and dimensions are not set. Driving factors include: 6

  6. 3 oxidizers and fuels considered during the design phase Nitrous Oxide and HTPB were selected for their ease of manufacture and safety properties Propellant Options

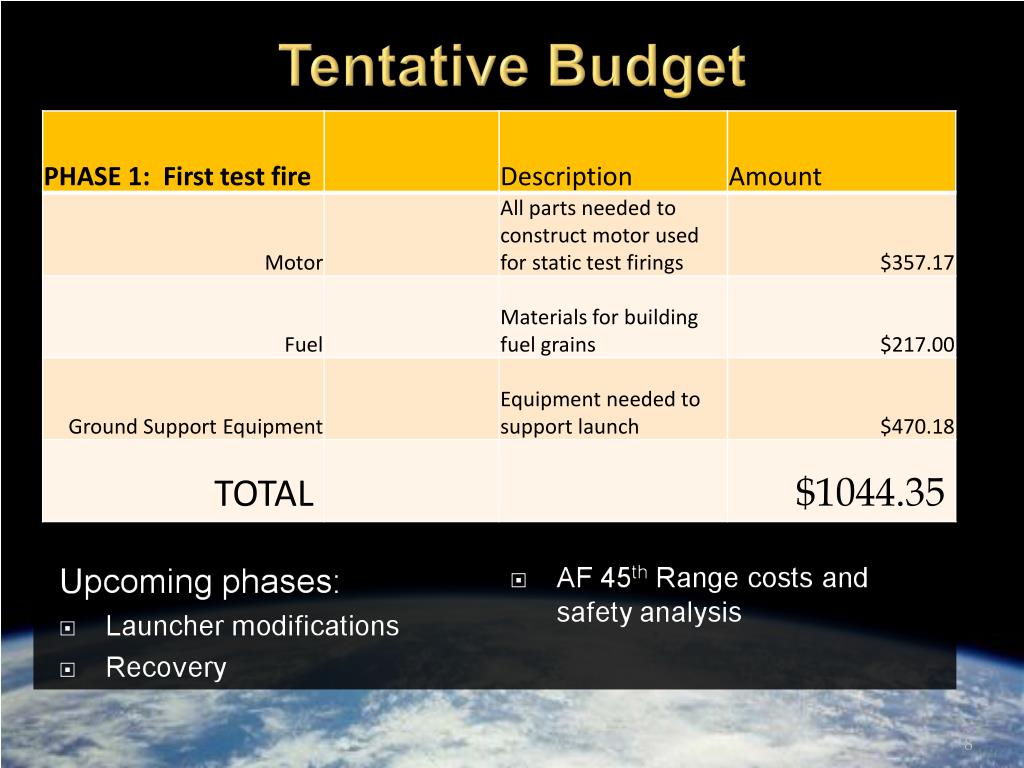

  7. Tentative Budget

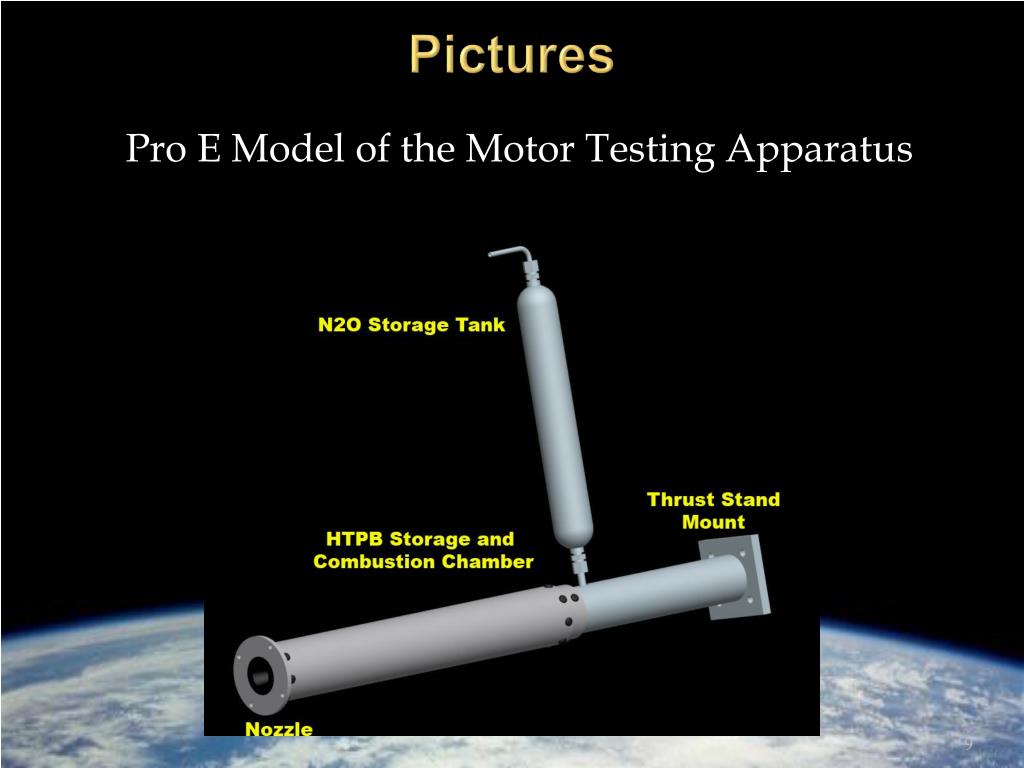

  8. Pictures Pro E Model of the Motor Testing Apparatus

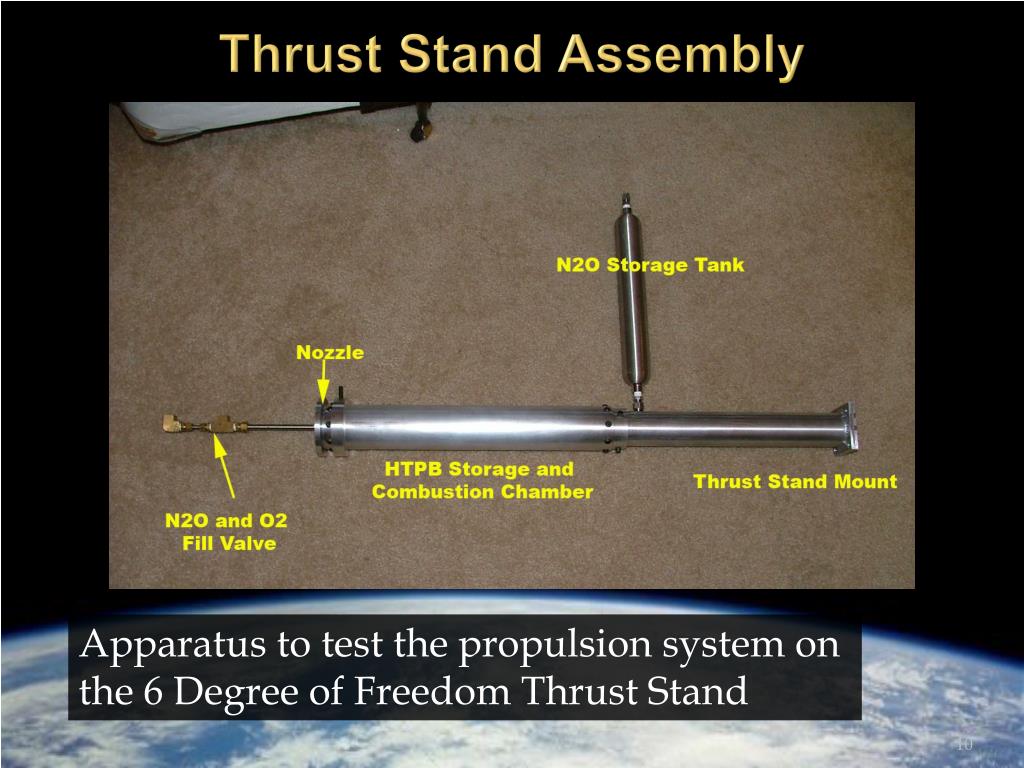

  9. Thrust Stand Assembly Apparatus to test the propulsion system on the 6 Degree of Freedom Thrust Stand

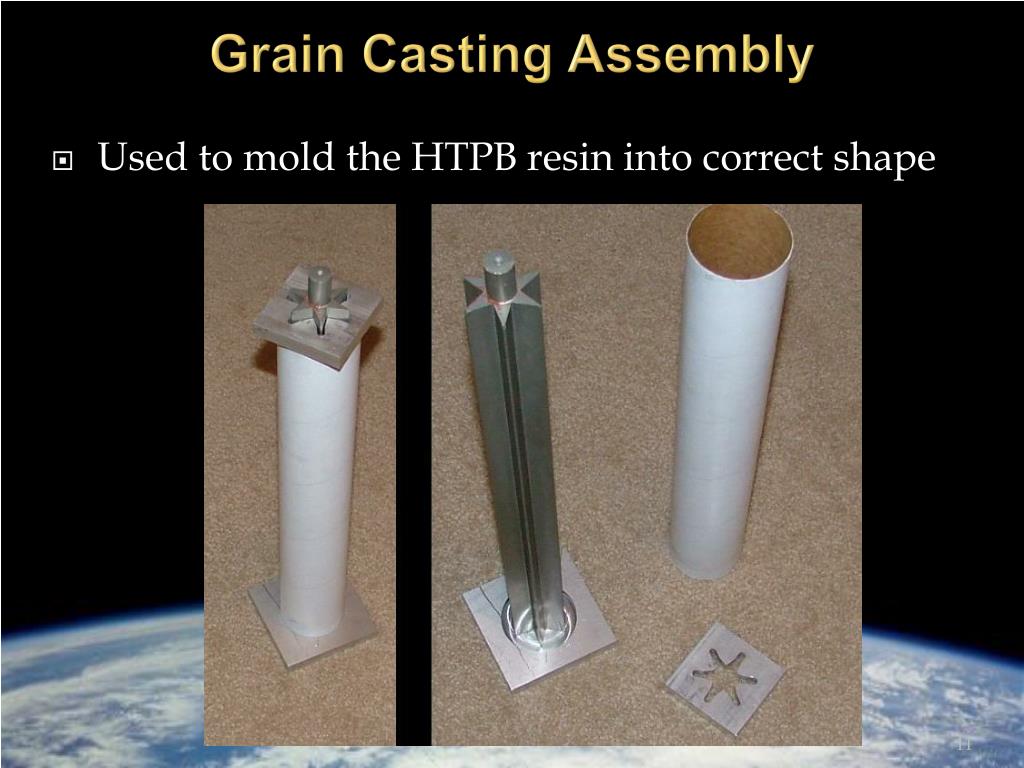

  10. Grain Casting Assembly • Used to mold the HTPB resin into correct shape

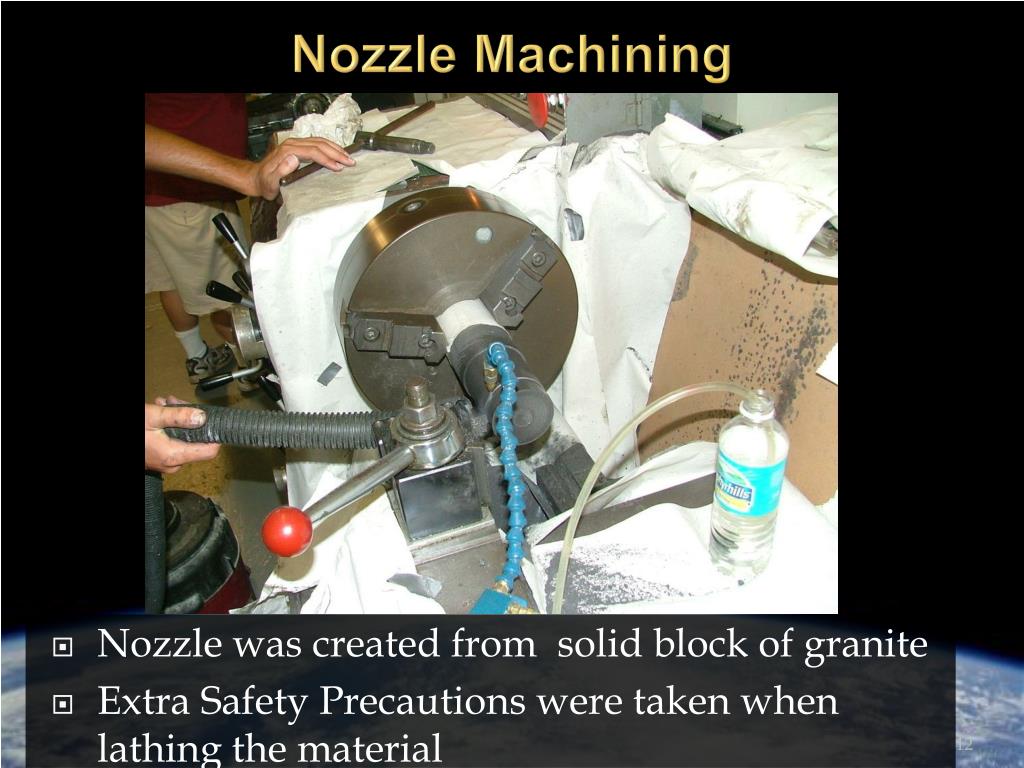

  11. Nozzle Machining • Nozzle was created from solid block of granite • Extra Safety Precautions were taken when lathing the material

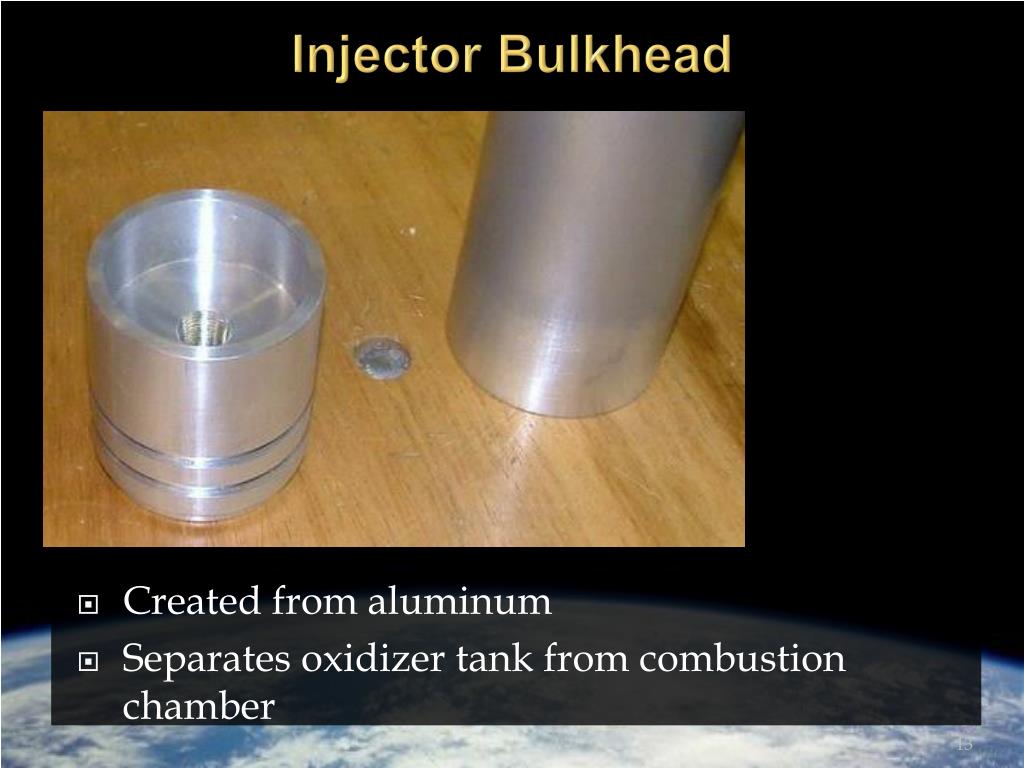

  12. Injector Bulkhead • Created from aluminum • Separates oxidizer tank from combustion chamber

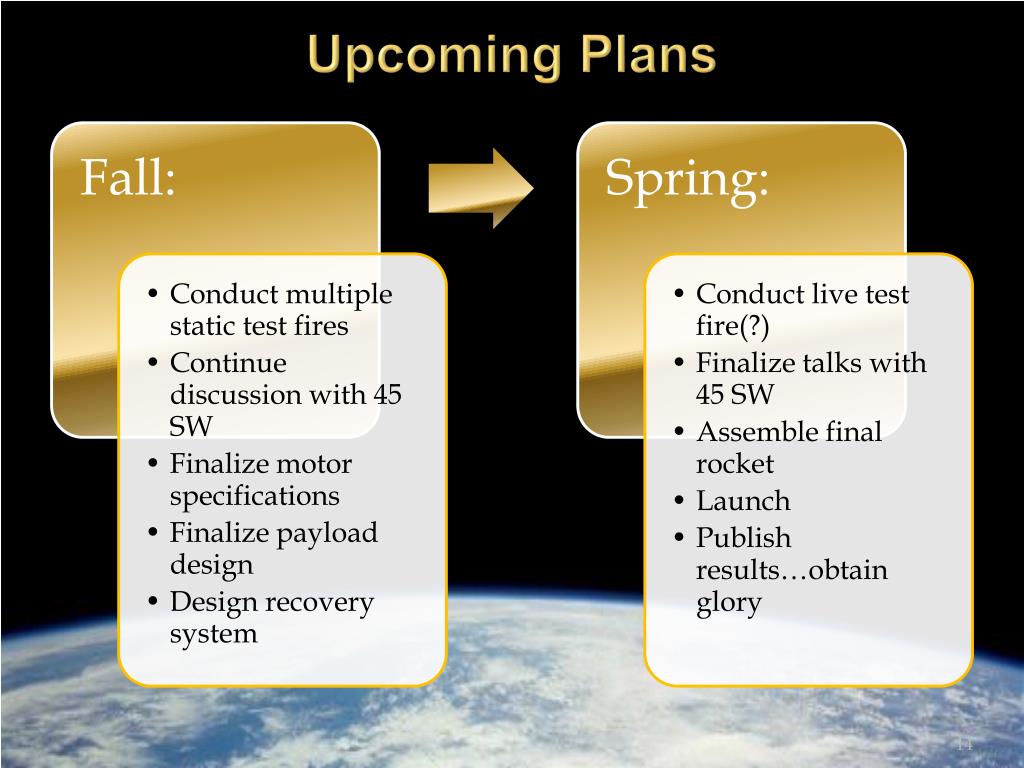

  13. Upcoming Plans
