  1. Near-real-time Backup of Large Seismic Waveform Datasets with the Storage Resource Broker Kent Lindquist, Jennifer Eakins, Frank. L. Vernon, Arcot Rajasekar February 2, 2006

  2. The EarthScope Project • Structure and Evolution of the North American Continent • NSF, IRIS • Three components: • San Andreas Fault Observatory at Depth (SAFOD) • Plate Boundary Observatory (PBO; Geodetics) • USArray (Seismic)

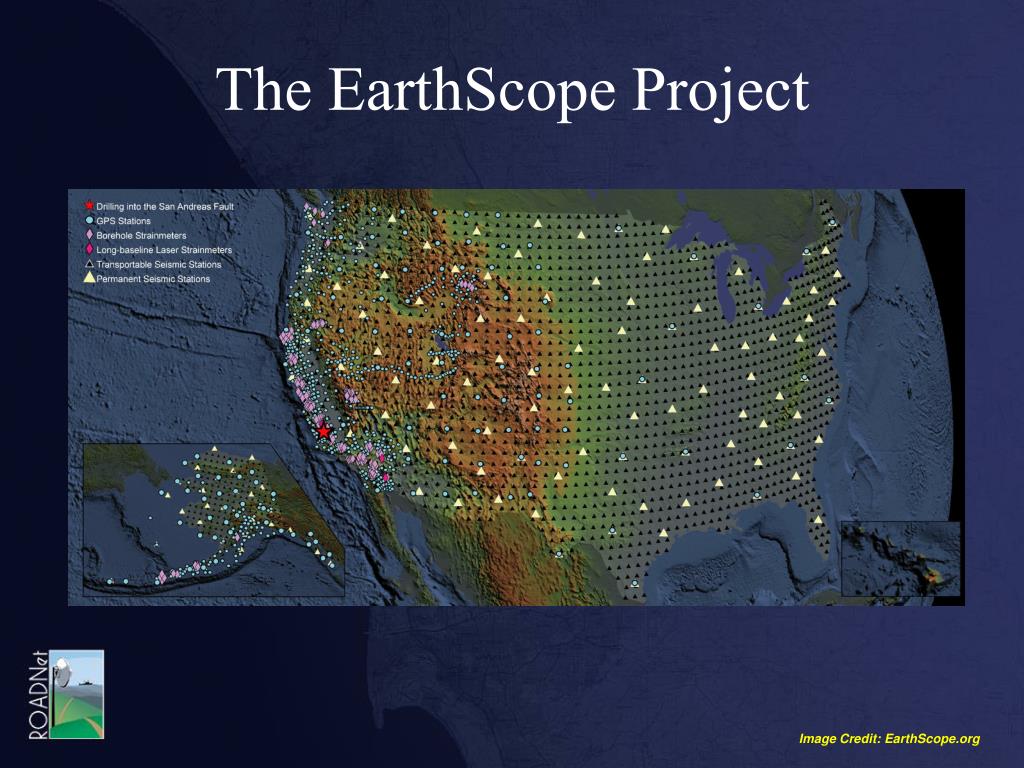

  3. The EarthScope Project Image Credit: EarthScope.org

  4. Permanent Seismic Stations Image Credit: EarthScope.org

  5. Transportable Seismic Stations Image Credit: EarthScope.org

  6. USArray Instrumentation GPS Socorro, NM Photo Credit: IRIS PASSCAL Instrument Center

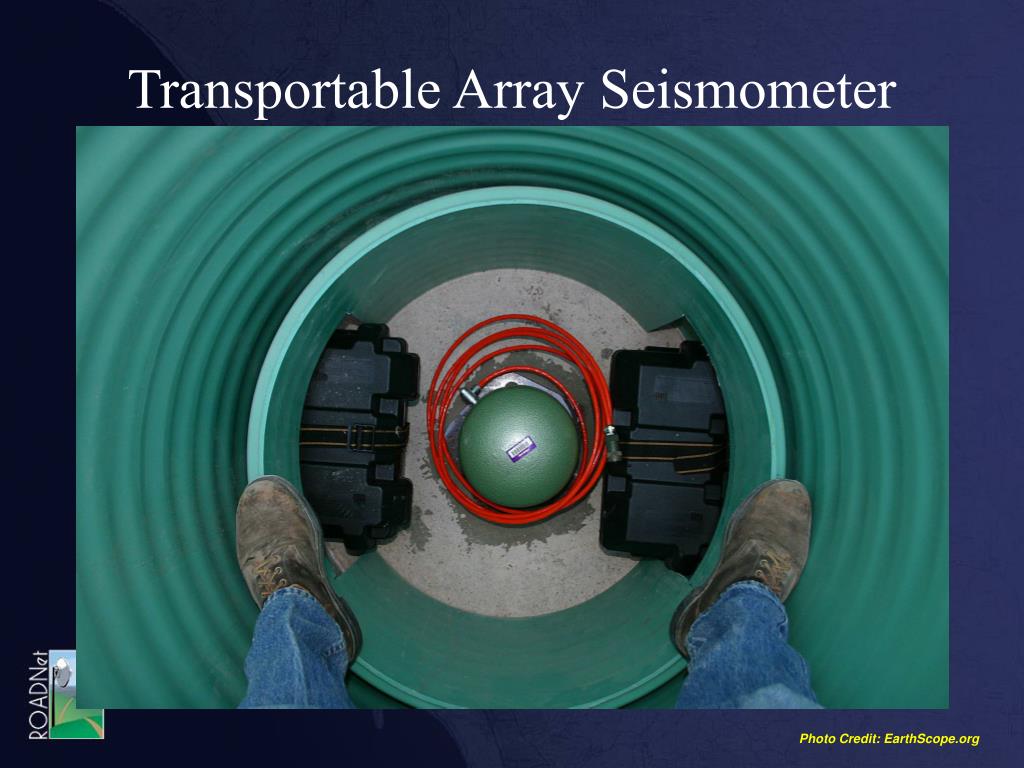

  7. Transportable Array Seismometer Photo Credit: EarthScope.org

  8. EarthScope/USArrayTransportable Array • Fixed design transportable array, “bigfoot” • 400 broadband seismometers • ~70 km spacing • ~1500 x 1500 km grid • 50 magnetotelluric field systems • ~2 year deployments at each site • rolling deployment over more than 10 years

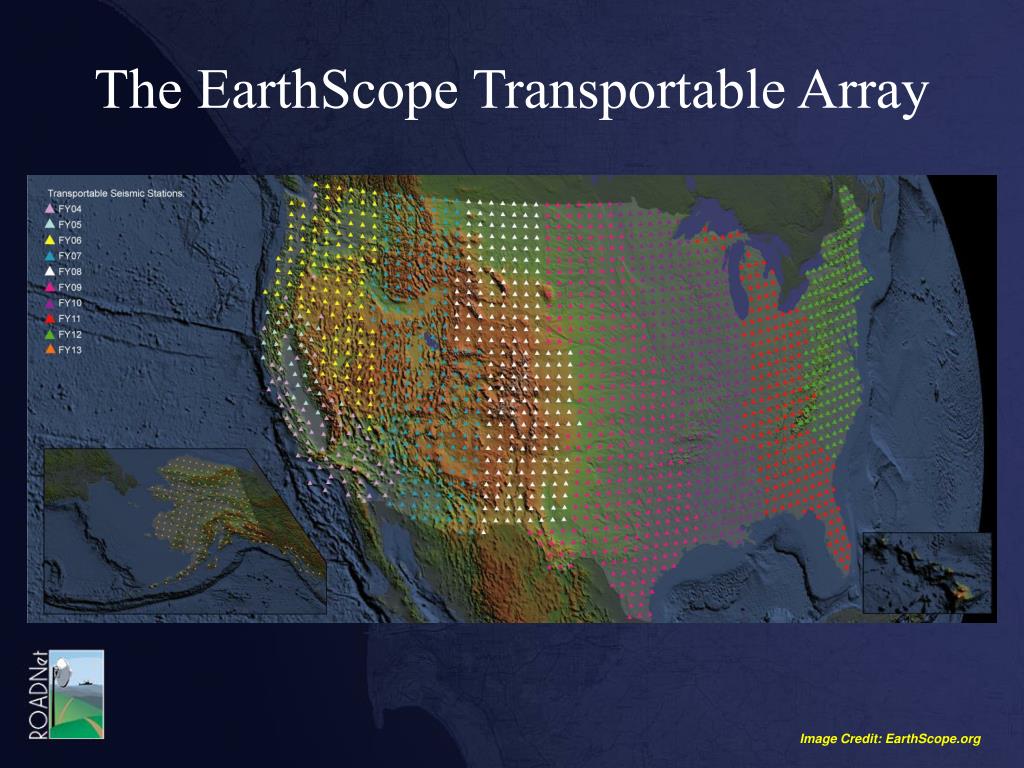

  9. The EarthScope Transportable Array Image Credit: EarthScope.org

  10. USArray Currently Deployed Stations

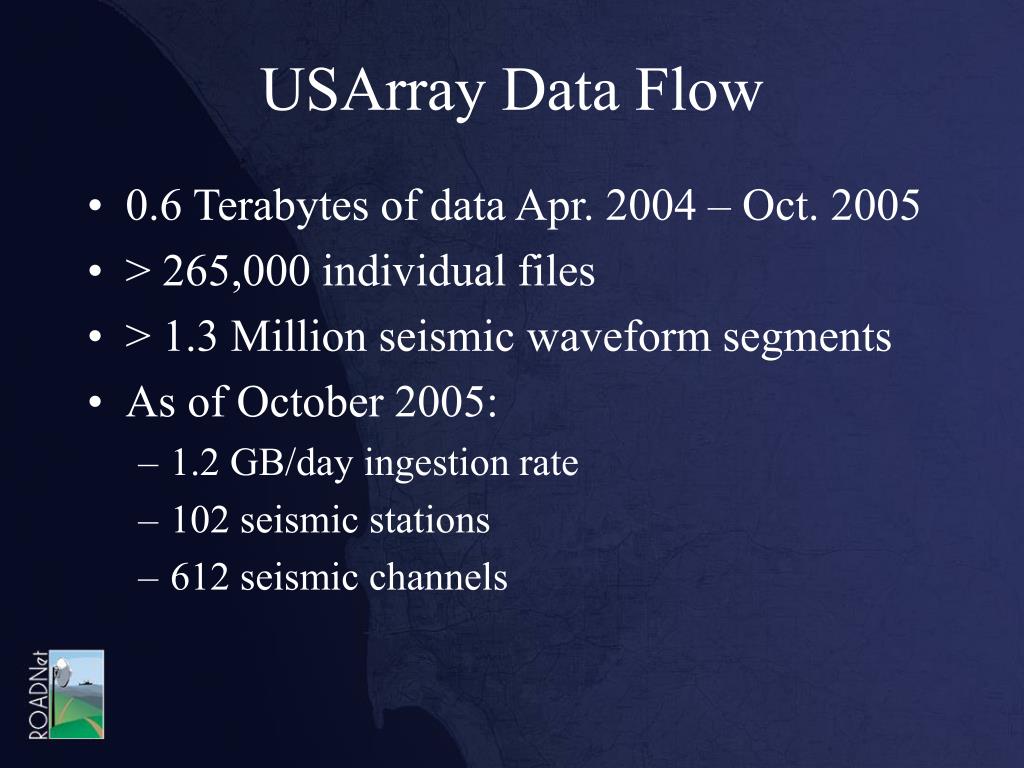

  11. USArray Data Flow • 0.6 Terabytes of data Apr. 2004 – Oct. 2005 • > 265,000 individual files • > 1.3 Million seismic waveform segments • As of October 2005: • 1.2 GB/day ingestion rate • 102 seismic stations • 612 seismic channels

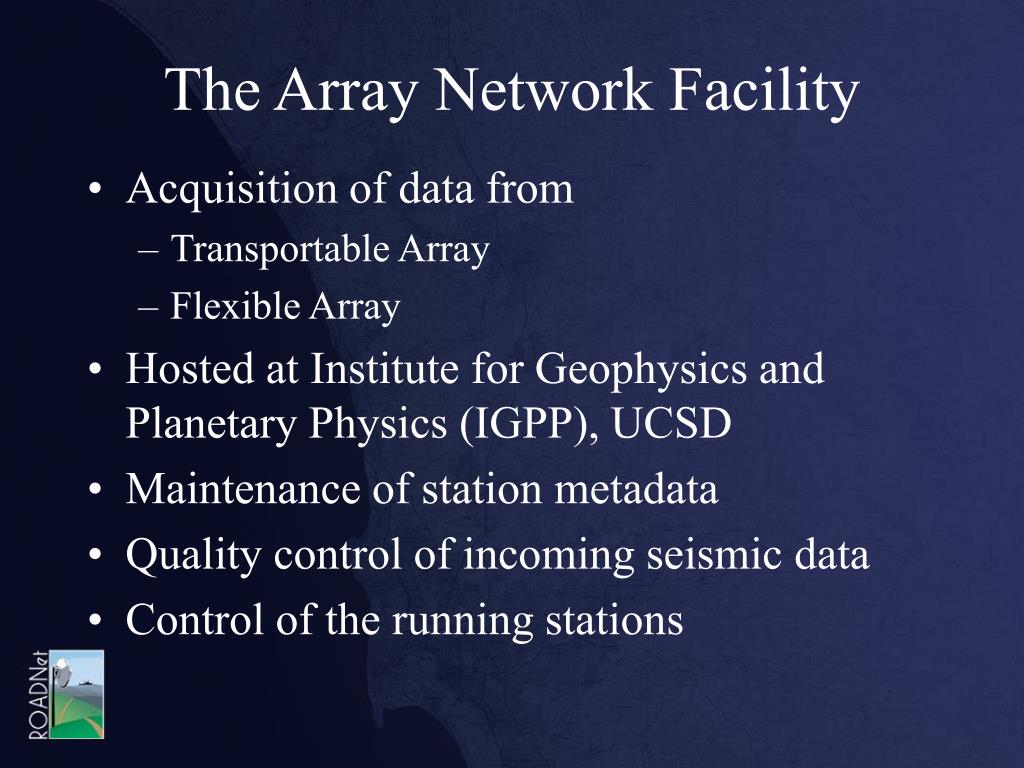

  12. The Array Network Facility • Acquisition of data from • Transportable Array • Flexible Array • Hosted at Institute for Geophysics and Planetary Physics (IGPP), UCSD • Maintenance of station metadata • Quality control of incoming seismic data • Control of the running stations

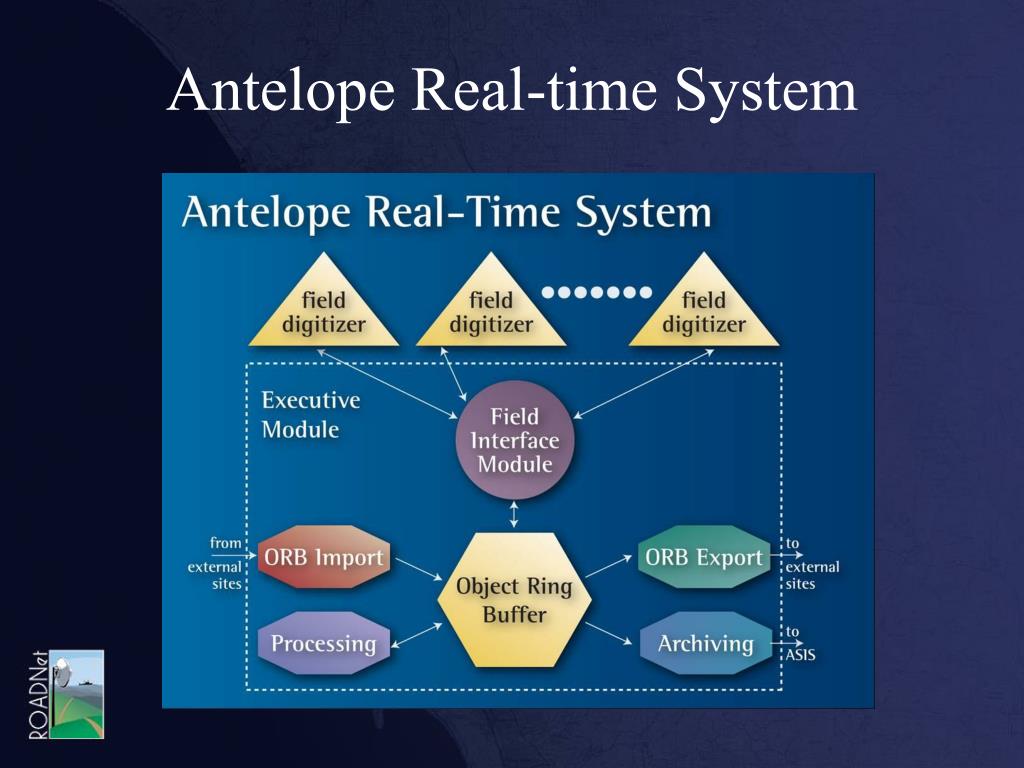

  13. Antelope Real-time System

  14. Streaming Real-time USArray Seismic Data

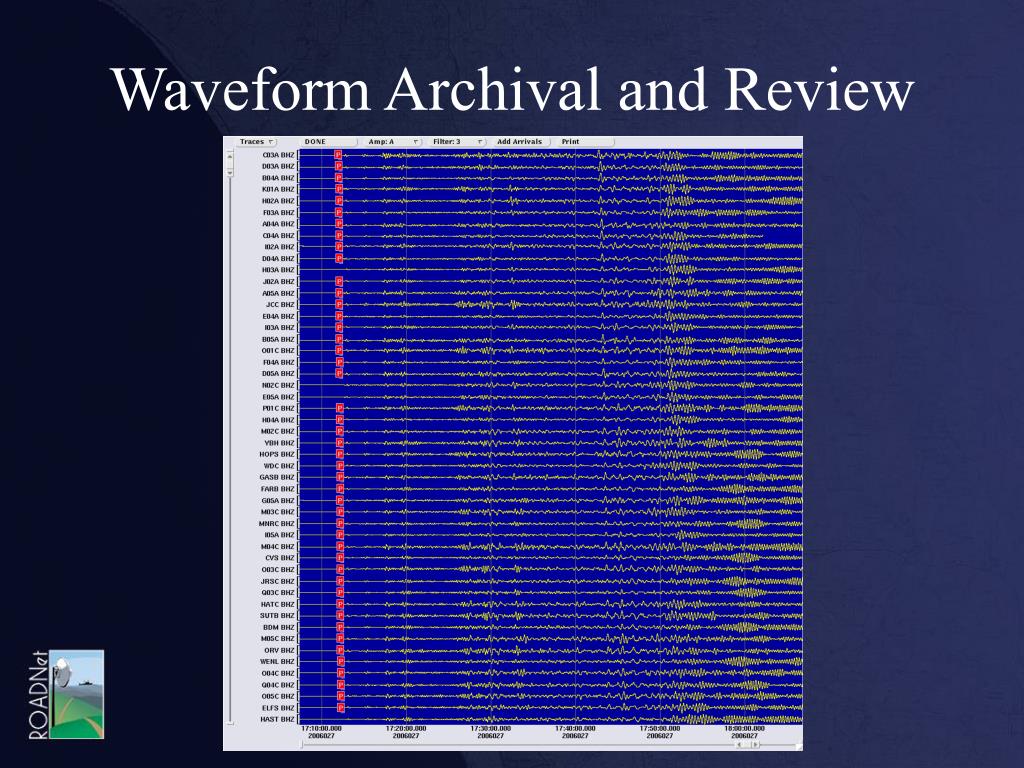

  15. Waveform Archival and Review

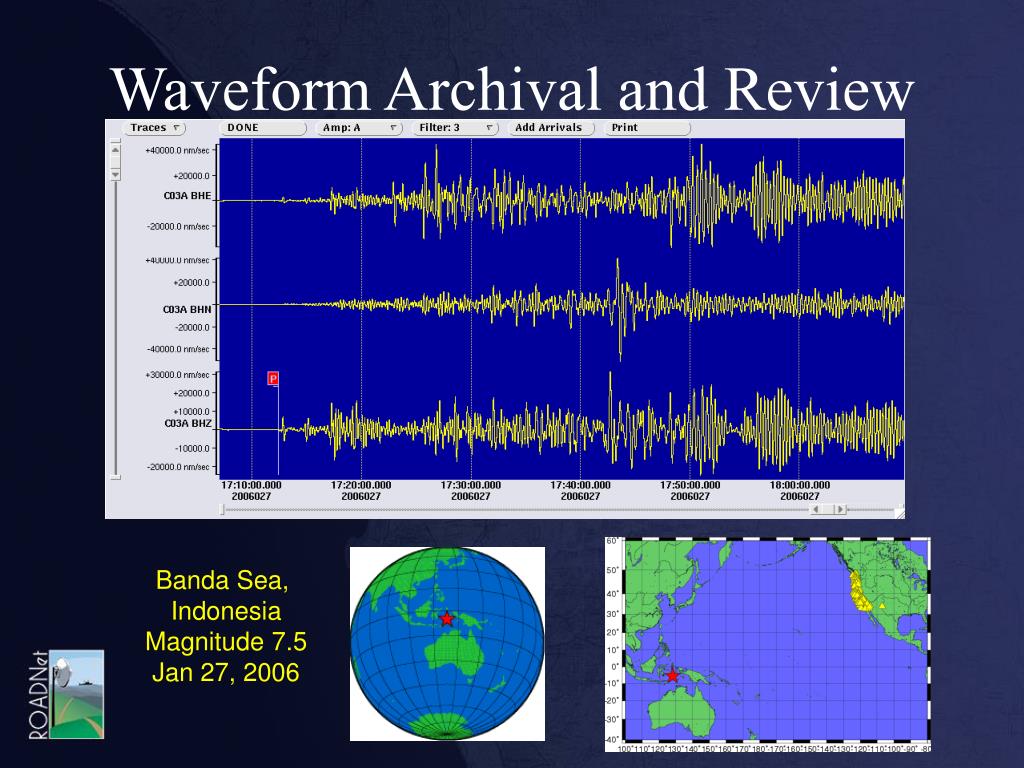

  16. Waveform Archival and Review Banda Sea, Indonesia Magnitude 7.5 Jan 27, 2006

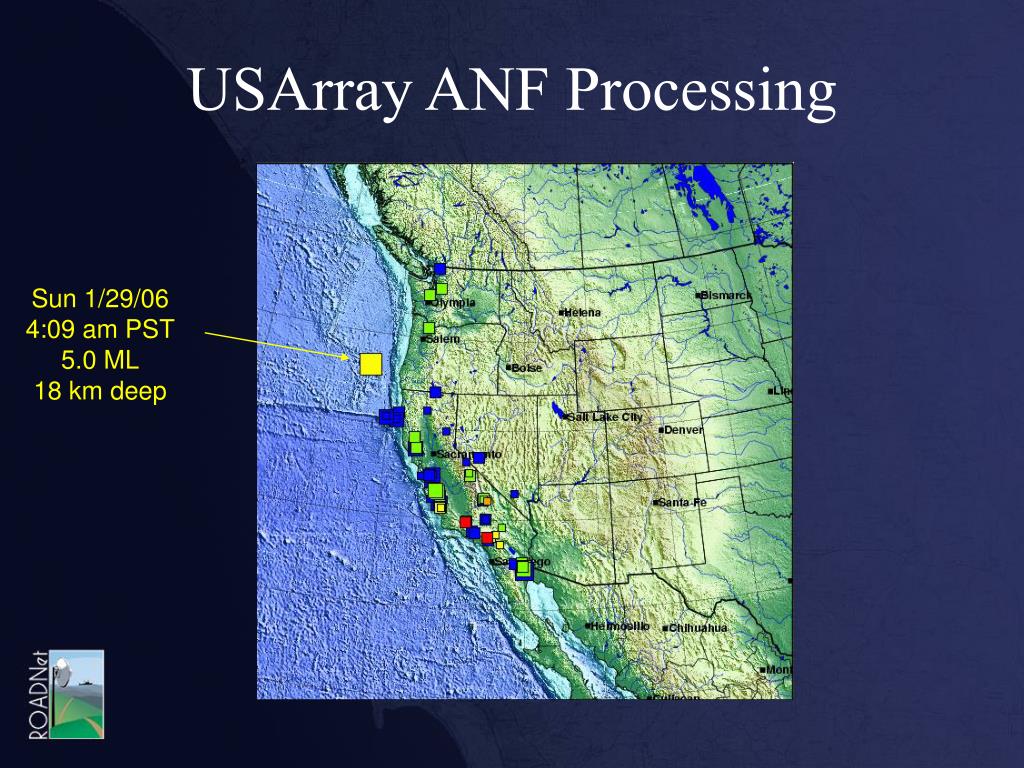

  17. USArray ANF Processing Sun 1/29/06 4:09 am PST 5.0 ML 18 km deep

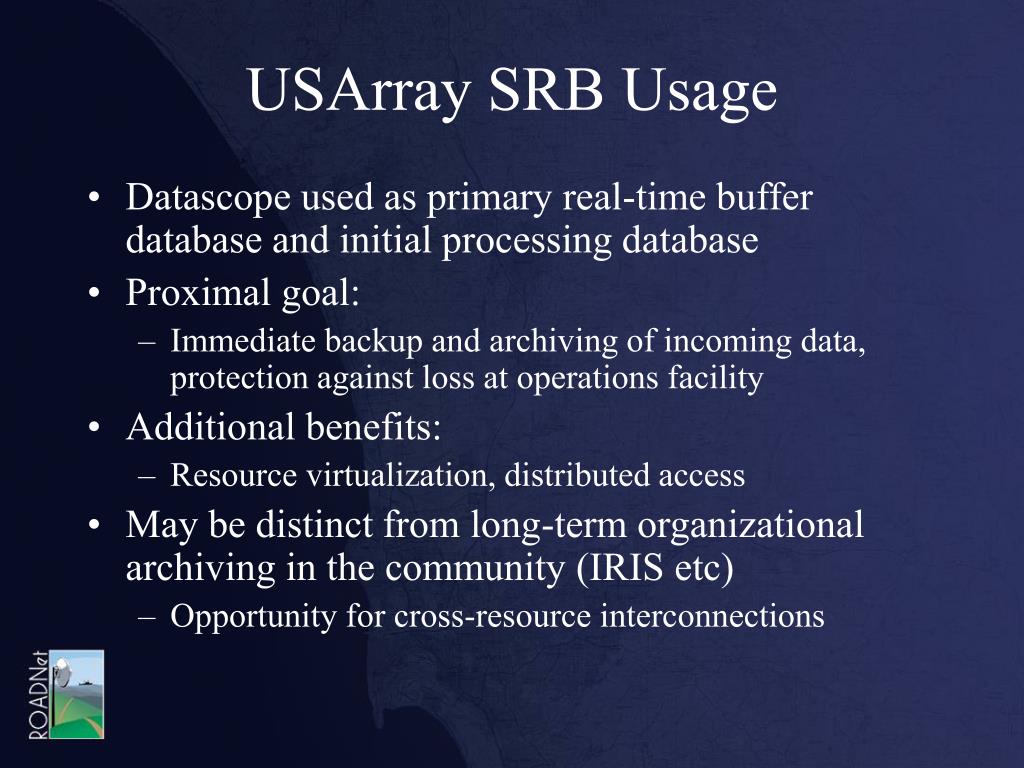

  18. USArray SRB Usage • Datascope used as primary real-time buffer database and initial processing database • Proximal goal: • Immediate backup and archiving of incoming data, protection against loss at operations facility • Additional benefits: • Resource virtualization, distributed access • May be distinct from long-term organizational archiving in the community (IRIS etc) • Opportunity for cross-resource interconnections

  19. USArray data-backup context ANF Ops (Sun Solaris) Rtbackup_srb Mercali SRB (Linux) SDSC MCAT, SRB, Storage Resources

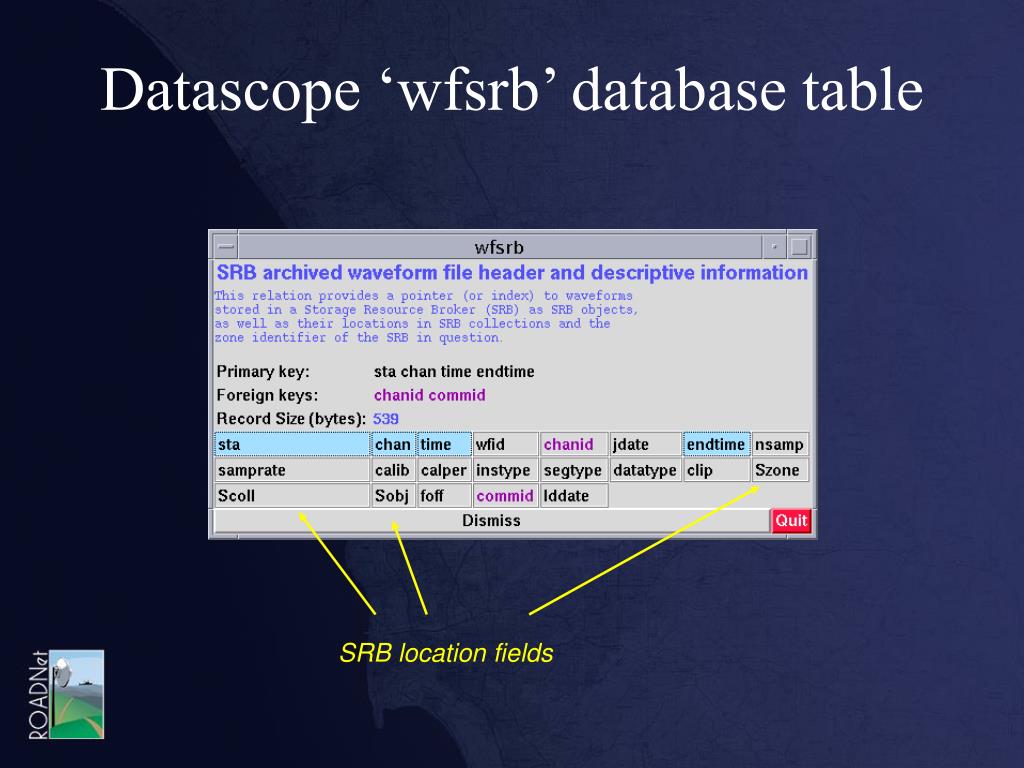

  20. Datascope ‘wfsrb’ database table SRB location fields

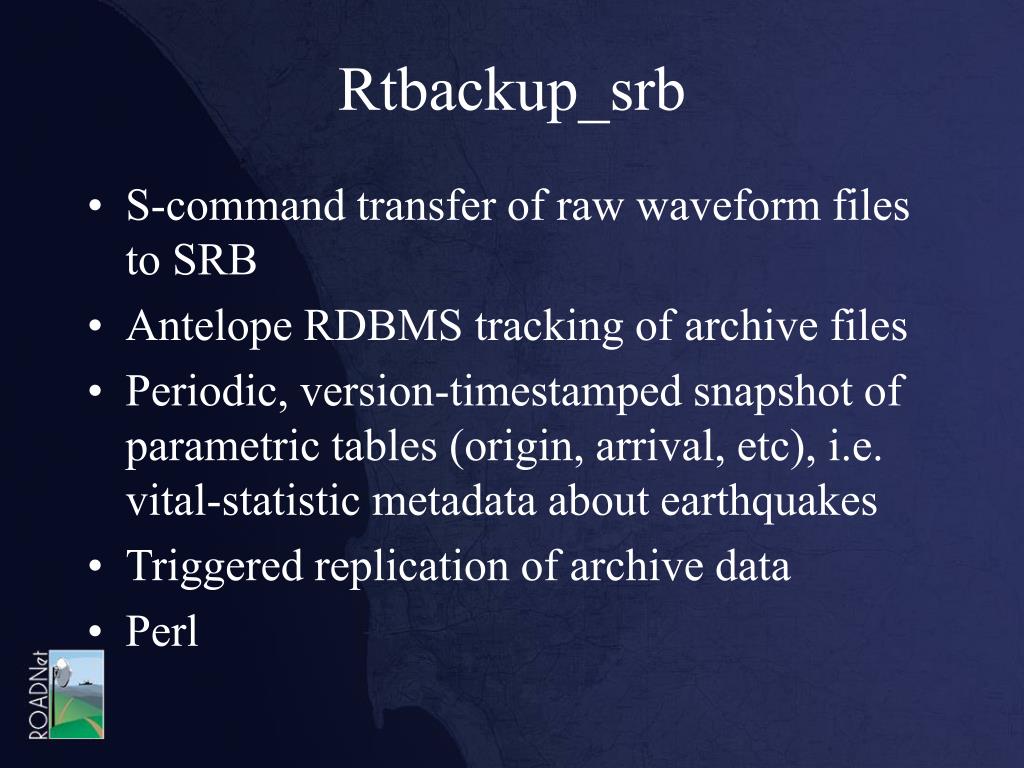

  21. Rtbackup_srb • S-command transfer of raw waveform files to SRB • Antelope RDBMS tracking of archive files • Periodic, version-timestamped snapshot of parametric tables (origin, arrival, etc), i.e. vital-statistic metadata about earthquakes • Triggered replication of archive data • Perl

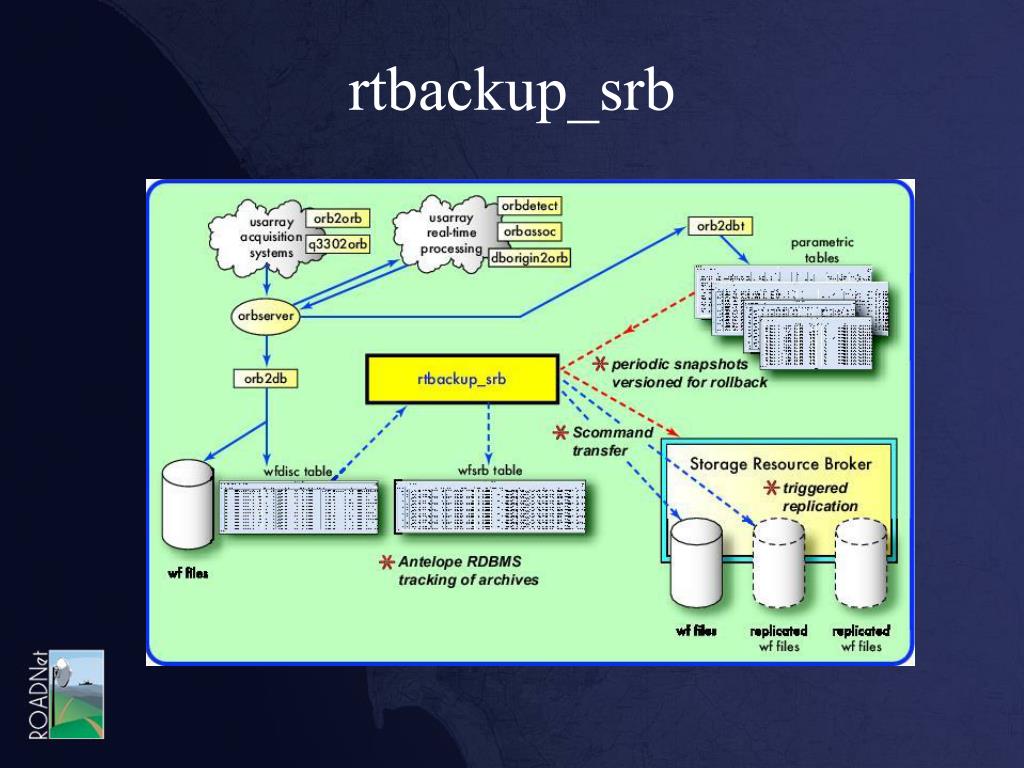

  22. rtbackup_srb

  23. Get_archive_srb • S-command script retrieval of archived data • Extraction based on subsetting commands • Recreates seismic “wfdisc” waveform database and external BLOB files of raw waveforms • Perl

  24. get_archive_srb

  25. Conclusions • 0.6 Terabytes of data Apr. 2004 – Oct. 2005 • > 265,000 individual files • > 1.3 Million seismic waveform segments • As of October 2005: • 1.2 GB/day ingestion rate • 102 seismic stations • 612 seismic channels • Backed up in SRB • SRB has contributed to at least one large operational-robustness event
