Spectrum Occupancy Sensing (SOS) Study Group under the 802.22 Working Group

Spectrum Occupancy Sensing (SOS) Study Group under the 802.22 Working Group. Date: 2013-11-14. Authors:. Summary and Motivation.

chaz
Télécharger la présentation

Spectrum Occupancy Sensing (SOS) Study Group under the 802.22 Working Group

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

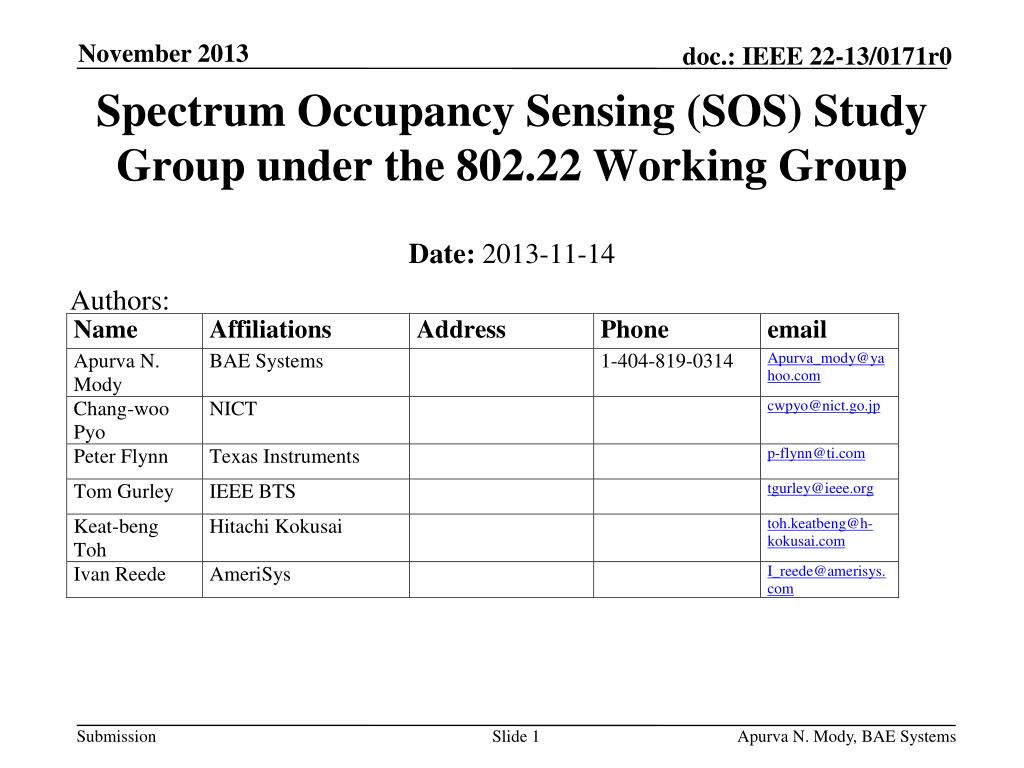

  1. Spectrum Occupancy Sensing (SOS) Study Group under the 802.22 Working Group • Date:2013-11-14 Authors: Apurva N. Mody, BAE Systems

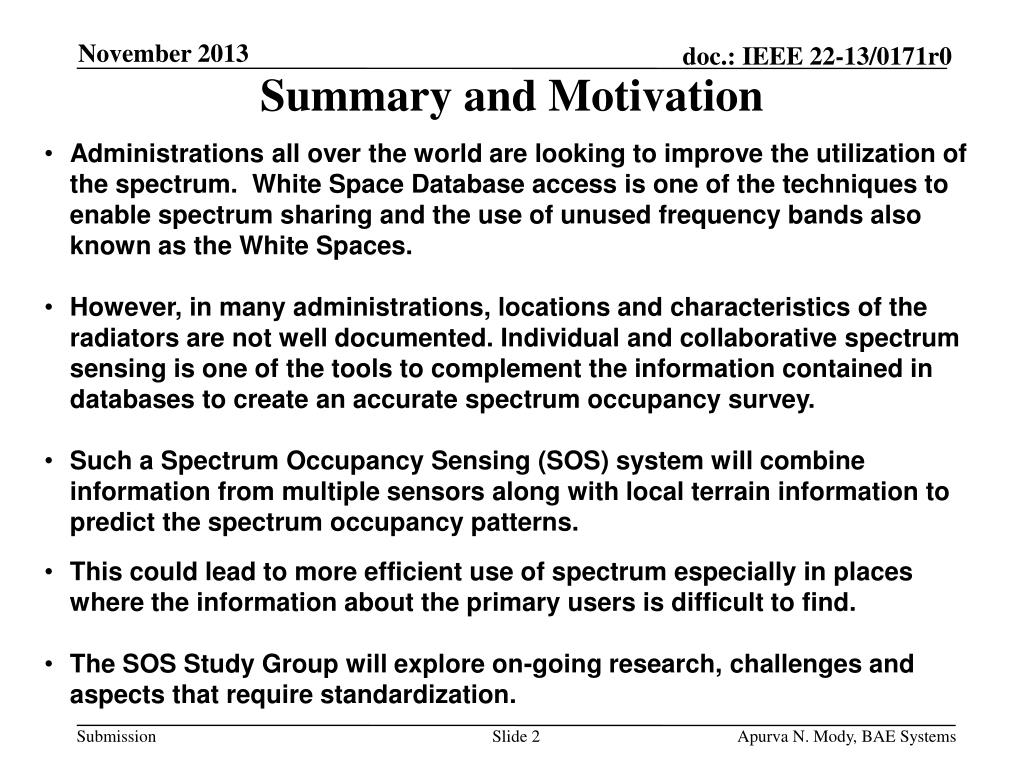

  2. Summary and Motivation • Administrations all over the world are looking to improve the utilization of the spectrum. White Space Database access is one of the techniques to enable spectrum sharing and the use of unused frequency bands also known as the White Spaces. • However, in many administrations, locations and characteristics of the radiators are not well documented. Individual and collaborative spectrum sensing is one of the tools to complement the information contained in databases to create an accurate spectrum occupancy survey. • Such a Spectrum Occupancy Sensing (SOS) system will combine information from multiple sensors along with local terrain information to predict the spectrum occupancy patterns. • This could lead to more efficient use of spectrum especially in places where the information about the primary users is difficult to find. • The SOS Study Group will explore on-going research, challenges and aspects that require standardization. Apurva N. Mody, BAE Systems

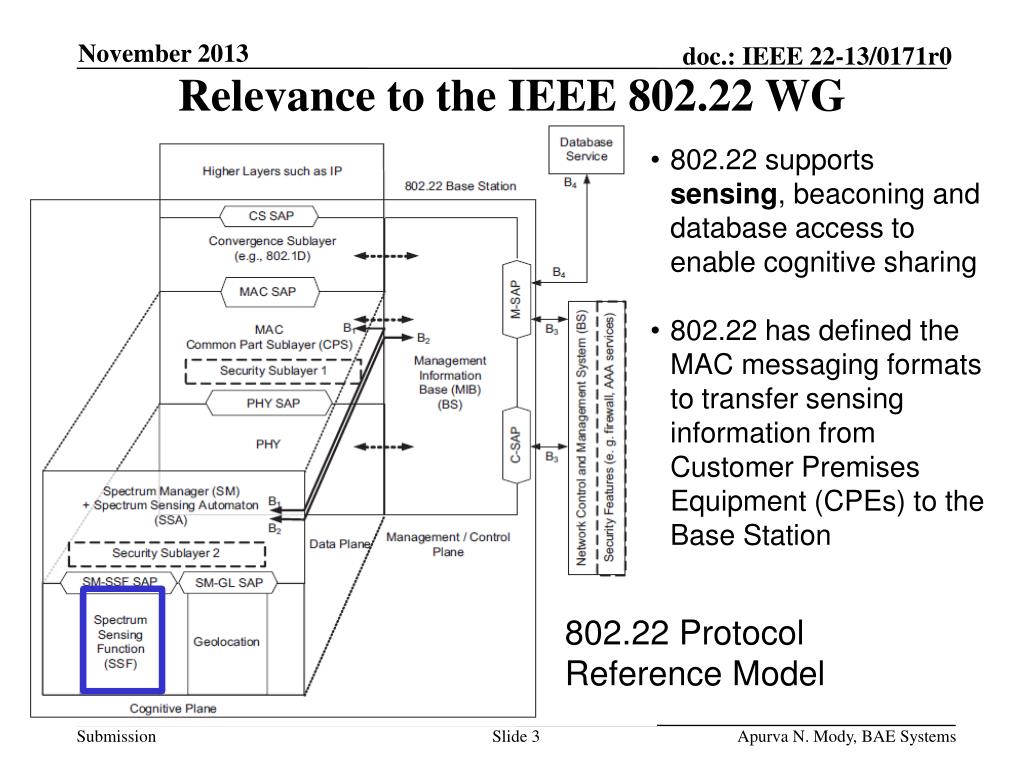

  3. Relevance to the IEEE 802.22 WG • 802.22 supports sensing, beaconing and database access to enable cognitive sharing • 802.22 has defined the MAC messaging formats to transfer sensing information from Customer Premises Equipment (CPEs) to the Base Station 802.22 Protocol Reference Model Apurva N. Mody, BAE Systems

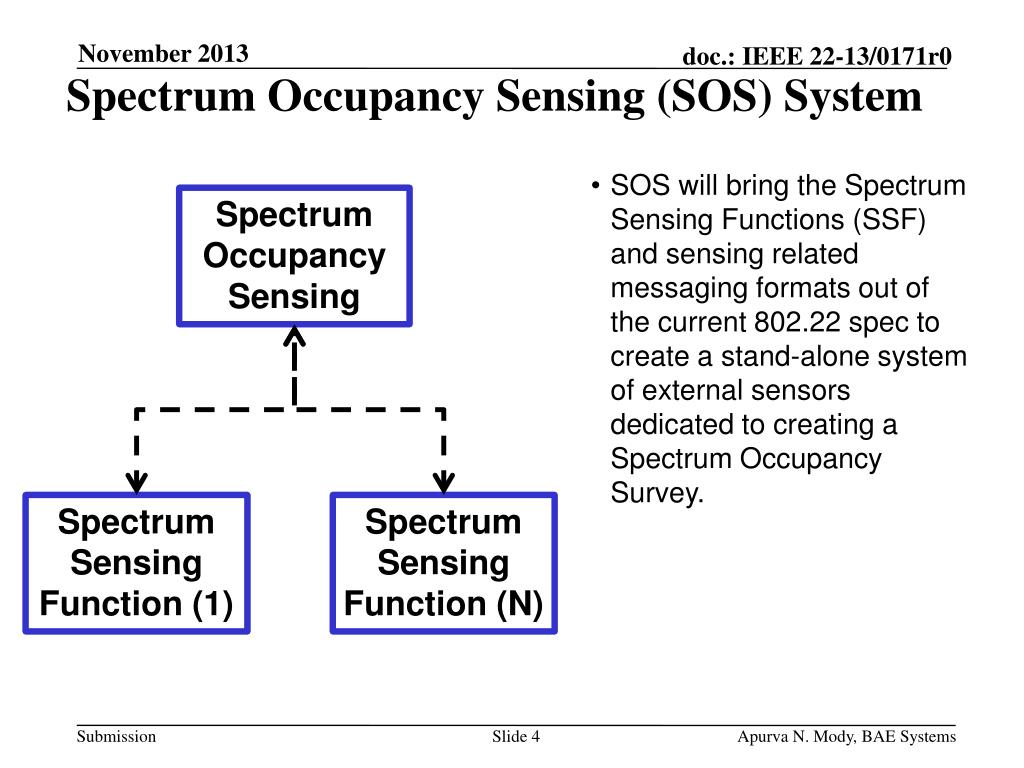

  4. Spectrum Occupancy Sensing (SOS) System • SOS will bring the Spectrum Sensing Functions (SSF) and sensing related messaging formats out of the current 802.22 spec to create a stand-alone system of external sensors dedicated to creating a Spectrum Occupancy Survey. Spectrum Occupancy Sensing Spectrum Sensing Function (1) Spectrum Sensing Function (N) Apurva N. Mody, BAE Systems

  5. Timelines of the Study Group 2013 Nov 2014 MARCH 2014 JULY .. STUDY GROUP FORMED OUTREACH TO OTHER SIMILAR ACTIVITIES DEVELOP PAR AND 5C PAR AND 5C APPROVED BY THE EC SOS ACTIVITY BEGINS Apurva N. Mody, BAE Systems
