1 / 9

NEO

NEO. Unique Features: Innovative, ergonomic design with unique tilted display angled for optimal viewing 2.7” bright, crisp, colour touch-screen display Expansion capability Choice of keypads data capture options Full-shift battery capacity. Compact Handheld Computer. About the NEO.

chelsa
Télécharger la présentation

NEO

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

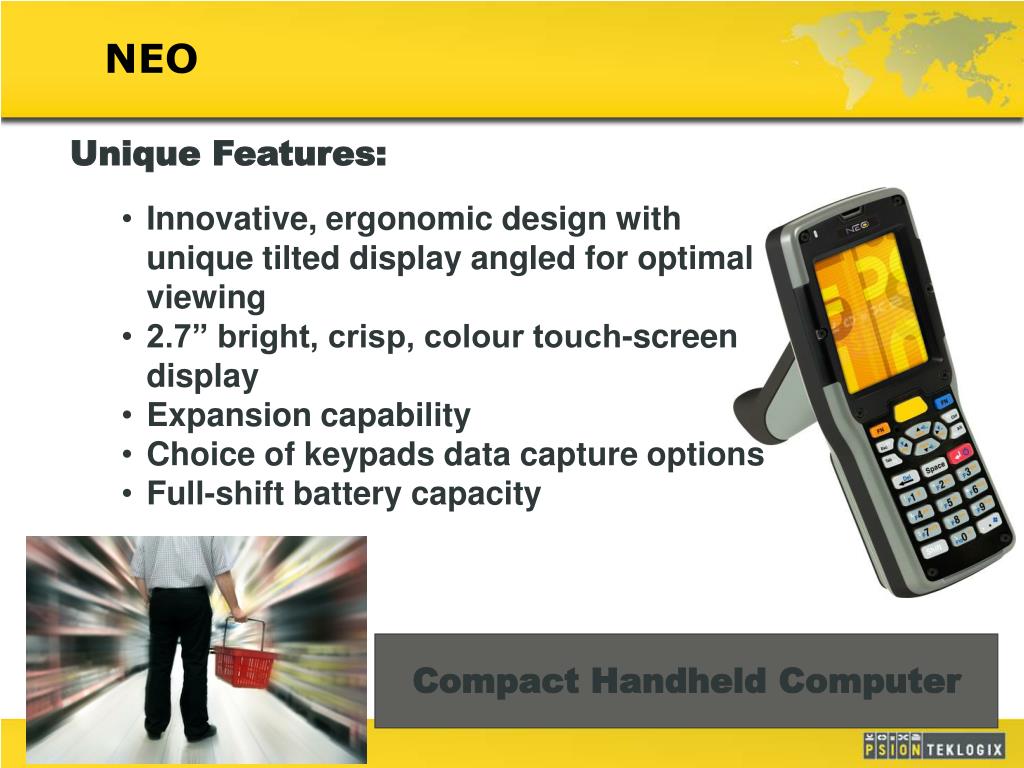

  1. NEO Unique Features: • Innovative, ergonomic design with unique tilted display angled for optimal viewing • 2.7” bright, crisp, colour touch-screen display • Expansion capability • Choice of keypads data capture options • Full-shift battery capacity Compact Handheld Computer

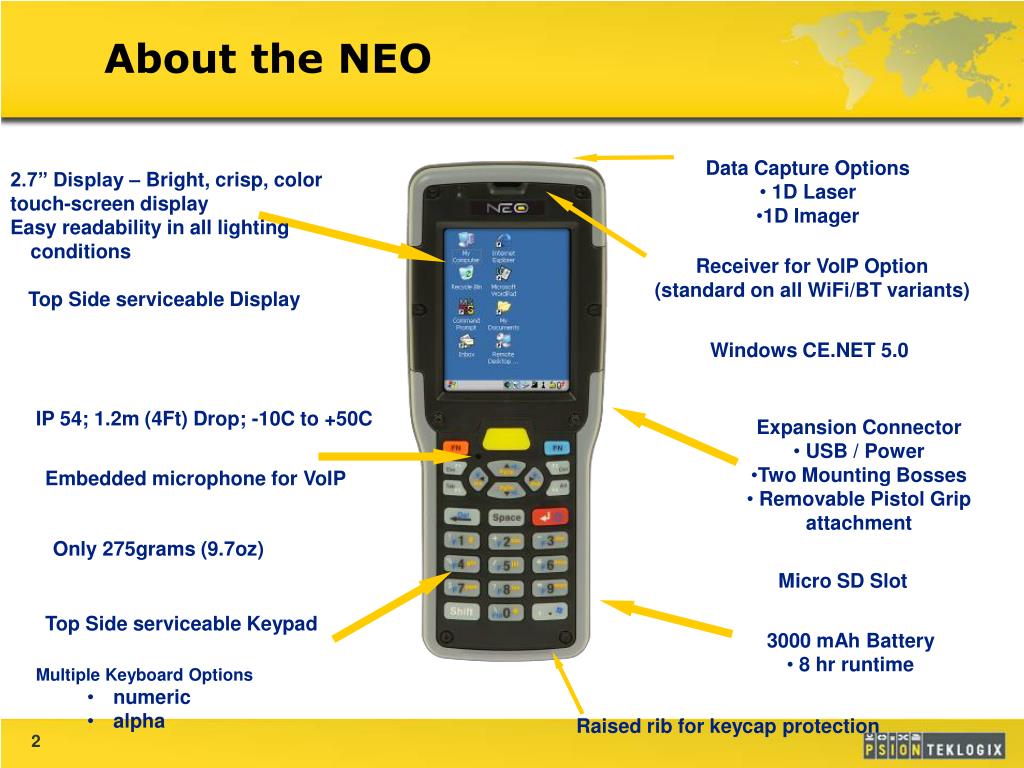

  2. About the NEO Data Capture Options • 1D Laser • 1D Imager 2.7” Display – Bright, crisp, color touch-screen display Easy readability in all lighting conditions Receiver for VoIP Option (standard on all WiFi/BT variants) Top Side serviceable Display Windows CE.NET 5.0 IP 54; 1.2m (4Ft) Drop; -10C to +50C Expansion Connector • USB / Power • Two Mounting Bosses • Removable Pistol Grip attachment Embedded microphone for VoIP Only 275grams (9.7oz) Micro SD Slot Top Side serviceable Keypad 3000 mAh Battery • 8 hr runtime Multiple Keyboard Options • numeric • alpha Raised rib for keycap protection

  3. How to Spec a Neo Neo PX750 Light Industrial Handheld PX750, 1D Scanner, Wifi or Batch, Bluetooth, CE5.0, Wrist Strap, Stylus, 128MB Flash/128MB SDRAM, Color Touch Screen, 3000 mAh Battery

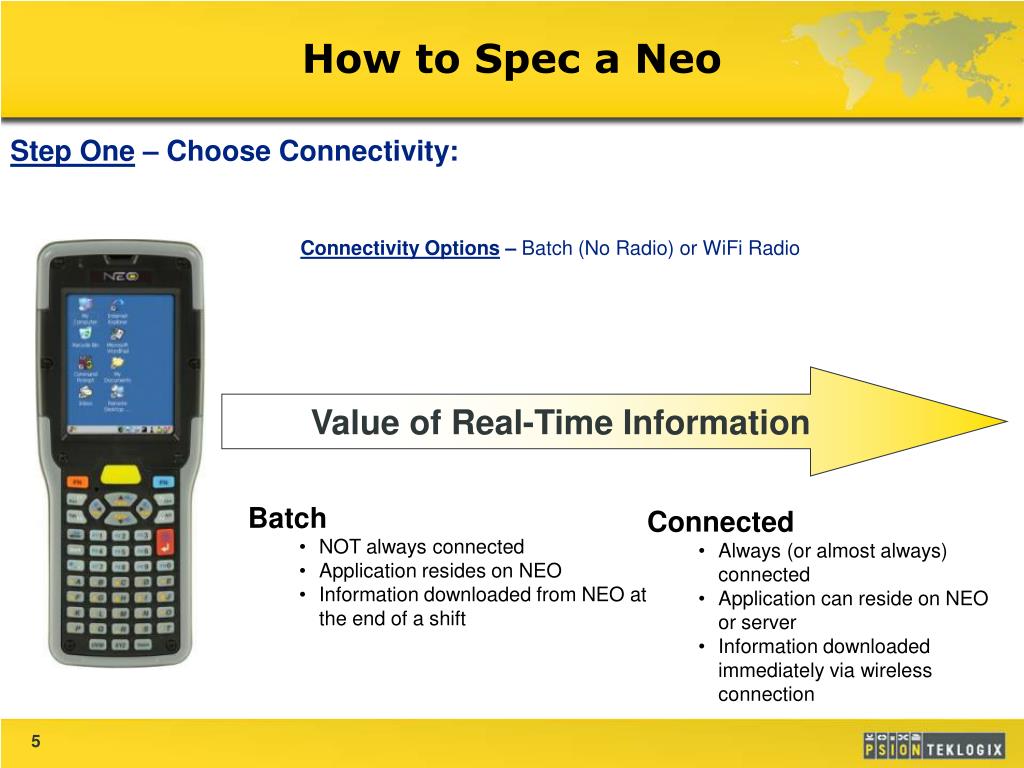

  4. How to Spec a Neo Step One – Choose Connectivity: Connectivity Options – Batch (No Radio) or WiFi Radio Value of Real-Time Information Batch • NOT always connected • Application resides on NEO • Information downloaded from NEO at the end of a shift Connected • Always (or almost always) connected • Application can reside on NEO or server • Information downloaded immediately via wireless connection

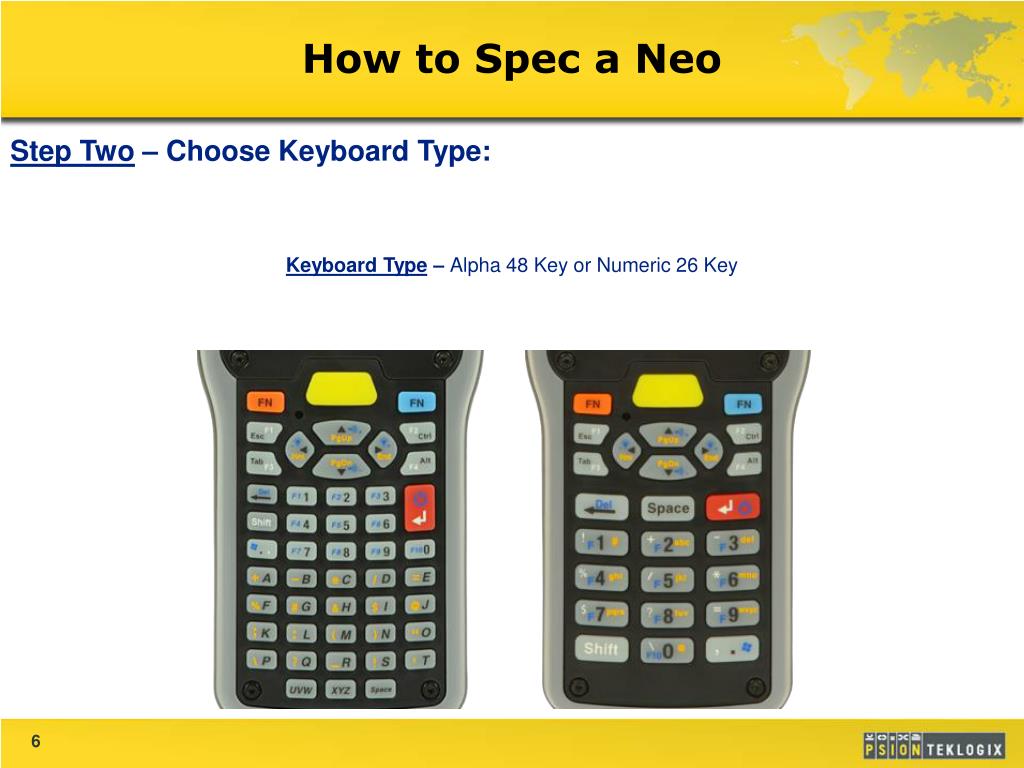

  5. How to Spec a Neo Step Two – Choose Keyboard Type: Keyboard Type – Alpha 48 Key or Numeric 26 Key

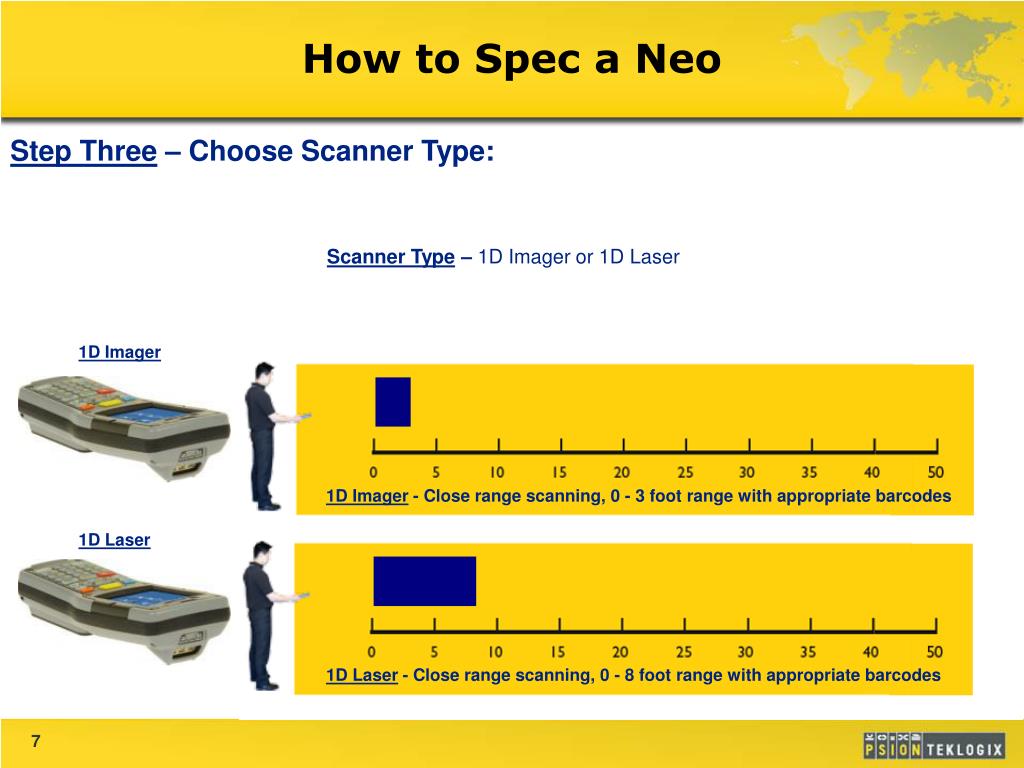

  6. How to Spec a Neo Step Three – Choose Scanner Type: Scanner Type – 1D Imager or 1D Laser 1D Imager 1D Imager - Close range scanning, 0 - 3 foot range with appropriate barcodes 1D Laser 1D Laser - Close range scanning, 0 - 8 foot range with appropriate barcodes

  7. How to Spec a Neo Step Four – Choose Charging Method: PX3004 – Quad Dock, with Ethernet WA3006 – Spare Battery3300 mAh PX3001 – Single Desktop Charger Kit WA3001-G1 – Single Battery Charger WA3004 – Quad Battery Charger

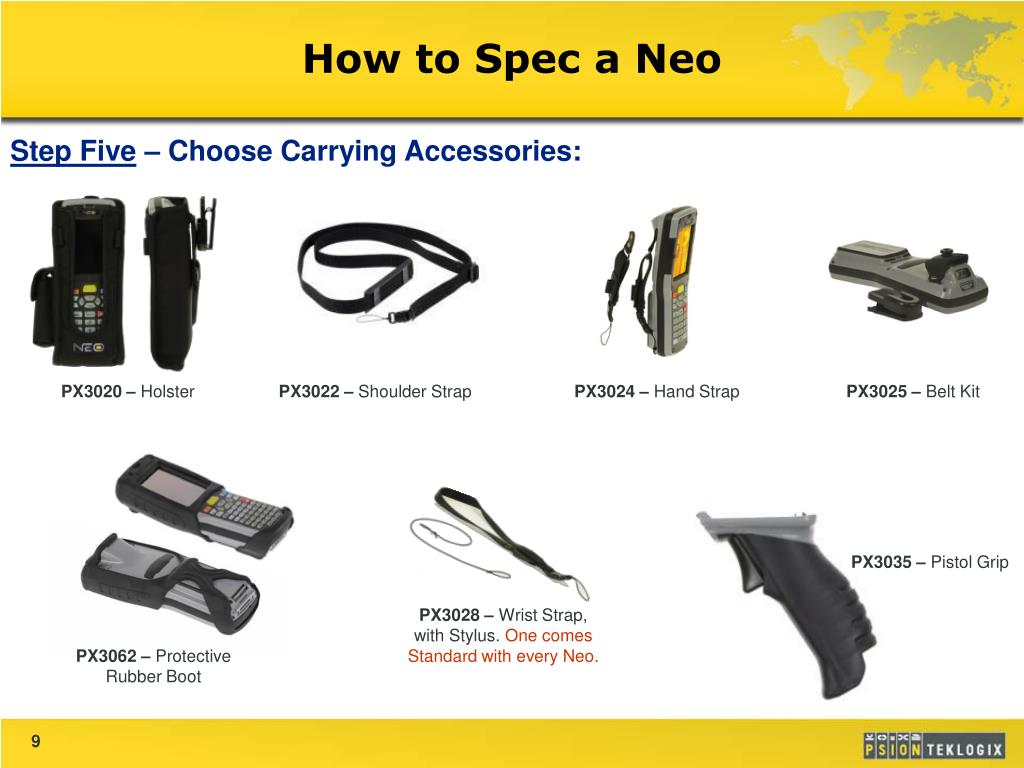

  8. How to Spec a Neo Step Five – Choose Carrying Accessories: PX3020 – Holster PX3022 – Shoulder Strap PX3024 – Hand Strap PX3025 – Belt Kit PX3035 – Pistol Grip PX3028 – Wrist Strap, with Stylus. One comes Standard with every Neo. PX3062 – Protective Rubber Boot

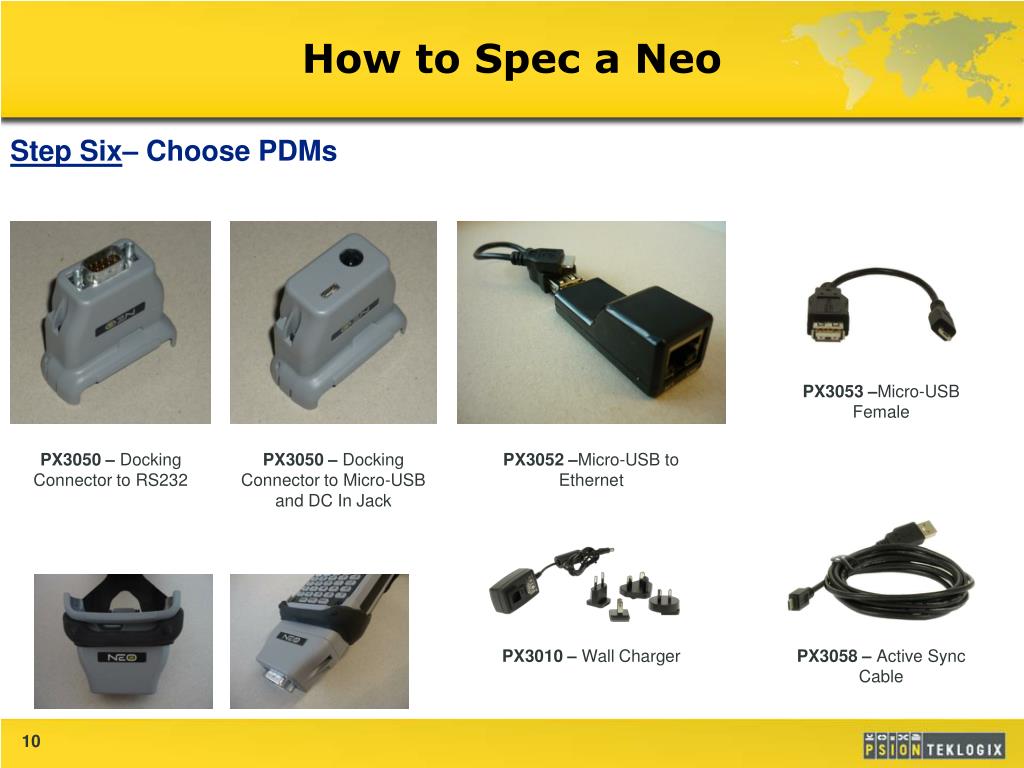

  9. How to Spec a Neo Step Six– Choose PDMs PX3053 –Micro-USB Female PX3050 – Docking Connector to RS232 PX3050 – Docking Connector to Micro-USB and DC In Jack PX3052 –Micro-USB to Ethernet PX3010 – Wall Charger PX3058 – Active Sync Cable
