  1. Chapter Goals • Describe the application development process and the role of methodologies, models, and tools • Compare and contrast programming language generations • Explain the function and operation of program translation software, including assemblers, compilers, and interpreters Systems Architecture, Fifth Edition

  2. Chapter Goals (continued) • Describe link editing, and contrast static and dynamic linking • Describe integrated application development software, including programmer’s workbenches and CASE tools Systems Architecture, Fifth Edition

  3. Systems Architecture, Fifth Edition

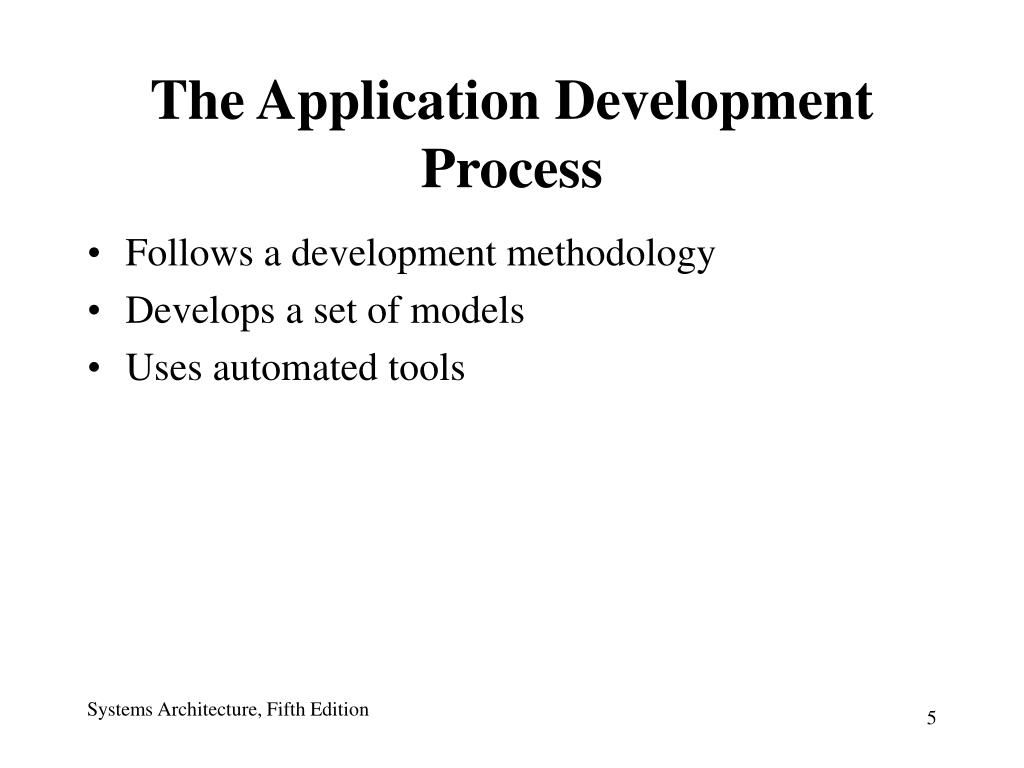

  4. The Application Development Process • Follows a development methodology • Develops a set of models • Uses automated tools Systems Architecture, Fifth Edition

  5. Systems Architecture, Fifth Edition

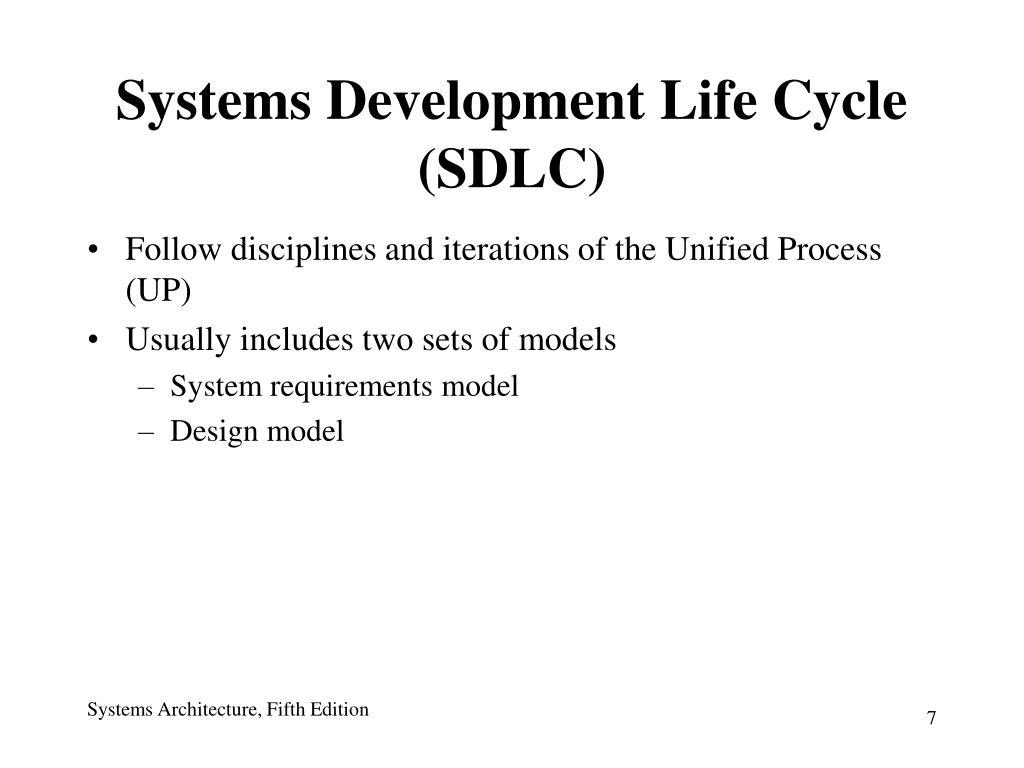

  6. Systems Development Life Cycle (SDLC) • Follow disciplines and iterations of the Unified Process (UP) • Usually includes two sets of models • System requirements model • Design model Systems Architecture, Fifth Edition

  7. Systems Architecture, Fifth Edition

  8. Methodologies and Models • Methodology • Integrated collection of models, tools, and techniques • UP employs object-oriented analysis, design, and deployment models • Class diagrams document user and system requirements Systems Architecture, Fifth Edition

  9. Tools • Wide array to support or completely automate software development tasks • Proper tool selection is a critical and difficult undertaking Systems Architecture, Fifth Edition

  10. Programming Languages • Instruct computer to perform a task • Sometimes called code • Programmer goals • Make language easier for people to understand • Develop languages and development approaches that require people to write fewer instructions to accomplish a task Systems Architecture, Fifth Edition

  11. Systems Architecture, Fifth Edition

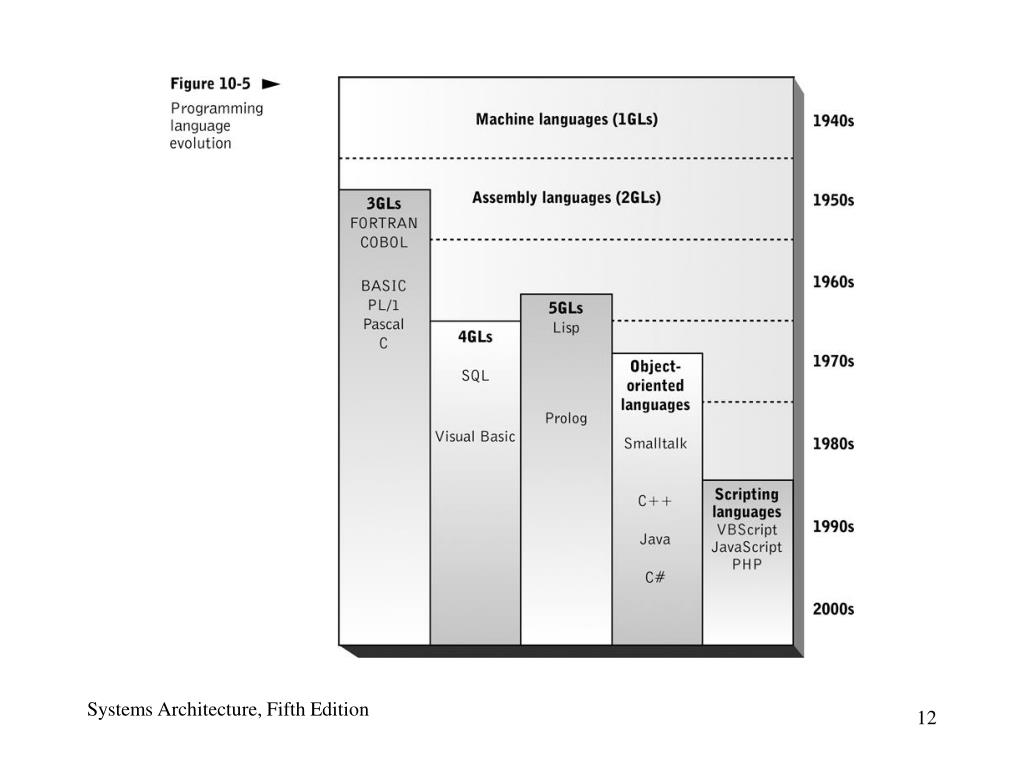

  12. Programming Languages • Summary of capabilities of recent generations • Instruction explosion • Database access • Support for GUIs • Nonprocedural programming • All but 1GL must be translated into CPU instructions prior to execution (compilers and interpreters) Systems Architecture, Fifth Edition

  13. Systems Architecture, Fifth Edition

  14. First-Generation Languages • Required programmers to remember binary codes that represented each CPU instruction and to specify all operands as binary numbers • Tedious to program; error-prone Systems Architecture, Fifth Edition

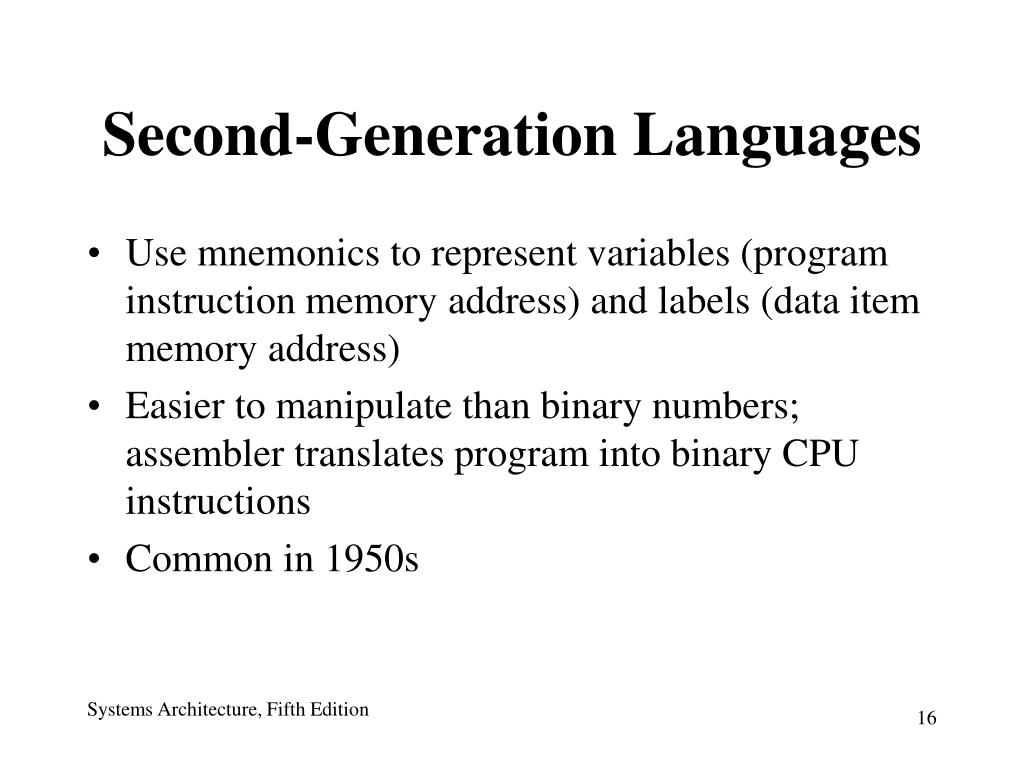

  15. Second-Generation Languages • Use mnemonics to represent variables (program instruction memory address) and labels (data item memory address) • Easier to manipulate than binary numbers; assembler translates program into binary CPU instructions • Common in 1950s Systems Architecture, Fifth Edition

  16. Third-Generation Languages • Use mnemonics to represent instructions, variables, and labels • Have degree of instruction explosion greater than 1:1 • Translated with compilers, link editors, and interpreters • Machine independent • Developed before GUIs, database managers, and Internet Systems Architecture, Fifth Edition

  17. Fourth-Generation Languages • Majority were proprietary; many were optional components of database management systems • Most support mixture of procedural and nonprocedural instructions Systems Architecture, Fifth Edition

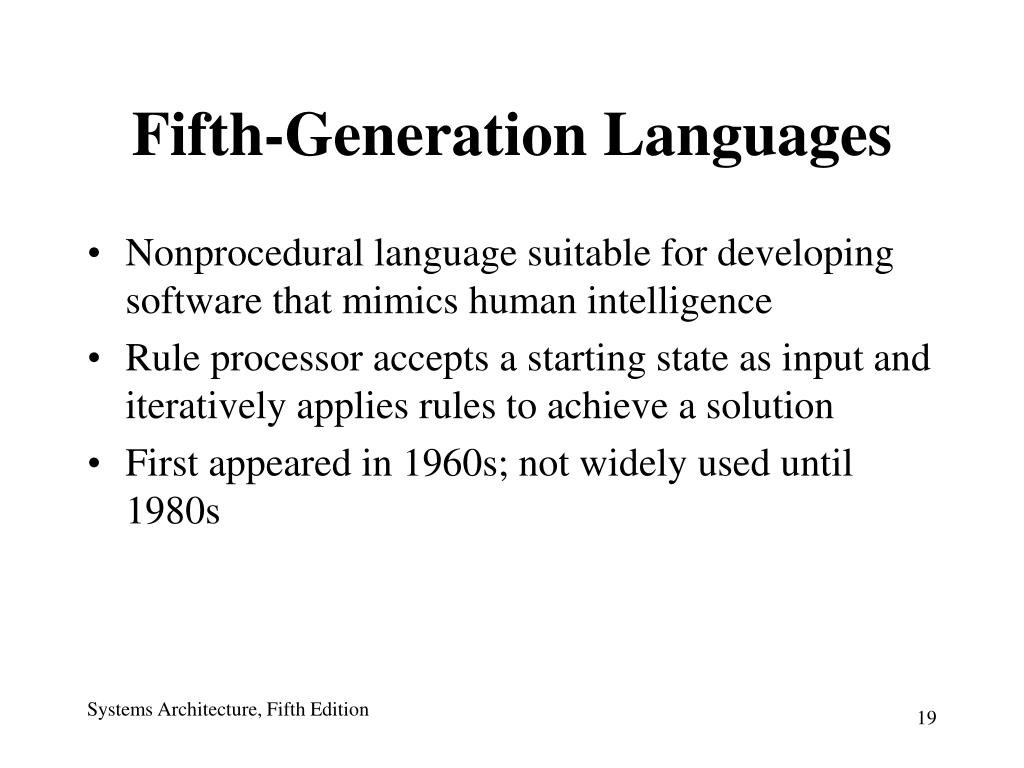

  18. Fifth-Generation Languages • Nonprocedural language suitable for developing software that mimics human intelligence • Rule processor accepts a starting state as input and iteratively applies rules to achieve a solution • First appeared in 1960s; not widely used until 1980s Systems Architecture, Fifth Edition

  19. Object-Oriented Programming (OOP) Languages • View data and programs as two parts of integrated whole (object) • Promote reusability and portability of source code • Uniquely suited to developing real-time programs • Not clear successors to 5GLs; neither nonprocedural nor exclusively used for developing artificial intelligence Systems Architecture, Fifth Edition

  20. OOP languages: Objects reside in a specific location, wait for messages to arrive, and return a response. Systems Architecture, Fifth Edition

  21. Scripting Languages • Enable programmers to develop applications that do most of their work by calling other applications and system software • Enable rapid assembly of application software by “gluing” together capabilities of other programs • Evolved from 4GLs, though most now incorporate OOP concepts Systems Architecture, Fifth Edition

  22. Programming Language Standards • Set by ANSI and ISO • Include definitions of: • Language syntax and grammar • Machine behavior for each instruction or statement • Test programs with expected warnings, errors, and execution behavior • Guarantee program portability among operating systems and application programs Systems Architecture, Fifth Edition

  23. Compilation • Translates an entire source code file, building a symbol table and object code file as output Systems Architecture, Fifth Edition

  24. Systems Architecture, Fifth Edition

  25. Compiler • Checks for syntax and other errors; issues warning or error messages • Updates internal tables that store information about data items and program components • Generates CPU instructions or library calls to carry out the source code instruction Systems Architecture, Fifth Edition

  26. Source Code Instruction Types • Data declarations • Data operations • Control structures • Function, procedure, or subroutine calls Systems Architecture, Fifth Edition

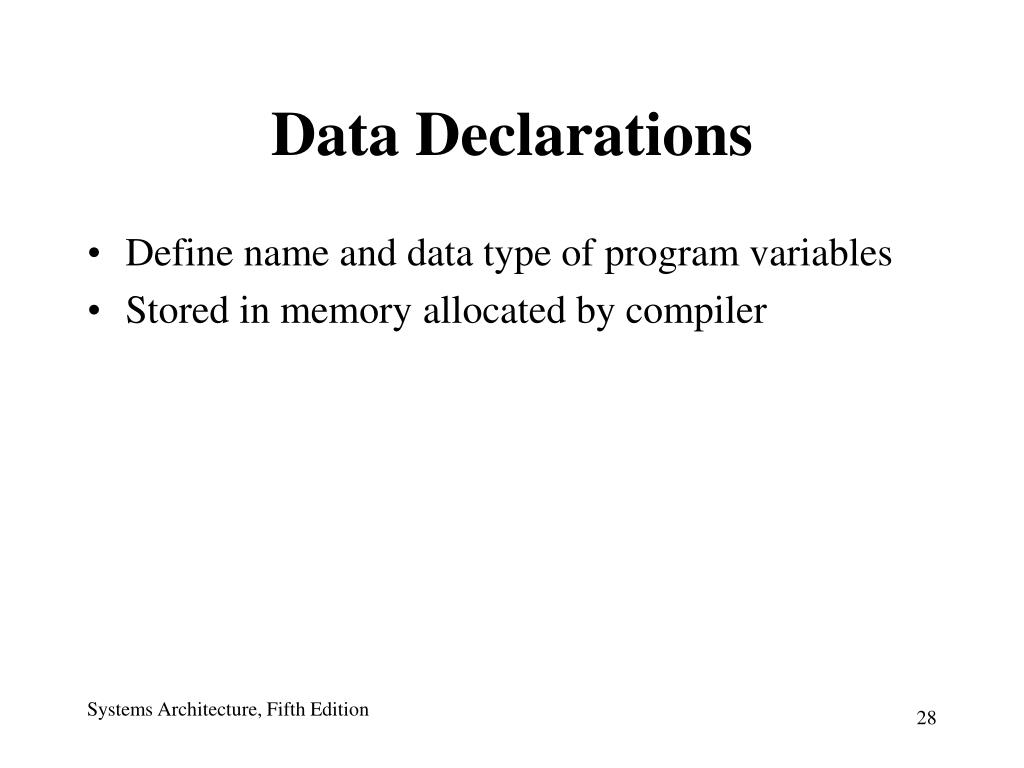

  27. Data Declarations • Define name and data type of program variables • Stored in memory allocated by compiler Systems Architecture, Fifth Edition

  28. The compiler updates a symbol table to keep track of data names, types, and assigned memory addresses. Systems Architecture, Fifth Edition

  29. Data Operations • Instructions that update or compute a data value • Translated by compiler into equivalent sequence of data movement and data transformation instructions for target CPU • Compiler refers to entries in symbol table to determine source and destination memory addresses for data movement instructions Systems Architecture, Fifth Edition

  30. Control Structures • Source code instructions that control the execution of other source code instructions • Common thread is transfer of control among CPU instructions Systems Architecture, Fifth Edition

  31. Function Calls • Named instruction sequences executed by call instructions • Transfer control to the instruction following the call by executing a return instruction Systems Architecture, Fifth Edition

  32. Implementing Call and Return Instructions • Compiler generates CPU instructions to: • Pass input parameters to the function • Transfer control to the function • Execute CPU instructions within the function • Pass output parameters back to the calling module • Transfer control back to the calling module at the statement immediately following the function call statement Systems Architecture, Fifth Edition

  33. Systems Architecture, Fifth Edition

  34. Link Editing • Statically links external reference calls in object code to library functions; combines them into a single file containing executable code • Can dynamically link external calls by statically linking them to an OS service function that loads and executes dynamic-link library (DLL) functions at run time • Always used by interpreters Systems Architecture, Fifth Edition

  35. Key Benefits of Link Editors in Program Translation • A single executable program can be constructed from multiple object code files compiled at different times • A single compiler can generate executable programs that run under multiple operating systems Systems Architecture, Fifth Edition

  36. Systems Architecture, Fifth Edition

  37. Dynamic and Static Linking • Static linking • Library and other subroutines cannot be changed once inserted into executable code • Dynamic linking • Performed during program loading or execution Systems Architecture, Fifth Edition

  38. Advantages of Dynamicand Static Linking • Dynamic • Smaller application program executable files • Flexibility • Static • Execution speed • Improves reliability and predictability of executable programs Systems Architecture, Fifth Edition

  39. Interpreters • Interleave source code translation, link editing, and execution, one source code instruction at a time • Advantage (vs. compilation) • Provide flexibility to incorporate new or updated code into an application program (dynamic linking) • Disadvantage (vs. compilation) • Increase memory and CPU requirements during program execution Systems Architecture, Fifth Edition

  40. Systems Architecture, Fifth Edition

  41. Java • Object-oriented programming language and program execution environment • Maximizes reliability of applications and reusability of existing code • Has a standardized target machine language for Java interpreters and compilers • Drawback: Reduced execution speed due to use of interpreted byte codes and OS translation Systems Architecture, Fifth Edition

  42. Systems Architecture, Fifth Edition

  43. Features of Java • Provision of compilers and virtual machines at little or no cost • Incorporation of JVMs into Web browsers • Increasing development of application software that uses a Web browser as primary I/O device • Ability of Java programs to execute on any combination of computer hardware and OS Systems Architecture, Fifth Edition

  44. Symbolic Debugging • Use of an automated tool for testing executable programs; able to: • Trace calls to specific source code statements or subroutines • Trace changes to variable contents • Execute source code instructions one at a time • Detect and report run-time errors to programmer Systems Architecture, Fifth Edition

  45. Symbolic Debugger • Uses symbol table, memory map, and source code files to trace memory addresses to specific source code statements and variables • Inserts debugging checkpoints after each source code instruction; program execution can be paused • Debugging vs. production/distribution version • Incorporated directly in most interpreters Systems Architecture, Fifth Edition

  46. Systems Architecture, Fifth Edition

  47. Integrated Application Development Tools Systems Architecture, Fifth Edition

  48. Programmer’s Workbench Components • Smart program editor • Compiler and/or interpreter • Link editor and large library of classes or subroutines • Interactive tool for prototyping and designing user interfaces • Symbolic debugger • Integrated window-oriented GUI Systems Architecture, Fifth Edition

  49. CASE Tools • Front-end CASE tools • Support development of requirements and design models • Back-end CASE tools • Generate program source code from models Systems Architecture, Fifth Edition
