  1. Applying Dynamic Analysis to Test Corner Cases First Penka Vassileva Markova Madanlal Musuvathi

  2. Motivation • Many Systems can be modeled as state machines that interact with each other • e.g. Networking Protocols • Subtle bugs in such systems involve sequences of rare corner cases: • TCP Impl in FIN-WAIT state, on receiving a retransmitted FIN packet, sends an ACK with a corrupted checksum. • AODV on receiving a RERR packet out of order, just after a link failure, leads to a routing loop. • Conventional testing misses these errors • Such errors are difficult to detect using Static Analyses

  3. Explicit State Enumeration • Explicit State Enumeration is a promising approach to test such systems. • It systematically explores the entire state space of the system. • Better than “brute force” testing as it visits each system state only once • Usually runs out of resources before it terminates • The trick is to guide the search to interesting parts of state space • Our Proposal: • Use dynamic analyses to detect corner cases • Search corner cases first

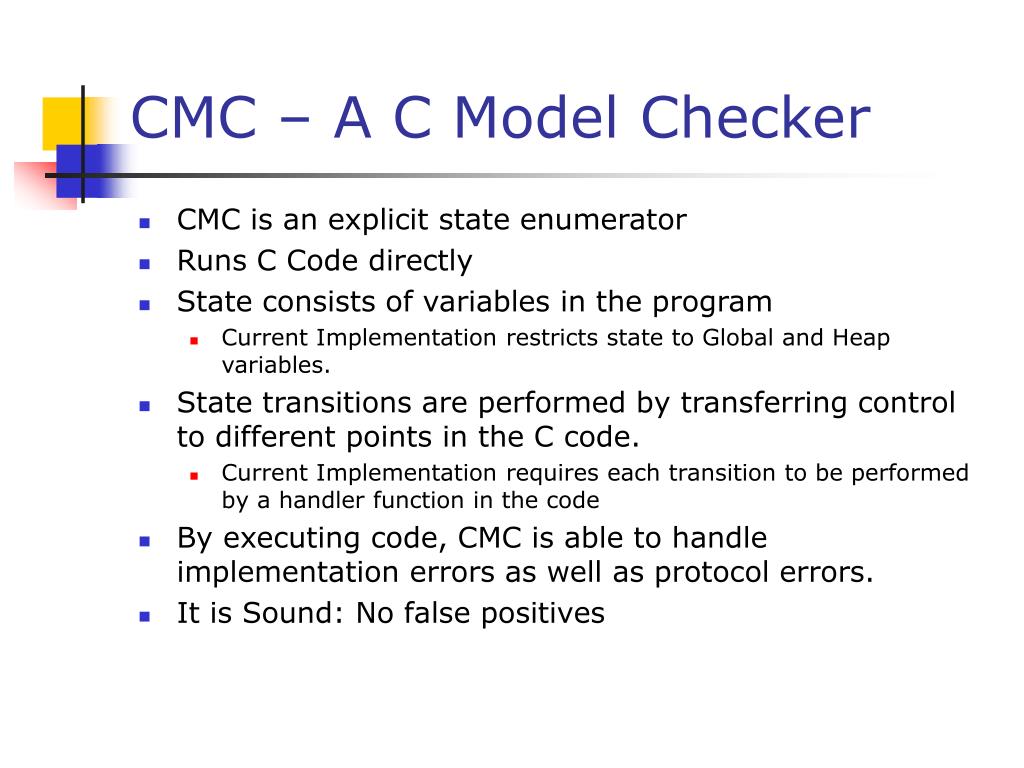

  4. CMC – A C Model Checker • CMC is an explicit state enumerator • Runs C Code directly • State consists of variables in the program • Current Implementation restricts state to Global and Heap variables. • State transitions are performed by transferring control to different points in the C code. • Current Implementation requires each transition to be performed by a handler function in the code • By executing code, CMC is able to handle implementation errors as well as protocol errors. • It is Sound: No false positives

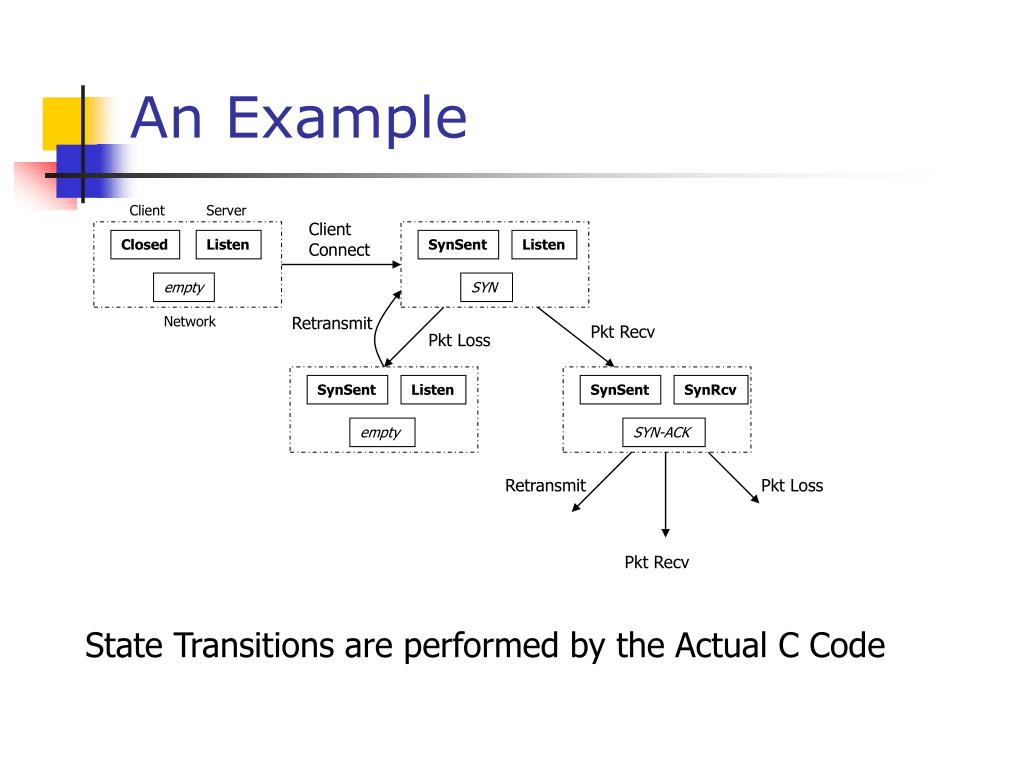

  5. Client Server Client Connect SynSent SynRcv Closed Listen SynSent Listen SYN-ACK empty SYN Network Retransmit Pkt Recv Pkt Loss SynSent Listen empty Retransmit Pkt Loss Pkt Recv An Example State Transitions are performed by the Actual C Code

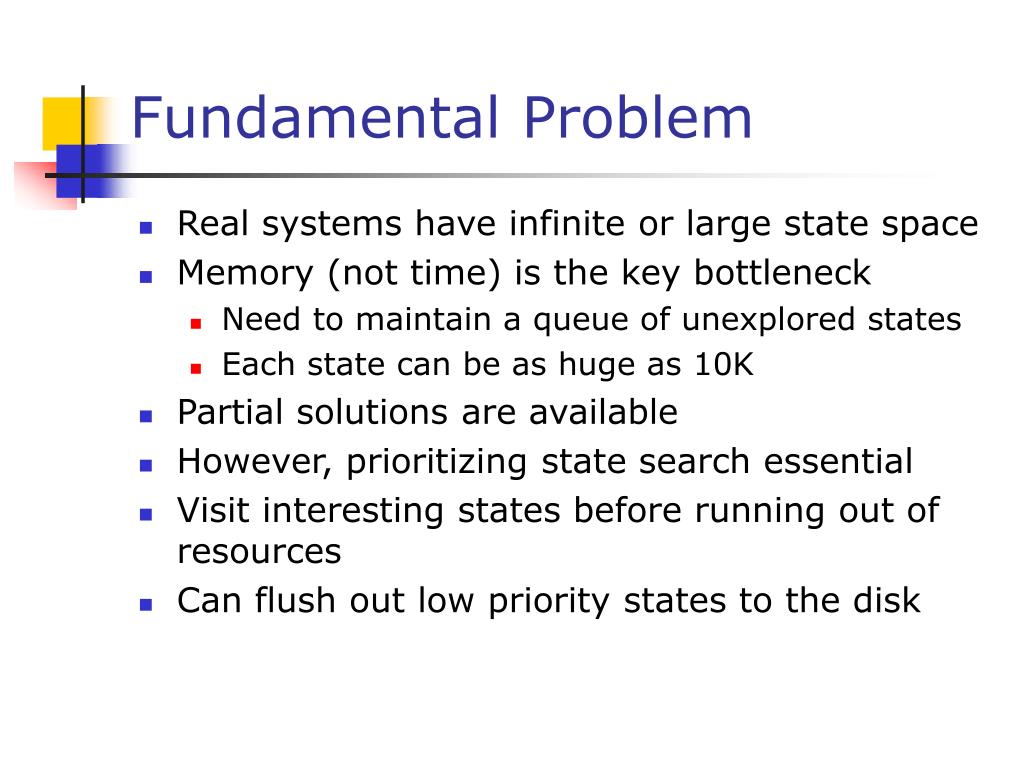

  6. Fundamental Problem • Real systems have infinite or large state space • Memory (not time) is the key bottleneck • Need to maintain a queue of unexplored states • Each state can be as huge as 10K • Partial solutions are available • However, prioritizing state search essential • Visit interesting states before running out of resources • Can flush out low priority states to the disk

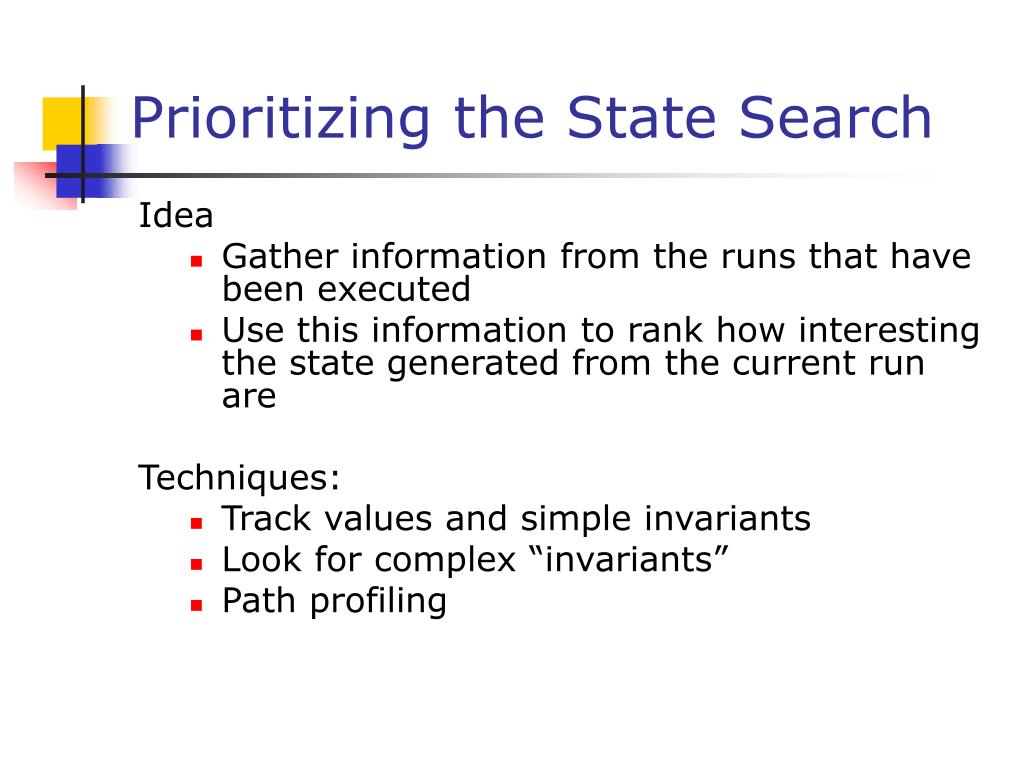

  7. Prioritizing the State Search Idea • Gather information from the runs that have been executed • Use this information to rank how interesting the state generated from the current run are Techniques: • Track values and simple invariants • Look for complex “invariants” • Path profiling

  8. Values and simple invariants Tracking values and simple invariants: • Inspiration: DIDUCE • On-line detection • Look at simple invariants, relax after a counterexample • One heuristic: at exit point track the variables that are in the state • Observation so far: get saturated very fast • Use knowledge of the code or algorithm with heuristics to choose other expressions of interest

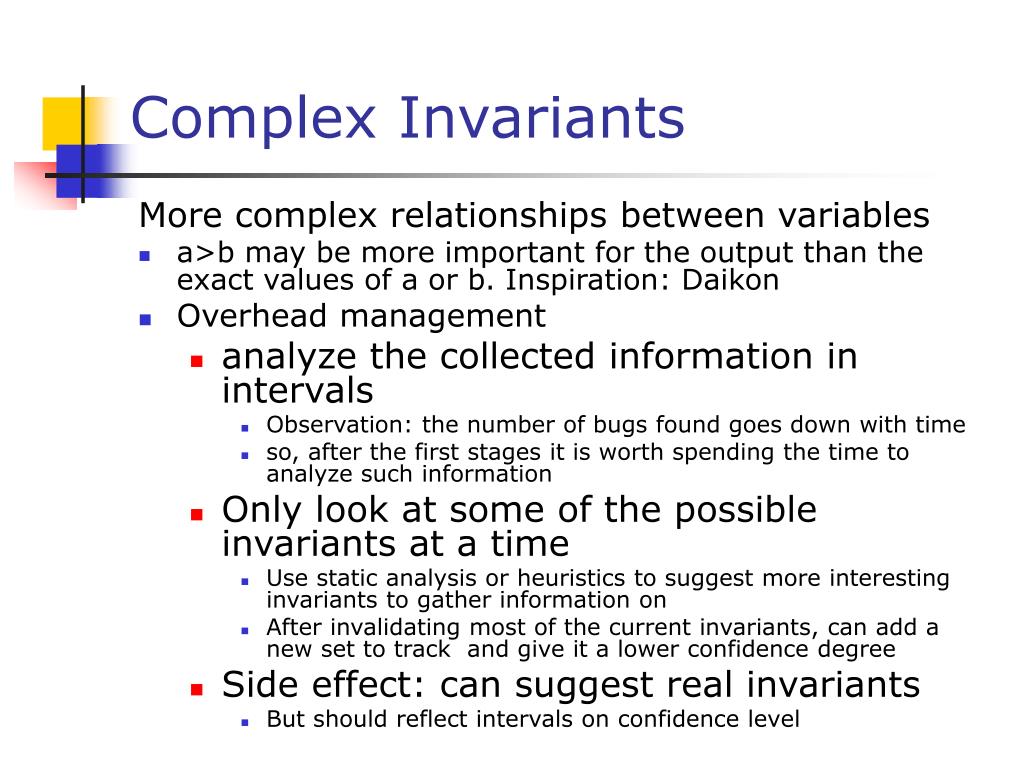

  9. Complex Invariants More complex relationships between variables • a>b may be more important for the output than the exact values of a or b. Inspiration: Daikon • Overhead management • analyze the collected information in intervals • Observation: the number of bugs found goes down with time • so, after the first stages it is worth spending the time to analyze such information • Only look at some of the possible invariants at a time • Use static analysis or heuristics to suggest more interesting invariants to gather information on • After invalidating most of the current invariants, can add a new set to track and give it a lower confidence degree • Side effect: can suggest real invariants • But should reflect intervals on confidence level

  10. Profiling Path/Edge Profiling • Observation: code coverage matters • Keep track about which branches/paths of the program has been taken more often then others • Use existing profiling techniques

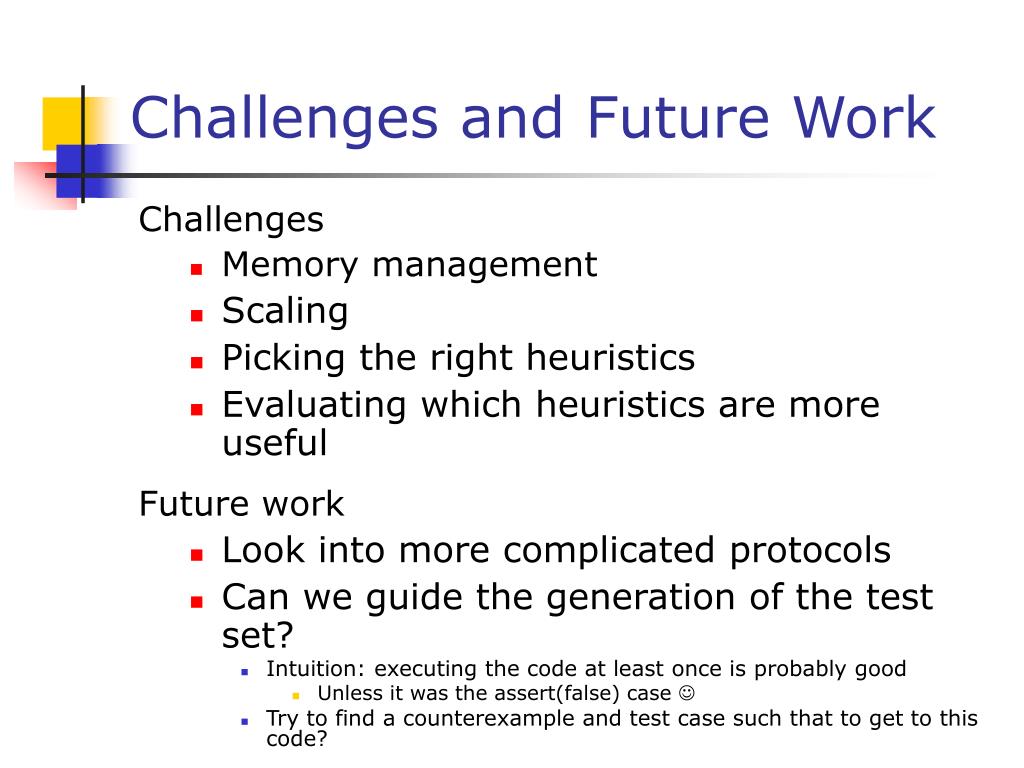

  11. Challenges and Future Work Challenges • Memory management • Scaling • Picking the right heuristics • Evaluating which heuristics are more useful Future work • Look into more complicated protocols • Can we guide the generation of the test set? • Intuition: executing the code at least once is probably good • Unless it was the assert(false) case  • Try to find a counterexample and test case such that to get to this code?

  12. Related Work • Diduce • Daikon • JavaPathfinder • Uses thread-interleaving heuristic to model-check • A lot of work on Profiling • A lot of Model Checking work
