Ultrasonic Fetal Monitor

Medzer Ultrasonic Fetal Monitor is equipped with a highly sensitive 9-crystal transducer and provides fetal heart rate (FHR) monitoring with a range of 50-240 bpm and an accuracy of u00b12 bpm. It features dual FHR parameters, TOCO measurement ranging from 0-100 units, and includes a wired probe. <br>

cherylross
Télécharger la présentation

Ultrasonic Fetal Monitor

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

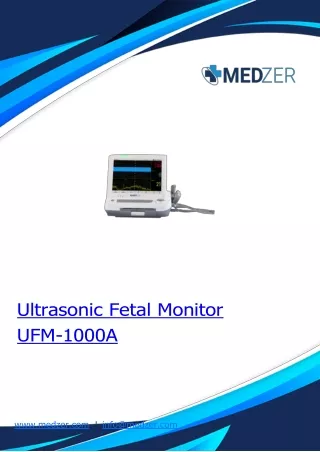

  1. Ultrasonic Fetal Monitor UFM-1000A www.medzer.com | info@medzer.com

  2. Overview Ultrasonic Fetal Monitor UFM-1000 uses a highly sensitive transducer to detect FHR within a range of 50 to 240 bpm. It includes a TOCO measurement range from 0 to 100 units for accurate assessment of uterine contractions. Our monitor utilizes low ultrasound power to ensure the safety of the fetus during monitoring procedures. Equipped with a 2.1-inch TFT color screen that folds up to 90 degrees for easy viewing. Specifications : FHR Range 50 to 240 bpm FHR Accuracy ± 2 bpm Parameters FHR1, FHR2 Sweep Speed X1, X2, X4, X8 Transducer 9 crystals, pulsed Doppler, high sensitivity Frequency 1.0MHz Probe Wired TOCO Measurement Range 0 to 100 units TOCO Baseline 0, 5, 10, 15, 20 (selectable) Maternal ECG Lead type 5-lead Maternal ECG Lead Selection RA, LA, RL, LL, V

  3. HR Measurement Range 15 bpm to 300 bpm HR Accuracy ±1 bpm or ±1 % RESP Measurement Range 7 rpm to 120 rpm RESP Rate Accuracy ± 2 rpm/min or ±2 % reading NIBP Method Automatic Oscillometric NIBP Parameters SYS/DIA/MAP Operating Modes Manual/Auto Auto Measure Intervals 3/5/10/20/30/60/90/120/240 minutes NIBP Parameter Units mmHg/kPa Cuff Pressure Range 0 mmHg - 300 mmHg (0 kPa - 40.0 kPa) Measurement And Alarm Range SYS- 50 mmHg to 240 mmHg (6.7 kPa - 32.0 kPa) MAP- 25 mmHg to 200 mmHg (3.4 kPa - 26.6 kPa) DIA- 15 mmHg to 180 mmHg (2.0 kPa - 24.0 kPa) NIBP Accuracy ±3 mmHg (±0.4 kPa) or ± 2 of reading Over-Pressure Protection Yes Maternal SpO2 Measurement Range 70 to 99 %

  4. Maternal SpO2 Accuracy ± 3 % PR Range 30 to 240 bpm PR Accuracy ± 2 bpm/min or ± 5 % Temperature Range 0 to 50c℃ Resolution ± 0.1℃ Battery Li-Ion battery, 2200mAh/14.8V Power supply 100 to 240V Dimensions (L×W×H) 350×320×85 mm Weight 3.5kg Features : Compatible with a wide voltage range Auto-monitoring of fetal movements Suitable for all stages of labor Easily connects to central stations Long-lasting Li-ion battery for extended use Offers user-friendly interface Standard Accessories : Accessories Names Quantity 3 In 1 Transducer (FHR.TOCO, FM) 1 pc

  5. Printer Paper 2 pcs Power Cable 1 pc Optional Accessories : Twins probe Fetus waker Touch screen Wall Bracket Applications : Ultrasonic Fetal Monitor is used to track fetal health parameters during pregnancy, labor, and delivery, ensuring the well-being of both mother and baby in health care centers. Medzer Inc Brandy Wine, 1000 N West St, Wilmington, DE 19801, United

  6. States Email: info@medzer.com | Website: www.medzer.com
