Enhancing MRI Images: The Role of Independent Component Analysis in Medical Imaging

This article explores data mining in medical imaging, focusing on the application of Independent Component Analysis (ICA) to Magnetic Resonance Imaging (MRI). It defines data mining as the analysis of data to identify relationships and patterns. The piece discusses ICA's purpose to enhance image quality and information deduction from MR images, particularly in differentiating gray and white matter and identifying tumor involvement. Examples from clinical practice illustrate how ICA can improve image clarity and assist in diagnosing conditions such as prostate cancer and multiple sclerosis.

chesna
Télécharger la présentation

Enhancing MRI Images: The Role of Independent Component Analysis in Medical Imaging

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. A Taste of Data Mining

  2. Definition • “Data mining is the analysis of data to establish relationships and identify patterns.”practice.findlaw.com/glossary.html. • Learning from data.

  3. Examples of Learning Problems • Digitized Image  Zip Code • Based on clinical and demographic variables, identify the risk factors for prostate cancer • Predict whether a person who has had one heart attack will be hospitalized again for another.

  4. Kth-Nearest Neighbor

  5. Linear Decision Boundary

  6. Quadratic Decision Boundary

  7. Beneath the blur: A look at independent component analysis with respect to image analysis Galen Papkov Rice University April 2, 2014

  8. Outline • Biology • Gray vs. White Matter • T1 vs. T2 • How does Magnetic Resonance Imaging work? • Theory behind ICA • Cocktail party • Nakai et al.’s (2004) paper

  9. Biology • Gray matter consists of cell bodies whereas white matter is made up of nerve fibers (http://www.drkoop.com/imagepages/18117.htm)

  10. Biology (cont.) • T2 effect occurs when protons are subjected to a magnetic field • T2 time is the time to max dephasing • T1 effect is due to the return of the high state protons to the low energy state • T1 time is the time to return to equilibrium (http://www.es.oersted.dtu.dk/~masc/T1_T2.htm)

  11. How Does MRI work? • Protons have magnetic properties • The properties allow for resonance • process of energy absorption and subsequent relaxation • Process: • apply an external magnetic field to excite them (i.e. absorb energy) • Remove magnetic field so protons return to equilibrium, thereby creating a signal containing information of the “resonanced” area (http://www.es.oersted.dtu.dk/~masc/resonance.htm)

  12. Cocktail Party Problem • Scenario: • Place a microphone in the center of a cocktail party • Observe what the microphone recorded • Compare to human brain

  13. Independent Component Analysis (ICA) • Goal: to find a linear transformation W (separating matrix) of x (data) that yields an approximation of the underlying signals y which are as independent as possible x=As(A is the mixing matrix) s»y=Wx (W»A-1) • W is approximated via an optimization method (e.g. gradient ascent)

  14. Application of ICA to MR imaging for enhancing the contrast of gray and white matter (Nakai et al., 2004) • Purpose: To use ICA to improve image quality and information deduction from MR images • Wanted to use ICA to enhance image quality instead of for tissue classification • Subjects: 10 normal, 3 brain tumors, 1 multiple sclerosis • Method: • Obtain MR images • Normalize and take the average of the images • Apply ICA

  15. Normal MR and IC images vs. Average of the Normalized Images

  16. Observations w.r.t. ICA transformation for normal subjects • IC images after whitening have removed (minimized) “noise” • Observe the complete removal of free water

  17. Tumor Case 1 (oligodendroglioma)

  18. Tumor Case 1 (cont.) • Hazy in location of tumor in original images • Less cloudy, but can see involvement of tumor in IC images

  19. Tumor Case 2 (glioblastoma)

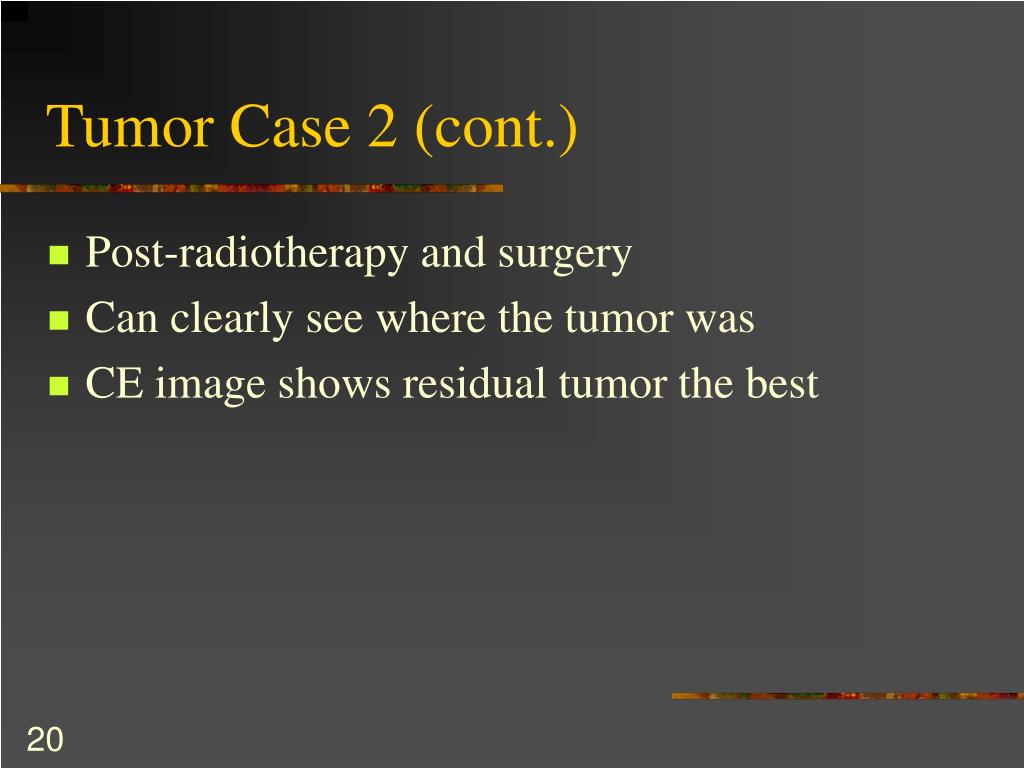

  20. Tumor Case 2 (cont.) • Post-radiotherapy and surgery • Can clearly see where the tumor was • CE image shows residual tumor the best

  21. Multiple Sclerosis

  22. Multiple Sclerosis (cont.) • IC1 shows active lesions • IC2 shows active and inactive lesions • Gray matter intact

  23. Discussion • IC images had smaller variances than original images (per F-test, p<0.001) • Sharper/more enhanced images • Can remove free water, determine residual tumor or tumor involvement (via disruption of normal matter) • Explored increasing the number of components

  24. Future Research • Explore ICA’s usefulness with respect to tumors • Neutral intensity • Tumor involvement in gray and white matter • Separate edema from solid part of tumor • May help in the removal of active lesions for MS patients • Preprocessing method to classify and segment the structure of the brain

  25. References • Hastie, T., Tibshirani, R., & Friedman, J. (2001). The Elements of Statistical Learning: Data mining, inference, and prediction. Springer-Verlag, NY. • Nakai, T., Muraki, S., Bagarinao, E., Miki, Y., Takehara, Y., Matsuo, K., Kato, C., Sakahara, H., & Isoda, H. (2004). Application of independent component analysis to magnetic resonance imaging for enhancing the contrast of gray and white matter. NeuroImage, 21(1), 251-260. • Stone, J. (2002). Independent component analysis: an introduction. Trends in Cognitive Sciences, 6(2), 59-64.
