Selection Structures

This guide explores the functionality of If statements and the use of relational and logical operators in programming. An If statement allows a program to execute different actions based on whether a given condition is true or false. We cover basic structures such as If condition Then action1 Else action2 End If, and provide examples of relational operators like <, <=, and alphabetic comparisons. Logical operators like And, Or, and Not are also examined, showing how they evaluate multiple conditions. Practical examples with code snippets illustrate these concepts in action.

chesna
Télécharger la présentation

Selection Structures

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Selection Structures Relational and Logical Operators; If Statements

  2. If Statements • An If statement allows a program to decide on a course of action based on whether a condition is true or false • If condition Then • action1 • Else • action2 • End If

  3. Relational Operators

  4. Relational Operator Examples • 1 <= 1 • 1 < 1 • “car” < “cat” • “Dog” < “dog”

  5. Logical Operators • And • condition1 And condition2 • is true if both condition1 and condition2 are true • otherwise it evaluates to false • Or • condition1 Or condition2 • is true if either condition1 or condition2 (or both) are true • otherwise it evaluates to false • Not • Not condition1 • is true if condition1 is false, and is false if condition1 is true

  6. Logical Operator Examples • Assume n = 4 and answ = “Y” • (2 < n) And (n < 6) • (2 < n) Or (n = 6) • Not (n < 6) • (answ = “Y”) And (answ = “y”) • (answ = “Y”) Or (answ = “y”) • Not (answ = “y”)

  7. If Statements • An If statement allows a program to decide on a course of action based on whether a condition is true or false • If condition Then • action1 • Else • action2 • End If

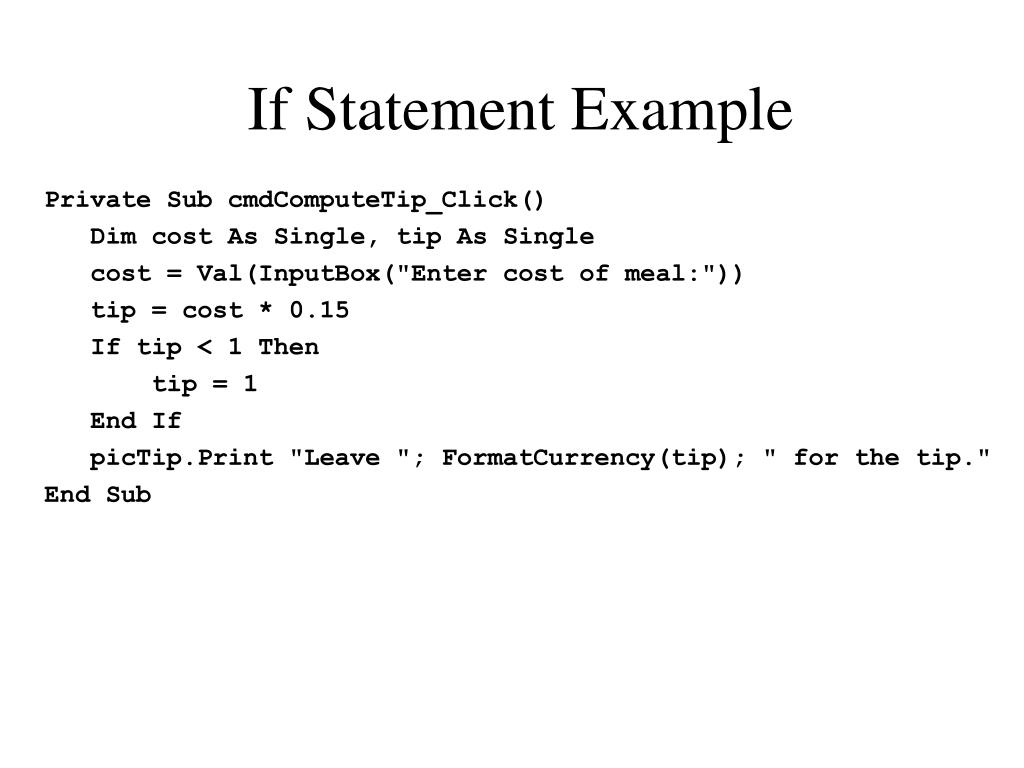

  8. If Statement Example Private Sub cmdComputeTip_Click() Dim cost As Single, tip As Single cost = Val(InputBox("Enter cost of meal:")) tip = cost * 0.15 If tip < 1 Then tip = 1 End If picTip.Print "Leave "; FormatCurrency(tip); " for the tip." End Sub

  9. If Statement Example Private Sub cmdQuestion_Click() Dim name As String 'Ask for first Ronald McDonald name = UCase(InputBox("Who was the first Ronald McDonald?")) picAnswer.Cls If name = "WILLARD SCOTT" Then picAnswer.Print "Correct." Else picAnswer.Print "Nice try." End If End Sub

  10. Nested If Example Private Sub cmdComputeBalance_Click() Dim balance As Single, amount As Single balance = Val(InputBox("Current balance:")) amount = Val(InputBox("Amount of withdrawal:")) If (balance >= amount) Then balance = balance - amount picBalance.Print "New balance is "; FormatCurrency(balance) If balance < 150 Then picBalance.Print "Balance below $150" End If Else picBalance.Print "Withdrawal denied." End If End Sub

  11. ElseIf Example Private Sub cmdFindLarger_Click() Dim Num1 As Integer Dim Num2 As Integer Num1 = Val(txtFirstNumber.Text) Num2 = Val(TxtSecondNumber.Text) If Num1 > Num2 Then picResult.Print "The larger number is"; Num1 ElseIf Num2 > Num1 Then picResult.Print "The larger number is"; Num2 Else picResult.Print "The two numbers are equal" End If End Sub
