  1. I/O in AP Java Enjoyable, Meaningful, Non-Distracting I/O in AP Java Ken Lambert, Washington and Lee UniversityMartin Osborne, Western Washington University Copyright 2002

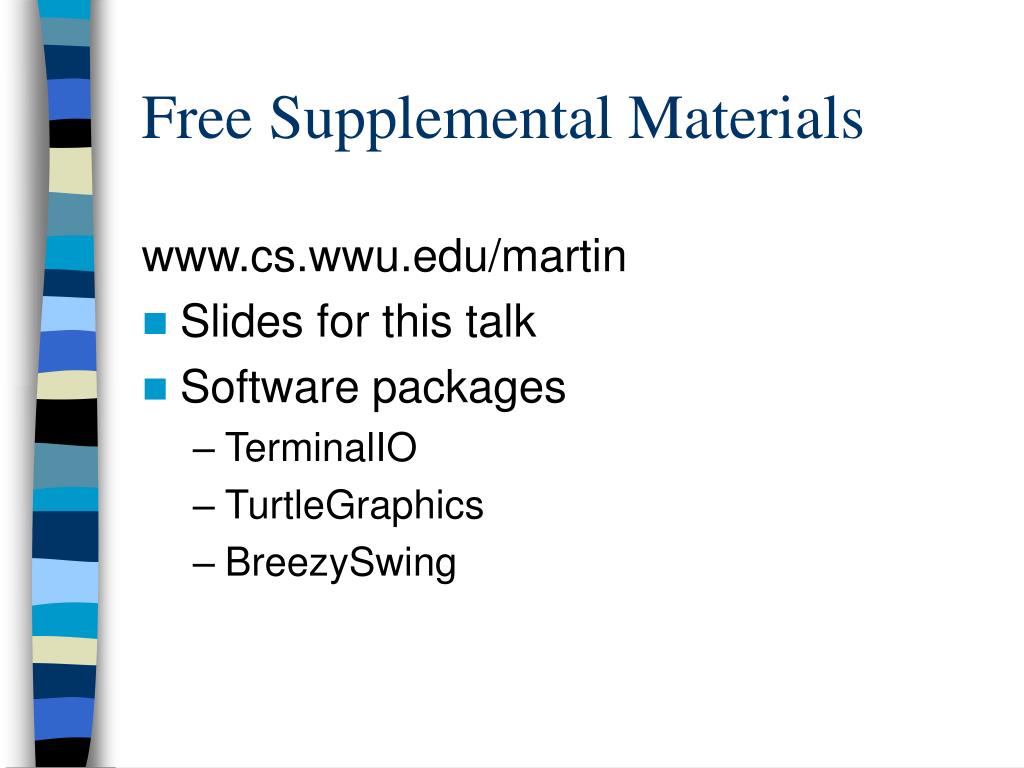

  2. Free Supplemental Materials www.cs.wwu.edu/martin • Slides for this talk • Software packages • TerminalIO • TurtleGraphics • BreezySwing

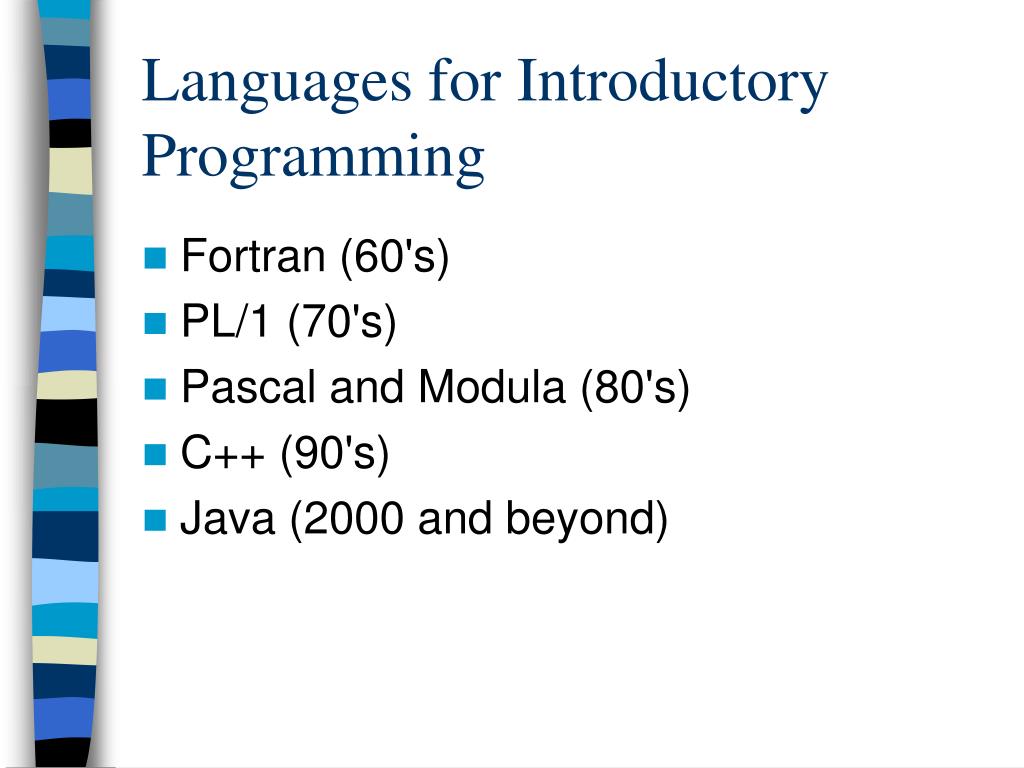

  3. Languages for Introductory Programming • Fortran (60's) • PL/1 (70's) • Pascal and Modula (80's) • C++ (90's) • Java (2000 and beyond)

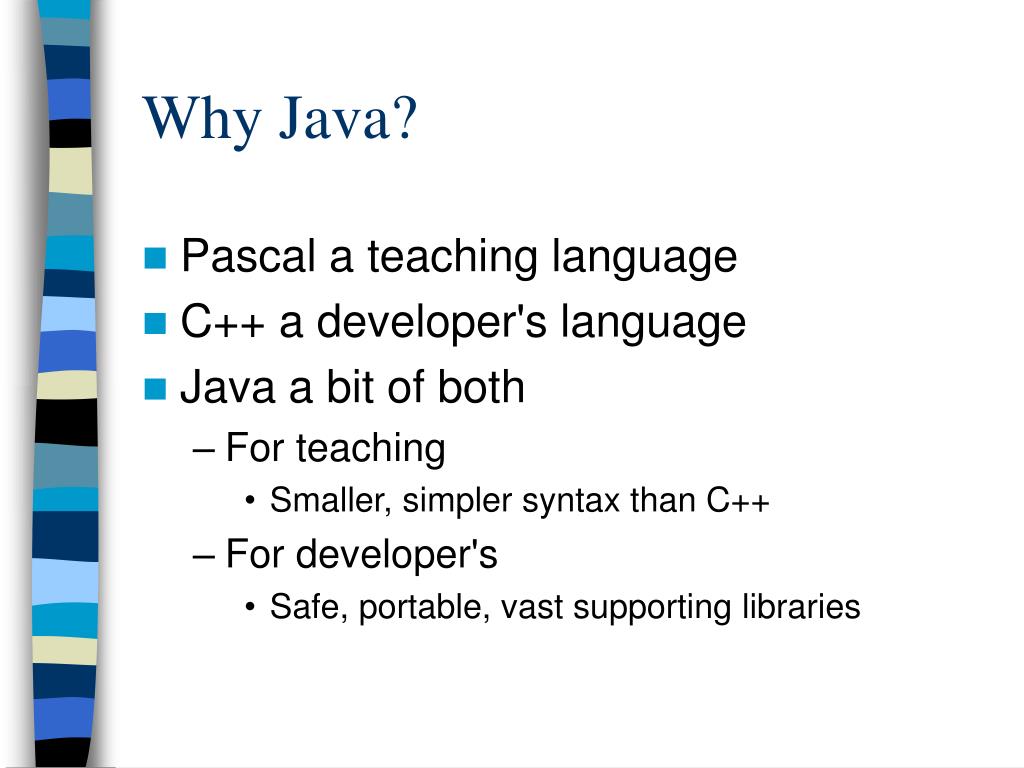

  4. Why Java? • Pascal a teaching language • C++ a developer's language • Java a bit of both • For teaching • Smaller, simpler syntax than C++ • For developer's • Safe, portable, vast supporting libraries

  5. C++ I/O • Stream I/O • Simple, flexible • Supports both terminal and files • cin, cout for console • Stream objects for files • Suitable for introductory course • GUI's • Platform dependent • Complex • Not suitable for introductory course

  6. Java I/O • Stream I/O • Moderately difficult • Several simple patterns cover basic situations • Somewhat suitable for introductory course • GUIs • Platform independent • Complex • but several complex patterns cover basic situations • Doable but not really suitable for introductory course

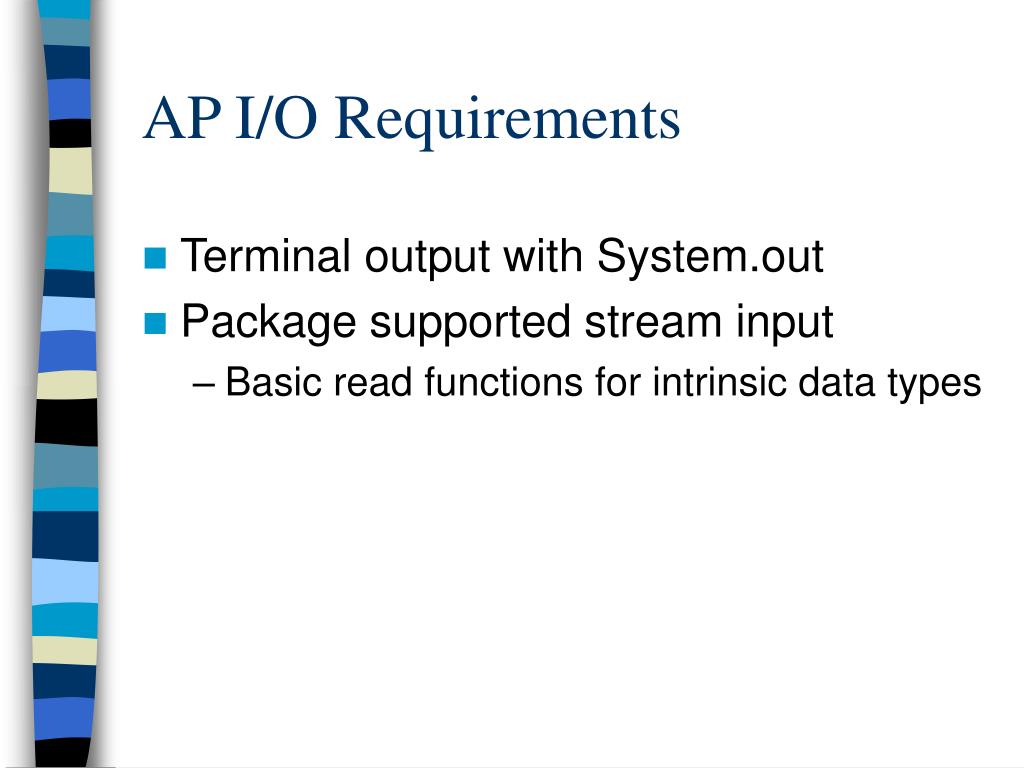

  7. AP I/O Requirements • Terminal output with System.out • Package supported stream input • Basic read functions for intrinsic data types

  8. Advantage of AP Approach • Leaves more time for everything else • Including some I/O that is • Enjoyable • Meaningful • Non-distracting

  9. Most Basic Program Structure import …; public class <ProgramName> { public static void main(String [] args) { … statements… } }

  10. Console Applications

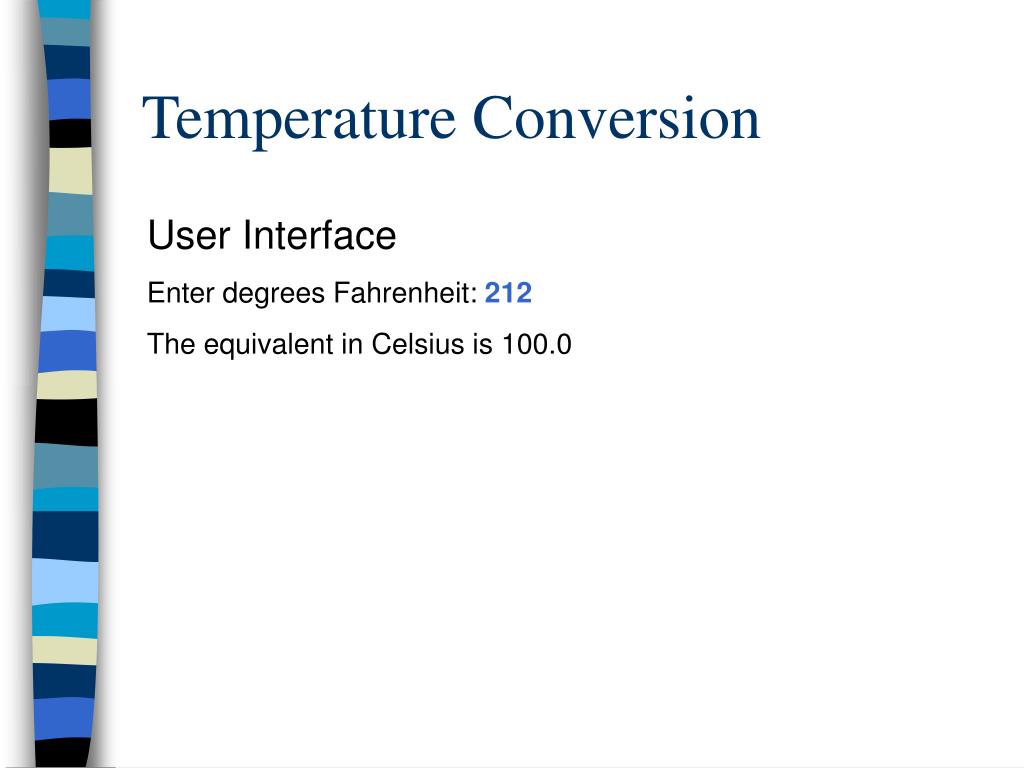

  11. Temperature Conversion User Interface Enter degrees Fahrenheit: 212 The equivalent in Celsius is 100.0

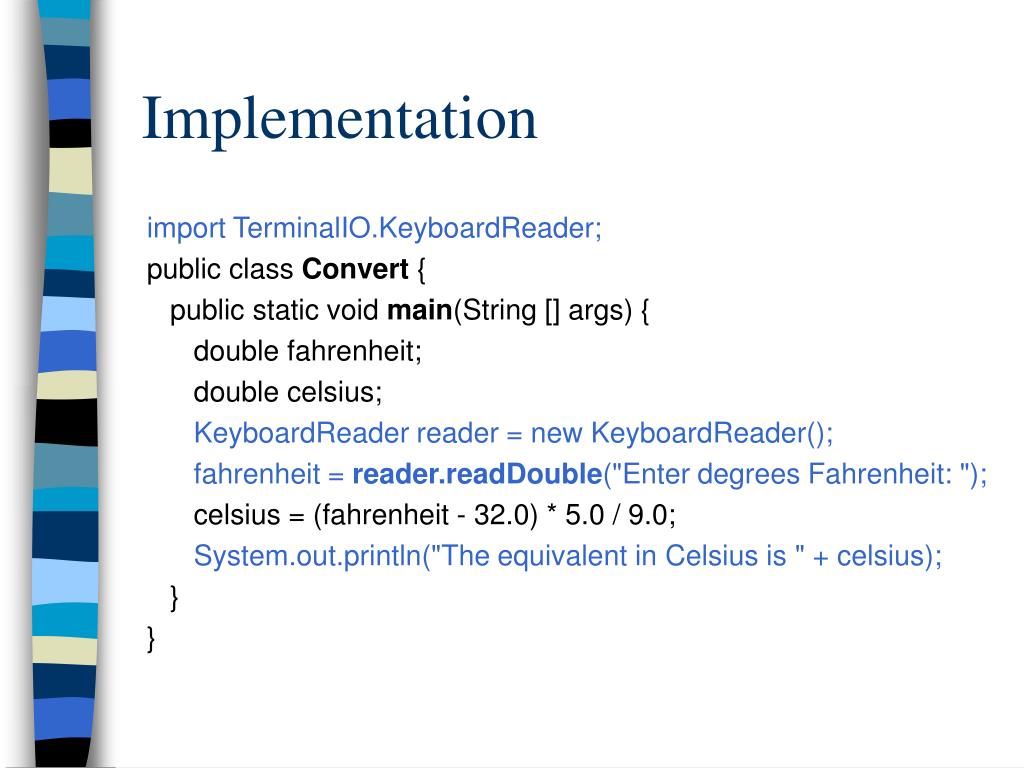

  12. Implementation import TerminalIO.KeyboardReader; public class Convert { public static void main(String [] args) { double fahrenheit; double celsius; KeyboardReader reader = new KeyboardReader(); fahrenheit = reader.readDouble("Enter degrees Fahrenheit: "); celsius = (fahrenheit - 32.0) * 5.0 / 9.0; System.out.println("The equivalent in Celsius is " + celsius); } }

  13. Menu Driven Conversion 1) Convert from Fahrenheit to Celsius 2) Convert from Celsius to Fahrenheit 3) Quit Enter your option: 1 Enter degrees Fahrenheit: 212 Degrees Celsius = 100.0 1) Convert from Fahrenheit to Celsius 2) Convert from Celsius to Fahrenheit 3) Quit Enter your option: 2 Etc…

  14. Implementation (1 of 2) import TerminalIO.*; public class ConvertWithMenu { public static void main (String [] args) { KeyboardReader reader = new KeyboardReader(); double fahrenheit, celsius; String menu; //The multiline menu int menuOption; //The user's menu selection menu = "\n1) Convert from Fahrenheit to Celsius" + "\n2) Convert from Celsius to Fahrenheit" + "\n3) Quit" + "\nEnter your option: ";

  15. Implementation (2 of 2) do { menuOption = reader.readInt(menu); System.out.println (""); if (menuOption == 1){ fahrenheit = reader.readDouble("Enter degrees Fahrenheit: "); celsius = (fahrenheit - 32.0) * 5.0 / 9.0; System.out.println ("Degrees Celsius = " + celsius); }else if (menuOption == 2){ celsius = reader.readDouble("Enter degrees Celsius: "); fahrenheit = celsius * 9.0 / 5.0 + 32.0; System.out.println ("Degrees Fahrenheit = " + fahrenheit); }else if (menuOption != 3){ System.out.println ("Invalid option"); } } while (menuOption != 3); } }

  16. Formatted Output The number with precision 0: 1 The number with precision 1: 1.2 The number with precision 2: 1.23 The number with precision 3: 1.235 The number with precision 4: 1.2346 The number with precision 5: 1.23456 The number with precision 6: 1.234560 The number with precision 7: 1.2345600 The number with precision 8:1.23456000 The number with precision 9:**********

  17. Implementation import BreezySwing.Format; public class TerminalFormatDemo { public static void main (String [] args) { double number = 1.23456; for (int i = 0; i <= 9; i++){ String str = "The number with precision " + i + ":" + Format.justify ('r', number, 10, i); System.out.println (str); } } }

  18. Temperature Conversion Revisited User Interface Enter degrees Fahrenheit: 212 The equivalent in Celsius is 100.0

  19. Native Implementation (1 of 2) import java.io.*; public class Convert{ public static void main (String[] args){ … try{ InputStreamReader reader = new InputStreamReader(System.in); BufferedReader buffer = new BufferedReader(reader); … = Double.parseDouble(buffer.readLine()); … = Integer.parseInt(buffer.readLine()); … }catch(Exception e){ System.err.println("Input error -- " + e.toString()); } } }

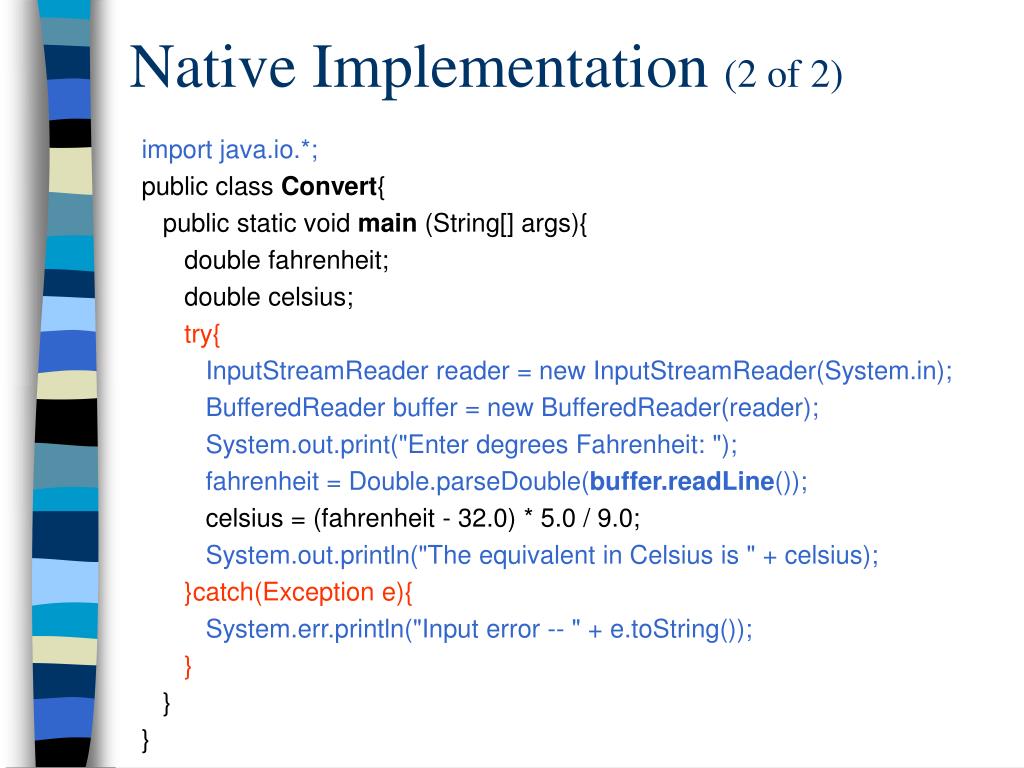

  20. Native Implementation (2 of 2) import java.io.*; public class Convert{ public static void main (String[] args){ double fahrenheit; double celsius; try{ InputStreamReader reader = new InputStreamReader(System.in); BufferedReader buffer = new BufferedReader(reader); System.out.print("Enter degrees Fahrenheit: "); fahrenheit = Double.parseDouble(buffer.readLine()); celsius = (fahrenheit - 32.0) * 5.0 / 9.0; System.out.println("The equivalent in Celsius is " + celsius); }catch(Exception e){ System.err.println("Input error -- " + e.toString()); } } }

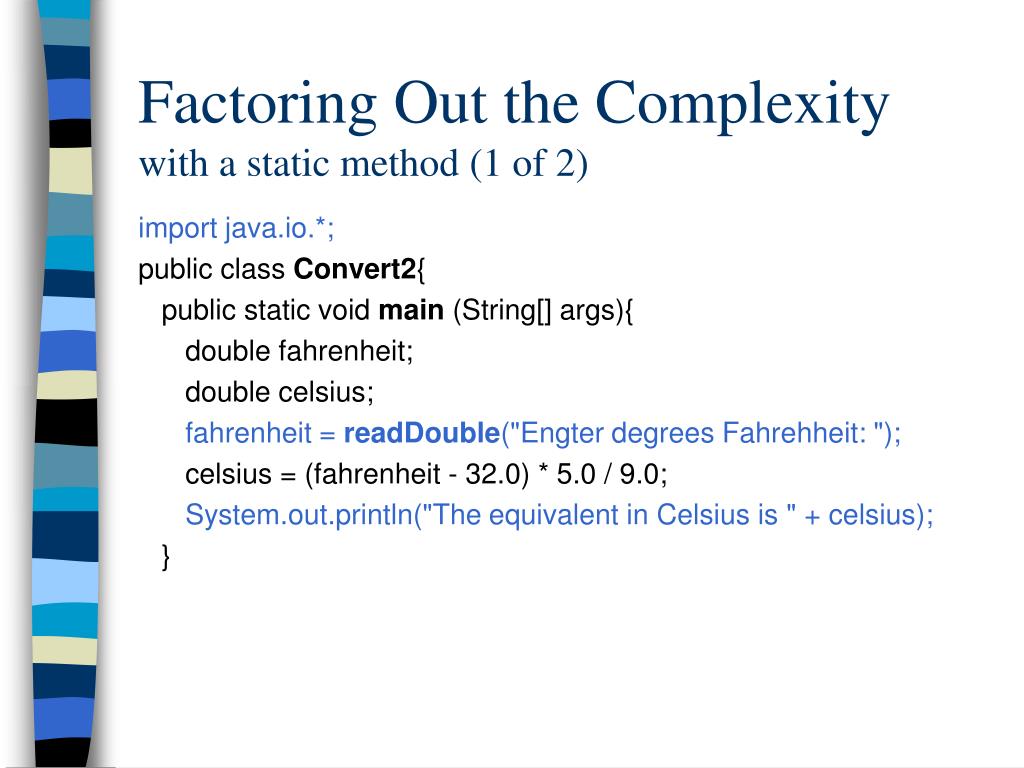

  21. Factoring Out the Complexitywith a static method (1 of 2) import java.io.*; public class Convert2{ public static void main (String[] args){ double fahrenheit; double celsius; fahrenheit = readDouble("Engter degrees Fahrehheit: "); celsius = (fahrenheit - 32.0) * 5.0 / 9.0; System.out.println("The equivalent in Celsius is " + celsius); }

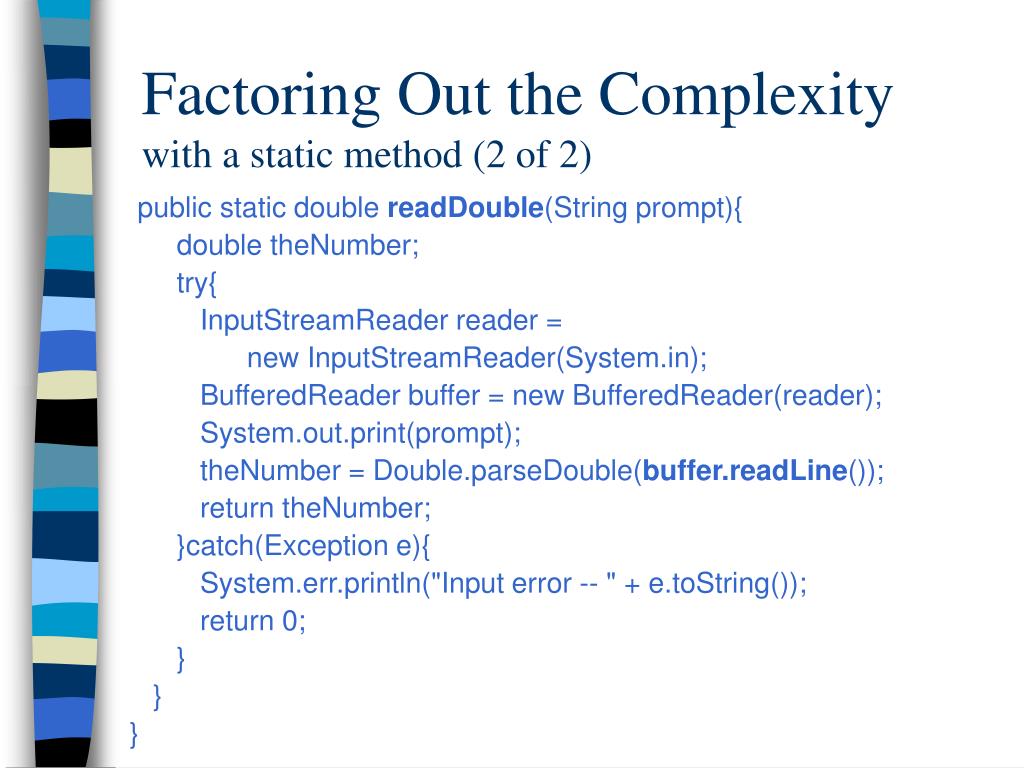

  22. Factoring Out the Complexity with a static method (2 of 2) public static double readDouble(String prompt){ double theNumber; try{ InputStreamReader reader = new InputStreamReader(System.in); BufferedReader buffer = new BufferedReader(reader); System.out.print(prompt); theNumber = Double.parseDouble(buffer.readLine()); return theNumber; }catch(Exception e){ System.err.println("Input error -- " + e.toString()); return 0; } } }

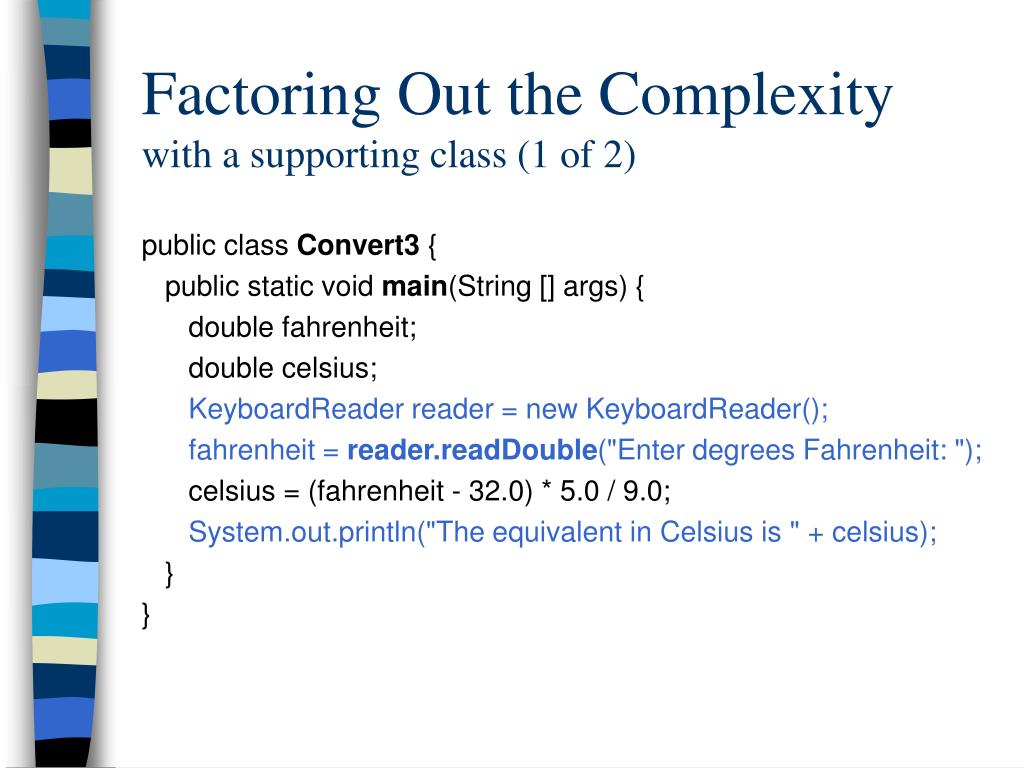

  23. Factoring Out the Complexity with a supporting class (1 of 2) public class Convert3 { public static void main(String [] args) { double fahrenheit; double celsius; KeyboardReader reader = new KeyboardReader(); fahrenheit = reader.readDouble("Enter degrees Fahrenheit: "); celsius = (fahrenheit - 32.0) * 5.0 / 9.0; System.out.println("The equivalent in Celsius is " + celsius); } }

  24. Factoring Out the Complexity with a supporting class (2 of 2) import java.io.*; public class KeyboardReader{ public double readDouble(String prompt){ double theNumber; try{ InputStreamReader reader = new InputStreamReader(System.in); BufferedReader buffer = new BufferedReader(reader); System.out.print(prompt); theNumber = Double.parseDouble(buffer.readLine()); return theNumber; }catch(Exception e){ System.err.println("Input error -- " + e.toString()); return 0; } } }

  25. Illustrating Concepts with Turtle Graphics

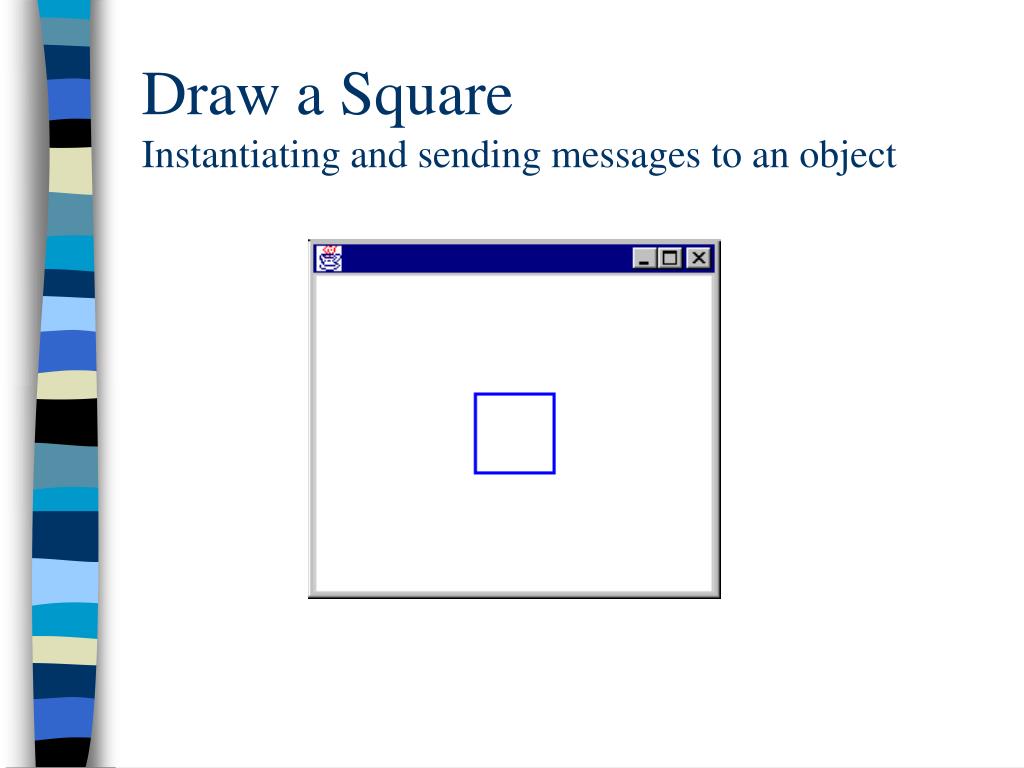

  26. Draw a SquareInstantiating and sending messages to an object

  27. Implementation import TurtleGraphics.StandardPen; public class DrawSquare { public static void main (String [] args) { // Instantiate a pen object StandardPen pen = new StandardPen(); // Lift the pen, move it to the square's top left corner, // and lower it again pen.up(); pen.move(25); pen.turn(90); pen.move(25); pen.down(); // Draw the square pen.turn(90); pen.move(50); pen.turn(90); pen.move(50); pen.turn(90); pen.move(50); pen.turn(90); pen.move(50); } }

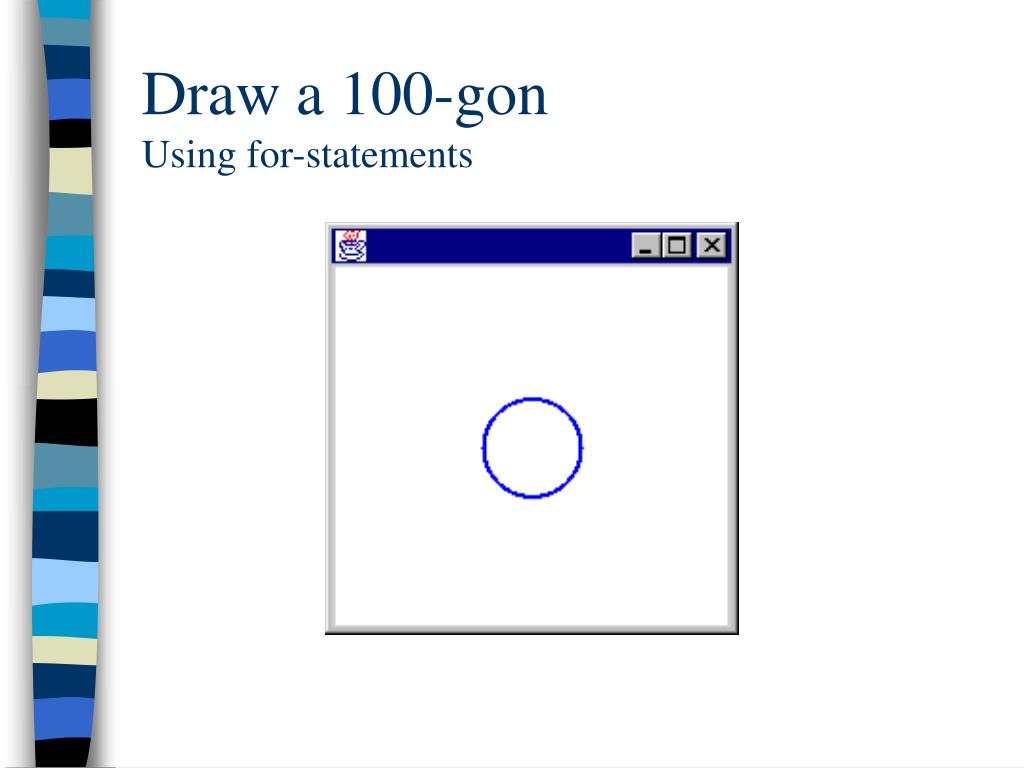

  28. Draw a 100-gonUsing for-statements

  29. Implementation import TurtleGraphics.StandardPen; public class Draw100gon { public static void main (String [] args) { int i; StandardPen pen = new StandardPen(); // Lift, move to top of circle, lower pen.up(); pen.move(25); pen.turn(90); pen.move(0.8); pen.down(); // Draw the 100gon for (i = 1; i <= 100; i++){ pen.turn(3.6); pen.move(1.6); } } }

  30. Smiley FaceUser defined classes

  31. Outline of Class public class SmilingFace { public SmilingFace(){...} public SmilingFace(double x, double y){...} public void draw(){ public void erase(){ public void move(double x, double y){...} private void drawCircle(double x, double y, double r){...} private void drawLine(double x1, double y1, double x2, double y2){...} private StandardPen pen; private double xPosition, yPosition; }

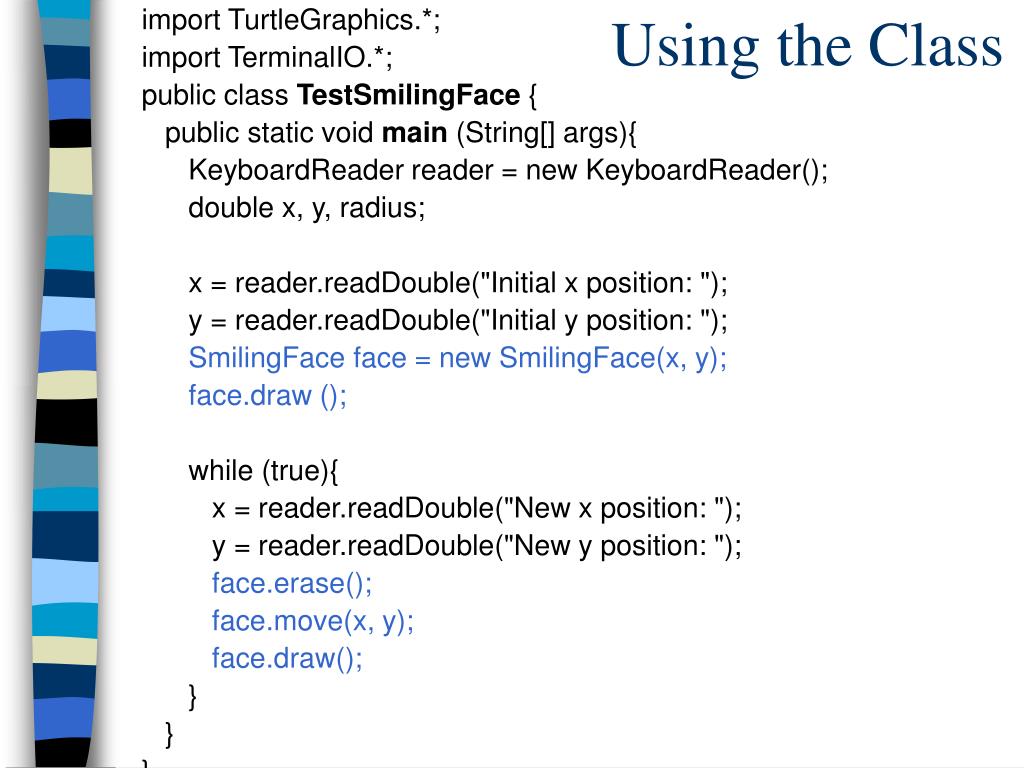

  32. Using the Class import TurtleGraphics.*; import TerminalIO.*; public class TestSmilingFace { public static void main (String[] args){ KeyboardReader reader = new KeyboardReader(); double x, y, radius; x = reader.readDouble("Initial x position: "); y = reader.readDouble("Initial y position: "); SmilingFace face = new SmilingFace(x, y); face.draw (); while (true){ x = reader.readDouble("New x position: "); y = reader.readDouble("New y position: "); face.erase(); face.move(x, y); face.draw(); } } }

  33. Implementation of Class (1 of 4) import TurtleGraphics.*; import java.awt.Color; public class SmilingFace { private StandardPen pen; private double xPosition, yPosition; public SmilingFace(){ xPosition = 0; yPosition = 0; pen = new StandardPen(); pen.setColor(Color.red); } public SmilingFace(double x, double y){ this(); xPosition = x; yPosition = y; }

  34. Implementation of Class (2 of 4) public void erase(){ pen.setColor(Color.white); draw(); pen.setColor(Color.red); } public void move(double x, double y){ xPosition = x; yPosition = y; }

  35. Implementation of Class (3 of 4) public void draw(){ double radius = 50.0; // Draw the outline of the face drawCircle(xPosition, yPosition, radius); // Draw the left and right eye. drawCircle(xPosition - radius / 2.5, yPosition + radius / 3, radius / 4); drawCircle(xPosition + radius / 2.5, yPosition + radius / 3, radius / 4); // Draw the horizontal part of the mouth drawLine(xPosition - radius / 3, yPosition - radius / 2, xPosition + radius / 3, yPosition - radius / 2); // Draw the left and right smile line drawLine(xPosition - radius / 3 , yPosition - radius / 2, xPosition - radius / 3 - 5, yPosition - radius / 2 + 5); drawLine(xPosition + radius / 3 , yPosition - radius / 2, xPosition + radius / 3 + 5, yPosition - radius / 2 + 5); }

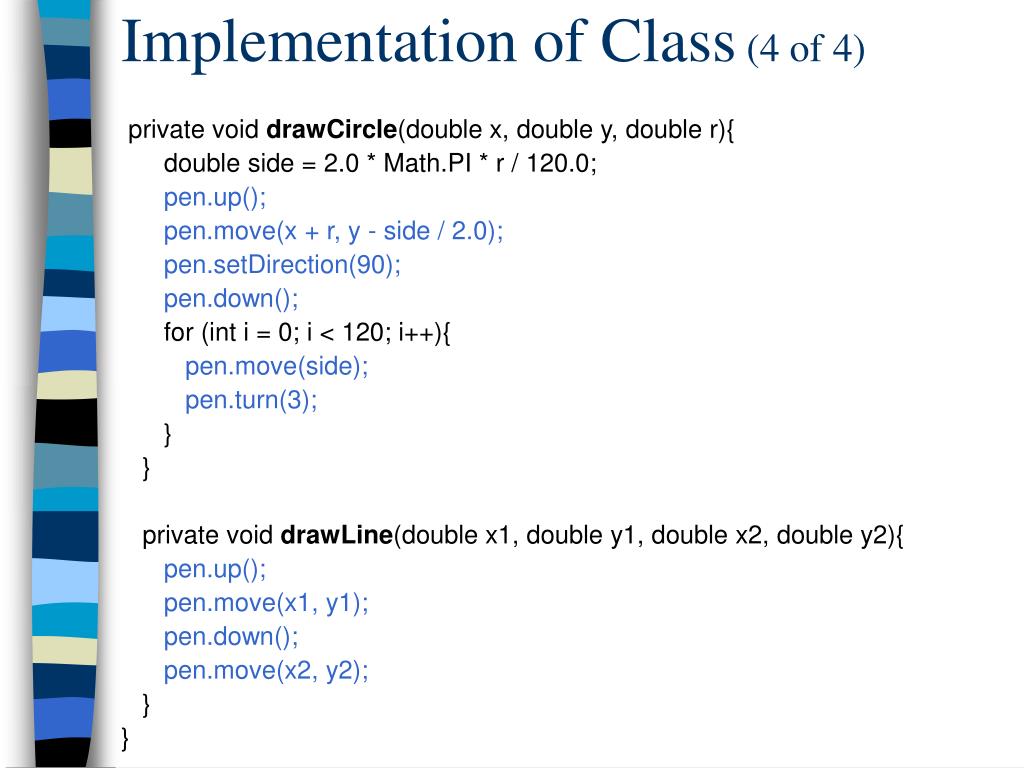

  36. Implementation of Class (4 of 4) private void drawCircle(double x, double y, double r){ double side = 2.0 * Math.PI * r / 120.0; pen.up(); pen.move(x + r, y - side / 2.0); pen.setDirection(90); pen.down(); for (int i = 0; i < 120; i++){ pen.move(side); pen.turn(3); } } private void drawLine(double x1, double y1, double x2, double y2){ pen.up(); pen.move(x1, y1); pen.down(); pen.move(x2, y2); } }

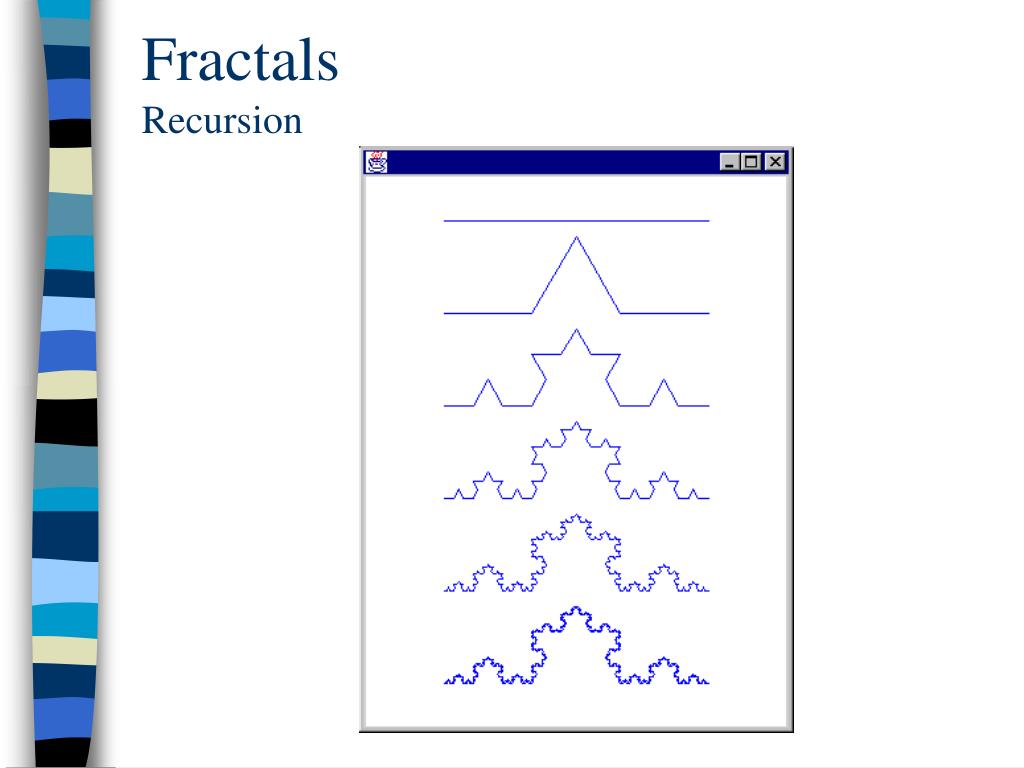

  37. FractalsRecursion

  38. Implementation (1 of 2) import java.awt.Color; import TurtleGraphics.*; public class Recursion { public static void main (String [] args) { Pen pen = new StandardPen(); pen.setWidth(1); for (int i = 1; i <= 6; i++){ pen.up(); pen.move(-100, 245 - 70 * i); pen.down(); pen.setDirection(0); drawFractal(i, pen, 200); } }

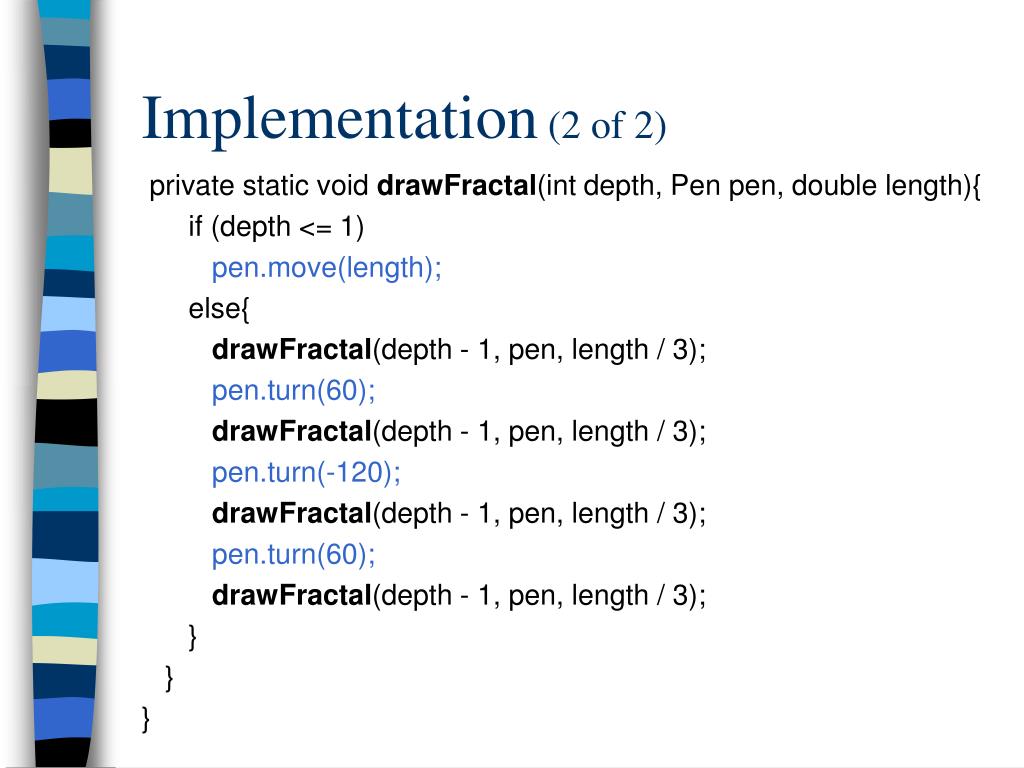

  39. Implementation (2 of 2) private static void drawFractal(int depth, Pen pen, double length){ if (depth <= 1) pen.move(length); else{ drawFractal(depth - 1, pen, length / 3); pen.turn(60); drawFractal(depth - 1, pen, length / 3); pen.turn(-120); drawFractal(depth - 1, pen, length / 3); pen.turn(60); drawFractal(depth - 1, pen, length / 3); } } }

  40. Drawing in Applets

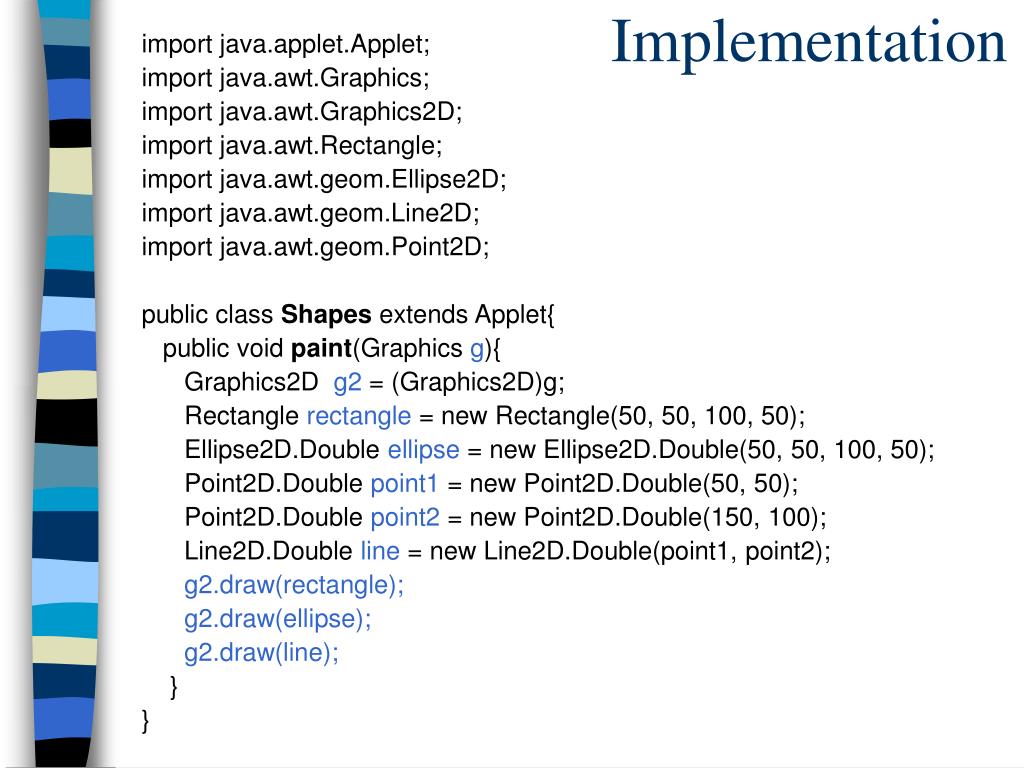

  41. Implementation import java.applet.Applet; import java.awt.Graphics; import java.awt.Graphics2D; import java.awt.Rectangle; import java.awt.geom.Ellipse2D; import java.awt.geom.Line2D; import java.awt.geom.Point2D; public class Shapes extends Applet{ public void paint(Graphics g){ Graphics2D g2 = (Graphics2D)g; Rectangle rectangle = new Rectangle(50, 50, 100, 50); Ellipse2D.Double ellipse = new Ellipse2D.Double(50, 50, 100, 50); Point2D.Double point1 = new Point2D.Double(50, 50); Point2D.Double point2 = new Point2D.Double(150, 100); Line2D.Double line = new Line2D.Double(point1, point2); g2.draw(rectangle); g2.draw(ellipse); g2.draw(line); } }

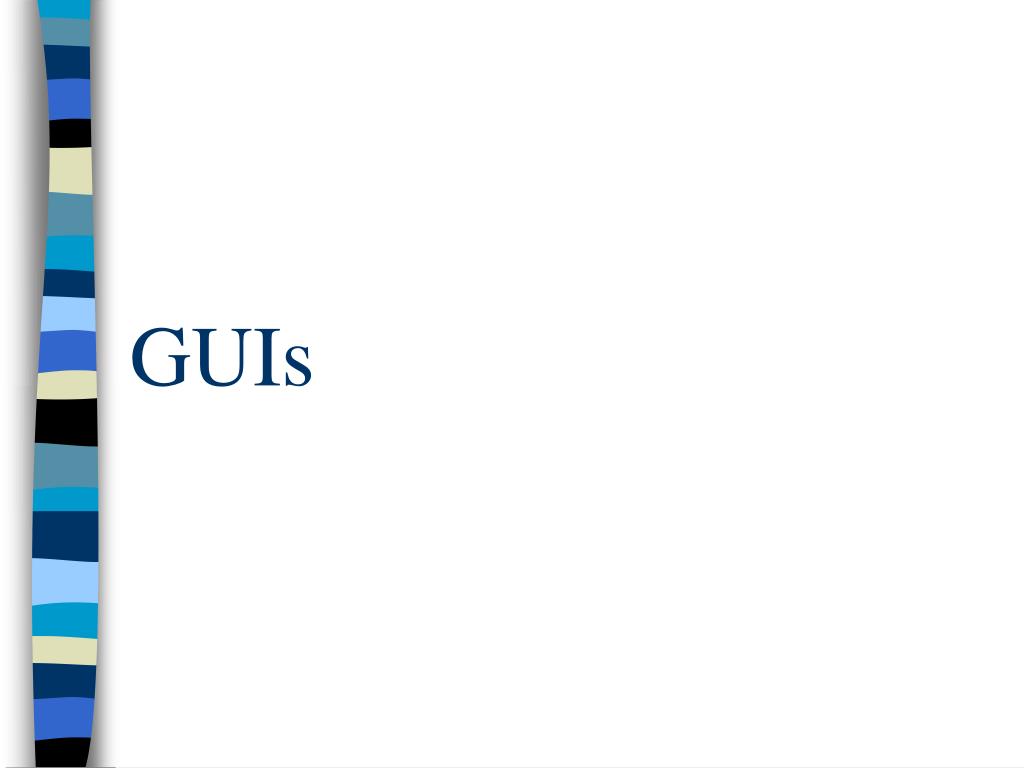

  42. GUIs

  43. A Simple GUI

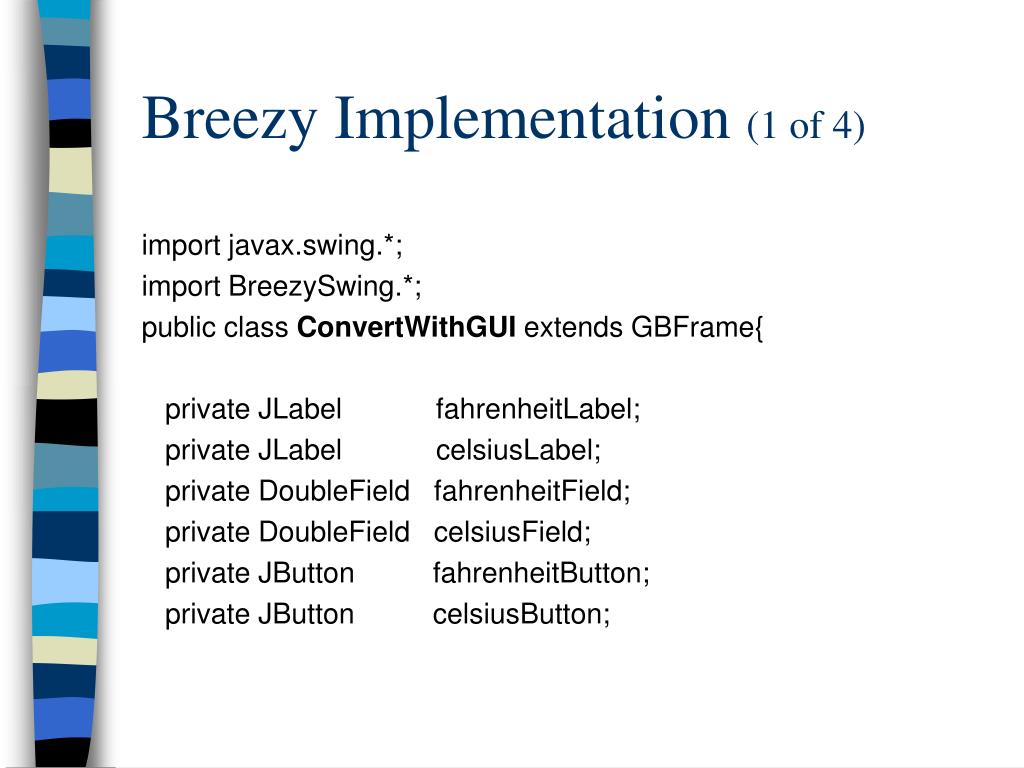

  44. Breezy Implementation (1 of 4) import javax.swing.*; import BreezySwing.*; public class ConvertWithGUI extends GBFrame{ private JLabel fahrenheitLabel; private JLabel celsiusLabel; private DoubleField fahrenheitField; private DoubleField celsiusField; private JButton fahrenheitButton; private JButton celsiusButton;

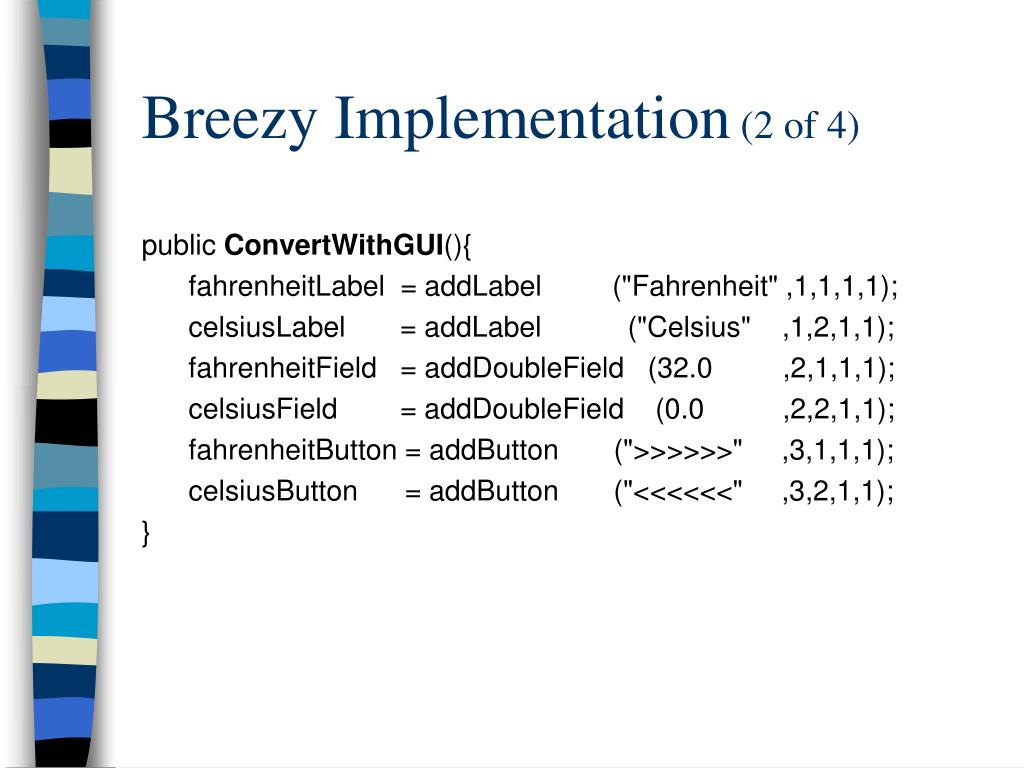

  45. Breezy Implementation (2 of 4) public ConvertWithGUI(){ fahrenheitLabel = addLabel ("Fahrenheit" ,1,1,1,1); celsiusLabel = addLabel ("Celsius" ,1,2,1,1); fahrenheitField = addDoubleField (32.0 ,2,1,1,1); celsiusField = addDoubleField (0.0 ,2,2,1,1); fahrenheitButton = addButton (">>>>>>" ,3,1,1,1); celsiusButton = addButton ("<<<<<<" ,3,2,1,1); }

  46. Breezy Implementation (3 of 4) public void buttonClicked (JButton buttonObj){ double fahrenheit, celsius; if (buttonObj == fahrenheitButton){ fahrenheit = fahrenheitField.getNumber(); celsius = (fahrenheit - 32.0) * 5.0 / 9.0; celsiusField.setNumber (celsius); }else{ celsius = celsiusField.getNumber(); fahrenheit = celsius * 9.0 / 5.0 + 32.0; fahrenheitField.setNumber (fahrenheit); } }

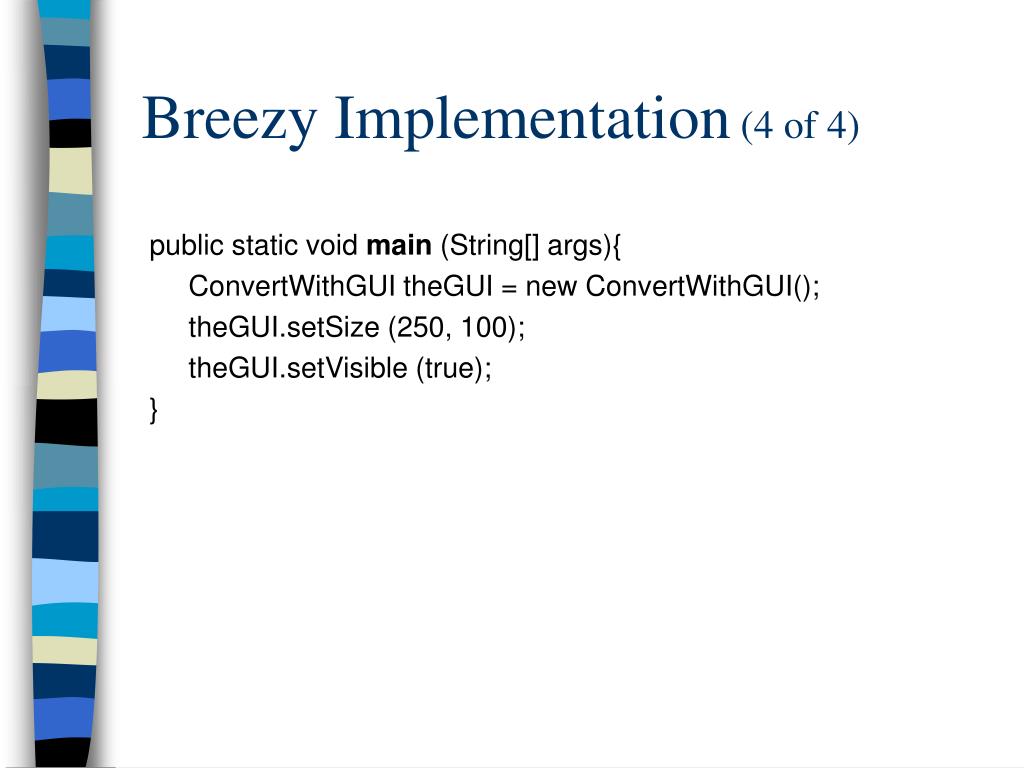

  47. Breezy Implementation (4 of 4) public static void main (String[] args){ ConvertWithGUI theGUI = new ConvertWithGUI(); theGUI.setSize (250, 100); theGUI.setVisible (true); }

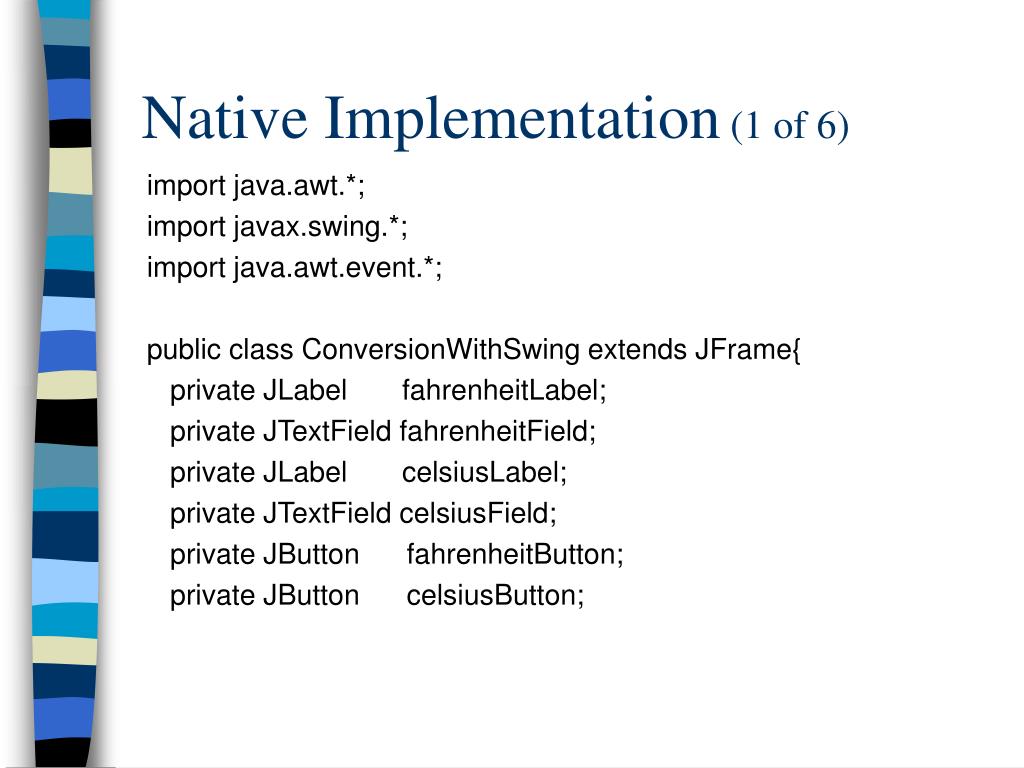

  48. Native Implementation (1 of 6) import java.awt.*; import javax.swing.*; import java.awt.event.*; public class ConversionWithSwing extends JFrame{ private JLabel fahrenheitLabel; private JTextField fahrenheitField; private JLabel celsiusLabel; private JTextField celsiusField; private JButton fahrenheitButton; private JButton celsiusButton;

  49. Native Implementation (2 of 6) public ConversionWithSwing(){ fahrenheitLabel = new JLabel ("Fahrenheit"); celsiusLabel = new JLabel ("Celsius"); fahrenheitField = new JTextField ("212", 6); // 6 columns wide celsiusField = new JTextField ("100", 6); // 6 columns wide fahrenheitButton = new JButton (">>>>>>"); celsiusButton = new JButton ("<<<<<<");

  50. Native Implementation (3 of 6) Container contentPane = getContentPane(); contentPane.setLayout (new FlowLayout()); contentPane.add (fahrenheitLabel); contentPane.add (celsiusLabel); contentPane.add (fahrenheitField); contentPane.add (celsiusField); contentPane.add (fahrenheitButton); contentPane.add (celsiusButton); fahrenheitButton.addActionListener(new MyActionListener()); celsiusButton.addActionListener(new MyActionListener()); addWindowListener(new MyWindowAdapter()); }
