  1. Storage Systems in HPC John A. Chandy Department of Electrical and Computer Engineering University of Connecticut

  2. Research Summary • Storage Systems • Active Storage • Parallel File Systems • Reliable Data Storage • Active Storage Networks

  3. Storage Systems • Parallel Computing • Building parallel file systems to support HPC • Computation at the storage node • Data organization methods to improve performance • Reliable Data Storage • Customizable and extensible storage for reliability • Backup strategies using personal storage devices • Data security, trust, and reliability in the cloud

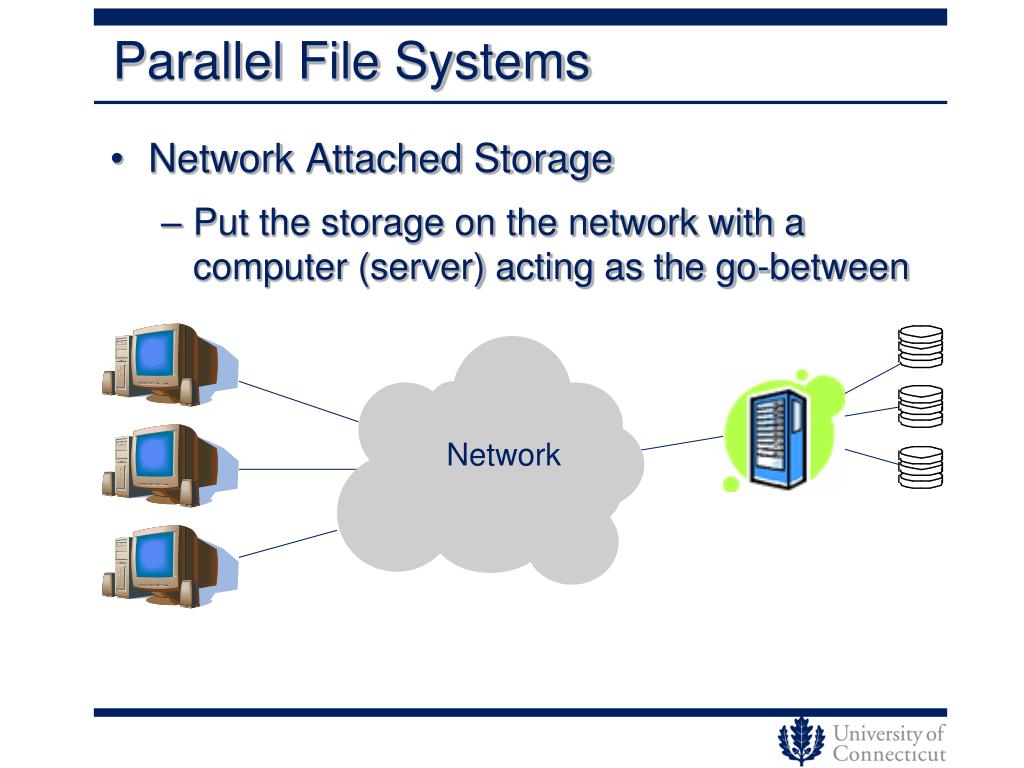

  4. Parallel File Systems • Network Attached Storage • Put the storage on the network with a computer (server) acting as the go-between Network

  5. Parallel File Systems • Separate the metadata from the storage Metadata Network

  6. Parallel File Systems • How do you improve metadata performance? • Distribute metadata services on data nodes • Use active storage and object services

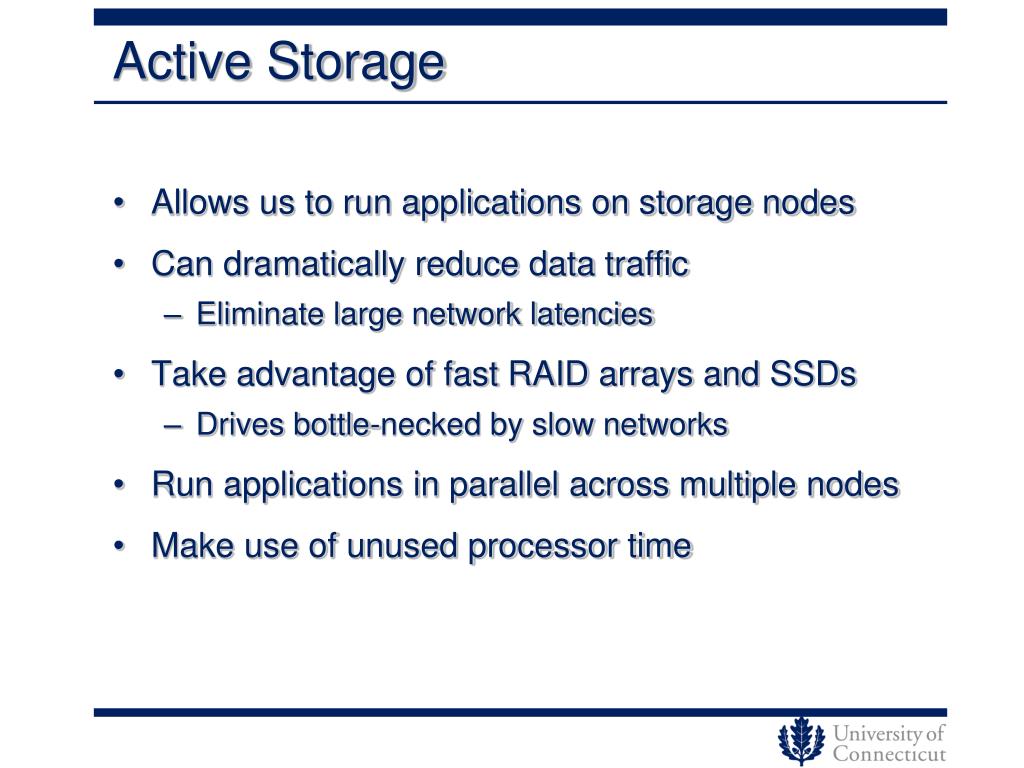

  7. Active Storage • Allows us to run applications on storage nodes • Can dramatically reduce data traffic • Eliminate large network latencies • Take advantage of fast RAID arrays and SSDs • Drives bottle-necked by slow networks • Run applications in parallel across multiple nodes • Make use of unused processor time

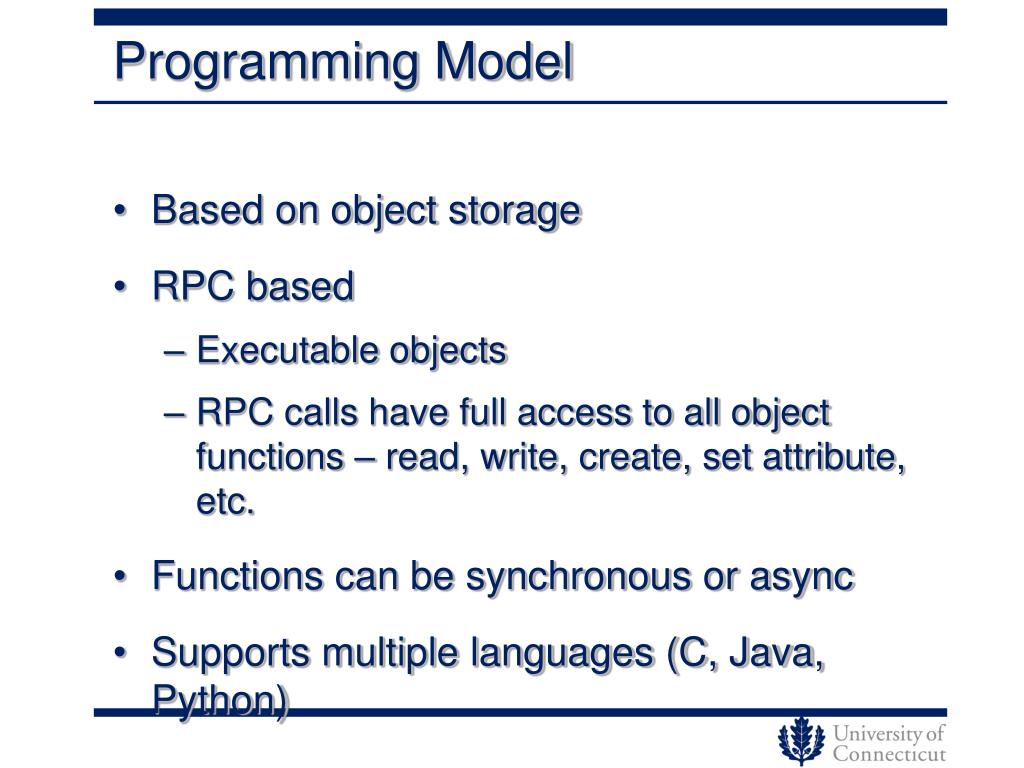

  8. Programming Model • Based on object storage • RPC based • Executable objects • RPC calls have full access to all object functions – read, write, create, set attribute, etc. • Functions can be synchronous or async • Supports multiple languages (C, Java, Python)

  9. Programming Model • Based on work by Acharya, Riedel - Stream based • Our model is Remote Procedure Call (RPC) based • Use executable objects • Added command to begin execution • Allow full access to all OSD functions • Functions can be run sync or async • Due to iSCSI 30sec timeout • Working to allow queries for async • Allow parallel execution using async • Support multiple languages (c, java, python)

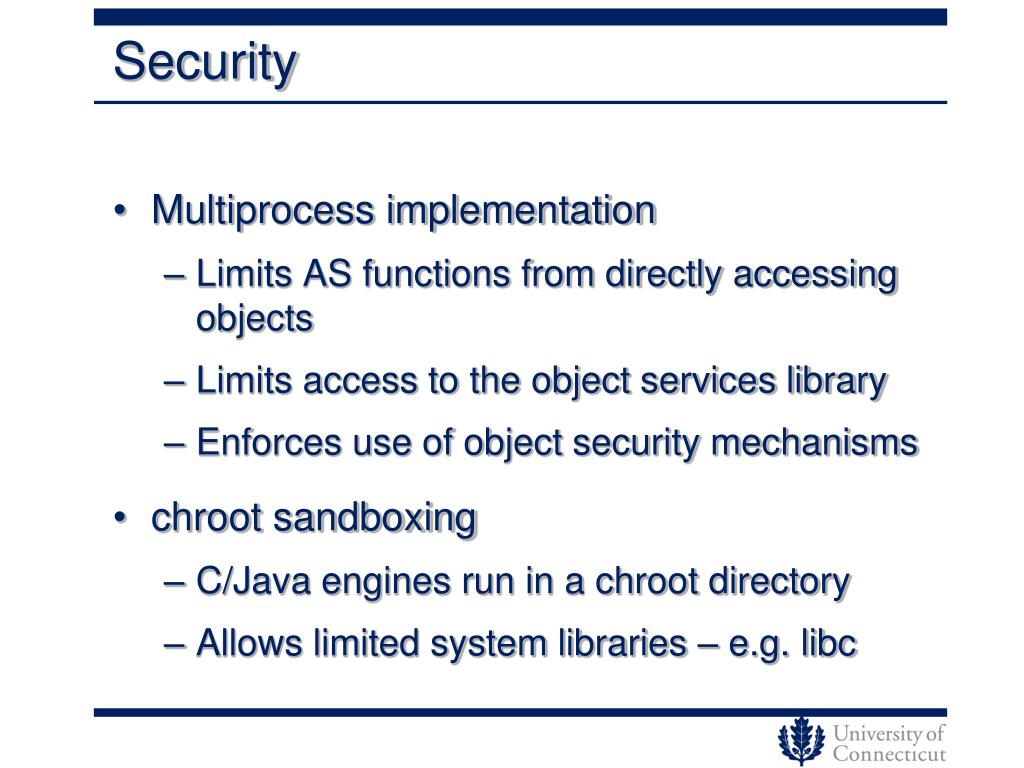

  10. Security • Multiprocess implementation • Limits AS functions from directly accessing objects • Limits access to the object services library • Enforces use of object security mechanisms • chroot sandboxing • C/Java engines run in a chroot directory • Allows limited system libraries – e.g. libc

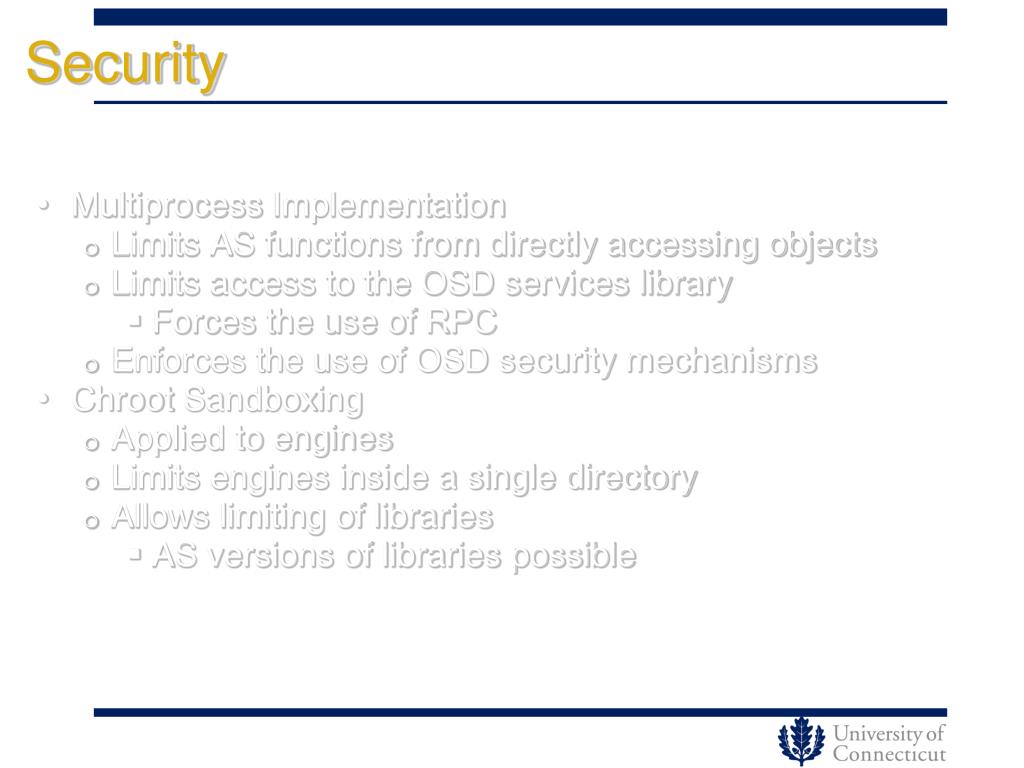

  11. Security • Multiprocess Implementation • Limits AS functions from directly accessing objects • Limits access to the OSD services library • Forces the use of RPC • Enforces the use of OSD security mechanisms • Chroot Sandboxing • Applied to engines • Limits engines inside a single directory • Allows limiting of libraries • AS versions of libraries possible

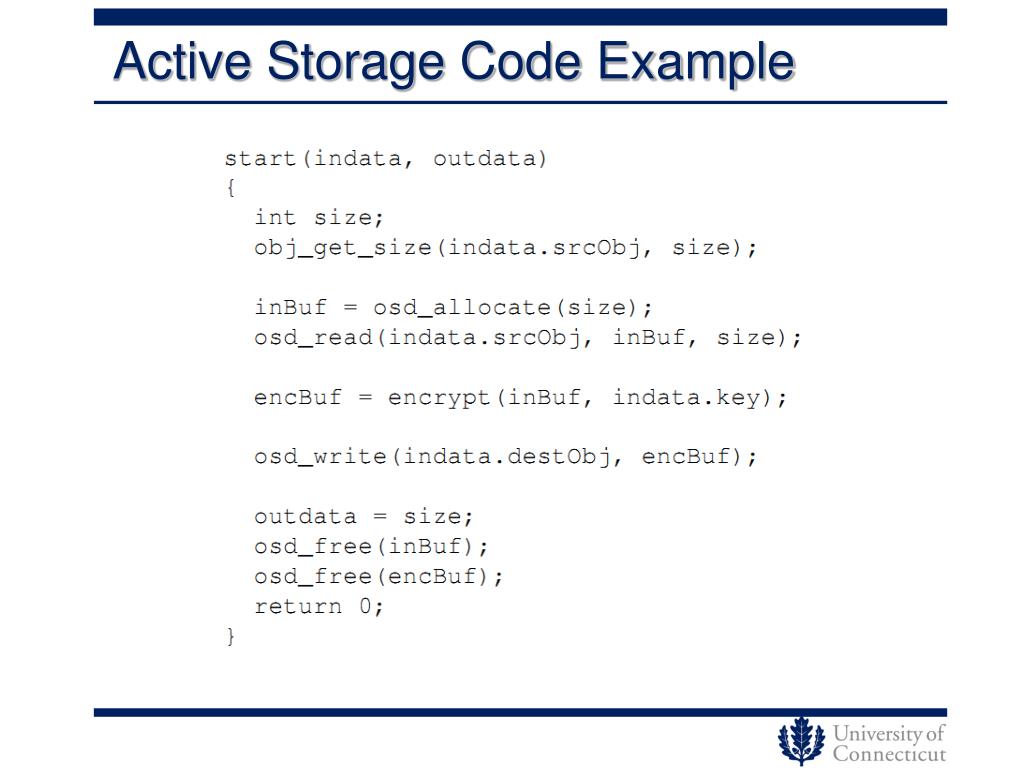

  12. Active Storage Code Example

  13. Results: AES Local vs. Active Storage

  14. Results: Scaling with Multiple OSDs

  15. Results: C vs. Java

  16. High Performance Computing • Active storage network • Computing in the network • SIMD-like processing of data in motion • Adaptive computing network elements • Application optimizations for database queries, scientific applications, data mining, sort, etc.

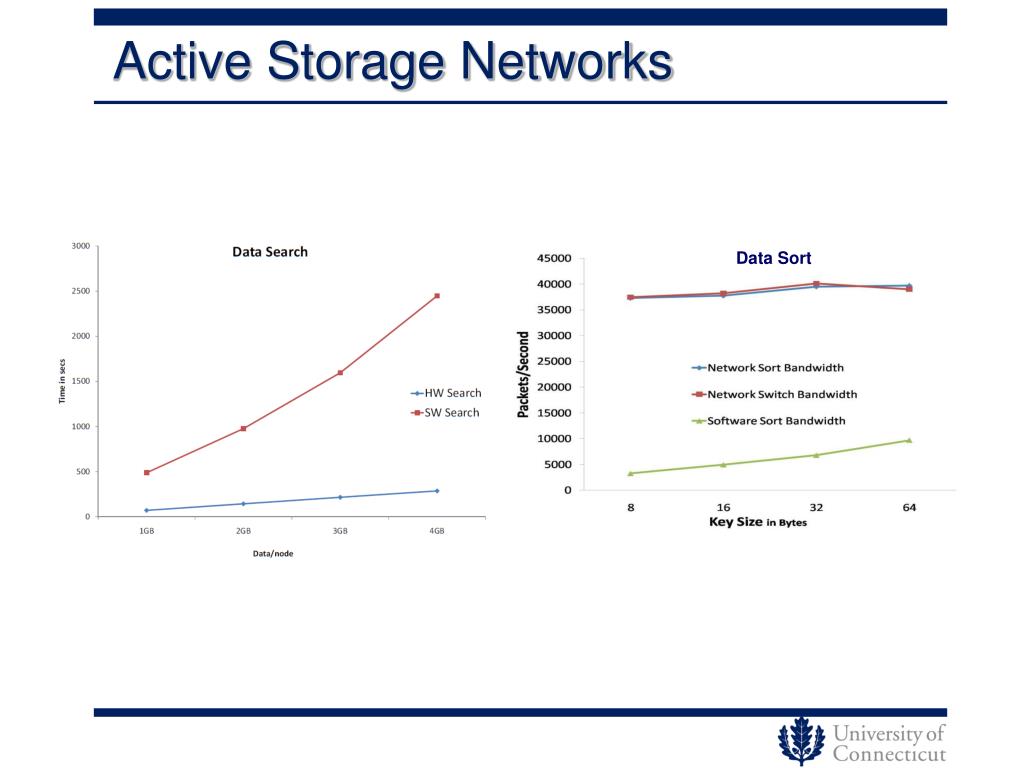

  17. Active Storage Networks Data Sort

  18. BECAT Collaboration • Large Data Problems • Parallel File Systems Implementation
