Presentation Transcript

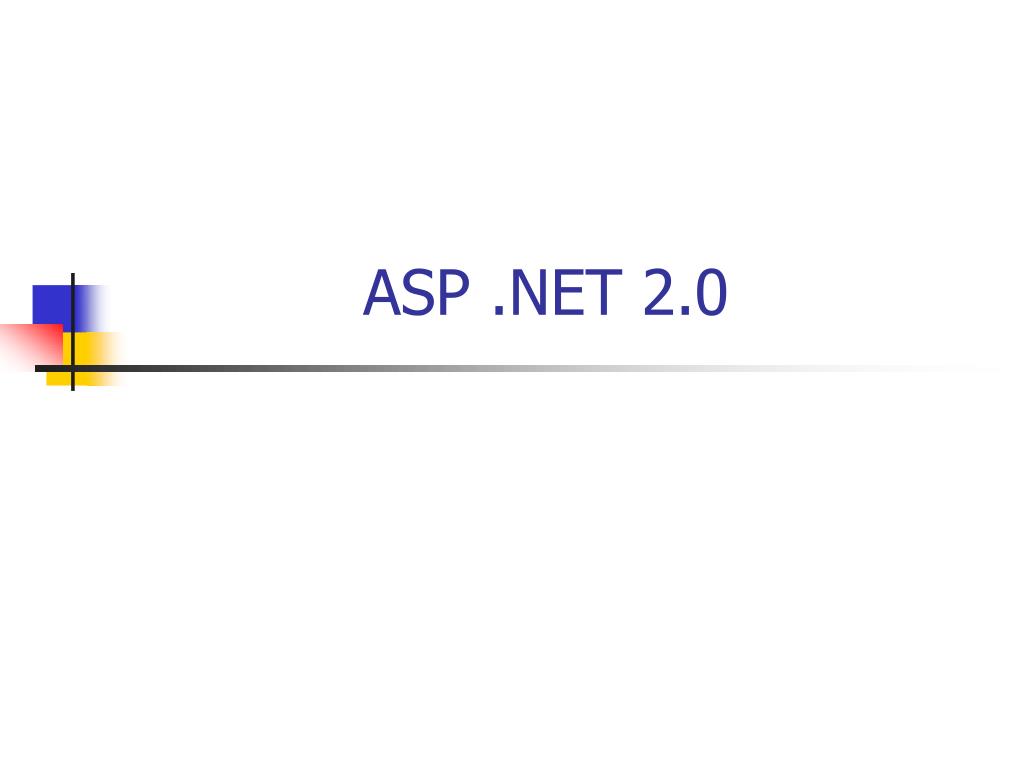

  1. ASP .NET 2.0

  2. What is ASP .NET • is a server-side scripting language developed by Microsoft • is the next generation of ASP (Active Server Pages), completely new technology, not backward compatible to classic ASP • is part of Microsoft .Net framework • runs inside IIS (Internet Information Server) • version history: ASP .NET, ASP .NET 2.0, ASP .NET 3.0 • an ASP .NET file has the extension “.aspx” as opposed to “.asp” as in classic ASP • the execution and role of “.aspx” files is the same as in other server-side languages like JSP, PHP, etc.

  3. Microsoft .Net Framework • Microsoft .Net framework is an environment for building, deploying and running web-based and standalone enterprise applications • it contains the following components: • programming languages: C#, Visual Basic .Net, J# • server technologies and client technologies: ASP .NET, Windows Forms (Windows desktop solutions), Compact Framework (PDA/Mobile solutions) • development environments: Visual Studio .Net, Visual Web Developer

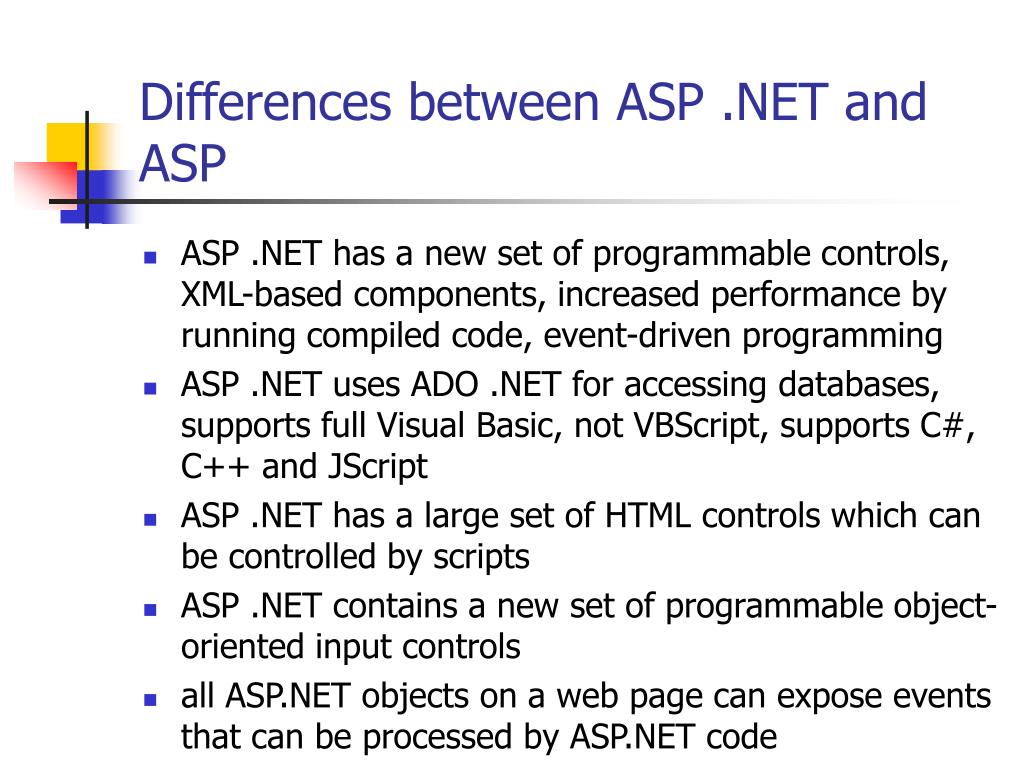

  4. Differences between ASP .NET and ASP • ASP .NET has a new set of programmable controls, XML-based components, increased performance by running compiled code, event-driven programming • ASP .NET uses ADO .NET for accessing databases, supports full Visual Basic, not VBScript, supports C#, C++ and JScript • ASP .NET has a large set of HTML controls which can be controlled by scripts • ASP .NET contains a new set of programmable object-oriented input controls • all ASP.NET objects on a web page can expose events that can be processed by ASP.NET code

  5. Running ASP .NET • for running ASP .NET code only: • .NET Framework • and IIS (Microsoft Internet Information Server) is required • the principle of running ASP .NET code is the same as in running other server-side scripts like PHP and JSP

  6. First .aspx example <html><body><p><%Response.Write(“Hello .Net World!”)%></p></body> </html> • in classic ASP (and also available in ASP .NET), ASP code is inserted in html code inside the tags “<%…%>”

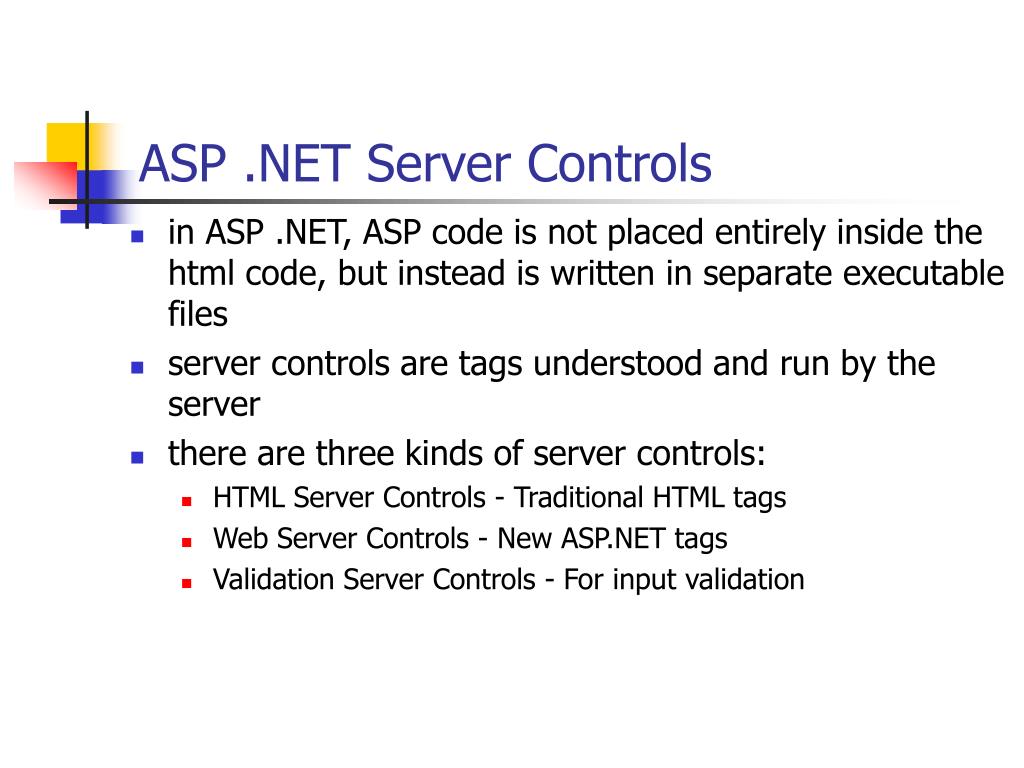

  7. ASP .NET Server Controls • in ASP .NET, ASP code is not placed entirely inside the html code, but instead is written in separate executable files • server controls are tags understood and run by the server • there are three kinds of server controls: • HTML Server Controls - Traditional HTML tags • Web Server Controls - New ASP.NET tags • Validation Server Controls - For input validation

  8. HTML Server Controls • html elements in ASP.NET files are, by default, treated as text. To make these elements programmable a runat="server" attribute to the html element is required. This attribute indicates that the element should be treated as a server control. The id attribute is added to identify the server control. • all html server controls must be within a <form> tag with the runat="server" attribute. The runat="server" attribute indicates that the form should be processed on the server. It also indicates that the enclosed controls can be accessed by server scripts.

  9. HTML Server Control example <script runat="server"> Sub Page_Load link1.HRef="http://www.google.com"End Sub </script> <html> <body> <form runat="server"><a id="link1" runat="server">Visit Google!</a></form> </body> </html>

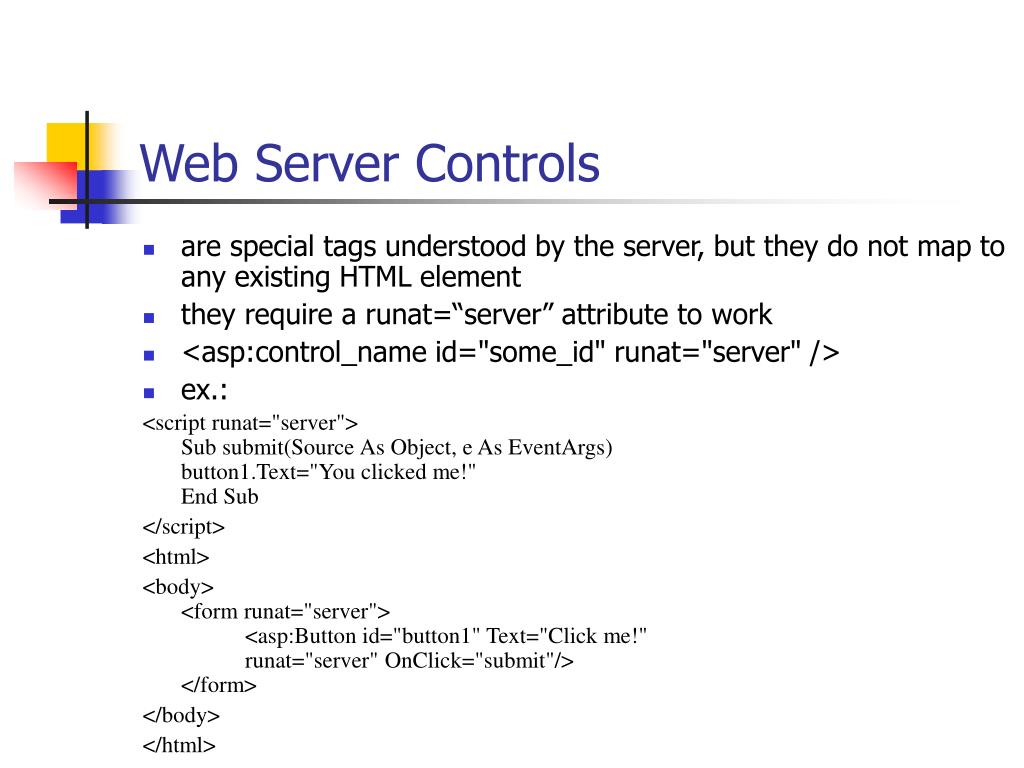

  10. Web Server Controls • are special tags understood by the server, but they do not map to any existing HTML element • they require a runat=“server” attribute to work • <asp:control_name id="some_id" runat="server" /> • ex.: <script runat="server">Sub submit(Source As Object, e As EventArgs)button1.Text="You clicked me!"End Sub </script> <html> <body><form runat="server"> <asp:Button id="button1" Text="Click me!" runat="server" OnClick="submit"/></form> </body> </html>

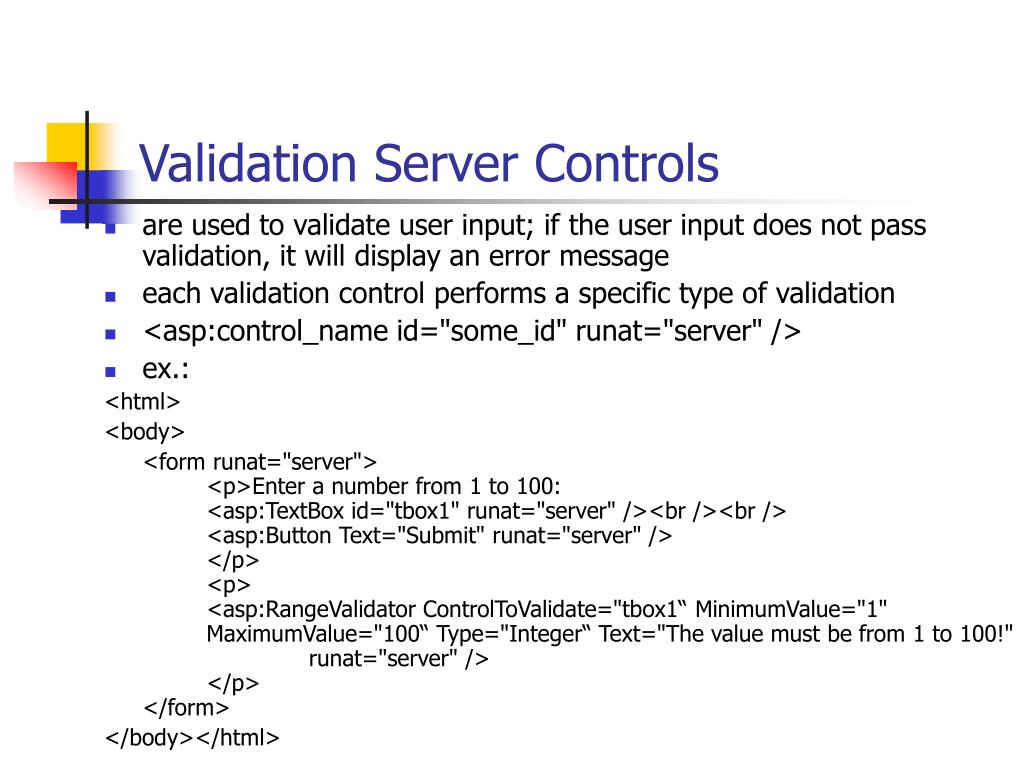

  11. Validation Server Controls • are used to validate user input; if the user input does not pass validation, it will display an error message • each validation control performs a specific type of validation • <asp:control_name id="some_id" runat="server" /> • ex.: <html> <body> <form runat="server"> <p>Enter a number from 1 to 100: <asp:TextBox id="tbox1" runat="server" /><br /><br /> <asp:Button Text="Submit" runat="server" /> </p> <p> <asp:RangeValidator ControlToValidate="tbox1“ MinimumValue="1" MaximumValue="100“ Type="Integer“ Text="The value must be from 1 to 100!" runat="server" /> </p></form> </body></html>

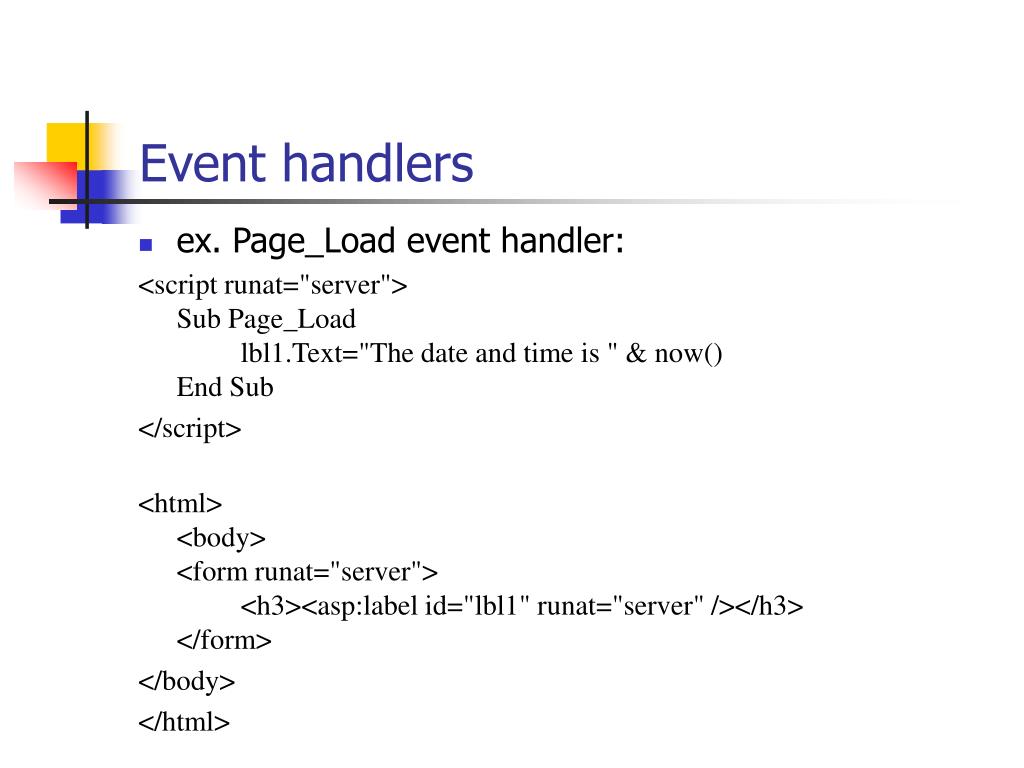

  12. Event handlers • ex. Page_Load event handler: <script runat="server">Sub Page_Load lbl1.Text="The date and time is " & now()End Sub </script> <html><body><form runat="server"> <h3><asp:label id="lbl1" runat="server" /></h3></form> </body> </html>

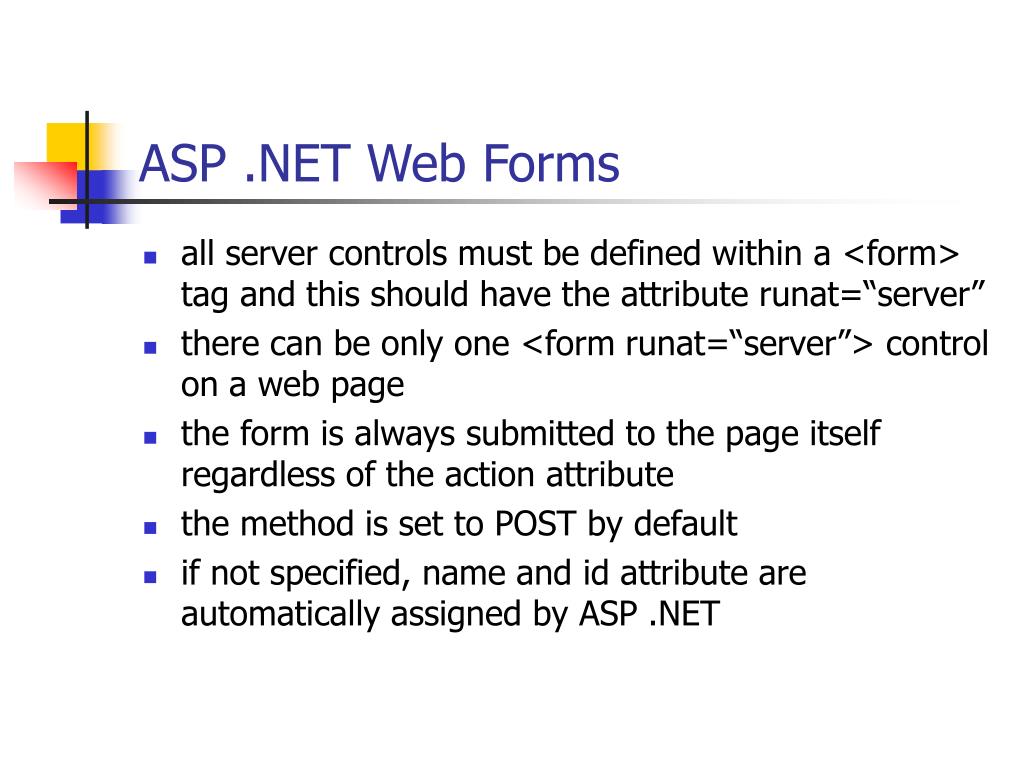

  13. ASP .NET Web Forms • all server controls must be defined within a <form> tag and this should have the attribute runat=“server” • there can be only one <form runat=“server”> control on a web page • the form is always submitted to the page itself regardless of the action attribute • the method is set to POST by default • if not specified, name and id attribute are automatically assigned by ASP .NET

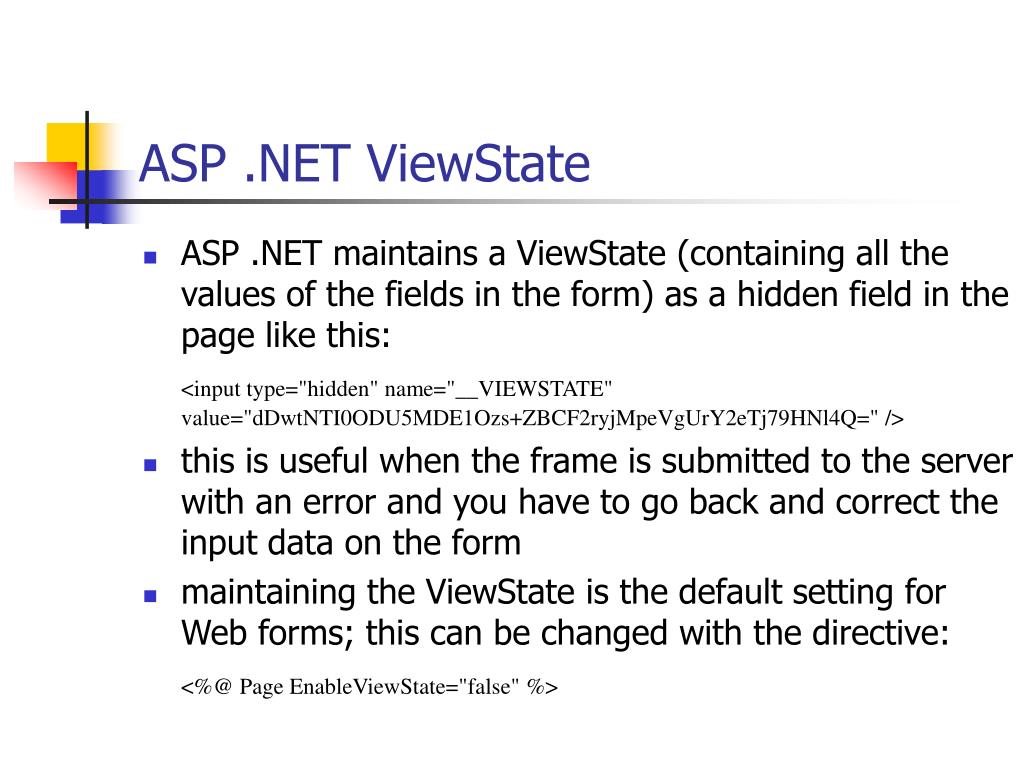

  14. ASP .NET ViewState • ASP .NET maintains a ViewState (containing all the values of the fields in the form) as a hidden field in the page like this: <input type="hidden" name="__VIEWSTATE"value="dDwtNTI0ODU5MDE1Ozs+ZBCF2ryjMpeVgUrY2eTj79HNl4Q=" /> • this is useful when the frame is submitted to the server with an error and you have to go back and correct the input data on the form • maintaining the ViewState is the default setting for Web forms; this can be changed with the directive: <%@ Page EnableViewState="false" %>

  15. asp:TextBox <script runat="server">Sub change(sender As Object, e As EventArgs) lbl1.Text="You changed text to " & txt1.TextEnd Sub </script> <html><body><form runat="server"> Enter your name: <asp:TextBox id="txt1" runat="server“ text="Hello World!" ontextchanged="change" autopostback="true"/> <p><asp:Label id="lbl1" runat="server" /></p></form></body></html>

  16. asp:Button <script runat="server">Sub submit(sender As Object, e As EventArgs) lbl1.Text="Your name is " & txt1.TextEnd Sub </script> <html><body><form runat="server"> Enter your name: <asp:TextBox id="txt1" runat="server" /> <asp:Button OnClick="submit" Text="Submit" runat="server" /> <p><asp:Label id="lbl1" runat="server" /></p></form> </body> </html>

  17. Data binding controls • some controls can be bind to a datasource like a database, an xml file or a script • the data binding list controls are: • asp:RadioButtonList • asp:CheckBoxList • asp:DropDownList • asp:ListBox • these controls can contain <asp:ListItem> or they can use the items from a data source

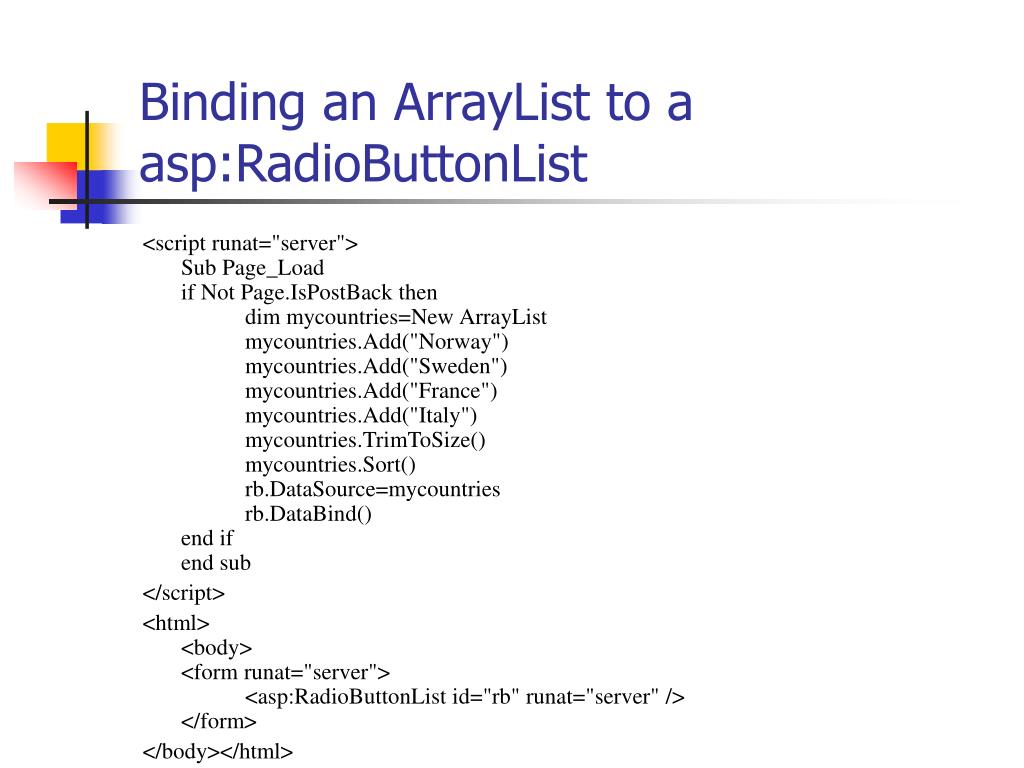

  18. Binding an ArrayList to a asp:RadioButtonList <script runat="server">Sub Page_Loadif Not Page.IsPostBack then dim mycountries=New ArrayList mycountries.Add("Norway") mycountries.Add("Sweden") mycountries.Add("France") mycountries.Add("Italy") mycountries.TrimToSize() mycountries.Sort() rb.DataSource=mycountries rb.DataBind()end ifend sub </script> <html><body><form runat="server"> <asp:RadioButtonList id="rb" runat="server" /></form> </body></html>

  19. Binding an xml file to a asp:RadioButtonList <%@ Import Namespace="System.Data" %> <script runat="server">sub Page_Load if Not Page.IsPostBack then dim mycountries=New DataSet mycountries.ReadXml(MapPath("countries.xml")) rb.DataSource=mycountries rb.DataValueField="value" rb.DataTextField="text" rb.DataBind() end ifend sub sub displayMessage(s as Object,e As EventArgs) lbl1.text="Your favorite country is: " & rb.SelectedItem.Textend sub </script> <html> <body><form runat="server"> <asp:RadioButtonList id="rb" runat="server" AutoPostBack="True" onSelectedIndexChanged="displayMessage" /> <p><asp:label id="lbl1" runat="server" /></p></form> </body></html>

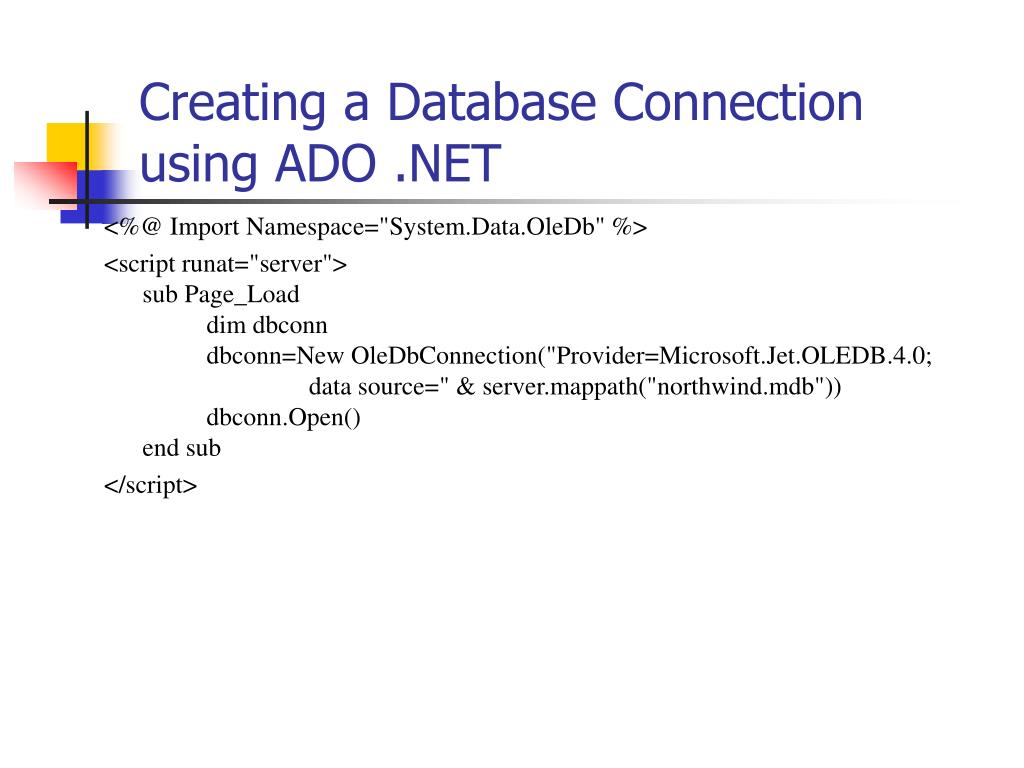

  20. Creating a Database Connection using ADO .NET <%@ Import Namespace="System.Data.OleDb" %> <script runat="server">sub Page_Load dim dbconn dbconn=New OleDbConnection("Provider=Microsoft.Jet.OLEDB.4.0; data source=" & server.mappath("northwind.mdb")) dbconn.Open()end sub </script>

  21. Creating a Database Command <%@ Import Namespace="System.Data.OleDb" %> <script runat="server">sub Page_Load dim dbconn,sql,dbcomm dbconn=New OleDbConnection("Provider=Microsoft.Jet.OLEDB.4.0; data source=" & server.mappath("northwind.mdb")) dbconn.Open() sql="SELECT * FROM customers" dbcomm=New OleDbCommand(sql,dbconn)end sub </script>

  22. Creating a DataReader <%@ Import Namespace="System.Data.OleDb" %> <script runat="server">sub Page_Load dim dbconn,sql,dbcomm,dbread dbconn=New OleDbConnection("Provider=Microsoft.Jet.OLEDB.4.0; data source=" & server.mappath("northwind.mdb")) dbconn.Open() sql="SELECT * FROM customers" dbcomm=New OleDbCommand(sql,dbconn) dbread=dbcomm.ExecuteReader()end sub </script>

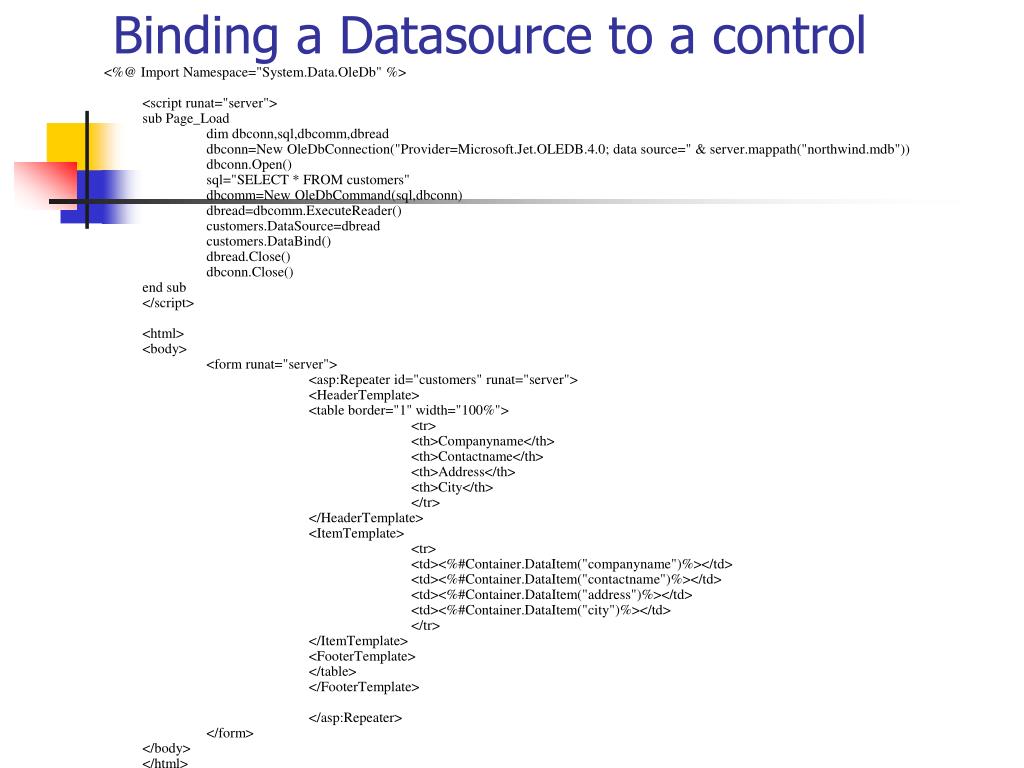

  23. Binding a Datasource to a control <%@ Import Namespace="System.Data.OleDb" %><script runat="server">sub Page_Load dim dbconn,sql,dbcomm,dbread dbconn=New OleDbConnection("Provider=Microsoft.Jet.OLEDB.4.0; data source=" & server.mappath("northwind.mdb")) dbconn.Open() sql="SELECT * FROM customers" dbcomm=New OleDbCommand(sql,dbconn) dbread=dbcomm.ExecuteReader() customers.DataSource=dbread customers.DataBind() dbread.Close() dbconn.Close()end sub</script><html><body> <form runat="server"> <asp:Repeater id="customers" runat="server"> <HeaderTemplate> <table border="1" width="100%"> <tr> <th>Companyname</th> <th>Contactname</th> <th>Address</th> <th>City</th> </tr> </HeaderTemplate> <ItemTemplate> <tr> <td><%#Container.DataItem("companyname")%></td> <td><%#Container.DataItem("contactname")%></td> <td><%#Container.DataItem("address")%></td> <td><%#Container.DataItem("city")%></td> </tr> </ItemTemplate> <FooterTemplate> </table> </FooterTemplate> </asp:Repeater> </form></body></html>
