Accounting Information Systems 9 th Edition

Learning Objectives • Discuss the steps for designing and implementing a database system. • Use the REA data model to design an AIS database. • Draw an Entity-Relationship (E-R) diagram of an AIS database. • Build a set of tables to implement an REA model of an AIS in a relational database. • Read an E-R diagram and explain what it reveals about the business activities and policies of the organization being modeled. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Introduction • Ashton Fleming, the accountant for S&S, is learning that designing a relational database for S&S is not as easy as the computer store salesperson made it seem. • He is planning to attend a seminar to teach accountants the basics on how to design a relational database. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Introduction • Ashton hopes to have answers for the following questions by the end of the seminar: • What are the basic steps to follow when designing a database? • When creating a relational database, how exactly do you decide which attributes belong in which tables? ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Introduction • How can you document an AIS that is implemented as a relational database? • This chapter explains how to design and document a relational database for an accounting information system. • It focuses on one of the aspects of database design, data modeling. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Introduction • This chapter also introduces the REA accounting model and Entity-Relationship (E-R) diagrams. • It shows how to use these tools to build a data model of an AIS. • Finally, it describes how to implement the resulting data model in a relational database. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Designing and Implementing a Database System • There are six basic steps involved in designing and implementing a database system. They are: • Initial planning to determine the need for and feasibility of developing a new system. • Identifying user needs. • Developing the contextual-, external-and internal-level schemas. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Designing and Implementing a Database System • Translating the internal-level schema into the actual database structures that will be implemented in the new system. • Transferring all data from the existing system to the new database. • Using and maintaining the new system. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

The REA Data Model • Data modeling is the process of defining a database so that it faithfully represents all aspects of the organization, including its interactions with the external environment. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

The REA Data Model Data Modeling in the Database Design Process Operation and maintenance Planning Implementation Requirements analysis Data modeling occurs here Design Coding ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

The REA Data Model • The REA data model is a conceptual modeling tool specifically designed to provide structure for designing AIS databases. • The REA data model provides structure in two ways: • By identifying what entities should be included in the AIS database • By prescribing how to structure relationships among the entities in the AIS database ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Sample REA Diagram Sales Person Participates in Stock flow Inventory Sales Participates in Economic Duality Customer Participates in Stock flow Cash Cashier Receive Cash Participates in ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Basic REA Template Internal Agent Participates in inflow Resource A Get Resource A Participates in External Agent Economic Duality Participates in Internal Agent outflow Resource B Give up Resource B Participates in External Agent ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Give Inventory Get Cash An AIS Viewed as a Set of Give-to-Get Exchanges Revenue Cycle Give Cash Get Inventory Expenditure Cycle Give Cash Get Employee’s Time/Service Human Resources/Payroll Cycle Give Cash Production Cycle Get Cash Get Employee’s Time/Service Financing Cycle Get Finished Goods Inventory Give/Use Raw Materials Give (Use) Machine Time & Services ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Types of Entities • An entity is any class of objects about which data is collected. • The REA data model classifies entities into three distinct categories: • Resources acquired and used by an organization • Events engaged in by the organization • Agents participating in these events ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Types of Entities • Resources are defined as those things that have economic value to the organization. • What are some examples? • cash • inventory • equipment ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Types of Entities • Events are the various business activities about which management wants to collect information for planning or control purposes. • What are some examples? • sales events • taking customer orders ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Types of Entities • Agents are the third type of entity in the REA model. • Agents are the people and organizations that participate in events and about whom information is desired. • What are some examples? • employees • customers ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Structured Relationships • The REA data model prescribes a basic pattern for how the three types of entities (resources, events, and agents) should relate to one another. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Inflow Economic duality Outflow Structured Relationships Resource A Get resource A Resource B Give up resource B ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Participates in Participates in Economic duality Participates in Participates in Structured Relationships Internal Agent Get resource A External Agent Internal Agent Give up resource B External Agent

Sample E-R Diagrams Managed By Supervisors Employers Part of Manages Departments Part of Cash Receipts Customer Orders Part of Sales Part of Part of Players Teams League ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Entity-Relationship Diagram • An Entity-Relationship (E-R) diagram is one method for portraying a database schema. • It is called an E-R diagram because it shows the various entities being modeled and the important relationships among them. • In an E-R diagram, entities appear as rectangles, and relationships between entities are represented as diamonds. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Line items Pays for Increases Entity-Relationship Diagram Resources Events Inventory Sales (0, N) (1, N) (0, N) Cash Cash collections

Party to Made to Pays for Received from Received by Entity-Relationship Diagram Events Agents (1, 1) Sales (1, N) Salesperson (1, 1) (0, N) (0, N) Customer Cash collections Cashier

Developing an REA Diagram • Developing an REA diagram for a specific transaction cycle consists of three steps: • Identify the pair of events that reflect the basic economic exchange. • Identify the resources affected by each event and the agents who participate in those events. • Determine the cardinalities of each relationship. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Identify EconomicExchange Events • The basic economic exchange in the revenue cycle involves the sale of goods or services and the subsequent receipt of cash in payment for those sales. • The REA diagram for S&S’s revenue cycle shows the drawing of sales and cash collections events entities as rectangles and the relationship between them as a diamond. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Identify EconomicExchange Events • In drawing an REA diagram for an individual cycle, it is useful to divide the paper into three columns, one for each type of entity. • Left column should be used for resources. • Middle column should be used for events. • Right column should be used for agents. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Identify Resources and Agents • Once the events of interest have been specified, the resources that are affected by those events need to be identified. • The sales event involves the disposal of inventory. • The cash collections event involves the acquisition of cash. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Identify Resources and Agents • After specifying the resources affected by each event, the next step is to identify the agents who participate in those events. • There will always be at least one internal agent (employee) and, in most cases, an external agent (customer). ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Specify Cardinalities • The cardinality of a relationship indicates how many occurrences of one entity in the relationship can be linked to a single occurrence of the other entity in the relationship. • Cardinalities are often expressed as a pair of numbers. • The first number is the minimum, and the second number is the maximum. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Specify Cardinalities • The minimum cardinalityof a relationship indicates the fewest number of rows that can be involved in that relationship. • Minimum cardinalities can be either 0 or 1. • A minimum cardinality of zero means that each occurrence of the entity on the other side of the relationship need not be linked to any occurrences of the entity on this side of the relationship. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Made to Specify Cardinalities • The minimum cardinality of zero in the (0, N) cardinality pair to the left of the customer entity in the customer-sales relationship indicates that a given customer need not be linked to any sales events. Sales (0, N) Customer ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Specify Cardinalities • Minimum cardinalities of zero are common for relationships between two temporarily linked events. Why? • Because at any given time the second event in the pair may not yet have occurred. • A minimum cardinality of 1 indicates that each instance of that entity must be associated with at least one instance of the other entity. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Party to Specify Cardinalities • The minimum cardinality below the sales entity in the sales-customer relationship reflects the general business rule that each sales event must be associated with some specific customer. Sales Salesperson (1, 1) ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Specify Cardinalities • The maximum cardinality of a relationship indicates the largest number of rows that can be involved in that relationship. • Maximum cardinalities can be either 1 or N. • The N indicates that each row in the table may be linked to many rows in the other table. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Specify Cardinalities • Three basic types of relationships between entities are possible, depending on the maximum cardinality associated with each entity. • One-to-one relationship • One-to-many relationship • Many-to-many relationship ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Specify Cardinalities • Cardinalities are not arbitrarily chosen by the database designer. • They reflect facts about the organization being modeled and its business practices obtained during the requirements analysis stage of the database design process. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Learning Objective 4 Build a set of tables to implement an REA model of an AIS in a relational database. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Implementing an REA Diagram in a Relational Database • An REA diagram can be used to design a well-structured relational database. • A well-structured relational database is one that is not subject to update, insert, and delete anomaly problems. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Create Tables • A properly normalized relational database has a table for each entity and each many-to-many relationship. • From the previously discussed REA diagram, nine tables would be created: one for each of the seven entities and one for each of the many-to-many relationships. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Inventory Sales Salesperson Customer Cashier Cash collections Cash Sales-inventory Sales-cash collections Create Tables ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

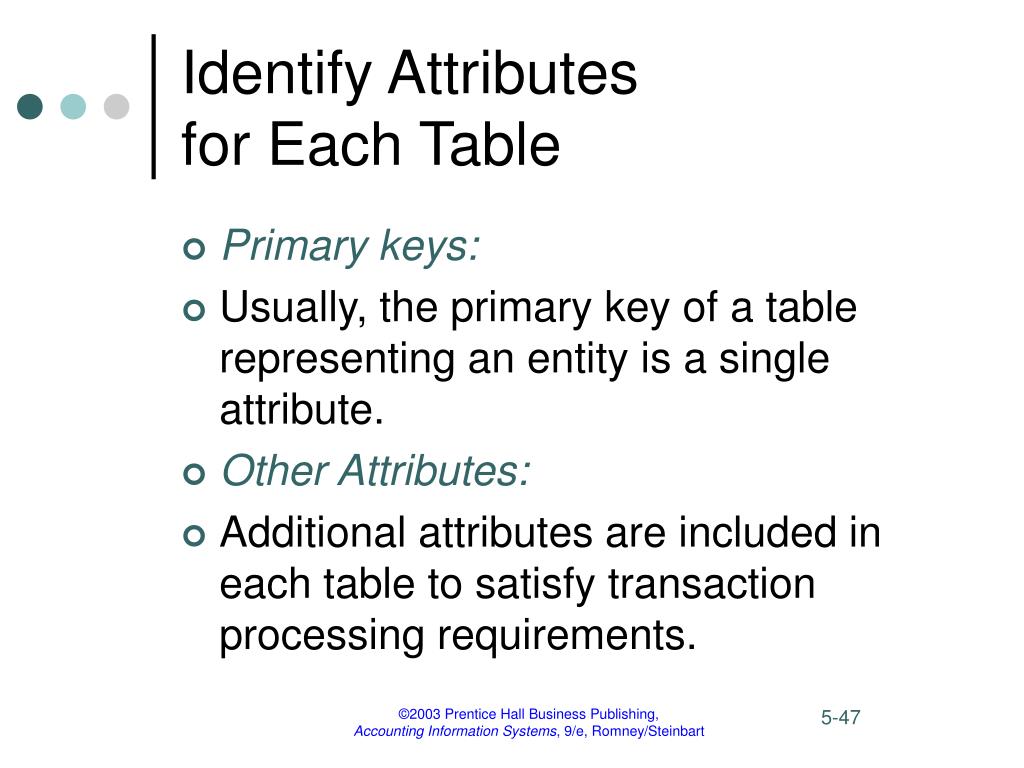

Identify Attributesfor Each Table • Primary keys: • Usually, the primary key of a table representing an entity is a single attribute. • Other Attributes: • Additional attributes are included in each table to satisfy transaction processing requirements. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

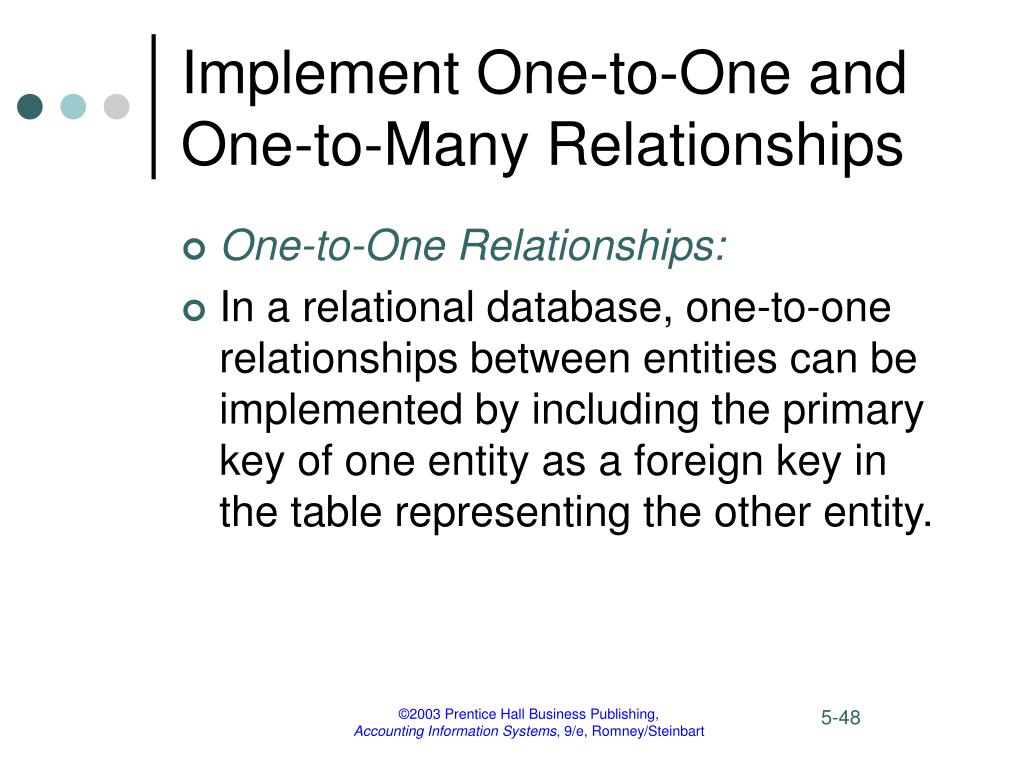

Implement One-to-One and One-to-Many Relationships • One-to-One Relationships: • In a relational database, one-to-one relationships between entities can be implemented by including the primary key of one entity as a foreign key in the table representing the other entity. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Implement One-to-One and One-to-Many Relationships • One-to-Many Relationships: • In a relational database, one-to-many relationships can be also implemented in relation to databases by means of foreign keys. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart

Learning Objective 5 Read an E-R diagram and explain what it reveals about the business activities and policies of the organization being modeled. ©2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart
