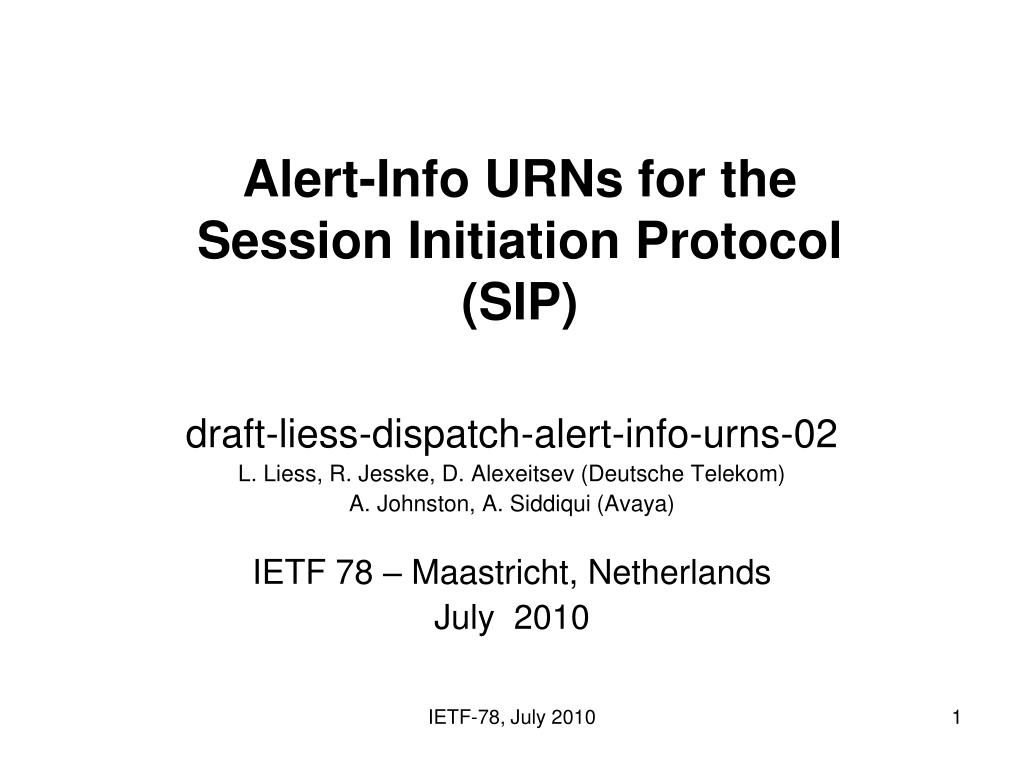

  1. Alert-Info URNs for the Session Initiation Protocol (SIP) draft-liess-dispatch-alert-info-urns-02 L. Liess, R. Jesske, D. Alexeitsev (Deutsche Telekom) A. Johnston, A. Siddiqui (Avaya) IETF 78 – Maastricht, Netherlands July 2010 IETF-78, July 2010

  2. Status and Goals Status: Major changes since the 01 version, including document structure and syntax definition. Goals: • Discuss the current version and open issues. • Consolidate the sections Definition, Requirements, Use Cases, ABNF-syntax, where we seem to have a „high level“ consensus • Clarify what to do with the „180 vs. 18x“ issue • Discuss/ solve major open issues (single vs. multiple URNs, value definitions, combination rules, extensibility) IETF-78, July 2010

  3. #1 Alert-Info URN Definition and Purpose • Initial definition and purpose: semantic identifiers instead of particular rendering in the Alert-Info header. • Long discussion in the past if / how we should allow non-semantic identifiers, e.g. „short“. • Ad-hoc agreement on „semantic indication and names for rendering characteristics”(based on Dale’s proposal) IETF-78, July 2010

  4. #2 180 vs. 18x responses • The RFC 3261 allows the Alert-Info header in 180 responses. • Ad-hoc agreement to allow it in provisional responses excepting 100. • Change to RFC 3261. Gonzalo will check if this change is minor enough so it can be done in this draft. IETF-78, July 2010

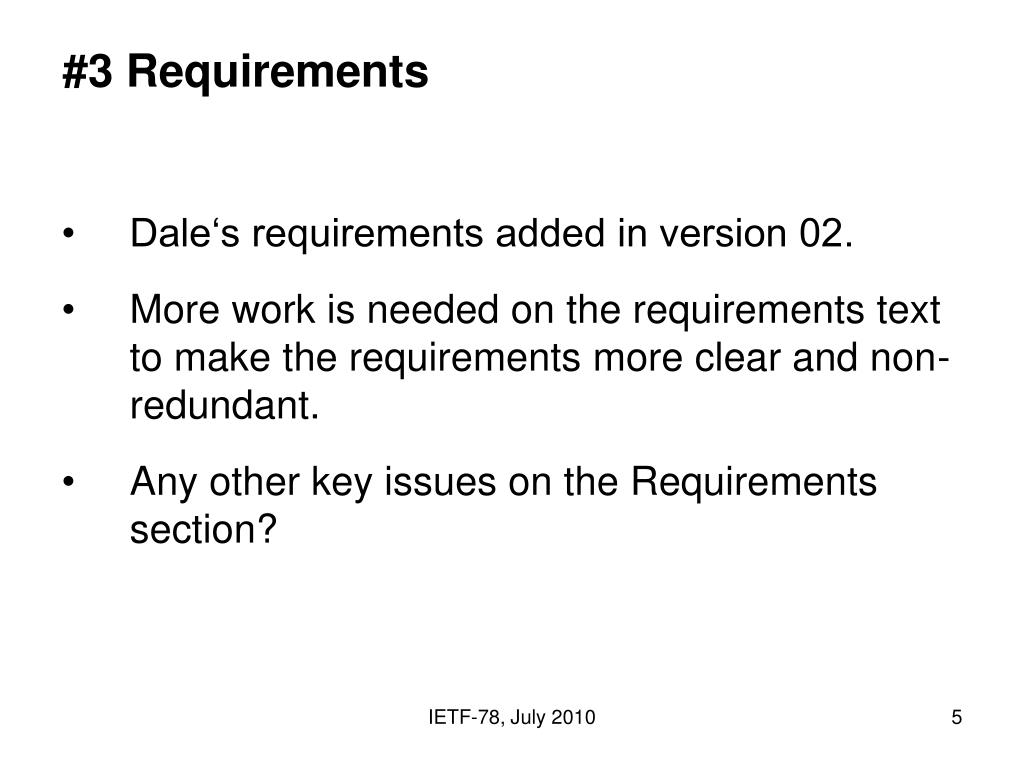

  5. #3 Requirements • Dale‘s requirements added in version 02. • More work is needed on the requirements text to make the requirements more clear and non-redundant. • Any other key issues on the Requirements section? IETF-78, July 2010

  6. #4 Use Cases • A.S0014 defines: • 1. Normal Alerting • 2. Inter-group Alerting • 3. Special/Priority Alerting • 4. Ping Ring (abbreviated alert) • 5. Abbreviated intercept • 6. Abbreviated reorder • Additionally, A.S0014 allows indication of pitch (high, normal, low) as part of the ringtone designation. • TIA/EIA values: • 1. Long (Normal) • 2. Short-Short • 3. Short-Short-Long • 4. Short-Short2 • 5. Short-Long-Short • 6. Short-Short-Short-Short • 7. PBX Long (Normal) • 8. PBX Short-Short • 9. PBX Short-Short-Long • 10. PBX Short-Long-Short • 11. PBX Short-Short-Short-Short • Adam‘s Use Cases (TIA/EIA-41-D and 3GPP2 A.S0014) • Ad-hoc agreement to add them to the Use Case section. • Need to clarify the meaning for some of them. • Any other issues on the Use Cases section? IETF-78, July 2010

  7. # 5 ABNF-Syntax • Ad-hoc agreed to get rid of top-level indication and sub-indication alert-category = name alert-indication= name *("." name) name = let-dig [ *25let-dig-hyp let-dig ] Instead of alert-category = let-dig [ *25let-dig-hyp let-dig ] alert-indication= top-level *("." sub-indication) top-level = let-dig [ *25let-dig-hyp let-dig ] sub-indication = let-dig [ *let-dig-hyp let-dig ] ”top-level” and ”sub-indication” no needed any longer. IETF-78, July 2010

  8. #6 Key Issue: Single URN vs. multiple URNs • Single URN • We had it in the initial draft in BLISS • Concerns that we have to register a very high number of combinations with IANA • URNs can be interpreted individually, and the Alert-Info list is just a list of URNs, of which the UA can use any that it understands. • Multiple URNs • The set of URNs is small and fixed • Modifications through intermediaries may be easier • Renderer may want to combine URNs inserted by two independent specifiers, e.g. „delayed“, inserted by the PBX, and „italian“, inserted by the UA. • Proxy may want to discard „high priority“ and leave „italian“ (both inserted by the UA). IETF-78, July 2010

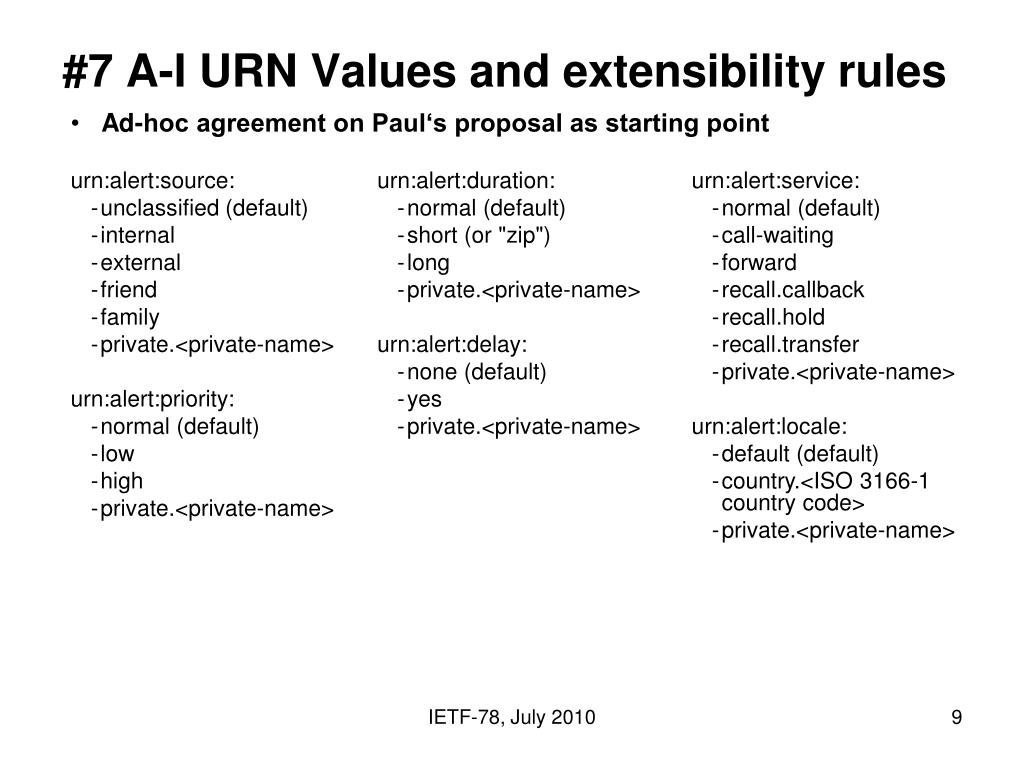

  9. #7 A-I URN Values and extensibility rules • Ad-hoc agreement on Paul‘s proposal as starting point • urn:alert:source: • unclassified (default) • internal • external • friend • family • private.<private-name> • urn:alert:priority: • normal (default) • low • high • private.<private-name> • urn:alert:duration: • normal (default) • short (or "zip") • long • private.<private-name> • urn:alert:delay: • none (default) • yes • private.<private-name> • urn:alert:service: • normal (default) • call-waiting • forward • recall.callback • recall.hold • recall.transfer • private.<private-name> • urn:alert:locale: • default (default) • country.<ISO 3166-1 country code> • private.<private-name> IETF-78, July 2010

  10. #8 Combination and Priority Rules • Depend on how “single or multiple URNs” issue is solved. • Rules proposals so far: • Categories are orthogonal • One instance for each alert-category. • Syntax: Multiple URNs separated by “,” • Priority= order IETF-78, July 2010

  11. #9 Extensibility Rules So far three extension mechanisms recognized: • Allow further dimensions created. • Allow sub-trees is also possible. • Allow existing items to be subdivided. IETF-78, July 2010

  12. Thank you! IETF-78, July 2010
