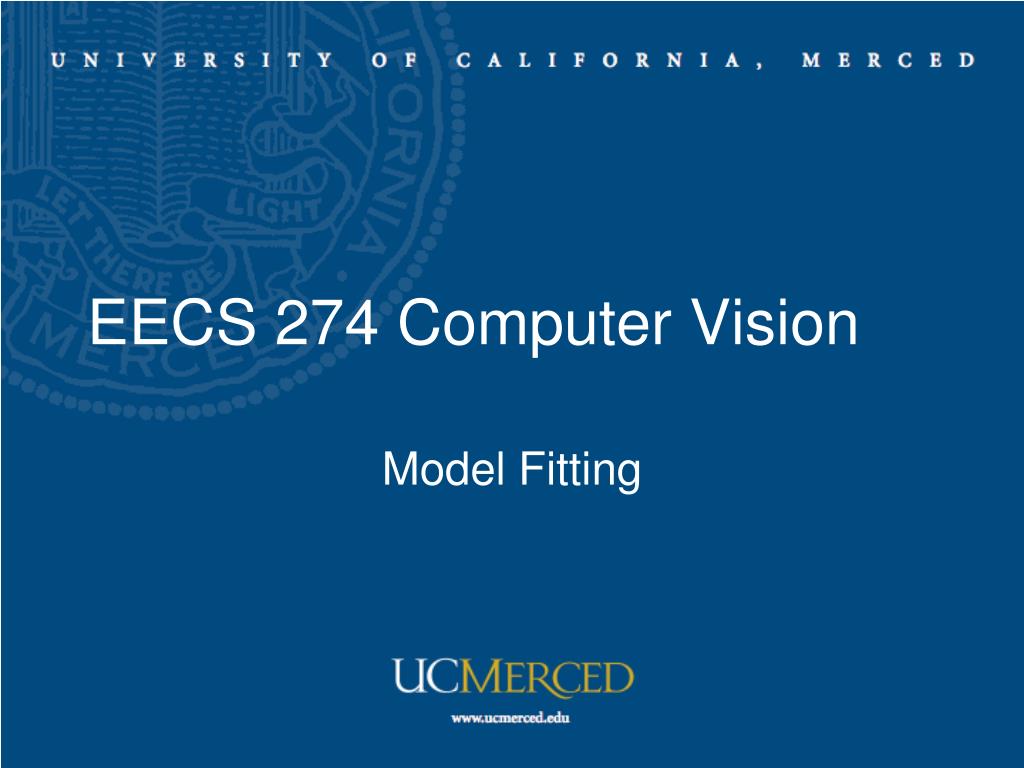

EECS 274 Computer Vision

1. EECS 274 Computer Vision Model Fitting

2. Fitting • Choose a parametric object/some objects to represent a set of points • Three main questions: • what object represents this set of points best? • which of several objects gets which points? • how many objects are there? (you could read line for object here, or circle, or ellipse or...) • Reading: FP Chapter 15

3. Fitting and the Hough transform • Purports to answer all three questions • in practice, answer isn’t usually all that much help • We do for lines only • A line is the set of points (x, y) such that • Different choices of q, d>0 give different lines • For any (x, y) there is a one parameter family of lines through this point, given by • Each point gets to vote for each line in the family; if there is a line that has lots of votes, that should be the line passing through the points

4. votes tokens • 20 points • 200 bins in each direction • # of votes is indicated by the pixel brightness • Maximum votes is 20 • Note that most points in the vote array are very dark, because they get only one vote.

5. Hough transform • Construct an array representing q, r • For each point, render the curve (q, r) into this array, adding one at each cell • Difficulties • Quantization error: how big should the cells be? (too big, and we cannot distinguish between quite different lines; too small, and noise causes lines to be missed) • Difficulty with noise • How many lines? • count the peaks in the Hough array • Who belongs to which line? • tag the votes • Hardly ever satisfactory in practice, because problems with noise and cell size defeat it

6. points votes • Add random noise ([0,0.05]) to each point. • Maximum vote is now 6

7. points votes

8. As noise increases, # of max votes decreases  difficult to use Hough transform less robustly

9. As noise increase, # of max votes in the right bucket goes down, and it is more likely to obtain a large spurious vote in the accumulator • Can be quite difficult to find a line out of noise with Hough transform as the # of votes for the line may be comparable with the # of vote for a spurious line

10. Choice of model Least squares but assumes error appears only in y Total least squares

11. Who came from which line? • Assume we know how many lines there are - but which lines are they? • easy, if we know who came from which line • Three strategies • Incremental line fitting • K-means • Probabilistic (later!)

14. Fitting curves other than lines • In principle, an easy generalisation • The probability of obtaining a point, given a curve, is given by a negative exponential of distance squared • In practice, rather hard • It is generally difficult to compute the distance between a point and a curve

15. Implicit curves • (u,v) on curve, i.e., ϕ(u,v)=0 • s=(dx,dy)-(u,v) is normal to the curve

16. Robustness • As we have seen, squared error can be a source of bias in the presence of noise points • One fix is EM - we’ll do this shortly • Another is an M-estimator • Square nearby, threshold far away • A third is RANSAC • Search for good points

17. Missing data • So far we assume we know which points belong to the line • In practice, we may have a set of measured points • some of which from a line, • and others of which are noise • Missing data (or label)

18. Least squares fits the data well

19. Single outlier (x-coordinate is corrupted) affects the least-squares result

20. Single outlier (y-coordinate is corrupted) affects the least-squares result

21. Bad fit

22. Heavy tail, light tail • The red line represents a frequency curve of a long tailed distribution. • The blue line represents a frequency curve of a short tailed distribution. • The black line is the standard bell curve..

23. M-estimators • Often used in robust statistics A point that is several away from the fitted curve will have no effect on the coefficients

24. Other M-estimators • Defined by influence function • Nonlinear function, solved iteratively • Iterative strategy • Draw a subset of samples randomly • Fit the subset using least squares • Use the remaining points to see fitness • Need to pick a sensible σ, which is referred as scale • Estimate scale at each iteration

25. Appropriate σ

26. small σ

27. large σ

28. Matching features What do we do about the “bad” matches? Szeliski

29. RAndom SAmple Consensus Select one match, count inliers

30. RAndom SAmple Consensus Select one match, count inliers

31. Least squares fit Find “average” translation vector

32. RANSAC • Random Sample Consensus • Choose a small subset uniformly at random • Fit to that • Anything that is close to result is signal; all others are noise • Refit • Do this many times and choose the best • Issues • How many times? • Often enough that we are likely to have a good line • How big a subset? • Smallest possible • What does close mean? • Depends on the problem • What is a good line? • One where the number of nearby points is so big it is unlikely to be all outliers

34. Image Stitching Descriptor Vector • Orientation = blurred gradient • Similarity Invariant Frame • Scale-space position (x, y, s) + orientation ()

35. RANSAC for Homography

36. RANSAC for Homography

37. RANSAC for Homography

38. Probabilistic model for verification

39. Finding the panoramas

40. Finding the panoramas

41. Finding the panoramas

42. Results
