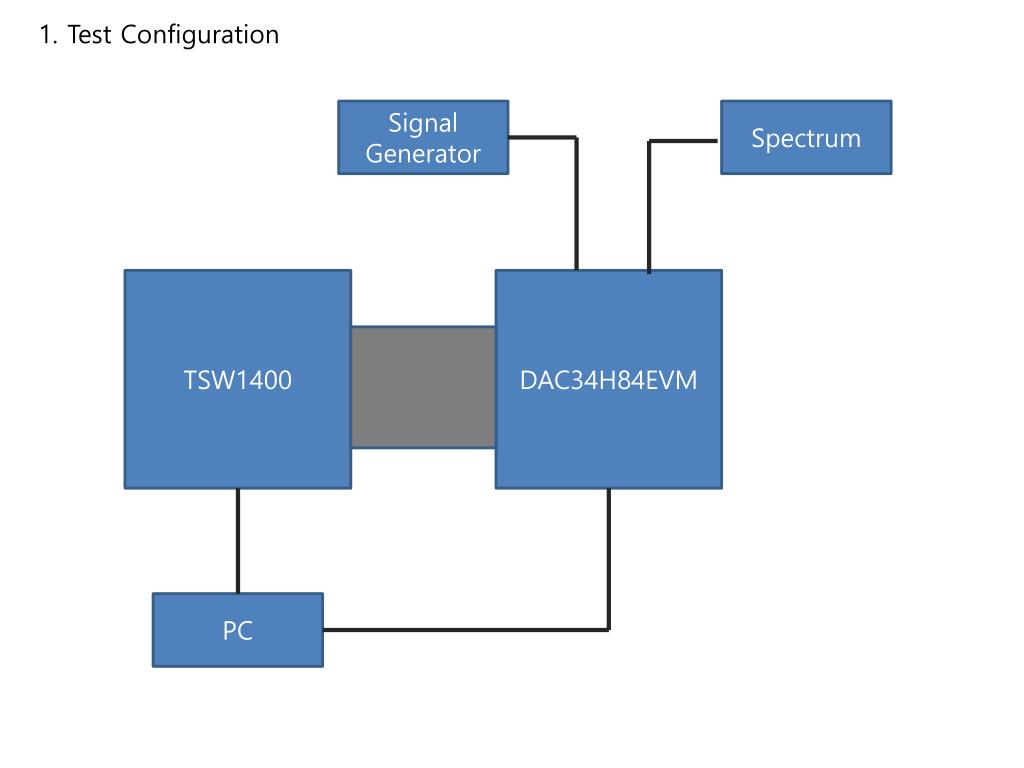

  1. 1. Test Configuration Signal Generator Spectrum TSW1400 DAC34H84EVM PC

  2. 2. Customer Concept 122.88MSPS DATA DAC34H84 184.32MHz

  3. 3. Test Result - Signal source file: single tone - F sampling frequency : 491.52MHz / Interpolation : 4x [TSW1400] [DAC34H84] [DAC34H84 Register] [Spectrum]

  4. 3. Question - Our customer want to measure EVM(Error Vector Magnitude) of DAC34H84. ~ Our settings refer to Page3. ~ We need below information to measure EVM. * Configuration * Verification of register setting(refer to attached page3)
