Reconfiguration Planning Among Obstacles for Heterogeneous Self-Reconfiguring Robots

1. Reconfiguration Planning Among Obstacles for Heterogeneous Self-Reconfiguring Robots Robert Fitch* (NICTA)Zack Butler (RIT)Daniela Rus (MIT) * Research performed at Dept. of Computer Science, Dartmouth

2. Heterogeneous Lattice-Based SR Robots • Composed of many modules, homogeneous and heterogeneous • Match structure to task (modularity) • Match capability to task (heterogeneity) • Complexity of heterogeneous reconfig. planning same as homogeneous planning (in relevant cases)!

3. Heterogeneous Systems • Vision: SR robots that match capability to task • Specialized sensors • Communication with human • Dedicated battery modules • Diverse module shapes (not addressed here) • Research challenges: planning and control • Reconfiguration • Locomotion • So what is complexity (time and moves) of heterogeneous reconfiguration?

4. Reconfiguration with Heterogeneity

5. Coordinated Motion Planning Problems • Warehouse Problem • Rectangles (not squares) • Multiple sizes • Rectangular bounding region • No connectivity constraints • PSPACE-hard • Polynomial-time if enough free space or 1x1 squares • (n2-1)-Puzzle • “Sliding-Block” puzzles • 8-puzzle, 15-puzzle • Not all instances solvable • NP-complete for optimal solution • NP-hard additive constant approx. • Polynomial-time constant-factor approx. • Heterogeneous Reconfiguration Problem • 1x1 modules • Connectivity constraints • Polynomial-time solvable with sufficient free-space • Quadratic-time lower-bound 1 13 14 5 10 9 15 7 6 2 12 3 11 4 8

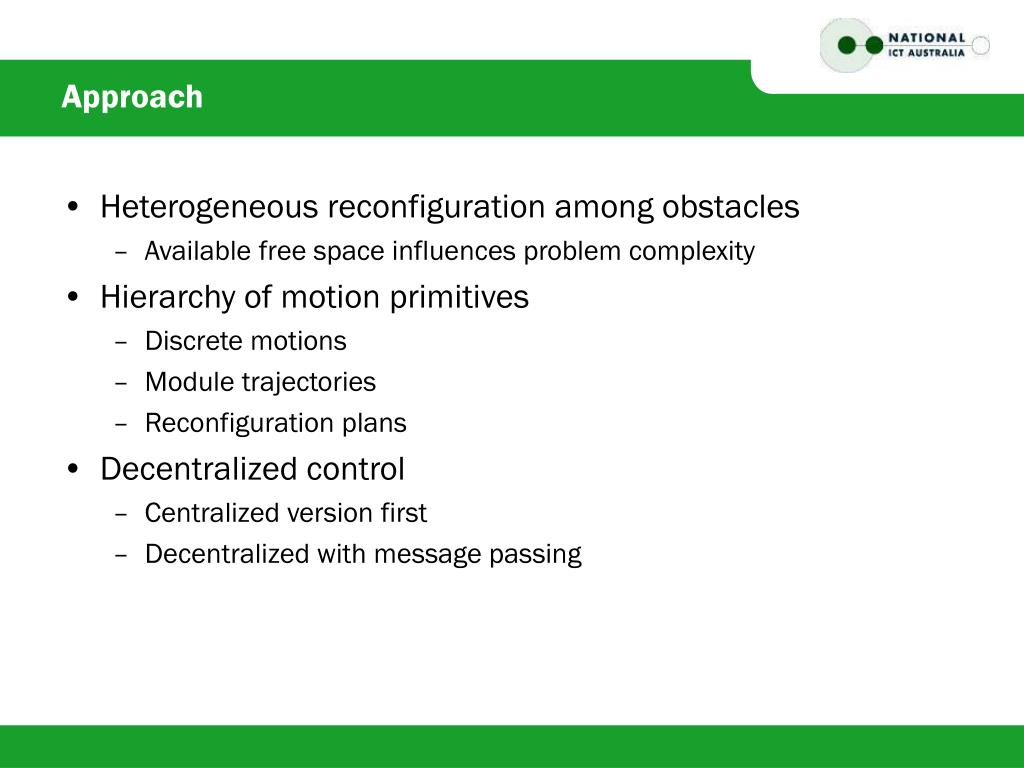

6. Approach • Heterogeneous reconfiguration among obstacles • Available free space influences problem complexity • Hierarchy of motion primitives • Discrete motions • Module trajectories • Reconfiguration plans • Decentralized control • Centralized version first • Decentralized with message passing

7. Complexity Results

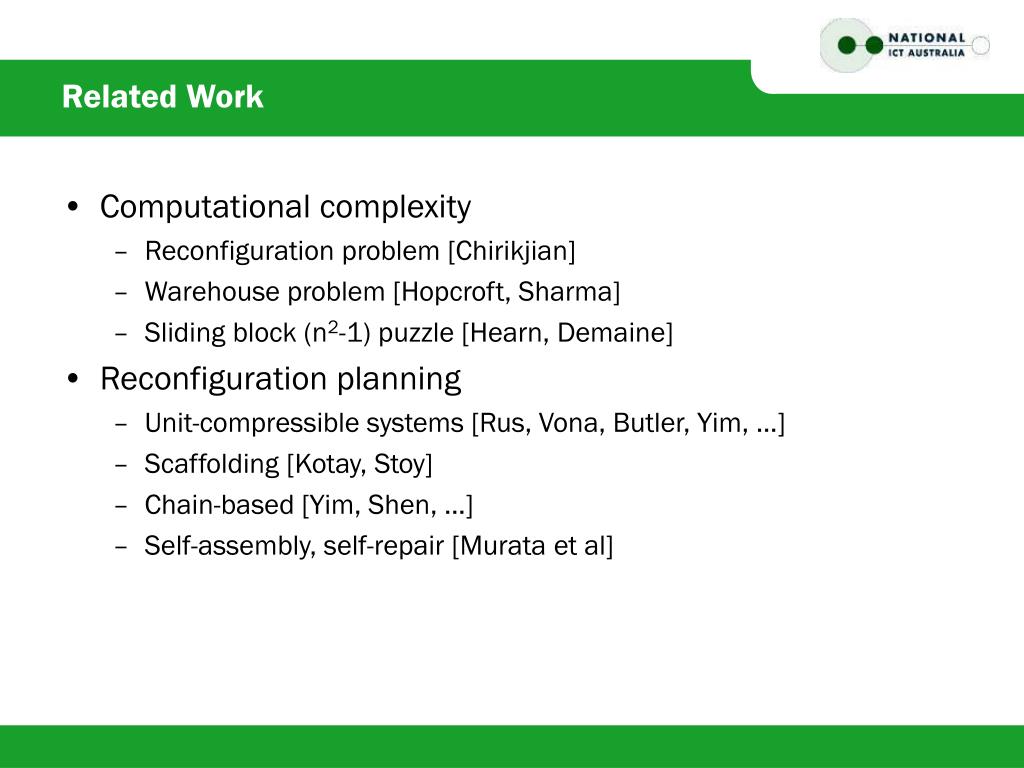

8. Related Work • Computational complexity • Reconfiguration problem [Chirikjian] • Warehouse problem [Hopcroft, Sharma] • Sliding block (n2-1) puzzle [Hearn, Demaine] • Reconfiguration planning • Unit-compressible systems [Rus, Vona, Butler, Yim, …] • Scaffolding [Kotay, Stoy] • Chain-based [Yim, Shen, …] • Self-assembly, self-repair [Murata et al]

9. Outline • Introduction • Reconfiguration, no obstacles • Motion over surface (IROS’03) • Motion through volume (DARS’04) • Algorithm: ConstrainedTunnelSort (ICRA’05) • Motion both over surface and through volume • Planned swap sequence • Complexity analysis • Discussion

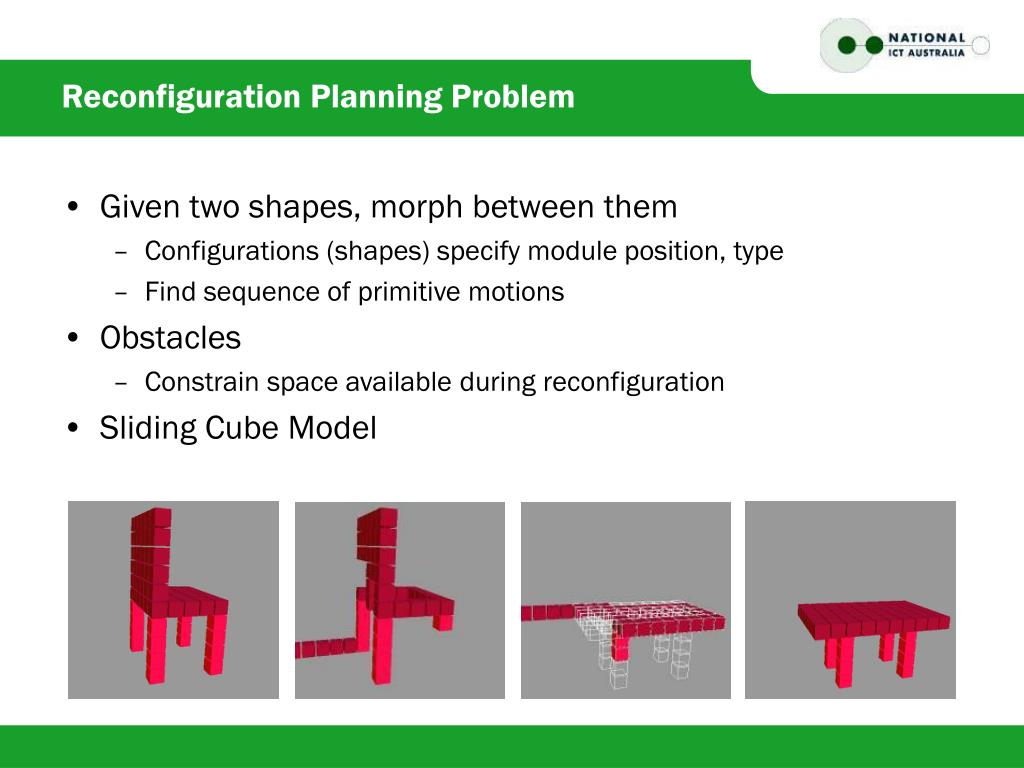

10. Reconfiguration Planning Problem • Given two shapes, morph between them • Configurations (shapes) specify module position, type • Find sequence of primitive motions • Obstacles • Constrain space available during reconfiguration • Sliding Cube Model

11. Sliding Cube Model • Instantiated by various hardware prototypes • Motion primitives • Sliding across • Convex transition • Other Properties • Square lattice • Connection at faces • Neighbor-to-neighbor communication • Onboard computation • Onboard power

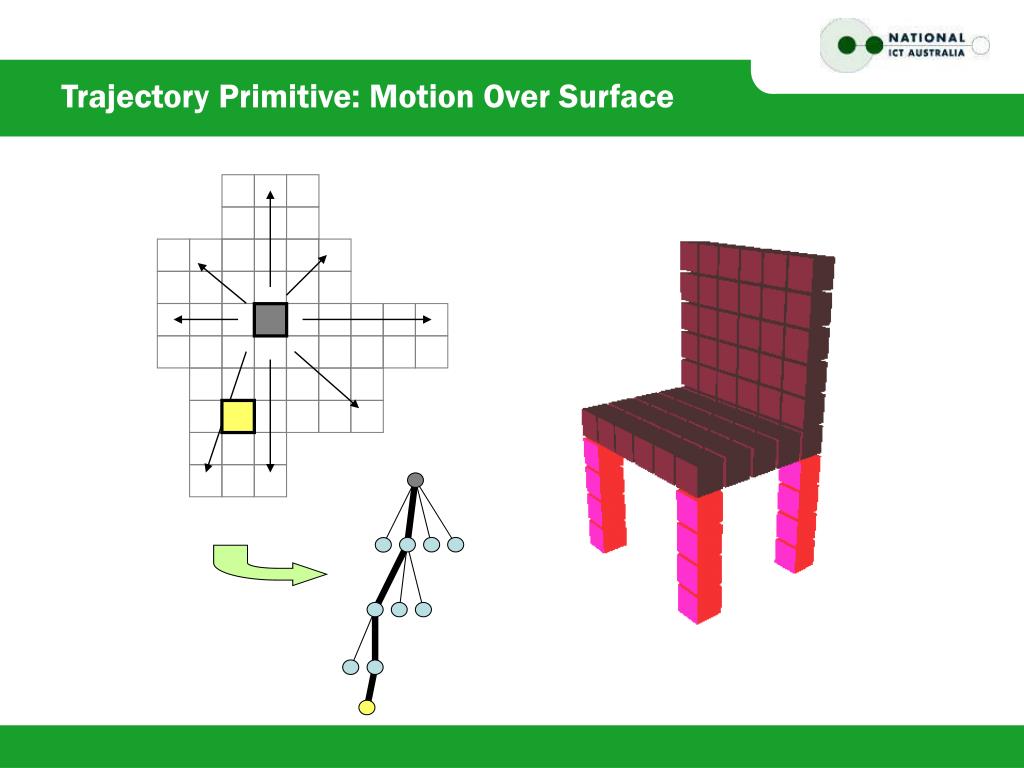

12. Trajectory Primitive: Motion Over Surface

13. Reconfiguration with Surface Motion

14. Trajectory Primitive: Motion through Volume

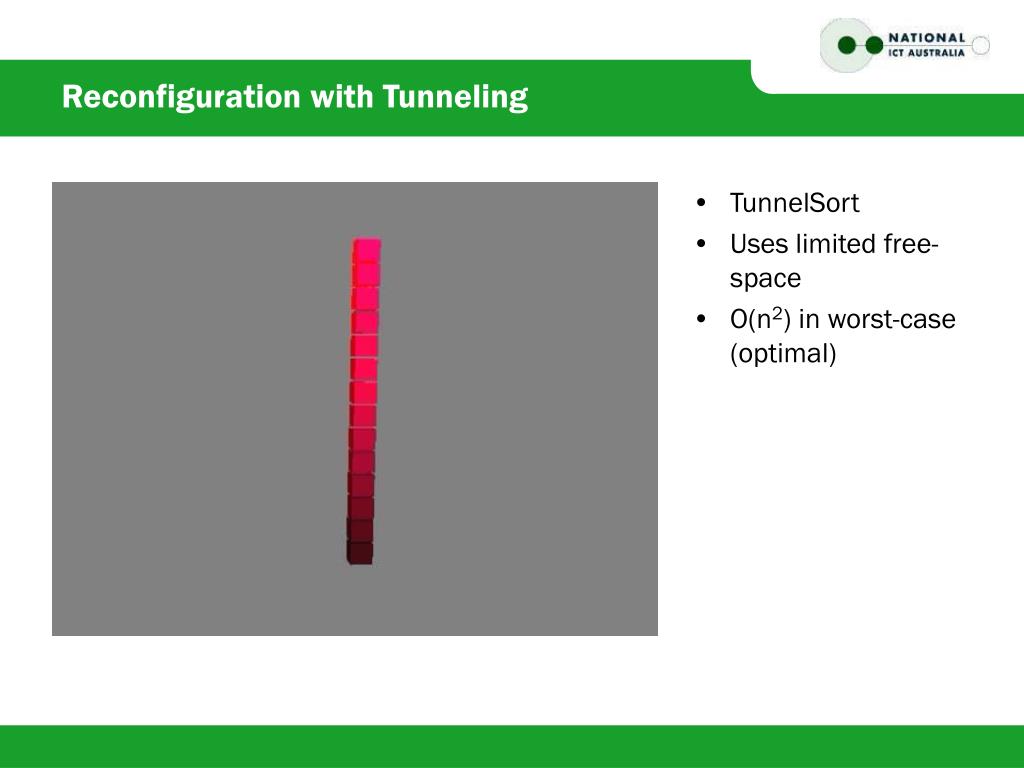

15. Reconfiguration with Tunneling • TunnelSort • Uses limited free-space • O(n2) in worst-case (optimal)

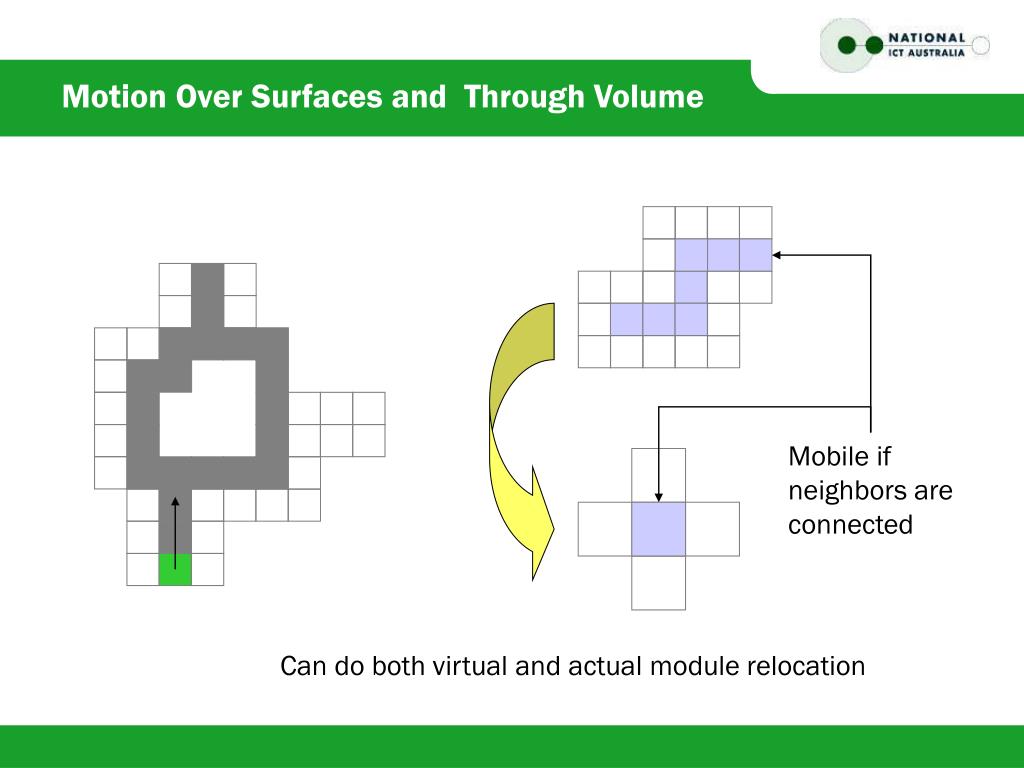

16. Motion Over Surfaces and Through Volume Mobile if neighbors are connected Can do both virtual and actual module relocation

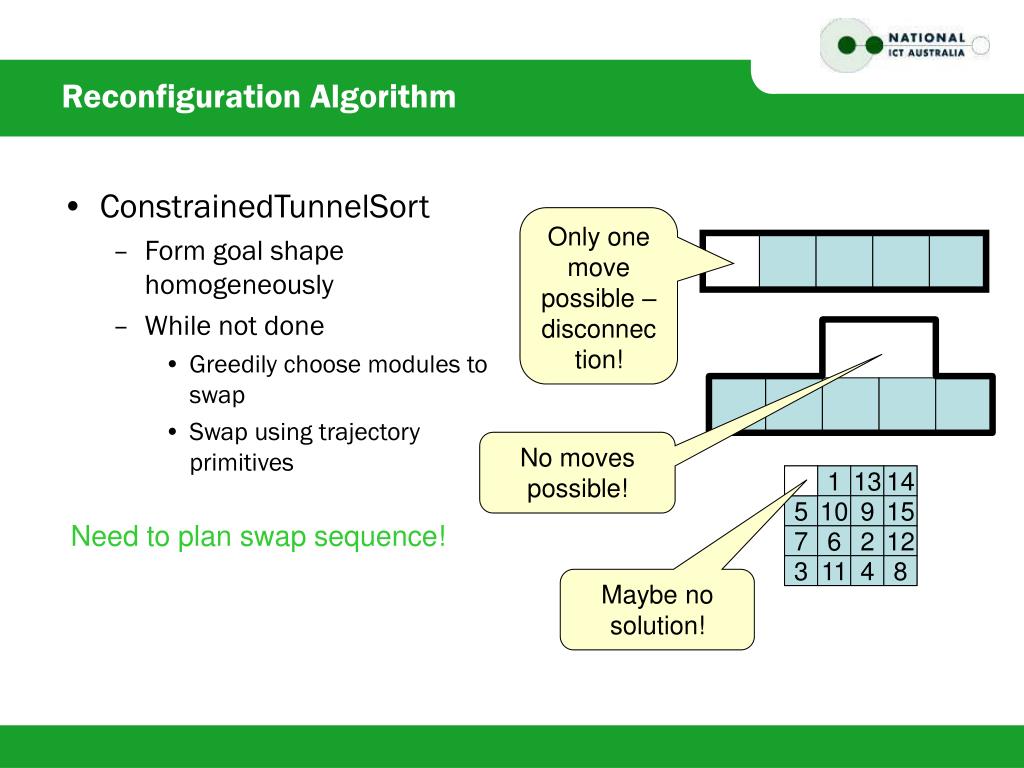

17. Only one move possible – disconnection! No moves possible! 1 13 14 5 10 9 15 7 6 2 12 3 11 4 8 Maybe no solution! Reconfiguration Algorithm • ConstrainedTunnelSort • Form goal shape homogeneously • While not done • Greedily choose modules to swap • Swap using trajectory primitives Need to plan swap sequence!

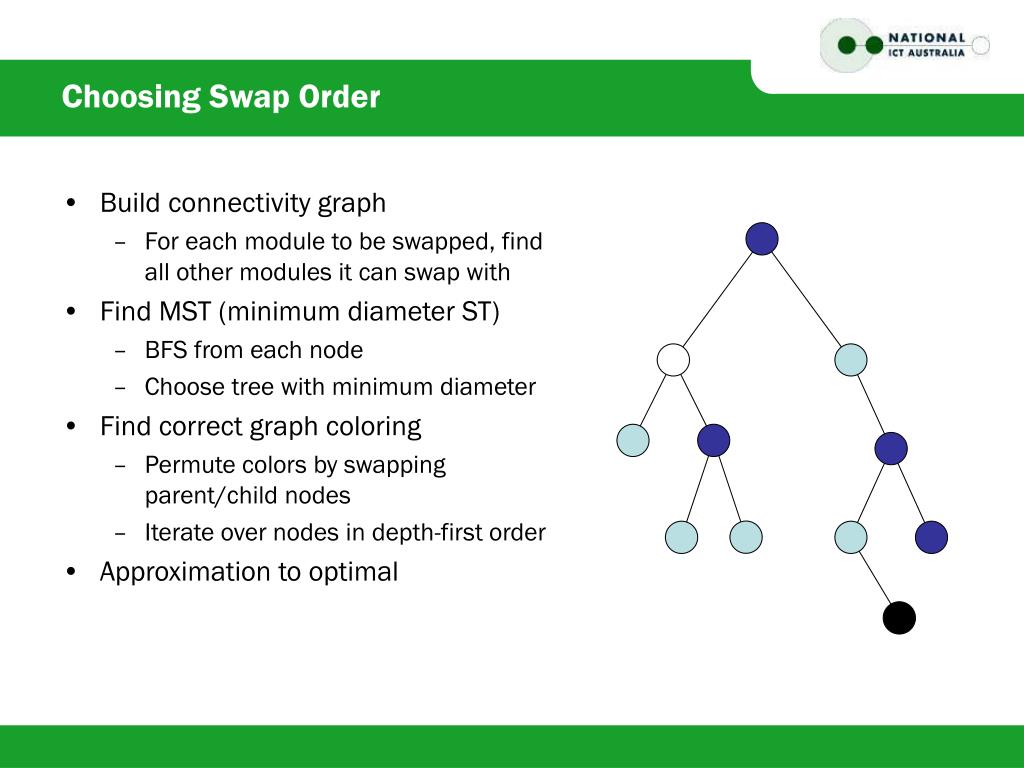

18. Choosing Swap Order • Build connectivity graph • For each module to be swapped, find all other modules it can swap with • Find MST (minimum diameter ST) • BFS from each node • Choose tree with minimum diameter • Find correct graph coloring • Permute colors by swapping parent/child nodes • Iterate over nodes in depth-first order • Approximation to optimal

19. Homogeneous phase While not done Choose module m and position p, where m needs to move and p needs to be filled Find tunnel path from m to p Use virtual module relocation to move m along path Heterogeneous phase Build connectivity graph of swappable modules Search for feasible swap sequence using MST-based algorithm Execute swaps using tunneling Algorithm: Constrained TunnelSort O(n) O(n) O(n) O(n) O(n2) O(n2) O(n) O(n) O(n2) O(n2) O(n2) O(n2) O(n4)

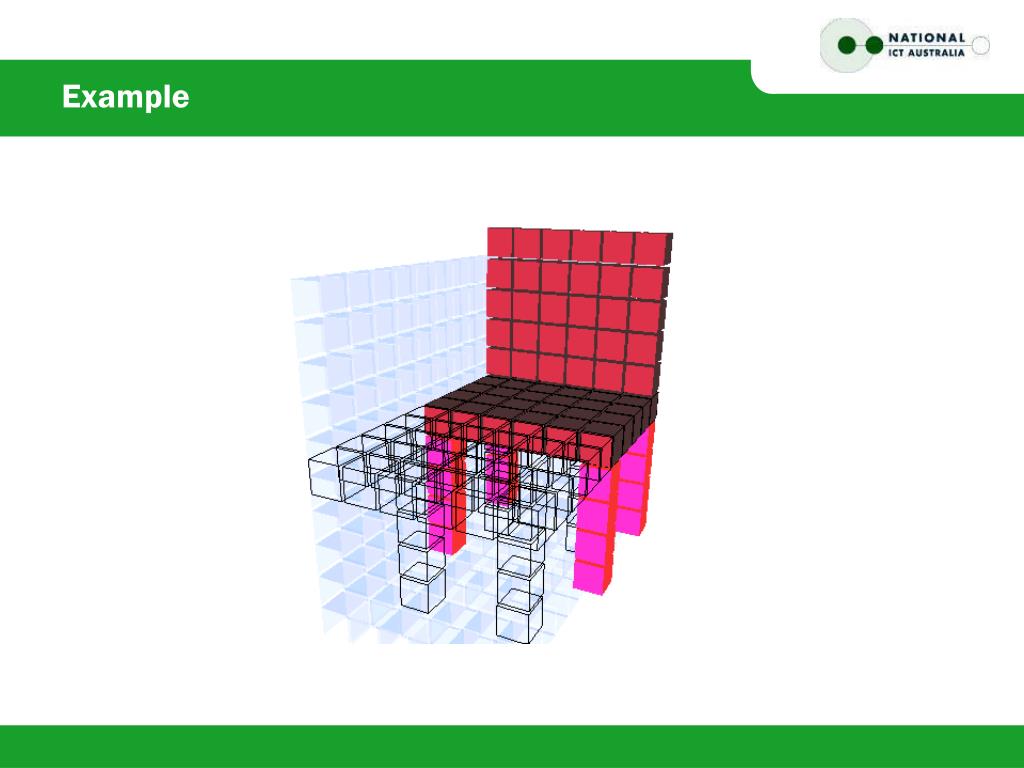

20. Example

21. Example

22. Outline • Introduction • Reconfiguration, no obstacles • Motion over surface • Motion through volume • Algorithm: ConstrainedTunnelSort • Motion both over surface and through volume • Planned swap sequence • Complexity analysis • Discussion

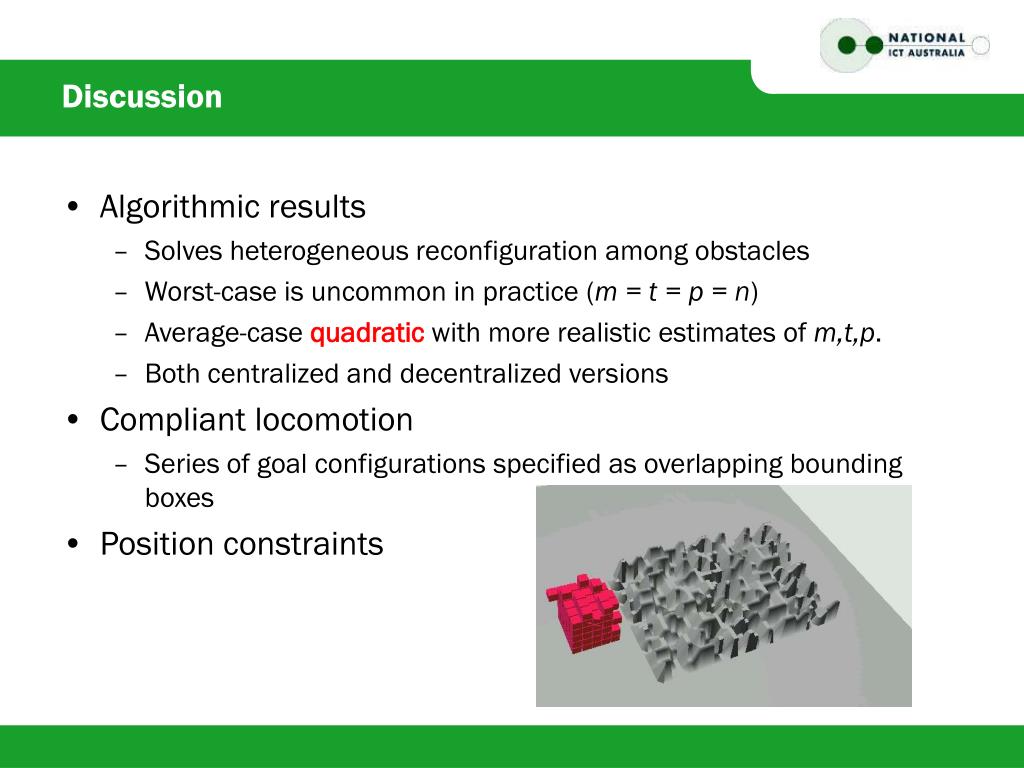

23. Discussion • Algorithmic results • Solves heterogeneous reconfiguration among obstacles • Worst-case is uncommon in practice (m = t = p = n) • Average-case quadratic with more realistic estimates of m,t,p. • Both centralized and decentralized versions • Compliant locomotion • Series of goal configurations specified as overlapping bounding boxes • Position constraints

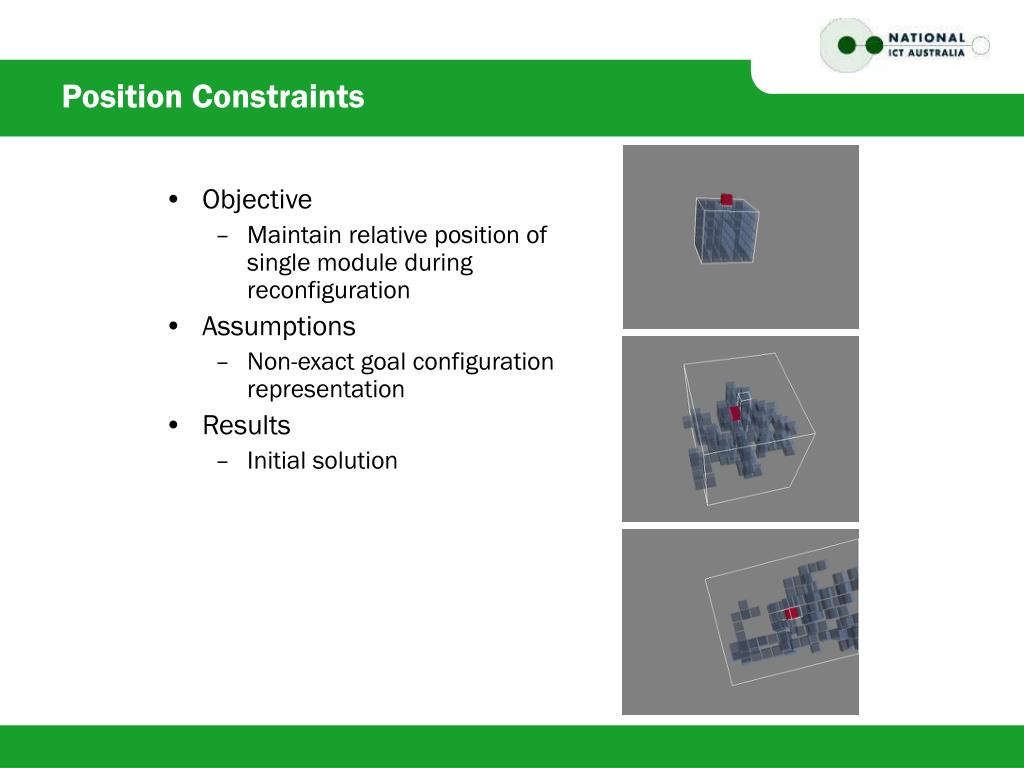

24. Position Constraints • Objective • Maintain relative position of single module during reconfiguration • Assumptions • Non-exact goal configuration representation • Results • Initial solution

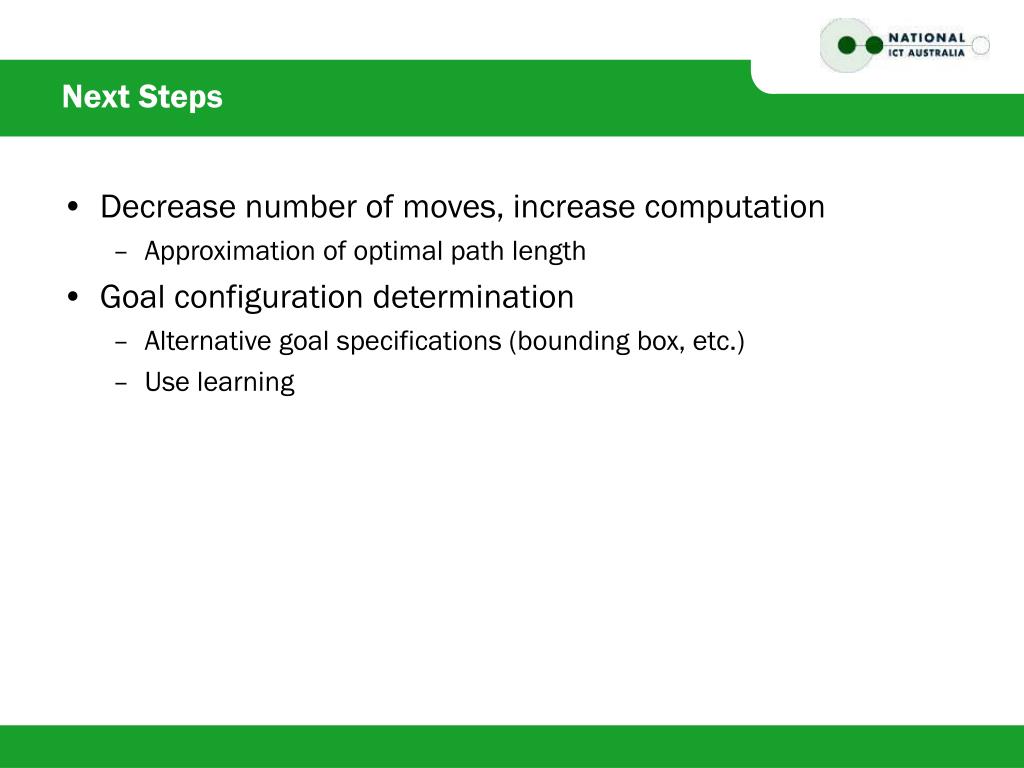

25. Next Steps • Decrease number of moves, increase computation • Approximation of optimal path length • Goal configuration determination • Alternative goal specifications (bounding box, etc.) • Use learning

26. Acknowledgements • This talk describes work performed in the Dartmouth Robotics Laboratory. Support for this work was provided through NSF CAREER award IRI-9624286 and NSF awards IRI-9714332, EIA-9901589, IIS-9818299, and IIS-9912193, and a NASA SpaceGrant award. We are very grateful. • Portions of this work were performed at National ICT Australia (NICTA). NICTA is funded by the Australian Government's Department of Communications, Information Technology and the Arts and the Australian Research Council through Backing Australia's Ability and the ICT Centre of Excellence program.
