9.5 Graph and Write Equations of Hyperbola

9.5 Graph and Write Equations of Hyperbola. A hyperbola is the set of all points, P , in a plane such that the difference of the distances between P and two fixed points, called the foci , is a constant. http://rowdy.mscd.edu/~talmanl/HTML/Hyperbola.html. Some Definitions:.

ciara
Télécharger la présentation

9.5 Graph and Write Equations of Hyperbola

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 9.5 Graph and Write Equations of Hyperbola

  2. A hyperbola is the set of all points, P, in a plane such that the difference of the distances between P and two fixed points, called the foci, is a constant. http://rowdy.mscd.edu/~talmanl/HTML/Hyperbola.html

  3. Some Definitions: Major Axis - Axis which runs through the center of the hyperbola, through the foci and has endpoints that are vertices. Minor Axis - Axis which runs through the center of the hyperbola and is perpendicular to the major axis. Vertices - Endpoints of the major axis that are each a units away from the center. The vertices are the vertices of the branches of the hyperbola. Co-Vertices - Endpoints that are each b units away from the center on the minor axis. Foci (plural of focus) – Two points along the major axis of a hyperbola that are c units away from the center. Asymptotes – Lines that intersect at the center of the hyperbola that represent limits on the branches of the hyperbola.

  4. Working with the Equations: Standard form of an equation of a hyperbola: Major axis is horizontal Major axis is vertical Helpful Hint: can be greater than, less than or equal to

  5. Finding the location of the foci: …where c is the distance of a focus point from the center of the hyperbola along the major axis.

  6. Let’s try working with hyperbolas: Graph and identify vertices, co-vertices and foci of the hyperbola. Put equation in standard form, if necessary Identify the center and graph Identify the vertices and graph Identify the co-vertices and graph Draw a rectangle through the vertices and co-vertices. Asymptotes are the diagonals of the rectangle. Identify the foci and graph Draw branches of the hyperbola

  7. Let’s try working with hyperbolas: Graph and identify vertices, co-vertices and foci of the hyperbola. Put equation in standard form, if necessary Identify the center and graph Identify the vertices and graph Identify the co-vertices and graph Draw a rectangle. Asymptotes are the diagonals of the rectangle. Identify the foci and graph Draw branches of the hyperbola

  8. Write equations of hyperbolas: Foci: (-3, 0) (3, 0) Vertices: (-1, 0) (1, 0) Vertices: (4, 2) (4, 8) Foci: (4, -2) (4, 12)

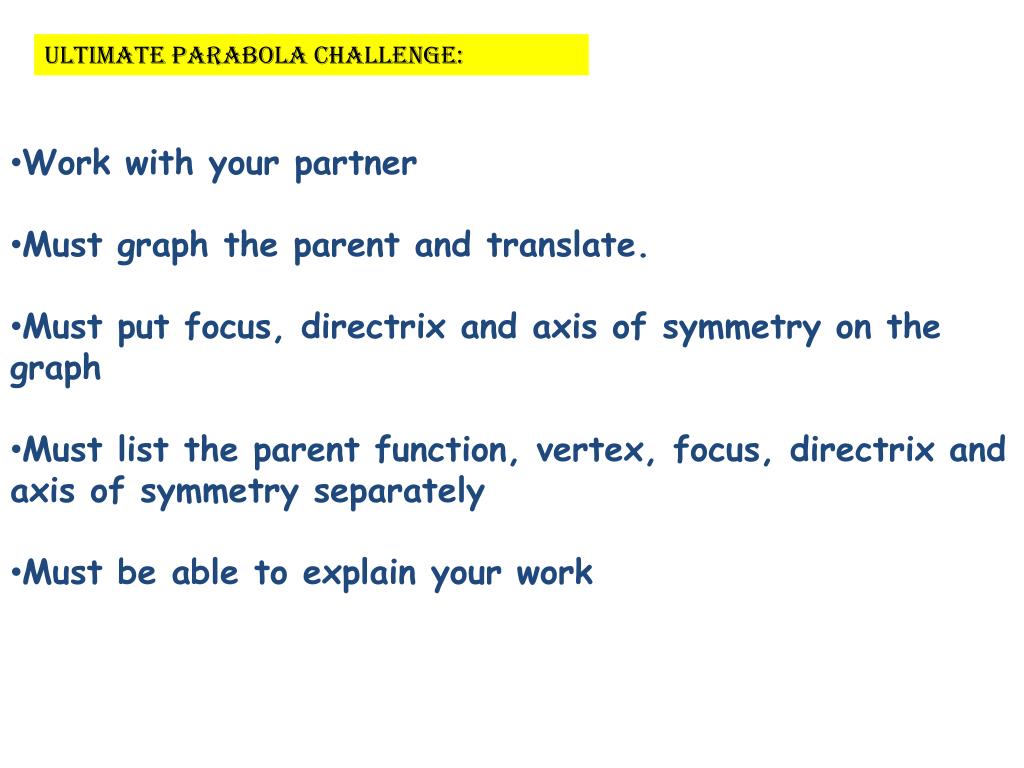

  9. Ultimate Parabola Challenge: • Work with your partner • Must graph the parent and translate. • Must put focus, directrix and axis of symmetry on the graph • Must list the parent function, vertex, focus, directrix and axis of symmetry separately • Must be able to explain your work

  10. Parent Function: _________________ Vertex: _________________________ Focus: _________________________ Directrix: ________________________ Axis of Symmetry: _________________
