  1. EMC Components and Filters When Capacitors aren’t ……..

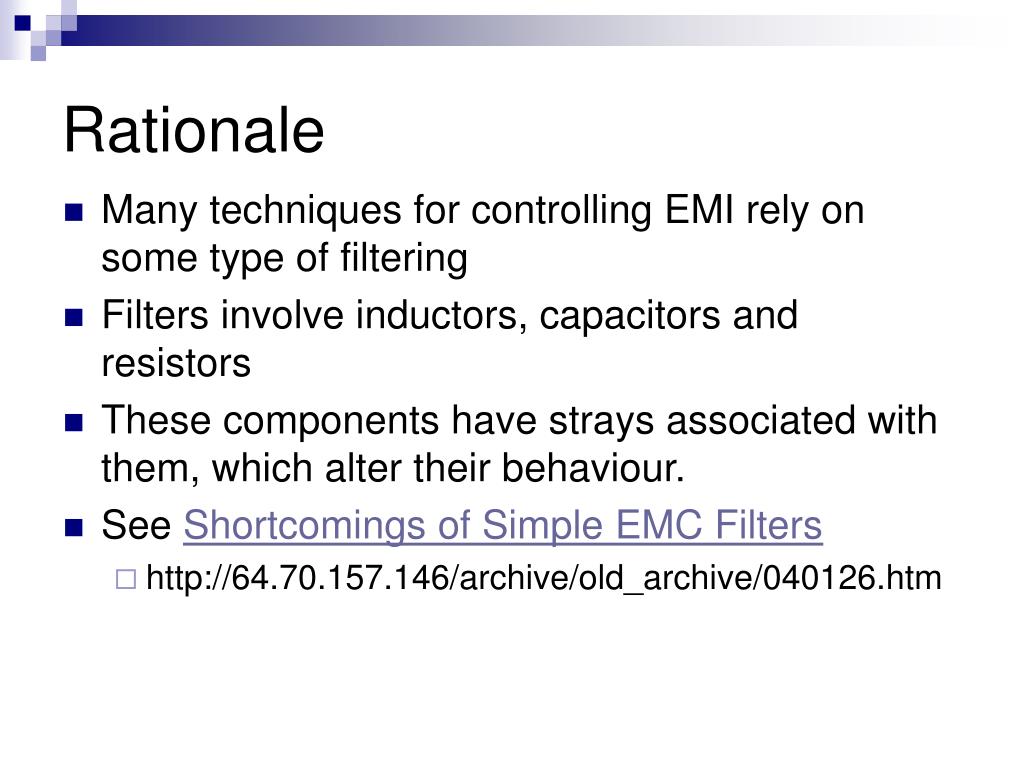

  2. Rationale • Many techniques for controlling EMI rely on some type of filtering • Filters involve inductors, capacitors and resistors • These components have strays associated with them, which alter their behaviour. • See Shortcomings of Simple EMC Filters • http://64.70.157.146/archive/old_archive/040126.htm

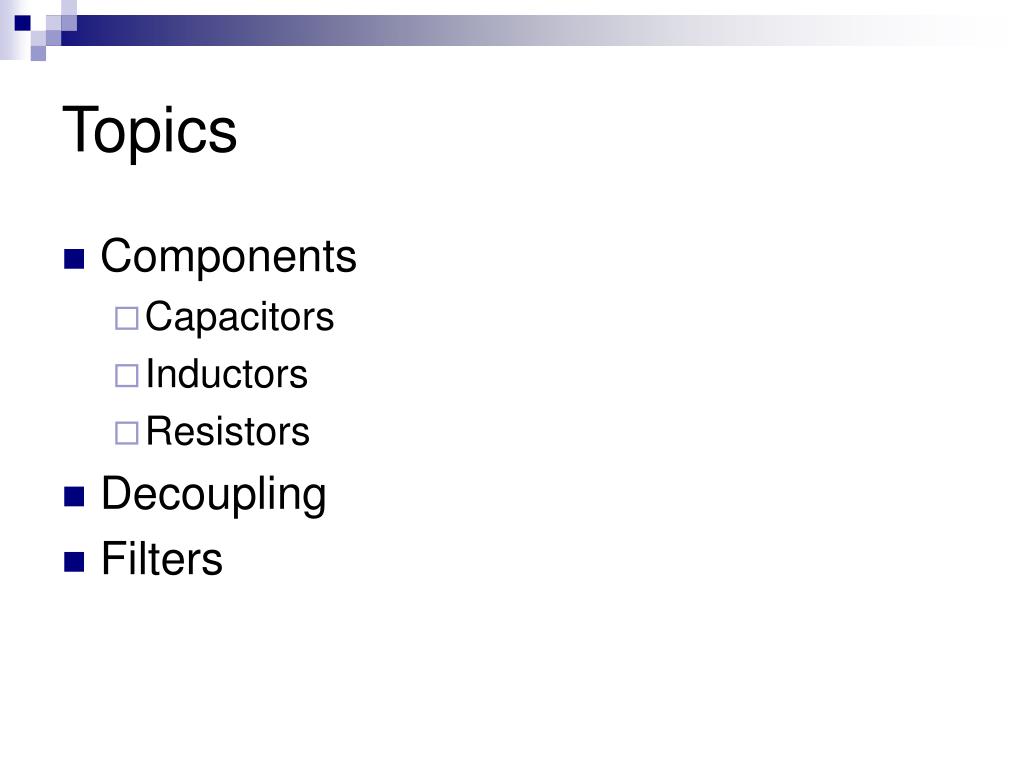

  3. Topics • Components • Capacitors • Inductors • Resistors • Decoupling • Filters

  4. Capacitors – Approx Frequency Ranges. 20 – 25nH About 1.4nH

  5. Capacitors • Have Equivalent Series Resistance (ESR) and ESL. • Electrolytics • require correct DC polarity • Best capacitance to volume ratio • High ESR (>0.1Ω) • ESR increases with frequency • High ESL

  6. Capacitors • Electrolytics cont. • Limited reliability and life • Low frequency devices • Ripple current limitations • Parallel inductor improves high frequency (up to 25kHz) response

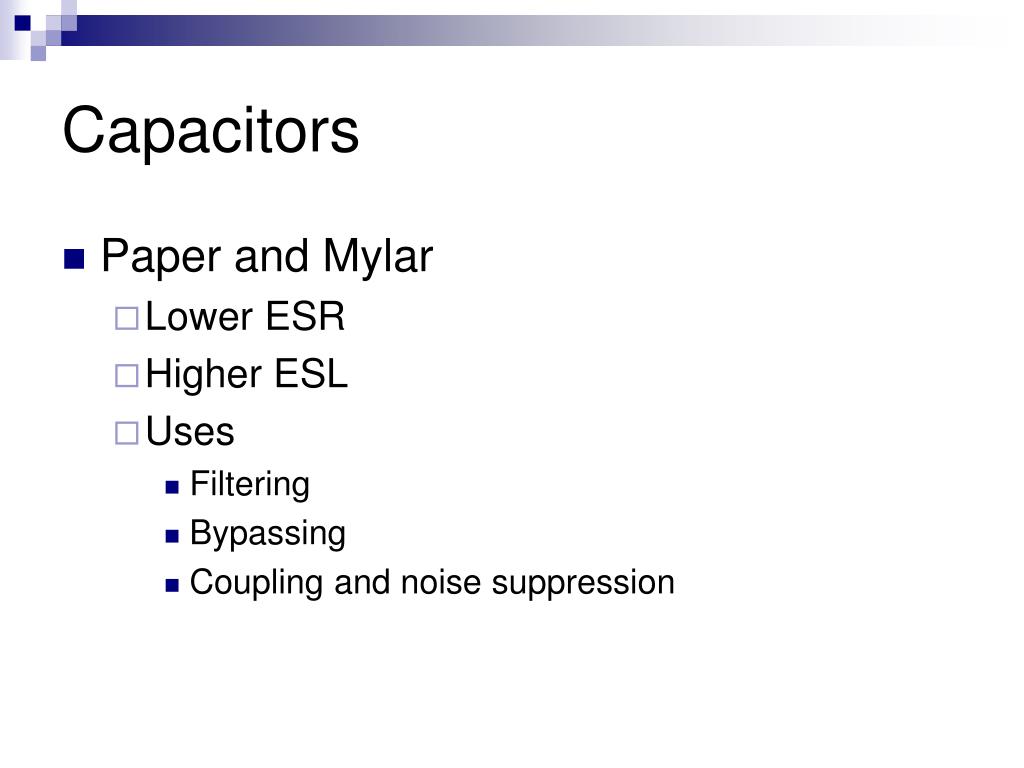

  7. Capacitors • Paper and Mylar • Lower ESR • Higher ESL • Uses • Filtering • Bypassing • Coupling and noise suppression

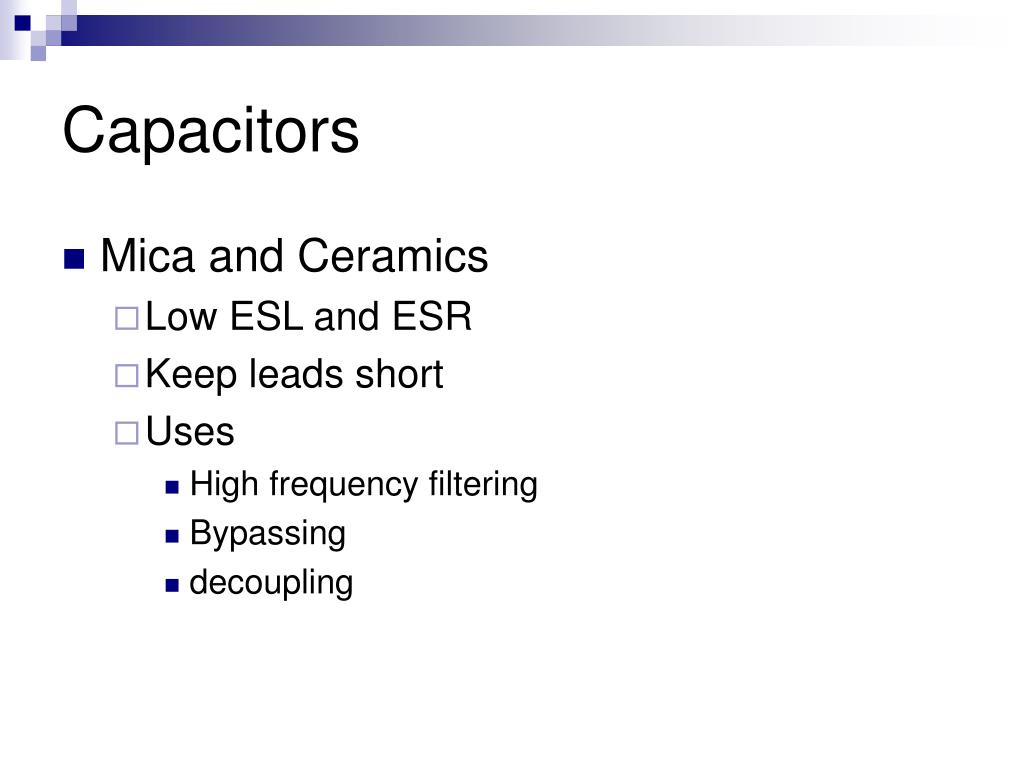

  8. Capacitors • Mica and Ceramics • Low ESL and ESR • Keep leads short • Uses • High frequency filtering • Bypassing • decoupling

  9. Capacitors • Polystyrene and Polypropylene • Low ESR • Very stable C – f characteristic • Mylar is a metalised plastic • Polyethelyne terephthlalate • DuPont trade name

  10. Capacitors • Equivalent Circuit R C L

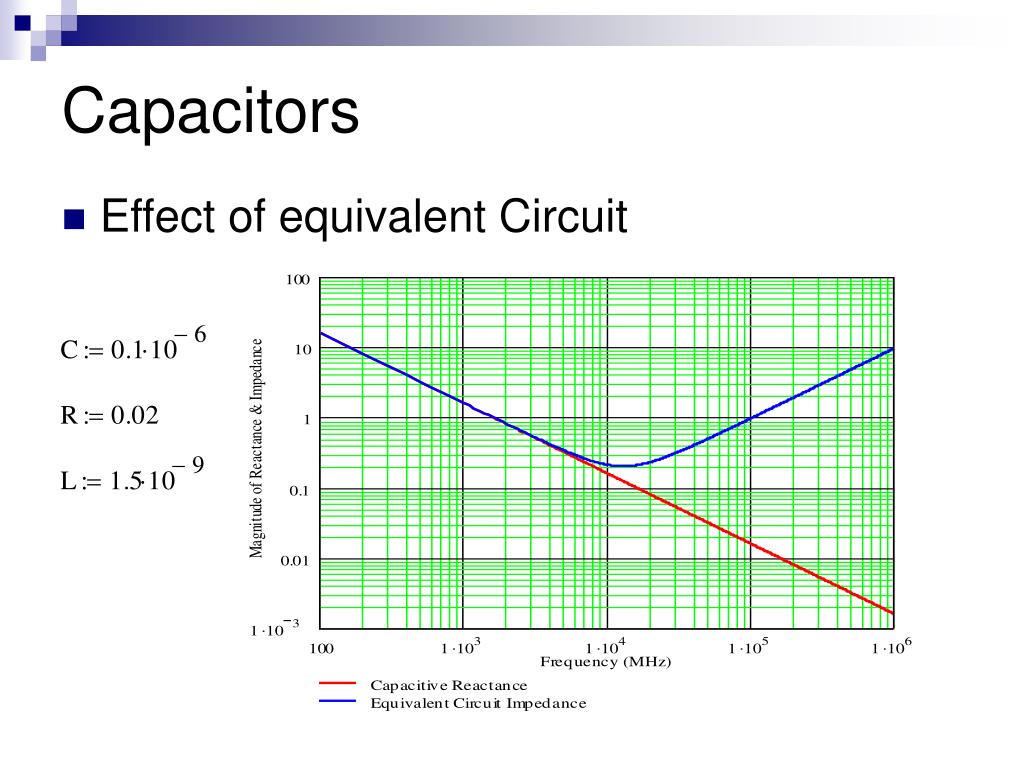

  11. Capacitors • Effect of equivalent Circuit

  12. Inductors • Equivalent Circuit • Now a parallel resonance • R will be low • Winding resistance • C will be low • Inter – winding capacitance

  13. Inductors • Effect of equivalent circuit

  14. Inductors • Strays give a resonance that is quite sharp. • R and C are low • Above resonance inductor looks capacitive • Air cored coils are large • Produce unconfined fields • Susceptible to external fields • Solenoid has infinite area return path

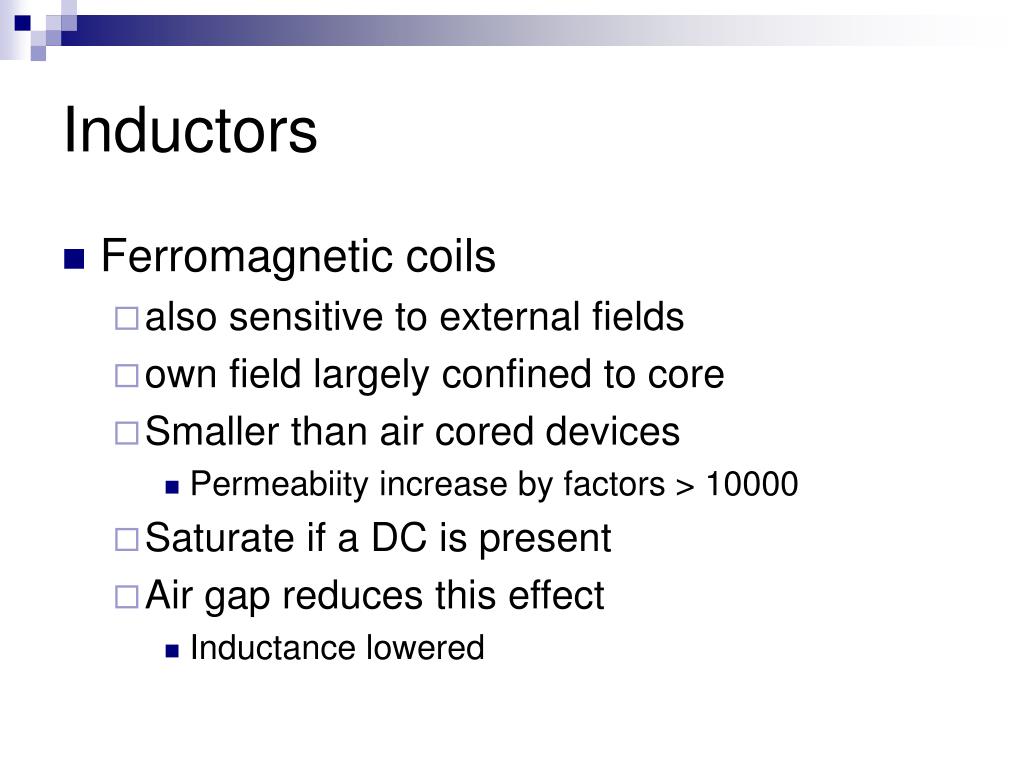

  15. Inductors • Ferromagnetic coils • also sensitive to external fields • own field largely confined to core • Smaller than air cored devices • Permeabiity increase by factors > 10000 • Saturate if a DC is present • Air gap reduces this effect • Inductance lowered

  16. Inductors • Ferromagnetic coils • Core material depends on frequency • LF – Iron Nickel Alloys • HF – Ferrites • Can be noisy caused by magnetostriction in laminations of core • RF chokes tend to radiate • Shielding becomes necessary

  17. Resistors • Equivalent Circuit • Parallel RC Resonance • C will generally be low • L comes from leads and construction • wirewound

  18. Resistors • Effect of Equivalent Circuit

  19. Resistors • As frequency increases resistor begins to look inductive • Wirewound • Highest inductance • Higher power ratings • Use for low frequencies

  20. Resistors • Film Type • Carbon or Metal Oxide films • Lower inductance • Still appreciable because of meander line construction • Lower power ratings

  21. Resistors • Composition • Usually Carbon • Lowest Inductance • Mainly Leads • Low power capability • C around 0.1 to 0.5pF • Significant for High values of R • Normally neglect L and C except for wirewound

  22. Decoupling • Power rails are susceptible to noise • Particularly to low power and digital devices • Caused by common impedance, inductive or capacitive coupling • Decouple load to ground • Use HF capacitor • Close to load terminals

  23. Decoupling • Circuit Diagram

  24. Decoupling • Components of Transmission System form a Transmission Line System • This has a characteristic impedance • Neglect resistance term • Transient current ΔIL gives a voltage

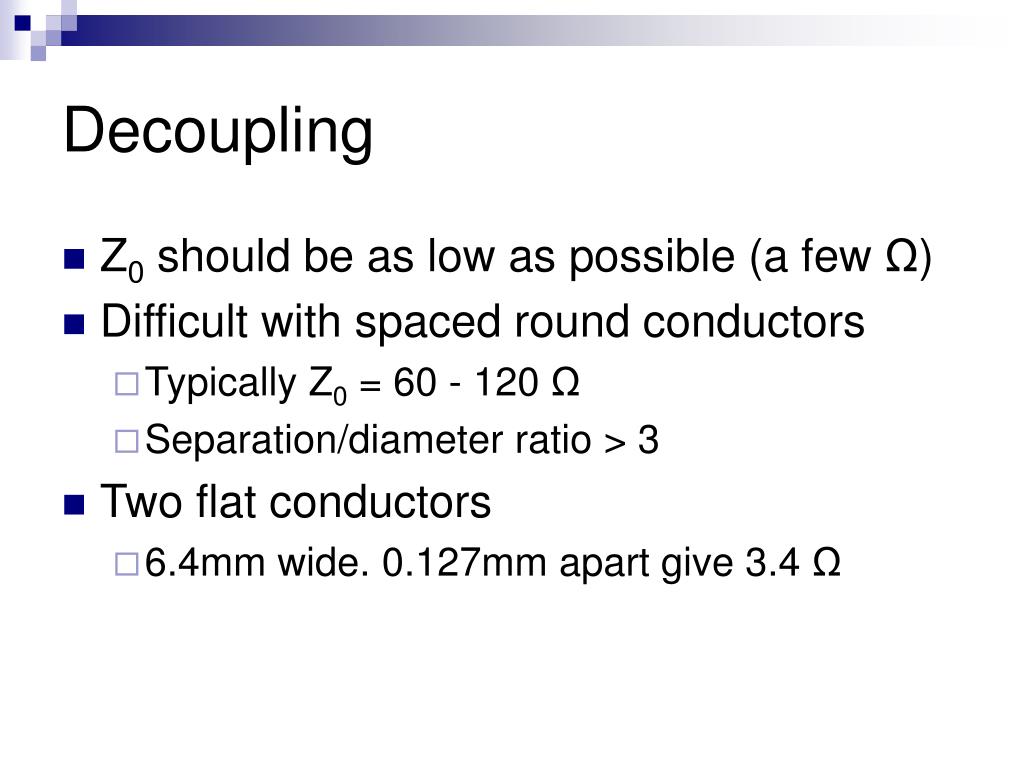

  25. Decoupling • Z0 should be as low as possible (a few Ω) • Difficult with spaced round conductors • Typically Z0 = 60 - 120 Ω • Separation/diameter ratio > 3 • Two flat conductors • 6.4mm wide. 0.127mm apart give 3.4 Ω

  26. Filtering • Not covering design in this module • Effectiveness quantified by Insertion Loss

  27. Filtering • Impedance Levels • Insertion loss depends on source and load impedance • Design performance achieved if system is matched • L and C are reflective components • R is Lossy, or absorptive

  28. Reflective Filters • Generally, filters consist of alternating series and shunt elements

  29. Reflective Filters • Any power not transmitted is reflected. • Series Elements • Low impedance over passband • High impedance over stopband • Shunt Elements • High impedance over passband • Low impedance over stopband • Generally use Lowpass filters for EMC

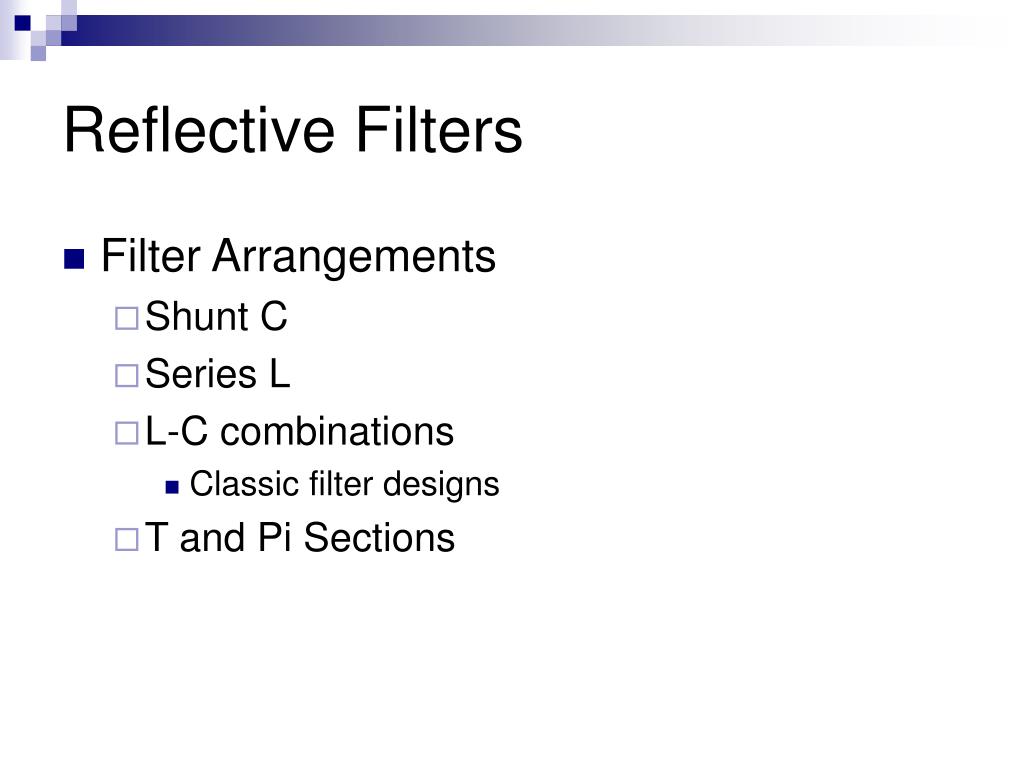

  30. Reflective Filters • Filter Arrangements • Shunt C • Series L • L-C combinations • Classic filter designs • T and Pi Sections

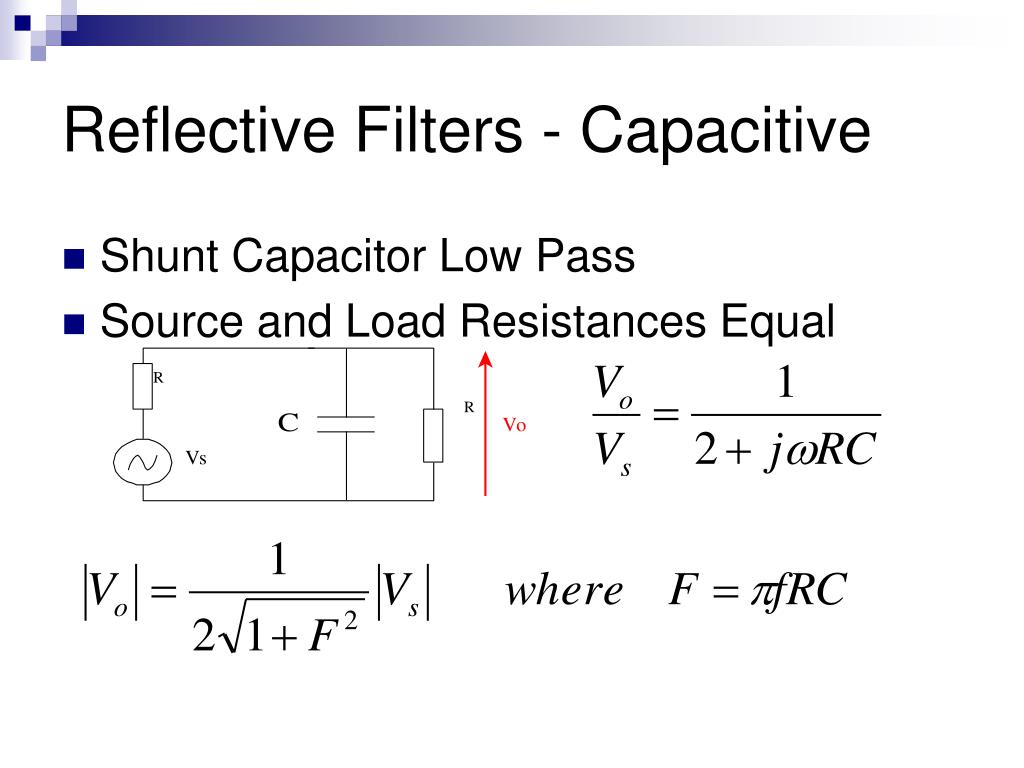

  31. Reflective Filters - Capacitive • Shunt Capacitor Low Pass • Source and Load Resistances Equal

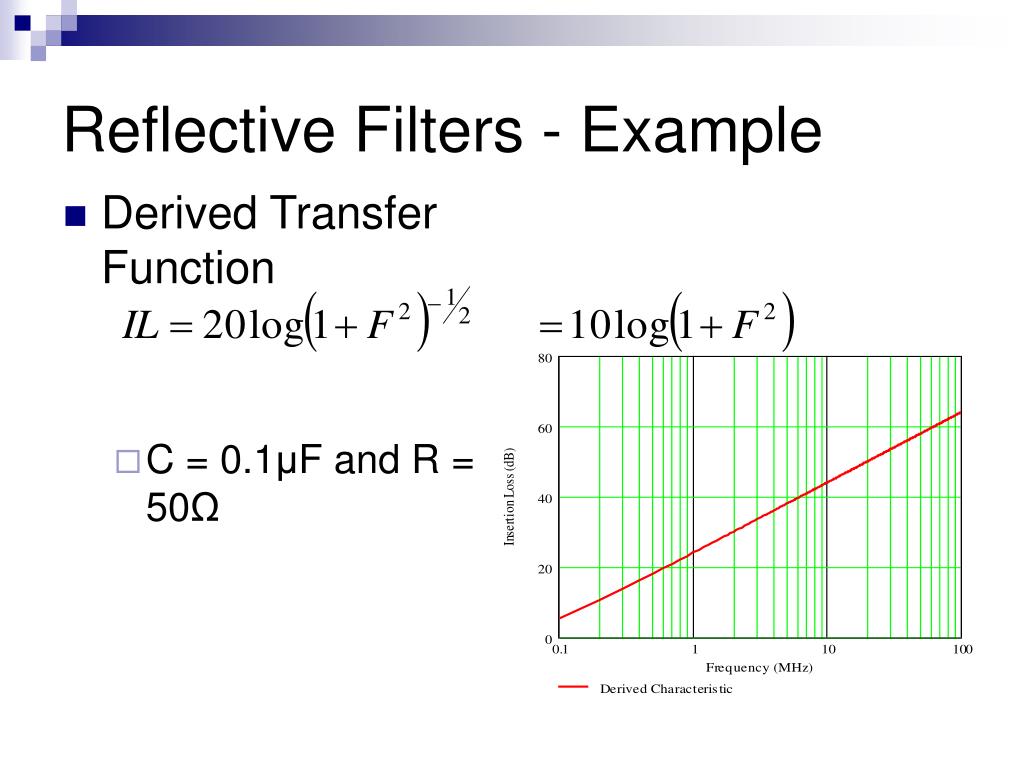

  32. Reflective Filters - Example • Derived Transfer Function • C = 0.1μF and R = 50Ω

  33. Reflective Filters - Example • Effect of strays in Capacitor • Short Leads • Long Leads

  34. Reflective Filters - Inductive • Series Inductor

  35. Reflective Filters - Inductive • Derived Characteristic same as for Capacitive • Strays Effect

  36. Reflective Filters • Cut-off frequency • Insertion loss rises to 3dB • Implies F = 1 or • This gives us fc = 63.7kHz • Based on values given earlier

  37. Lossy Filters • Mismatches between filters and line impedances can cause EMI problems • Noise voltage appears across the inductor • Radiates • Interference is not dissipated but “moved around” between L and C. • Add a resistor to cause “decay”

  38. Lossy Filters • Neglect source and load resistors • Transfer Response

  39. Lossy Filters • Natural Resonant Frequency • Damping Factor • Transfer Function becomes

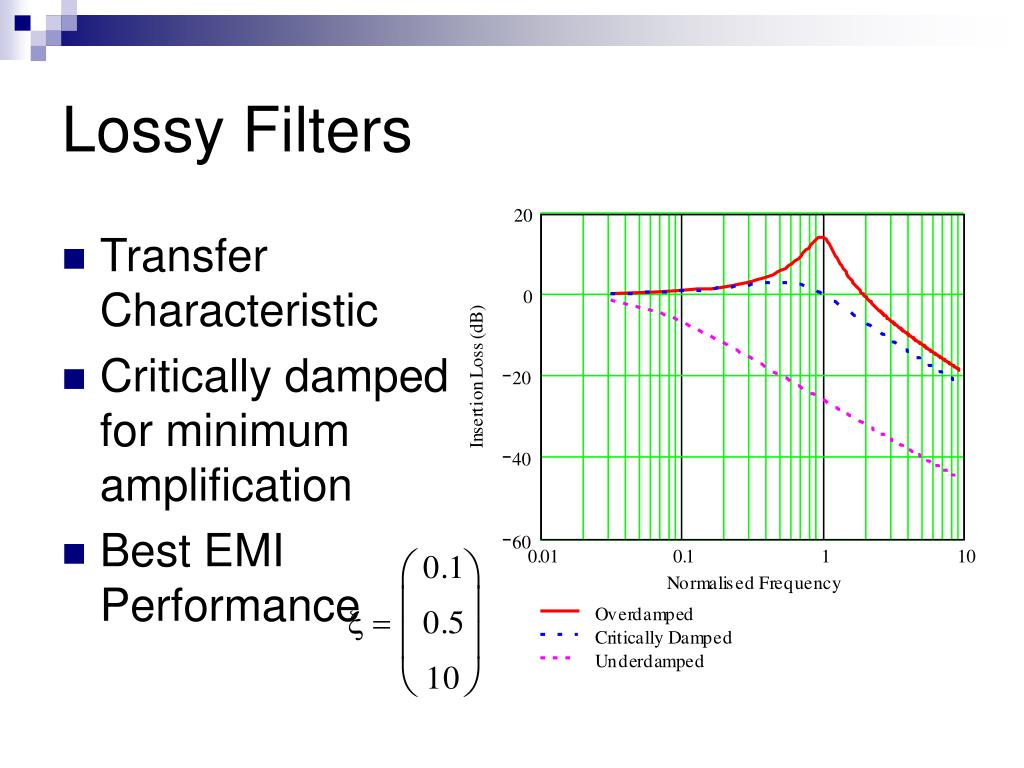

  40. Lossy Filters • Transfer Characteristic • Critically damped for minimum amplification • Best EMI Performance

  41. Ferrite Beads • Very simple component • Equivalent Circuit • Impedance Ferrite Bead Conductor

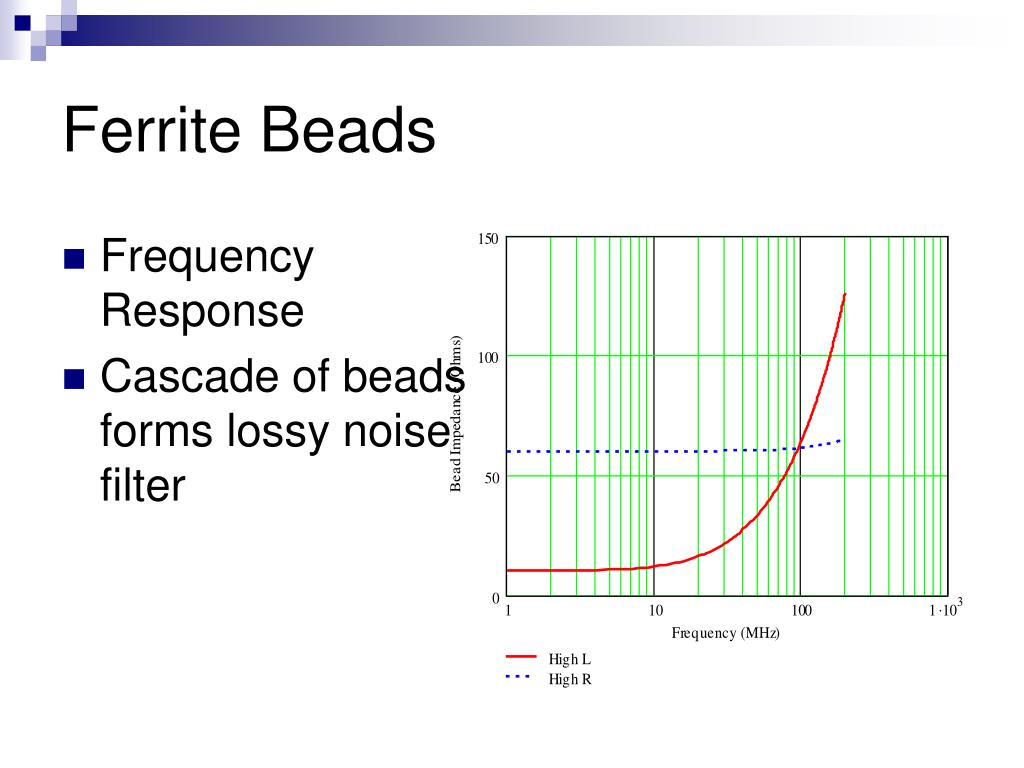

  42. Ferrite Beads • Frequency Response • Cascade of beads forms lossy noise filter

  43. Ferrite Beads • Noise suppression effective above 1MHz • Best over 5MHz • Single bead impedance around 100Ω • Best in low impedance circuits • Power supply circuits • Class C amplifiers • Resonant circuits • Damping of long interconnections between fast switching devices

  44. Mains Filters – Simple Delta Capacitive • Two noise types • Common Mode • Differential Mode • Y Caps filter Common Mode • Max allowable value shown here • X Cap filters Differential Mode Vc Vd Vc

  45. Mains Filters Frequency Response

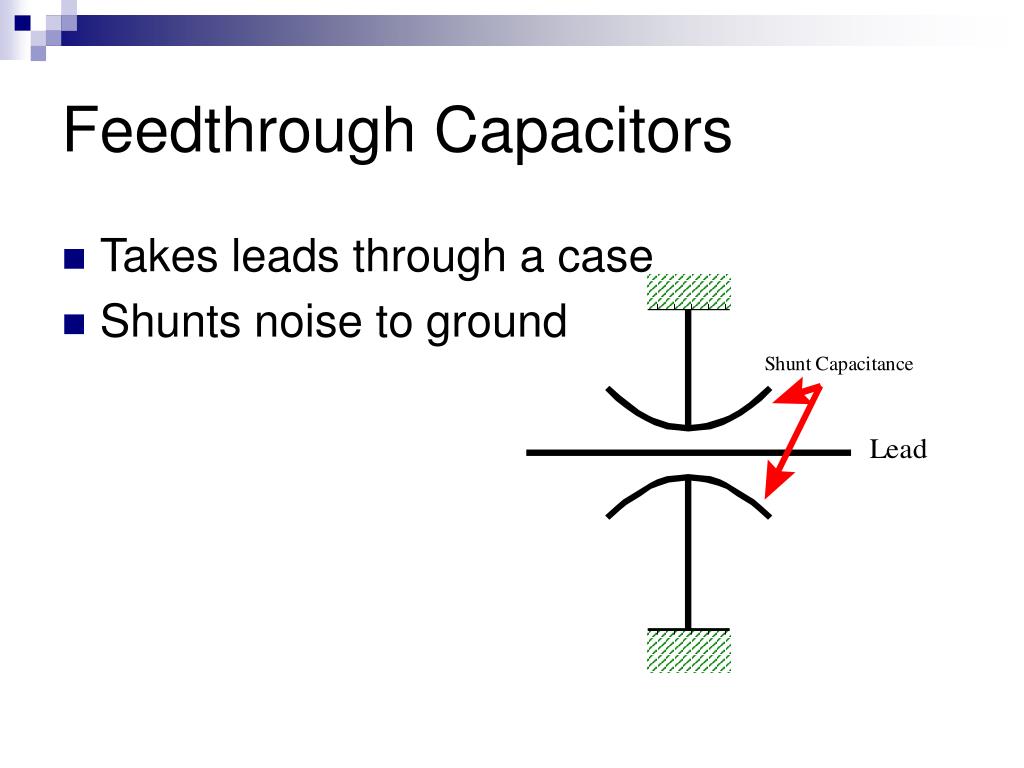

  46. Feedthrough Capacitors • Takes leads through a case • Shunts noise to ground

  47. Comparison with Standard Capacitor

  48. Typical Mains Filter • C1 and C2 • 0.1 - 1μF • Differential Mode • L provides high Z for Common Mode • None for DM • Neutralising Transformer • L = 5 – 10mH

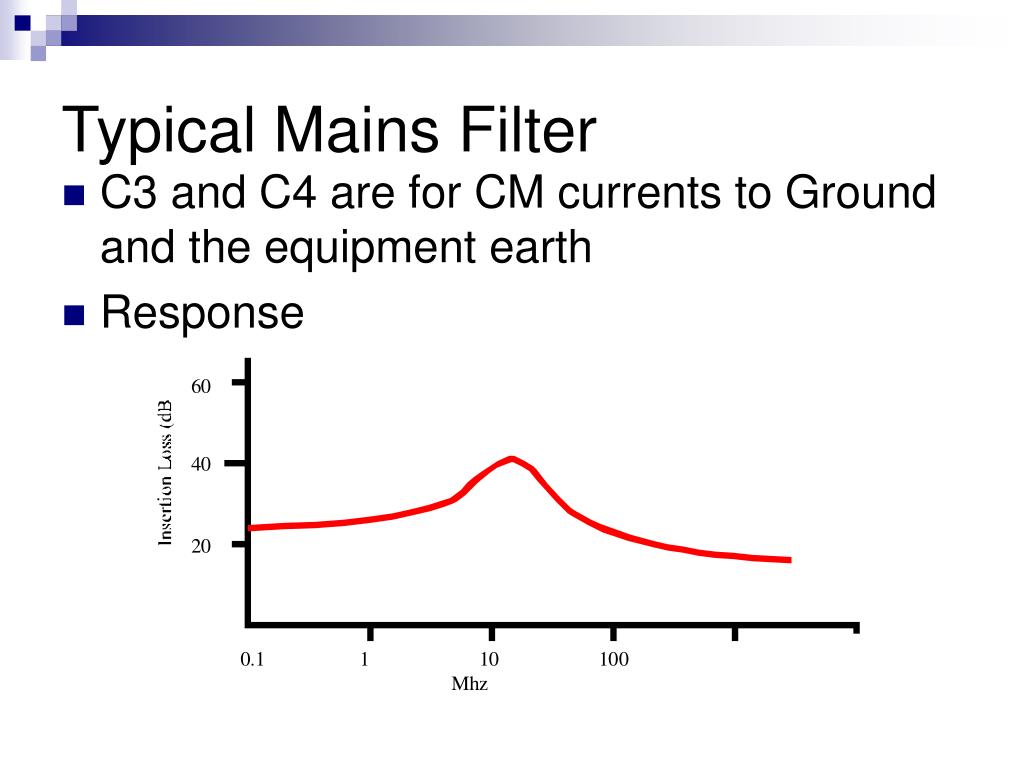

  49. Typical Mains Filter • C3 and C4 are for CM currents to Ground and the equipment earth • Response

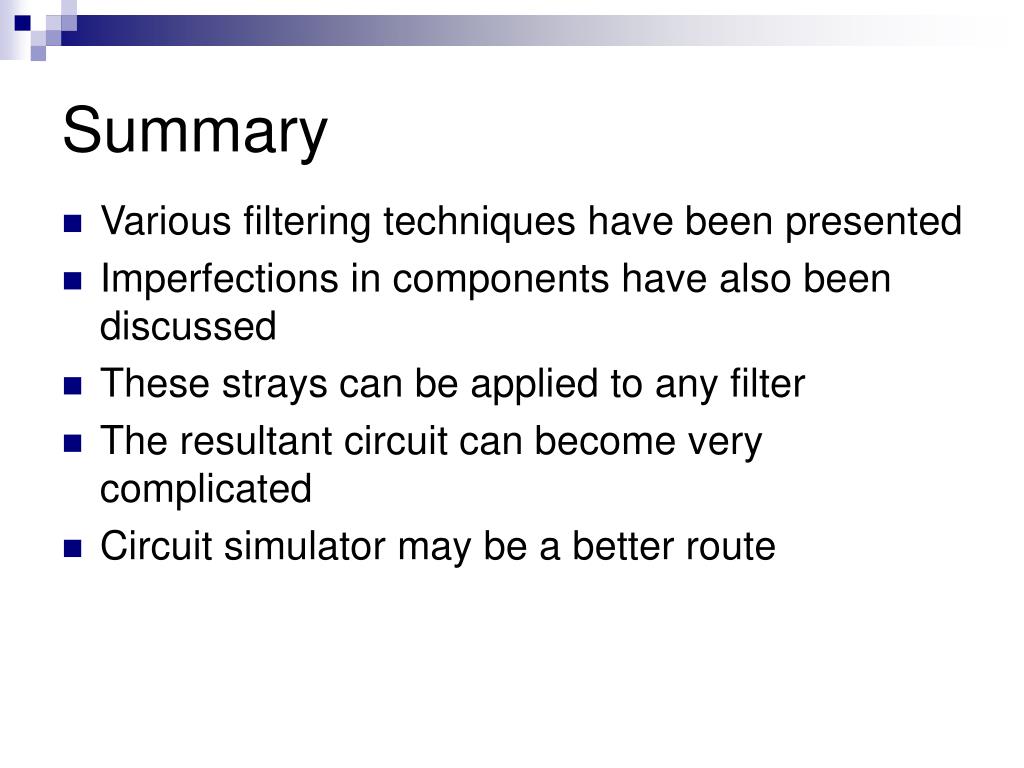

  50. Summary • Various filtering techniques have been presented • Imperfections in components have also been discussed • These strays can be applied to any filter • The resultant circuit can become very complicated • Circuit simulator may be a better route
