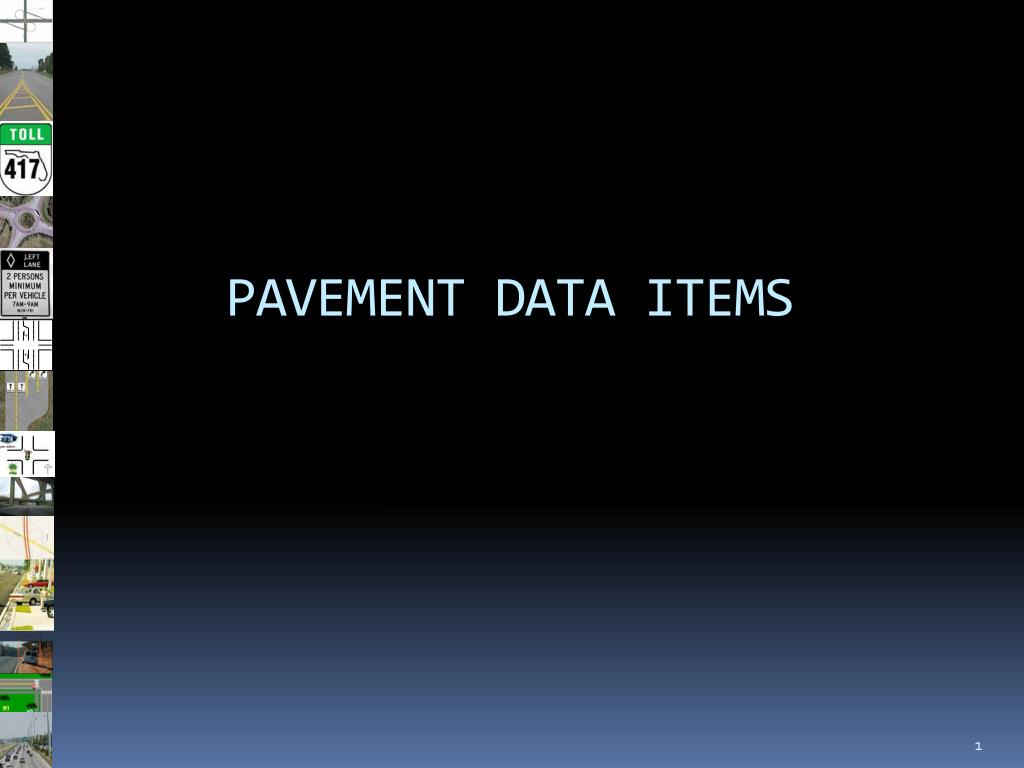

  1. PAVEMENT DATA ITEMS

  2. Climate_Shapes (4 LTPP zones) Soil_Shapes HPMS Pavement Data Summary level data Metadata Section level data Estimates

  3. Pavement Summary Data Included in Statewide Summaries Table:

  4. Item 47: IRI (International Roughness Index) • Definition: A statistic used to estimate the amount of roughness in a measured longitudinal profile • Extent Requirement: All paved NHS and principal arterials, rural minor arterial Sample Panel sections

  5. Item 47: IRI (cont’d) • Guidance: • Code a default date when IRI date is unavailable • Measure annually for NHS sections • Every 2 years for other sections • Include structures and railroad crossings in measurement

  6. Item 47: IRI (cont’d) • Guidance (cont’d): • Measure /report consistently for same direction and lane • Report the average of right and left quarter-car IRI Mean Roughness Index (MRI) • Report either IRI or PSR for samples on rural major collectors, urban minor arterials and collectors

  7. Item 48: PSR (Present Serviceability Rating) • Definition: Present Serviceability Rating (PSR) for pavement condition • Extent Requirement: All paved urban minor arterial, urban collector, and rural major collector Sample Panel sections

  8. Item 48: PSR (cont’d) • Guidance: • Not required if IRI is reported • Code PSR based on IRI data collection practices • If rating is unavailable, refer to Table 4.4

  9. Item 49: Surface Type • Definition: Surface type on a given section • Extent Requirement: All Sample Panel sections

  10. Item 49: Surface Type (cont’d) Table 4.5

  11. Item 50: Rutting • Definition: Average depth of rutting • Extent Requirement: All paved Sample Panel sections

  12. Item 50: Rutting (cont’d) • Guidance: • Collect on a two-year cycle • Report for all AC and composite surface types (where AC is the top layer) • Report average rutting value of both wheel paths • Report for IRI inventory direction and lane

  13. Item 50: Rutting (cont’d) Rutting Example

  14. Item 51: Faulting • Definition: The average vertical displacement (difference in elevation) between adjacent jointed concrete panels in the direction of travel • Extent Requirement: All paved Sample Panel sections

  15. Item 51: Faulting (cont’d) • Guidance: • Collect on a two-year cycle • Measure every joint and report as average • Report for all JPCP surface types

  16. Item 51: Faulting (cont’d) Faulting Example

  17. Item 51: Faulting (cont’d) Faulting Example (Plan View)

  18. Item 52: Cracking Percent • Definition: Estimate of percent area with fatigue type cracking for AC pavements (typically in wheel path) and percent of slabs with cracking for PCC pavements • Extent Requirement: All AC, PCC, and composite paved Sample Panel sections

  19. Item 52: Cracking Percent (cont’d) • Guidance: • Report for IRI inventory direction and lane • Collect on a two-year cycle • Report as percent of actual pavement with fatigue cracking • Determine best estimate of area with fatigue cracking

  20. Item 52: Cracking Percent (cont’d) AC High Severity Longitudinal Cracking

  21. Item 52: Cracking Percent (cont’d) AC Moderate Severity Fatigue Cracking

  22. Item 52: Cracking Percent (cont’d) JCP High Severity Longitudinal Cracking

  23. Item 53: Cracking Length • Definition: Estimate of relative length in feet per mile (ft/mi) of transverse cracking for AC pavements and reflection cracking for composite pavements where AC is the top surface layer • Extent Requirement: All AC (transverse cracking), and composite (reflection cracking) paved Sample Panel sections

  24. Item 53: Cracking Length (cont’d) • Guidance: • Collect on a two-year cycle • Report for AC and reflection cracking for composite pavements • Report for IRI inventory direction and lane • Cracks must be at least 6 ft. in length • Report the summation of lengths of all transverse cracks

  25. Item 53: Cracking Length (cont’d) High Severity AC/Composite Reflection Cracking

  26. Item 53: Cracking Length (cont’d) High Severity AC Transverse Cracking

  27. Item 54: Year of Last Improvement • Definition: The year in which the roadway surface was last improved • Extent Requirement: All paved Sample Panel sections

  28. Item 54: Year of Last Improvement (cont’d) • Guidance: • Report for IRI inventory direction and lane • Report for >= 0.5 inches of compacted pavement material • Report for either the date construction ended, or opened to traffic • Retain coded improvement year, until next surface improvement

  29. Item 55: Year of Last Construction • Definition: The year in which the roadway was constructed or reconstructed • Extent Requirement: All paved Sample Panel sections

  30. Item 55: Year of Last Construction (cont’d) • Guidance: • Report for IRI inventory direction and lane

  31. Item 56: Last Overlay Thickness • Definition: Thickness of the most recent pavement overlay • Extent Requirement: All paved Sample Panel sections

  32. Item 56: Last Overlay Thickness (cont’d) • Guidance: • Report for IRI inventory direction and lane • Report all overlays >= 0.5 in. in thickness

  33. Item 57: Thickness Rigid • Definition: Thickness of the rigid pavement • Extent Requirement: All paved Sample Panel sections

  34. Item 57: Thickness Rigid (cont’d) • Guidance: • Report for IRI inventory direction and lane • Must reflect the last improvement on the section • Surface Type codes ‘3’, ‘4’, ‘5’, ‘7’, ‘8’, ‘9’, and ‘10’ indicate rigid pavements • For composite pavements, code this item and Data Item #58

  35. Item 58: Thickness Flexible • Definition: Thickness of the flexible pavement • Extent Requirement: All paved Sample Panel sections

  36. Item 58: Thickness Flexible (cont’d) • Guidance: • Report for IRI inventory direction and lane • Report the total thickness of AC pavement • Report AC portion thickness of composite pavements • Surface Type codes ‘2’ ,‘6’, ‘7’ and ‘8’ indicate flexible pavements • For composite pavements, code this item and Data Item #57

  37. Item 59: Base Type • Definition: The base pavement type • Extent Requirement: All paved Sample Panel sections

  38. Item 59: Base Type (cont’d) • Guidance: • For multiple base types, code for the layer immediately below surface • Report for IRI inventory direction and lane

  39. Item 60: Base Thickness • Definition: The thickness of the base pavement • Extent Requirement: All paved Sample Panel sections

  40. Item 60: Base Thickness (cont’d) • Guidance: • For multiple base types, report the total thickness of all base layers • Report for IRI inventory direction and lane

  41. Item 61: Climate Zone • Definition: Climate zone as defined by the 4 LTPP climate zone descriptions • Extent Requirement: All Sample Panel sections • FHWA coded

  42. Item 61: Climate Zone (cont’d) LTPP Climate Zone Map

  43. Item 62: Soil Type • Definition: Soil type as defined by AASHTO soil classes • Extent Requirement: All paved Sample Panel sections • FHWA coded

  44. Pavement Estimates Data • Binder_Type • Dowel_Bar • Joint_Spacing

  45. Pavement Metadata • Used to describe, interpret submitted data • State/off-State system bifurcation • Rural/urban bifurcation • Functional system breakout

  46. HPMS Pavement Issues • Data item section lengths impact performance measures…

  47. HPMS Pavement Issues Average HPMS IRI Reporting Lengths
