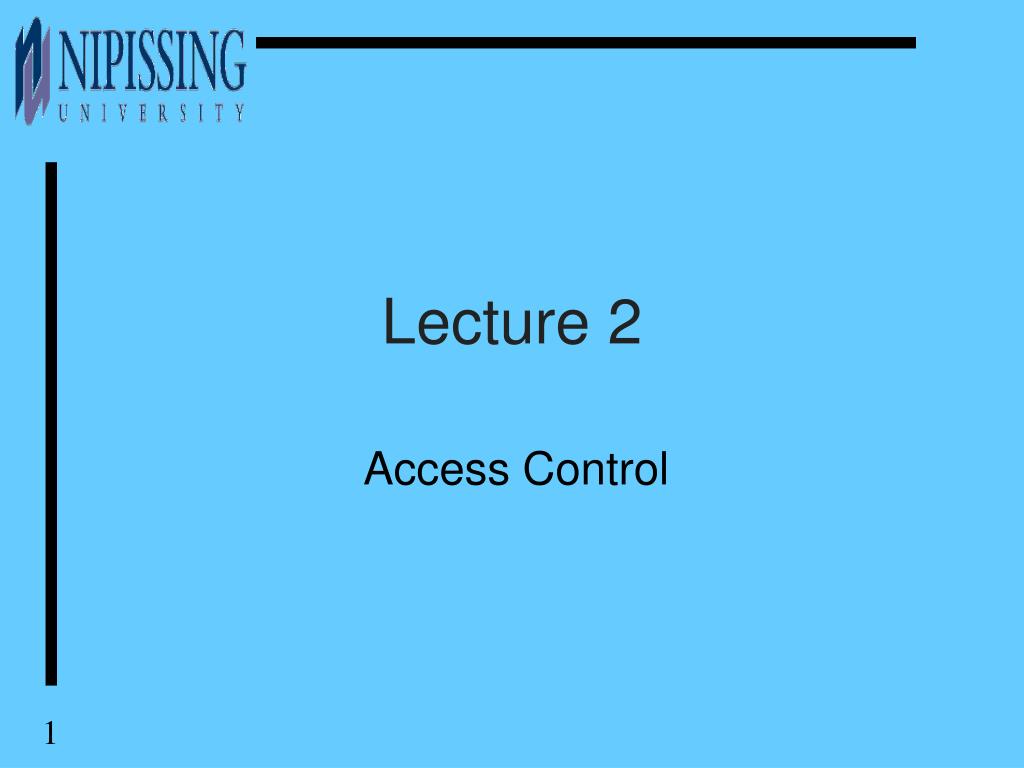

  1. Lecture 2 Access Control

  2. Contents • Identification and Authentication • Basic Principles and Concepts of Access Control • Identity-Based Access Control • Access Operations • UNIX Access Control • ACL and Access Matrix • Role-based Access Control • New Challenges

  3. Identification & Authentication • A secure system has to track the identities of the users requesting its services • The user identity is a parameter in access control decisions; • The user identity is recorded when logging security-relevant events in an audit trail. • Identification: Announce who you are. • Authentication: You prove that you are who you claim to be.

  4. Password • Threats for Identification • Password guessing • Password spoofing • Compromise of the password file. • To avoid attacks such as • Exhaustive search • Intelligent search • Defense: • Set a password • Change default password • Password length • Password format • Avoid obvious passwords

  5. System help • Password checkers • Password generation • Password ageing • Limit login attempts • Inform users

  6. Spoofing Attacks • Who gets the user name and password? • Displaying the number of failed logins • Trusted path: e.g., NT’s CNTL+ALT+DEL • Mutual authentication: The system should be required to authenticate itself to the user.

  7. Protecting the Password file • Cryptographic protection • Access Control enforced by the OS • Combination

  8.  Intel Password Rules • In order to protect your security, Intel has certain rules for choosing passwords. Please read the following rules so that you will know how to choose a good password. • The following rules apply to all passwords: • The password must be at least 8 characters long. • The password must contain at least: • one alpha character [a-zA-Z]; • one numeric character [0-9]; • one special character from this set: • ` ! @ $ % ^ & * ( ) - _ = + [ ] ; : ' " , < . > / ? • The password must not: • contain spaces; • begin with an exclamation [!] or a question mark [?]; • contain your login ID. • The first 3 characters cannot be the same. • The sequence of the first 3 characters cannot be in your login ID. • The first 8 characters cannot be the same as in your previous password. • Passwords are treated as case sensitive.

  9. Examples • Invalid or poorly chosen passwords: • Your login ID. • Names of co-workers, pets, family, etc. • Phone numbers, license numbers, or birthdays. • Simple passwords like "asdf" (adjacent keys on a keyboard). • Words, which can be found in a dictionary. • Strong passwords (the following are for example purposes only; do not use any of these examples as your actual password): • Use a name, modified slightly, like "b0b$mith" or "M@ryL0ng". • Use a phrase you can remember, like "hello world" modified to "hel10@World". • "tL*5i?wu" (contains letters, special characters, and numbers).

  10. Alternatives • Something you know • PIN • Something you hold • Smart card • Who you are • Palm prints, finger prints, iris pattern, retina pattern • What you do • Signature: form, speed, pressure, • Where you are • Which terminal, which client, registered position

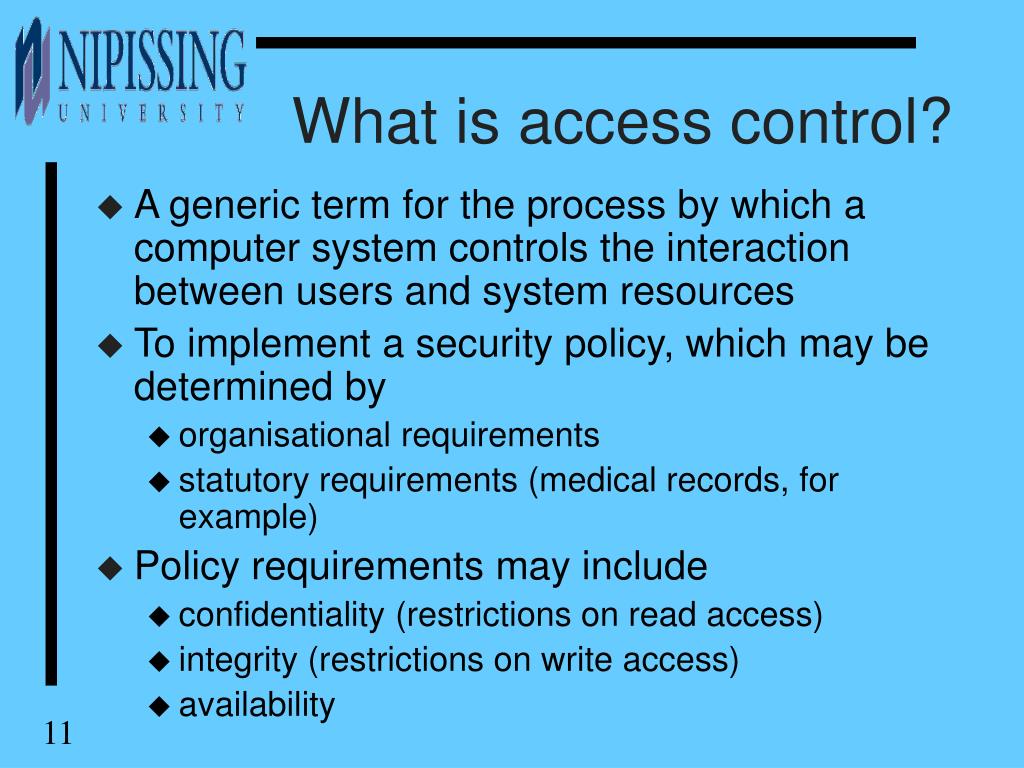

  11. What is access control? • A generic term for the process by which a computer system controls the interaction between users and system resources • To implement a security policy, which may be determined by • organisational requirements • statutory requirements (medical records, for example) • Policy requirements may include • confidentiality (restrictions on read access) • integrity (restrictions on write access) • availability

  12. A schematic view • A user requests access (read, write, print, etc.) to a resource in the computer system • The reference monitor • establishes the validity of the request … • … and returns a decision either granting or denying access to the user Access Request Reference Monitor System Decision

  13. Simple analogies • Consider a paper-based office in which certain documents should only be read by certain individuals • We could implement security by • storing documents in filing cabinets • issuing keys to the relevant individuals for the appropriate cabinets • The reference monitor is the set of (locked) filing cabinets • An access request (an attempt to open a filing cabinet) is granted if the key fits the lock (and denied otherwise)

  14. Simple analogies • Consider now a night club where only certain individuals are allowed into the club • We can implement security by • employing a bouncer • providing the bouncer with a guest list (that is, a list of people permitted to enter the club) • The reference monitor is the security guard + the guest list • An access request is granted only if • a club-goer can prove their identity (authentication) • she is on the guest list

  15. Subjects and objects • Subject • Active entity in a computer system • User, process, thread • We will assume that a subject is synonymous with a user • Object • Passive entity or resource in a computer system • Files, directories, printers

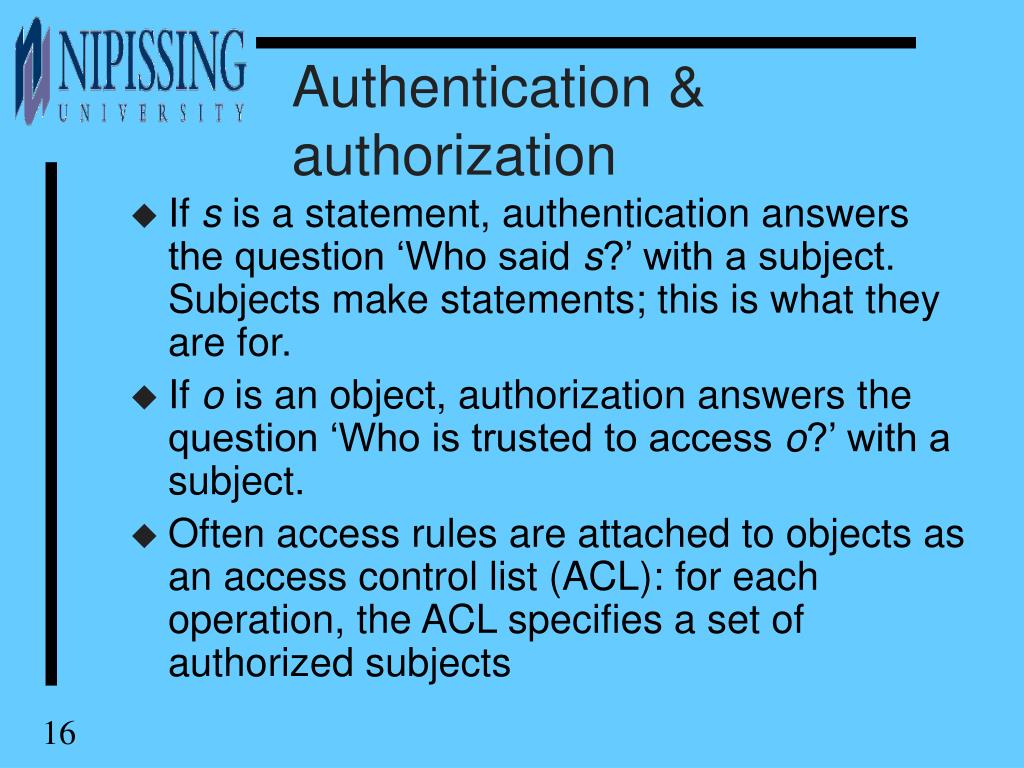

  16. Authentication & authorization • If s is a statement, authentication answers the question ‘Who said s?’ with a subject. Subjects make statements; this is what they are for. • If o is an object, authorization answers the question ‘Who is trusted to access o?’ with a subject. • Often access rules are attached to objects as an access control list (ACL): for each operation, the ACL specifies a set of authorized subjects

  17. Fact file • Model assumes identity-based access control: ACL entries are ‘human readable’ subjects; it may seem that access control by definition requires that identities (of persons) are verified • Access rules are local: we do not have to search for the rule that is applicable, it is stored as an ACL with the object • Enforcement of rules is centralized: the reference monitor does not consult other parties when making a decision • Simple access operations: read, write, execute

  18. Identity-based access control • The kind of access control we are used to form operating systems like Unix or Windows • Appropriate for ‘closed’ systems where one can physically find the users • Do not confuse the ‘identity’ of a person with a ‘user identity (uid)’ in an operating systems; a uid is just a unique identifier that need not correspond to a real person (e.g. ‘root’)

  19. Changes of 1990s • On the Internet we can deal with parties we never met before. Their ‘identity’ can hardly figure in our access rules. • Access is controlled at the level of applets, not at the granularity of read/write/execute • Access control is a two-stage process: • 1. Decide on the access rule that should be applied; third parties may get involved at this stage • 2. Apply the access rules to individual requests

  20. Changing the focus • User identities link a user’s privileges to a current access request, but there is no necessity to describe or enforce access control by reference to subjects (users) • Instead of asking who made the request, ask what to do with it

  21. Access control without sources • 1. The receiver may associate UID diego with a particular person (optional) • 2. After running a context establishment protocol, the receiver puts UID diego into the security context ‘xxxx’ (similar to session key) • 3. The receiver handles the request within the security context with context identifier ‘xxxx’ • 4. The receiver does not verify the source of the request

  22. Security contexts • Security contexts are collections of access control parameters. They correspond to subjects, but can hardly be described as the sources of access requests. • Authentication answers the question ‘Which security context should be associated with this access request?’. • Authorization evaluates the request within that security context.

  23. Trust management • A unified approach to specifying and interpreting security policies, credentials, and relationships. • Generalize rules: instead of ACLs, use a programming language to express assertions • Distribute authority: assertions can be local (‘policies’) or be signed by another authority (‘credentials’)

  24. Trust management • Credentials can directly authorize actions, there is no need to authenticate a user • Trust management engine (compliance checker) answers question ‘Does the set C of credentials prove that the request r complies with the local security policy P?’ • Challenge: How to find a set of credentials that satisfies a given policy • Trade-off between the expressiveness of the language and the complexity of the compliance checker • Trust management systems do not manage trust

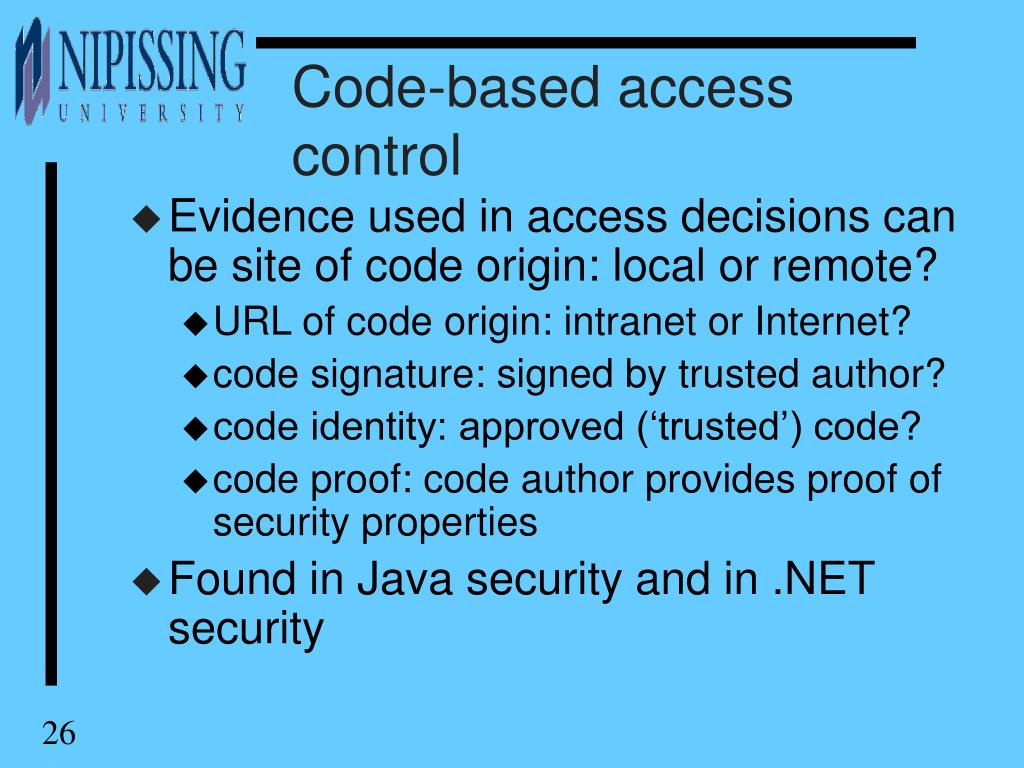

  25. Code-based access control • Evidence used in access decisions can be site of code origin: local or remote? • URL of code origin: intranet or Internet? • code signature: signed by trusted author? • code identity: approved (‘trusted’) code? • code proof: code author provides proof of security properties • Found in Java security and in .NET security

  26. Call chains • A has access right to resource R, B does not; A calls B and B requests access to R: should access be granted? • A conservative answer is ‘no’, but A could explicitly delegate the access right to B • A has access right to resource R, B does not; B calls A and A requests access to R: should access be granted? • A conservative answer is ‘no’, but A could explicitly assert its access right

  27. Delegation • Alice ‘delegates’ to Bob the right to use one of her resources: put this access right into an ACL • It depends on policy whether Bob can delegate this right to another user; Alice can manage her own ACL • Alice ‘delegates her identity (uid)’ to a process (subject) running in a computer system • It depends on policy whether the process can delegate her uid to other processes, but usually it is not an option to ask Alice

  28. Access operations • An interaction between an object and a subject • A subject may observe (read) an object • Information flows from object to subject • A subject may alter (write to) an object • Information flows from subject to object

  29. Back to the analogies • In the club example • a subject is a club-goer • the only objects are the club and the guest list • access operations could include “enter club” and “delete guest” (that is, change the guest list) • In the filing cabinet example • a subject is a user of the files in the cabinets • an object is a filing cabinet or a file in one of the cabinets • access operations could include read and write (for files) and also “remove key from user”

  30. Read and write access • In a multi-user OS users open files to get access • Files are opened for read or for write access so that the OS can avoid conflicts like two users simultaneously writing to the same file • Write access mode is usually implemented as read/write mode • A user editing a file should not be asked to open it twice • The append (or “blind write” or write-only) access mode allows users to alter an object without observing its contents • Rarely useful (audit log files being the main exception) • Implemented in Multics

  31. The execute access operation • Sometimes an object can be used without opening it in read or write mode • Directories • Binary executable files • Cryptographic keys • We include the execute access operation • This may mean different things in different contexts and in different systems

  32. UNIX access operations • File access • Read (r) • Write (w) • Execute (x) • Directory access • Read (list directory contents) • Write (create or rename files in directory) • Execute (search directory)

  33. UNIX ls command

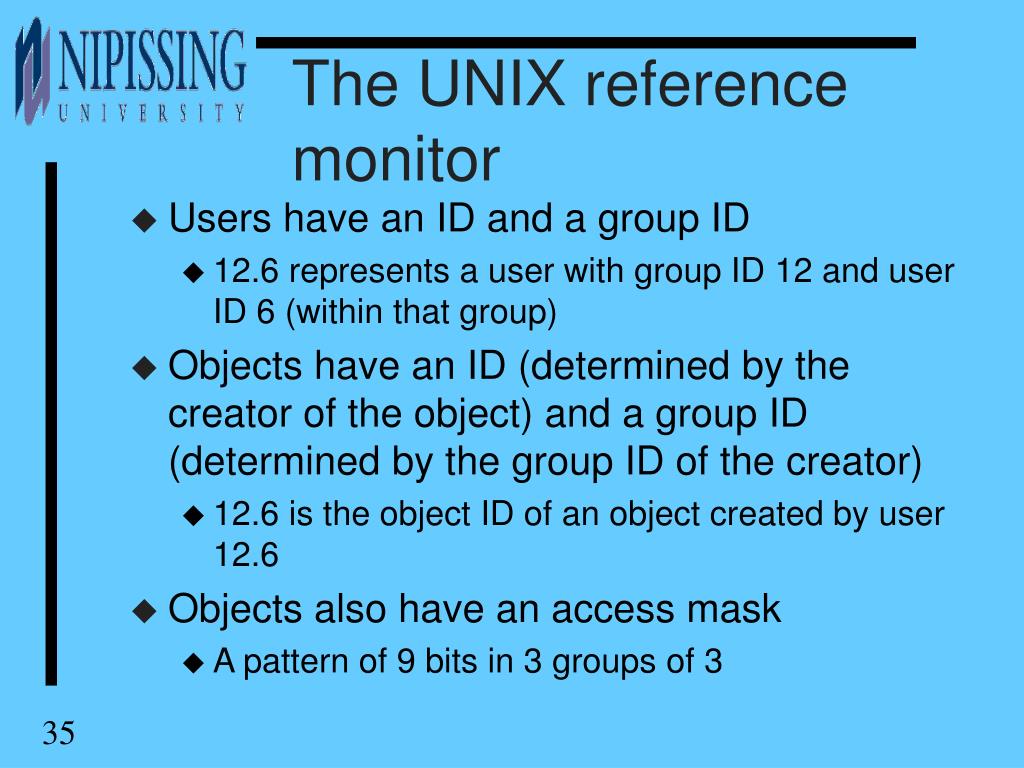

  34. The UNIX reference monitor • Users have an ID and a group ID • 12.6 represents a user with group ID 12 and user ID 6 (within that group) • Objects have an ID (determined by the creator of the object) and a group ID (determined by the group ID of the creator) • 12.6 is the object ID of an object created by user 12.6 • Objects also have an access mask • A pattern of 9 bits in 3 groups of 3

  35. The UNIX reference monitor • The access mask of the Research directory is 101 101 111 representing x-r x-r xwr • The ls output reverses the order of the bits • Assume the ID of the Research directory is 12.6 • Any user has the default access given by the first 3 bits (read and execute in this case) • Any user with ID 12.x has group access because the user ID and object ID match in the first place • The user with ID 12.6 has owner access because the user ID and object ID match in both places

  36. The access control matrix • Introduced by Lampson (1972) and extended by Harrison, Ruzzo and Ullman (1976-8) • Columns indexed by objects • Rows indexed by subjects • Matrix entries are (sets of) access operations • Foundation of many theoretical security models Objects Subjects

  37. The access control matrix • A request can be regarded as a triple (s,o,a) • s is a subject • o is an object • a is an access operation • A request is granted (by the reference monitor) if • a belongs to the access matrix entry corresponding to subject s and object o

  38. The access control matrix • The request (jason, allfiles.txt, w) is granted • The request (mick, allfiles.txt, w) is denied Objects Subjects

  39. Disadvantages • Abstract formulation of access control not suitable for direct implementation • The matrix is likely to be extremely sparse and therefore implementation is inefficient • Management of the matrix is likely to be extremely difficult if there are XXXXs of files and XXs of users (resulting in XXXXXXs of matrix entries)

  40. Access control lists • An ACL corresponds to a column in the access control matrix • [a.out: (jason, {r,w,x}), (mick, {r,x})] • How would a reference monitor that uses ACLs check the validity of the request (jason, a.out, r)? Objects Subjects

  41. Access control lists • Access control lists focus on the objects • Typically implemented at operating system level • WindowsNT uses ACLs • Disadvantage • How can we check the access rights of a particular subject efficiently (“before-the-act per-subject review”)?

  42. Capability lists • A capability list corresponds to a row in the access control matrix • [jason: (trash, {r,w}), (a.out, {r,w,x}), (allfiles.txt, {r,w})] • How would such a reference monitor check the validity of the request (jason, a.out, r)? Objects Subjects

  43. Capability lists • Capability lists focus on the subjects • Typically implemented in services and application software • Database applications often use capability lists to implement fine-grained access to tables and queries • Renewed interest in capability-based access control for distributed systems • Disadvantage • How can we check which subjects can access a given object (“before-the-act per-object review”)?

  44. Back to the analogies • An ACL is analogous to a guest list • the club is the object • the favoured clubbers appear on the list • A capability list is analogous to the set of keys issued to a user (the subject) for unlocking the filing cabinets (the objects)

  45. Administration • Tasks include • Creation of new objects and subjects • Deletion of objects and subjects • Changing entries in access control matrix (changing entries in ACLs and capability lists) • The administration of access control structures is extremely time-consuming, complicated and error-prone

  46. Aggregation • There are several important theoretical results (Harrison, Ruzzo and Ullman; Lipton and Snyder) that demonstrate that it is extremely difficult to anticipate the consequences of administrative actions • Access control structures that aggregate subjects and objects are used to simplify the administrative burden

  47. Aggregation techniques • User groups • Roles • Procedures • Data types

  48. Groups • Access rights are often defined for groups of users • In UNIX three groups are associated with each object • Owner • Group (owner) • Others • In VMS there are four groups • Owner • Group • World • System • In VSTa, a complicated hierarchical group structures can be constructed based on the UNIX model (Andrew Valenciahttp://www.vsta.org:8080/)

  49. Roles • A data type is a set of objects with the same structure (bank accounts, for example) • We define access operations (procedures or permissions) on a data type • Permissions are assigned to roles • Users are assigned to roles • A role is a collection of application-specific operations (procedures) • Roles are (usually) arranged in a hierarchy
