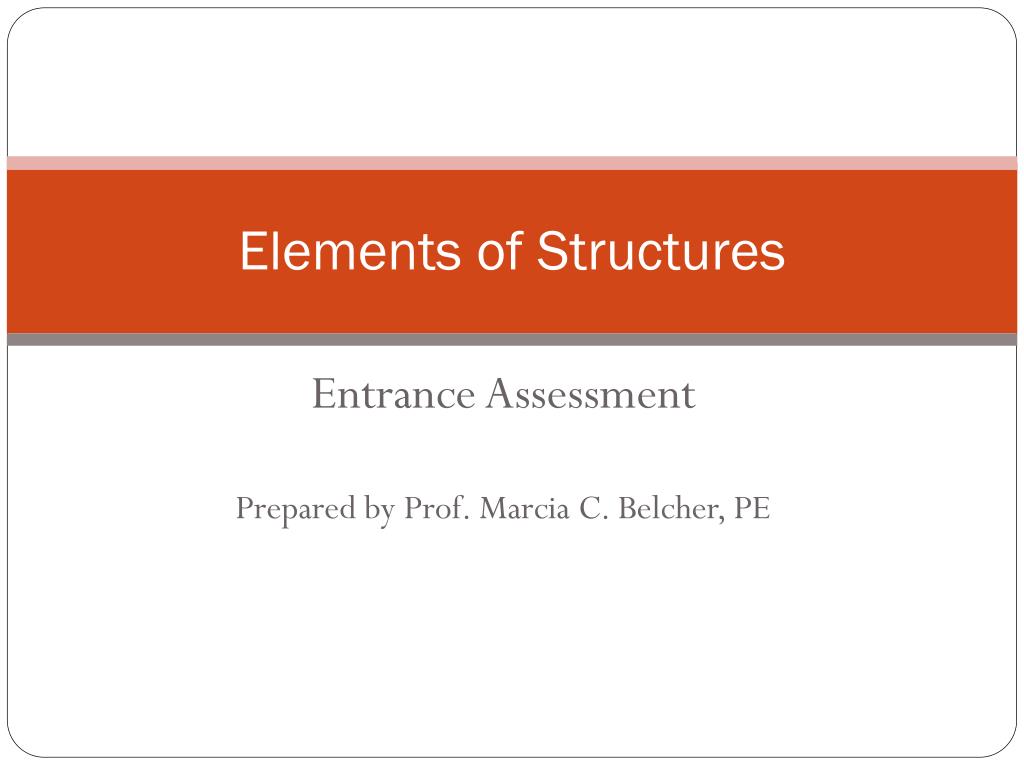

  1. Elements of Structures Entrance Assessment Prepared by Prof. Marcia C. Belcher, PE

  2. 1500 lb 1500 lb • 1. What load type will create the shear and bending moment diagrams shown? • Concentrated load • Trapezoidal load • Uniformly distributed load

  3. 1500 lb 1500 lb • 2. Calculate the resultant of the load that is applied to the beam.

  4. 2m 3m 2m • 3. For the beam shown, where is the location of the maximum moment? • Left support • Right support • 2m from left • 5m from left

  5. 2m 3m 2m • 4. From the FBD of the beam and shear diagram shown, what is the value of the maximum moment? • 331.6 Nm • 663.2 Nm • -192.7 Nm • None of the above

  6. 5. For the bar shown, if P is equal to 5000 lbs and the axial stress is 50 psi, what is the cross-sectional area of the bar in square inches? • 1 • 10 • 100 • 50 • Not enough information given to calculate area of the bar

  7. 6. For the bar shown, if P is equal to 100 lbs, what is the strain experienced by the bar if the cross sectional area is 25 in2 ? • .001 • .0025 • .0035 • Not enough information given to calculate strain of the bar

  8. What kind of beam is indicated by the diagram above? • Simply supported • Steel wide flange • Cantilever • None of the above

  9. 8. Which of the following free body diagrams best represents the beam shown above? • a.   • b. • c.
