3D Graphics Programming Geometric Transformations

1. 3D Graphics Programming Geometric Transformations • Ming-Te Chi • Department of Computer Science,  • National Chengchi University

2. Outline • Geometric Transformations(CH4)

3. Transformation Terminology • Viewing • Modeling • Modelview • Projection • Viewport

4. Eye coordinates +y +y +x +x +z

5. Transformations • Translation • Rotation • Scaling

6. Rotation/Translation +y +y +y +y +y +y +x +x +x +x +x +x

7. The Modelview Duality +y +y +x +x +z +z

8. Projection

9. Matrix

10. Transformation functions • glTranslatef(x, y, z); • glRotatef(angle, x, y, z); • glScalef(x, y, z); • glLoadIdentity();

11. Per Vertex Poly. Frag FB Raster CPU DL Texture Pixel v e r t e x Modelview Matrix Projection Matrix Perspective Division Viewport Transform Modelview Projection Modelview l l l TransformationPipeline • other calculations here • material è color • shade model (flat) • polygon rendering mode • polygon culling • clipping normalized device eye object clip window

12. glutWireCube(10.0f);

13. The Matrix Stacks glPushMatrix glPopMatrix Matrix Stack glGet(GL_MAX_MODELVIEW_STACK_DEPTH)

14. Atom example // First Electron Orbit // Save viewing transformation glPushMatrix(); // Rotate by angle of revolution glRotatef(fElect1, 0.0f, 1.0f, 0.0f); // Translate out from origin to orbit distance glTranslatef(90.0f, 0.0f, 0.0f); // Draw the electron glutSolidSphere(6.0f, 15, 15); // Restore the viewing transformation glPopMatrix();

15. // Second Electron Orbit glPushMatrix(); glRotatef(45.0f, 0.0f, 0.0f, 1.0f); glRotatef(fElect1, 0.0f, 1.0f, 0.0f); glTranslatef(-70.0f, 0.0f, 0.0f); glutSolidSphere(6.0f, 15, 15); glPopMatrix();

16. Projections • Orthograhpic Projections • Perspective Projections

17. Orthograhpic Projections // Reset coordinate system glMatrixMode(GL_PROJECTION); glLoadIdentity(); // Establish clipping volume (left, right, bottom, top, near, far) if (w <= h) glOrtho (-nRange, nRange, -nRange*h/w, nRange*h/w, -nRange*2.0f, nRange*2.0f); else glOrtho (-nRange*w/h, nRange*w/h, -nRange, nRange, -nRange*2.0f, nRange*2.0f);

18. Perspective Projections // Reset coordinate system glMatrixMode(GL_PROJECTION); glLoadIdentity(); // Produce the perspective projection gluPerspective(60.0f, fAspect, 1.0, 400.0);

19. Advance Matrix Manipulation • Glfloat matrix[16];

20. Load a Matrix • glLoadMatrixf(GLfloat *m); • glLoadTransposeMatrixf(Glfloat *m);

21. Adding Transformations Together • glMultMatrixf(Glfloat *m);

22. Cameras and Actors

23. An Actor Frame Class GLFrame { protected: M3Dvector3f vLocation; M3Dvector3f vUp; M3Dvector3f vForward; };

24. Euler Angles Class GLFrame { protected: M3Dvector3f vPosition; Glfloat fRoll; Glfloat fPitch; Glfloat fYaw; };

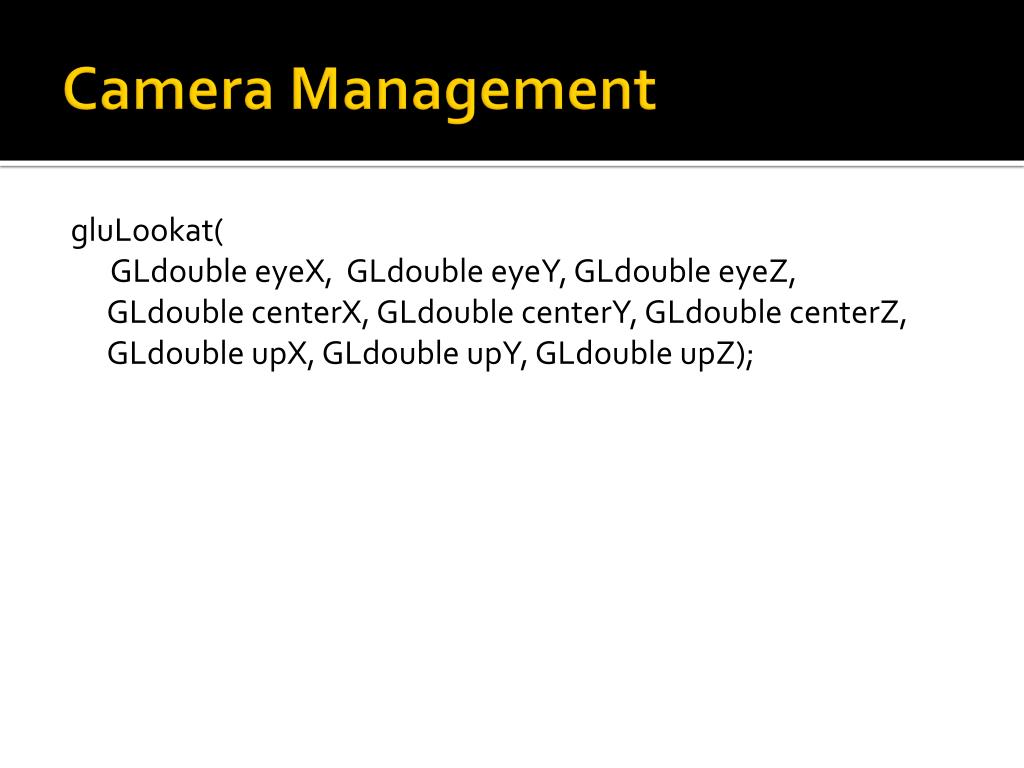

25. Camera Management gluLookat( GLdouble eyeX, GLdouble eyeY, GLdouble eyeZ, GLdouble centerX, GLdouble centerY, GLdouble centerZ, GLdouble upX, GLdouble upY, GLdouble upZ);
