The Interaction of Light and Matter

Reflection and Refraction of Light. 11-12. The Interaction of Light and Matter. Absorption, Transmission, and Reflection. Light Can do Three Things: 1) Absorb 2) Transmit or Refract 3) Reflect. Reflection and Refraction of Light. 2. The Interaction of Light and Matter.

ciqala
Télécharger la présentation

The Interaction of Light and Matter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Reflection and Refraction of Light 11-12 The Interaction of Light and Matter Absorption, Transmission, and Reflection • Light Can do Three Things: • 1) Absorb • 2) Transmit or Refract • 3) Reflect

  2. Reflection and Refraction of Light 2 The Interaction of Light and Matter Absorption, Transmission, and Reflection • The opaque material in this candleholder only absorbs and reflects light—no light passes through it.

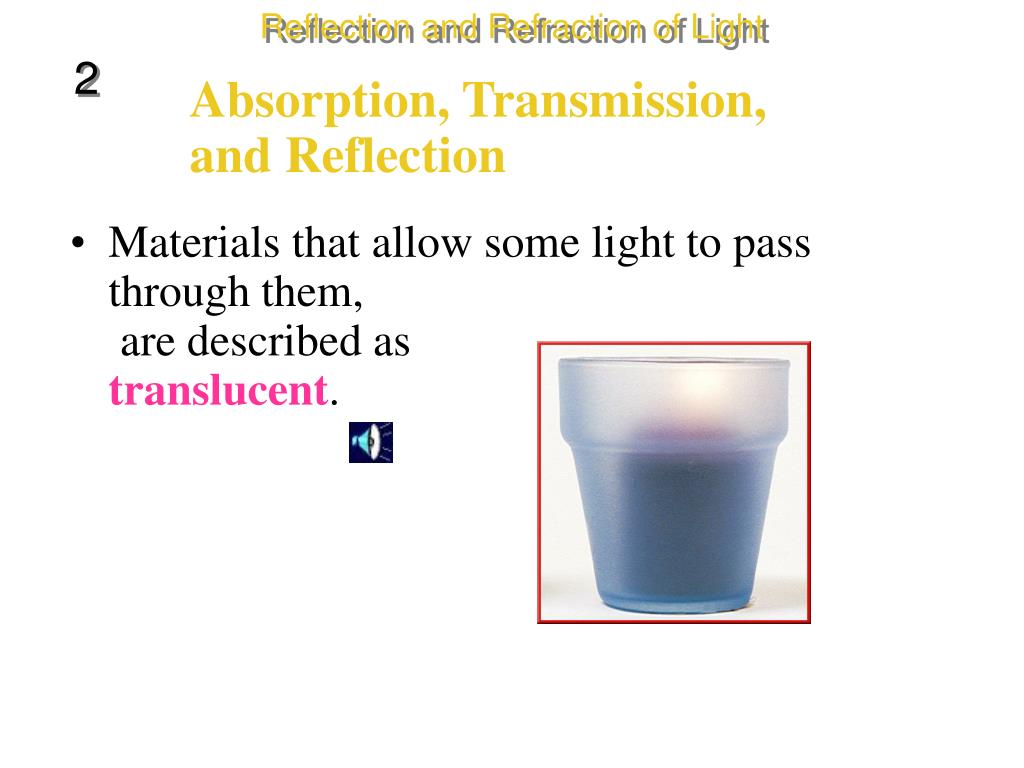

  3. Reflection and Refraction of Light • Materials that allow some light to pass through them, are described as translucent. 2 Absorption, Transmission, and Reflection

  4. Reflection and Refraction of Light • Transparent materials, such as this candleholder transmit almost all the light striking them, so you can see objects clearly through them. 2 Absorption, Transmission, and Reflection

  5. Reflection and Refraction of Light 2 Reflection of Light Regular and Diffuse Reflection • A smooth, even surface such as a pane of glass produces a sharp image by reflecting parallel light waves in only one direction. • Reflection of light waves from a smooth surface is regular reflection. • To cause a regular reflection, the roughness of a surface must be less than the wavelengths it reflects. • Ex: LOOKING IN A MIRROR

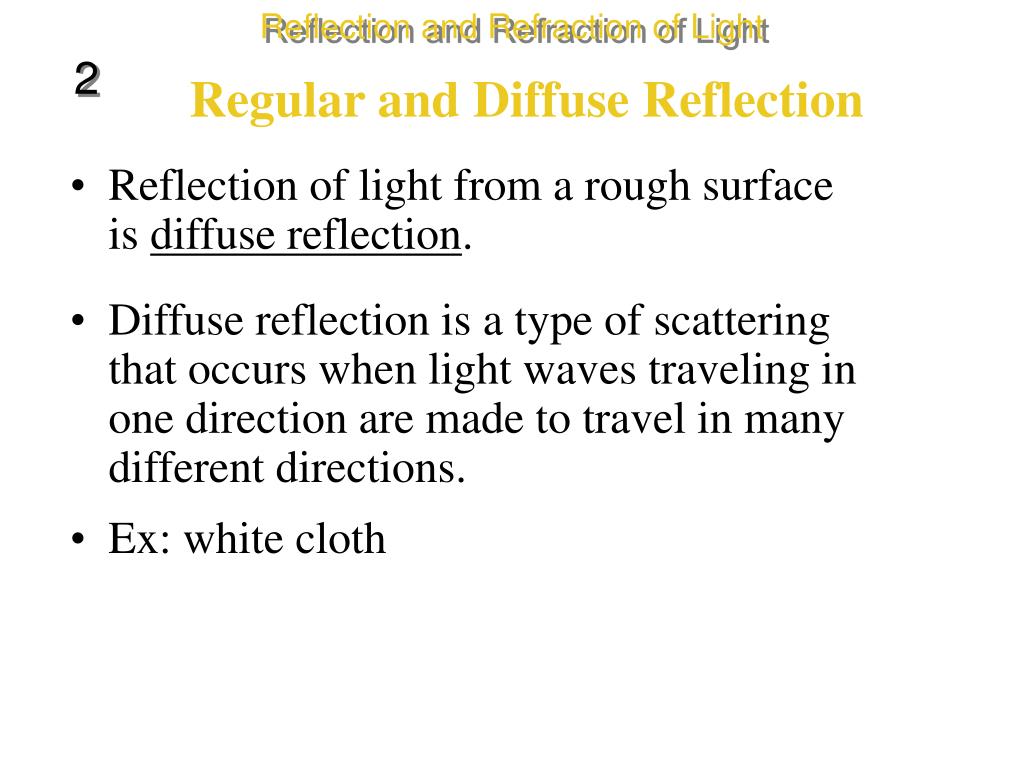

  6. Reflection and Refraction of Light 2 Regular and Diffuse Reflection • Reflection of light from a rough surface is diffuse reflection. • Diffuse reflection is a type of scattering that occurs when light waves traveling in one direction are made to travel in many different directions. • Ex: white cloth

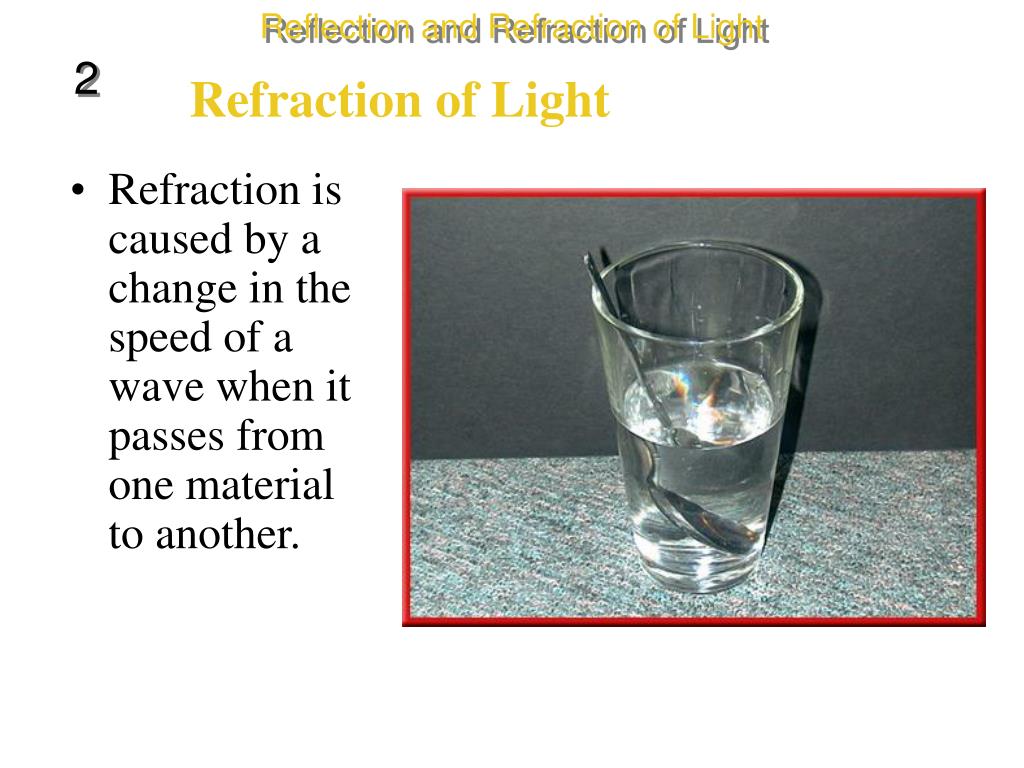

  7. Reflection and Refraction of Light 2 Refraction of Light • Refraction is caused by a change in the speed of a wave when it passes from one material to another.

  8. Reflection and Refraction of Light 2 Refraction of Light • Index of refraction is the ratio of the speed of light in a vacuum to the speed of light in the material. • The index of refraction indicates how much the speed of light is reduced in the material compared to its speed in empty space. • The larger the index of refraction, the more light is slowed down in the material.

  9. Reflection and Refraction of Light 2 Refraction of Light • White light, such as sunlight, is made up of light waves with range of wavelengths. • Prisms refract the light twice—once when it enters the prism and again when it leaves the prism.

  10. Reflection and Refraction of Light 2 Refraction of Light • The longer wavelengths of light are slowed less and are bent the least. • As a result, the different colors are separated when they emerge from the prism.

  11. Reflection and Refraction of Light 2 Diffraction of Light (10-3) • Occurs when an object causes a wave to change direction and bend around it. • The amount of diffraction that occurs depends on the size of the object • If the object is smaller than the wavelength then the wave will bend around it
