  1. A Scalable, Commodity Data Center Network Architecture Jingyang Zhu

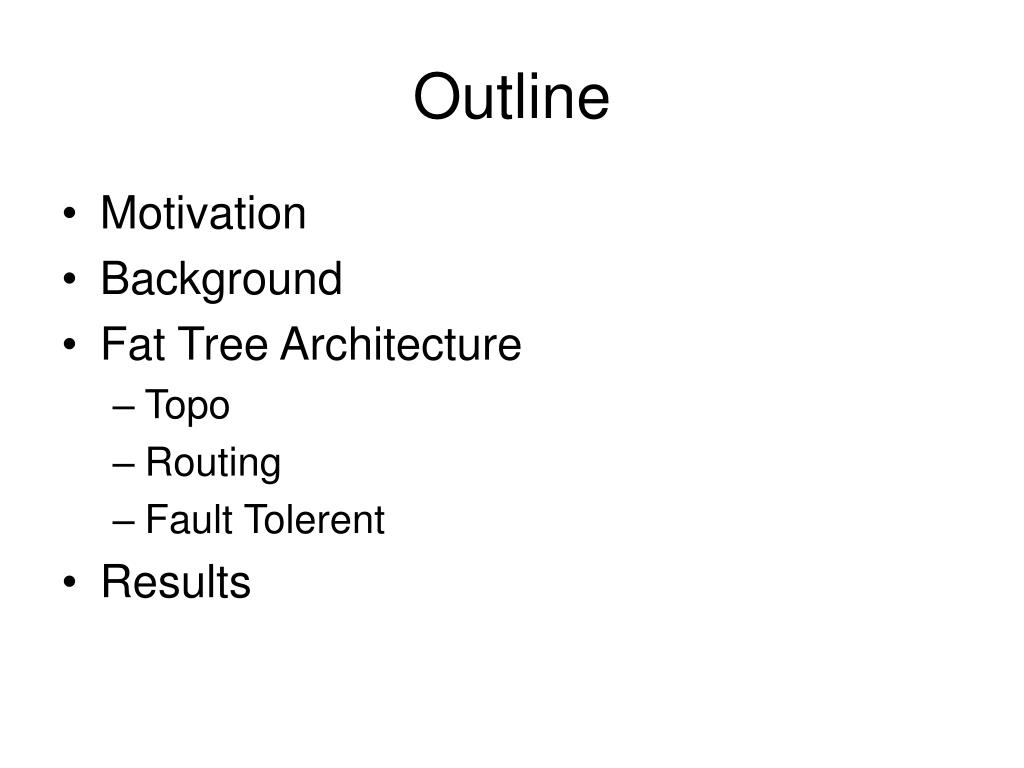

  2. Outline • Motivation • Background • Fat Tree Architecture • Topo • Routing • Fault Tolerent • Results

  3. Motivation Map Reduce Large Data Shuffle

  4. Intuitive Approach • High End Hardware (e.g., InfiniBand)

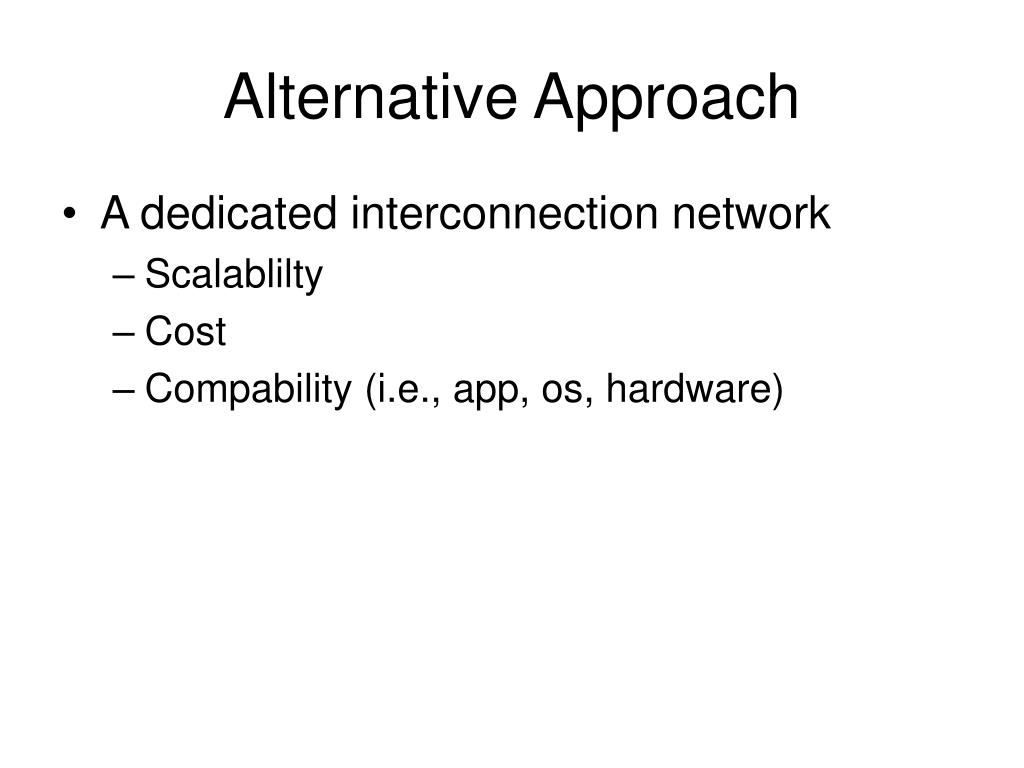

  5. Alternative Approach • A dedicated interconnection network • Scalablilty • Cost • Compability (i.e., app, os, hardware)

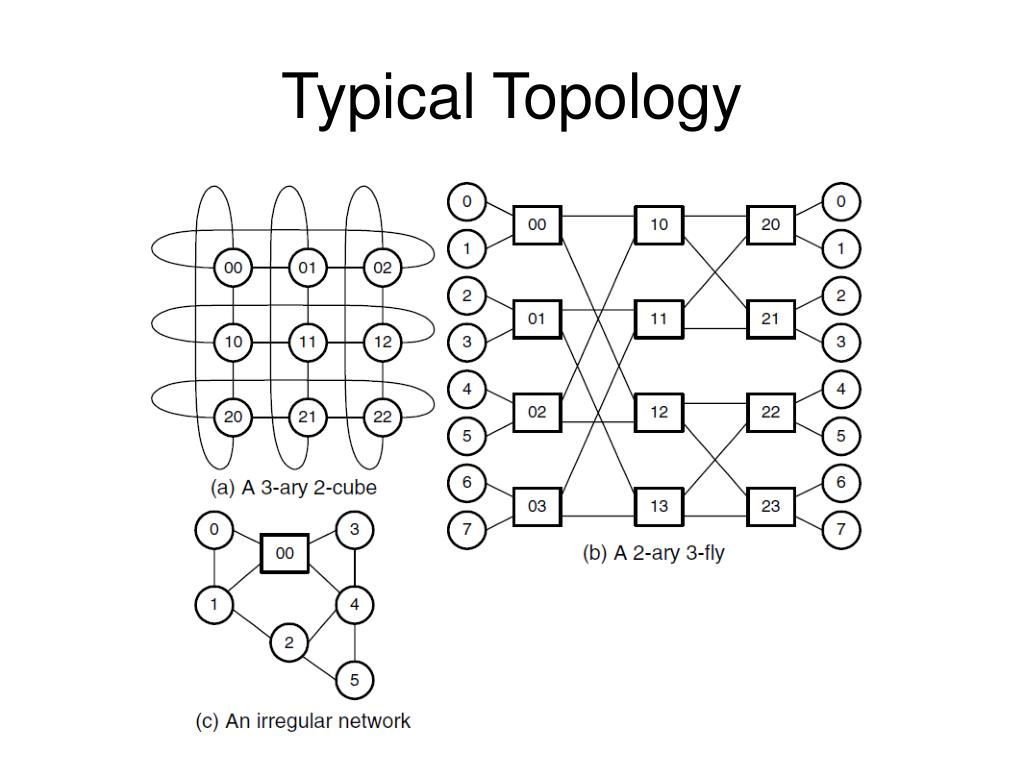

  6. Typical Topology

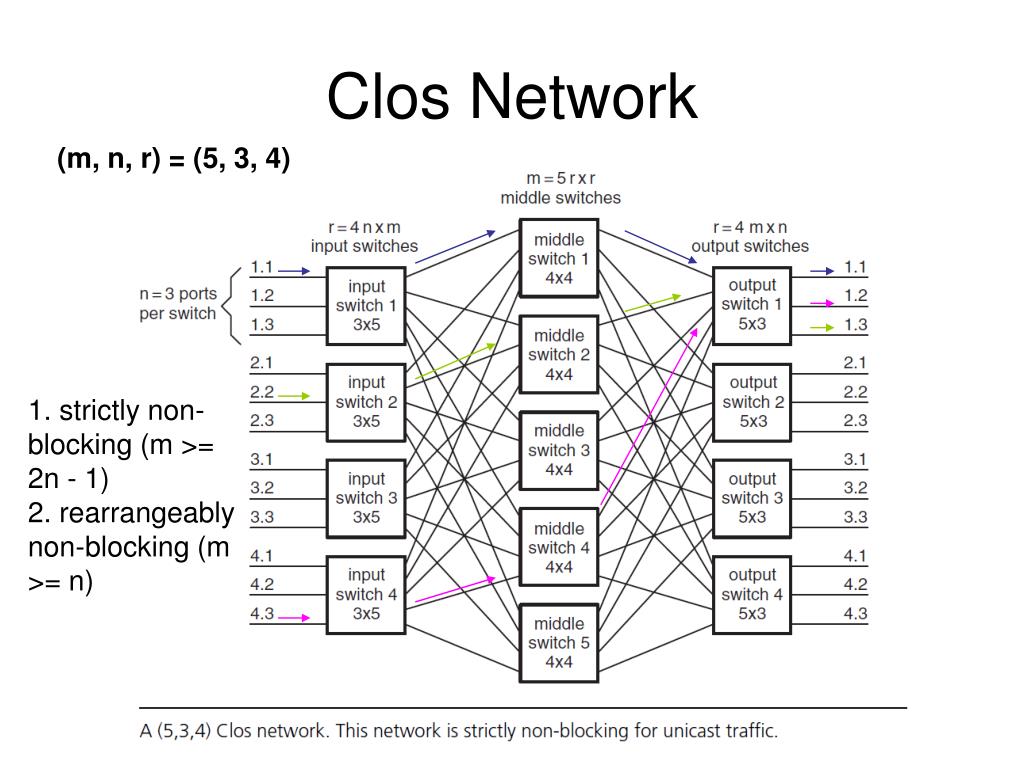

  7. Clos Network (m, n, r) = (5, 3, 4) 1. strictly non-blocking (m >= 2n - 1) 2. rearrangeably non-blocking (m >= n)

  8. Benes Network • A Clos Network with 2x2 switches

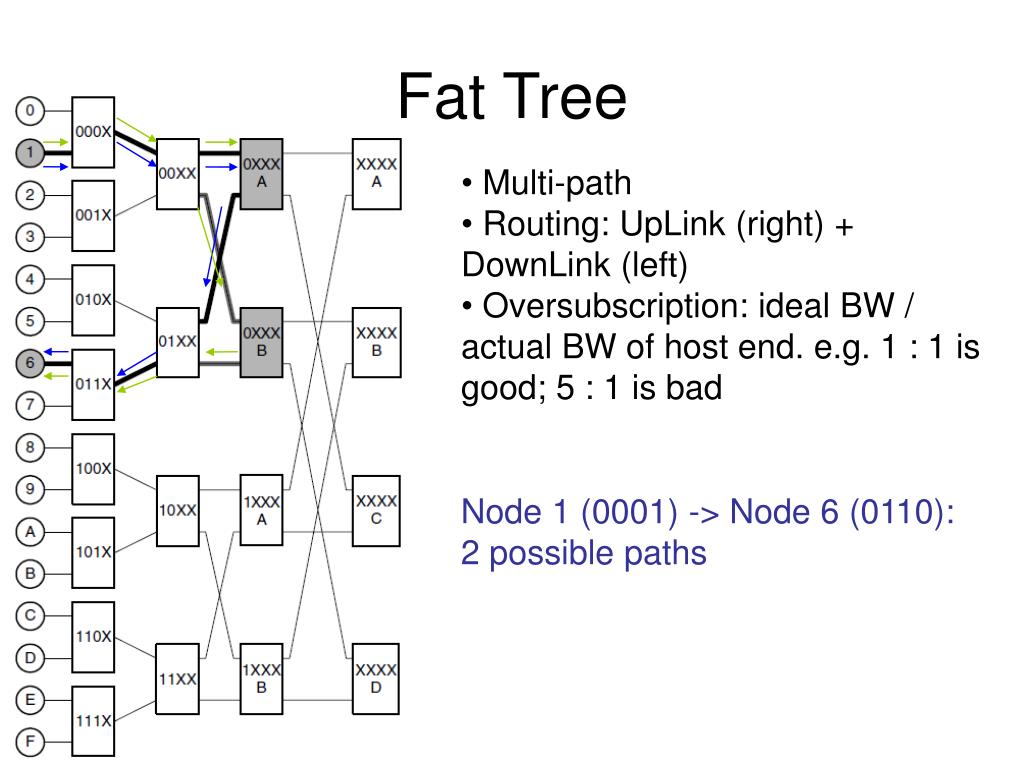

  9. Fat Tree • Multi-path • Routing: UpLink (right) + DownLink (left) • Oversubscription: ideal BW / actual BW of host end. e.g. 1 : 1 is good; 5 : 1 is bad Node 1 (0001) -> Node 6 (0110): 2 possible paths

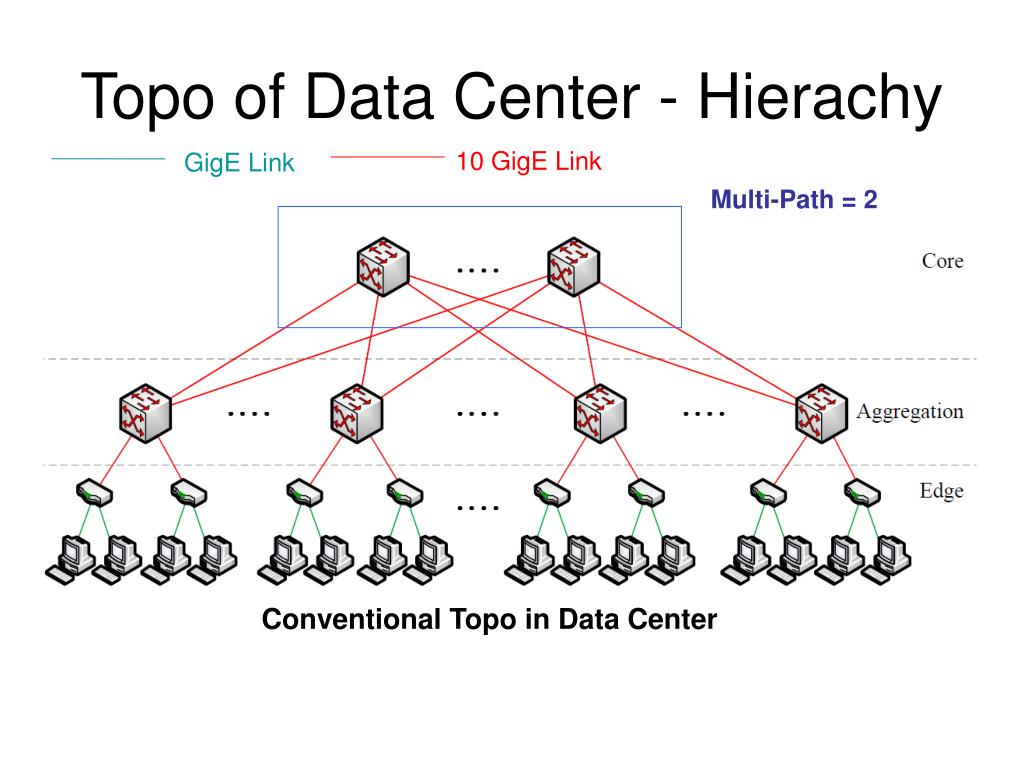

  10. Topo of Data Center - Hierachy 10 GigE Link GigE Link Multi-Path = 2 Conventional Topo in Data Center

  11. Topo of Data Center - Fat Tree (k/2)^2 k-port k/2 k-port k/2 k-port k pods Fat Tree Topo (k = 4) # of hosts: k^3 / 4, e.g., k = 48 => # of hosts: 27648 (Scalability!!!)

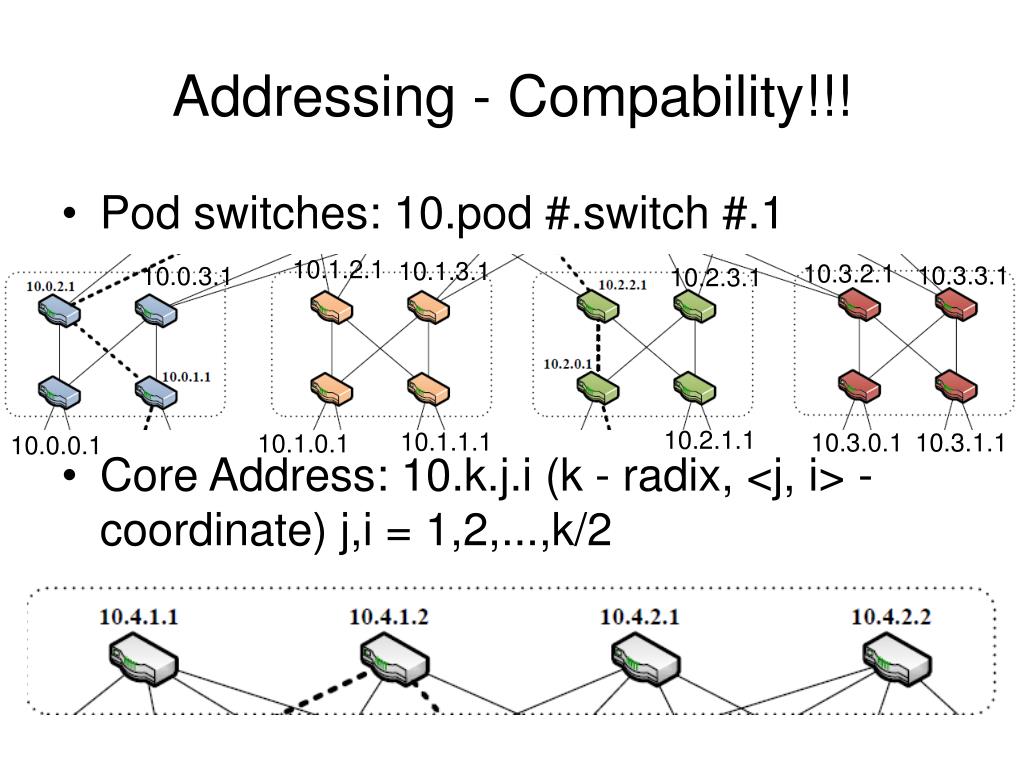

  12. Addressing - Compability!!! • Pod switches: 10.pod #.switch #.1 • Core Address: 10.k.j.i (k - radix, <j, i> - coordinate) j,i = 1,2,...,k/2 10.1.2.1 10.1.3.1 10.3.2.1 10.3.3.1 10.0.3.1 10.2.3.1 10.2.1.1 10.1.1.1 10.3.0.1 10.3.1.1 10.1.0.1 10.0.0.1

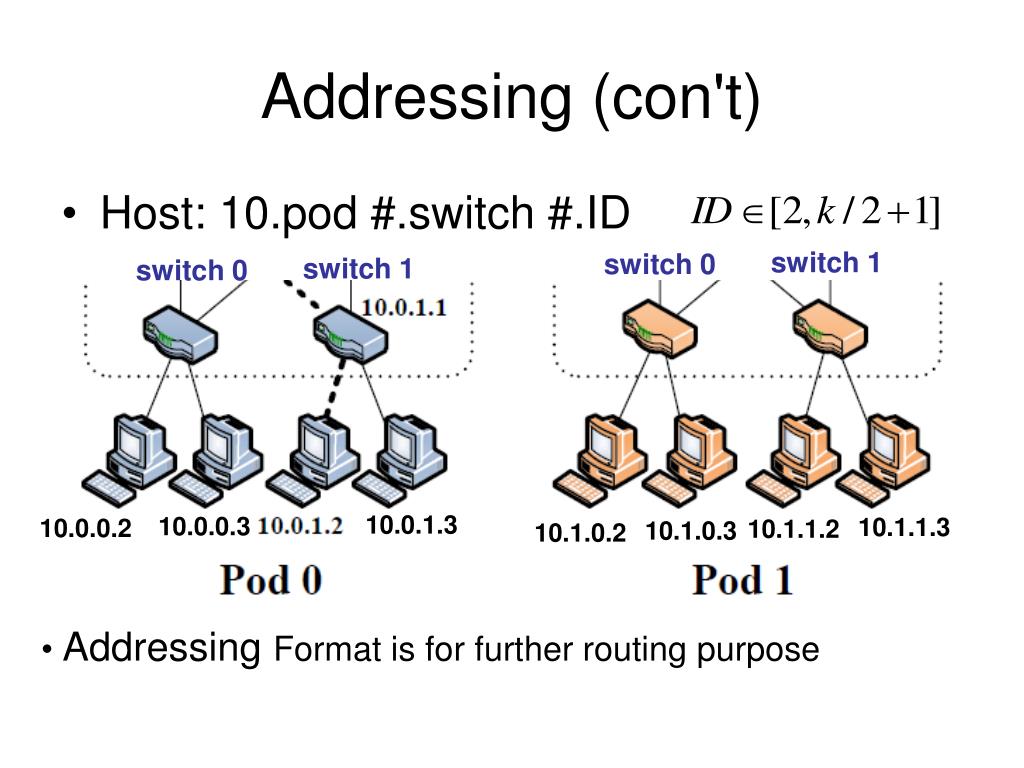

  13. Addressing (con't) • Host: 10.pod #.switch #.ID switch 1 switch 0 switch 1 switch 0 10.0.1.3 10.0.0.3 10.1.1.3 10.0.0.2 10.1.1.2 10.1.0.3 10.1.0.2 • Addressing Format is for further routing purpose

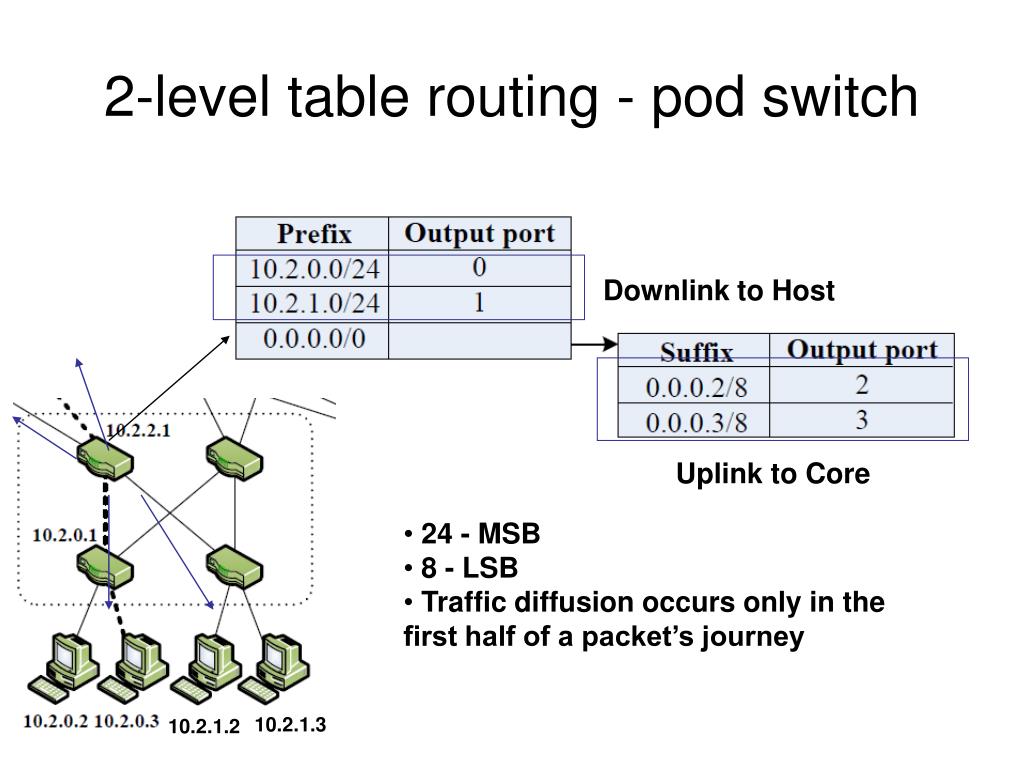

  14. 2-level table routing - pod switch Downlink to Host Uplink to Core • 24 - MSB • 8 - LSB • Traffic diffusion occurs only in the first half of a packet’s journey 10.2.1.3 10.2.1.2

  15. Generation of routing table • addPrefix • (pod switch, pre, port) • addSuffix • (pod switch, suf, port)

  16. 1-level table routing - core switch

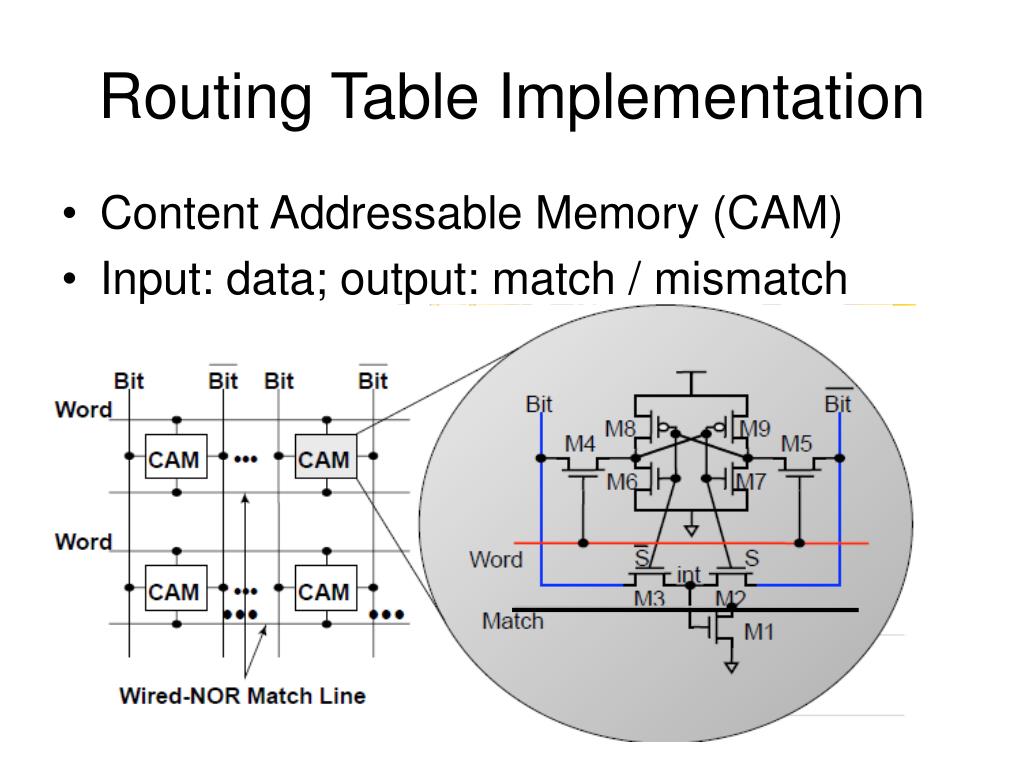

  17. Routing Table Implementation • Content Addressable Memory (CAM) • Input: data; output: match / mismatch

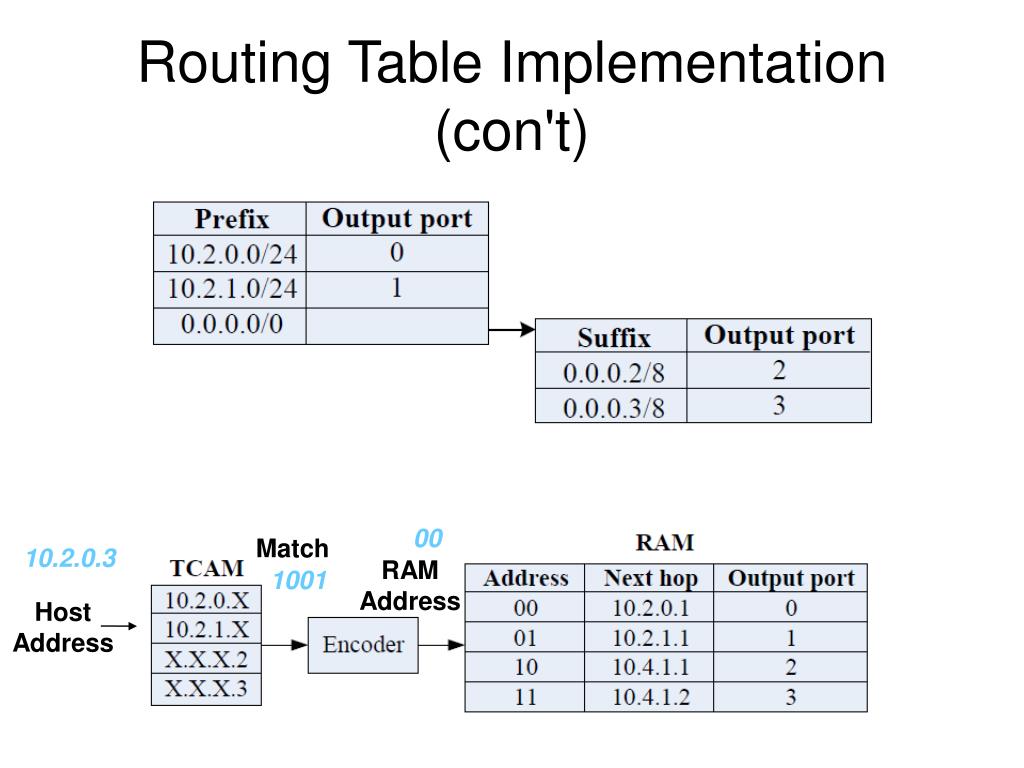

  18. Routing Table Implementation (con't) 00 Match 10.2.0.3 RAM Address 1001 Host Address

  19. Routing Example: Hierarchical Tree 10.0.1.2 -> 10.2.0.3 10.0.1.3 -> 10.2.0.2

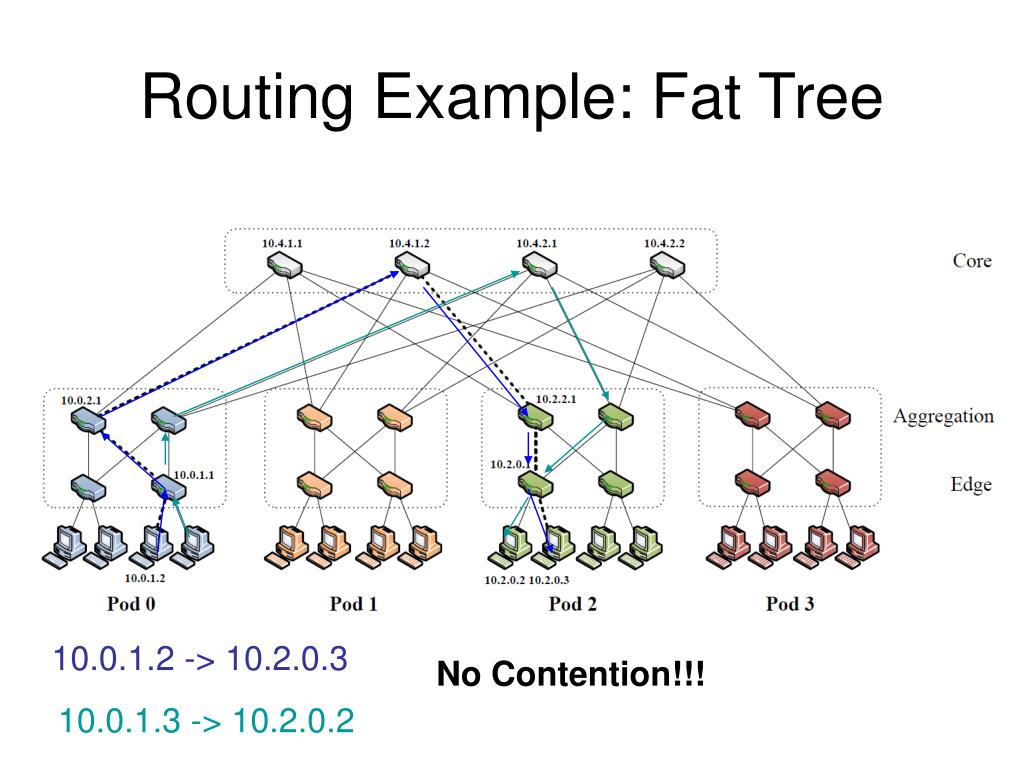

  20. Routing Example: Fat Tree 10.0.1.2 -> 10.2.0.3 No Contention!!! 10.0.1.3 -> 10.2.0.2

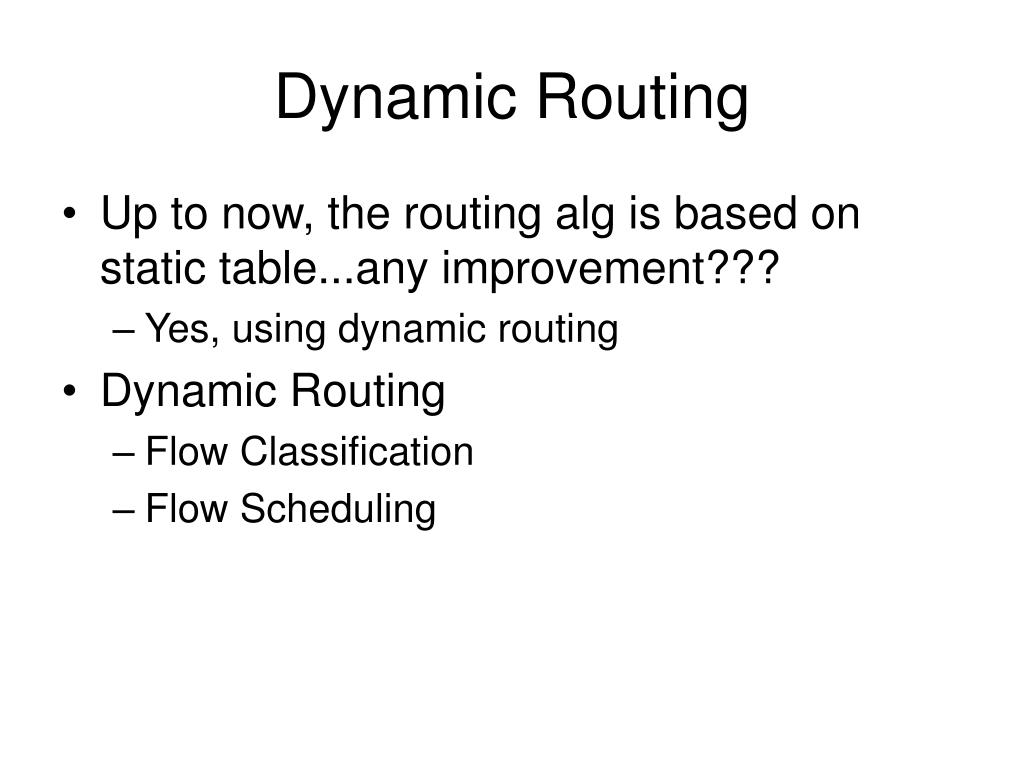

  21. Dynamic Routing • Up to now, the routing alg is based on static table...any improvement??? • Yes, using dynamic routing • Dynamic Routing • Flow Classification • Flow Scheduling

  22. Dynamic Routing 1 - Flow Classification • Flow: A set of packets that must have its order preserved • Dynamic Routing • Avoid reordering for same flow • Reassign a minimum number of flows to minimize the disparity between ports • Flow Classifier: identify flows

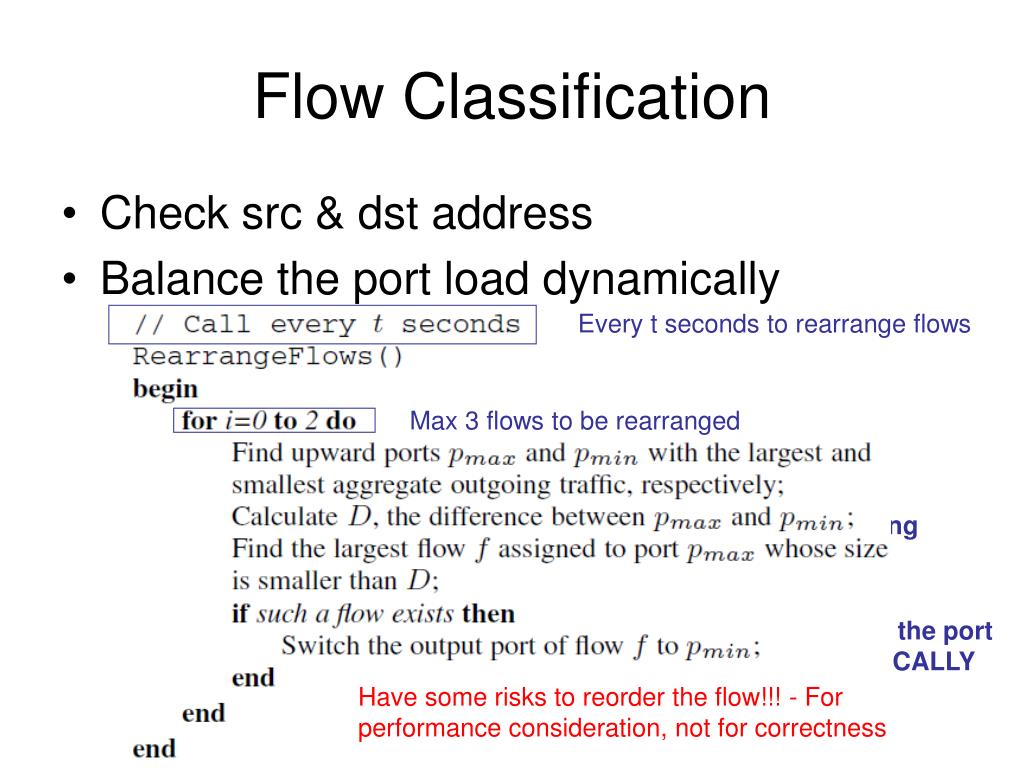

  23. Flow Classification • Check src & dst address • Balance the port load dynamically Every t seconds to rearrange flows Max 3 flows to be rearranged Avoid reordering Balance the port DYNAMICALLY Have some risks to reorder the flow!!! - For performance consideration, not for correctness

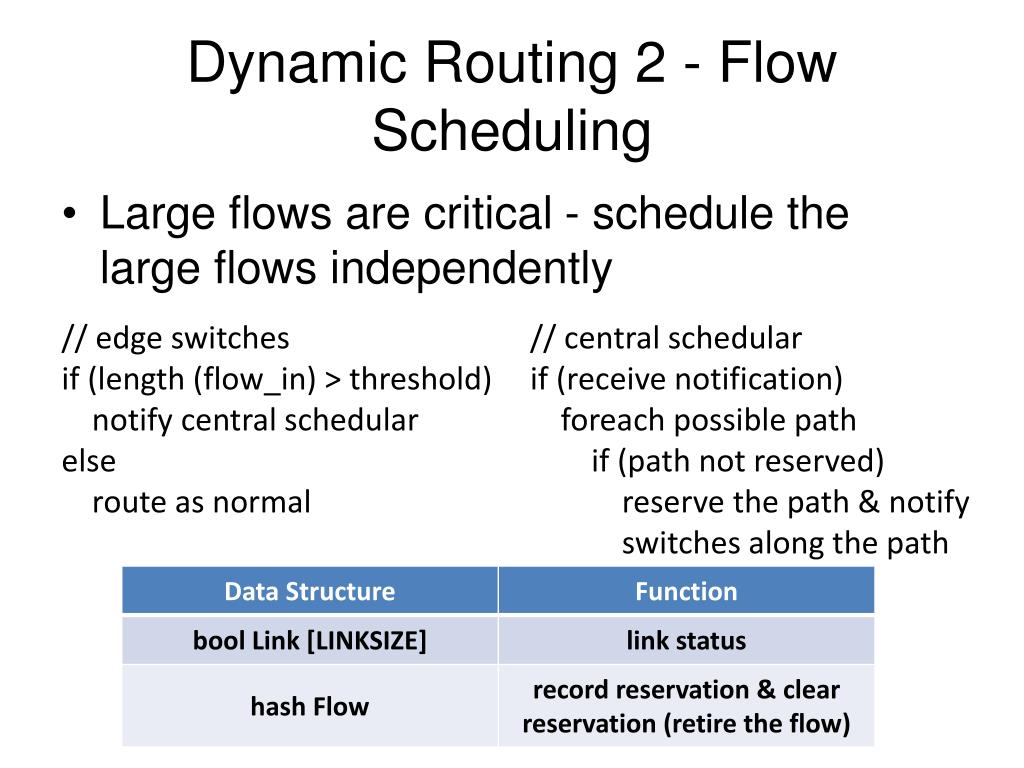

  24. Dynamic Routing 2 - Flow Scheduling • Large flows are critical - schedule the large flows independently // edge switches if (length (flow_in) > threshold) notify central schedular else route as normal // central schedular if (receive notification) foreach possible path if (path not reserved) reserve the path & notify switches along the path

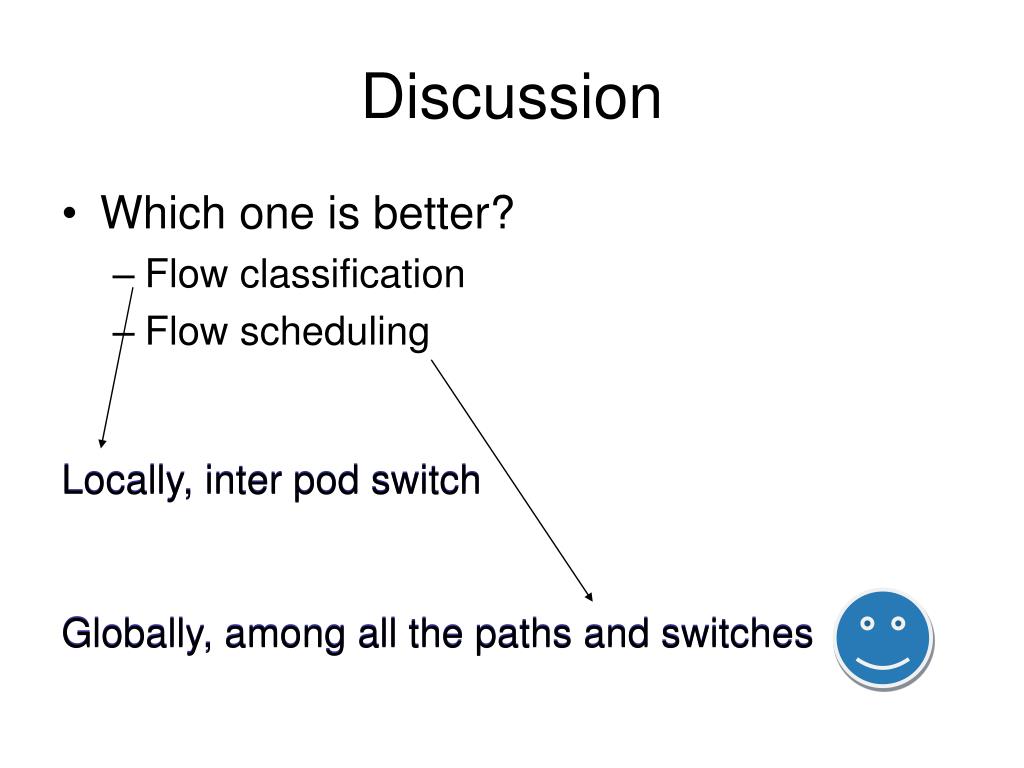

  25. Discussion • Which one is better? • Flow classification • Flow scheduling Locally, inter pod switch Locally, inter pod switch Globally, among all the paths and switches Globally, among all the paths and switches

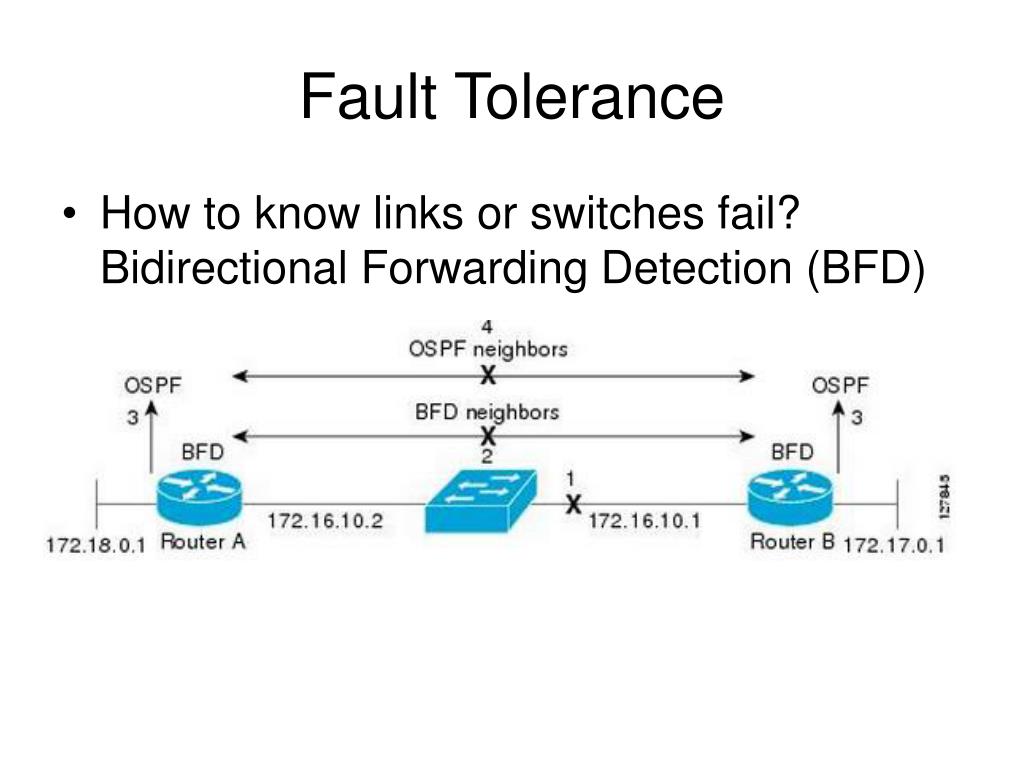

  26. Fault Tolerance • How to know links or switches fail?Bidirectional Forwarding Detection (BFD)

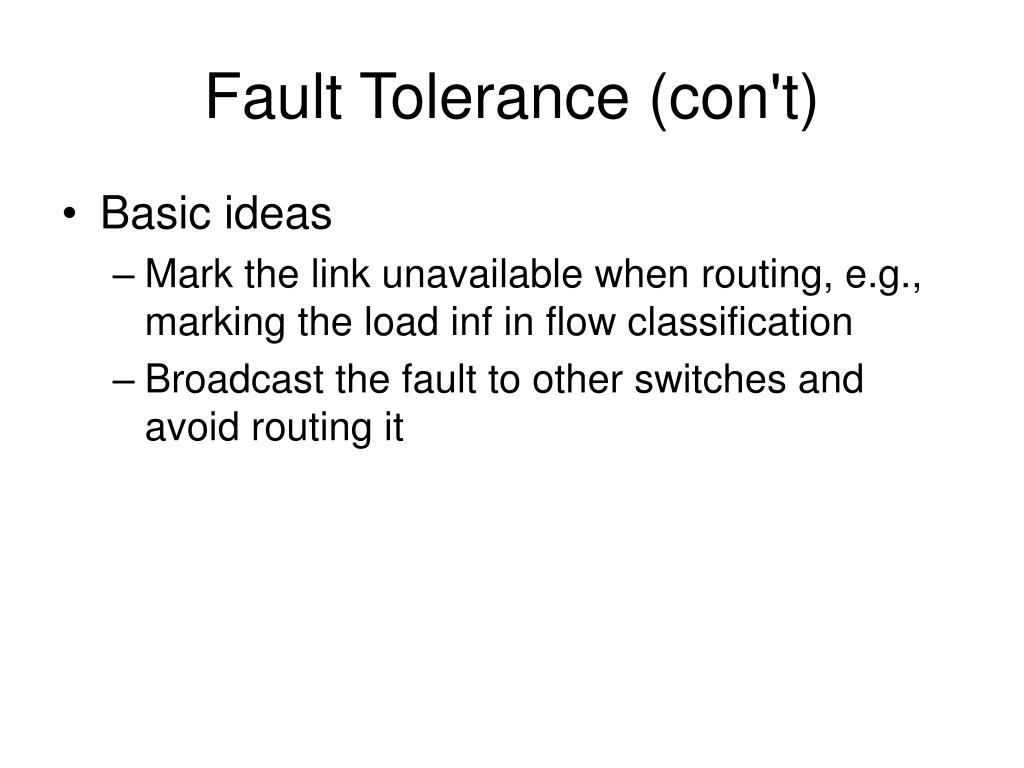

  27. Fault Tolerance (con't) • Basic ideas • Mark the link unavailable when routing, e.g., marking the load inf in flow classification • Broadcast the fault to other switches and avoid routing it

  28. Cost 1:1

  29. Power & Heat 10 GigE Power and Heat for different switches

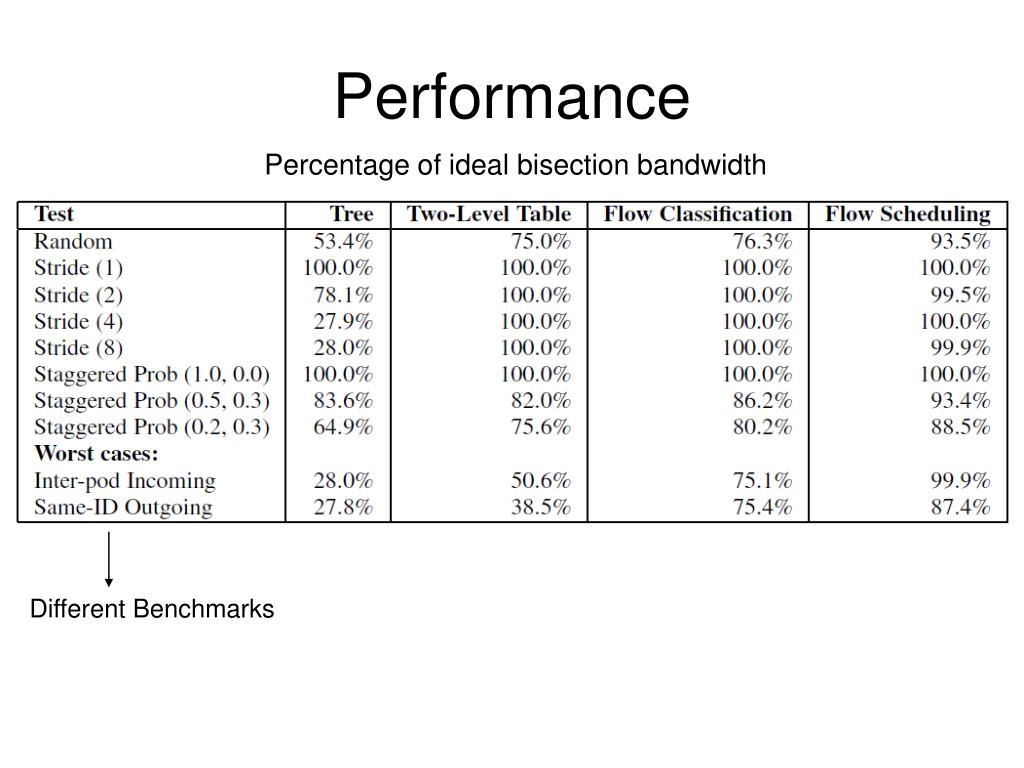

  30. Performance Percentage of ideal bisection bandwidth Different Benchmarks

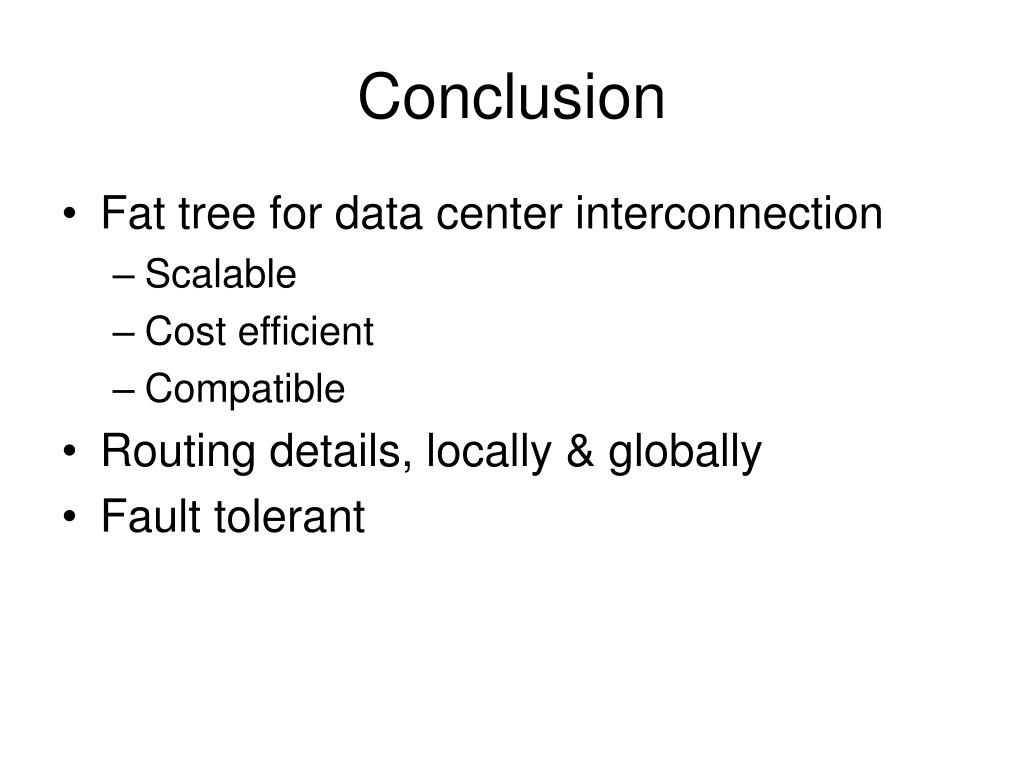

  31. Conclusion • Fat tree for data center interconnection • Scalable • Cost efficient • Compatible • Routing details, locally & globally • Fault tolerant
